N4X-316 24X16X8 W/Hdl
$1,277.87In stock
Buy now
Type 4X Stainless Steel Wallmount Enclosure · HWSSHK Series
Brand: Hammond Manufacturing · 73 part numbers
Hinge Door with Handle
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Provides high level of protection where equipment is hosed down or otherwise be exposed to wet conditions where corrosion is a serious problem.
- ■Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required.
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12
- ■Complies with NEMA 3R, 4, 4X, 12 and 13 IEC 60529, IP 66
from $47.82
73 of 73 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HWSSHK Series part number
Filter 60 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
60 of 60 part numbers · 60 priced online
N4X-304 24X16X8 W/Hdl
$1,064.98In stock
Buy now
N4X-316 24X20X10 W/Hdl
$1,503.12In stock
Buy now
N4X-304 24X20X10 W/Hdl
$1,241.31In stock
Buy now
N4X-316 24X20X6 W/Hdl
$1,311.74In stock
Buy now
N4X-304 24X20X6 W/Hdl
$1,080.57In stock
Buy now
N4X-316 24X20X8 W/Hdl
$1,324.10In stock
Buy now
N4X-304 24X20X8 W/Hdl
$1,160.14Backorder
Buy now
N4X-316 24X24X12 W/Hdl
$1,758.47In stock
Buy now
N4X-304 24X24X12 W/Hdl
$1,448.82In stock
Buy now
N4X-316 24X24X6 W/Hdl
$1,438.07In stock
Buy now
N4X-304 24X24X6 W/Hdl
$1,198.31Backorder
Buy now
N4X-316 24X24X8 W/Hdl
$1,454.74In stock
Buy now
N4X-304 24X24X8 W/Hdl
$1,276.25Backorder
Buy now
N4X-316 24X30X8 W/Hdl
$1,757.94Backorder
Buy now
N4X-304 24X30X8 W/Hdl
$1,597.74In stock
Buy now
N4X-316 30X20X8 W/Hdl
$1,596.12In stock
Buy now
N4X-304 30X20X8 W/Hdl
$1,331.09In stock
Buy now
N4X-316 30X24X10 W/Hdl
$1,863.31In stock
Buy now
N4X-304 30X24X10 W/Hdl
$1,627.85In stock
Buy now
N4X-316 30X24X12 W/Hdl
$1,871.38In stock
Buy now
N4X-304 30X24X12 W/Hdl
$1,641.28In stock
Buy now
N4X-316 30X24X16 W/Hdl
$2,303.06Backorder
Buy now
N4X-304 30X24X16 W/Hdl
$1,917.60Backorder
Buy now
N4X-316 30X24X8 W/Hdl
$1,652.57Backorder
Buy now
N4X-304 30X24X8 W/Hdl
$1,448.82Backorder
Buy now
N4X-316 30X30X8 W/Hdl
$2,003.62In stock
Buy now
N4X-304 30X30X8 W/Hdl
$1,652.57In stock
Buy now
N4X-316 36X24X10 W/Hdl
$2,125.65In stock
Buy now
N4X-304 36X24X10 W/Hdl
$1,769.23Backorder
Buy now
N4X-316 36X24X8 W/Hdl
$1,960.62In stock
Buy now
N4X-304 36X24X8 W/Hdl
$1,619.77In stock
Buy now
N4X-316 36X30X10 W/Hdl
$2,393.38In stock
Buy now
N4X-304 36X30X10 W/Hdl
$1,971.90Backorder
Buy now
N4X-316 36X30X12 W/Hdl
$2,538.53Backorder
Buy now
N4X-304 36X30X12 W/Hdl
$2,092.86In stock
Buy now
N4X-316 36X30X16 W/Hdl
$2,915.92In stock
Buy now
N4X-304 36X30X16 W/Hdl
$2,396.60In stock
Buy now
N4X-316 36X30X8 W/Hdl
$2,146.09In stock
Buy now
N4X-304 36X30X8 W/Hdl
$1,855.79In stock
Buy now
N4X-316 36X36X12 W/Hdl
$2,851.41Backorder
Buy now
N4X-304 36X36X12 W/Hdl
$2,350.91Backorder
Buy now
N4X-316 42X30X10 W/Hdl
$2,539.06In stock
Buy now
N4X-304 42X30X10 W/Hdl
$2,154.68In stock
Buy now
N4X-316 42X36X12 W/Hdl
$3,289.01Backorder
Buy now
N4X-304 42X36X12 W/Hdl
$2,606.26In stock
Buy now
N4X-316 42X36X8 W/Hdl
$2,851.95In stock
Buy now
N4X-304 42X36X8 W/Hdl
$2,684.22In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 304 S.S. · Part No. | 316 S.S. · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|

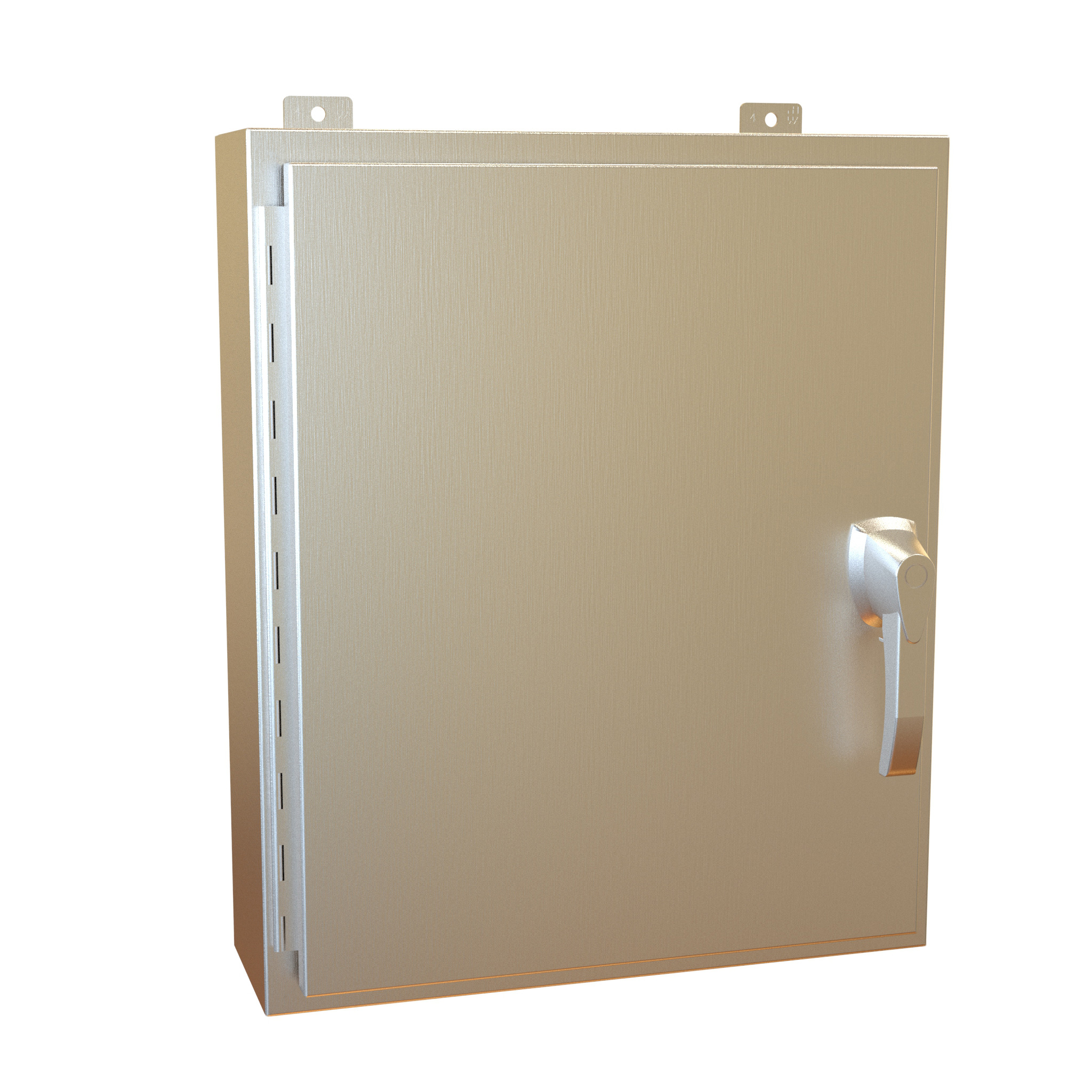

| HW24206SSHK | HW24206S16HK | 24.00 | 20.00 | 6.00 | 18P2117 | 21.00 | 17.00 | $1,080.57In stockHW24206SSHK | Buy now |

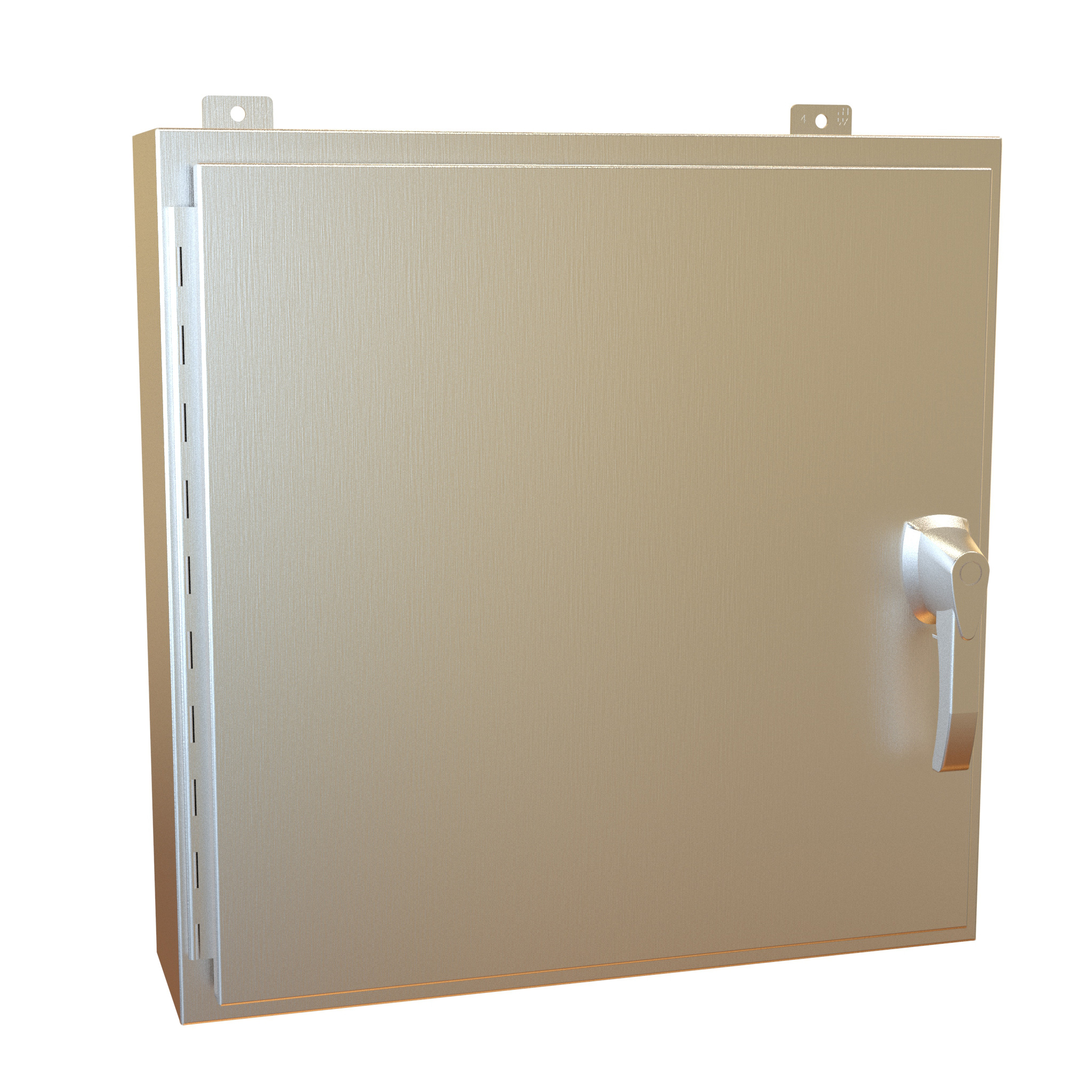

| HW24246SSHK | HW24246S16HK | 24.00 | 24.00 | 6.00 | 18P2121 | 21.00 | 21.00 | $1,198.31BackorderHW24246SSHK | Buy now |

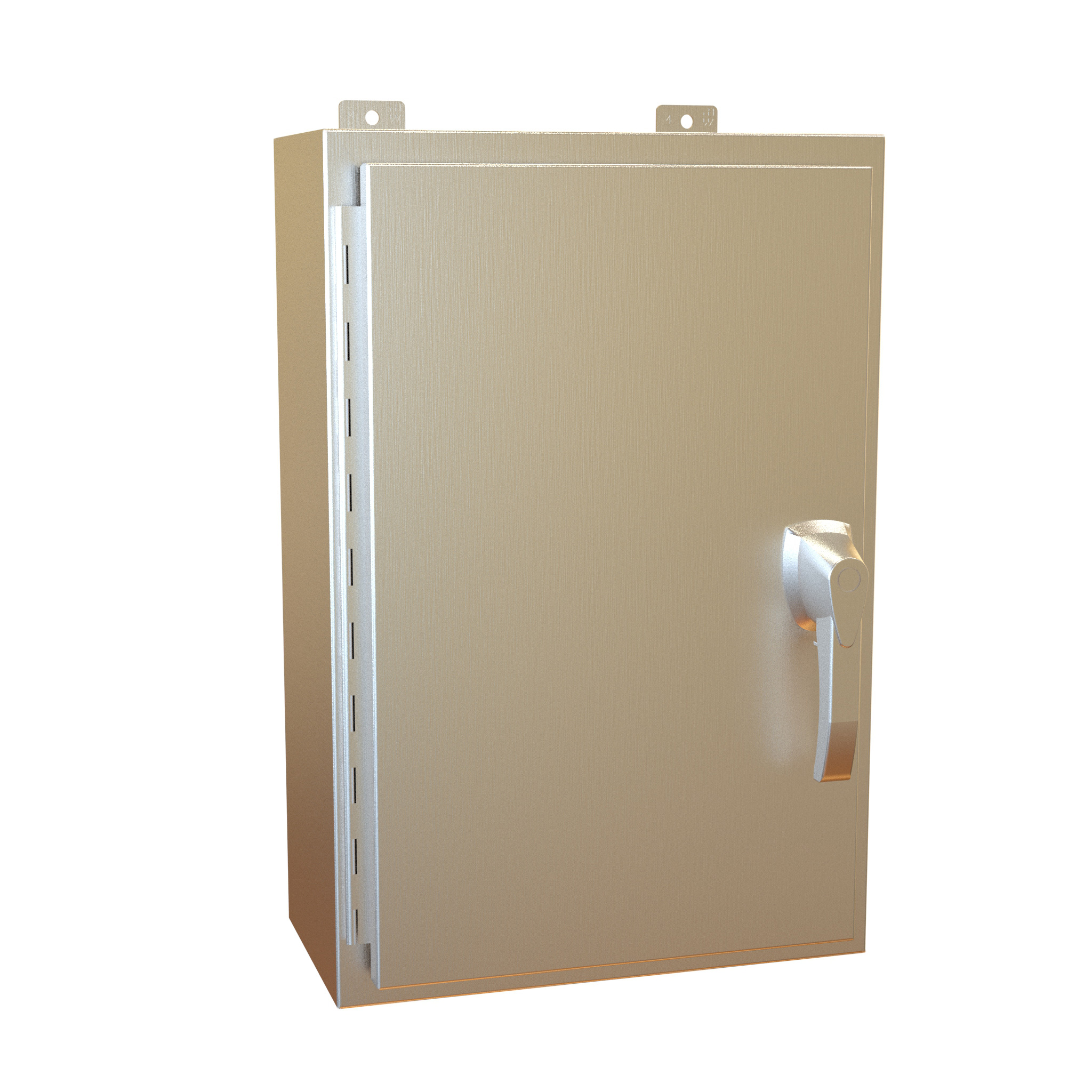

| HW24168SSHK | HW24168S16HK | 24.00 | 16.00 | 8.00 | 18P2113 | 21.00 | 13.00 | $1,064.98In stockHW24168SSHK | Buy now |

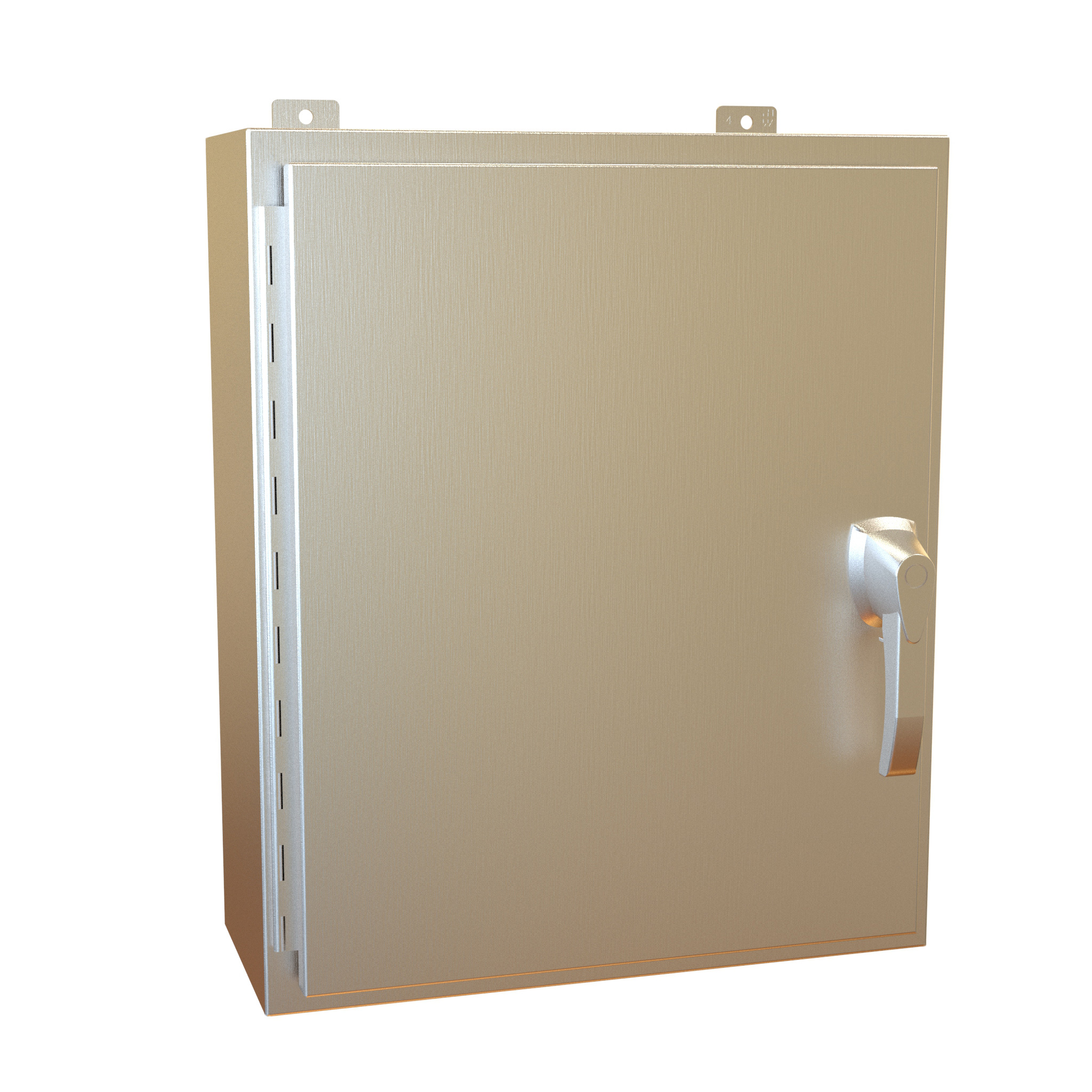

| HW24208SSHK | HW24208S16HK | 24.00 | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 | $1,160.14BackorderHW24208SSHK | Buy now |

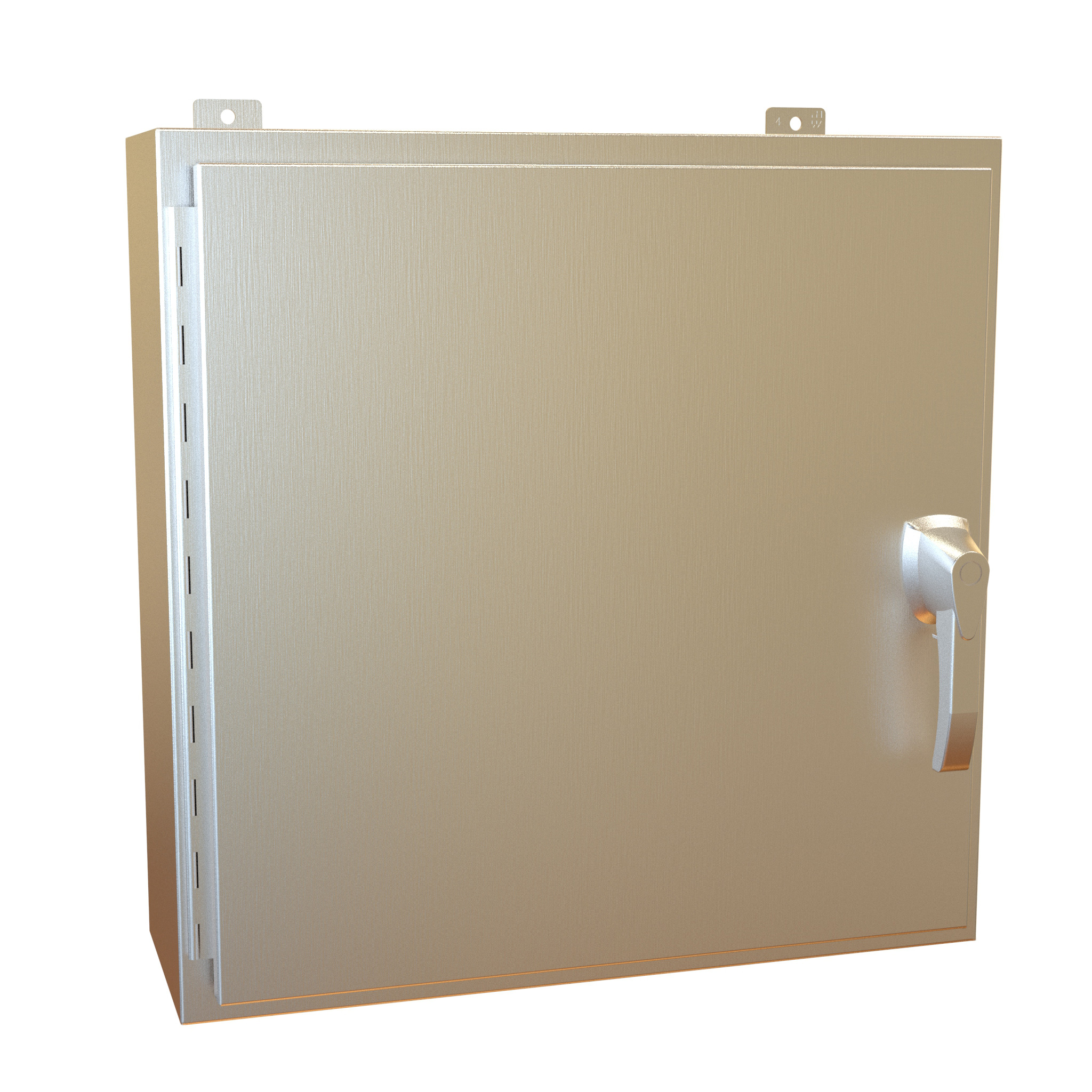

| HW24248SSHK | HW24248S16HK | 24.00 | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 | $1,276.25BackorderHW24248SSHK | Buy now |

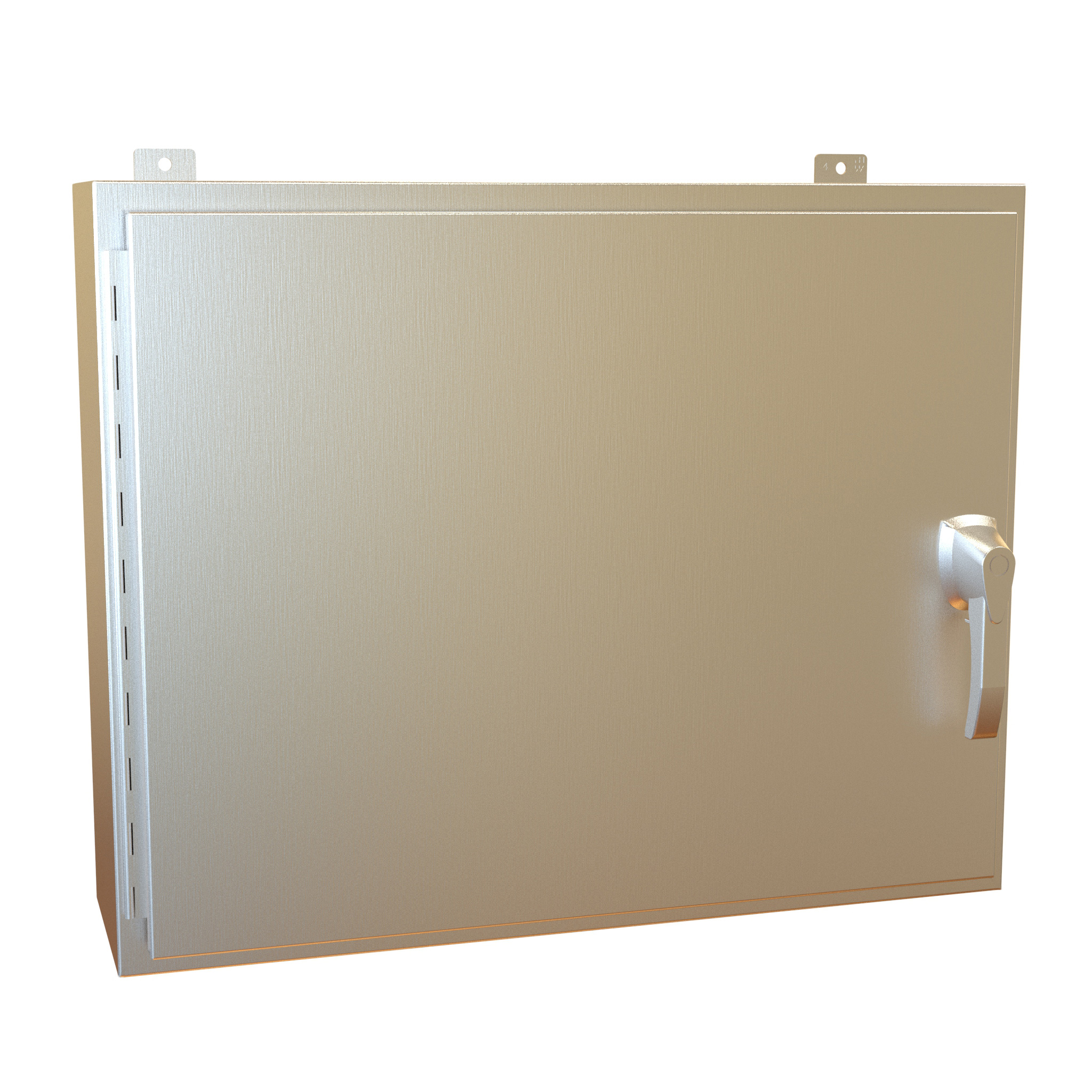

| HW24308SSHK | HW24308S16HK | 24.00 | 30.00 | 8.00 | 18P2721 | 21.00 | 27.00 | $1,597.74In stockHW24308SSHK | Buy now |

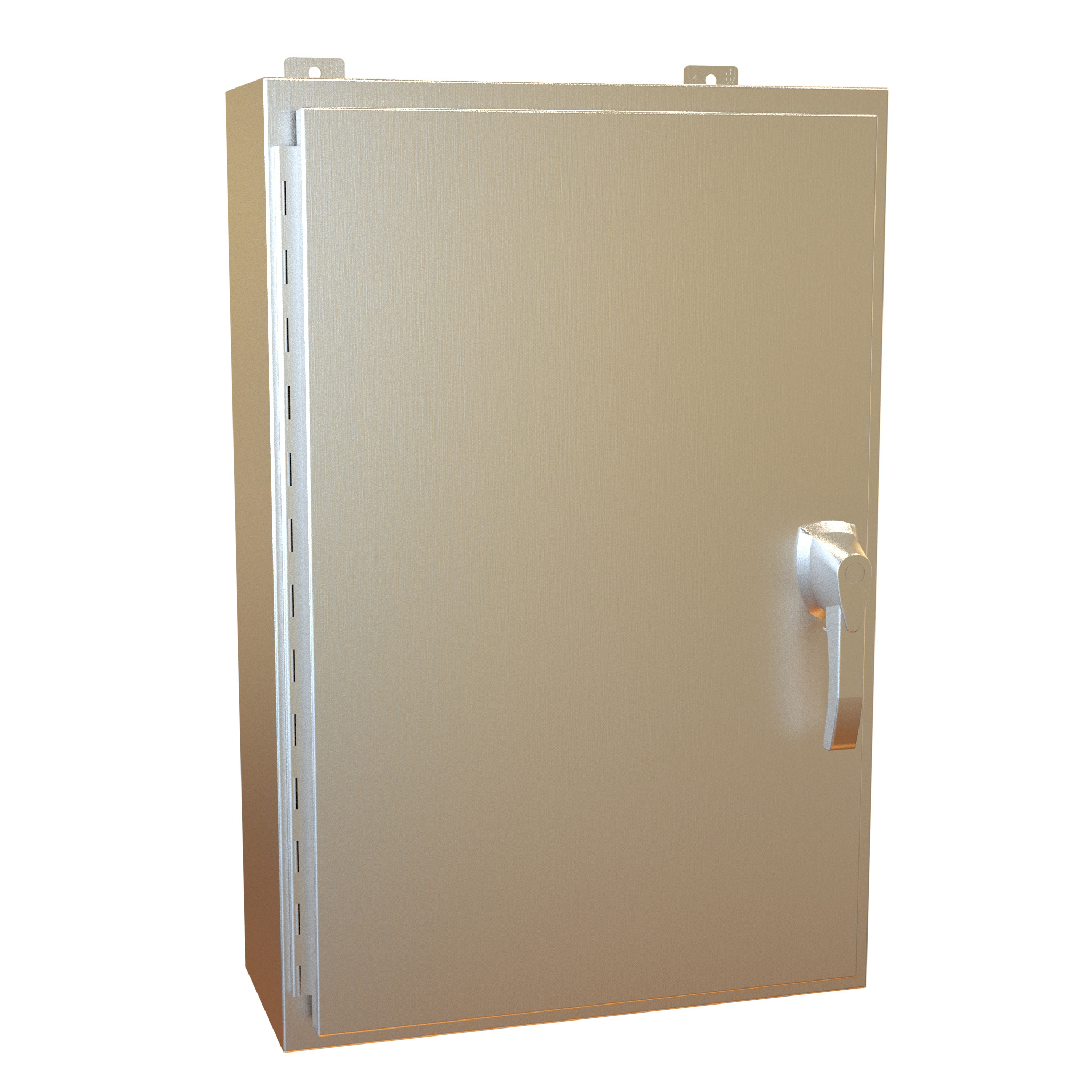

| HW30208SSHK | HW30208S16HK | 30.00 | 20.00 | 8.00 | 18P2717 | 27.00 | 17.00 | $1,331.09In stockHW30208SSHK | Buy now |

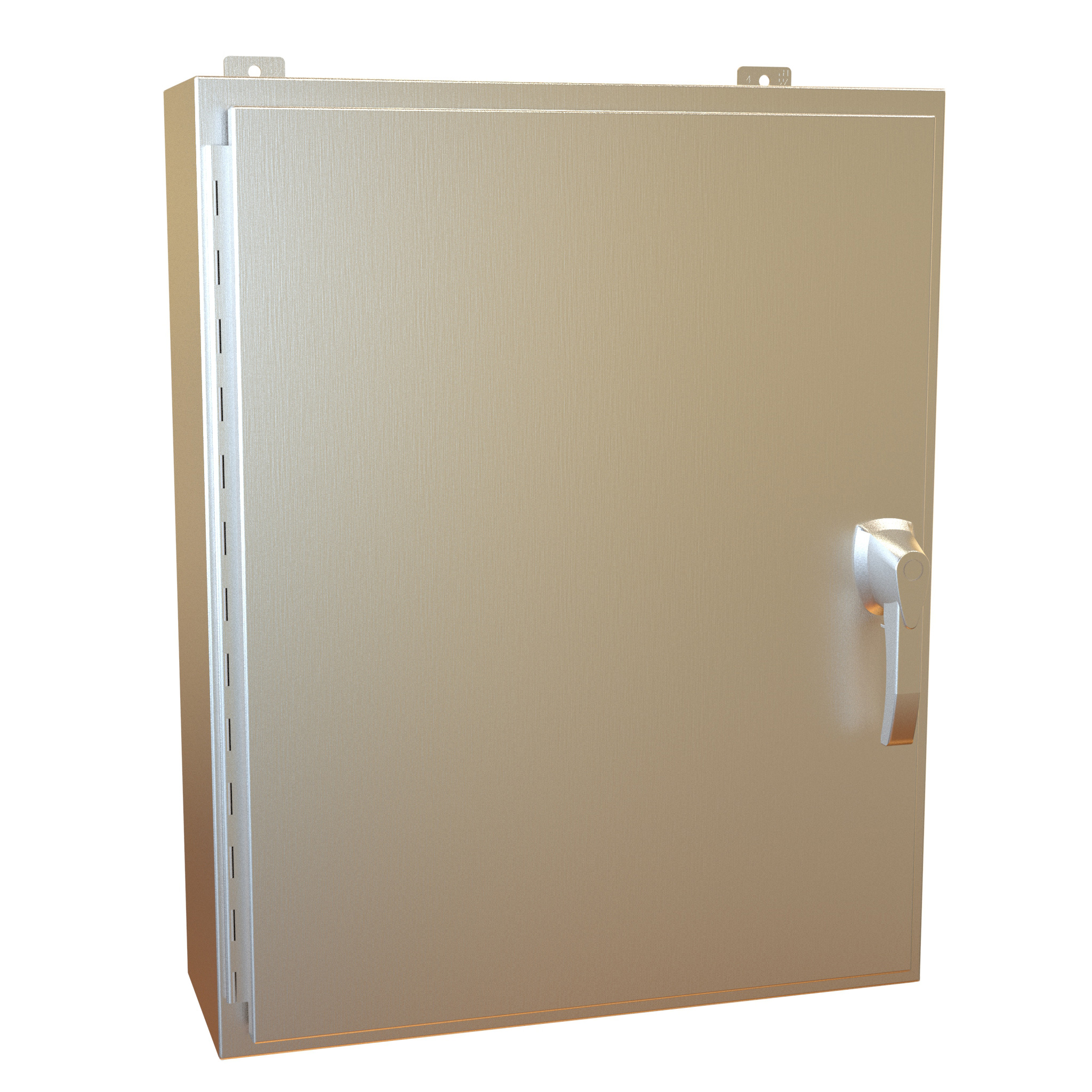

| HW30248SSHK | HW30248S16HK | 30.00 | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 | $1,448.82BackorderHW30248SSHK | Buy now |

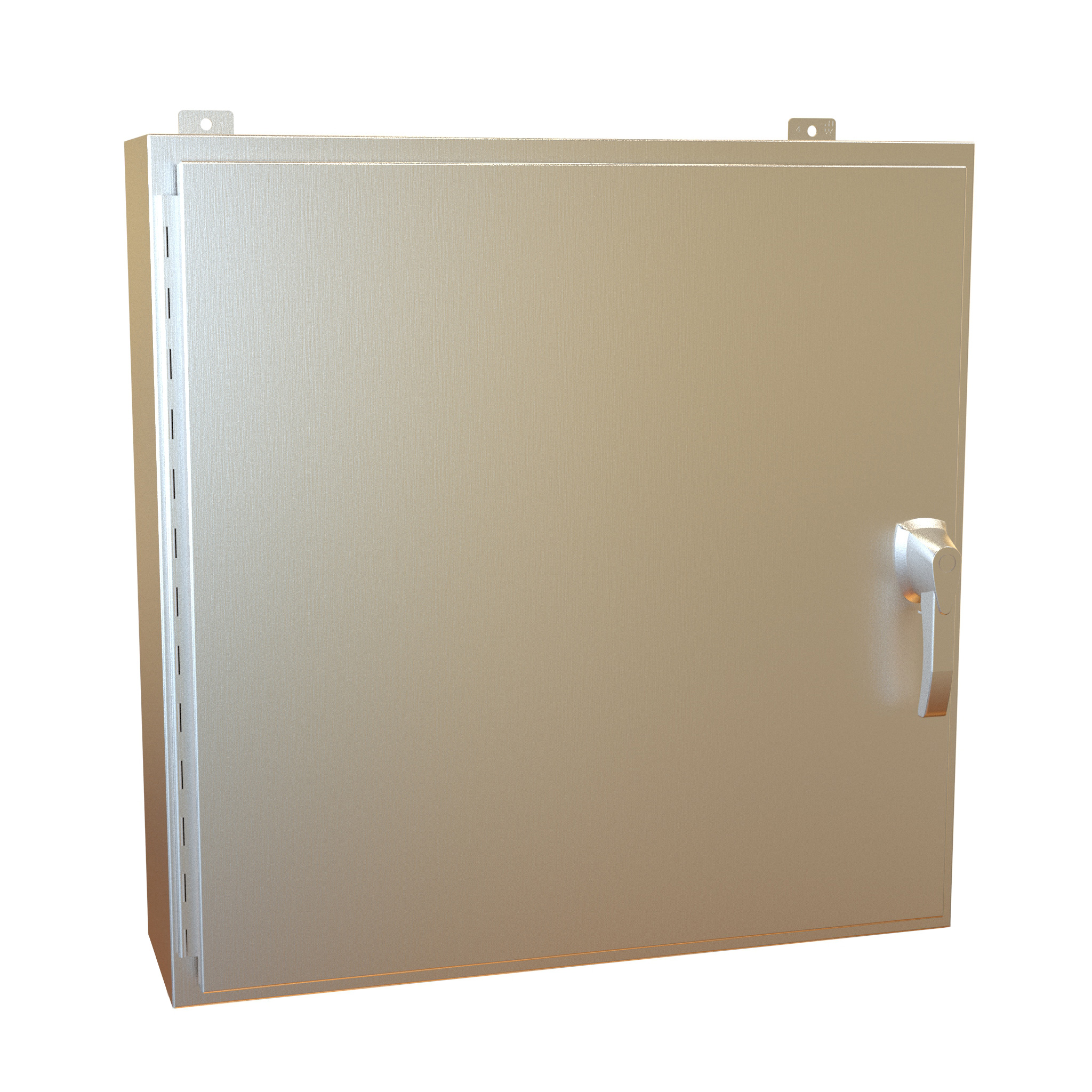

| HW30308SSHK | HW30308S16HK | 30.00 | 30.00 | 8.00 | 18P2727 | 27.00 | 27.00 | $1,652.57In stockHW30308SSHK | Buy now |

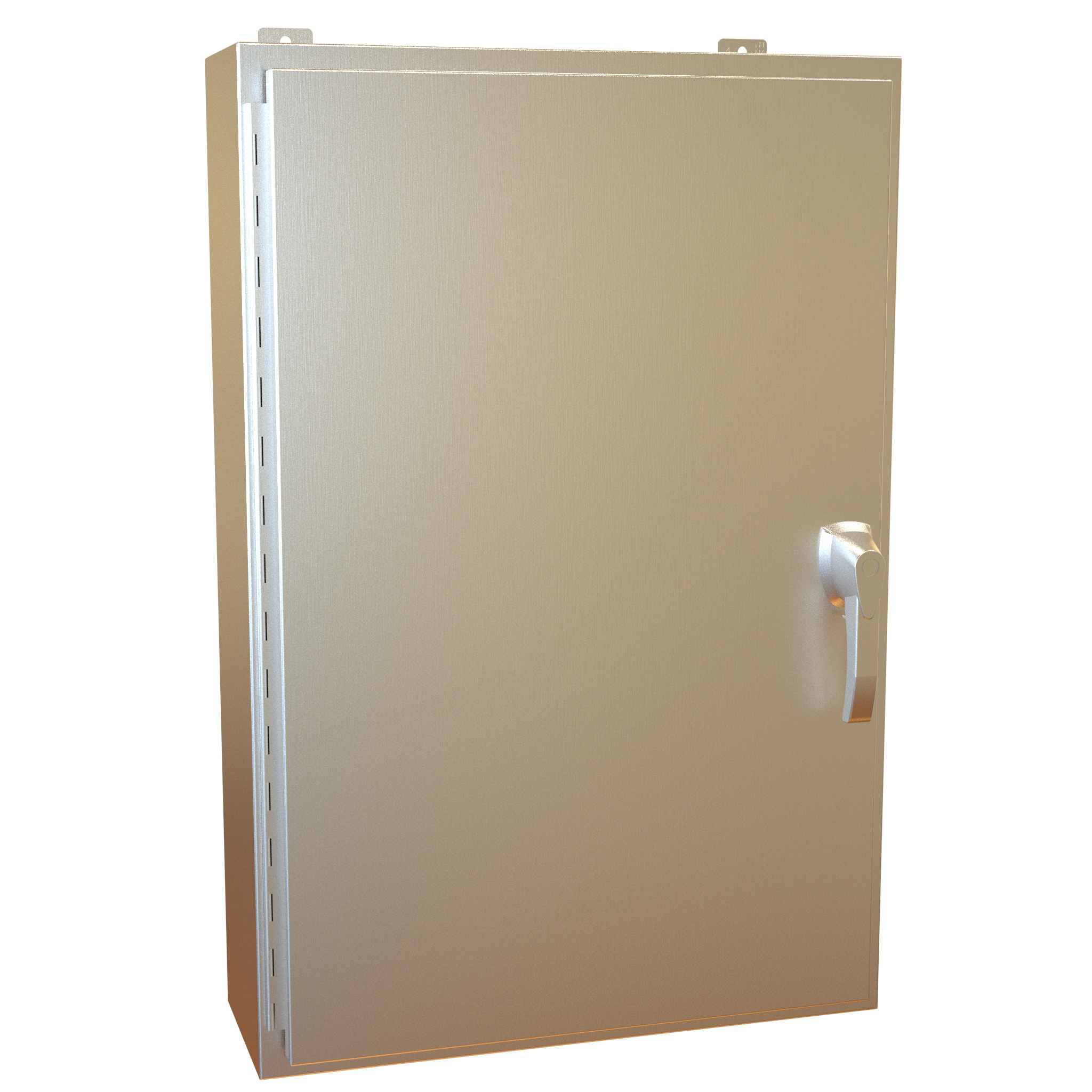

| HW36248SSHK | HW36248S16HK | 36.00 | 24.00 | 8.00 | 18P3321 | 33.00 | 21.00 | $1,619.77In stockHW36248SSHK | Buy now |

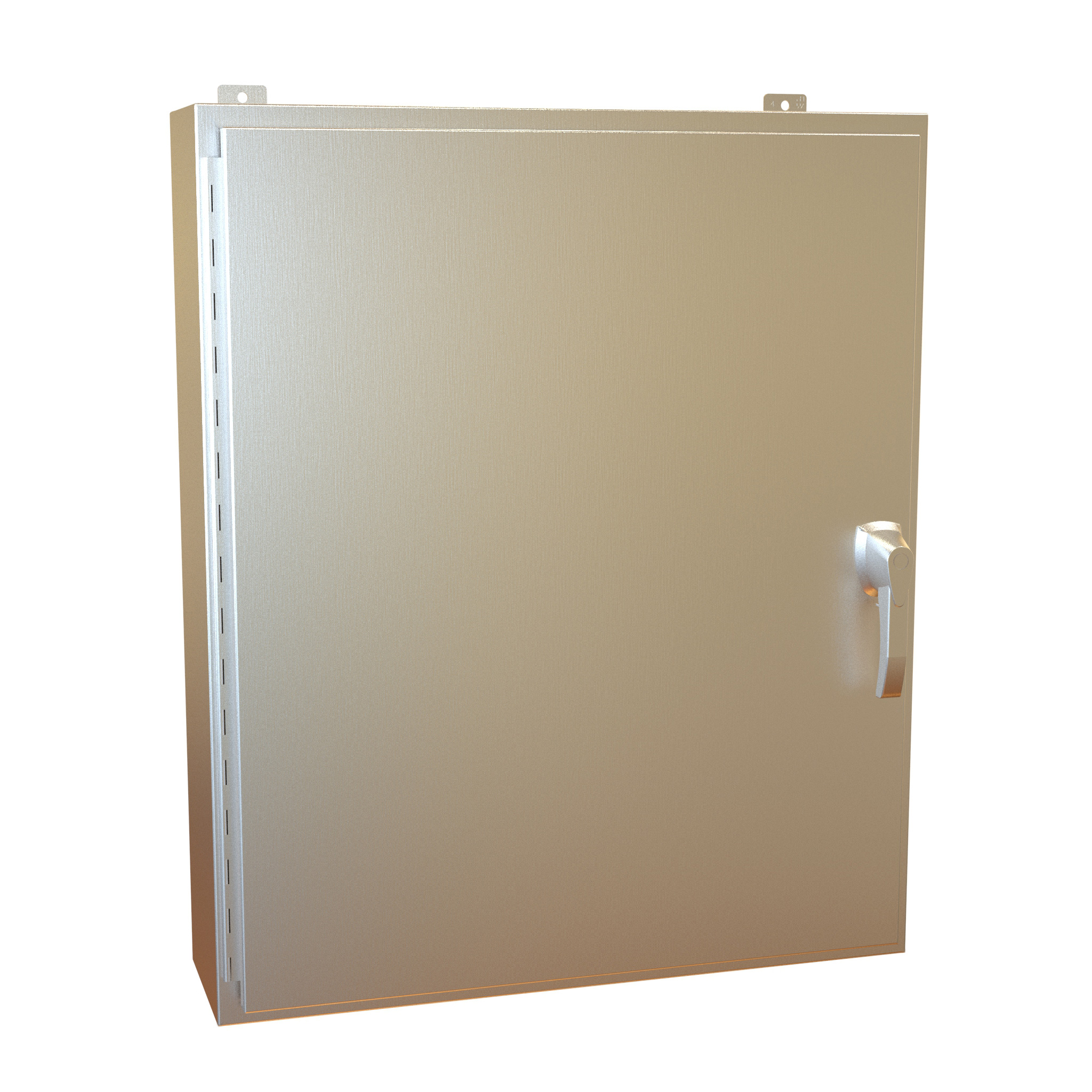

| HW36308SSHK | HW36308S16HK | 36.00 | 30.00 | 8.00 | 18P3327 | 33.00 | 27.00 | $1,855.79In stockHW36308SSHK | Buy now |

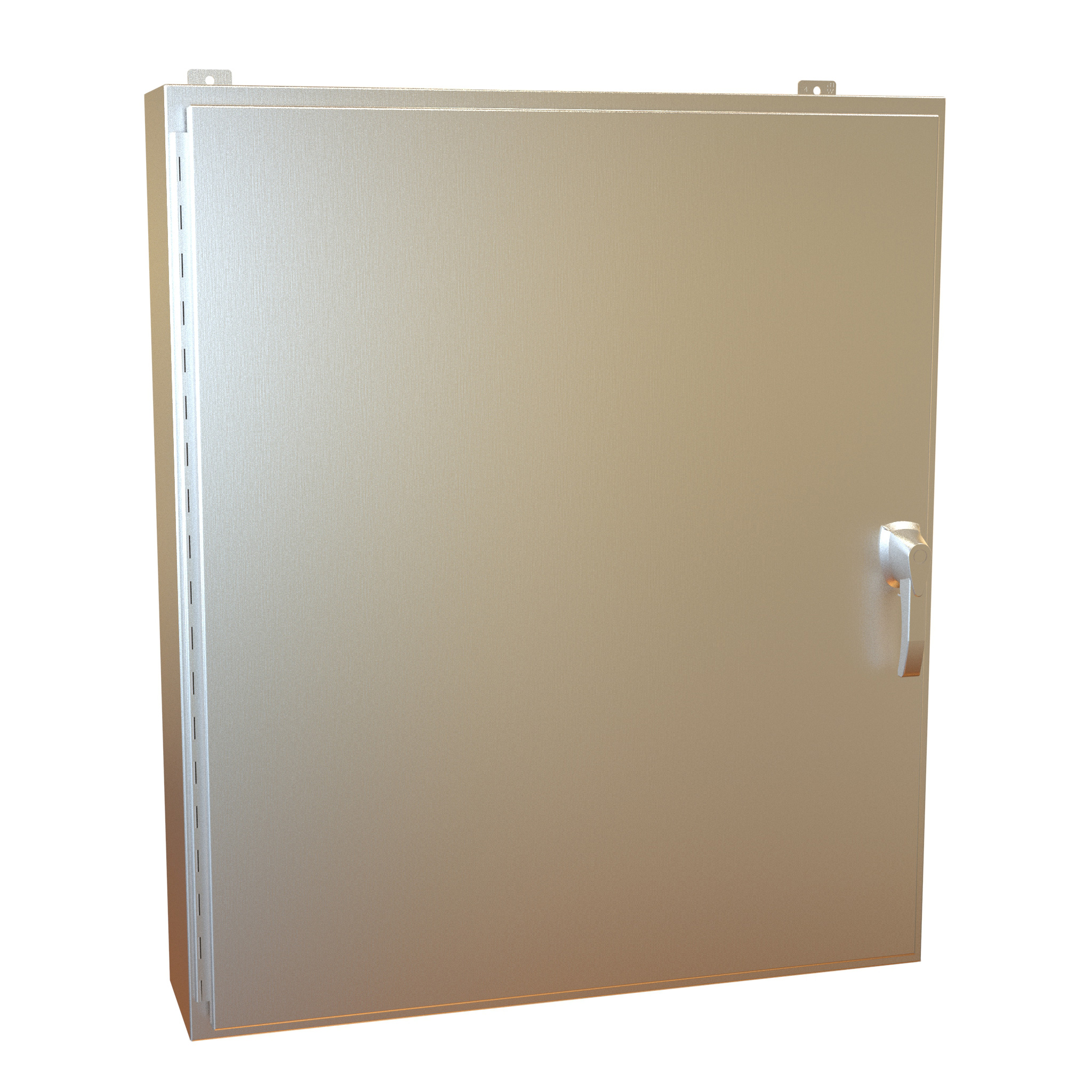

| HW42368SSHK | HW42368S16HK | 42.00 | 36.00 | 8.00 | 18P3933 | 39.00 | 33.00 | $2,684.22In stockHW42368SSHK | Buy now |
| HW48368SSHK | HW48368S16HK | 48.00 | 36.00 | 8.00 | 18P4533 | 45.00 | 33.00 | $2,561.65In stockHW48368SSHK | Buy now |

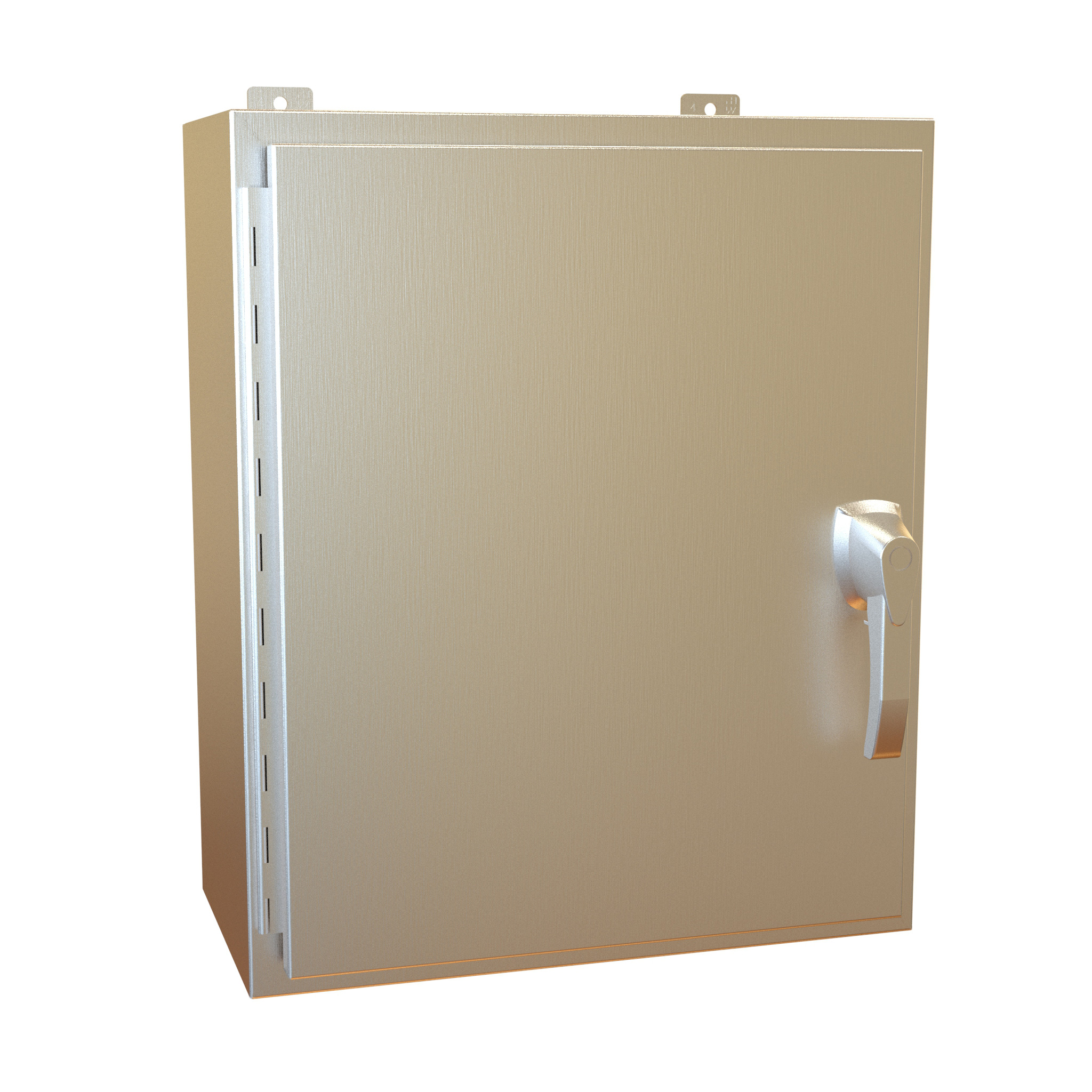

| HW242010SSHK | HW242010S16HK | 24.00 | 20.00 | 10.00 | 18P2117 | 21.00 | 17.00 | $1,241.31In stockHW242010SSHK | Buy now |

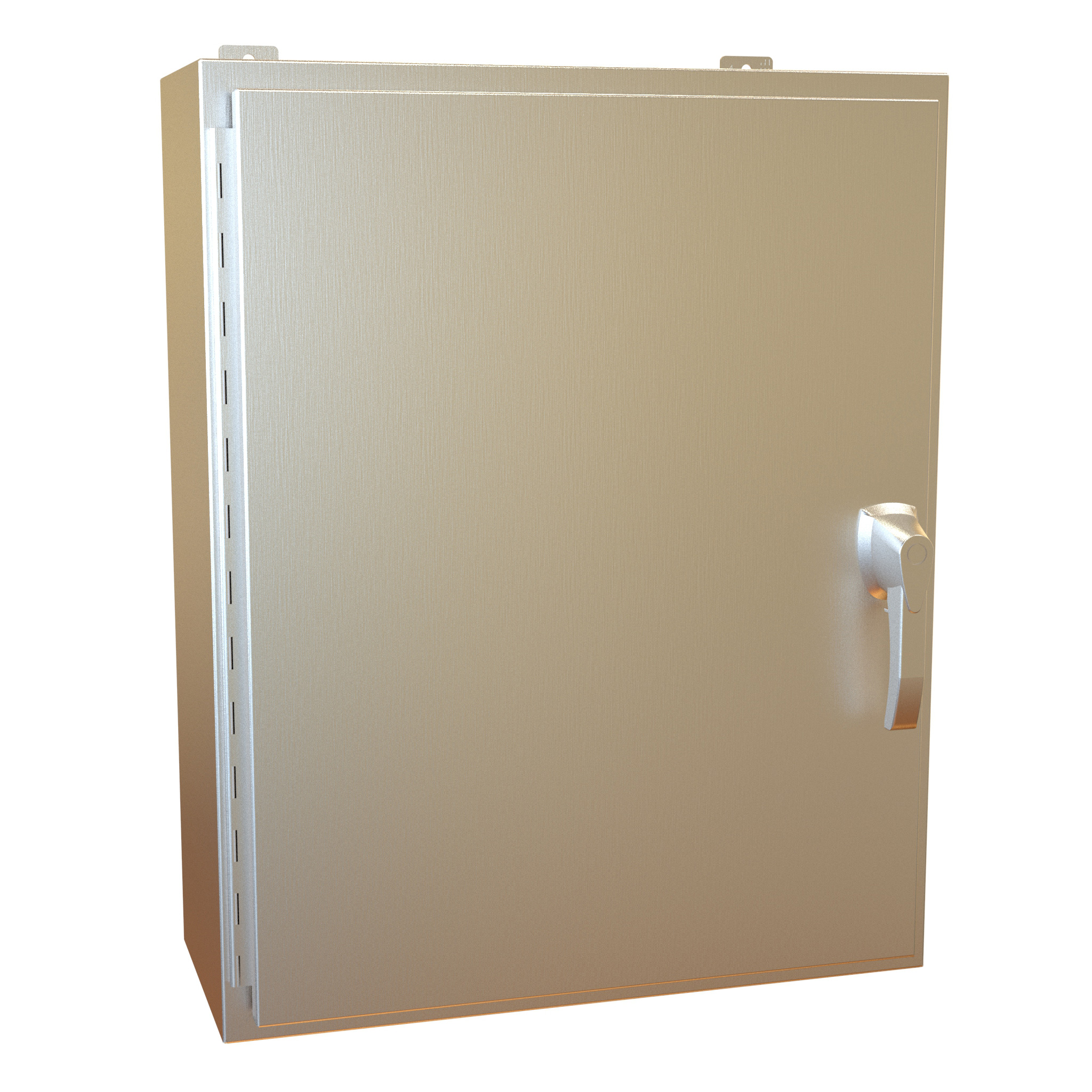

| HW302410SSHK | HW302410S16HK | 30.00 | 24.00 | 10.00 | 18P2721 | 27.00 | 21.00 | $1,627.85In stockHW302410SSHK | Buy now |

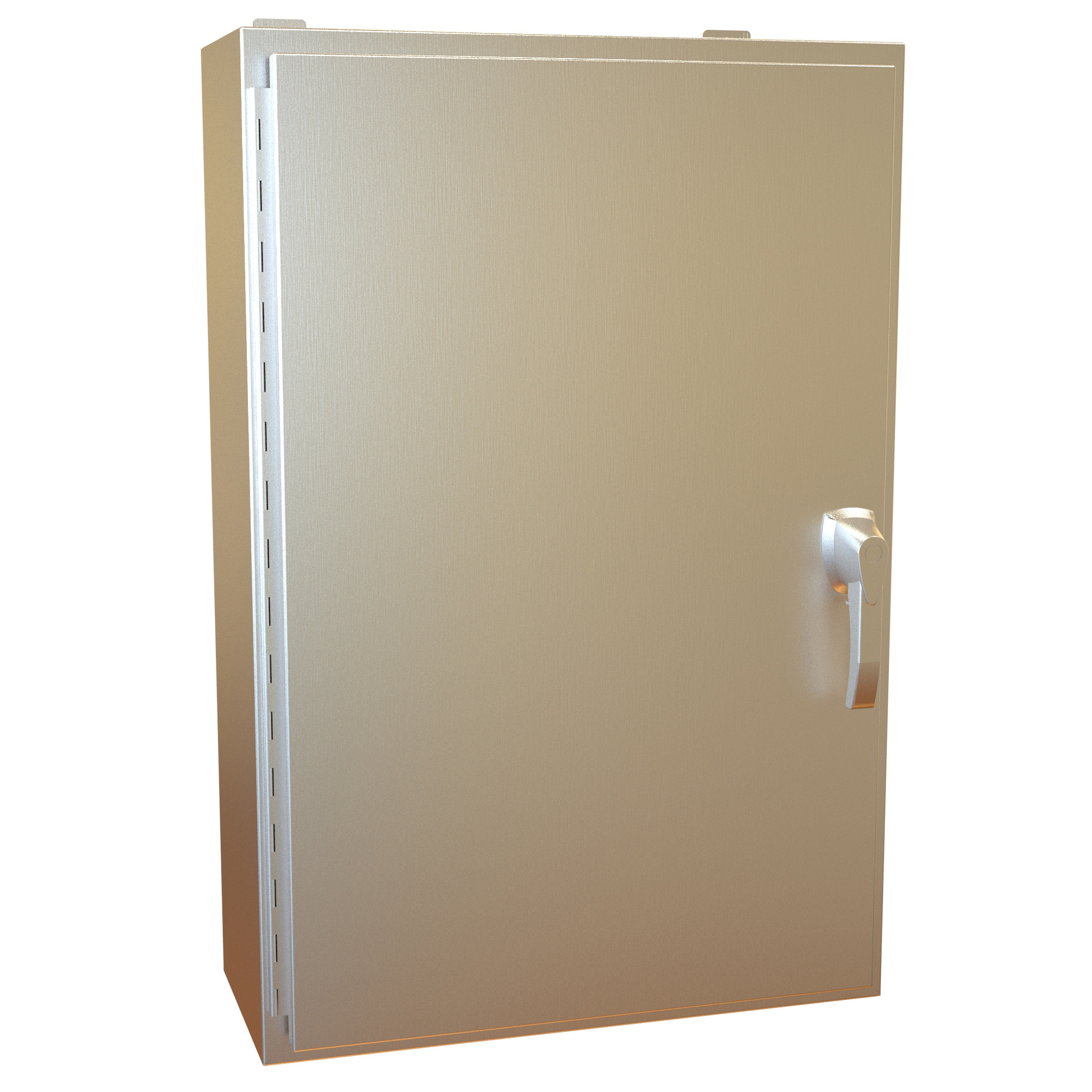

| HW362410SSHK | HW362410S16HK | 36.00 | 24.00 | 10.00 | 18P3321 | 33.00 | 21.00 | $1,769.23BackorderHW362410SSHK | Buy now |
| HW363010SSHK | HW363010S16HK | 36.00 | 30.00 | 10.00 | 18P3327 | 33.00 | 27.00 | $1,971.90BackorderHW363010SSHK | Buy now |

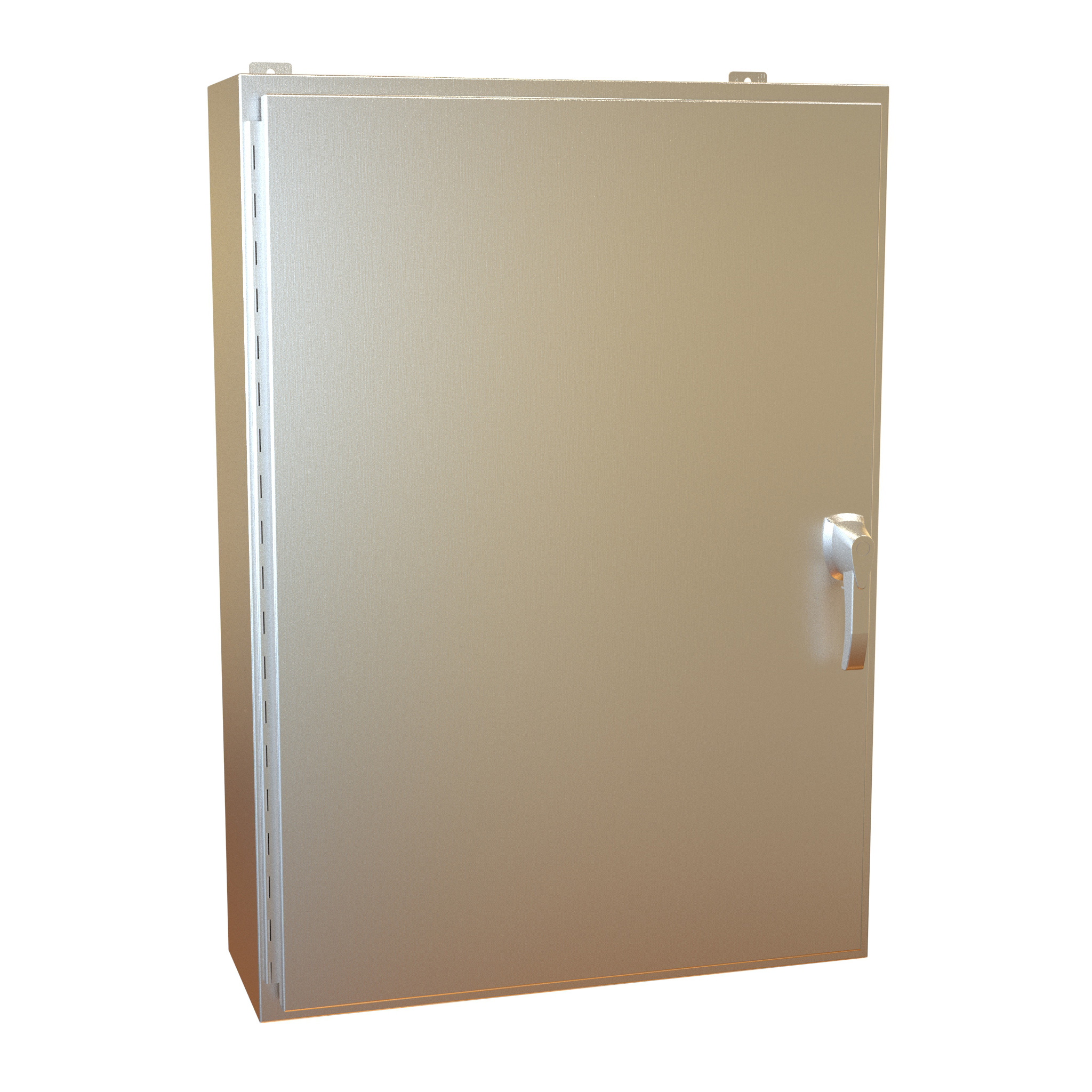

| HW423010SSHK | HW423010S16HK | 42.00 | 30.00 | 10.00 | 18P3927 | 39.00 | 27.00 | $2,154.68In stockHW423010SSHK | Buy now |
| HW483610SSHK | HW483610S16HK | 48.00 | 36.00 | 10.00 | 18P4533 | 45.00 | 33.00 | $2,855.71In stockHW483610SSHK | Buy now |

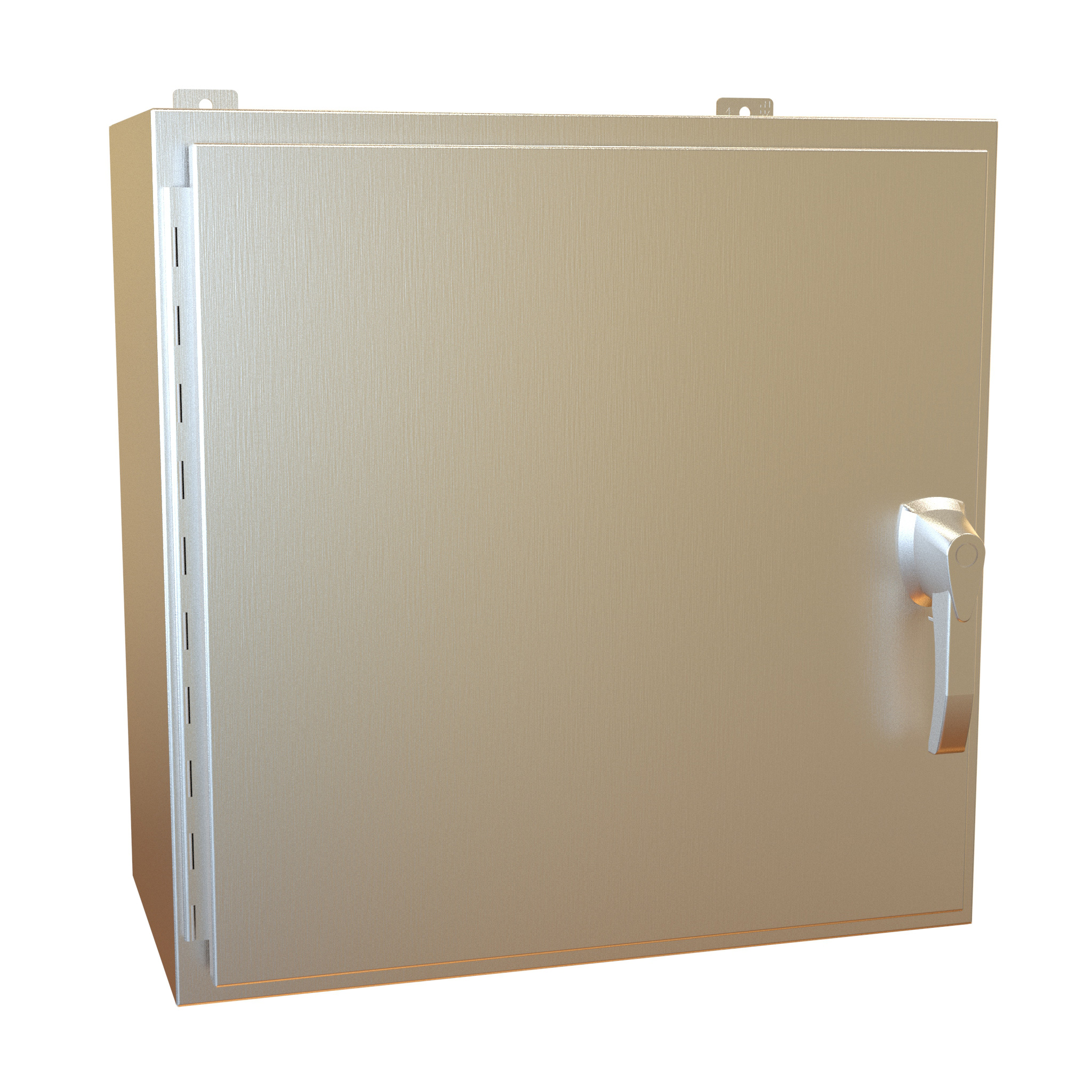

| HW242412SSHK | HW242412S16HK | 24.00 | 24.00 | 12.00 | 18P2121 | 21.00 | 21.00 | $1,448.82In stockHW242412SSHK | Buy now |

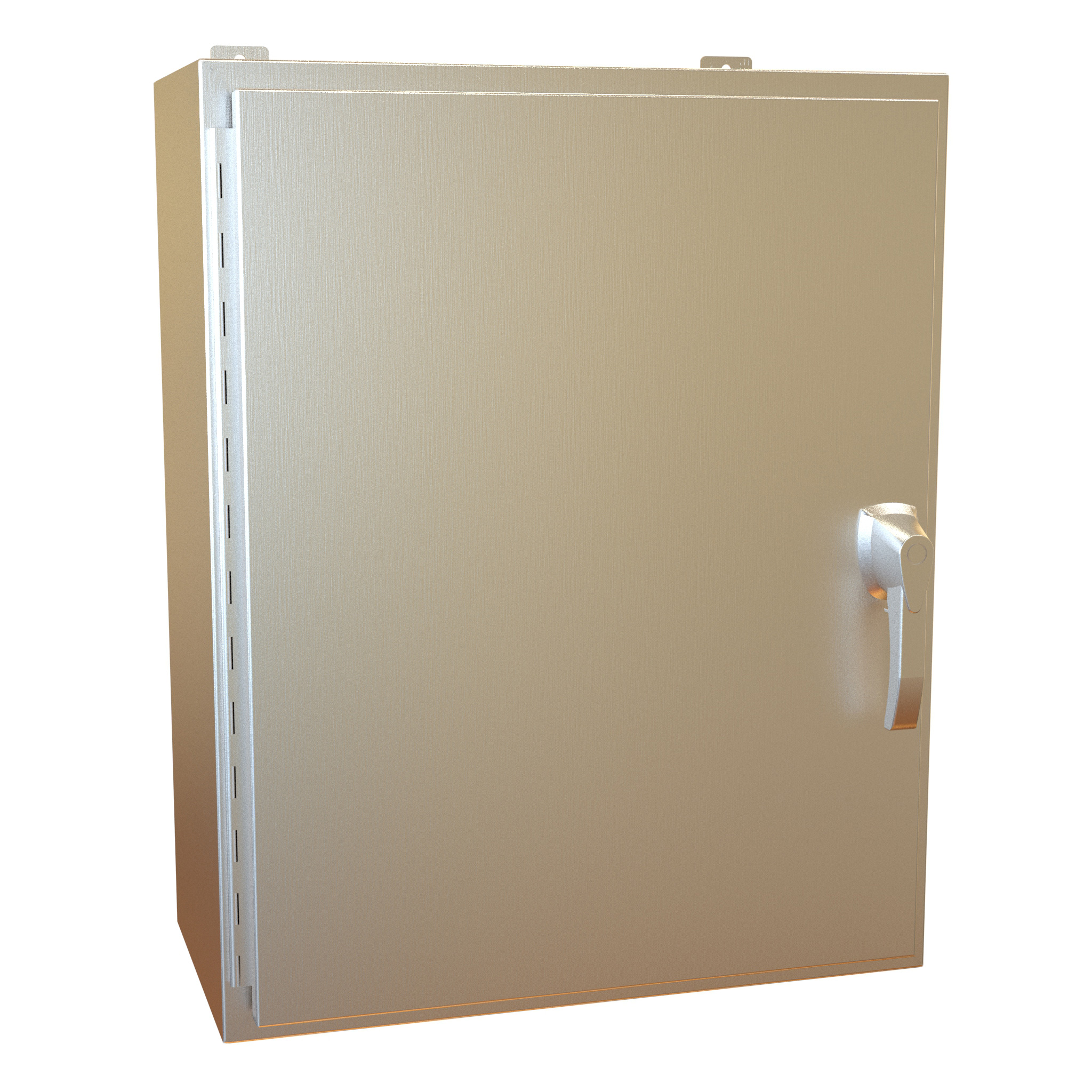

| HW302412SSHK | HW302412S16HK | 30.00 | 24.00 | 12.00 | 18P2721 | 27.00 | 21.00 | $1,641.28In stockHW302412SSHK | Buy now |

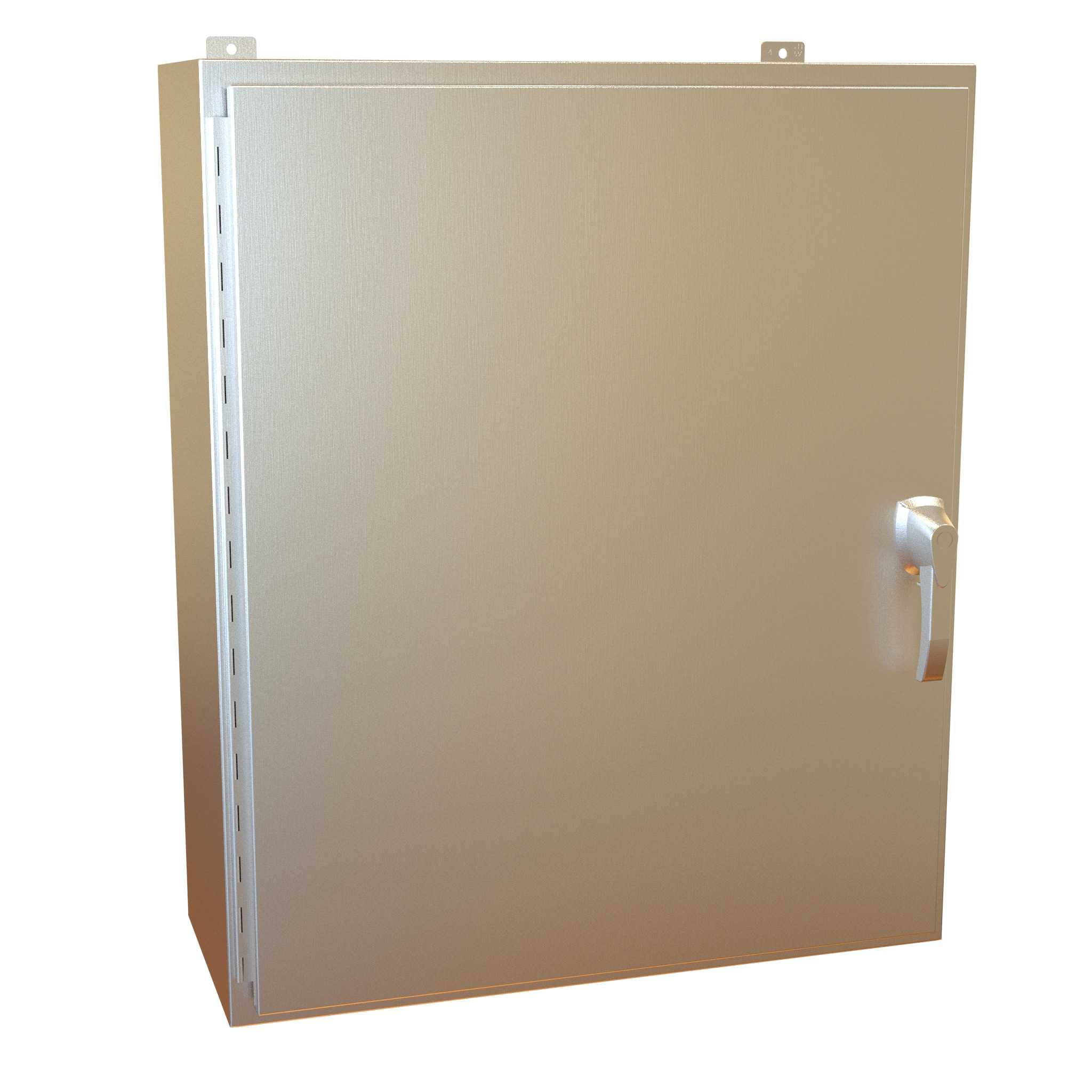

| HW363012SSHK | HW363012S16HK | 36.00 | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 | $2,092.86In stockHW363012SSHK | Buy now |

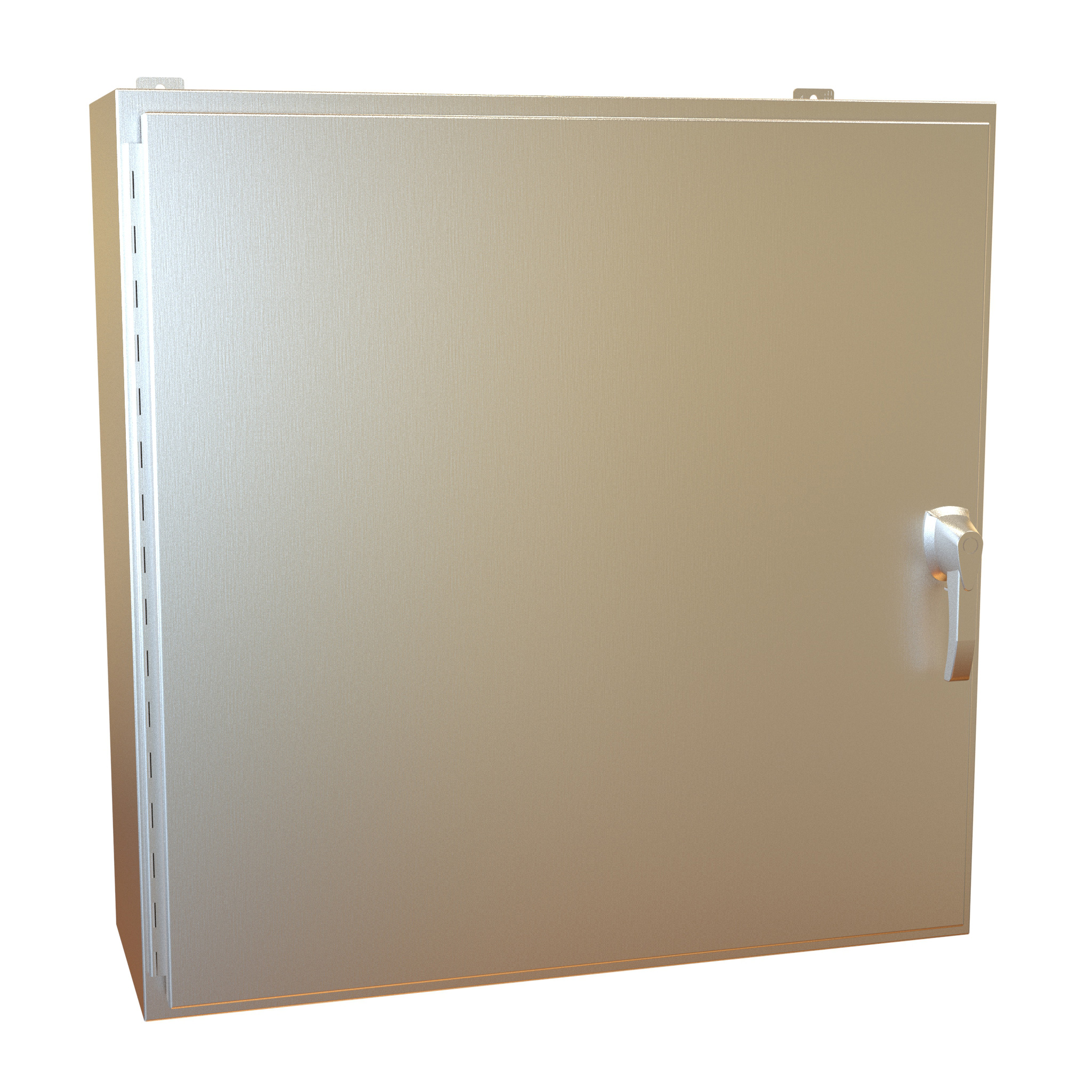

| HW363612SSHK | HW363612S16HK | 36.00 | 36.00 | 12.00 | 18P3333 | 33.00 | 33.00 | $2,350.91BackorderHW363612SSHK | Buy now |

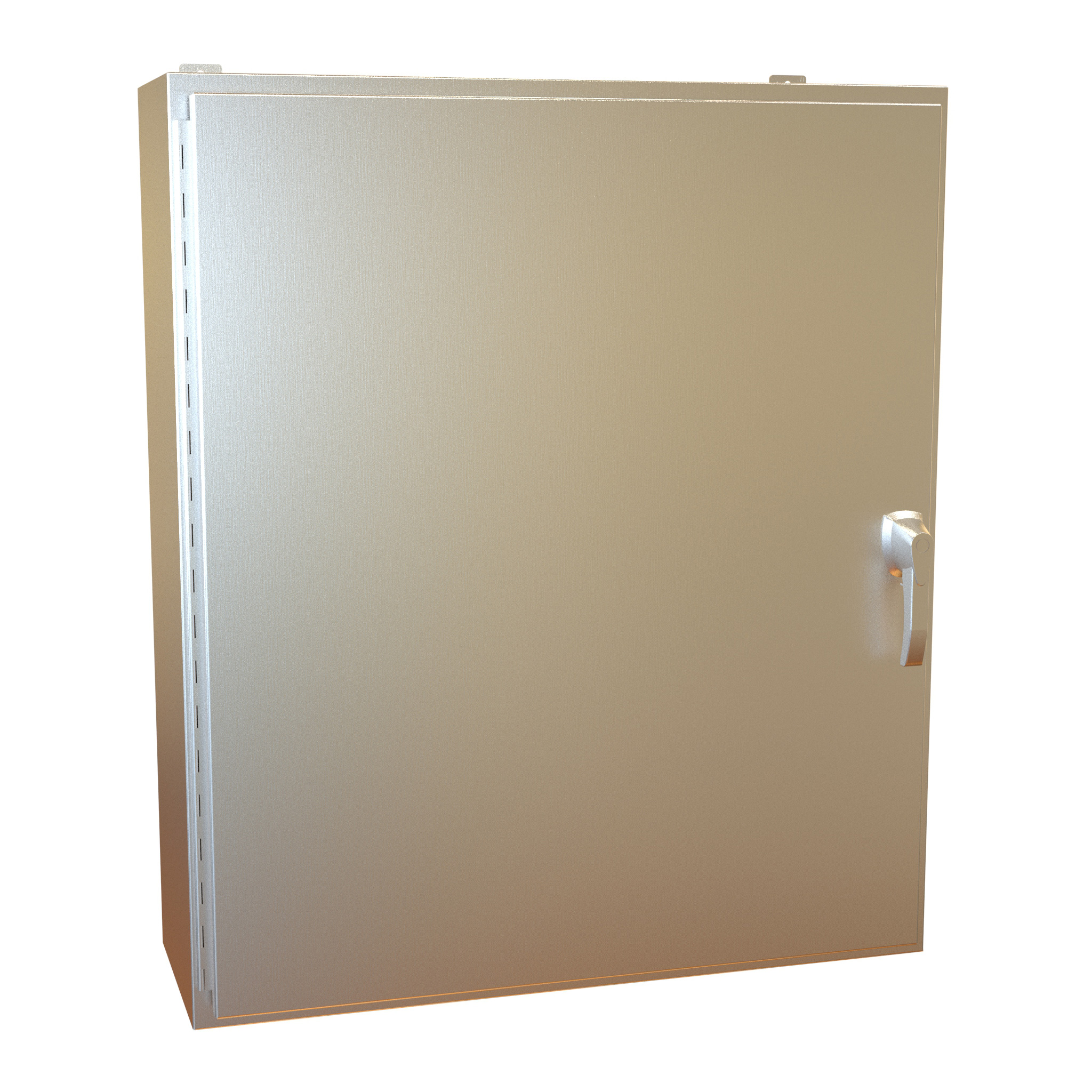

| HW423612SSHK | HW423612S16HK | 42.00 | 36.00 | 12.00 | 18P3933 | 39.00 | 33.00 | $2,606.26In stockHW423612SSHK | Buy now |
| HW483612SSHK | HW483612S16HK | 48.00 | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 | $2,864.31In stockHW483612SSHK | Buy now |
| HW603612SSHK | HW603612S16HK | 60.00 | 36.00 | 12.00 | 18P5733 | 57.00 | 33.00 | $3,379.33In stockHW603612SSHK | Buy now |

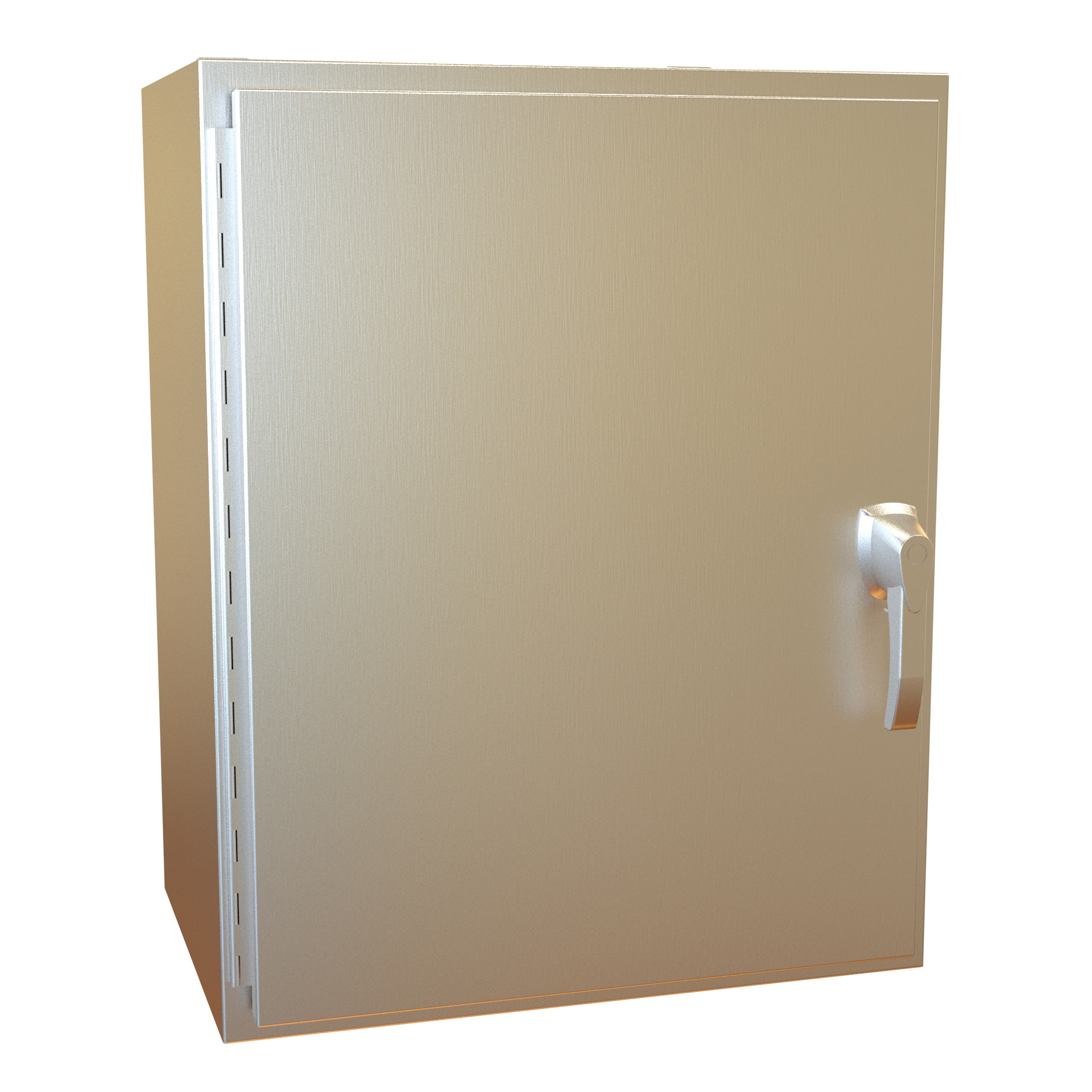

| HW302416SSHK | HW302416S16HK | 30.00 | 24.00 | 16.00 | 18P2721 | 27.00 | 21.00 | $1,917.60BackorderHW302416SSHK | Buy now |

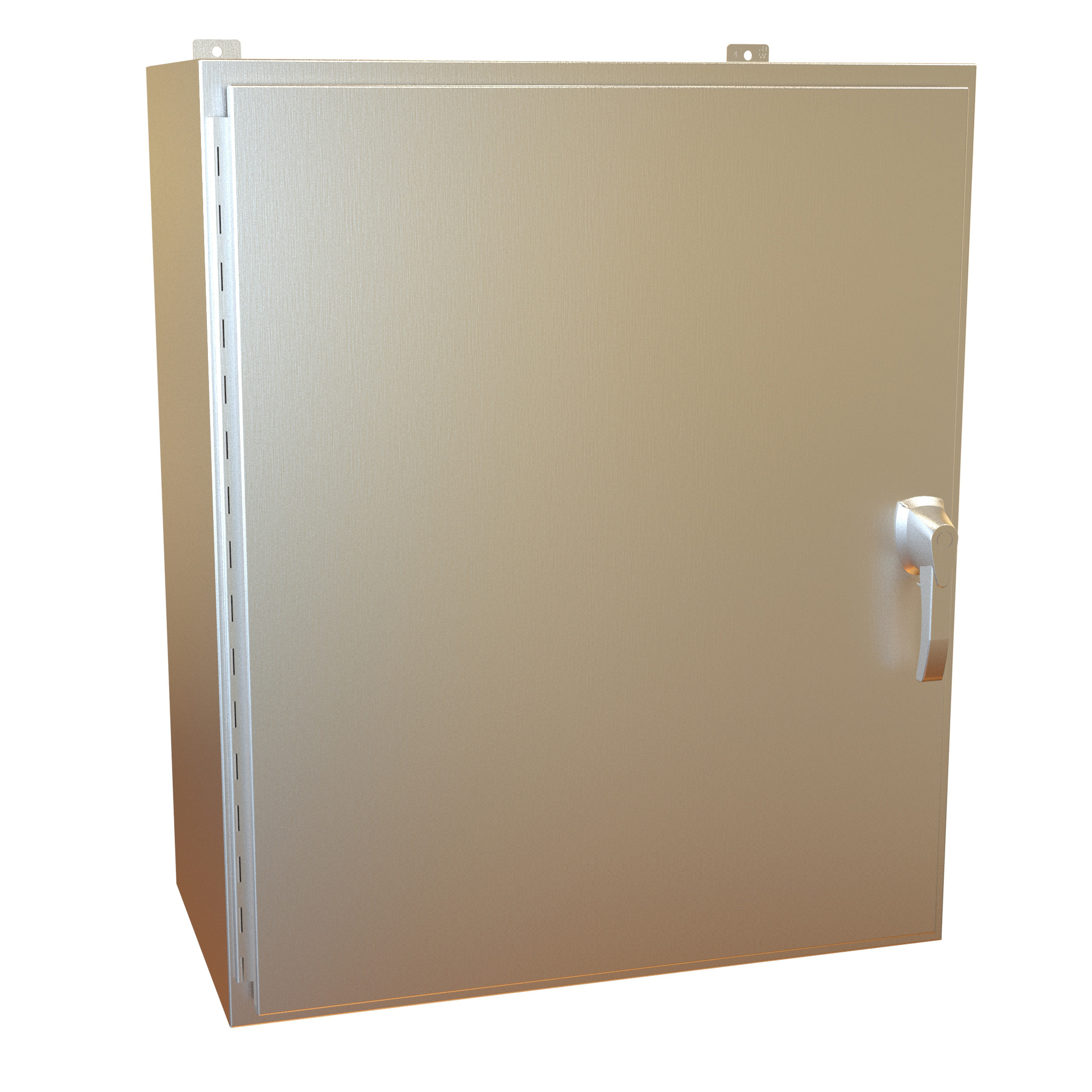

| HW363016SSHK | HW363016S16HK | 36.00 | 30.00 | 16.00 | 18P3327 | 33.00 | 27.00 | $2,396.60In stockHW363016SSHK | Buy now |
| HW483616SSHK | HW483616S16HK | 48.00 | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 | $3,164.29In stockHW483616SSHK | Buy now |
| HW603616SSHK | HW603616S16HK | 60.00 | 36.00 | 16.00 | 18P5733 | 57.00 | 33.00 | $3,898.11BackorderHW603616SSHK | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Provides high level of protection where equipment is hosed down or otherwise be exposed to wet conditions where corrosion is a serious problem.
- ■Ideal for processing plants, utility, outdoor municipal or petro chemical locations where easy yet secure access is required.
Standards
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12
- ■Complies with NEMA 3R, 4, 4X, 12 and 13 IEC 60529, IP 66
- ■NEMA 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP 66
Construction
- ■Formed 14 gauge 304 or 316 stainless steel.
- ■Continuously welded seams ground smooth.
- ■Formed lip on enclosure to exclude flowing liquids and contaminants.
- ■316 Stainless pad lockable handle with 3 point roller latching system secures door.
- ■Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- ■Seamless poured-in place gasket.
- ■Collar studs provided for mounting inner panel.
- ■Bonding stud provided on door and grounding stud installed in enclosure.
Finish
- ■Cover and enclosure are natural stainless steel with smooth brushed finish.
Documents
Additional information
Part Details
| 304 S.S. · Part No. | 316 S.S. · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|---|
| HW24206SSHK | HW24206S16HK | 24.00 | 20.00 | 6.00 | 18P2117 | 21.00 | 17.00 |
| HW24246SSHK | HW24246S16HK | 24.00 | 24.00 | 6.00 | 18P2121 | 21.00 | 21.00 |
| HW24168SSHK | HW24168S16HK | 24.00 | 16.00 | 8.00 | 18P2113 | 21.00 | 13.00 |
| HW24208SSHK | HW24208S16HK | 24.00 | 20.00 | 8.00 | 18P2117 | 21.00 | 17.00 |
| HW24248SSHK | HW24248S16HK | 24.00 | 24.00 | 8.00 | 18P2121 | 21.00 | 21.00 |
| HW24308SSHK | HW24308S16HK | 24.00 | 30.00 | 8.00 | 18P2721 | 21.00 | 27.00 |
| HW30208SSHK | HW30208S16HK | 30.00 | 20.00 | 8.00 | 18P2717 | 27.00 | 17.00 |
| HW30248SSHK | HW30248S16HK | 30.00 | 24.00 | 8.00 | 18P2721 | 27.00 | 21.00 |
| HW30308SSHK | HW30308S16HK | 30.00 | 30.00 | 8.00 | 18P2727 | 27.00 | 27.00 |
| HW36248SSHK | HW36248S16HK | 36.00 | 24.00 | 8.00 | 18P3321 | 33.00 | 21.00 |
| HW36308SSHK | HW36308S16HK | 36.00 | 30.00 | 8.00 | 18P3327 | 33.00 | 27.00 |
| HW42368SSHK | HW42368S16HK | 42.00 | 36.00 | 8.00 | 18P3933 | 39.00 | 33.00 |
| HW48368SSHK | HW48368S16HK | 48.00 | 36.00 | 8.00 | 18P4533 | 45.00 | 33.00 |
| HW242010SSHK | HW242010S16HK | 24.00 | 20.00 | 10.00 | 18P2117 | 21.00 | 17.00 |
| HW302410SSHK | HW302410S16HK | 30.00 | 24.00 | 10.00 | 18P2721 | 27.00 | 21.00 |
| HW362410SSHK | HW362410S16HK | 36.00 | 24.00 | 10.00 | 18P3321 | 33.00 | 21.00 |
| HW363010SSHK | HW363010S16HK | 36.00 | 30.00 | 10.00 | 18P3327 | 33.00 | 27.00 |
| HW423010SSHK | HW423010S16HK | 42.00 | 30.00 | 10.00 | 18P3927 | 39.00 | 27.00 |
| HW483610SSHK | HW483610S16HK | 48.00 | 36.00 | 10.00 | 18P4533 | 45.00 | 33.00 |
| HW242412SSHK | HW242412S16HK | 24.00 | 24.00 | 12.00 | 18P2121 | 21.00 | 21.00 |
| HW302412SSHK | HW302412S16HK | 30.00 | 24.00 | 12.00 | 18P2721 | 27.00 | 21.00 |
| HW363012SSHK | HW363012S16HK | 36.00 | 30.00 | 12.00 | 18P3327 | 33.00 | 27.00 |
| HW363612SSHK | HW363612S16HK | 36.00 | 36.00 | 12.00 | 18P3333 | 33.00 | 33.00 |
| HW423612SSHK | HW423612S16HK | 42.00 | 36.00 | 12.00 | 18P3933 | 39.00 | 33.00 |
| HW483612SSHK | HW483612S16HK | 48.00 | 36.00 | 12.00 | 18P4533 | 45.00 | 33.00 |
| HW603612SSHK | HW603612S16HK | 60.00 | 36.00 | 12.00 | 18P5733 | 57.00 | 33.00 |
| HW302416SSHK | HW302416S16HK | 30.00 | 24.00 | 16.00 | 18P2721 | 27.00 | 21.00 |
| HW363016SSHK | HW363016S16HK | 36.00 | 30.00 | 16.00 | 18P3327 | 33.00 | 27.00 |
| HW483616SSHK | HW483616S16HK | 48.00 | 36.00 | 16.00 | 18P4533 | 45.00 | 33.00 |
| HW603616SSHK | HW603616S16HK | 60.00 | 36.00 | 16.00 | 18P5733 | 57.00 | 33.00 |
