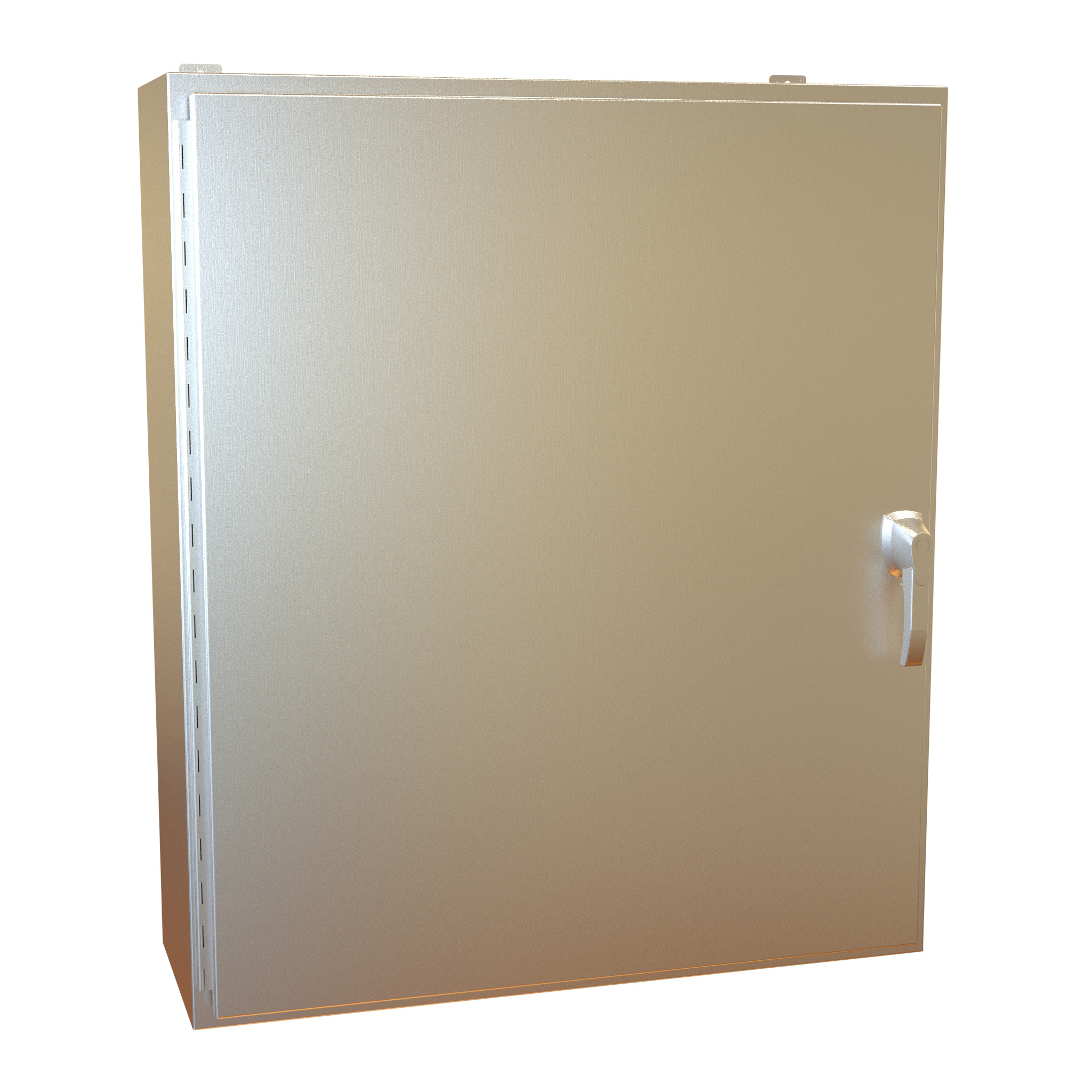

Hammond HW423612SSHK 42x36x12-Inch 304 Stainless Type 4X Hinged Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 304 stainless, 42 x 36 x 12 in (1,067 x 914 x 305 mm)
- UL 508A / CSA Type 3R, 4, 4X, 12 and IEC 60529 IP 66
- 316 stainless pad lockable handle with 3 point roller latching
- 33.25 x 39.30 in door opening per drawing
- Optional 18P3933 inner panel mounts on collar studs
- Door removable by pulling stainless hinge pin
The HW423612SSHK combines a 42 x 36 in face with a 12 in depth (1,067 x 914 x 305 mm) in 304 stainless steel. It is a Type 4X wallmount enclosure for electrical and electronic equipment exposed to harsh industrial conditions, hose-down cleaning or wet environments where corrosion matters, and it fits applications in processing plants, utilities, outdoor municipal sites and petrochemical locations.
The enclosure is made of formed 14 gauge stainless steel with continuously welded seams ground smooth and a natural, smooth brushed finish. A formed lip excludes flowing liquids and contaminants, and a seamless poured-in place gasket seals the opening. The hinged door runs on a stainless steel continuous hinge and lifts free once the hinge pin is pulled; a 316 stainless pad lockable handle with a 3 point roller latching system keeps it shut.
- Door opening per drawing: 33.25 x 39.30 in
- Clear space on door: 30.90 x 38.95 in
- Mounting holes: 0.44 in, 30.00 x 43.25 in pattern
- Optional inner panel 18P3933 (39.00 x 33.00 in) on collar studs
It is UL 508A and CSA Type 3R, 4, 4X and 12, complies with NEMA 3R, 4, 4X, 12 and 13 and IEC 60529 IP 66, and is REACH and RoHS compliant. Bonding and grounding studs are supplied. The HW423612SSHK ships at 180 lbs (81.65 kg); HW423612S16HK is the 316 stainless version.
Ideal For
- Processing plant wallmount control enclosures
- Utility equipment in wet or hose-down conditions
- Outdoor municipal electrical installations
- Petrochemical site equipment
Mounting
| Mounting Type | Wallmount |
| Inner Panel Mounting | Collar studs provided for mounting inner panel (inner panel optional); alternative inner panel options also available |
| Optional Inner Panel Part No. | 18P3933 |
| Optional Inner Panel Size (H X W) | 39.00 in (991 mm) x 33.00 in (838 mm) |
Overview
| Series | HWSSHK Series (Type 4X Stainless Steel Wallmount Enclosure, Hinge Door with Handle) |
| Description | N4X Wallmt, Hinged w/handle - 42 x 36 x 12 - 304 SS |
| Part Number | HW423612SSHK |
| Short Description | N4X-304 42X36X12 W/HDL |
| Alternate Material Version | HW423612S16HK (316 stainless steel) |
Dimensions
| Size (H X W X D) | 42 in x 36 in x 12 in (1,067 mm x 914 mm x 305 mm) |
| Enclosure Depth (D) | 12.00 in (305 mm) |
| Enclosure Width (W) | 36.00 in (914 mm) |
| Enclosure Height (H) | 42.00 in (1067 mm) |
| Door (W X H, Per Drawing) | 34.23 in x 40.25 in |
| Overall Depth (Per Drawing) | 13.23 in |
| Overall Height (Per Drawing) | 44.25 in |
| Door Opening (W X H, Per Drawing) | 33.25 in x 39.30 in |
| Mounting Hole Diameter (Per Drawing) | 0.44 in |
| Mounting Hole Spacing (W X H, Per Drawing) | 30.00 in x 43.25 in |
| Clear Space Available On Door (W X H, Per Drawing) | 30.90 in x 38.95 in |
Accessories
| Optional Accessories (Sold Separately) | Additional Inner Panels; Perforated Inner Panels; Type 12/4, 4X Handle Kits; Swing Panel Kit; Door Stop Kit; Drip Shield Kit; Floor Stand Kit; Window Kits; Climate Control; Lighting; General Accessories |
Identifiers
| UPC | 623980101231 |
| UNSPSC | 39121324 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 180 lbs (81.65 kg) |
Construction & Finish
| Hinge | Stainless steel continuous hinge; door removable by pulling the stainless steel hinge pin |
| Seams | Continuously welded seams ground smooth |
| Finish | Cover and enclosure natural stainless steel with smooth brushed finish |
| Gasket | Seamless poured-in place gasket |
| Material | 304 stainless steel (series: formed 14 gauge 304 or 316 stainless steel) |
| Door Type | Hinged door with handle |
| Grounding | Bonding stud on door; grounding stud installed in enclosure |
| Liquid Exclusion | Formed lip on enclosure to exclude flowing liquids and contaminants |
| Handle & Latching | 316 stainless pad lockable handle with 3 point roller latching system |
Compliance & Certifications
| UL | UL 508A Type 3R, 4, 4X and 12 |
| CSA | CSA Type 3R, 4, 4X and 12 |
| NEMA | Complies with NEMA 3R, 4, 4X, 12 and 13 |
| IEC 60529 | IP 66 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU; EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08; RoHS Directive 2011/65/EU and Directive (EU) 2015/863 (Corrosion Resistant Enclosures, HWSSHK) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the HW423612SSHK dimensions?▾
42 in H x 36 in W x 12 in D (1,067 x 914 x 305 mm).
Which inner panel matches?▾
The optional 18P3933 inner panel, 39.00 x 33.00 in.
What is it made of?▾
304 stainless steel with a natural smooth brushed finish; the handle is 316 stainless.
How heavy is it?▾
Shipping weight is 180 lbs (81.65 kg).
What UL and CSA files apply?▾
UL file E65324 and CSA certificate LR21001.
