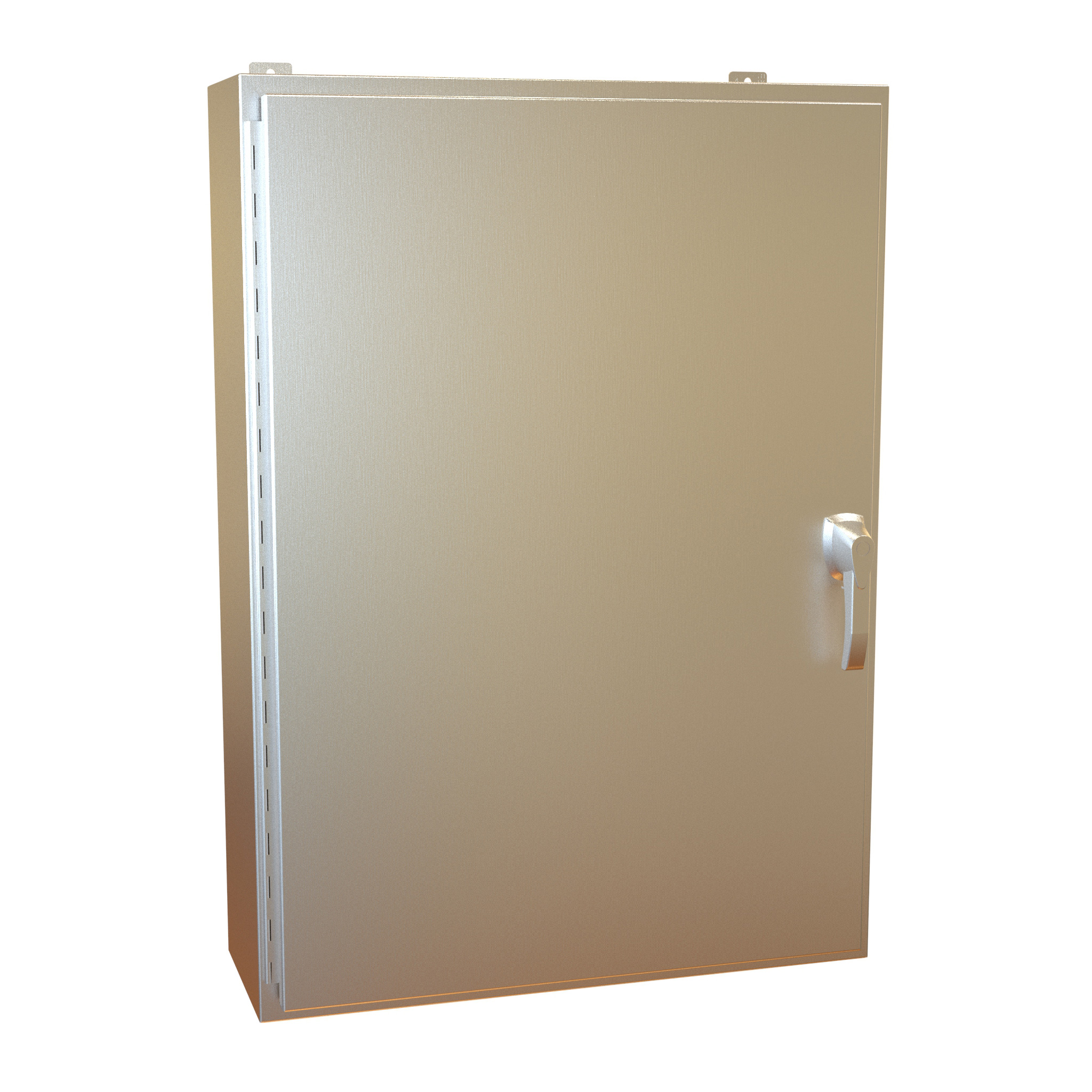

Hammond HW423010SSHK 42x30x10-Inch 304 Stainless Hinged Type 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 304 stainless enclosure, 42 x 30 x 10 in (1,067 x 762 x 254 mm)
- UL 508A / CSA Type 3R, 4, 4X, 12; complies with NEMA 13 and IP 66
- 316 stainless pad lockable handle and 3 point roller latching
- Removable door on stainless continuous hinge
- Formed lip and seamless poured-in place gasket
- Collar studs for optional 18P3927 inner panel
Measuring 42 x 30 x 10 in (1,067 x 762 x 254 mm), the HW423010SSHK is a 304 stainless steel wallmount enclosure for electrical and electronic equipment in demanding industrial settings. It offers a high level of protection where equipment is hosed down or otherwise exposed to wet conditions and corrosion, and suits processing plants, utilities, outdoor municipal sites and petrochemical locations that need easy yet secure access.
Construction is formed 14 gauge stainless steel with continuously welded seams ground smooth. A formed lip on the body excludes flowing liquids and contaminants; a seamless poured-in place gasket seals the door. The door uses a stainless continuous hinge, removable by pulling the hinge pin, and a 316 stainless pad lockable handle with 3 point roller latching. Both cover and enclosure are natural stainless steel with a smooth brushed finish.
- Door opening per drawing: 27.21 x 39.21 in
- Overall depth per drawing: 11.23 in
- Mounting holes: 0.44 in, 24.00 x 43.25 in pattern
- Optional inner panel 18P3927 (39.00 x 27.00 in) on collar studs
The enclosure is UL 508A and CSA Type 3R, 4, 4X and 12 and complies with NEMA 3R, 4, 4X, 12 and 13 and IEC 60529 IP 66. It is REACH and RoHS compliant, with a bonding stud on the door and grounding stud in the body. The HW423010SSHK ships at 148 lbs (67.13 kg); for 316 stainless, order HW423010S16HK.
Ideal For
- Wallmount enclosures for processing plants
- Utility equipment in wet conditions
- Outdoor municipal control gear
- Petrochemical site electrical housings
Mounting
| Mounting Type | Wallmount |
| Inner Panel Mounting | Collar studs provided for mounting inner panel (inner panel optional); alternative inner panel options also available |
| Optional Inner Panel Part No. | 18P3927 |
| Optional Inner Panel Size (H X W) | 39.00 in (991 mm) x 27.00 in (686 mm) |
Overview
| Series | HWSSHK Series (Type 4X Stainless Steel Wallmount Enclosure, Hinge Door with Handle) |
| Description | N4X Wallmt, Hinged w/handle - 42 x 30 x 10 - 304 SS |
| Part Number | HW423010SSHK |
| Short Description | N4X-304 42X30X10 W/HDL |
| Alternate Material Version | HW423010S16HK (316 stainless steel) |
Dimensions
| Size (H X W X D) | 42 in x 30 in x 10 in (1,067 mm x 762 mm x 254 mm) |
| Enclosure Depth (D) | 10.00 in (254 mm) |
| Enclosure Width (W) | 30.00 in (762 mm) |
| Enclosure Height (H) | 42.00 in (1067 mm) |
| Door (W X H, Per Drawing) | 28.23 in x 40.25 in |
| Overall Depth (Per Drawing) | 11.23 in |
| Overall Height (Per Drawing) | 44.25 in |
| Door Opening (W X H, Per Drawing) | 27.21 in x 39.21 in |
| Mounting Hole Diameter (Per Drawing) | 0.44 in |
| Mounting Hole Spacing (W X H, Per Drawing) | 24.00 in x 43.25 in |
| Clear Space Available On Door (W X H, Per Drawing) | 24.90 in x 38.95 in |
Accessories
| Optional Accessories (Sold Separately) | Additional Inner Panels; Perforated Inner Panels; Type 12/4, 4X Handle Kits; Swing Panel Kit; Door Stop Kit; Drip Shield Kit; Floor Stand Kit; Window Kits; Climate Control; Lighting; General Accessories |
Identifiers
| UPC | 623980101170 |
| UNSPSC | 39121324 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 148 lbs (67.13 kg) |
Construction & Finish
| Hinge | Stainless steel continuous hinge; door removable by pulling the stainless steel hinge pin |
| Seams | Continuously welded seams ground smooth |
| Finish | Cover and enclosure natural stainless steel with smooth brushed finish |
| Gasket | Seamless poured-in place gasket |
| Material | 304 stainless steel (series: formed 14 gauge 304 or 316 stainless steel) |
| Door Type | Hinged door with handle |
| Grounding | Bonding stud on door; grounding stud installed in enclosure |
| Liquid Exclusion | Formed lip on enclosure to exclude flowing liquids and contaminants |
| Handle & Latching | 316 stainless pad lockable handle with 3 point roller latching system |
Compliance & Certifications
| UL | UL 508A Type 3R, 4, 4X and 12 |
| CSA | CSA Type 3R, 4, 4X and 12 |
| NEMA | Complies with NEMA 3R, 4, 4X, 12 and 13 |
| IEC 60529 | IP 66 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU; EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08; RoHS Directive 2011/65/EU and Directive (EU) 2015/863 (Corrosion Resistant Enclosures, HWSSHK) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the HW423010SSHK?▾
42 in H x 30 in W x 10 in D (1,067 x 762 x 254 mm).
What stainless grade is it?▾
304 stainless steel. The 316 stainless version is HW423010S16HK.
Is an inner panel included?▾
No inner panel is listed as included; the optional panel is 18P3927 (39.00 x 27.00 in), and collar studs are provided to mount it.
What is the door opening?▾
27.21 x 39.21 in according to the drawing.
What is the UPC?▾
623980101170.
