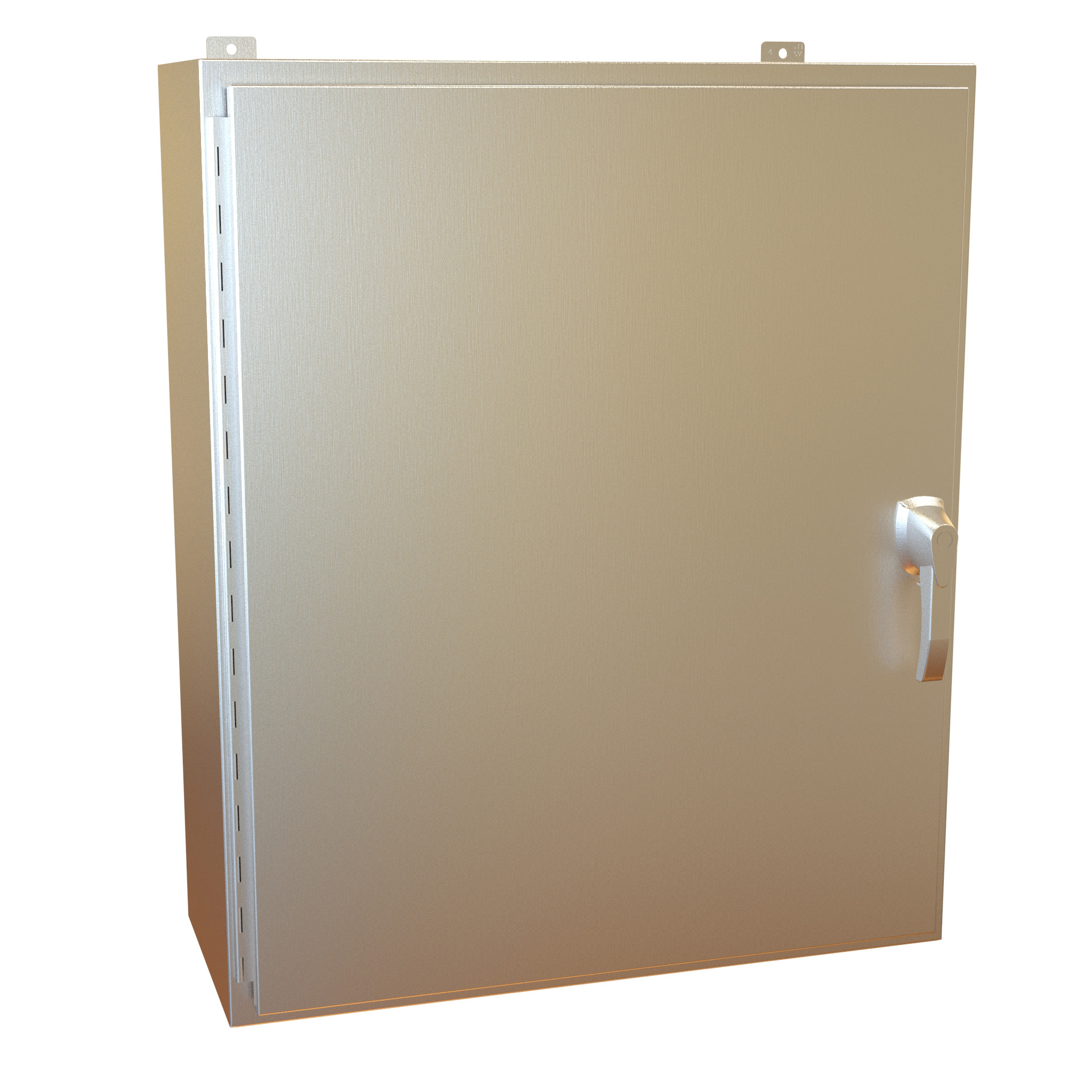

Hammond HW363012SSHK 36x30x12-Inch Type 4X 304 Stainless Hinged Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 304 stainless steel wallmount enclosure, 36 x 30 x 12 in (914 x 762 x 305 mm)
- UL 508A / CSA Type 3R, 4, 4X and 12; NEMA 3R, 4, 4X, 12, 13; IP 66
- 3 point roller latching operated by a pad lockable 316 stainless handle
- Removable door via stainless continuous hinge and hinge pin
- Formed 14 gauge stainless with continuously welded, ground seams
- Collar studs for optional 18P3327 inner panel (33.00 x 27.00 in)
The HW363012SSHK is a 304 stainless steel wallmount enclosure sized 36 x 30 x 12 in (914 x 762 x 305 mm). It is built to enclose electrical and electronic equipment and protect it in harsh industrial environments, particularly where equipment is hosed down or exposed to wet conditions and corrosion. Typical sites include processing plants, utilities, outdoor municipal installations and petrochemical locations.
The enclosure is formed from 14 gauge stainless steel with continuously welded seams that are ground smooth. A formed lip helps exclude flowing liquids and contaminants, and the door seals on a seamless poured-in place gasket. The stainless steel continuous hinge allows the door to be removed by pulling the hinge pin, while a 316 stainless pad lockable handle with a 3 point roller latching system keeps it closed. Both cover and body carry a natural stainless, smooth brushed finish.
- Door opening per drawing: 27.20 x 33.20 in
- Mounting holes: 0.44 in diameter on a 24.00 x 37.25 in pattern
- Optional inner panel: 18P3327, 33.00 x 27.00 in, mounted on collar studs
- Bonding stud on door, grounding stud in enclosure
This part is listed UL 508A and CSA Type 3R, 4, 4X and 12, complies with NEMA 3R, 4, 4X, 12 and 13 and IEC 60529 IP 66, and is REACH and RoHS compliant. Shipping weight is 113 lbs (51.26 kg). If your application calls for 316 stainless, order HW363012S16HK instead of the HW363012SSHK.
Ideal For
- Processing plant wallmount control enclosures
- Utility equipment exposed to wet conditions
- Outdoor municipal electrical housings
- Petrochemical site equipment protection
Mounting
| Mounting Type | Wallmount |
| Inner Panel Mounting | Collar studs provided for mounting inner panel (inner panel optional); alternative inner panel options also available |
| Optional Inner Panel Part No. | 18P3327 |
| Optional Inner Panel Size (H X W) | 33.00 in (838 mm) x 27.00 in (686 mm) |
Overview
| Series | HWSSHK Series (Type 4X Stainless Steel Wallmount Enclosure, Hinge Door with Handle) |
| Description | N4X Wallmt, Hinged w/handle - 36 x 30 x 12 - 304 SS |
| Part Number | HW363012SSHK |
| Short Description | N4X-304 36X30X12 W/HDL |
| Alternate Material Version | HW363012S16HK (316 stainless steel) |
Dimensions
| Size (H X W X D) | 36 in x 30 in x 12 in (914 mm x 762 mm x 305 mm) |
| Enclosure Depth (D) | 12.00 in (305 mm) |
| Enclosure Width (W) | 30.00 in (762 mm) |
| Enclosure Height (H) | 36.00 in (914 mm) |
| Door (W X H, Per Drawing) | 28.19 in x 34.21 in |
| Overall Depth (Per Drawing) | 13.21 in |
| Overall Height (Per Drawing) | 38.25 in |
| Door Opening (W X H, Per Drawing) | 27.20 in x 33.20 in |
| Mounting Hole Diameter (Per Drawing) | 0.44 in |
| Mounting Hole Spacing (W X H, Per Drawing) | 24.00 in x 37.25 in |
| Clear Space Available On Door (W X H, Per Drawing) | 24.25 in x 32.96 in |
Accessories
| Optional Accessories (Sold Separately) | Additional Inner Panels; Perforated Inner Panels; Type 12/4, 4X Handle Kits; Swing Panel Kit; Door Stop Kit; Drip Shield Kit; Floor Stand Kit; Window Kits; Climate Control; Lighting; General Accessories |
Identifiers
| UPC | 623980101217 |
| UNSPSC | 39121324 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 113 lbs (51.26 kg) |
Construction & Finish
| Hinge | Stainless steel continuous hinge; door removable by pulling the stainless steel hinge pin |
| Seams | Continuously welded seams ground smooth |
| Finish | Cover and enclosure natural stainless steel with smooth brushed finish |
| Gasket | Seamless poured-in place gasket |
| Material | 304 stainless steel (series: formed 14 gauge 304 or 316 stainless steel) |
| Door Type | Hinged door with handle |
| Grounding | Bonding stud on door; grounding stud installed in enclosure |
| Liquid Exclusion | Formed lip on enclosure to exclude flowing liquids and contaminants |
| Handle & Latching | 316 stainless pad lockable handle with 3 point roller latching system |
Compliance & Certifications
| UL | UL 508A Type 3R, 4, 4X and 12 |
| CSA | CSA Type 3R, 4, 4X and 12 |
| NEMA | Complies with NEMA 3R, 4, 4X, 12 and 13 |
| IEC 60529 | IP 66 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU; EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08; RoHS Directive 2011/65/EU and Directive (EU) 2015/863 (Corrosion Resistant Enclosures, HWSSHK) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the HW363012SSHK dimensions?▾
36 in high, 30 in wide and 12 in deep (914 x 762 x 305 mm); the drawing shows an overall depth of 13.21 in.
Is there a 316 stainless version?▾
Yes, HW363012S16HK is the 316 stainless steel version of this size.
What is the shipping weight?▾
113 lbs (51.26 kg), shipped in a box.
Does it include grounding provisions?▾
Yes. A bonding stud is provided on the door and a grounding stud is installed in the enclosure.
What certifications apply?▾
UL 508A Type 3R, 4, 4X and 12 (UL file E65324) and CSA Type 3R, 4, 4X and 12 (CSA LR21001). It is also REACH and RoHS compliant.
