Hammond HW302410SSHK 30x24x10 In 304 Stainless Type 4X Wallmount Enclosure

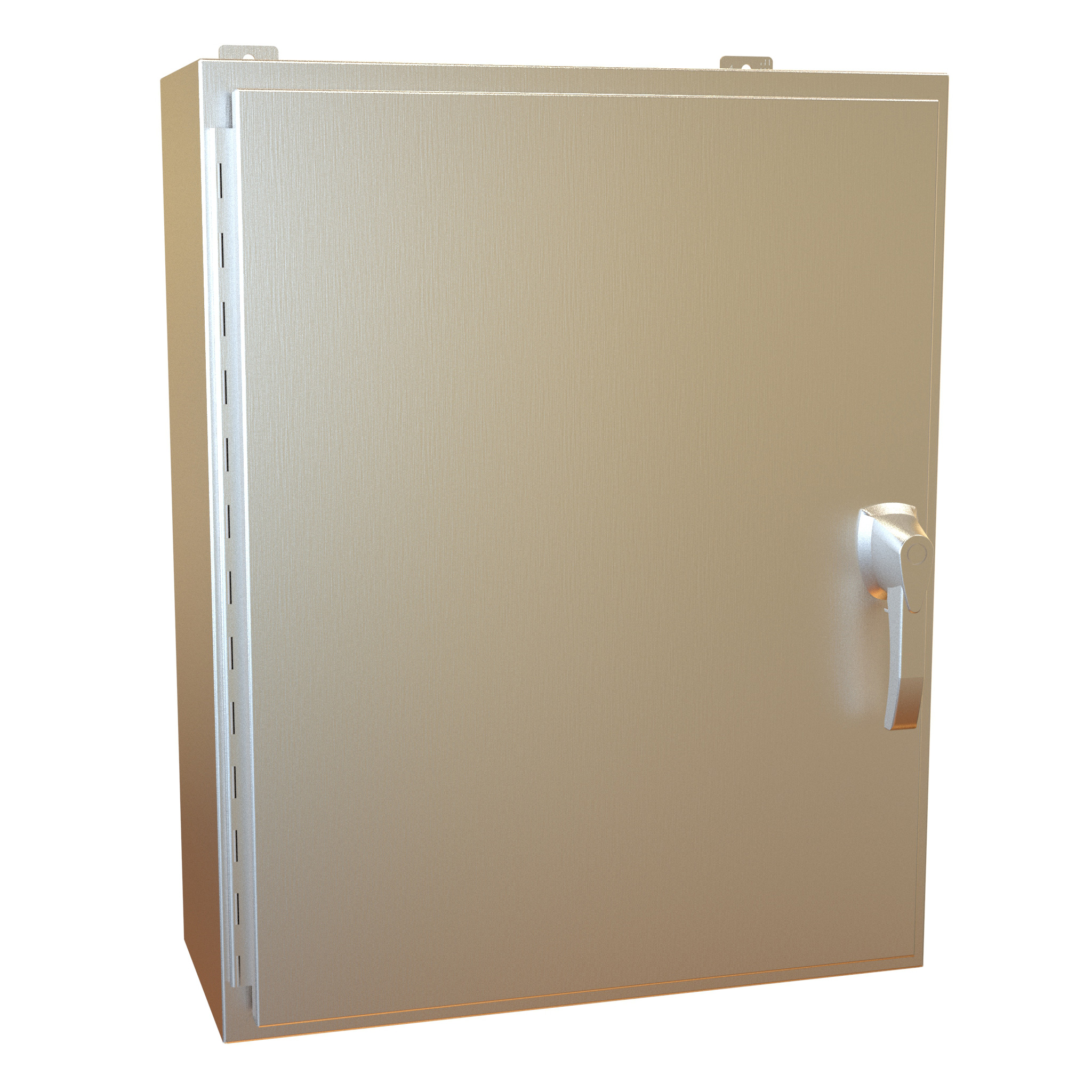

Built for wallmount applications in harsh industrial settings, the HW302410SSHK is a 30 x 24 x 10 in (762 mm x 610 mm x 254 mm) Type 4X enclosure with a hinged door and handle. It gives electrical and electronic equipment a high level of protection where it may be hosed down or otherwise exposed to wet, corrosive conditions.

This is the 304 stainless steel version, formed from 14 gauge 304 stainless steel; a 316 stainless steel equivalent is offered as HW302410S16HK. Seams are continuously welded and ground smooth, and a formed lip on the enclosure helps exclude flowing liquids and contaminants. The door closes on a seamless poured-in-place gasket and is secured by a 316 stainless pad lockable handle with a 3 point roller latching system. The stainless steel continuous hinge can be removed by pulling the stainless steel hinge pin. The cover and enclosure are natural stainless steel with a smooth brushed finish.

According to the part drawing, the door opening is 21.21 in wide x 27.21 in high, the door itself measures 22.19 in x 28.21 in, and the overall height is 32.25 in with an overall depth of 11.21 in. Collar studs are provided for mounting an inner panel; the optional inner panel for this size is 18P2721, measuring 27.00 in H x 21.00 in W. A bonding stud is provided on the door and a grounding stud is installed in the enclosure. Shipping weight is 70 lbs (31.75 kg).

The series is listed to UL 508A Type 3R, 4, 4X and 12 (UL File E65324) and CSA Type 3R, 4, 4X and 12 (CSA Cert. LR21001), and complies with NEMA 3R, 4, 4X, 12 and 13 and IEC 60529 IP 66. The HW302410SSHK is RoHS and REACH compliant, and the HWSSHK series is covered by a declaration of conformity to the EU Low Voltage Directive 2014/35/EU. Typical sites include processing plants, utility, outdoor municipal and petro chemical locations where easy yet secure access is required.
