E-Panel Fits 12 X 10
$14.98In stock
Buy now

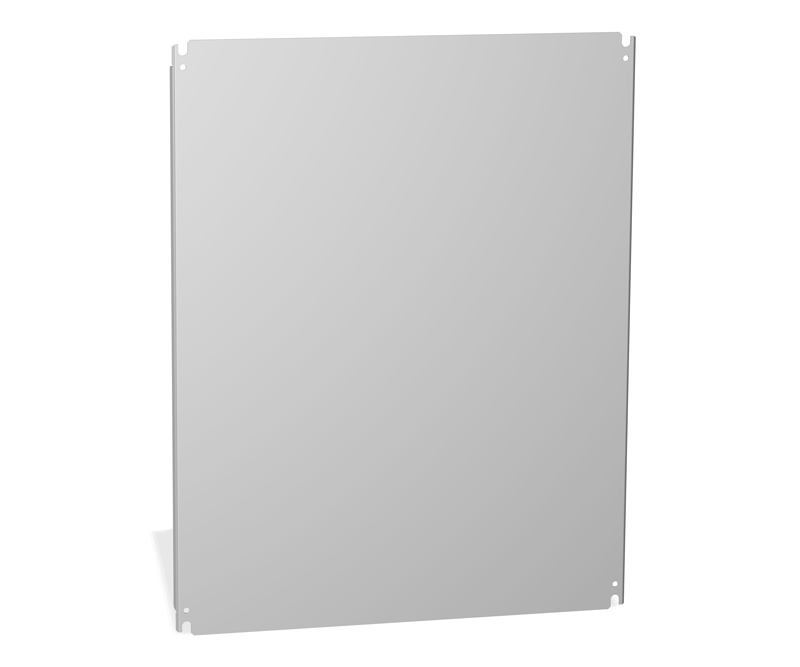

Inner Panels · EP Series
Brand: Hammond Manufacturing · 74 part numbers
Eclipse Series Enclosures
- ■Larger than standard NEMA panel used in same sized enclosure.
- ■12gauge steel construction.
- ■Larger sizes have 2 or 4 formed flanges for added strength.
- ■Slotted corner design for easier mounting.
- ■Finished in recoatable powder white or unpainted galvanized.
from $11.37
74 of 74 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your EP Series part number
Filter 74 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
74 of 74 part numbers · 74 priced online
E-Panel Fits 12 X 12
$14.98In stock
Buy nowE-Panel Fits 12 X 24
$46.21In stock
Buy nowE-Panel Fits 16 X 12
$19.32In stock
Buy nowEp Panel Fits 16X16
$37.18In stock
Buy nowE-Panel Fits 16 X 20
$42.67Backorder
Buy nowE-Panel Fits 20 X 12
$34.31In stock
Buy nowE-Panel Fits 20 X 16
$42.67In stock
Buy nowE-Panel Fits 20 X 24
$65.41In stock
Buy nowE-Panel Fits 24 X 12
$46.21In stock
Buy nowE-Panel Fits 24 X 16
$50.82In stock
Buy nowE-Panel Fits 24 X 30
$94.95In stock
Buy nowE-Panel Fits 24 X 42
$129.06In stock
Buy nowE-Panel Fits 24 X 48
$145.78In stock
Buy nowE-Panel Fits 30 X 12
$57.38In stock
Buy nowE-Panel Fits 30 X 16
$70.21In stock
Buy nowE-Panel Fits 30 X 20
$81.59In stock
Buy nowE-Panel Fits 30 X 30
$124.39In stock
Buy nowE-Panel Fits 30 X 36
$144.44In stock
Buy nowE-Panel Fits 30 X 42
$167.85In stock
Buy nowE-Panel Fits 30 X 48
$188.58In stock
Buy nowE-Panel Fits 30 X 60
$228.70In stock
Buy nowE-Panel Fits 36 X 36
$167.85In stock
Buy nowE-Panel Fits 36 X 42
$195.93In stock
Buy nowE-Panel Fits 36 X 48
$216.00In stock
Buy nowE-Panel Fits 36 X 60
$264.14In stock
Buy nowE-Panel Fits 42 X 24
$127.72In stock
Buy nowE-Panel Fits 48 X 24
$145.78In stock
Buy nowE-Panel Fits 48 X 30
$183.23In stock
Buy nowE-Panel Fits 48 X 48
$260.80In stock
Buy nowE-Panel Fits 72 X 30
$286.21In stock
Buy nowE-Panel Fits 72 X 36
$315.63In stock
Buy nowE-Panel Galv Fits 12 X 10
$15.38In stock
Buy nowE-Panel Galv Fits 12 X 12
$11.37In stock
Buy nowE-Panel Galv Fits 12 X 24
$46.21In stock
Buy nowE-Panel Galv Fits 16 X 12
$14.58In stock
Buy nowE-Panel Galv Fits 16 X 16
$37.18In stock
Buy nowE-Panel Galv Fits 16 X 20
$42.67In stock
Buy nowE-Panel Galv Fits 20 X 12
$42.67In stock
Buy nowE-Panel Galv Fits 20 X 16
$42.67In stock
Buy nowE-Panel Galv Fits 20 X 20
$51.23In stock
Buy nowE-Panel Galv Fits 20 X 24
$65.41In stock
Buy nowE-Panel Galv Fits 24 X 12
$46.21In stock
Buy nowE-Panel Galv Fits 24 X 16
$50.82In stock
Buy nowE-Panel Galv Fits 24 X 20
$65.41In stock
Buy nowE-Panel Galv Fits 24 X 24
$76.23In stock
Buy nowE-Panel Galv Fits 24 X 30
$94.95In stock
Buy nowE-Panel Galv Fits 24 X 42
$129.06In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Mild Steel · Part No. | Galvanized · Part No. | Size · D | Size · E | Gauge | Price | Order |
|---|---|---|---|---|---|---|
| EP1210 | EPG1210 | 10.20 | 8.20 | 12 | $14.98In stockEP1210 | Buy now |
| EP1212 | EPG1212 | 10.20 | 10.20 | 12 | $14.98In stockEP1212 | Buy now |
| EP1224 | EPG1224 | 10.20 | 22.20 | 12 | $46.21In stockEP1224 | Buy now |
| EP1612 | EPG1612 | 14.20 | 10.20 | 12 | $19.32In stockEP1612 | Buy now |
| EP1616 | EPG1616 | 14.20 | 14.20 | 12 | $37.18In stockEP1616 | Buy now |
| EP1620 | EPG1620 | 14.20 | 18.20 | 12 | $42.67BackorderEP1620 | Buy now |
| EP2012 | EPG2012 | 18.20 | 10.20 | 12 | $34.31In stockEP2012 | Buy now |
| EP2016 | EPG2016 | 18.20 | 14.20 | 12 | $42.67In stockEP2016 | Buy now |
| EP2020 | EPG2020 | 18.20 | 18.20 | 12 | $51.23In stock | Buy now |
| EP2024 | EPG2024 | 18.20 | 22.20 | 12 | $65.41In stockEP2024 | Buy now |
| EP2412 | EPG2412 | 22.20 | 10.20 | 12 | $46.21In stockEP2412 | Buy now |
| EP2416 | EPG2416 | 22.20 | 14.20 | 12 | $50.82In stockEP2416 | Buy now |
| EP2420 | EPG2420 | 22.20 | 18.20 | 12 | $65.41In stock | Buy now |
| EP2424 | EPG2424 | 22.20 | 22.20 | 12 | $76.23In stock | Buy now |
| EP2430 | EPG2430 | 22.20 | 28.20 | 12 | $94.95In stockEP2430 | Buy now |
| EP2442 | EPG2442 | 22.20 | 40.20 | 12 | $129.06In stockEP2442 | Buy now |
| EP2448 | EPG2448 | 22.20 | 46.20 | 12 | $145.78In stockEP2448 | Buy now |
| EP3012 | EPG3012 | 28.20 | 10.20 | 12 | $57.38In stockEP3012 | Buy now |
| EP3016 | EPG3016 | 28.20 | 14.20 | 12 | $70.21In stockEP3016 | Buy now |
| EP3020 | EPG3020 | 28.20 | 18.20 | 12 | $81.59In stockEP3020 | Buy now |
| EP3024 | EPG3024 | 28.20 | 22.20 | 12 | $94.95In stock | Buy now |
Units shown: inch . Switch units to: mm
| Mild Steel · Part No. | Galvanized · Part No. | Size · D | Size · E | Gauge | Price | Order |
|---|---|---|---|---|---|---|
| EP3030 | EPG3030 | 28.20 | 28.20 | 12 | $124.39In stockEP3030 | Buy now |
| EP3036 | EPG3036 | 28.20 | 34.20 | 12 | $144.44In stockEP3036 | Buy now |
| EP3042 | EPG3042 | 28.20 | 40.20 | 12 | $167.85In stockEP3042 | Buy now |
| EP3048 | EPG3048 | 28.20 | 46.20 | 12 | $188.58In stockEP3048 | Buy now |
| EP3060 | EPG3060 | 28.20 | 58.20 | 12 | $228.70In stockEP3060 | Buy now |
| EP3624 | EPG3624 | 34.20 | 22.20 | 12 | $110.34In stock | Buy now |
| EP3630 | EPG3630 | 34.20 | 28.20 | 12 | $144.44In stock | Buy now |
| EP3636 | EPG3636 | 34.20 | 34.20 | 12 | $167.85In stockEP3636 | Buy now |
| EP3642 | EPG3642 | 34.20 | 40.20 | 12 | $195.93In stockEP3642 | Buy now |
| EP3648 | EPG3648 | 34.20 | 46.20 | 12 | $216.00In stockEP3648 | Buy now |
| EP3660 | EPG3660 | 34.20 | 58.20 | 12 | $264.14In stockEP3660 | Buy now |
| EP4224 | EPG4224 | 40.20 | 22.20 | 12 | $127.72In stockEP4224 | Buy now |
| EP4230 | EPG4230 | 40.20 | 28.20 | 12 | $167.85In stock | Buy now |
| EP4236 | EPG4236 | 40.20 | 34.20 | 12 | $195.93In stock | Buy now |
| EP4824 | EPG4824 | 46.20 | 22.20 | 12 | $145.78In stockEP4824 | Buy now |
| EP4830 | EPG4830 | 46.20 | 28.20 | 12 | $183.23In stockEP4830 | Buy now |
| EP4836 | EPG4836 | 46.20 | 34.20 | 12 | $216.00In stock | Buy now |
| EP4848 | EPG4848 | 46.20 | 46.20 | 12 | $260.80In stockEP4848 | Buy now |
| EP6036 | EPG6036 | 58.20 | 34.20 | 12 | $264.14Backorder | Buy now |
| EP7230 | EPG7230 | 70.20 | 28.20 | 12 | $286.21In stockEP7230 | Buy now |
| EP7236 | EPG7236 | 70.20 | 34.20 | 12 | $315.63In stockEP7236 | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
Units shown: inch . Switch units to: mm
- ■Larger than standard NEMA panel used in same sized enclosure.
- ■12gauge steel construction.
- ■Larger sizes have 2 or 4 formed flanges for added strength.
- ■Slotted corner design for easier mounting.
- ■Finished in recoatable powder white or unpainted galvanized.
Documents
Additional information
Part Details
| Mild Steel · Part No. | Galvanized · Part No. | Size · D | Size · E | Gauge |
|---|---|---|---|---|
| EP1210 | EPG1210 | 10.20 | 8.20 | 12 |
| EP1212 | EPG1212 | 10.20 | 10.20 | 12 |
| EP1224 | EPG1224 | 10.20 | 22.20 | 12 |
| EP1612 | EPG1612 | 14.20 | 10.20 | 12 |
| EP1616 | EPG1616 | 14.20 | 14.20 | 12 |
| EP1620 | EPG1620 | 14.20 | 18.20 | 12 |
| EP2012 | EPG2012 | 18.20 | 10.20 | 12 |
| EP2016 | EPG2016 | 18.20 | 14.20 | 12 |
| EP2020 | EPG2020 | 18.20 | 18.20 | 12 |
| EP2024 | EPG2024 | 18.20 | 22.20 | 12 |
| EP2412 | EPG2412 | 22.20 | 10.20 | 12 |
| EP2416 | EPG2416 | 22.20 | 14.20 | 12 |
| EP2420 | EPG2420 | 22.20 | 18.20 | 12 |
| EP2424 | EPG2424 | 22.20 | 22.20 | 12 |
| EP2430 | EPG2430 | 22.20 | 28.20 | 12 |
| EP2442 | EPG2442 | 22.20 | 40.20 | 12 |
| EP2448 | EPG2448 | 22.20 | 46.20 | 12 |
| EP3012 | EPG3012 | 28.20 | 10.20 | 12 |
| EP3016 | EPG3016 | 28.20 | 14.20 | 12 |
| EP3020 | EPG3020 | 28.20 | 18.20 | 12 |
| EP3024 | EPG3024 | 28.20 | 22.20 | 12 |
Part Details
| Mild Steel · Part No. | Galvanized · Part No. | Size · D | Size · E | Gauge |
|---|---|---|---|---|
| EP3030 | EPG3030 | 28.20 | 28.20 | 12 |
| EP3036 | EPG3036 | 28.20 | 34.20 | 12 |
| EP3042 | EPG3042 | 28.20 | 40.20 | 12 |
| EP3048 | EPG3048 | 28.20 | 46.20 | 12 |
| EP3060 | EPG3060 | 28.20 | 58.20 | 12 |
| EP3624 | EPG3624 | 34.20 | 22.20 | 12 |
| EP3630 | EPG3630 | 34.20 | 28.20 | 12 |
| EP3636 | EPG3636 | 34.20 | 34.20 | 12 |
| EP3642 | EPG3642 | 34.20 | 40.20 | 12 |
| EP3648 | EPG3648 | 34.20 | 46.20 | 12 |
| EP3660 | EPG3660 | 34.20 | 58.20 | 12 |
| EP4224 | EPG4224 | 40.20 | 22.20 | 12 |
| EP4230 | EPG4230 | 40.20 | 28.20 | 12 |
| EP4236 | EPG4236 | 40.20 | 34.20 | 12 |
| EP4824 | EPG4824 | 46.20 | 22.20 | 12 |
| EP4830 | EPG4830 | 46.20 | 28.20 | 12 |
| EP4836 | EPG4836 | 46.20 | 34.20 | 12 |
| EP4848 | EPG4848 | 46.20 | 46.20 | 12 |
| EP6036 | EPG6036 | 58.20 | 34.20 | 12 |
| EP7230 | EPG7230 | 70.20 | 28.20 | 12 |
| EP7236 | EPG7236 | 70.20 | 34.20 | 12 |
