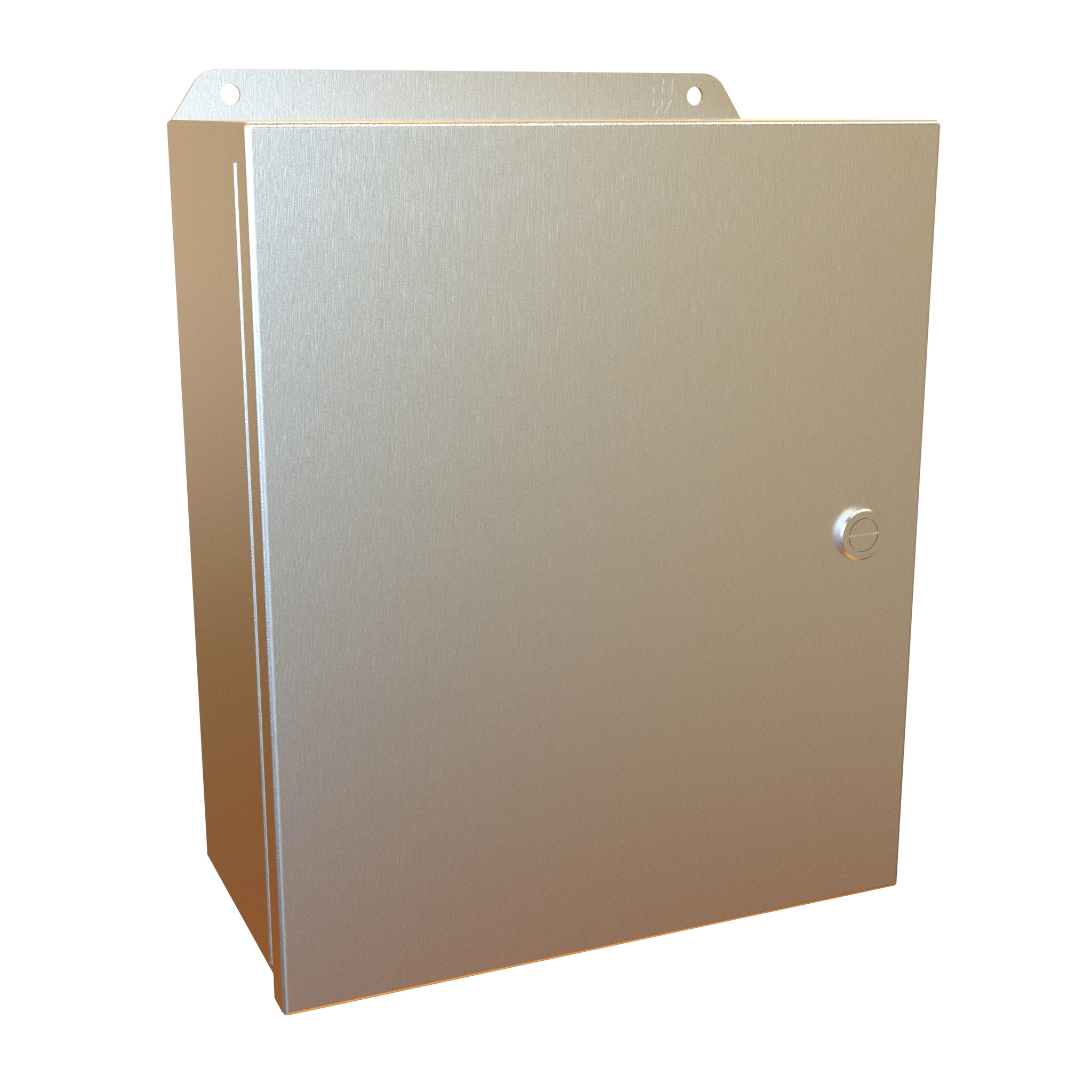

Hammond EJ12105SS 12x10x5 In 304 Stainless Quarter-Turn Wall Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12 x 10 x 5 in (305 mm x 254 mm x 127 mm) single-door wall-mount junction box in 16 gauge 304 stainless steel
- UL 508A and CSA Type 3R, 4, 4X, 12 and 13; NEMA Type 3R, 4, 4X, 12 and 13; IEC 60529 IP66
- Continuously hinged cover on stainless hinges opens 180°; tool-operated 316 stainless quarter-turn latches
- 11.25 x 9.25 in door opening with 5.02 in usable depth
- Removable 14 gauge galvanized inner panel, 10.75 in (273 mm) x 8.88 in (226 mm), on tapped mounting studs
- Continuously welded seams with no knockouts, cutouts or holes; formed lip and seamless poured-in-place gasket
- 14 gauge welded wall-mount brackets with 0.31 in holes; shipping weight 13 lbs (5.90 kg)
- Bonding stud on door, grounding stud on enclosure; grounding and panel mounting hardware provided
For control and wiring work in wet or corrosive locations, the EJ12105SS provides a 12 x 10 x 5 in (305 mm x 254 mm x 127 mm) housing in 16 gauge 304 stainless steel. Part of the Eclipse Junior series of Type 4X stainless junction boxes, it serves as an instrument enclosure, a control housing for electric, hydraulic or pneumatic equipment, a junction box or a terminal wiring enclosure where equipment may be hosed down.
Every seam is smooth and continuously welded, and the enclosure is supplied without knockouts, cutouts or holes so you machine only the entries you need. A formed lip excludes flowing liquids and contaminants, and a seamless poured-in-place gasket seals the cover. The cover is continuously hinged on stainless steel hinges for 180° opening and closes with 316 stainless quarter-turn latches that need a tool to open. Cover and body share a natural stainless steel smooth brushed finish.
Key working dimensions for the EJ12105SS: door opening 11.25 x 9.25 in, usable depth 5.02 in, and clear space on the door of 10.76 x 8.83 in. A removable 14 gauge galvanized inner panel (10.75 in (273 mm) x 8.88 in (226 mm)) comes installed on tapped studs, in unpainted galvanized steel. Shipping weight is 13 lbs (5.90 kg).
The EJ12105SS wall mounts through 14 gauge welded brackets with 0.31 in holes set 12.75 in apart vertically. It includes a door bonding stud, an enclosure grounding stud with 10-32 thread, and grounding and panel mounting hardware. Compliance includes UL 508A and CSA Type 3R, 4, 4X, 12 and 13, NEMA Type 3R, 4, 4X, 12 and 13, IEC 60529 IP66, REACH and RoHS. High temperature applications may need a gasket retainer; please refer to the factory.
Ideal For
- Instrument enclosures
- Electric, hydraulic or pneumatic control housings
- Electrical junction boxes
- Terminal wiring enclosures
- Washdown or very wet locations where corrosion may be a problem
Overview
| Series | Eclipse Junior Series – Type 4X Stainless Steel Junction Box |
| Mounting | Wall mount |
| Door Count | 1 (single door) |
| Door Style | Continuous hinge door with quarter turn |
| Description | N4X Eclipse Junior encl w/ panel - 12 x 10 x 5 - 304 SS |
| Short Description | ECLIPSE JR. SS - 1 DR. WALLMNT |
| 316 Stainless Equivalent | EJ12105S16 |
Dimensions
| Door Width | 10.16 in |
| Usable Depth | 5.02 in |
| Enclosure Depth | 5.00 in (127 mm) |
| Enclosure Width | 10.00 in (254 mm) |
| Enclosure Height | 12.00 in (305 mm) |
| Size (H X W X D) | 12 in x 10 in x 5 in (305 mm x 254 mm x 127 mm) |
| Inner Panel Width | 8.88 in (226 mm) |
| Inner Panel Height | 10.75 in (273 mm) |
| Door Opening (H X W) | 11.25 in x 9.25 in |
| Overall Depth (Incl. Door) | 5.61 in |
| Clear Space Available On Door (H X W) | 10.76 in x 8.83 in |
| Overall Height (Incl. Mounting Brackets) | 13.50 in |
Identifiers
| UPC | 623980190556 |
| UNSPSC | 39121324 |
| Part Number | EJ12105SS |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 13 lbs (5.90 kg) |
Construction & Finish
| Lip | Formed lip on enclosure to exclude flowing liquids and contaminants |
| Hinge | Continuous hinge with stainless steel hinges, 180° opening |
| Seams | Smooth, continuously welded; no knockouts, cutouts or holes |
| Finish | Natural stainless steel, smooth brushed finish |
| Gasket | Seamless poured-in-place |
| Latches | Quarter turn, 316 stainless steel, slot requires tool for opening |
| Grounding | Bonding stud on door; grounding stud on enclosure |
| Inner Panel | Removable, 14 gauge galvanized steel, unpainted |
| Stud Thread | 10-32 |
| Included Hardware | Grounding and panel mounting hardware |
| Mounting Brackets | 14 gauge welded brackets |
| Inner Panel Mounting | Tapped studs |
| Mounting Hole Diameter | 0.31 in |
| Body And Cover Material | 16 gauge 304 stainless steel |
| Mounting Hole Vertical Spacing | 12.75 in |
Environmental & Protection
| Enclosure Types | Type 3R, 4, 4X, 12 and 13 |
| Ingress Protection | IP66 (IEC 60529) |
| High Temperature Note | A gasket retainer may be required for high temperature applications; refer to factory |
Compliance & Certifications
| UL | UL 508A Type 3R, 4, 4X, 12 and 13 |
| CSA | CSA Type 3R, 4, 4X, 12 and 13 |
| NEMA | Complies with NEMA Type 3R, 4, 4X, 12 and 13 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Additional Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| Applicable Standards (DoC) | EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What material is the EJ12105SS made from?▾
The body and cover are 16 gauge 304 stainless steel with a natural, smooth brushed finish. The quarter-turn latches are 316 stainless steel and the removable inner panel is unpainted 14 gauge galvanized steel. The 316 stainless version of this size is EJ12105S16.
Is an inner panel included?▾
Yes. A removable 14 gauge galvanized inner panel measuring 10.75 in (273 mm) high by 8.88 in (226 mm) wide is included and mounts on tapped studs, with panel mounting hardware provided.
What are the dimensions of the EJ12105SS?▾
It measures 12 in x 10 in x 5 in (305 mm x 254 mm x 127 mm). The door opening is 11.25 x 9.25 in, usable depth is 5.02 in, and the inner panel is 10.75 in (273 mm) x 8.88 in (226 mm).
What ratings does the EJ12105SS carry?▾
It is rated UL 508A Type 3R, 4, 4X, 12 and 13 (UL File E65324) and CSA Type 3R, 4, 4X, 12 and 13 (CSA LR21001), complies with NEMA Type 3R, 4, 4X, 12 and 13 and IEC 60529 IP66, and is REACH and RoHS compliant.
Does the enclosure come with knockouts?▾
No. The seams are smooth and continuously welded, and the enclosure has no knockouts, cutouts or holes.
