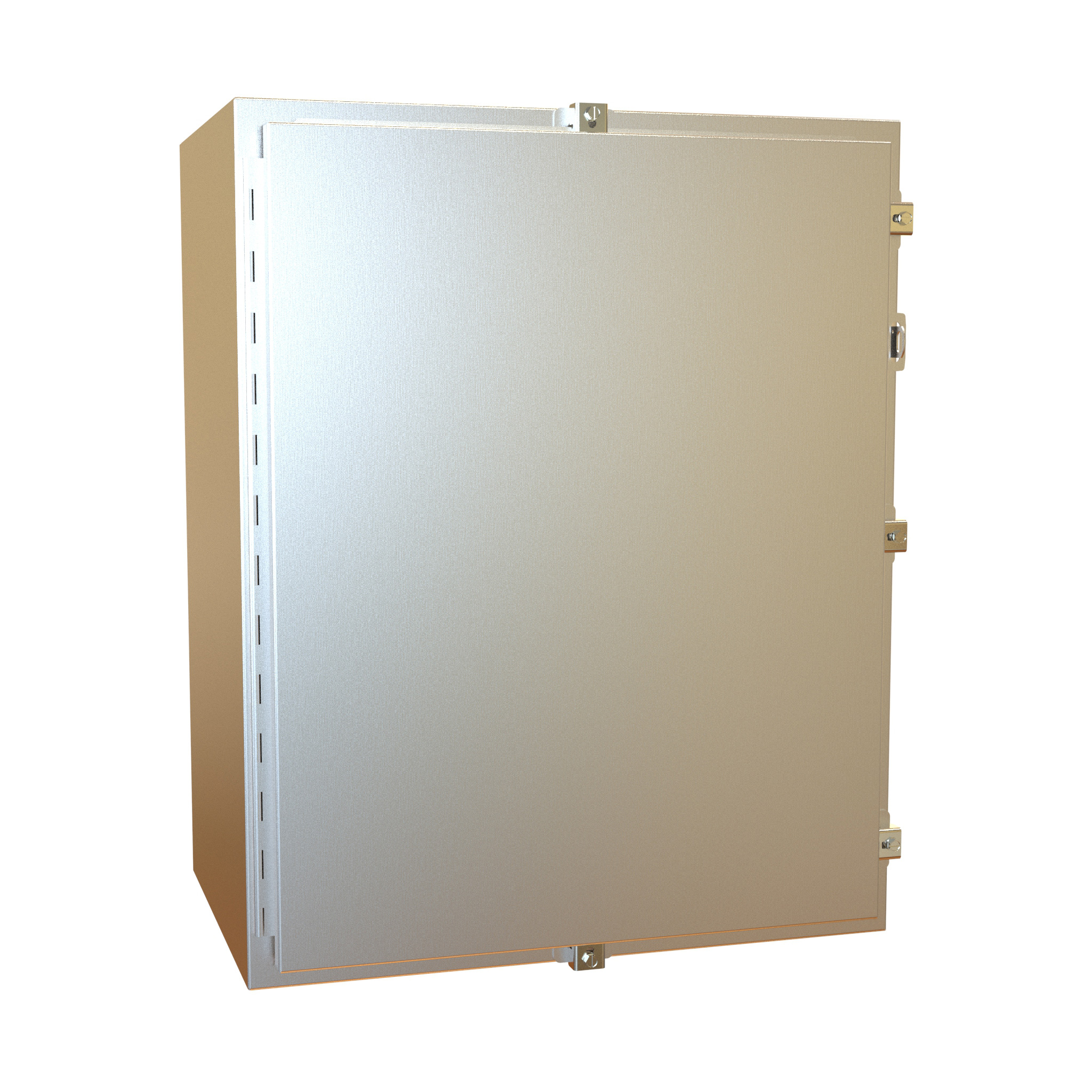

Hammond 1418N4SSK16 30x24x16 In Deep 304 Stainless NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 16 in deep: 30 x 24 x 16 in (762 x 610 x 406 mm), 14 gauge 304 stainless
- 16.17 in usable depth and 21.20 x 27.22 in door opening per drawing
- Removable 27 x 21 in 12 gauge inner panel, white powder coat
- UL 508A / CSA Type 3R, 4, 4X, 12; complies with IEC 60529 IP66
- Stainless clamps with padlock provision; removable-pin continuous hinge
- Seamless poured-in-place gasket and formed liquid-excluding lips
- Shipping weight 100 lbs (45.36 kg)
The 1418N4SSK16 is the deepest 30 in x 24 in option in the 1418 N4 SS Series at 30 in H x 24 in W x 16 in D (762 x 610 x 406 mm). Built from formed 14 gauge 304 stainless steel, this Type 4X wallmount enclosure gives OEM engineers and integrators room for bulky control and instrumentation hardware in areas that are hosed down, very wet or corrosive.
The drawing lists 16.17 in usable depth and a 21.20 in x 27.22 in door opening. The included removable 12 gauge inner panel measures 27.00 in x 21.00 in (686 x 533 mm), finished in white powder coat and mounted on collar studs.
- Smooth, continuously welded seams with no knockouts, cutouts or holes
- Formed lip on door and enclosure to exclude flowing liquids and contaminants
- Seamless poured-in-place gasket
- Stainless steel continuous hinge, removable by pulling the hinge pin
- Stainless steel clamps with provision for padlocking
- Door bonding stud, enclosure grounding stud and door literature pocket
Welded brackets with 0.44 in holes on 18.00 in x 31.25 in spacing (per drawing) handle wall mounting. The finish is natural, smooth brushed stainless steel. The series is UL 508A and CSA Type 3R, 4, 4X and 12 and complies with NEMA Type 3R, 4, 4X, 12 and 13 and IEC 60529 IP66. The 1418N4SSK16 ships at 100 lbs (45.36 kg).
Ideal For
- Deep control and instrumentation housings
- Washdown areas
- Corrosive environments
- Terminal wiring enclosures
Mounting
| Mounting Method | Welded brackets for wall mounting |
| Inner Panel Mounting | Collar studs provided for mounting inner panels |
| Mounting Hole Diameter | 0.44 in |
| Mounting Hole Spacing (W X H) | 18.00 in x 31.25 in |
Overview
| Series | 1418 N4 SS Series |
| Door Style | Continuous hinge door with clamps |
| Description | N4X Wallmount Encl w/panel - 30 x 24 x 16 - 304 SS |
| Part Number | 1418N4SSK16 |
| Product Type | Type 4X Stainless Steel Wallmount Enclosure |
| Material Grade | 304 stainless steel |
| Short Description | NEMA 4X ENCL PANL 30X24X16 |
| 316 Stainless Steel Equivalent Part Number | 1418N4S16K16 |
Dimensions
| Usable Depth | 16.17 in |
| Enclosure Depth | 16.00 in (406 mm) |
| Enclosure Width | 24.00 in (610 mm) |
| Enclosure Height | 30.00 in (762 mm) |
| Size (H X W X D) | 30 in x 24 in x 16 in (762 mm x 610 mm x 406 mm) |
| Door Size (W X H) | 22.19 in x 28.21 in |
| Inner Panel Width | 21.00 in (533 mm) |
| Inner Panel Height | 27.00 in (686 mm) |
| Door Opening (W X H) | 21.20 in x 27.22 in |
| Overall Height (Drawing) | 32.25 in |
Accessories
| Available Accessories (Series) | Additional inner panels, perforated inner panels, swing panel kit, door stop kit, heavy duty door clamping hardware, wallmount quick release clamp, drip shield kit, floor stand kit, window kits, climate control, lighting, general accessories |
Identifiers
| UPC | 623980385655 |
| UNSPSC | 39121324 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 100 lbs (45.36 kg) |
Construction & Finish
| Seams | Smooth, continuously welded seams without knockouts, cutouts or holes |
| Gasket | Seamless poured-in-place gasket |
| Grounding | Bonding stud on door; grounding stud in enclosure |
| Door Hinge | Stainless steel continuous hinge, removable by pulling the stainless steel hinge pin |
| Padlocking | Provision for padlocking |
| Inner Panel | Removable 12 gauge inner panel included |
| Door Closure | Stainless steel clamps |
| Enclosure Finish | Natural stainless steel, smooth brushed finish (cover and enclosure) |
| Liquid Exclusion | Formed lip on door and enclosure excludes flowing liquids and contaminants |
| Literature Pocket | Provided on inside of door |
| Enclosure Material | Formed 14 gauge 304 stainless steel |
| Inner Panel Finish | White powder coating |
Environmental & Protection
| IP Rating | IP66 (IEC 60529) |
| NEMA Type | Complies with NEMA Type 3R, 4, 4X, 12 and 13 |
Compliance & Certifications
| CSA | CSA Type 3R, 4, 4X and 12 |
| UL File # | E65324 |
| UL Listing | UL 508A Type 3R, 4, 4X and 12 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Declared Standards | EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 |
| Additional Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU (1418N4SS listed under Corrosion Resistant Enclosures) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How deep is the 1418N4SSK16?▾
16 in (406 mm) nominal, with 16.17 in usable depth per the drawing.
What panel comes with it?▾
A removable 12 gauge inner panel, 27.00 x 21.00 in (686 x 533 mm), finished in white powder coating.
Is a 316 stainless version available?▾
Yes, 1418N4S16K16.
What ratings does it have?▾
UL 508A and CSA Type 3R, 4, 4X and 12, with compliance to NEMA Type 3R, 4, 4X, 12 and 13 and IEC 60529 IP66.
What is the shipping weight?▾
100 lbs (45.36 kg).
Related Products

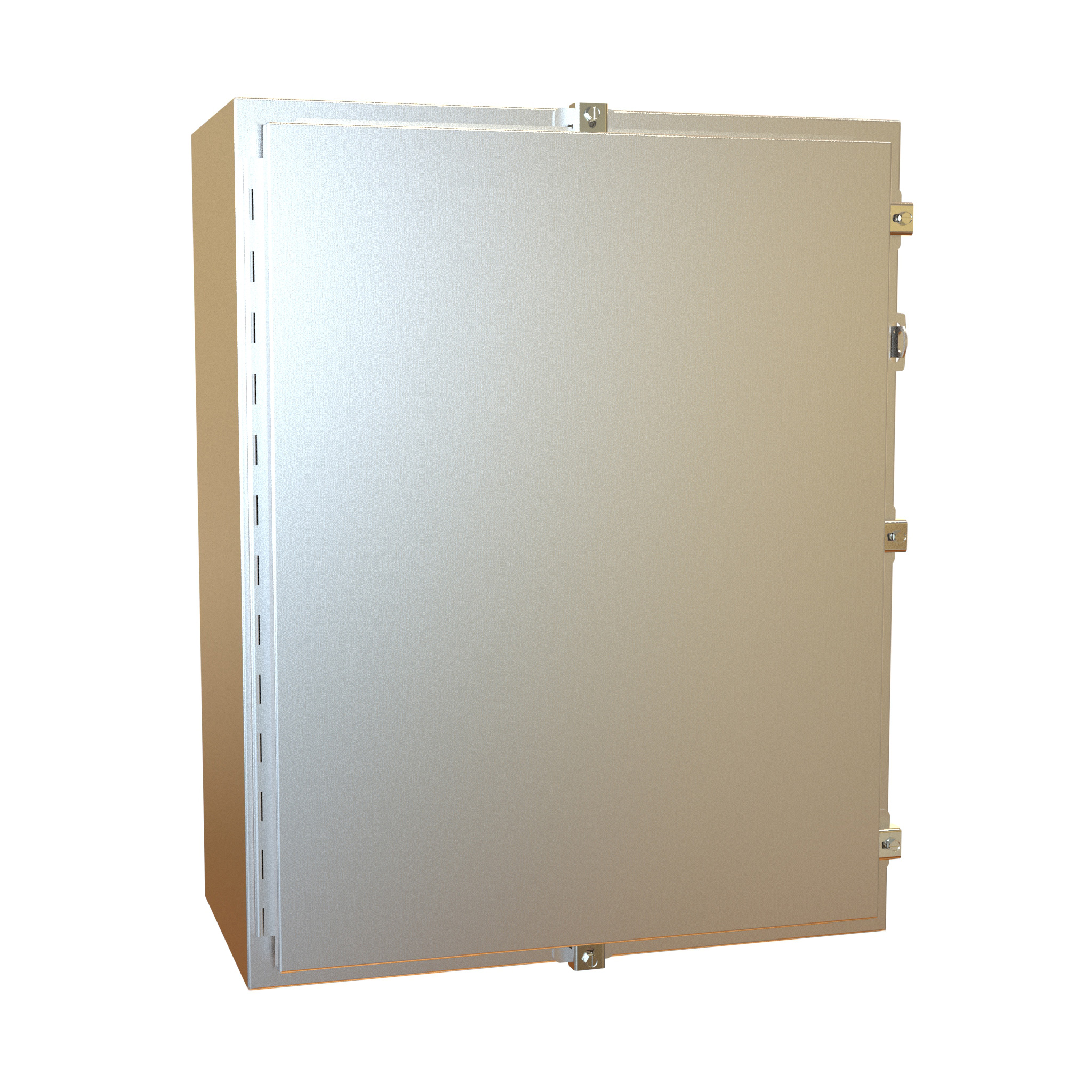

Save 55%1418N4SSK12 — N4X Wallmount Encl w/panel - 30 x 24 x 12 - 304 SS
Hammond Manufacturing · 1418N4SSK12

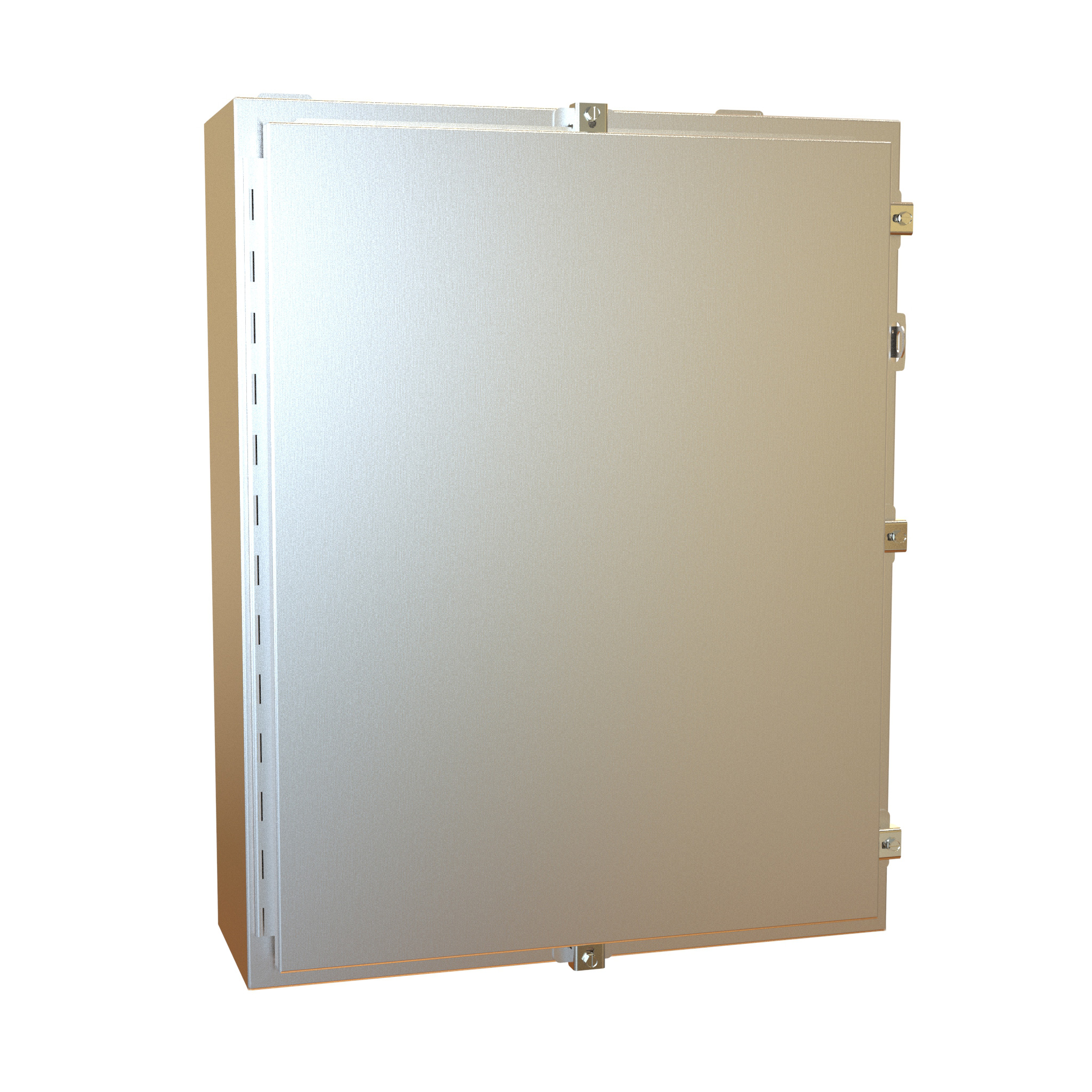

Save 55%1418N4SSK8 — N4X Wallmount Encl w/panel - 30 x 24 x 8 - 304 SS
Hammond Manufacturing · 1418N4SSK8

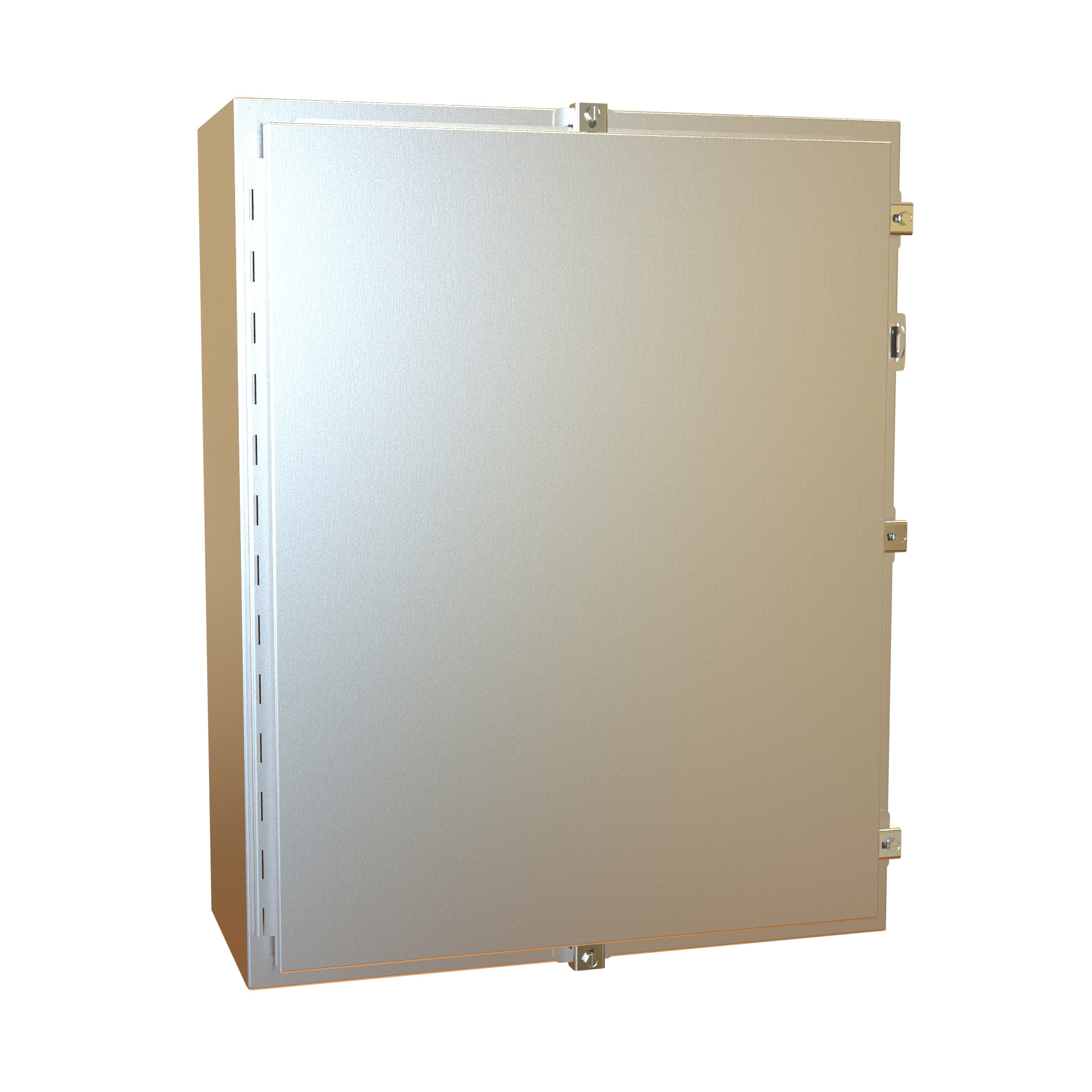

Save 55%1418N4SSK10 — N4X Wallmount Encl w/panel - 30 x 24 x 10 - 304 SS
Hammond Manufacturing · 1418N4SSK10

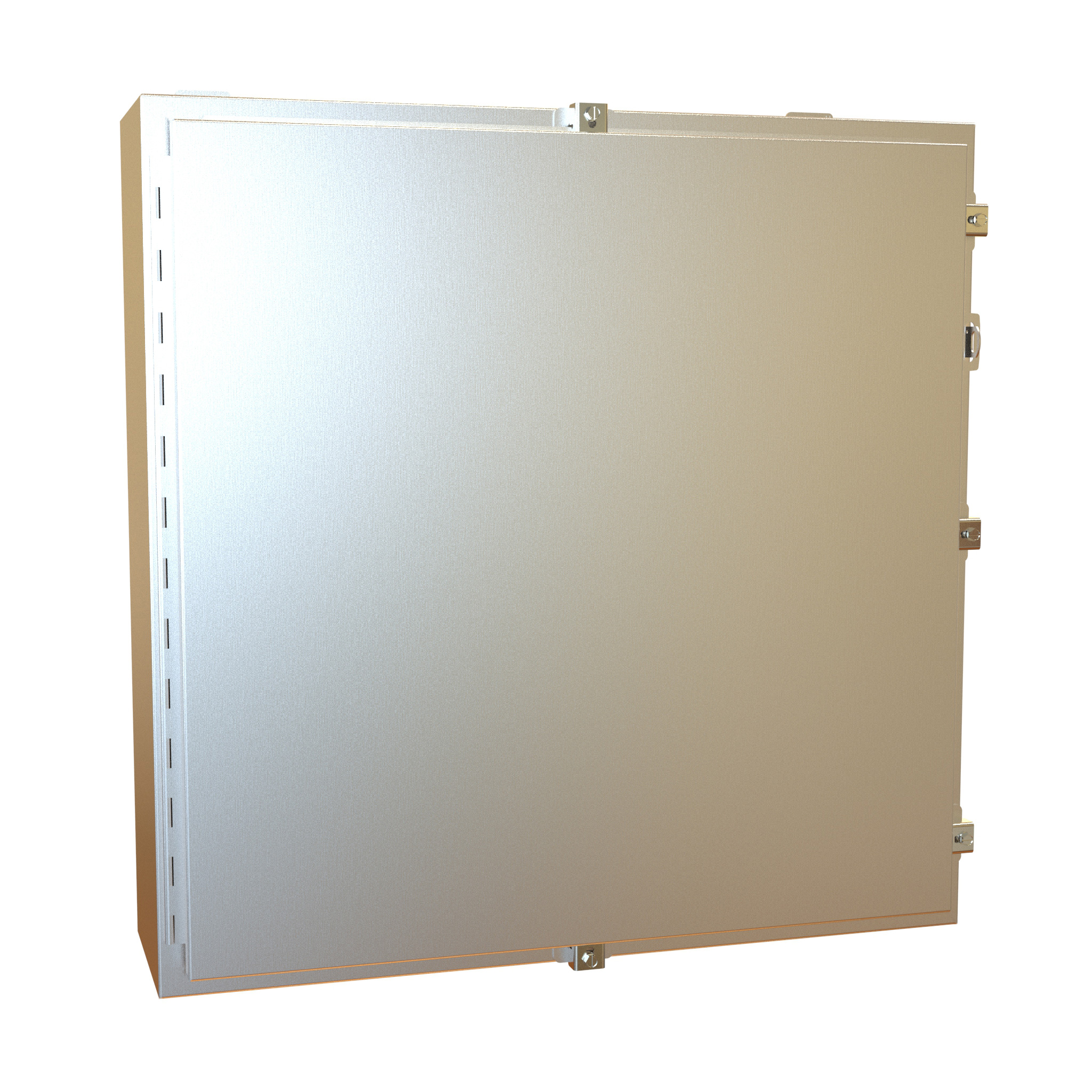

Save 55%1418N4SSKK8 — N4X Wallmount Encl w/panel - 30 x 30 x 8 - 304 SS
Hammond Manufacturing · 1418N4SSKK8

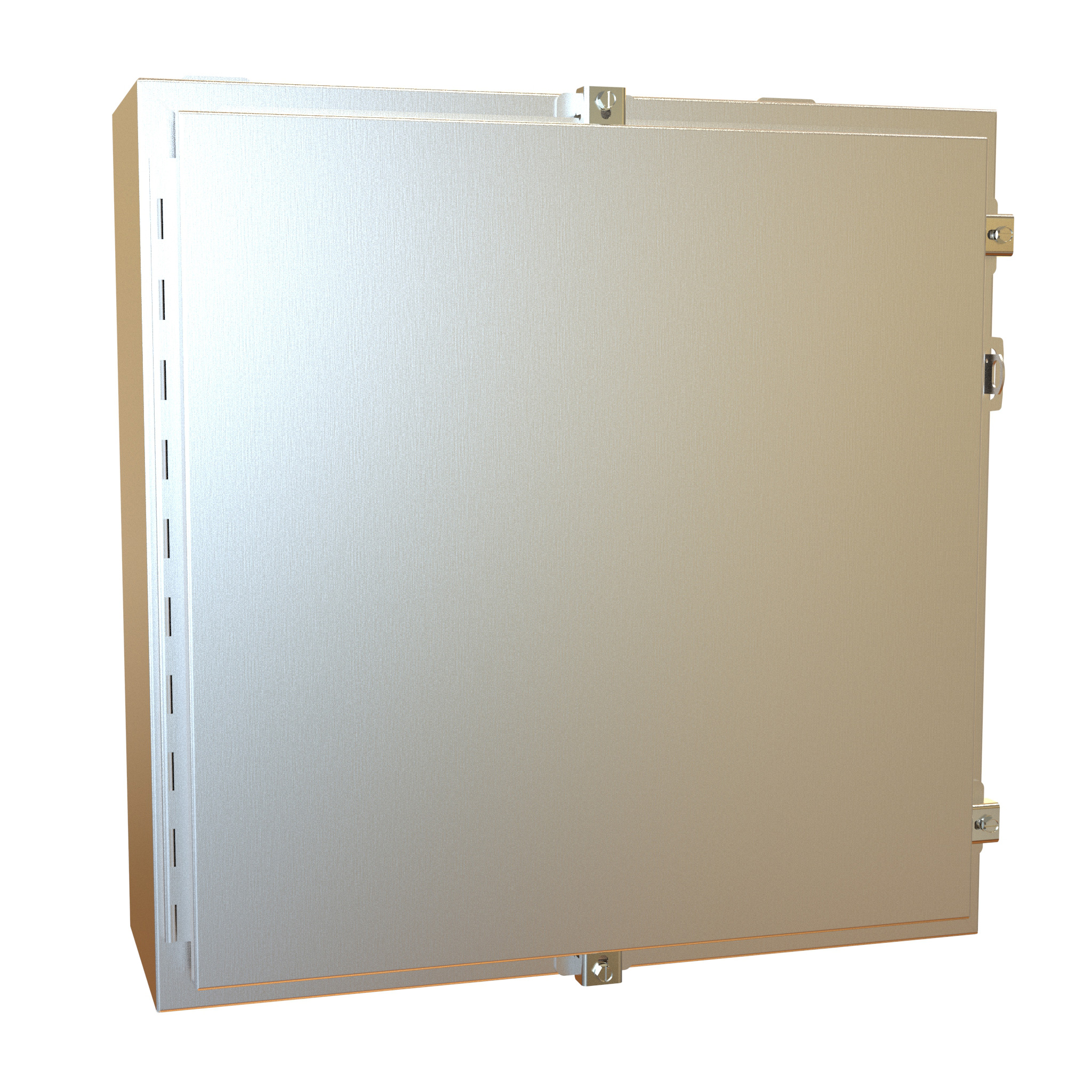

Save 55%1418N4SSJ8 — N4X Wallmount Encl w/panel - 24 x 24 x 8 - 304 SS
