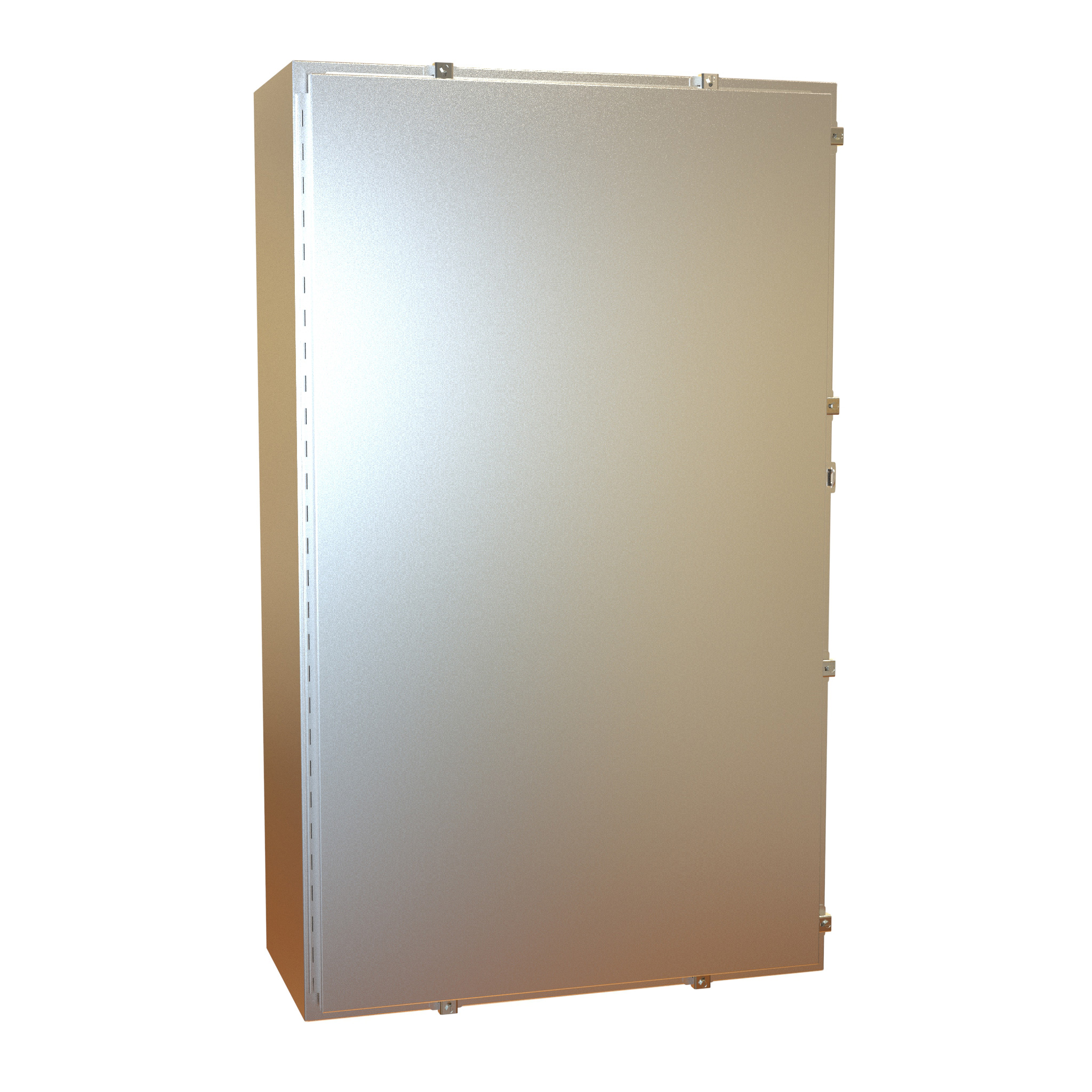

Hammond 1418N4SST16 60x36x16 In Deep Type 4X Stainless Wallmount Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 60 x 36 x 16 in (1,524 x 914 x 406 mm), the largest size in the series ordering table
- 16.17 in usable depth and 33.26 x 57.25 in door opening per drawing
- 57 x 33 in removable 12 gauge inner panel, white powder coated
- Formed 14 gauge 304 stainless steel with continuously welded seams
- UL 508A / CSA Type 3R, 4, 4X, 12; complies with NEMA 3R, 4, 4X, 12, 13 and IP66
- Door stiffener, stainless clamps and continuous hinge with removable pin
- Seamless poured-in place gasket, padlock provision, bonding and grounding studs
The 1418N4SST16 is the largest enclosure in the 1418 N4 SS ordering table: a 60 x 36 x 16 in (1,524 x 914 x 406 mm) Type 4X wallmount enclosure in 304 stainless steel. Combining the tallest 60 in height with the deepest 16 in body, it provides a 57 x 33 in inner panel and 16.17 in of usable depth (per the drawing) for instrument enclosures, electric, hydraulic or pneumatic control housings, junction boxes and terminal wiring in hose-down, very wet or corrosive locations.
The body is formed 14 gauge stainless steel with smooth, continuously welded seams and no knockouts, cutouts or holes, and the part drawing shows a door stiffener for extra rigidity. A stainless steel continuous hinge carries the door and releases it when the hinge pin is pulled. Stainless steel clamps close the door onto a seamless poured-in place gasket, formed lips exclude flowing liquids and contaminants, and padlocking is provided for.
The included removable 12 gauge inner panel is 57 x 33 in (1,448 x 838 mm), white powder coated and mounted on collar studs. The door opening on the drawing is 33.26 in wide by 57.25 in high. Welded brackets provide for enclosure mounting. A bonding stud on the door, a grounding stud in the enclosure and a literature pocket for the inside of the door are provided.
The series is listed to UL 508A Type 3R, 4, 4X and 12 and CSA Type 3R, 4, 4X and 12, and complies with NEMA Type 3R, 4, 4X, 12 and 13 and IEC 60529 IP66. This part lists UL File E65324 and CSA Cert. LR21001, and is RoHS and REACH compliant.
Finish is natural brushed stainless steel. The 1418N4SST16 ships boxed at 280 lbs (127.01 kg); the 316 stainless version is 1418N4S16T16.
Ideal For
- Large electric control housings
- Hydraulic or pneumatic control housings
- Instrument enclosures
- Terminal wiring enclosures
- Washdown and corrosive environments
Overview
| Series | 1418 N4 SS Series |
| Door Style | Continuous Hinge Door with Clamps |
| Description | N4X Wallmount Encl w/panel - 60 x 36 x 16 - 304 SS |
| Part Number | 1418N4SST16 |
| Product Type | Type 4X Stainless Steel Wallmount Enclosure |
| Short Description | NEMA 4X 304SS ENCL 60X36X16 |
| Series Accessories | Additional Inner Panels; Perforated Inner Panels; Swing Panel Kit; Door Stop Kit; Door Clamping Hardware - Heavy Duty; Wallmount Quick Release Clamp; Drip Shield Kit; Floor Stand Kit; Window Kits; Climate Control; Lighting; General Accessories |
| 316 Stainless Steel Equivalent Part Number | 1418N4S16T16 |
Dimensions
| Enclosure Depth | 16.00 in (406 mm) |
| Enclosure Width | 36.00 in (914 mm) |
| Enclosure Height | 60.00 in (1524 mm) |
| Size (H X W X D) | 60 in x 36 in x 16 in (1,524 mm x 914 mm x 406 mm) |
| Inner Panel Width | 33.00 in (838 mm) |
| Inner Panel Height | 57.00 in (1448 mm) |
| Usable Depth (Drawing) | 16.17 in |
| Door Opening Width (Drawing) | 33.26 in |
| Door Opening Height (Drawing) | 57.25 in |
| Mounting Hole Diameter (Drawing) | 0.44 in |
Identifiers
| UPC | 623980149295 |
| UNSPSC | 39121324 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 280 lbs (127.01 kg) |
Construction & Finish
| Gauge | Formed 14 gauge stainless steel |
| Hinge | Stainless steel continuous hinge; door removable by pulling the stainless steel hinge pin |
| Seams | Smooth, continuously welded seams without knockouts, cutouts or holes |
| Gasket | Seamless poured-in place gasket |
| Material | 304 stainless steel |
| Mounting | Welded brackets provide for enclosure mounting |
| Padlocking | Provision for padlocking |
| Inner Panel | Removable 12 gauge inner panel included |
| Door Closure | Stainless steel clamps |
| Door Stiffener | Door stiffener shown on part drawing |
| Liquid Exclusion | Formed lip on door and enclosure excludes flowing liquids and contaminants |
| Literature Pocket | Provided for the inside of the door |
| Inner Panel Finish | White powder coating |
| Bonding & Grounding | Bonding stud on the door; grounding stud in the enclosure |
| Inner Panel Mounting | Collar studs provided for mounting inner panels |
| Enclosure & Cover Finish | Natural stainless steel with a smooth brushed finish |
Environmental & Protection
| NEMA Type | NEMA Type 3R, 4, 4X, 12 and 13 |
| Ingress Protection | IEC 60529, IP66 |
Compliance & Certifications
| UL | UL 508A Type 3R, 4, 4X, and 12 |
| CSA | CSA Type 3R, 4, 4X, and 12 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Additional Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU (1418N4SS series) |
| Applicable Standards (Declaration) | EN 60204-1: 2006; IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013; IEC 60529: 2001-02 + A2: 2013-08 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1418N4SST16?▾
60 in H x 36 in W x 16 in D (1,524 x 914 x 406 mm), with a 57 x 33 in (1,448 x 838 mm) inner panel.
How much usable depth does it have?▾
The part drawing shows 16.17 in of usable depth.
Does the door have a stiffener?▾
Yes, a door stiffener is shown on the part drawing; the series provides door stiffeners on larger enclosures for extra rigidity.
What ratings apply?▾
UL 508A Type 3R, 4, 4X and 12 and CSA Type 3R, 4, 4X and 12; complies with NEMA Type 3R, 4, 4X, 12 and 13 and IEC 60529 IP66.
What is the 316 stainless equivalent?▾
1418N4S16T16 is the 316 stainless steel version of this size.
What does it weigh?▾
The shipping weight is 280 lbs (127.01 kg), packed in a box.
