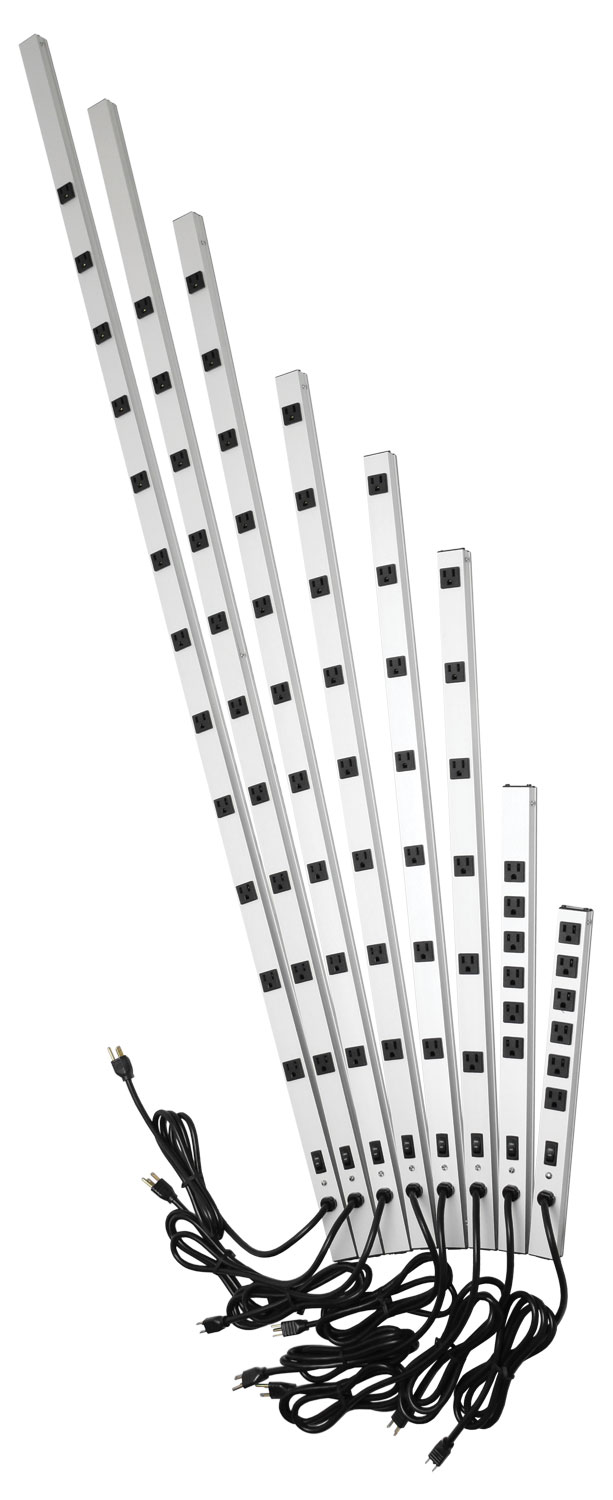

Vertical Basic PDU · 1589H-T Series

Features

• ■Low-profile slim design.
• ■Constructed of rugged light weight aluminum.

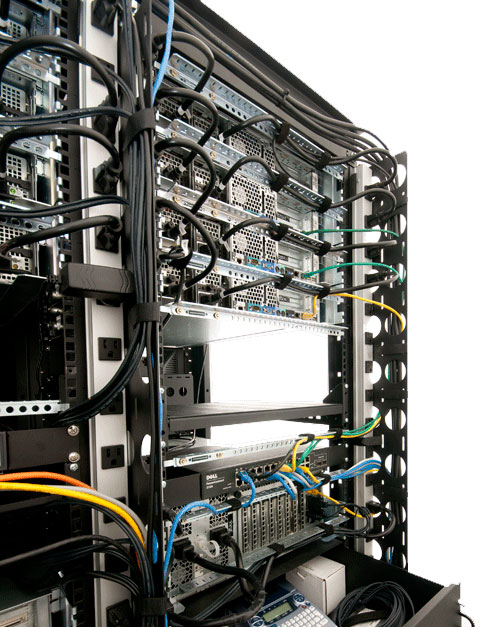

• ■Designed for a variety of applications: Install in your server cabinets Wall mount cabinets Open frame racks Or install horizontally above your work bench.
• ■Install in your server cabinets
• ■Wall mount cabinets
• ■Open frame racks
• ■Or install horizontally above your work bench.
• ■Each outlet strip included a hardware mounting kit. Order P/N: 1585CLIP for additional hardware kit.
• ■Receptacles are 1” square and are equally spaced over the length of the power strip.
• ■With on/off switch or pilot light and 20 Amp circuit breaker.
• ■UL/cUL Listed Standard UL1363 and CSA C22.2 No. 308-14
• ■Heavy duty 12 gauge wire cord - 12/3 SJT for extreme temperature ranges and integral molded plug.
• ■Operating temperature is from -20 degrees C to +60 degrees C
• ■Heavy-duty black receptacles rated for 20A, 125VAC service (NEMA 5-20R, Single T-Slot).
• ■Plug types available are NEMA 5-20P straight blade or NEMA L5-20P locking type.
• ■NOTE #1: Outlet strips can NOT be used between the front & rear panel rails of rack cabinets as they (and the equipment plugs) will interfere with mounted equipment and mounted accessories.
• ■NOTE #2: To properly use on rack cabinets, allow sufficient depth BEHIND the rear panel rails for vertically mounting to the amhul struts.
• ■TAA-compliant for federal GSA schedule purchases within the USA.
• ■RoHS Compliant.
• ■Manufactured in North America.
