Rack Mount Basic PDU · 1582E DP Series

Brand: Hammond Manufacturing · 2 part numbers

10A Double Pole | Single-Phase 100-240V | Front or Rear Facing C13 Outlets

■On-Off switch is rocker type (double pole, single throw) with green light.
■Rated 100- 240VAC (TUV), 120- 240VAC (UL), 10A, 50/60Hz
■Designed for power distribution on front or rear of unit with IEC power cords.
■1U horizontal 19" rackmount installation.
■All steel housing with black powder coat. Complies with the Greenguard guidelines for indoor air quality.
■Includes 10A circuit breakers to prevent accidental line overload.

from $83.07

2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1582E DP Series part number

Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

2 of 2 part numbers · 2 priced online

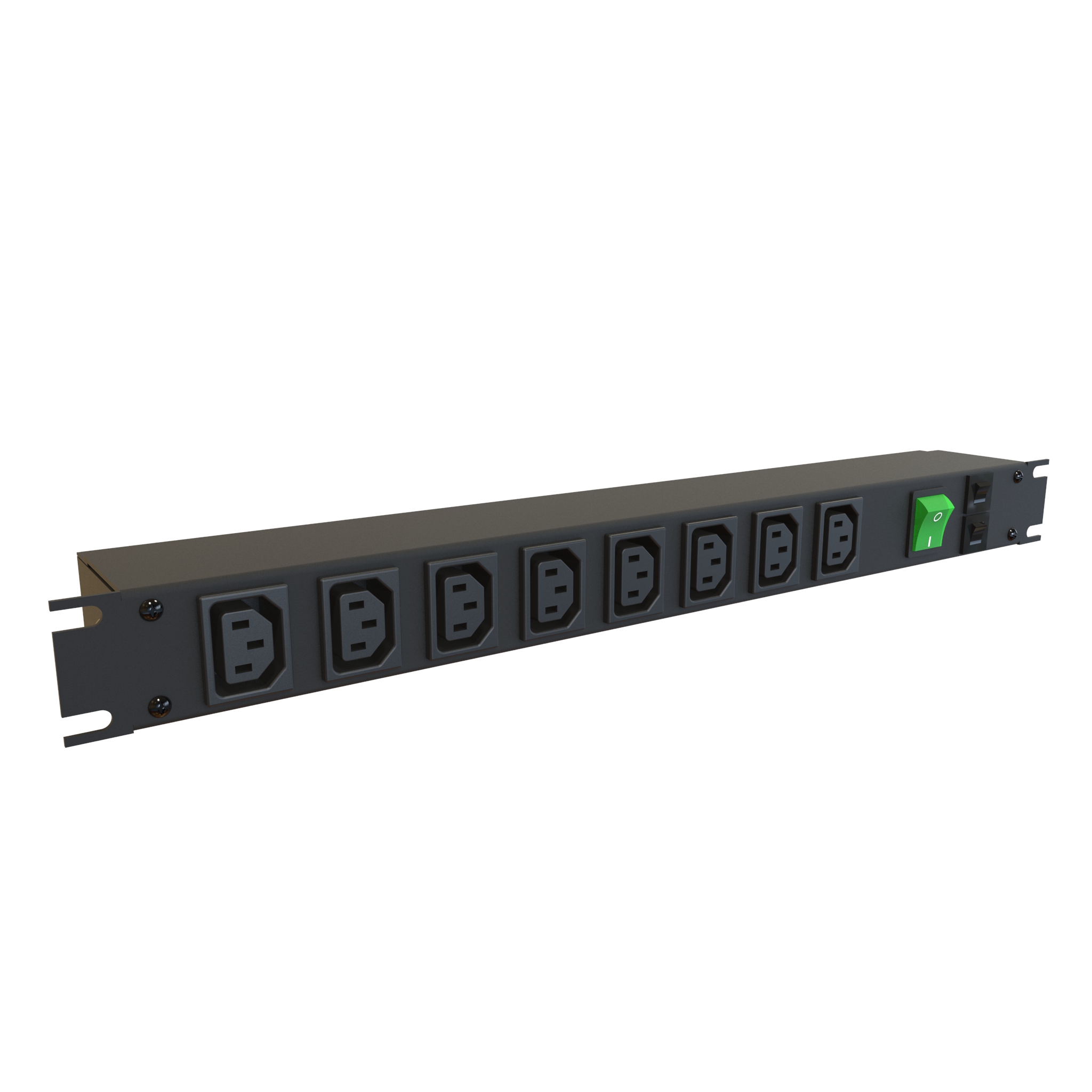

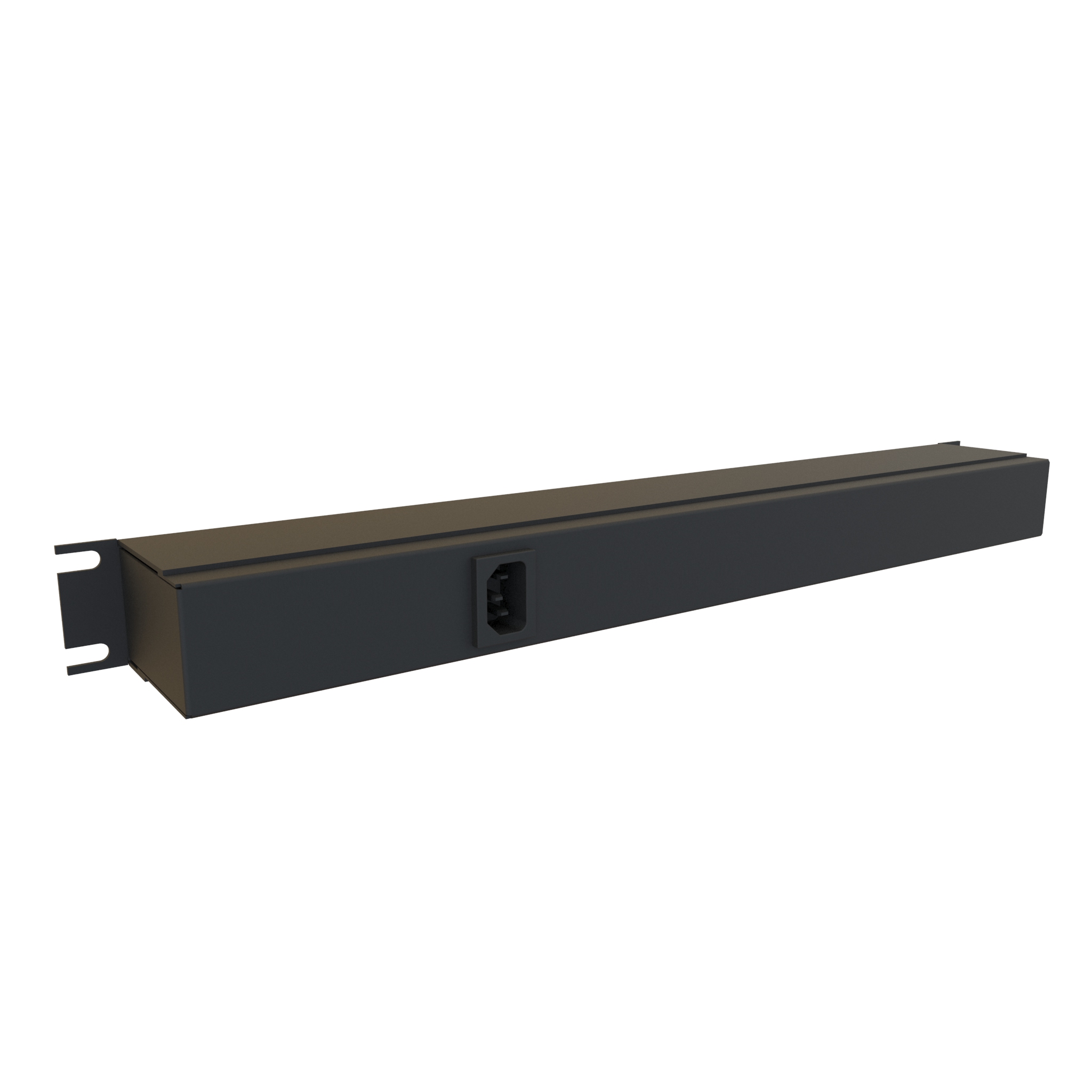

1582H8E1BKDP

19" IEC Pbar, 8 Rec Fr, Dbl Pl

$83.07In stock

Buy now

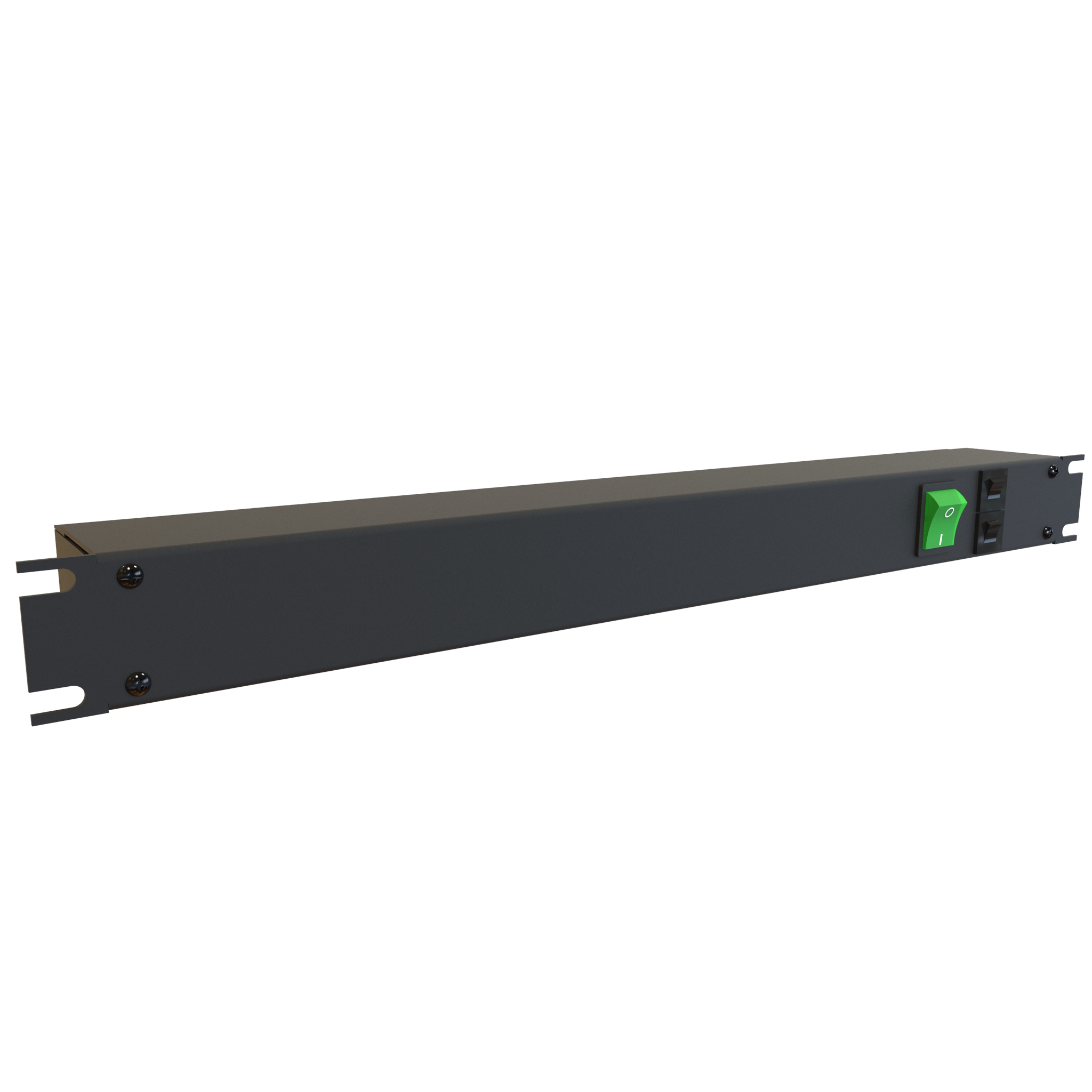

1583H8E1BKDP

19" IEC Pbar, 8 Rec Rr, Dbl Pl

$89.56In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

With Illuminated · On/Off Switch · Part No.	Overall Dimensions · Height	Overall Dimensions · Width	Overall Dimensions · Depth	Number of Outlets · Front	Number of Outlets · Rear	Outlet · Type	Inlet · Type	Inlet · Location	Price	Order
1582H8E1BKDP	1.72	19.00	2.66	8	0	C13	C14	Rear	$83.07In stock	Buy now
1583H8E1BKDP	1.72	19.00	2.66	0	8	C13	C14	Rear	$89.56In stock	Buy now

Features

■On-Off switch is rocker type (double pole, single throw) with green light.
■Rated 100- 240VAC (TUV), 120- 240VAC (UL), 10A, 50/60Hz
■Designed for power distribution on front or rear of unit with IEC power cords.
■1U horizontal 19" rackmount installation.
■All steel housing with black powder coat. Complies with the Greenguard guidelines for indoor air quality.

Specifications

■Includes 10A circuit breakers to prevent accidental line overload.
■cULus Listed UL 62368-1 (2nd Edition), 2014-12-01, and CAN/CSA C22.2 No. 62368-1-14 (2nd Edition).
■TÜV-SUD Certified to EN 62368-1:2020/A11:2020, and IEC 62368-1:2018.
■TÜV-SUD tested for EMC Compliance to EN 55032:2015+A11:2020 (CISPR 32:2015+A1:2019) & EN 55035:2017+A11:2020 (CISPR 35:2016).
■CE compliant to the European Low Voltage Directive 2014/35/EU.
■CE compliant to the European EMC Directive 2014/30/EU.
■UKCA compliant to British Electrical Equipment (Safety) Regulations 2016 (S.I. 2016/1101).
■UKCA compliant to British Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091).
■TAA-compliant for federal GSA schedule purchases within the USA.
■RoHS Compliant.
■Manufactured in North America.
