20A Rackmount PDU | Front or Rear 5-20R Outlets · 1589-RF-RR Series

Key Features and Benefits

• ■20A single-phase power distribution supports higher-current IT, networking, AV, telecom, test, and industrial equipment.
• ■Available with 6, 8, or 12 NEMA 5-20R outlets to match equipment density and rack power requirements.

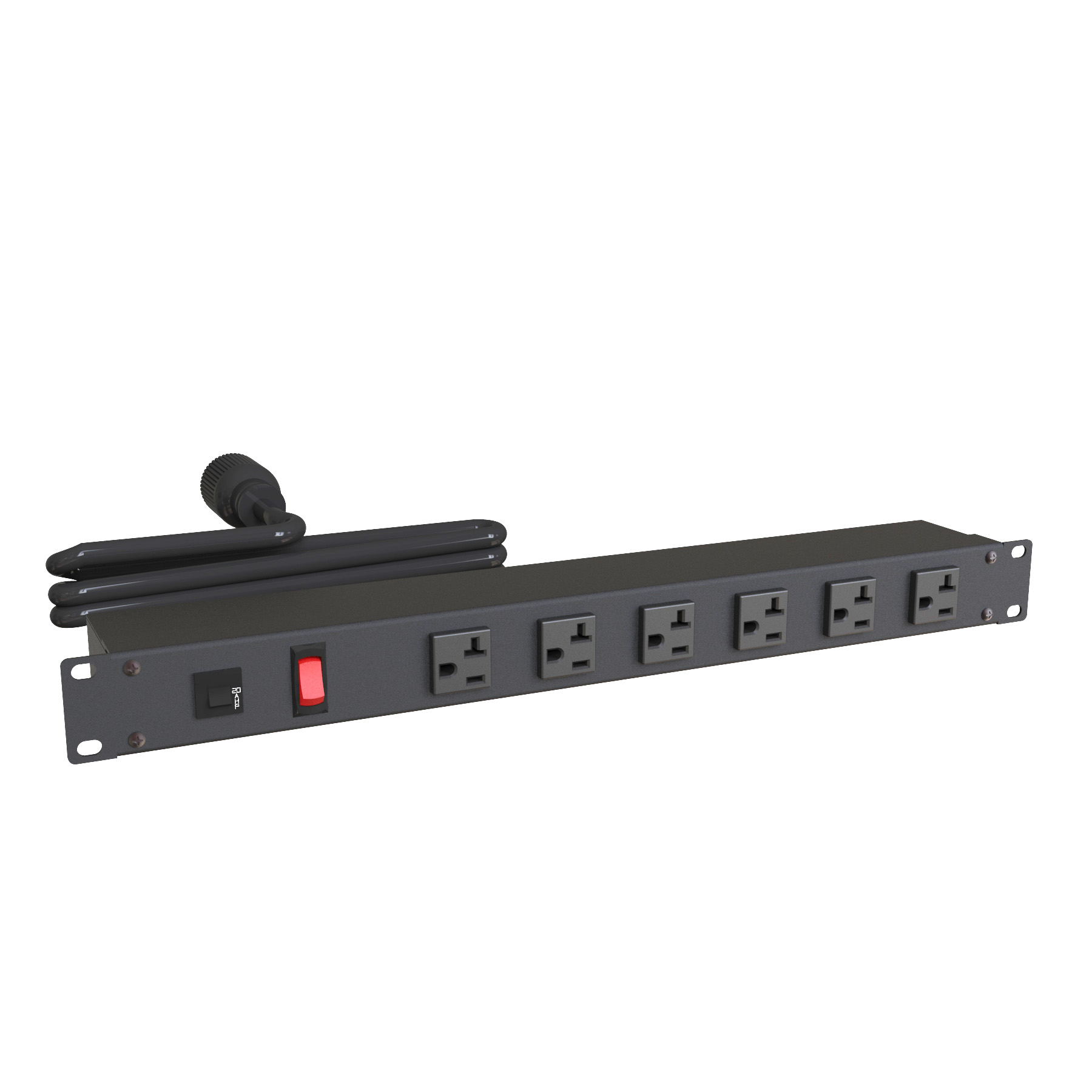

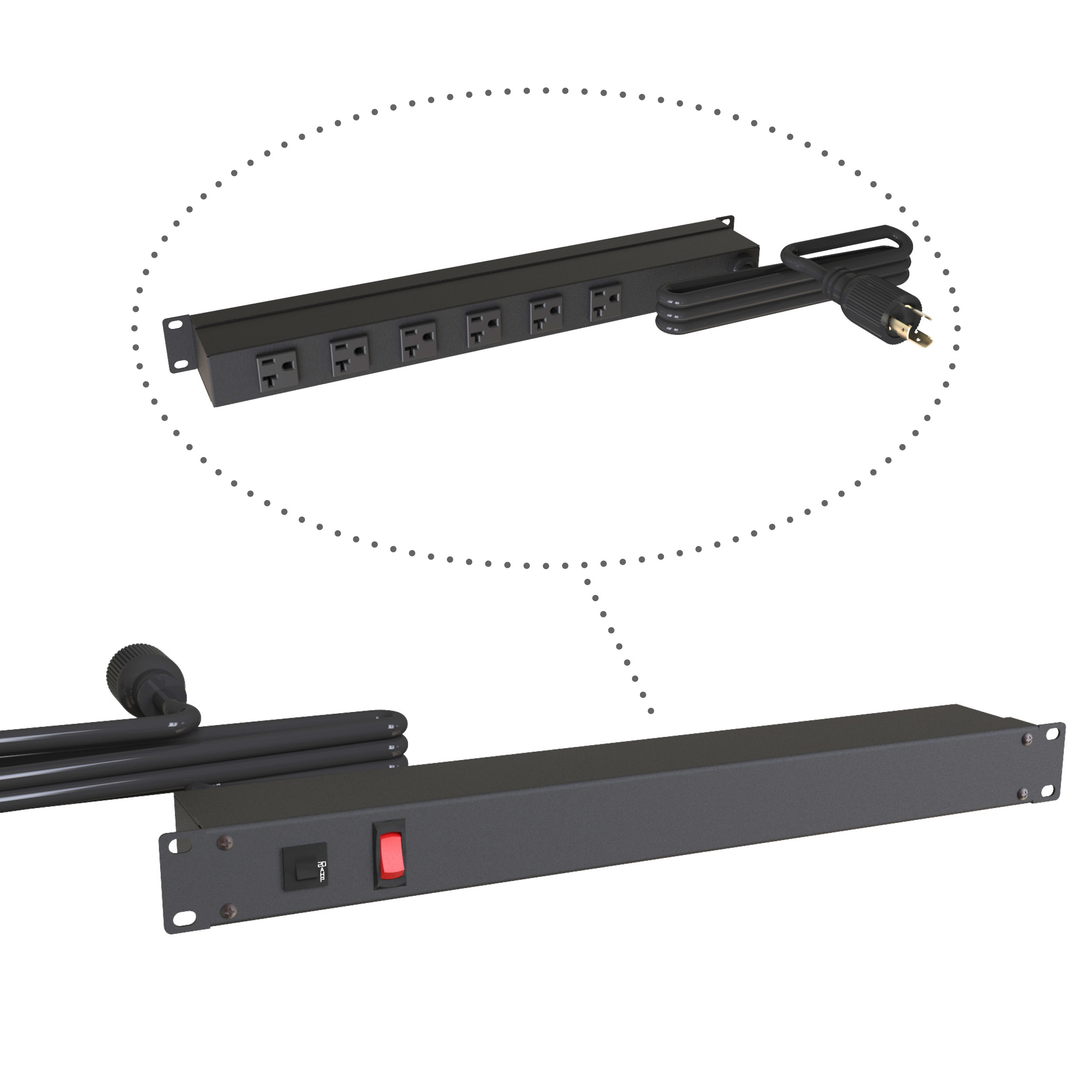

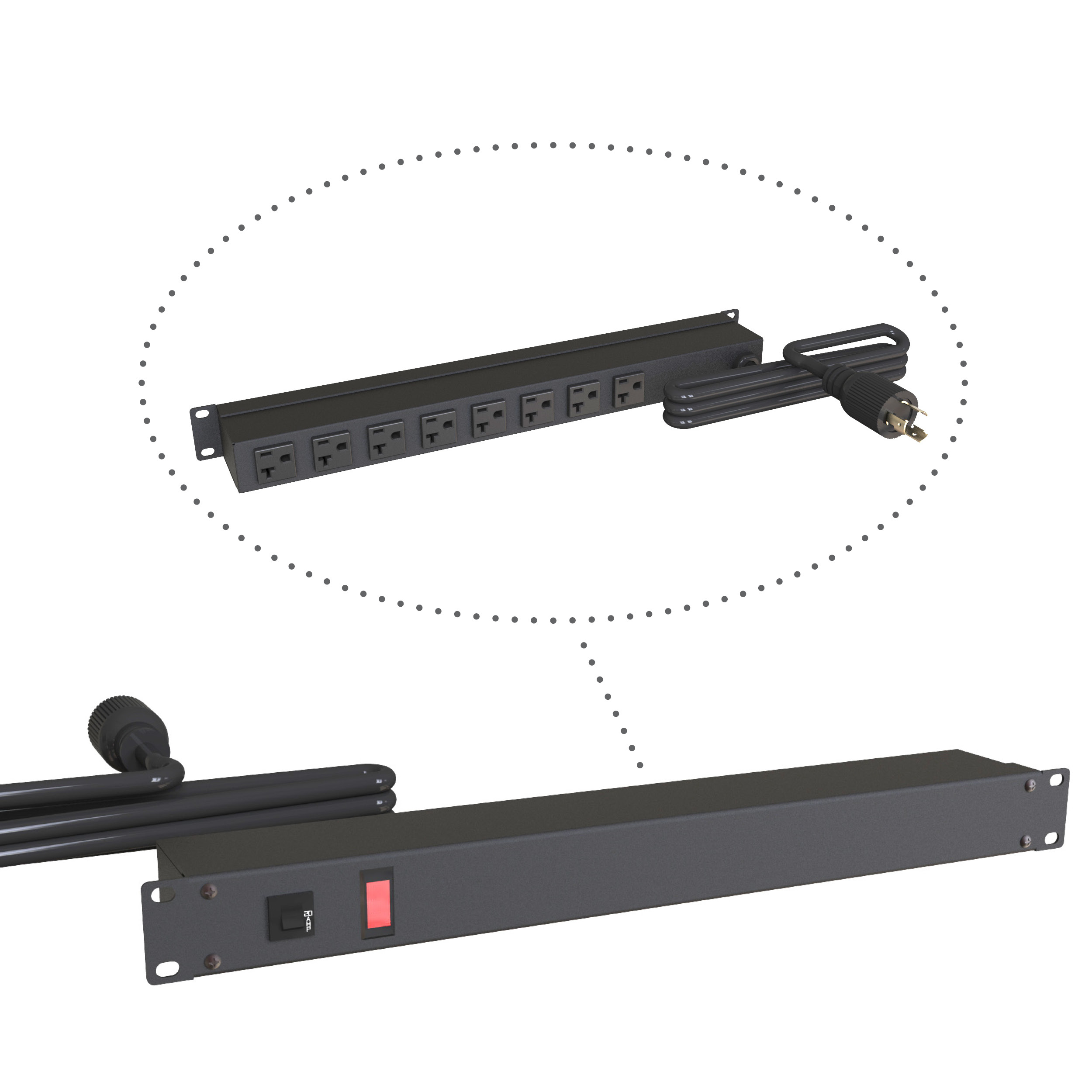

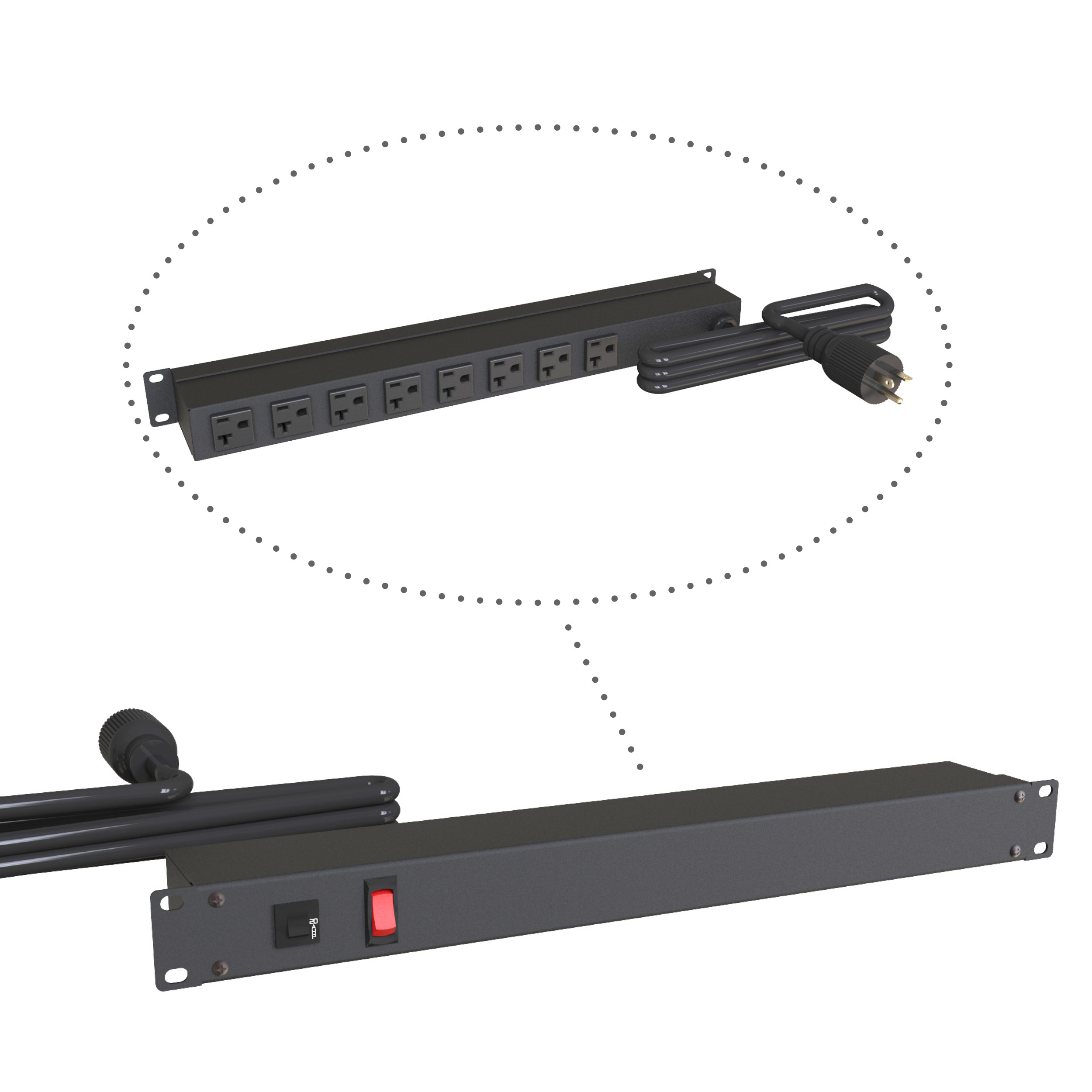

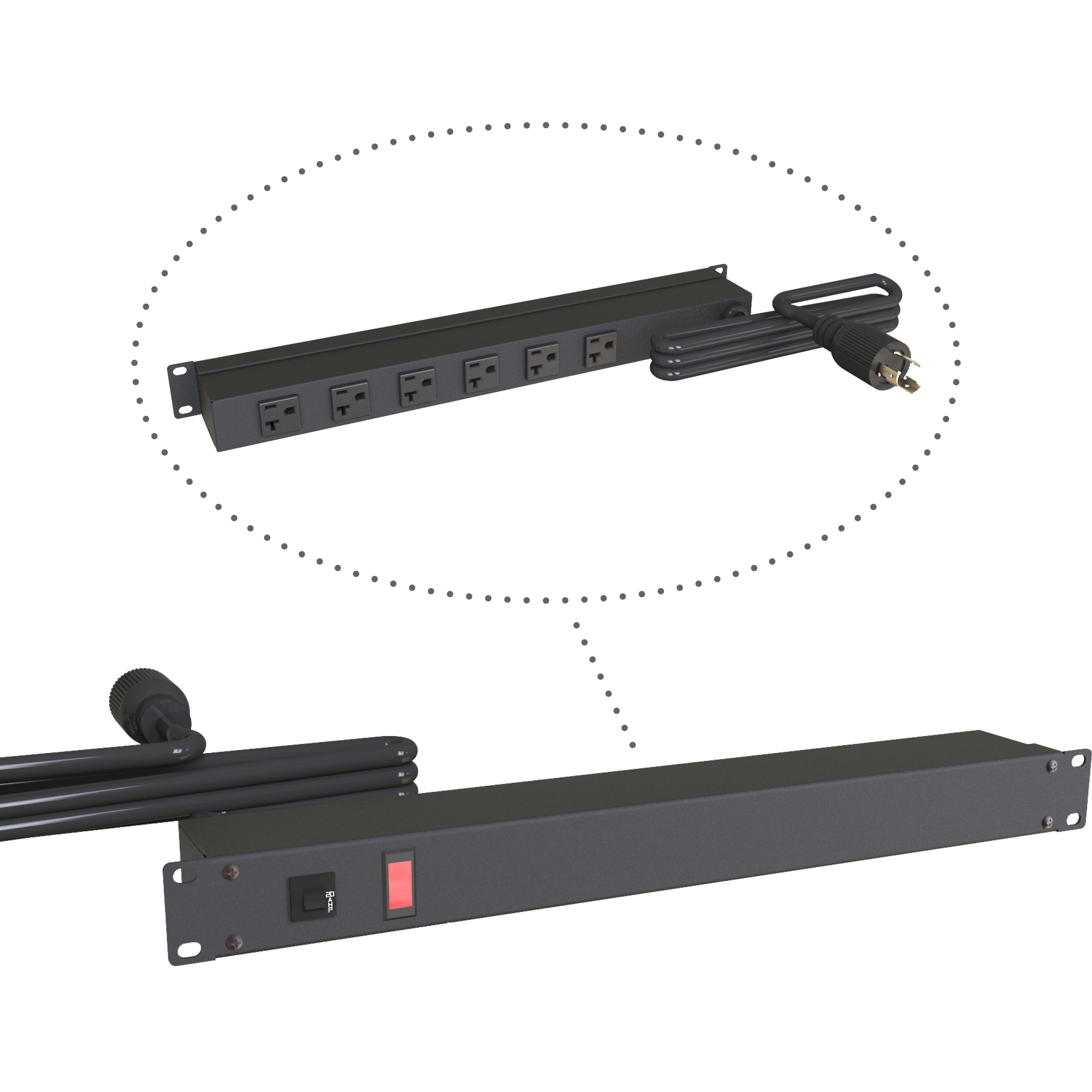

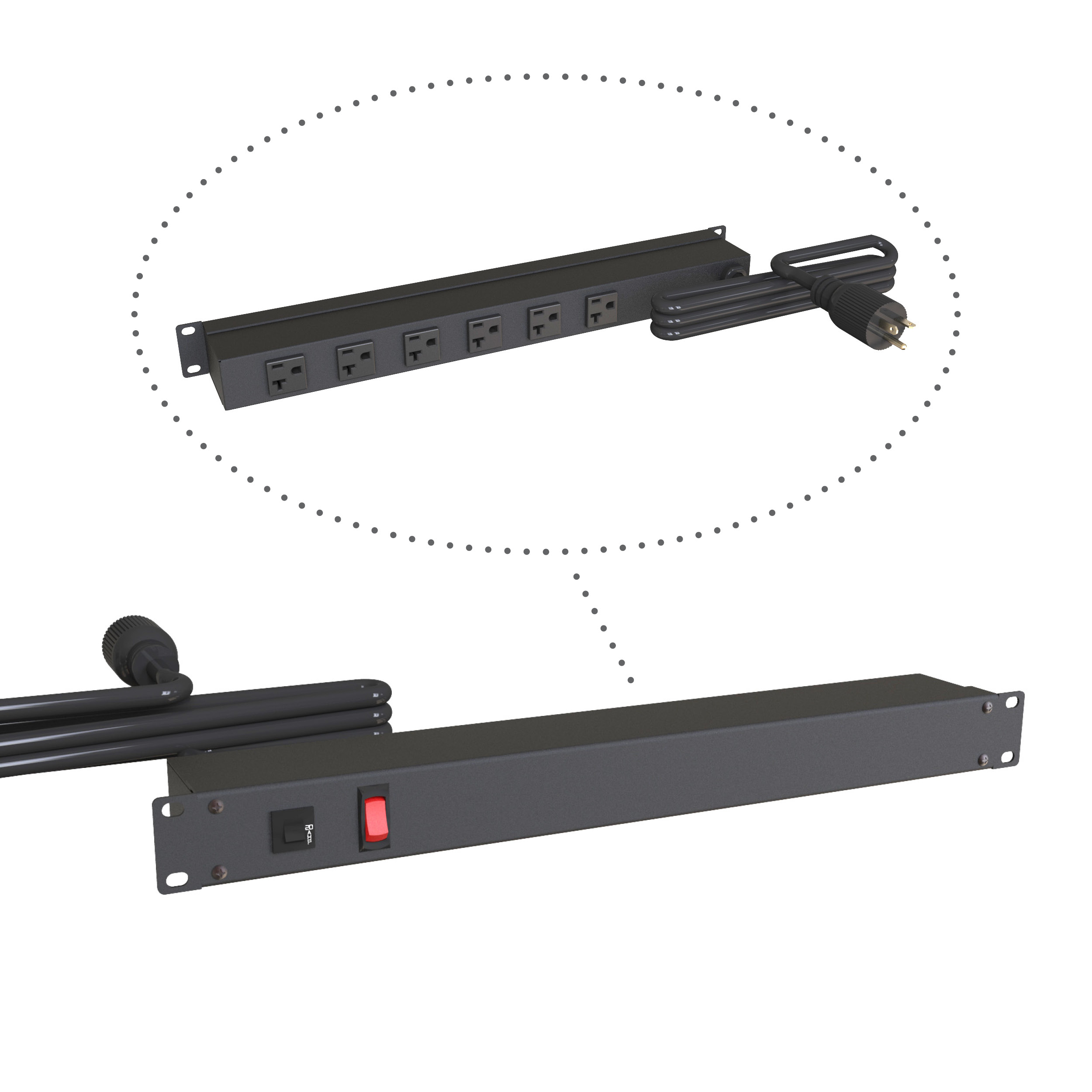

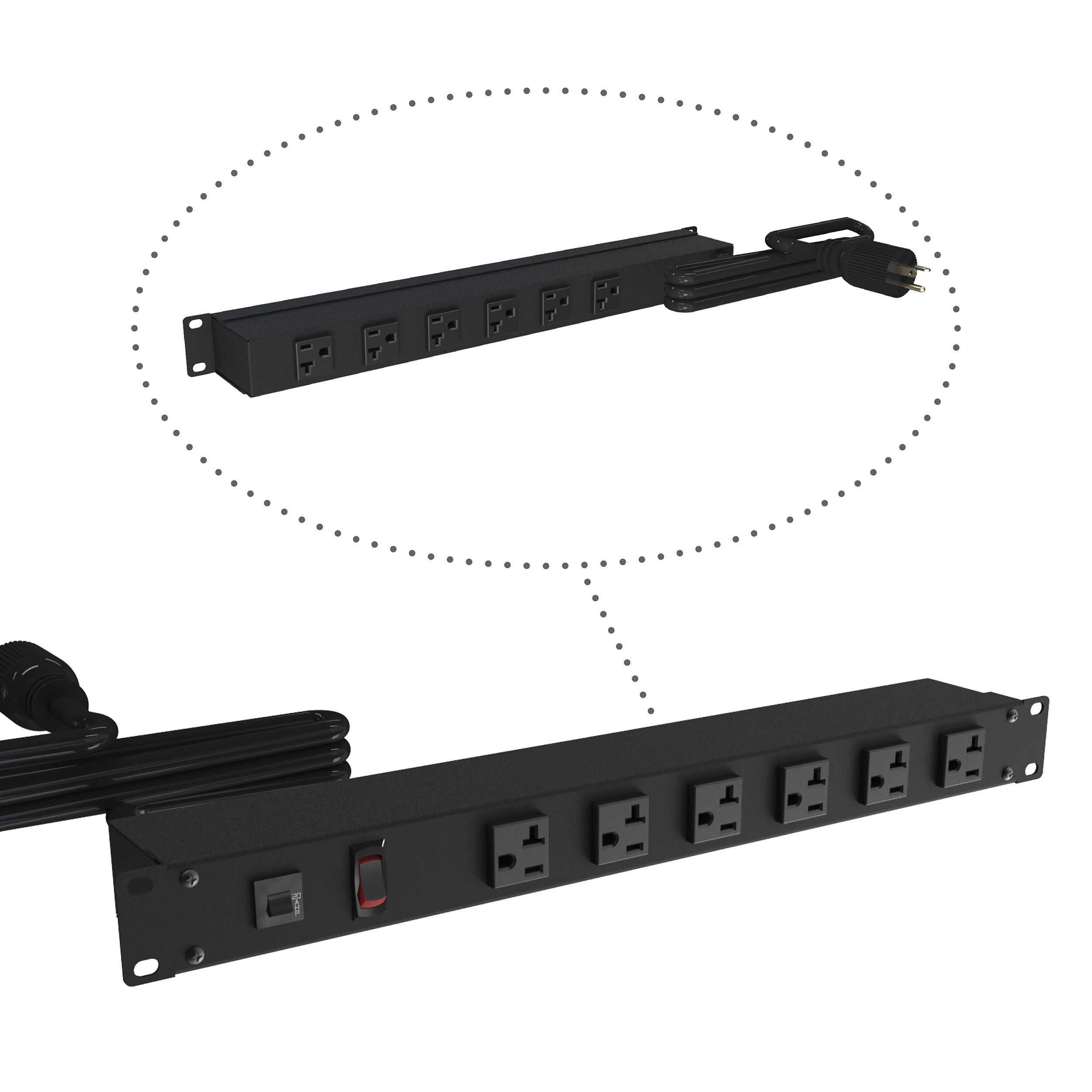

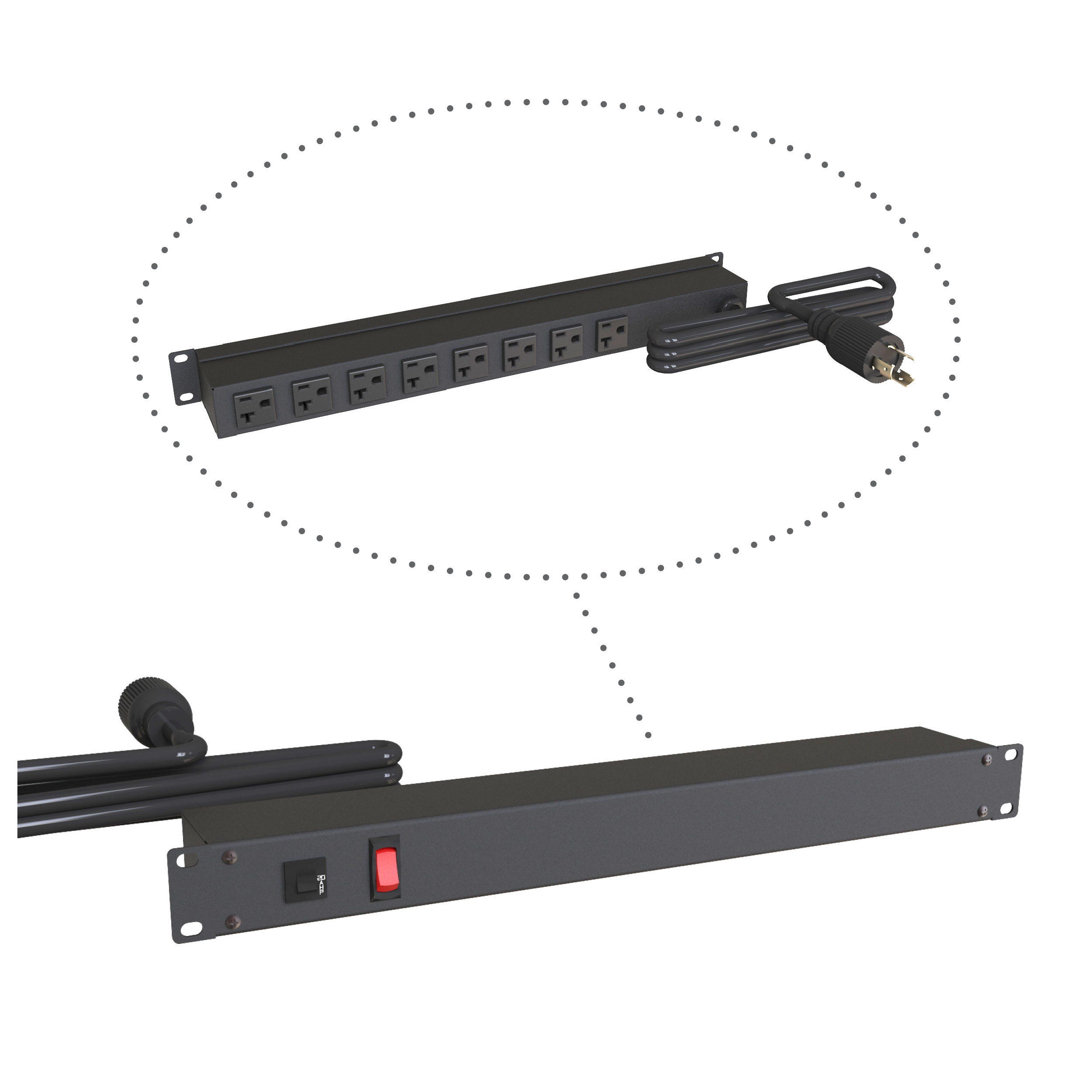

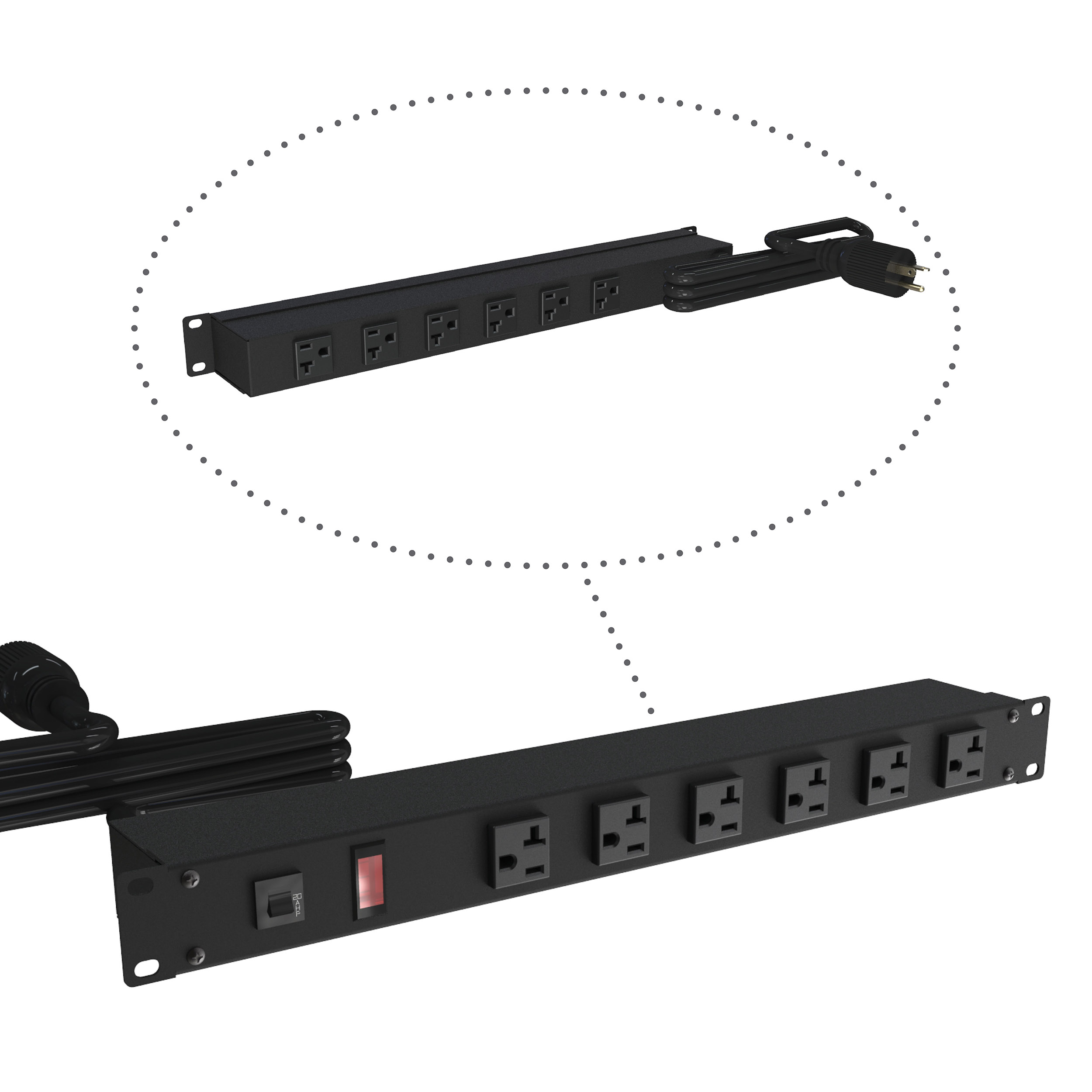

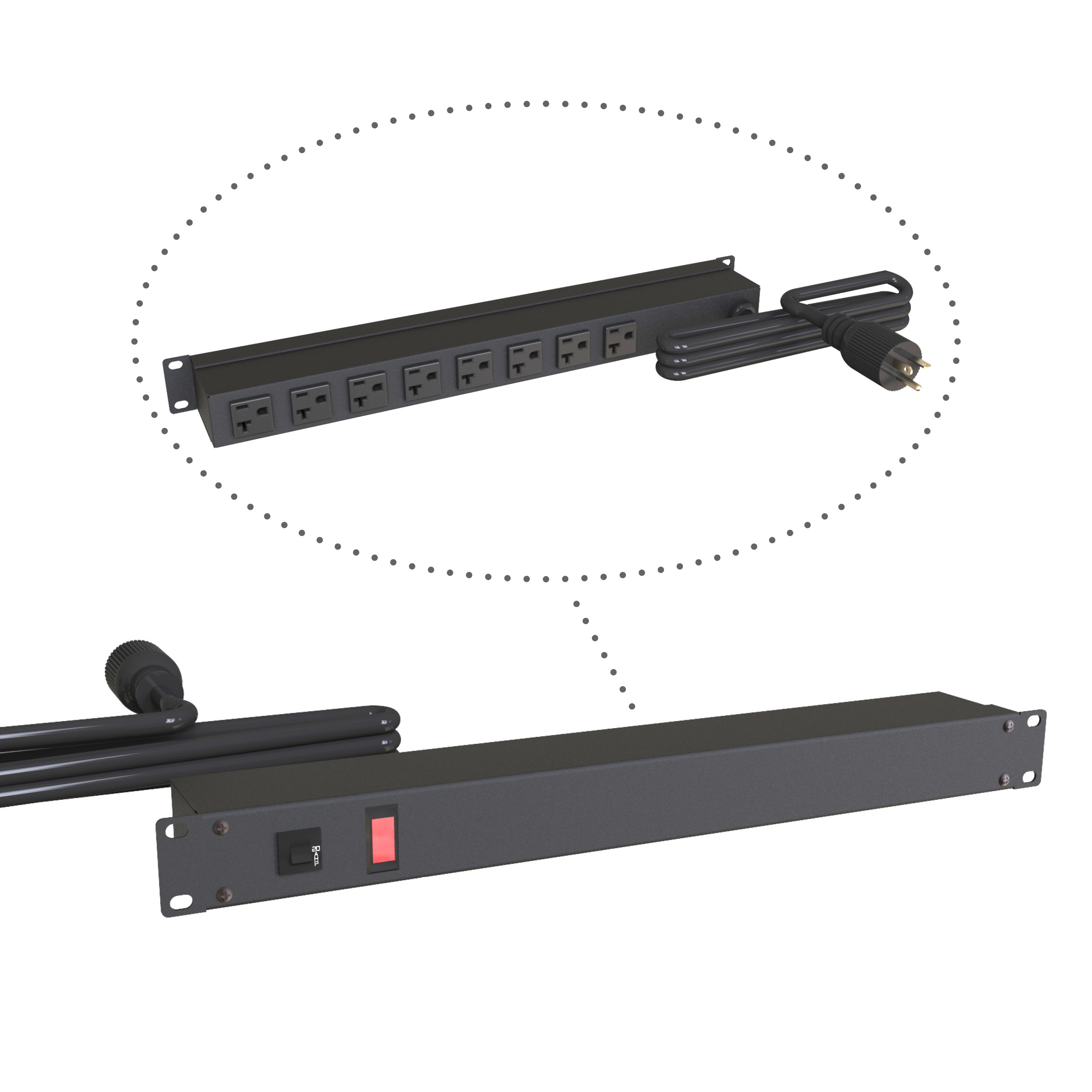

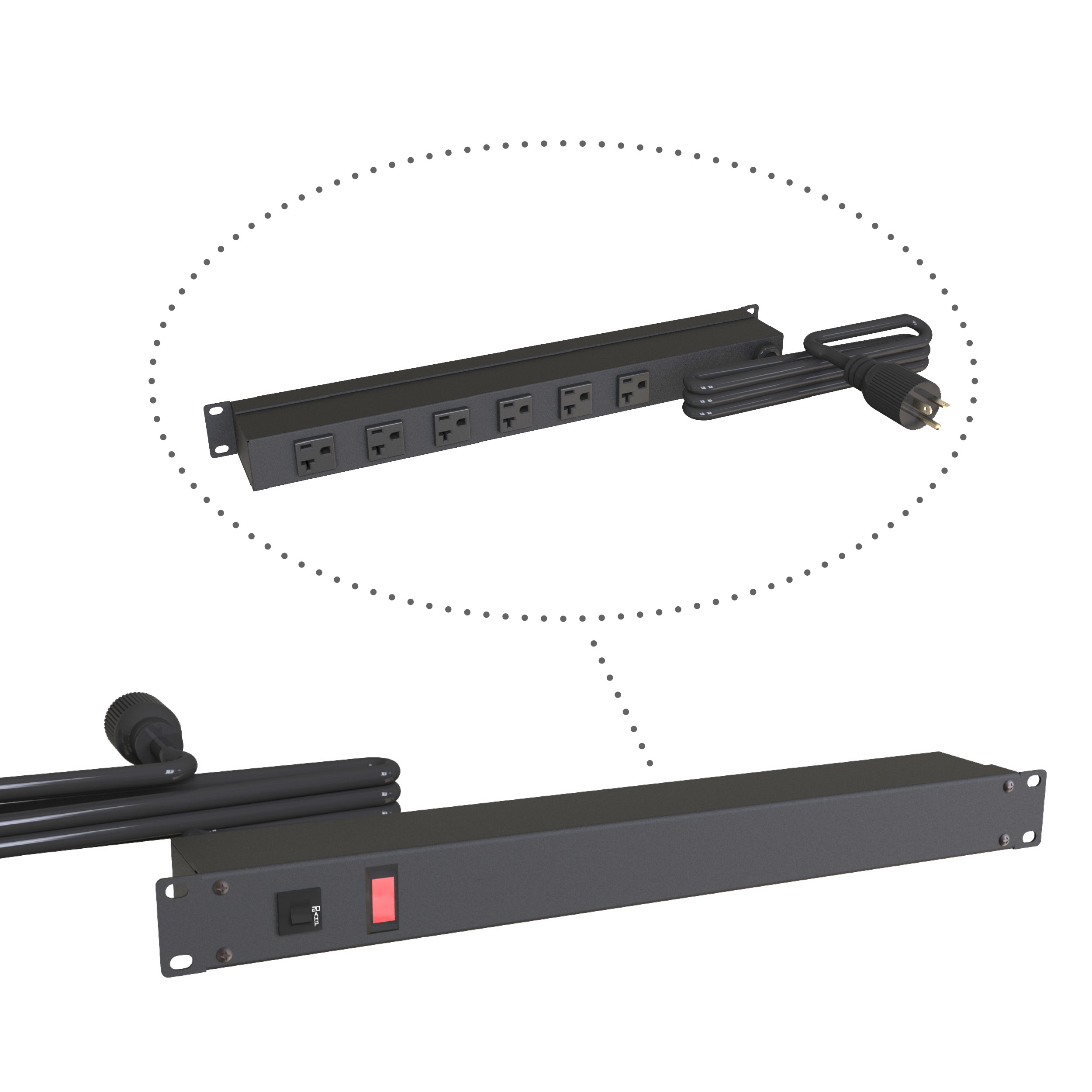

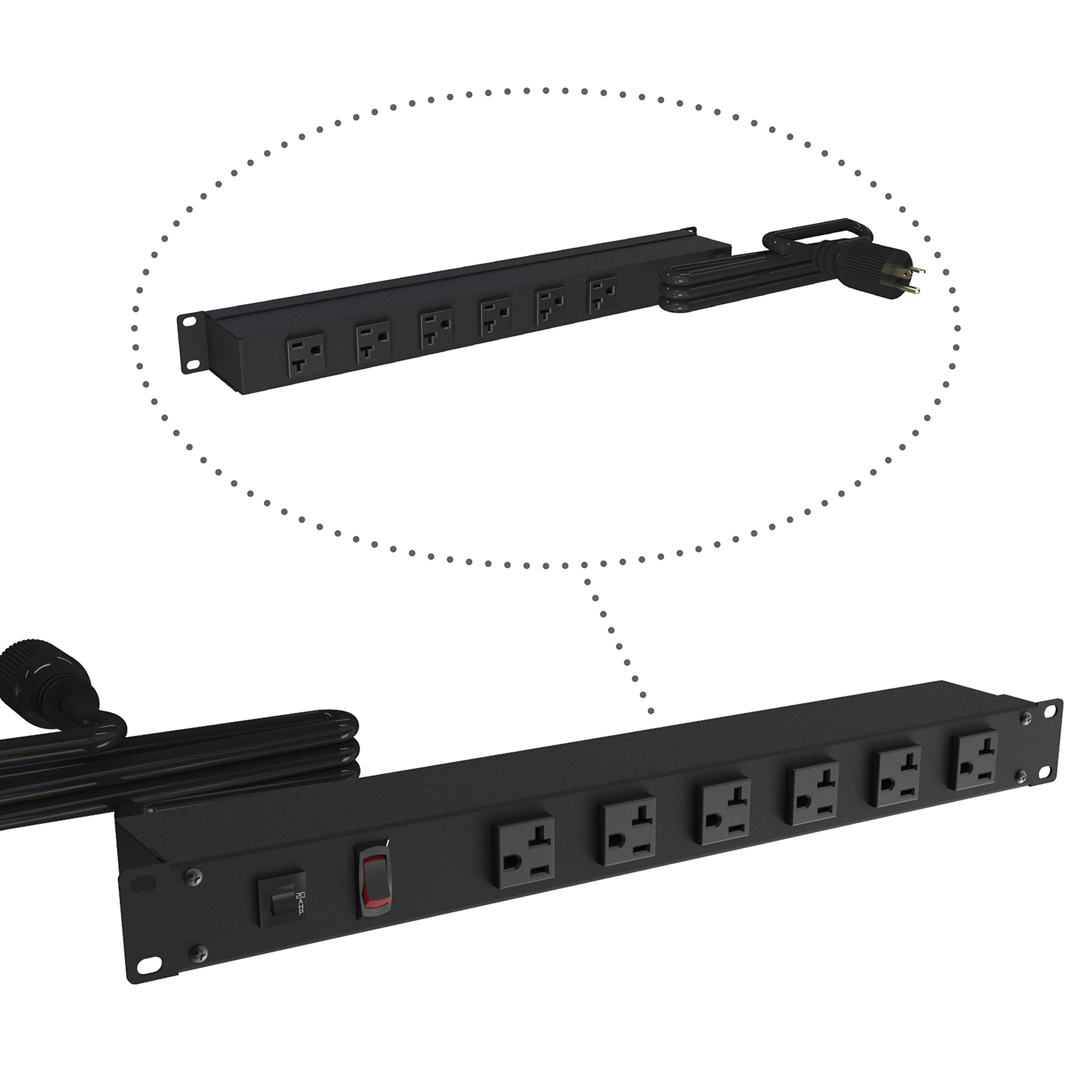

• ■Front-facing, rear-facing, or combined front-and-rear outlet configurations support different equipment layouts and cable-management strategies.
• ■Available with 6 ft or 15 ft heavy-duty power cords for flexible connection to facility power.
• ■Choice of NEMA 5-20P straight-blade or NEMA L5-20P locking plugs accommodates different branch-circuit connections.

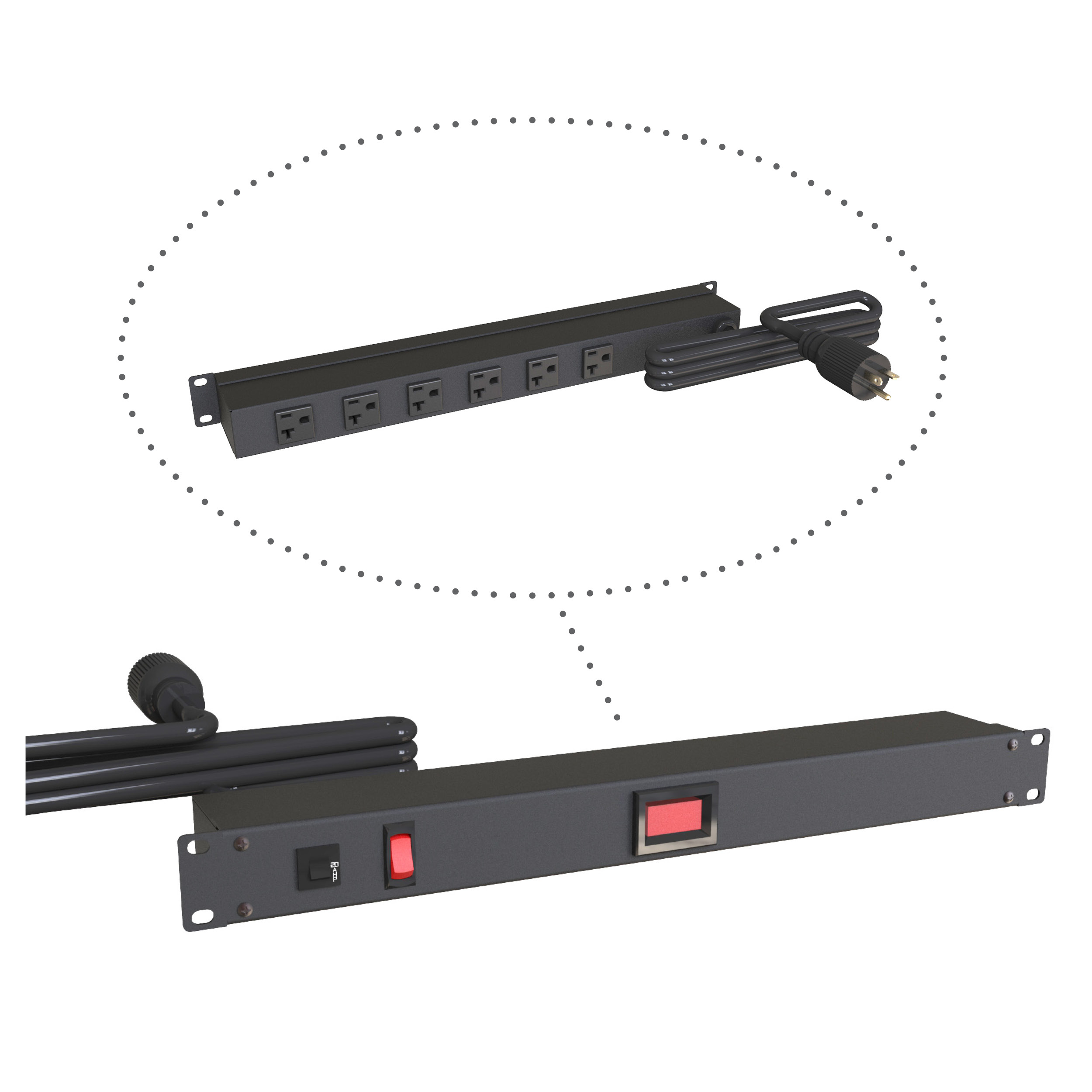

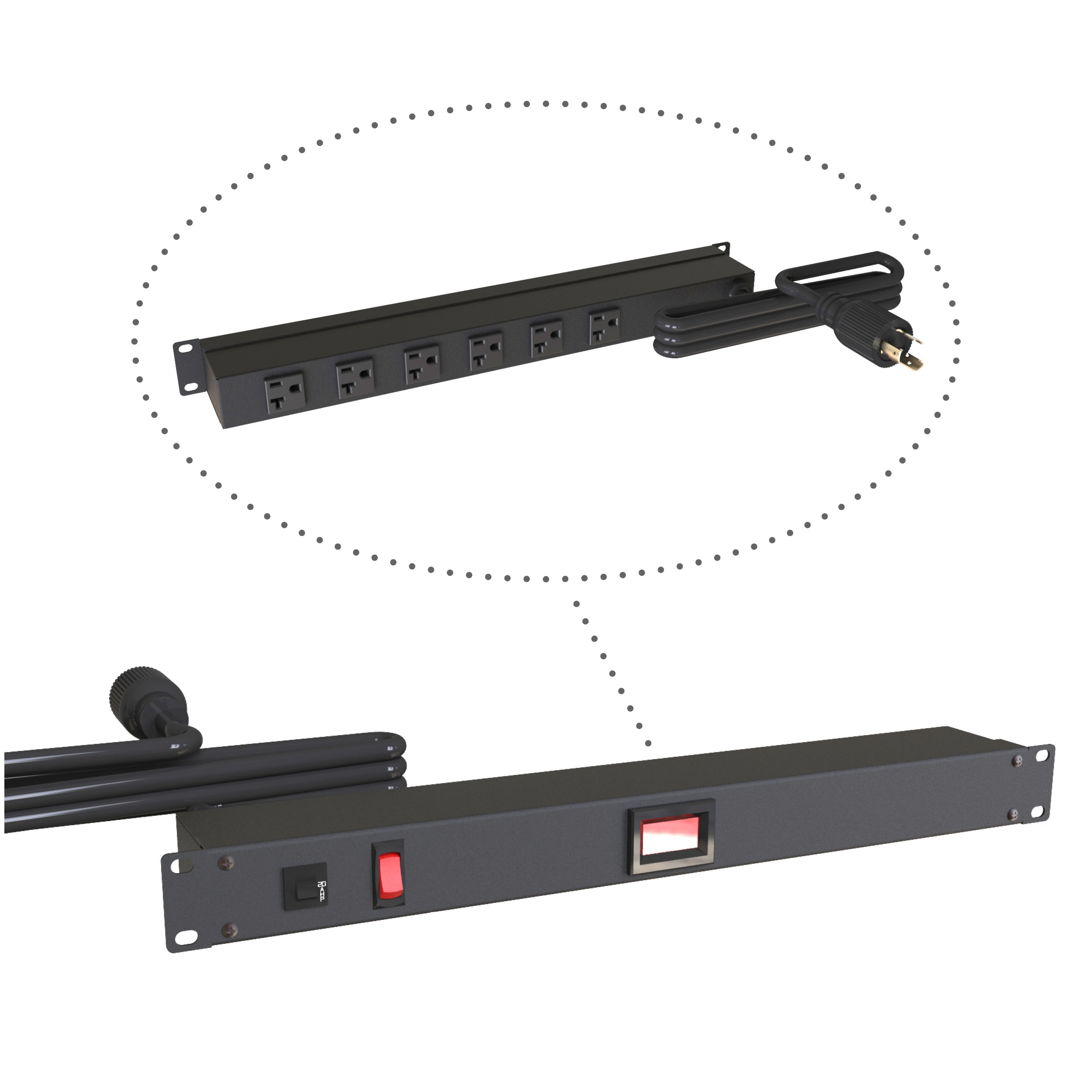

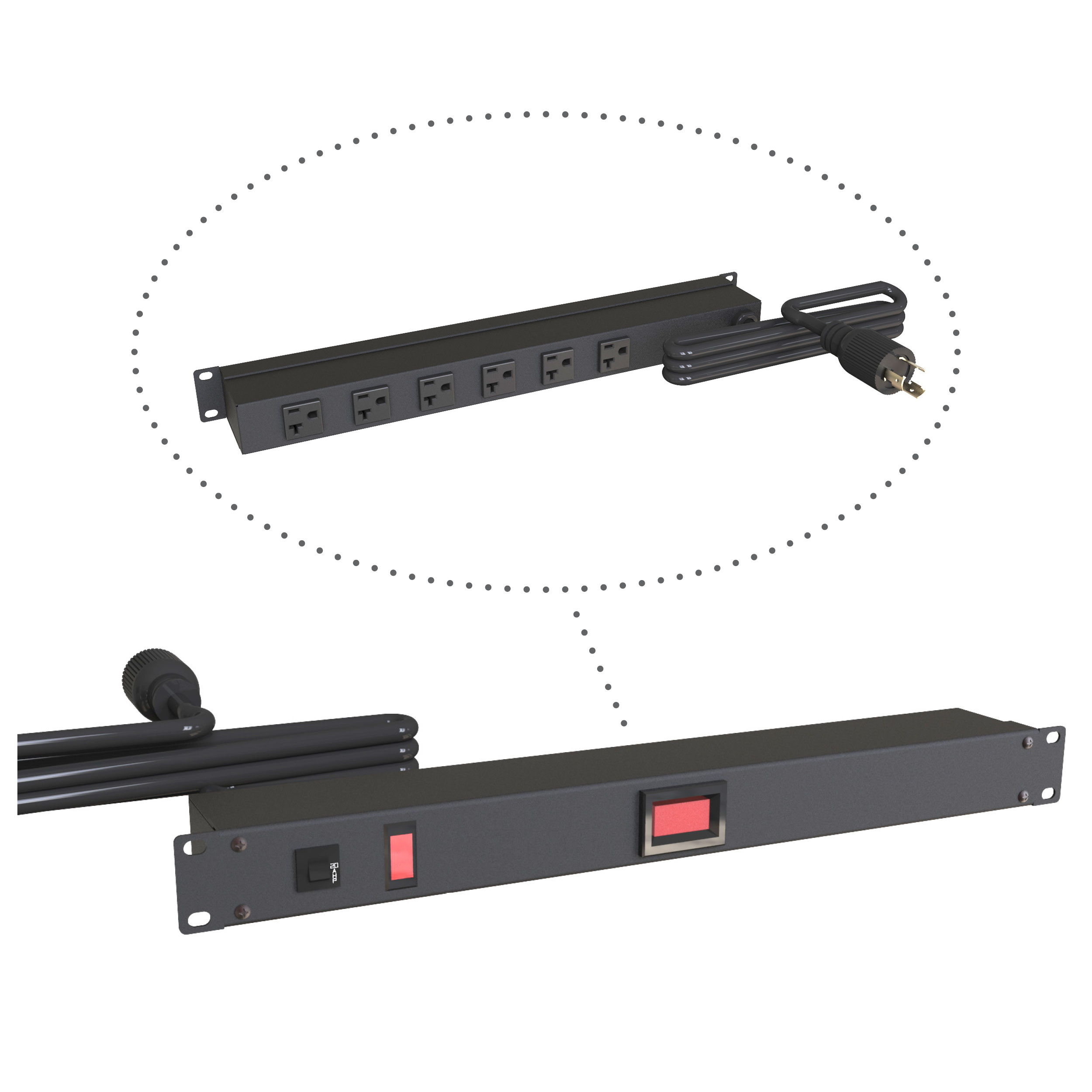

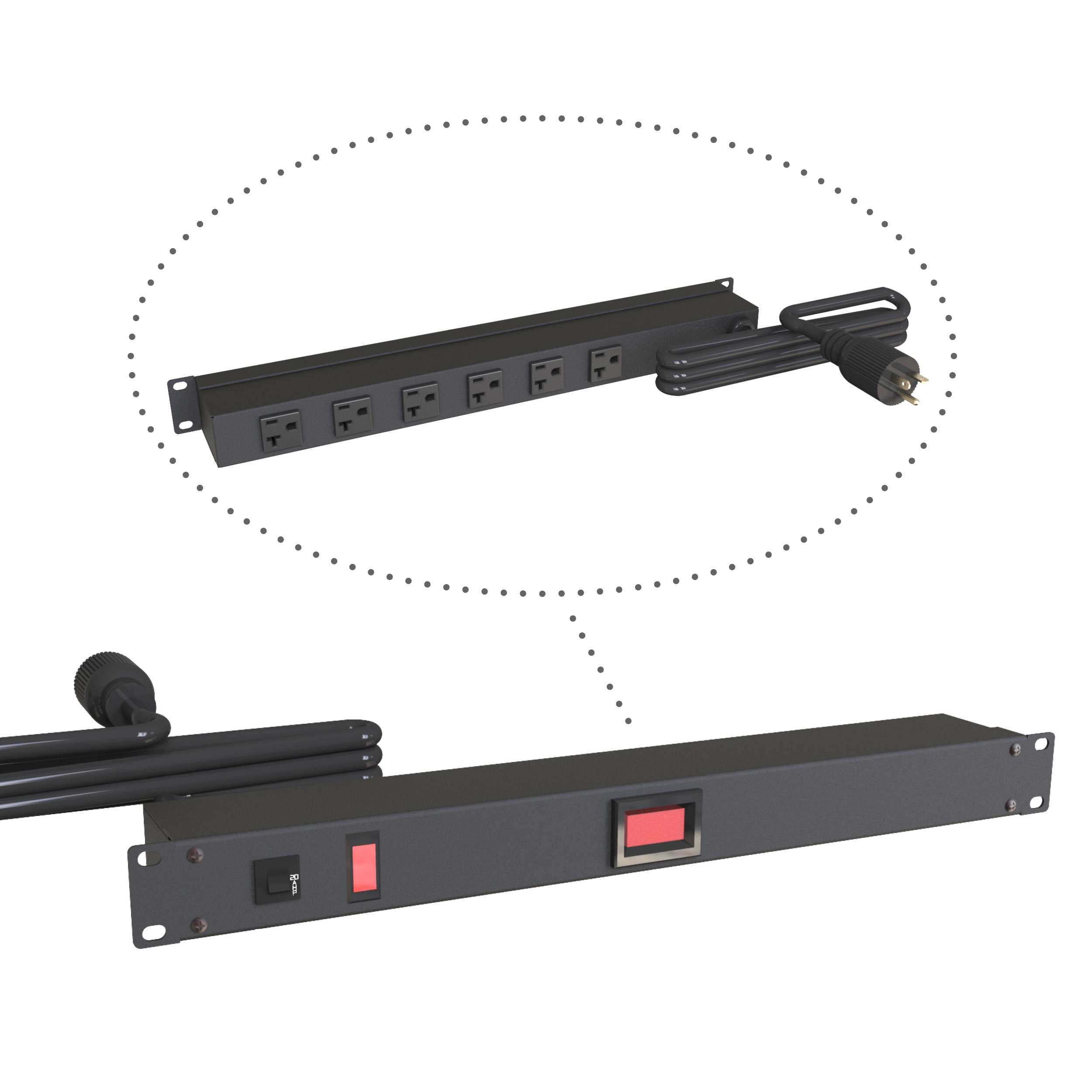

• ■Select models include a digital ammeter for convenient monitoring of connected current load.
• ■Available with either an illuminated on/off switch or power indicator for clear visual indication of operating status.
• ■Integrated circuit breaker helps protect against accidental electrical overload.
• ■Compact 1U horizontal design mounts directly into standard 19-inch racks and cabinets.
• ■Manufactured in North America for consistent quality and dependable supply.

Specifications and Compliance

The Hammond 1589-RF-RR Series is a heavy-duty 20A rackmount PDU designed to provide flexible power distribution for IT, networking, AV, telecom, test, and other rack-mounted equipment. Available with front-, rear-, or dual-sided outlet configurations, the series makes it easier to position power where equipment connections are located and maintain organized rack cabling. Multiple outlet counts, cord lengths, and straight-blade or locking plug options allow the PDU to be matched to the installation. Select models add digital current metering or shielded power cords for applications requiring improved load visibility or reduced electrical interference.

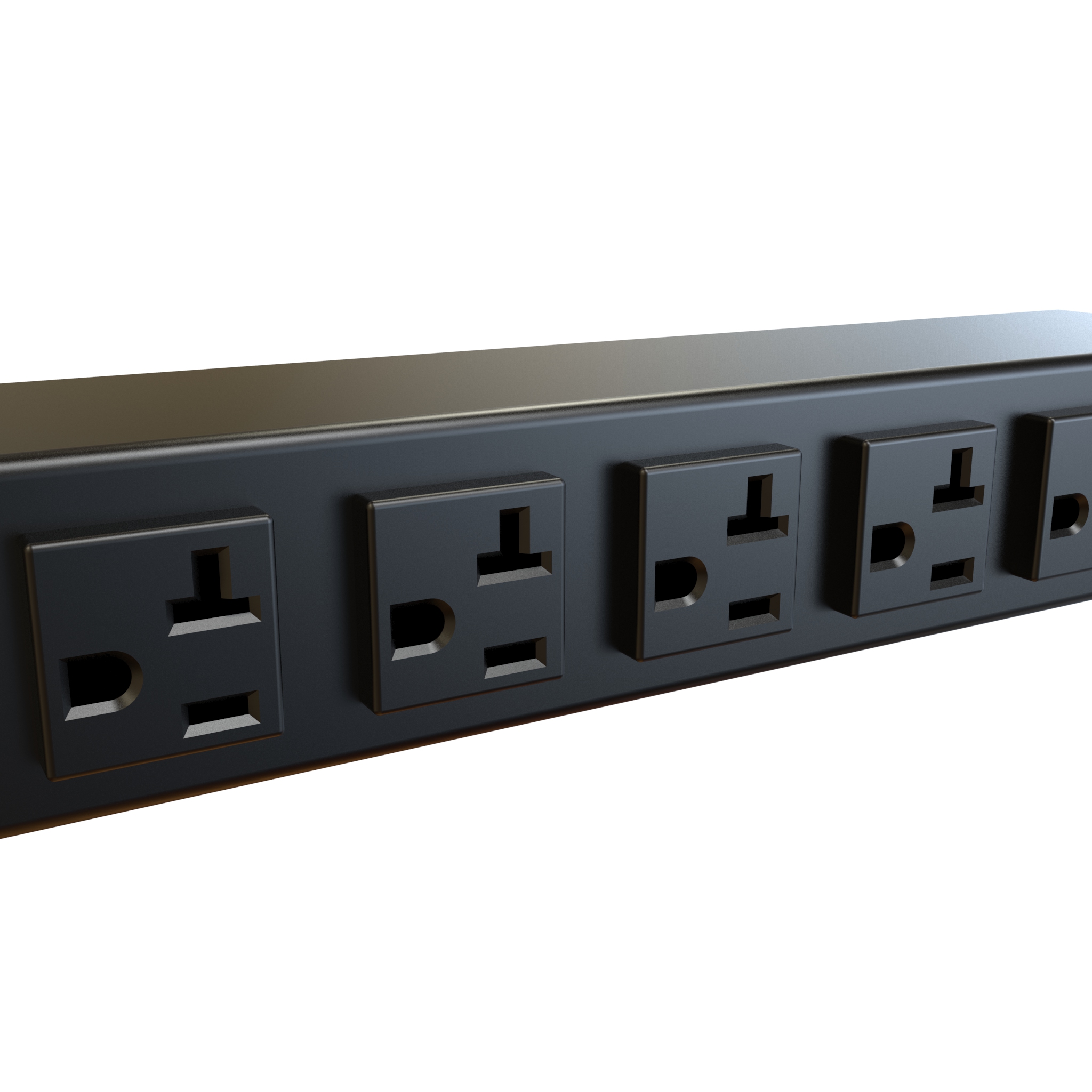

• ■Heavy-duty NEMA 5-20R receptacles rated for 20A, 125VAC and compatible with both NEMA 5-15P and 5-20P equipment plugs.
• ■12/3 SJT power cord construction.
• ■Rated 20A, 125VAC.
• ■Operating temperature range: -20°C to +60°C.
• ■Metered models feature a 0.37 in. high red LED digital ammeter with ±0.1A accuracy.
• ■Shielded-cord models use aluminum Mylar foil shielding with 100% coverage and a 20-gauge drain wire.
• ■UL/cUL recognized to UL 1363 and CSA C22.2 No. 308-14 under UL File E166039.
• ■Textured RAL9005 black powder coat finish meets applicable GREENGUARD indoor air quality and RoHS requirements.
• ■TAA compliant for applicable U.S. federal procurement.

When Another Product May Be a Better Choice

• ■Need standard 15A power distribution instead of a 20A circuit? Choose the Hammond 1582 Series.
• ■Need individually switched outlets for equipment-level power control? Choose the Hammond 1583-9W Series.
• ■Need IEC C13 outlets for equipment using international IEC power connections? Choose the Hammond 1582E Series.
