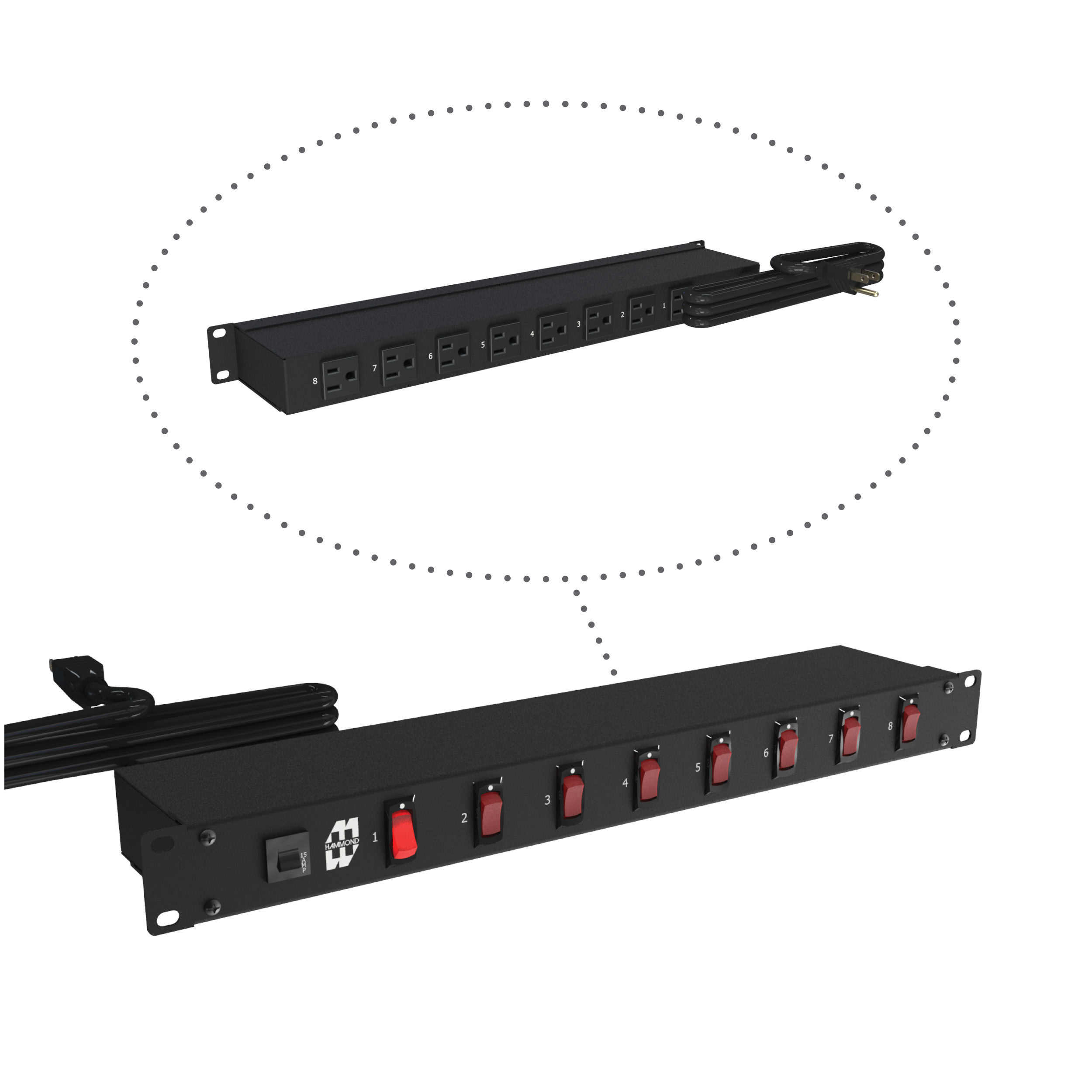

1583 w/ Ind. Switches, 8 Recep
- NEMA Type Outlet 5-15R
- NEMA Type Plug 5-15P
- Cord Length 6 ft
$123.96In stock
Buy now
Individually Switched Rackmount Basic PDU · 1583-9W Series
Brand: Hammond Manufacturing · 4 part numbers
Rackmount basic PDU with individually switched outlets for reliable power distribution and device-level control.
- ■Available in 15A and 20A configurations to support different equipment and circuit requirements.
- ■Available with 6 ft or 15 ft power cords for flexible installation and connection to nearby or remote power sources.
- ■Individually switched receptacles provide outlet-level control for quick power cycling and simplified troubleshooting.
- ■Multiple outlet configurations support a wide range of connected IT, AV, telecom, and industrial equipment.
- ■Integrated circuit protection helps safeguard connected devices from electrical overloads.
- ■Rackmount and surface-mount installation options provide flexibility for racks, cabinets, workstations, test benches, and AV environments.
from $123.96
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1583-9W Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 4 priced online
1583 w/ Ind. Switches, 8 Recep
- NEMA Type Outlet 5-15R
- NEMA Type Plug 5-15P
- Cord Length 15 ft
$137.59In stock
Buy now

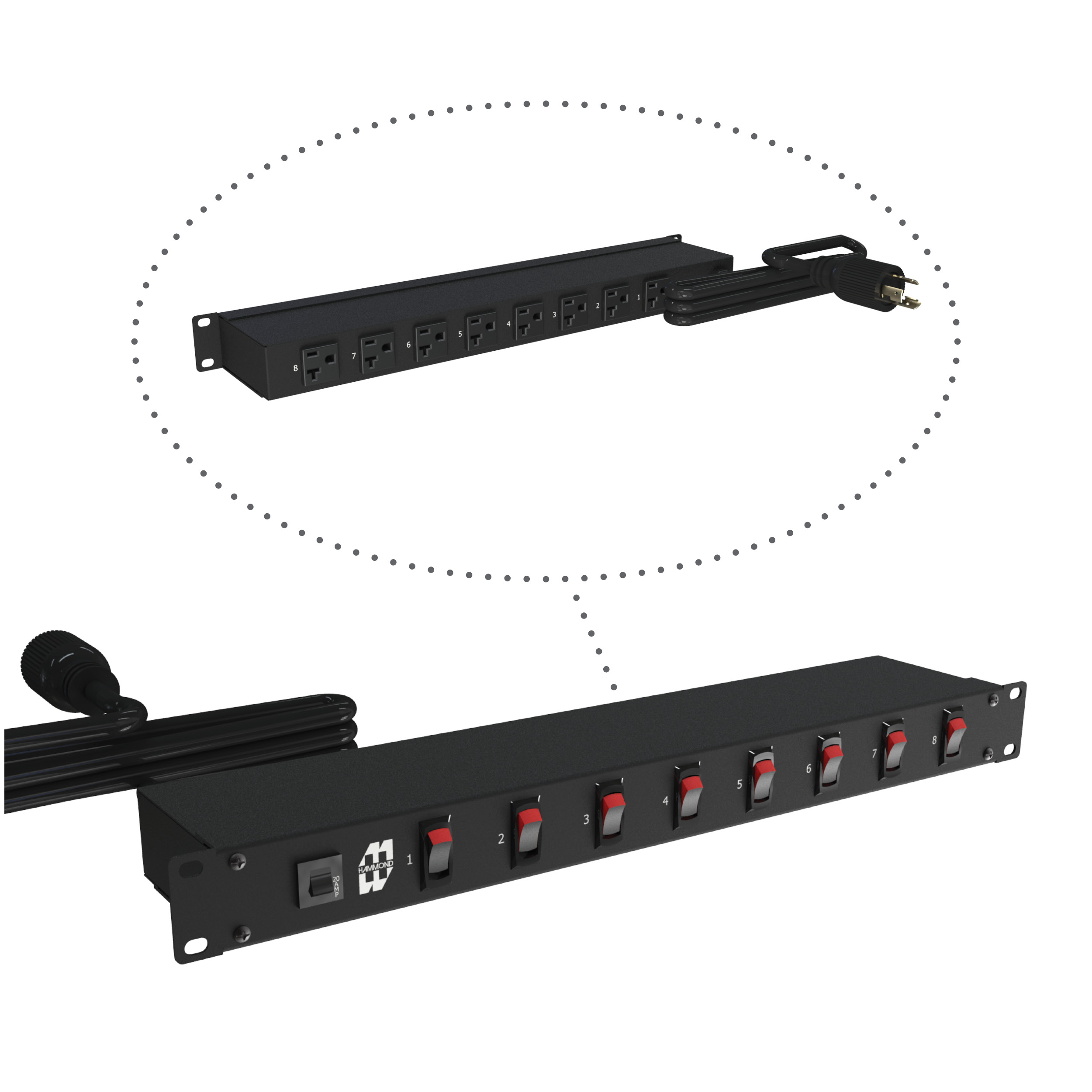

1589 w/ Ind. Switches, 8 Recep
- NEMA Type Outlet 5-20R
- NEMA Type Plug 5-20P
- Cord Length 6 ft
$323.85In stock
Buy now
1589 w/ Ind. Switches, 8 Recep
- NEMA Type Outlet 5-20R
- NEMA Type Plug 5-20P
- Cord Length 15 ft
$351.11In stock
Buy now
1583W8C1BK
1583 w/ Ind. Switches, 8 Recep
QuoteRequest a quote

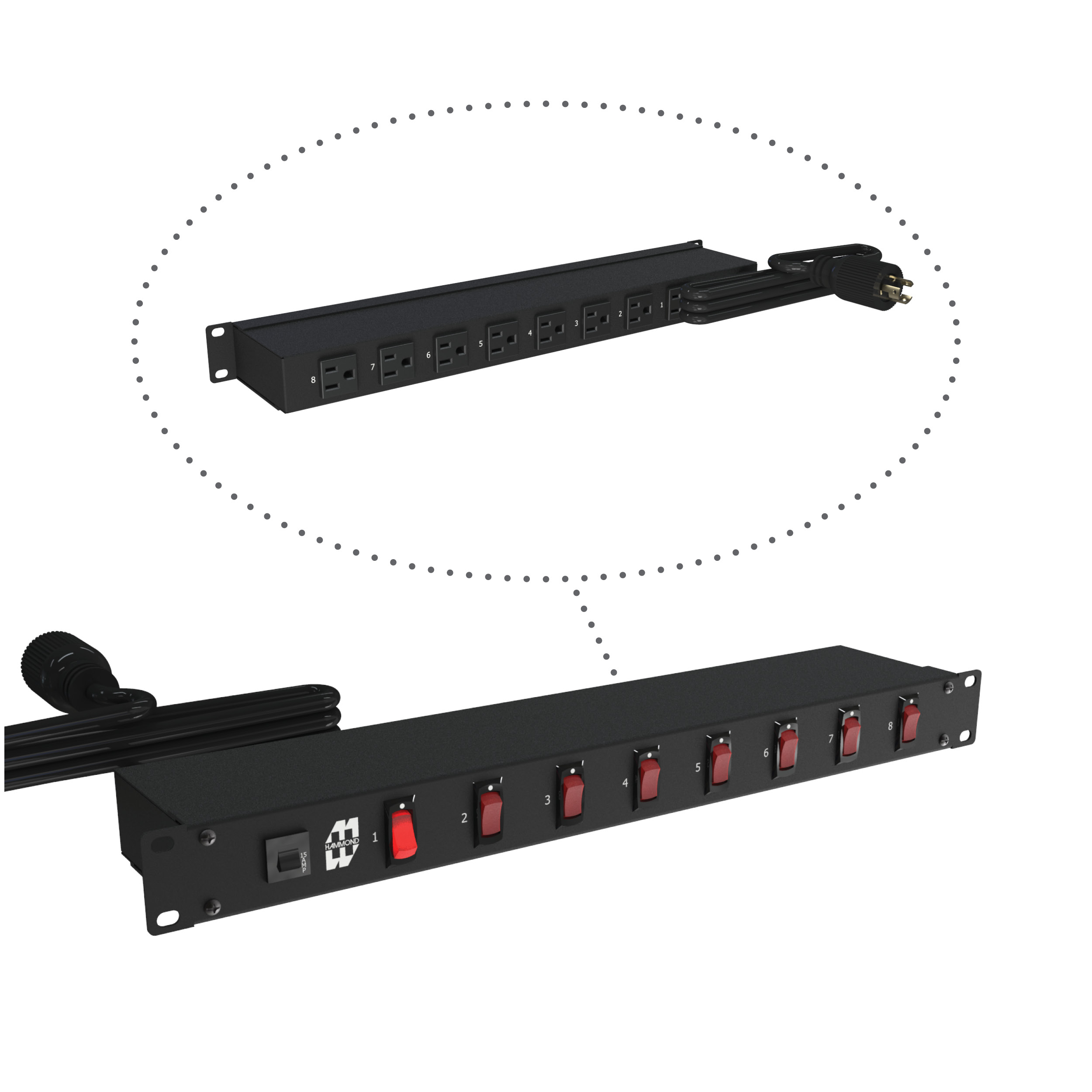

1583W8D1BK
1583 w/ Ind. Switches, 8 Recep
QuoteRequest a quote
1589W8C1BKRR
1589 w/ Ind. Switches, 8 Recep
QuoteRequest a quote
1589W8D1BKRR
1589 w/ Ind. Switches, 8 Recep
QuoteRequest a quote
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| On/Off Switch · Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Rear · Outlets | NEMA Type · Outlet | NEMA Type · Plug | Cord · Length | Plug · Type | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 1583W8A1BK | 1.72 | 19.00 | 3.66 | 8 | 5-15R | 5-15P | 6 ft | Straight | $123.96In stock | Buy now |
| 1583W8B1BK | 1.72 | 19.00 | 3.66 | 8 | 5-15R | 5-15P | 15 ft | Straight | $137.59In stock | Buy now |
| 1589W8F1BKRR | 1.72 | 19.00 | 3.66 | 8 | 5-20R | 5-20P | 6 ft | Straight | $323.85In stock | Buy now |
| 1589W8G1BKRR | 1.72 | 19.00 | 3.66 | 8 | 5-20R | 5-20P | 15 ft | Straight | $351.11In stock | Buy now |
Key Features and Benefits
- ■Available in 15A and 20A configurations to support different equipment and circuit requirements.
- ■Available with 6 ft or 15 ft power cords for flexible installation and connection to nearby or remote power sources.
- ■Individually switched receptacles provide outlet-level control for quick power cycling and simplified troubleshooting.
- ■Multiple outlet configurations support a wide range of connected IT, AV, telecom, and industrial equipment.
- ■Integrated circuit protection helps safeguard connected devices from electrical overloads.
- ■Rackmount and surface-mount installation options provide flexibility for racks, cabinets, workstations, test benches, and AV environments.
- ■Includes four (4) rubber feet for convenient surface placement when rack mounting is not required.
- ■Manufactured in North America for consistent quality and dependable supply.
Specifications and Compliance
The Hammond 1583-9W Series rackmount basic PDUs provide reliable power distribution with individually switched outlets, allowing users to control connected equipment at the receptacle level. This enables efficient power management, quick device resets, and reduced phantom power consumption. Built in North America with a heavy-duty aluminum housing, the 1583-9W Series delivers consistent performance in IT, AV, telecom, and industrial environments. Available in 15A and 20A configurations, these power bars offer a durable, high-quality alternative to low-cost imported outlet strips.
- ■Eight (8) NEMA 5-15R outlets on 15A models or eight NEMA 5-20R outlets on 20A models.
- ■NEMA 5-15P plug with 14/3 SJT power cord on 15A models.
- ■NEMA 5-20P plug with 12/3 SJT power cord on 20A models.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
- ■UL/cUL recognized to UL1363 and CSA C22.2 No. 308 for power distribution safety compliance.
- ■TAA compliant and manufactured in North America within an ISO 9001 certified facility.
Documents
Additional information
Where the 1583-9W Series Works Best
- ■AV and broadcast installations
- ■Telecom and network environments
- ■Industrial and control systems
- ■Test benches and equipment racks
- ■Controlling power to individual rack-mounted devices
- ■Eliminating phantom power draw in AV and IT systems
- ■Power cycling equipment without unplugging cables
- ■Providing reliable rack-based power distribution
- ■Supporting mixed equipment loads in racks and workstations
