Vertical Basic PDU with Shielded Cord (1588-9-JV Series) — Hammond Manufacturing

Vertical Basic PDU with Shielded Cord · 1588-9-JV Series

Brand: Hammond Manufacturing · 4 part numbers

15A or 20A | 120V Single-Phase | 5-15R or 5-20R Outlets

■Low-profile slim design constructed of rugged light weight aluminum.

■Designed for a variety of applications, specifically where electromagnetic or radio frequency interference is a concern: Shielded cord reduces EMI/ RFI and "dirty" power from utilities. Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire.

■Shielded cord reduces EMI/ RFI and "dirty" power from utilities.

■Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire.

■Each outlet strip includes a hardware mounting kit. Order P/N: 1585CLIP for additional hardware kit.

■Includes toolless PDU button mounting provision.

Find your 1588-9-JV Series part number

Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

4 of 4 part numbers · 4 priced online

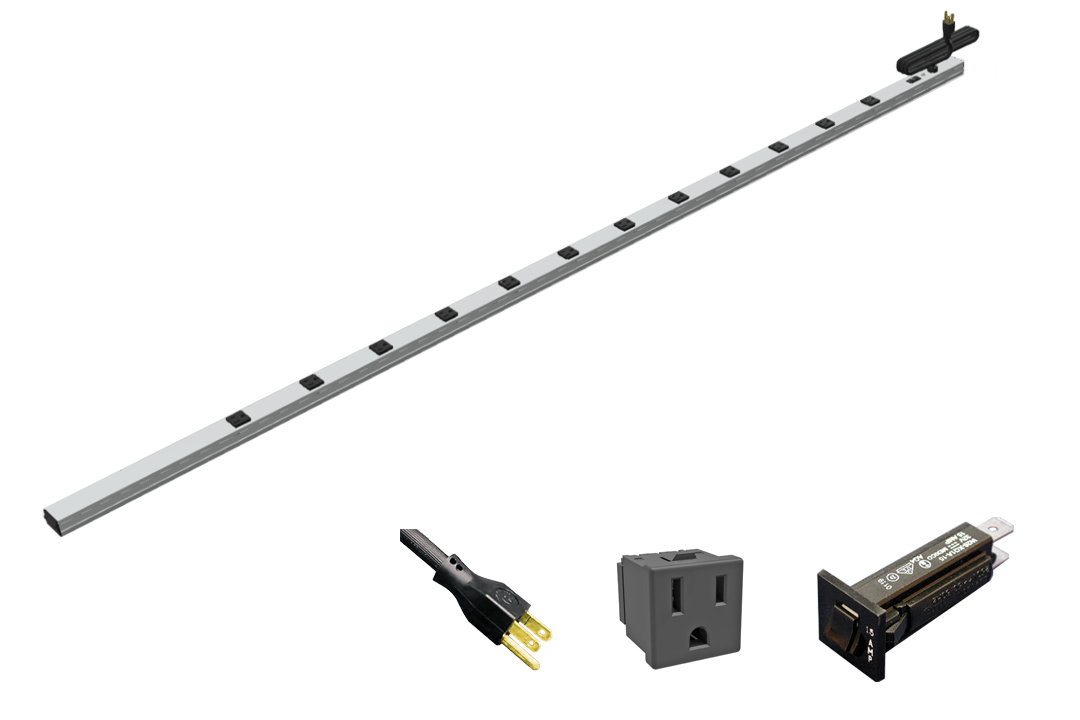

1588H12B1JV

77" Vertical P-Bar, 15' Shield, Tm

Amps 15
Total Outlets 12
Outlet Type 5-15R
Outlets (Front) 12

$117.47In stock

Buy now

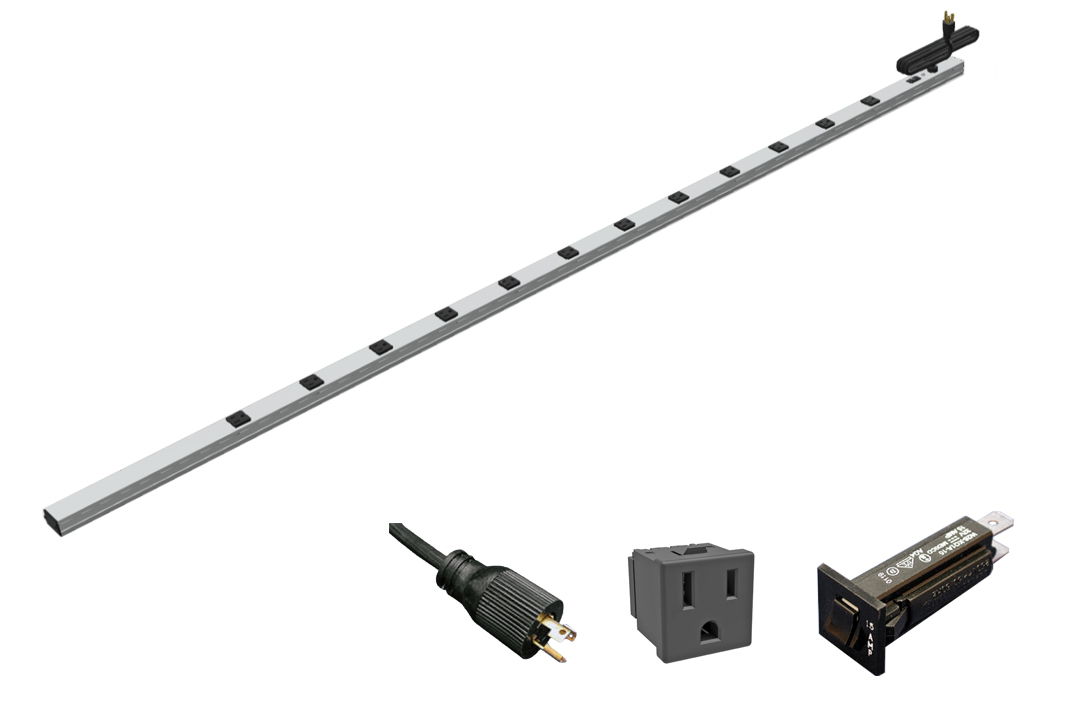

1588H12D1JV

77" Vertical P-Bar,Shield Twlk, Tm

Amps 15
Total Outlets 12
Outlet Type 5-15R
Outlets (Front) 12

$123.96In stock

Buy now

1589H77D1JV

77" Vertical P-Bar, Shield Twl, Tm

Amps 20
Total Outlets 7
Outlet Type 5-20R
Outlets (Front) 7

$144.73In stock

Buy now

1589H77G1JV

77" Vertical P-Bar, 15' Shield, Tm

Amps 20
Total Outlets 7
Outlet Type 5-20R
Outlets (Front) 7

$137.59In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part Number	Current Rating	Length	Number of Outlets	Cord Length	Shielded Cord	Color	NEMA Plug Type	Price	Order
1588H12B1JV	15A	77.00	12	15	Yes	Natural	5-15P	$117.47In stock	Buy now
1588H12D1JV	15A	77.00	12	15	Yes	Natural	L5-15P	$123.96In stock	Buy now
1589H77G1JV	20A	77.00	12	15	Yes	Natural	5-20P	$137.59In stock	Buy now
1589H77D1JV	20A	77.00	12	15	Yes	Natural	L5-20P	$144.73In stock	Buy now

Features

■Low-profile slim design constructed of rugged light weight aluminum.

■Shielded cord reduces EMI/ RFI and "dirty" power from utilities.

■Shielding is by way of 100% coverage in aluminum mylar foil with a 20 gauge drain wire.

■Each outlet strip includes a hardware mounting kit. Order P/N: 1585CLIP for additional hardware kit.

■Includes toolless PDU button mounting provision.

■Receptacles are 1” square and are equally spaced over the length of the power strip.

■With on/off switch and 15 or 20 Amp circuit breaker.

Specifications

■Heavy duty cord, either 12 gauge (12/3 SJT) or 14 gauge (14/3 SJT) wire for extreme temperature ranges and integral molded plug.

■Plug types for 15 Amp models are NEMA 5-15P straight blade or NEMA L5-15P locking type.

■Plug types for 20 Amp models are NEMA 5-20P straight blade or NEMA L5-20P locking type.

■Rated 15 or 20 amps, 120 volts.

■UL/cUL Listed Standard UL1363, CSA C22.2 No. 308-14, and CSA C22.2 No. 0.4-04

■NOTE #1: Outlet strips can NOT be used between the front & rear panel rails of rack cabinets as they (and the equipment plugs) will interfere with mounted equipment and mounted accessories.

■NOTE #2: To properly use on rack cabinets, allow sufficient depth BEHIND the rear panel rails for vertically mounting to the cabinet.

■TAA-compliant for federal GSA schedule purchases within the USA.

■RoHS Compliant.

■Manufactured in North America.
