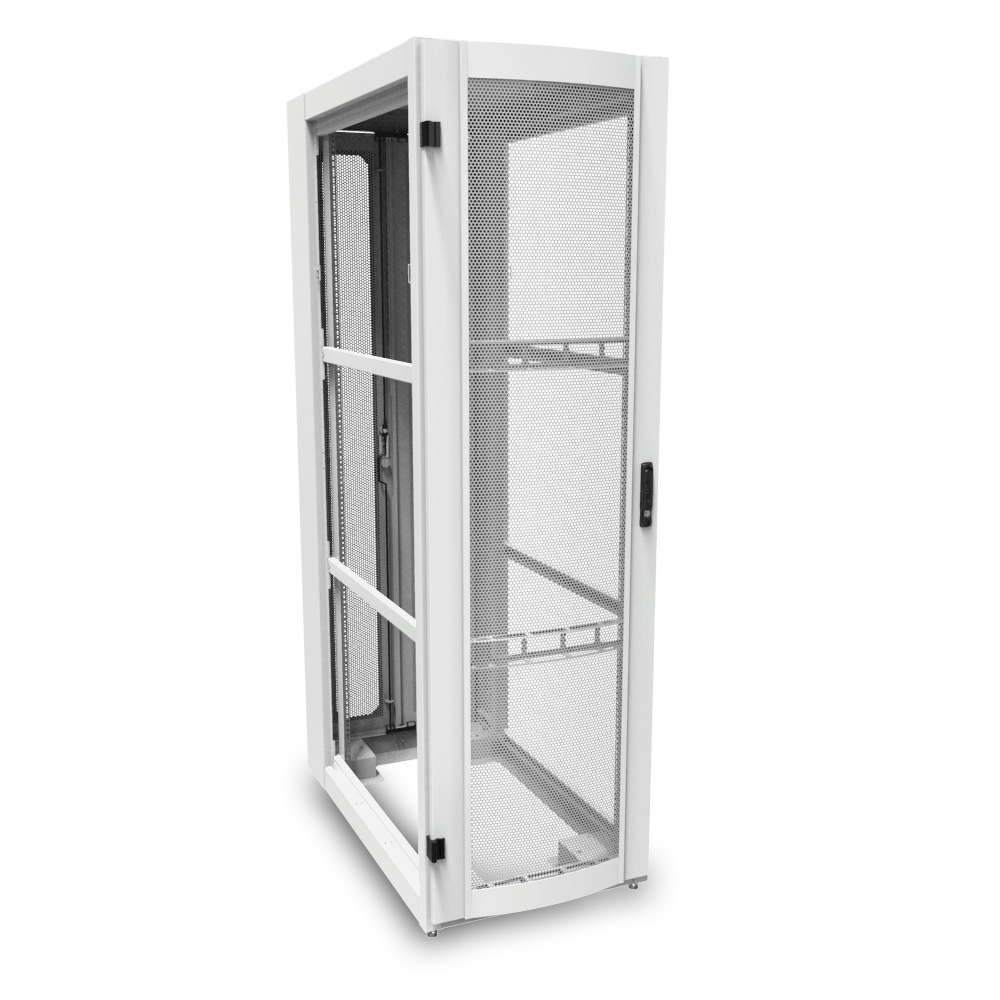

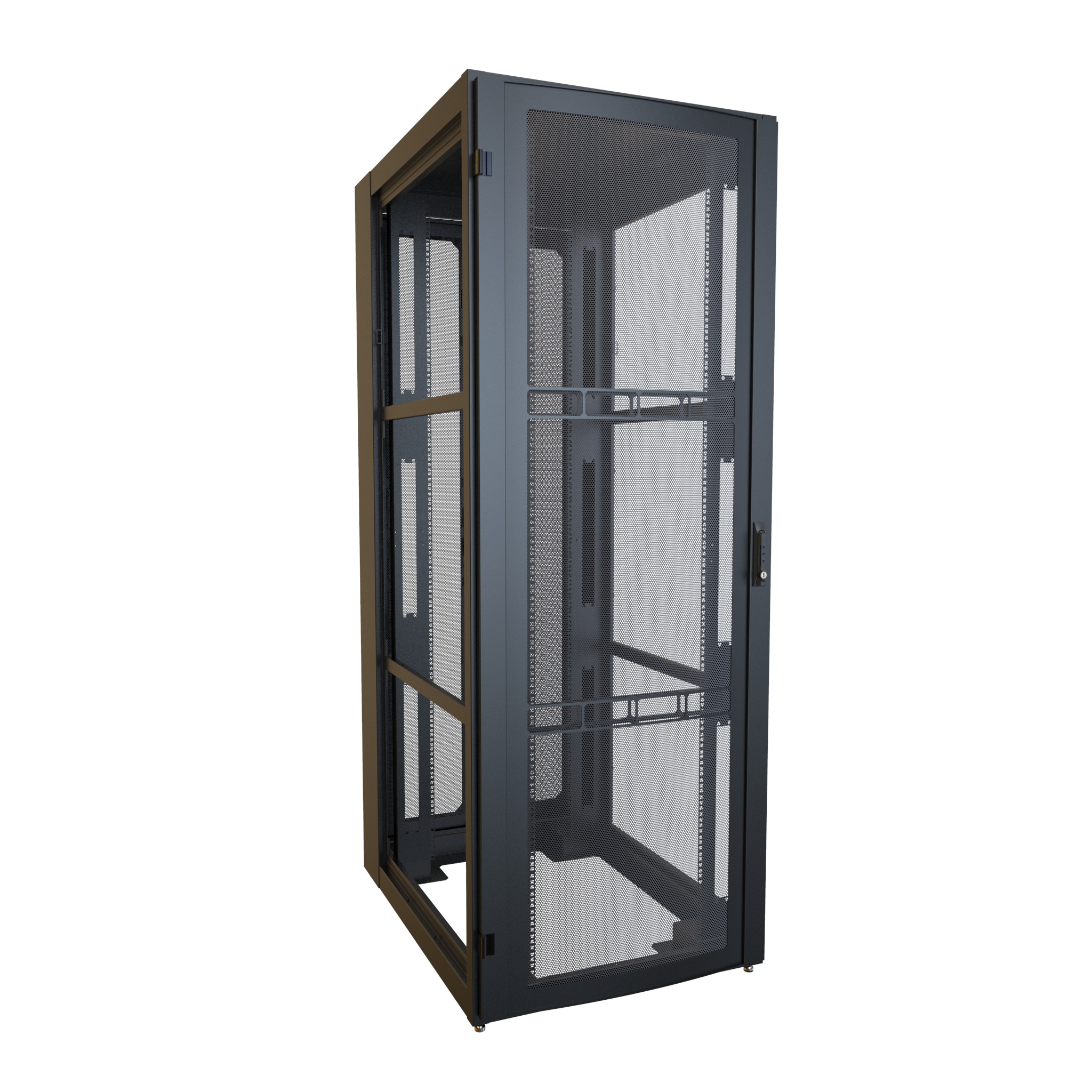

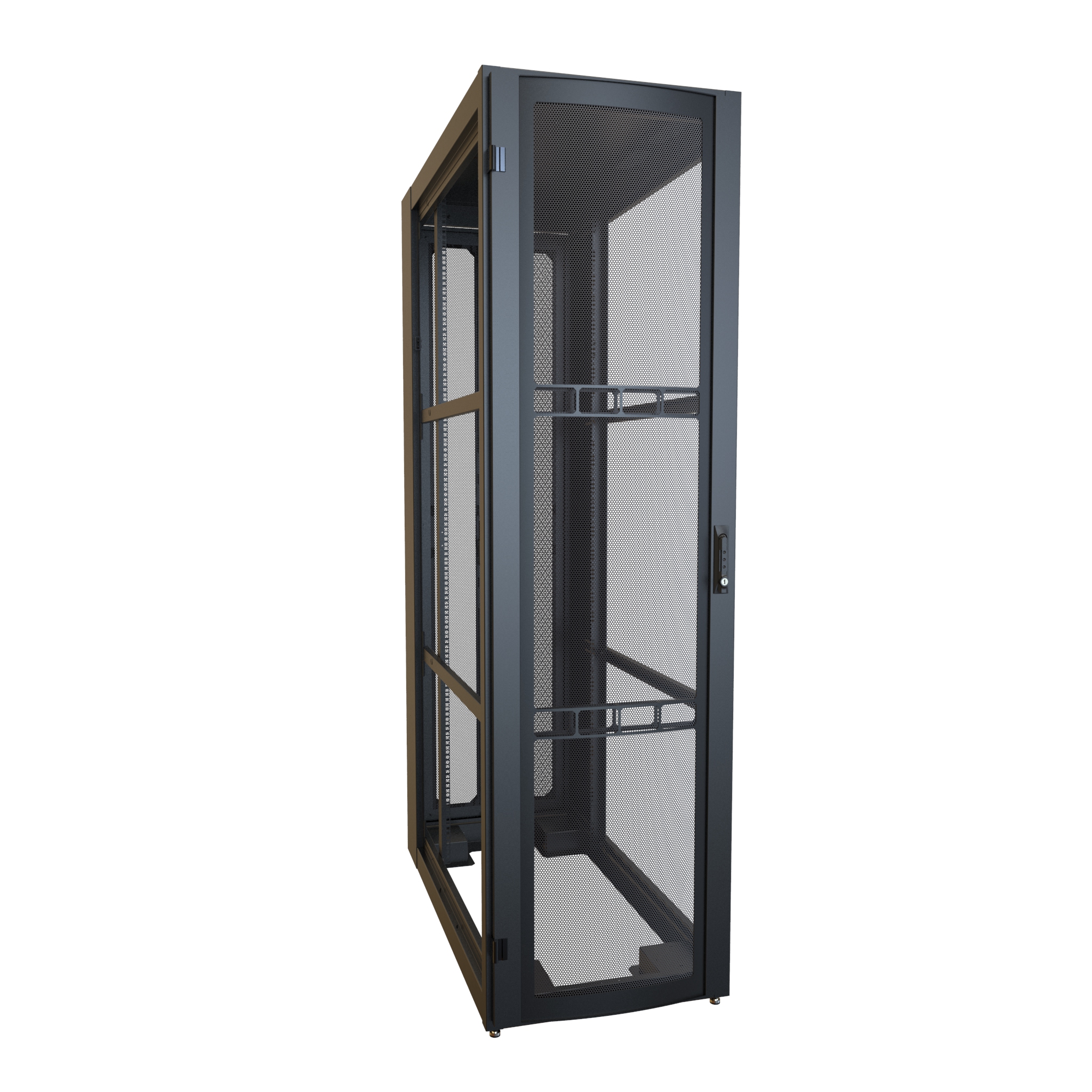

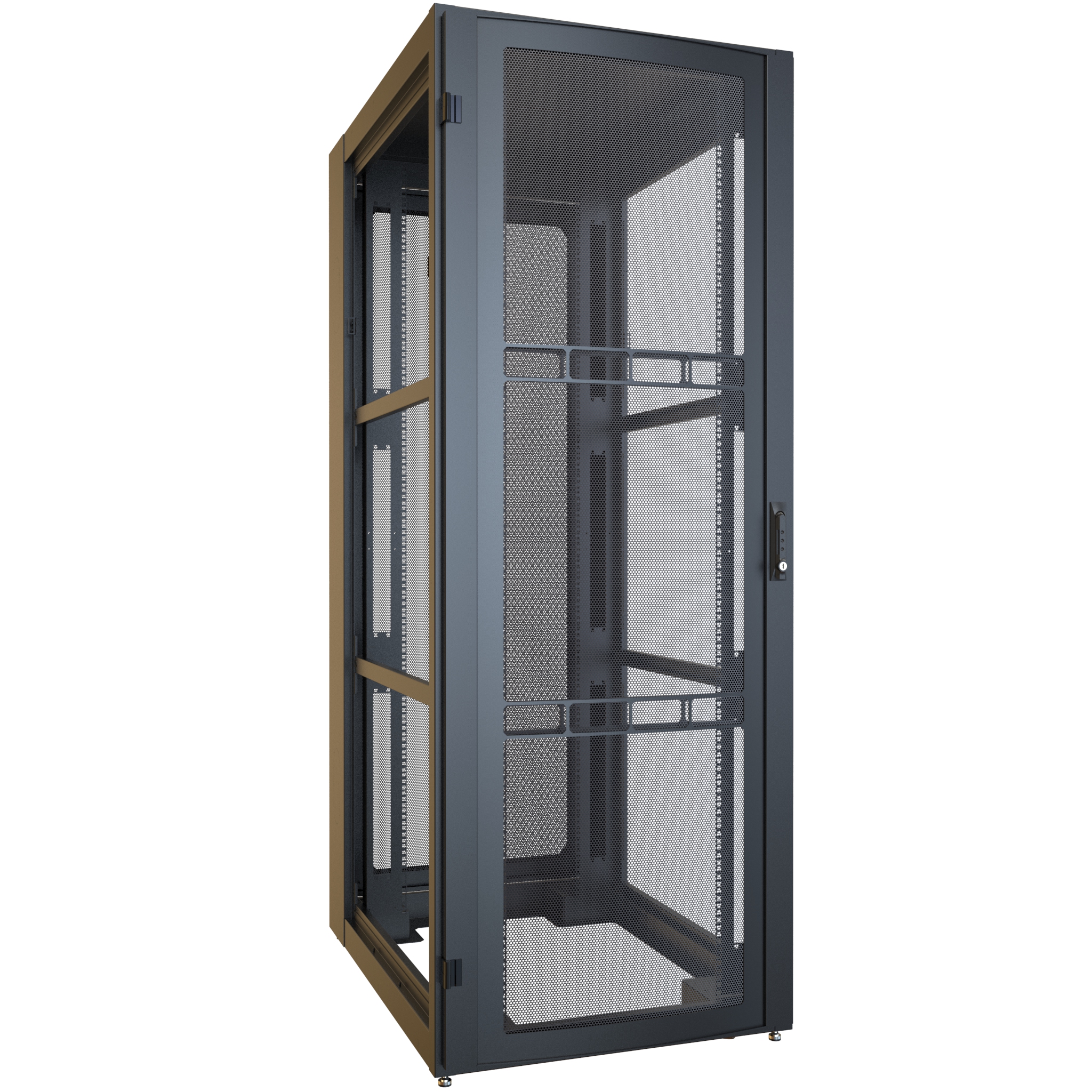

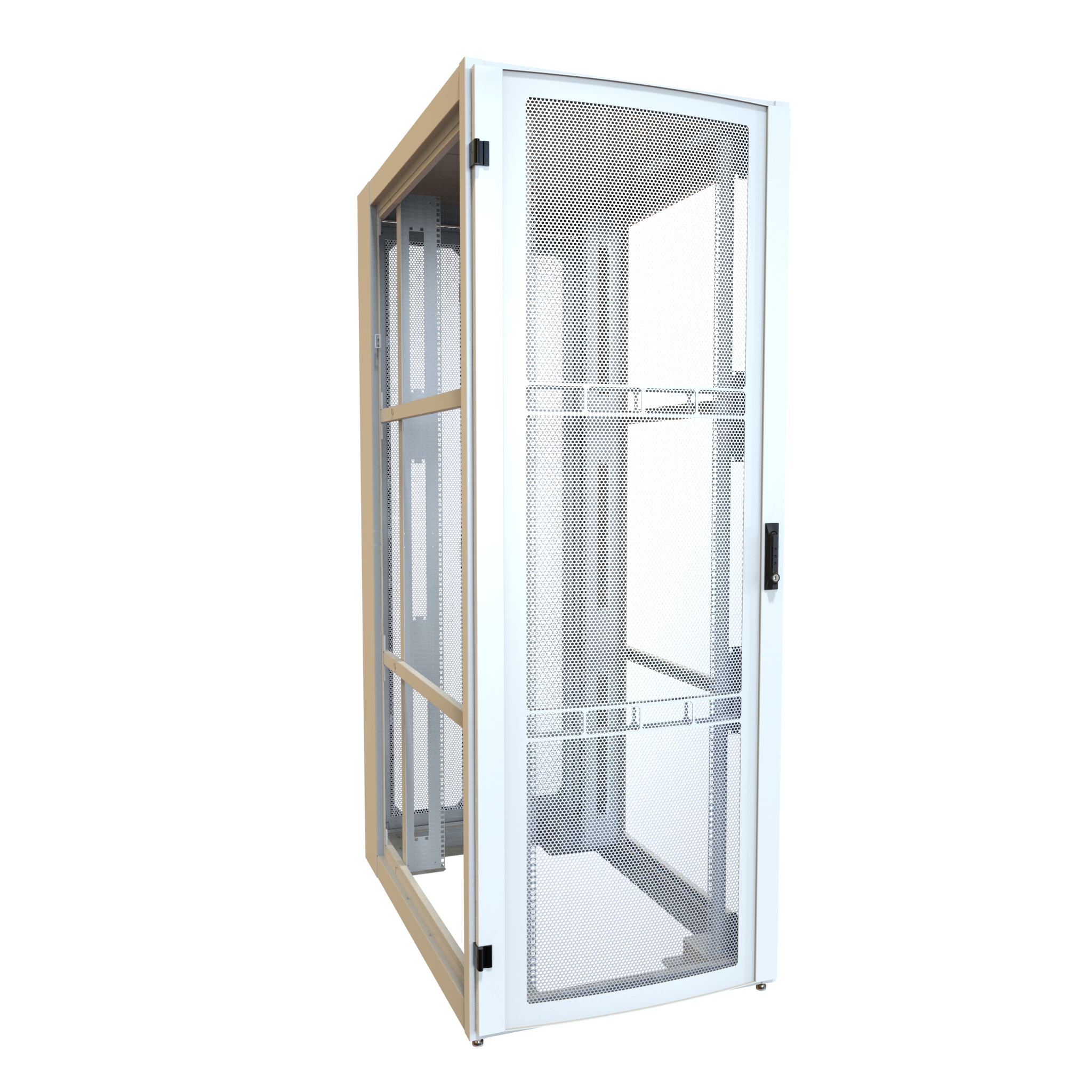

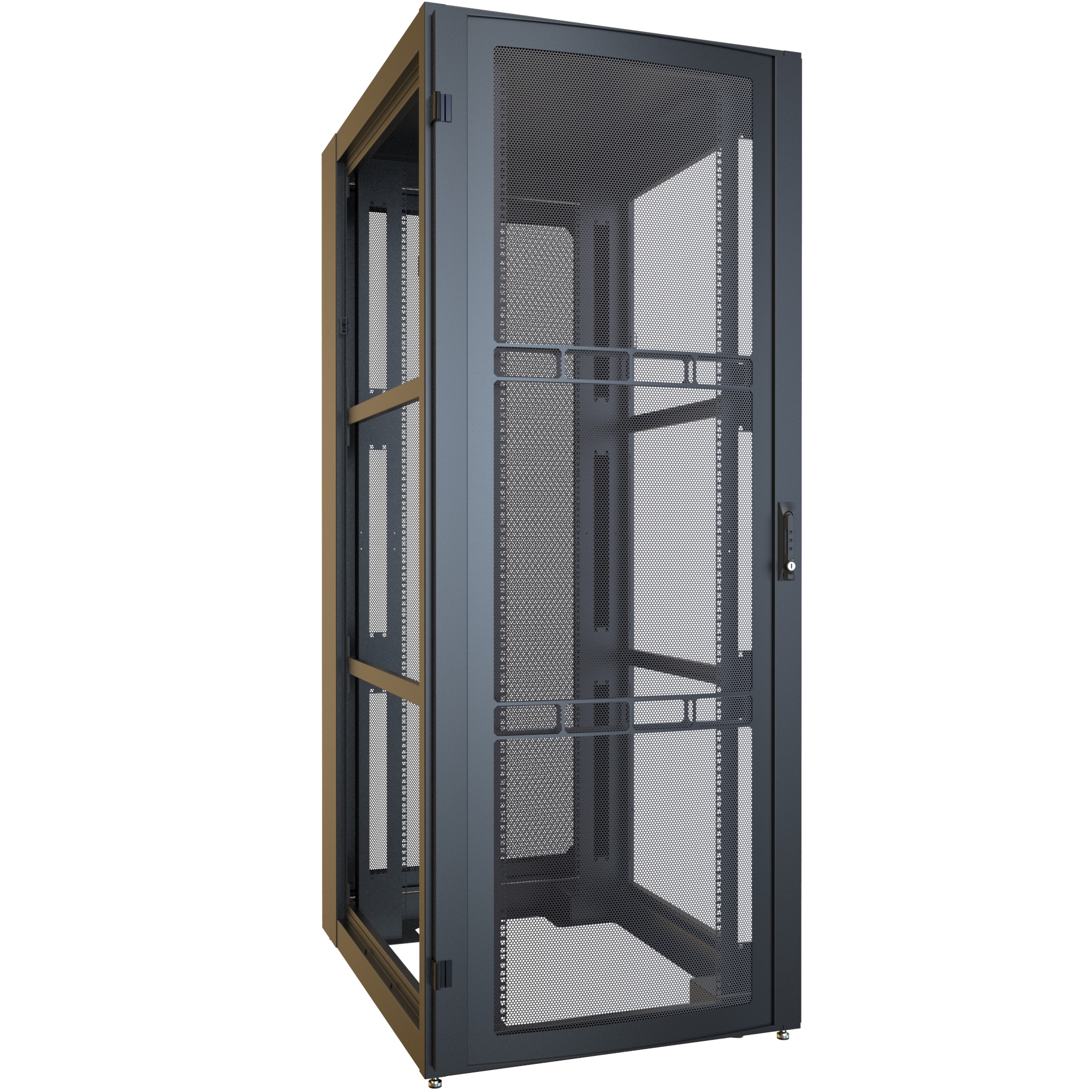

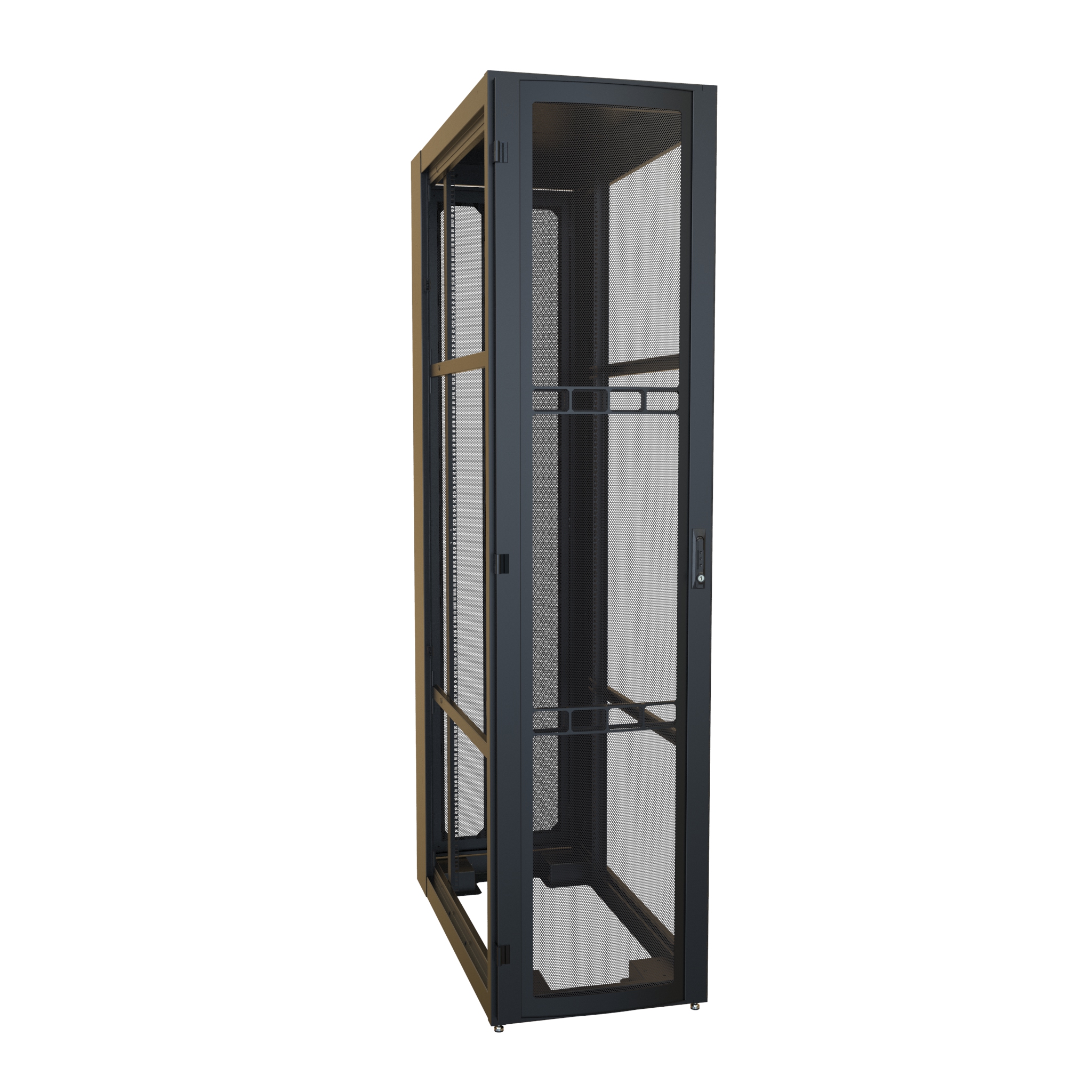

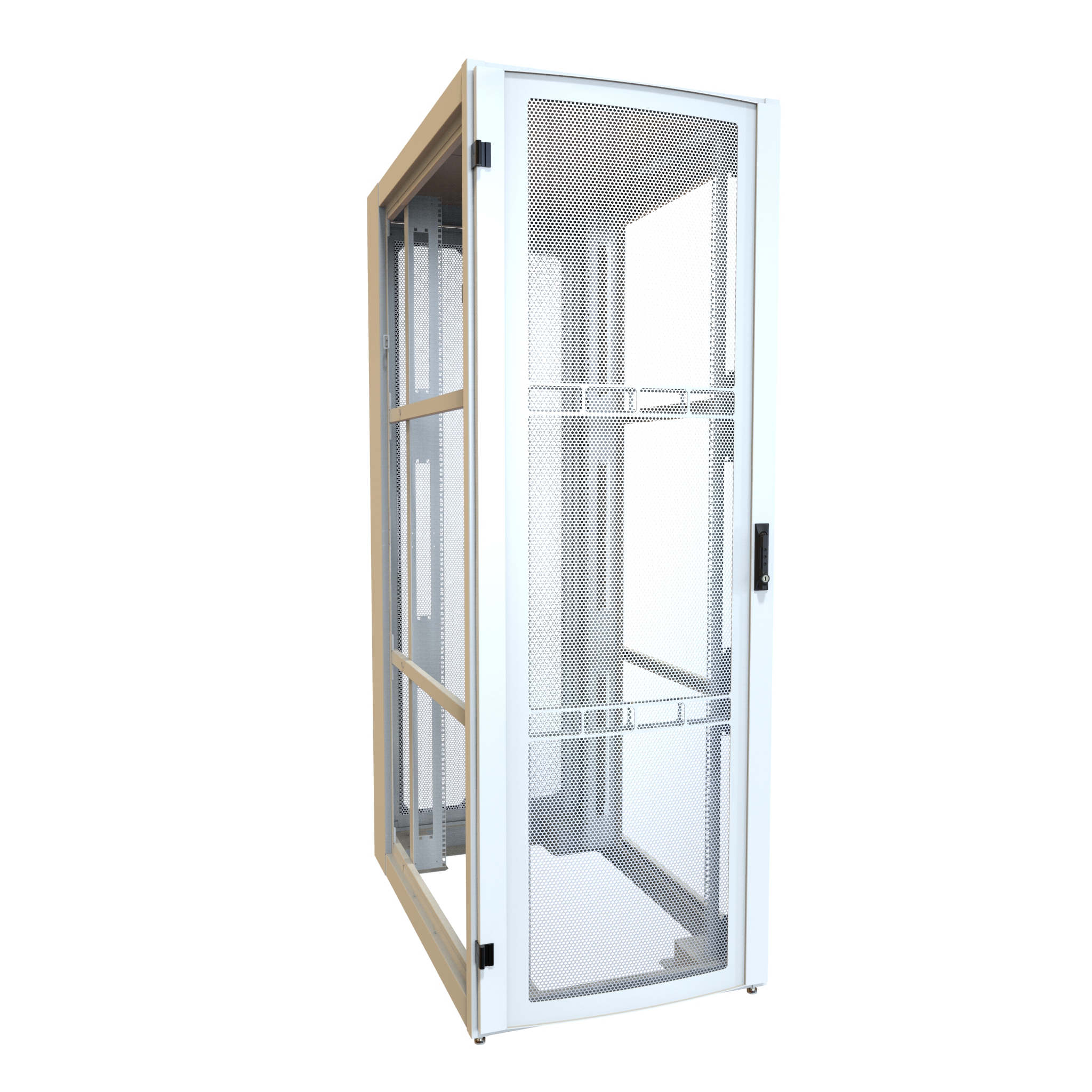

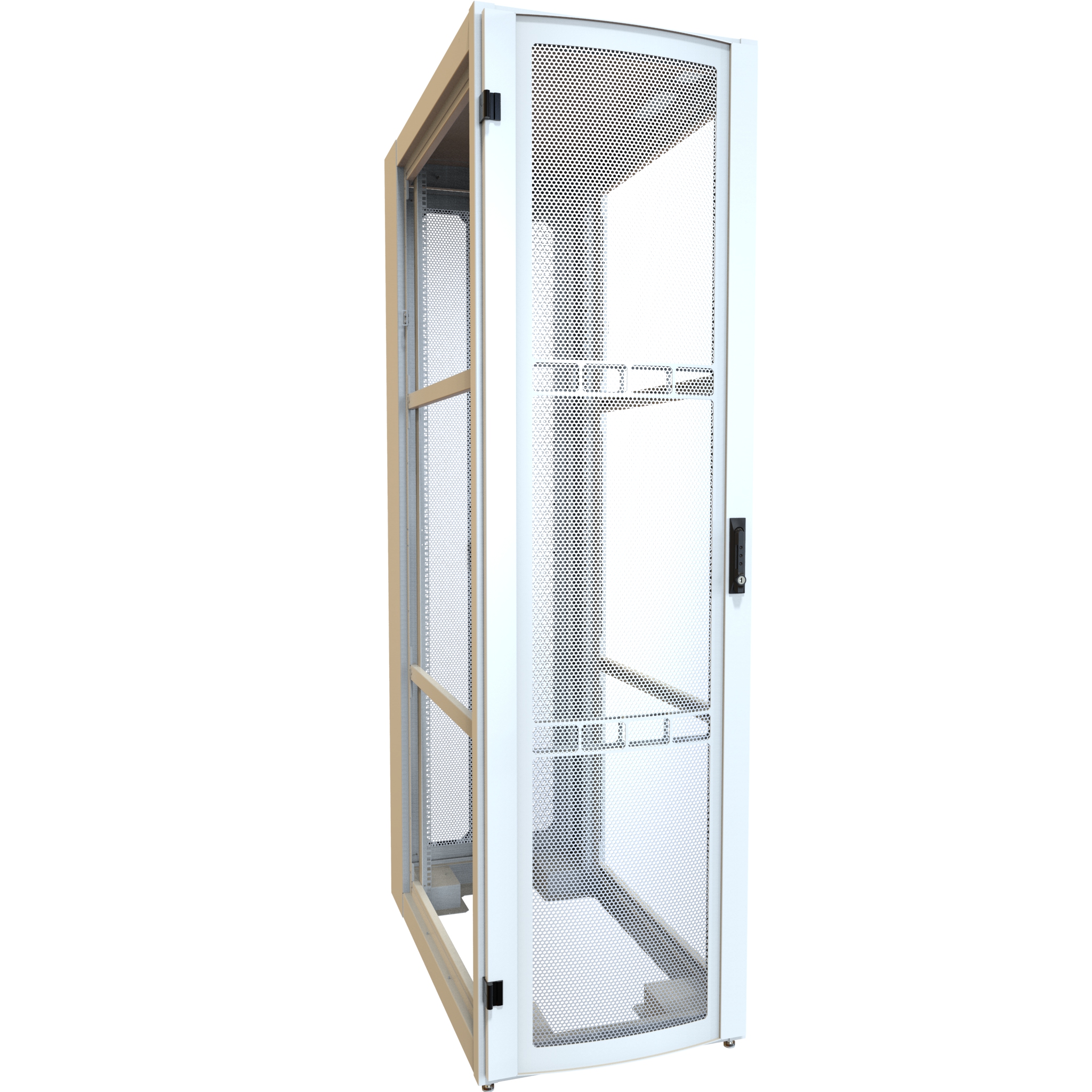

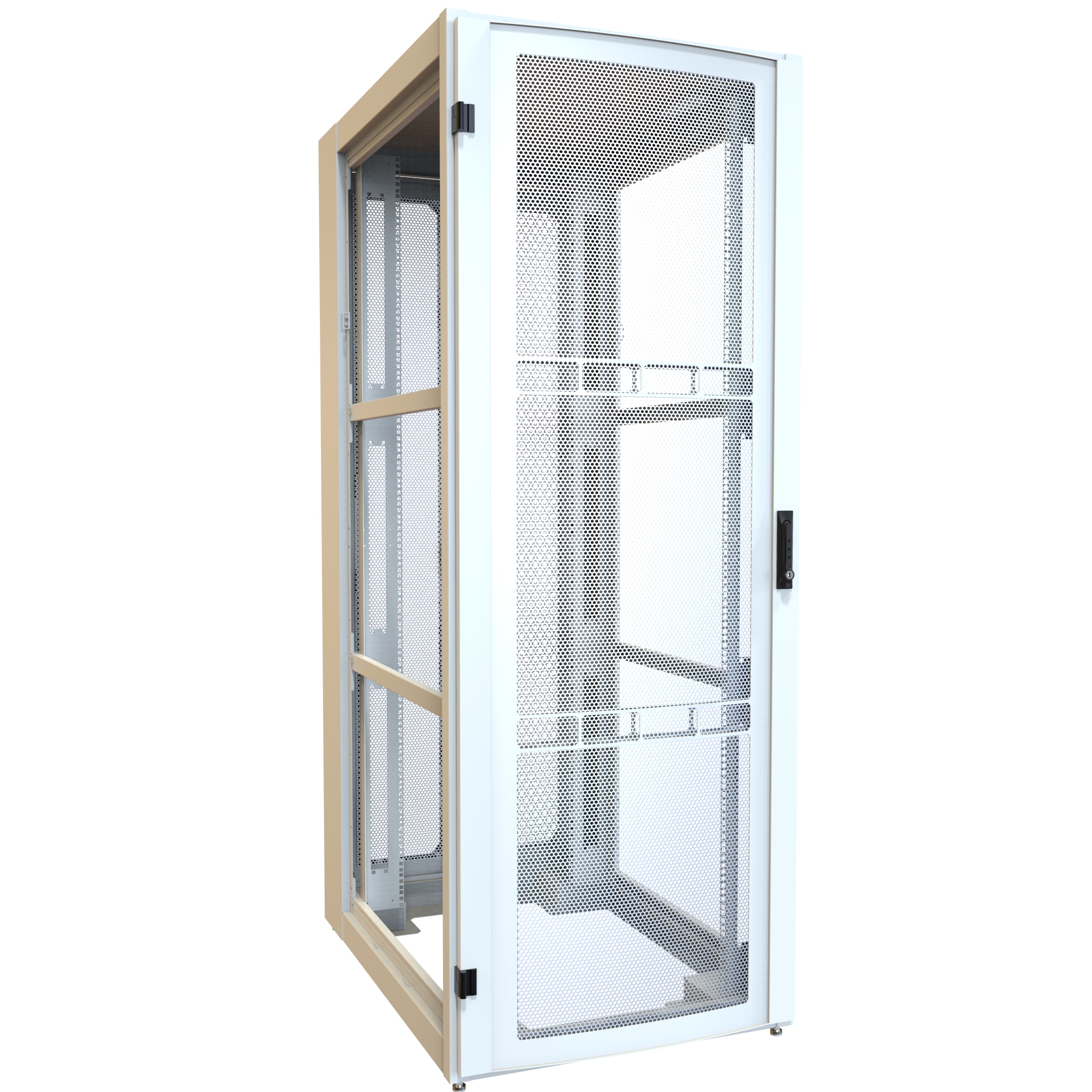

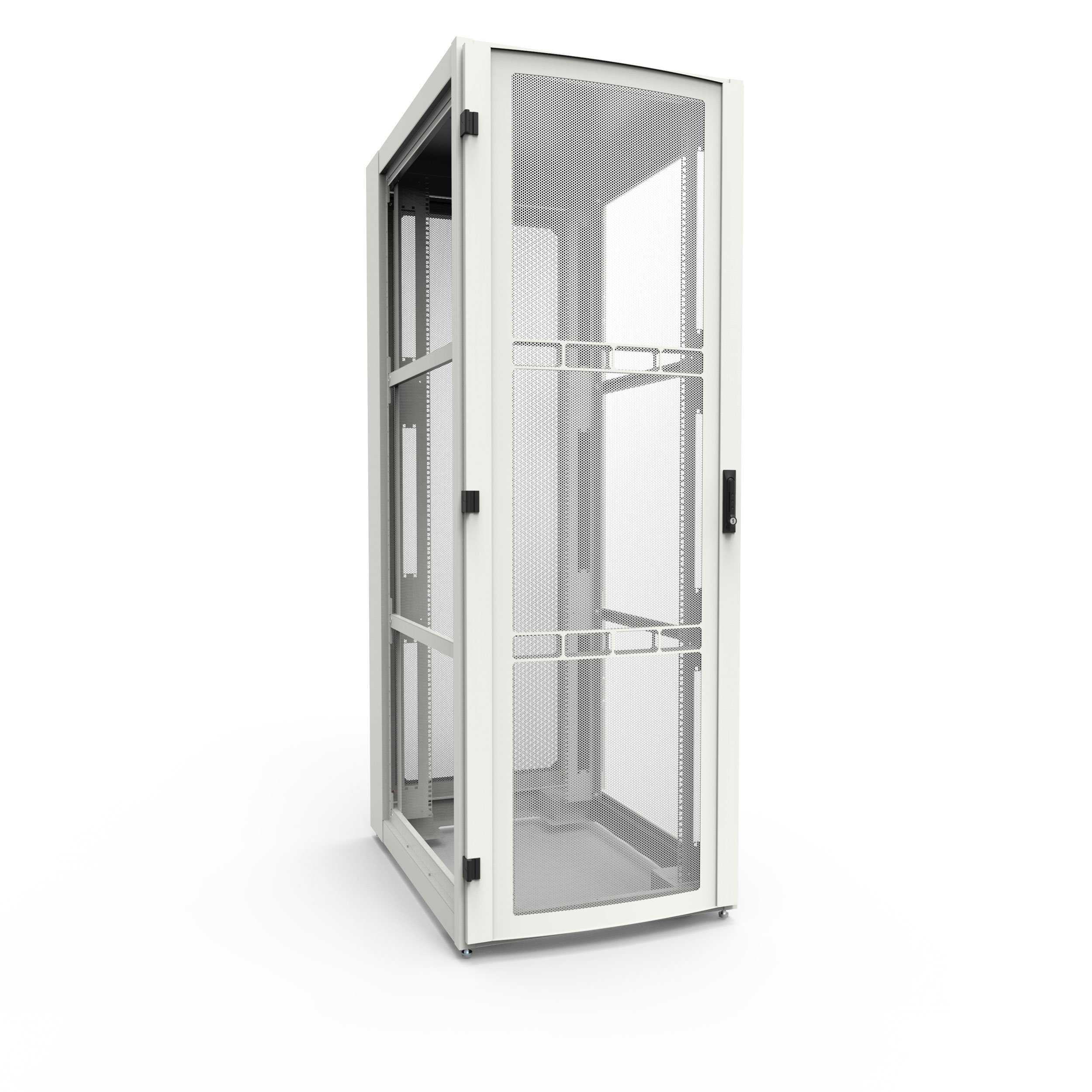

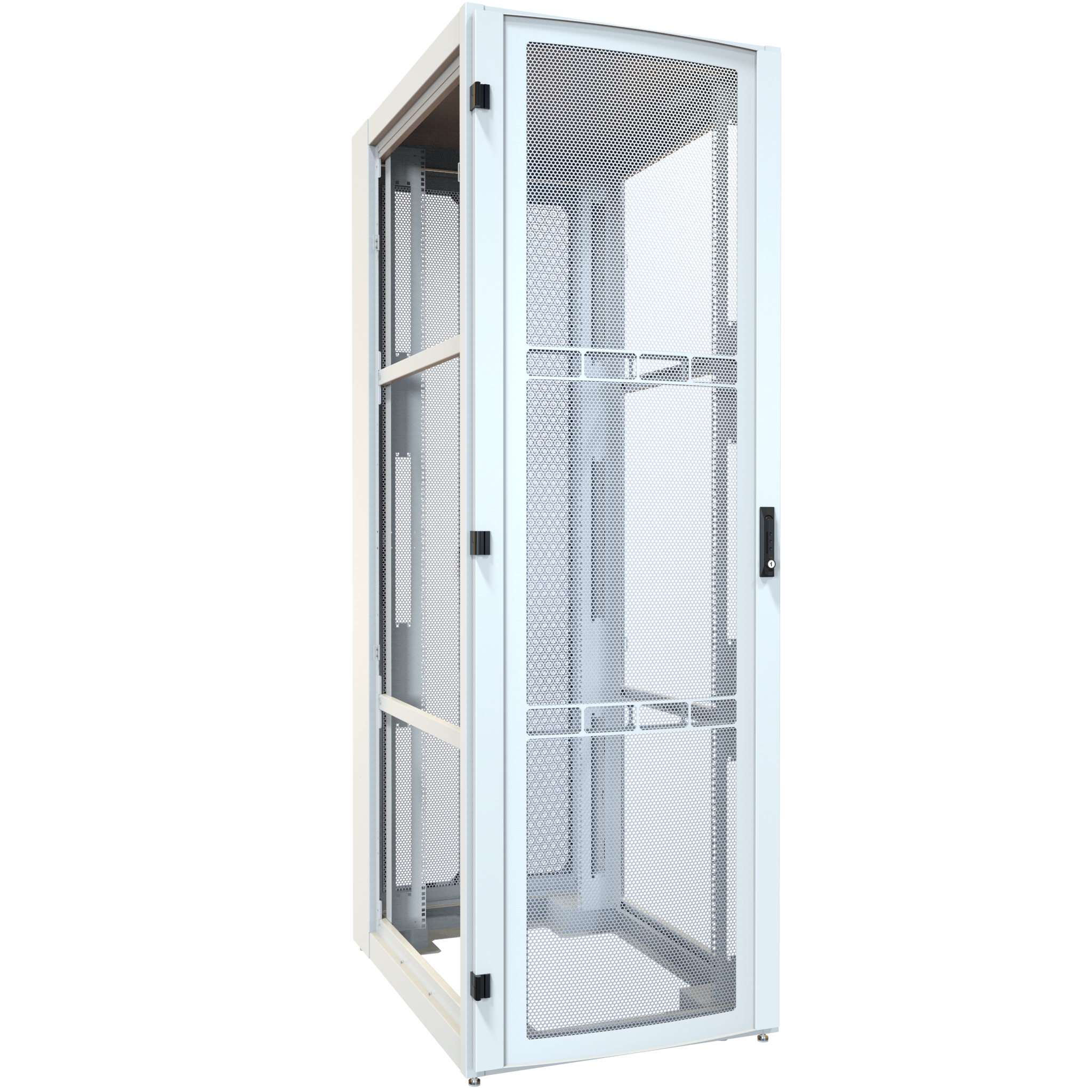

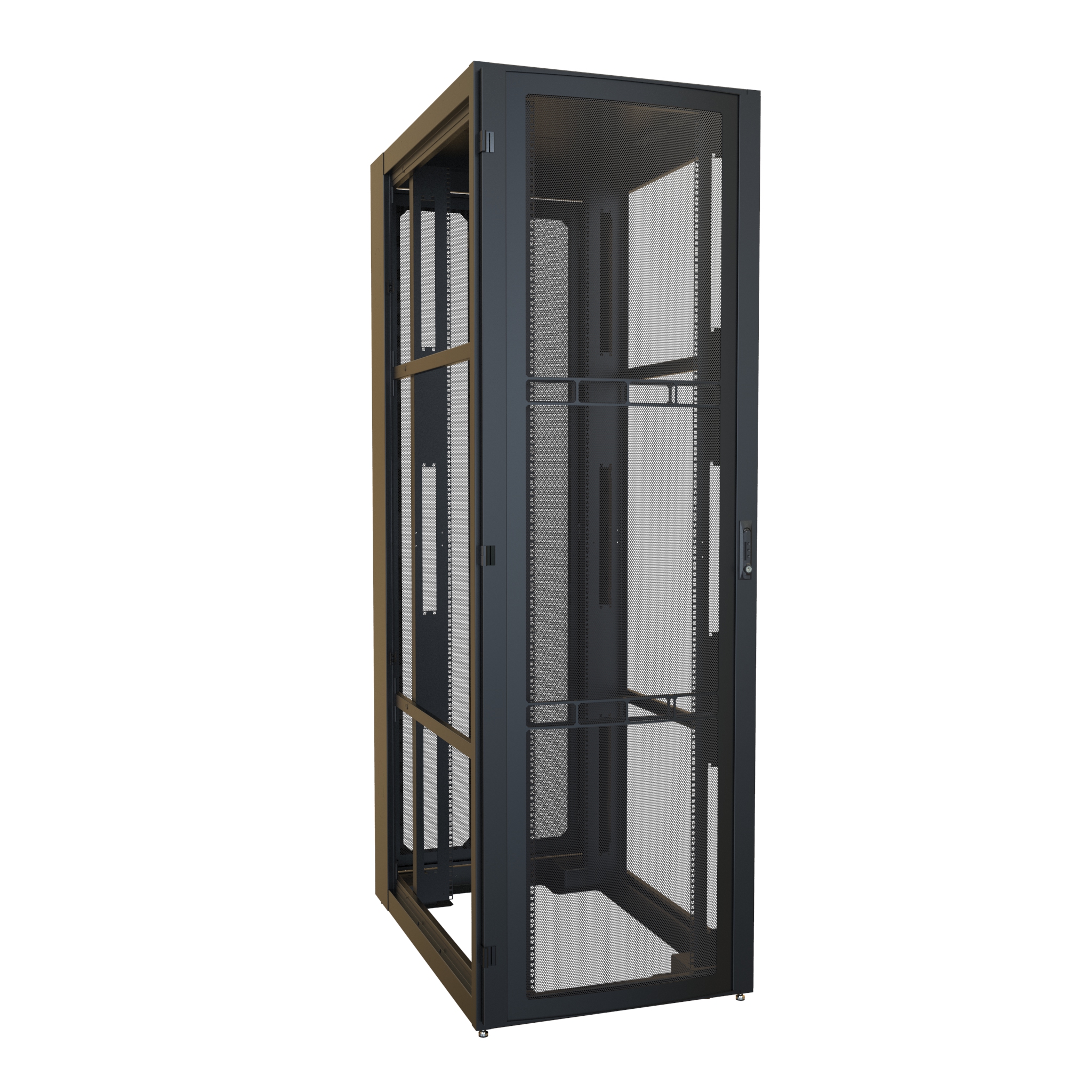

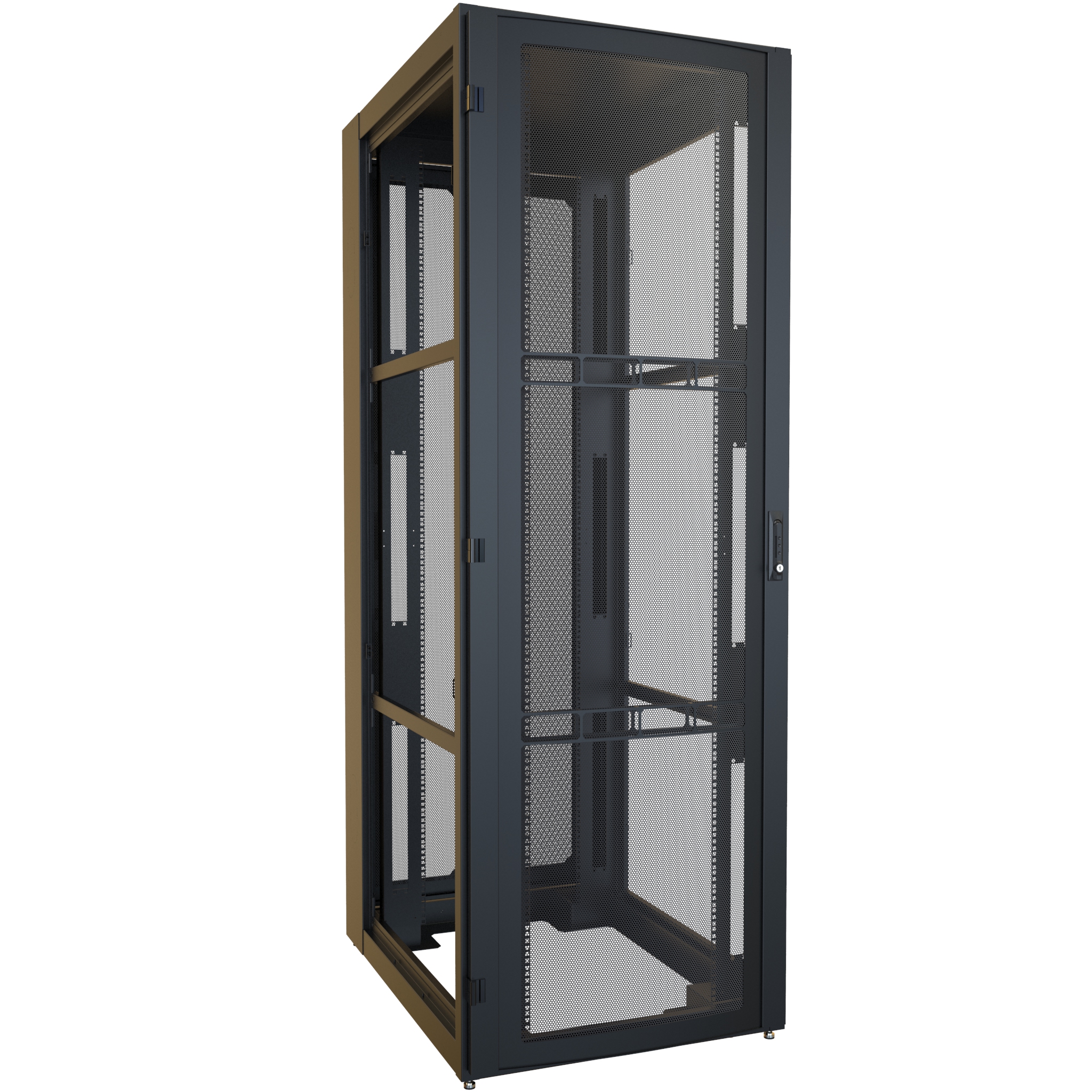

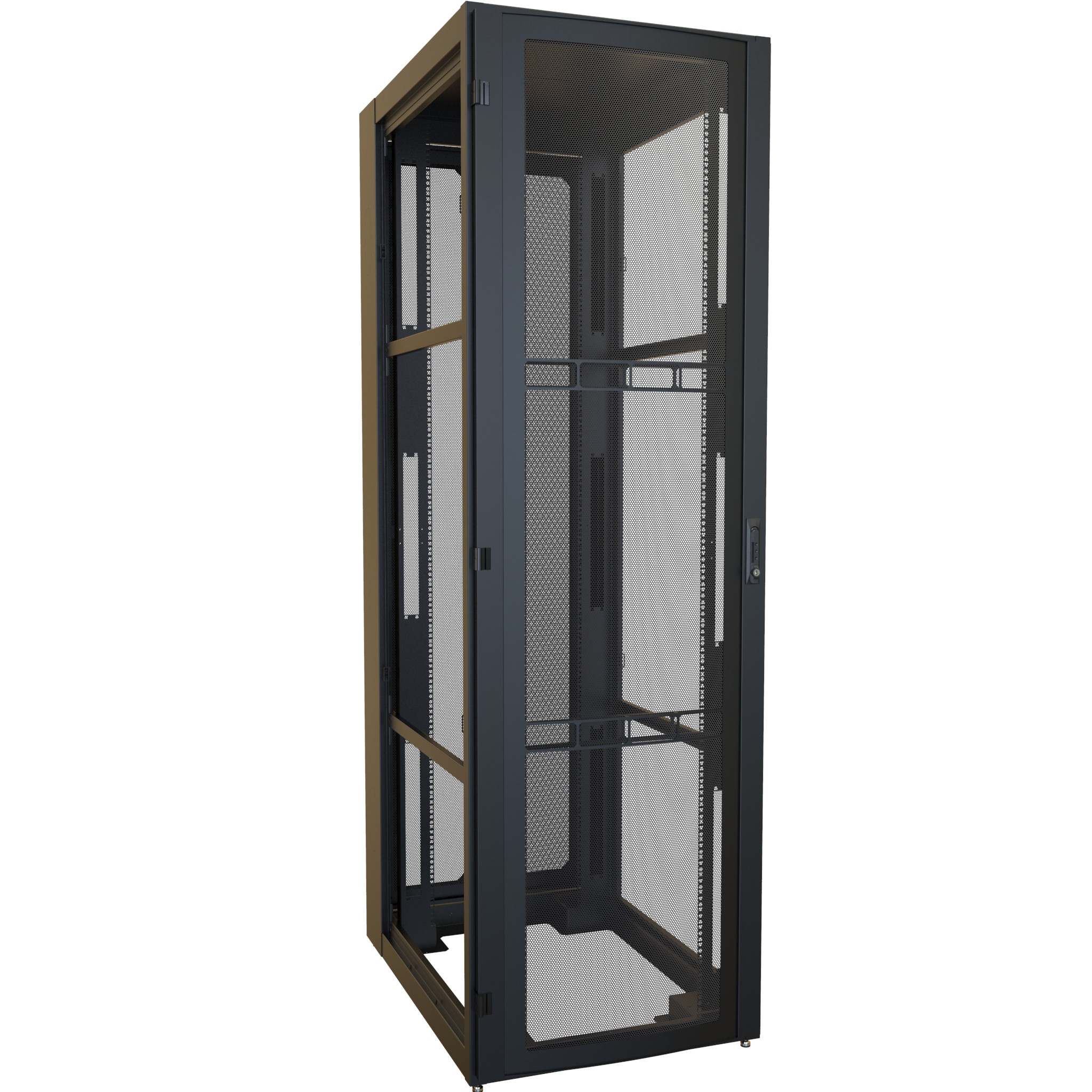

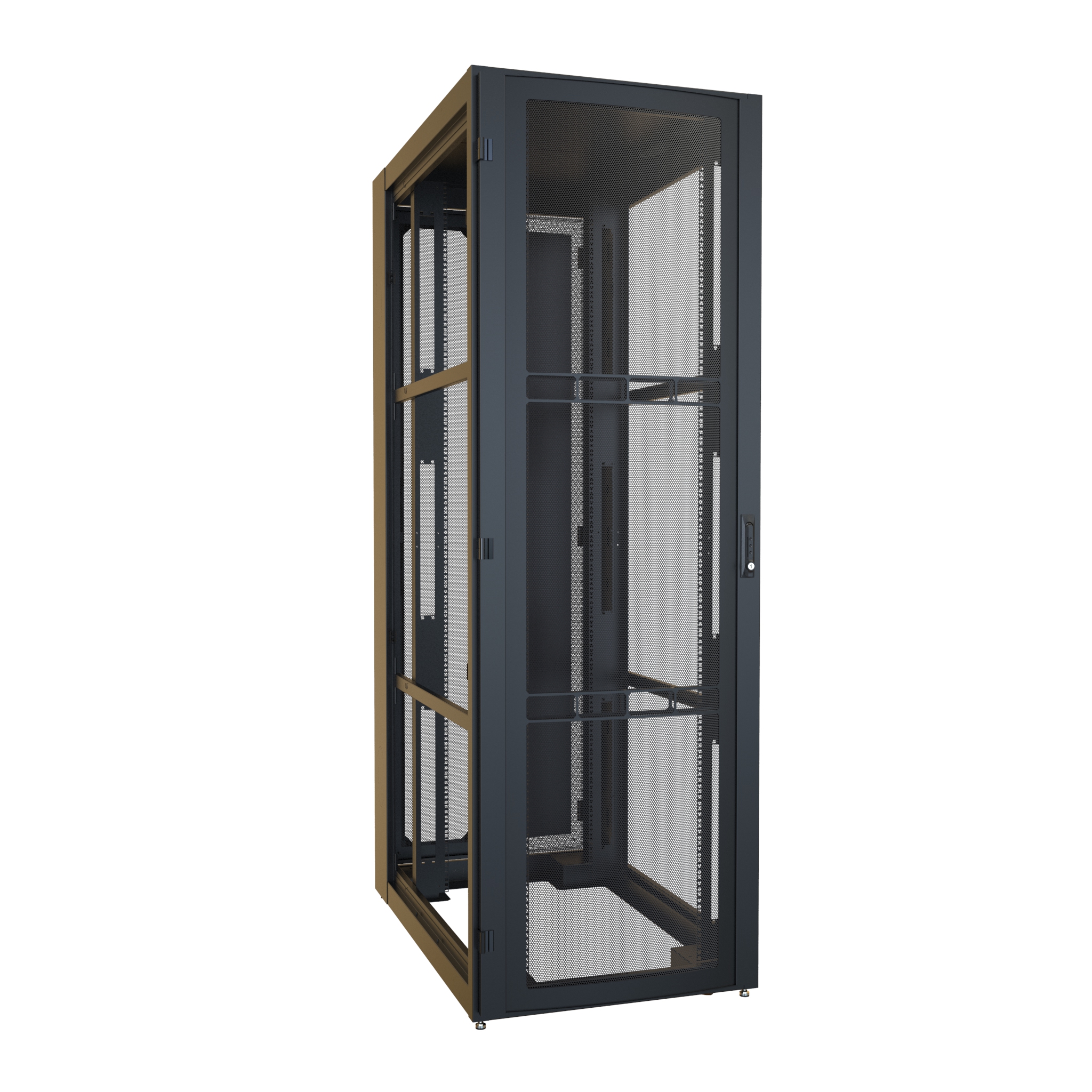

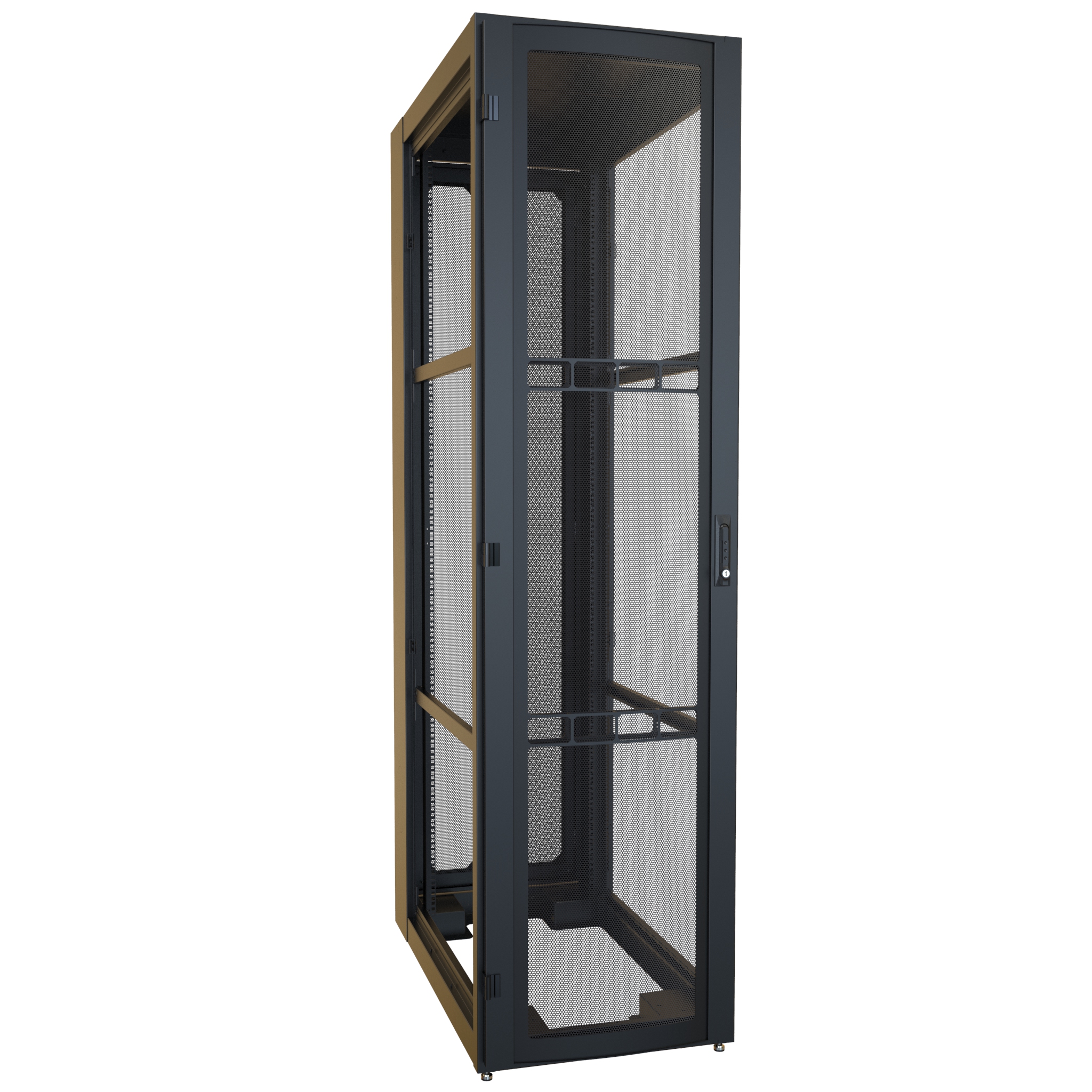

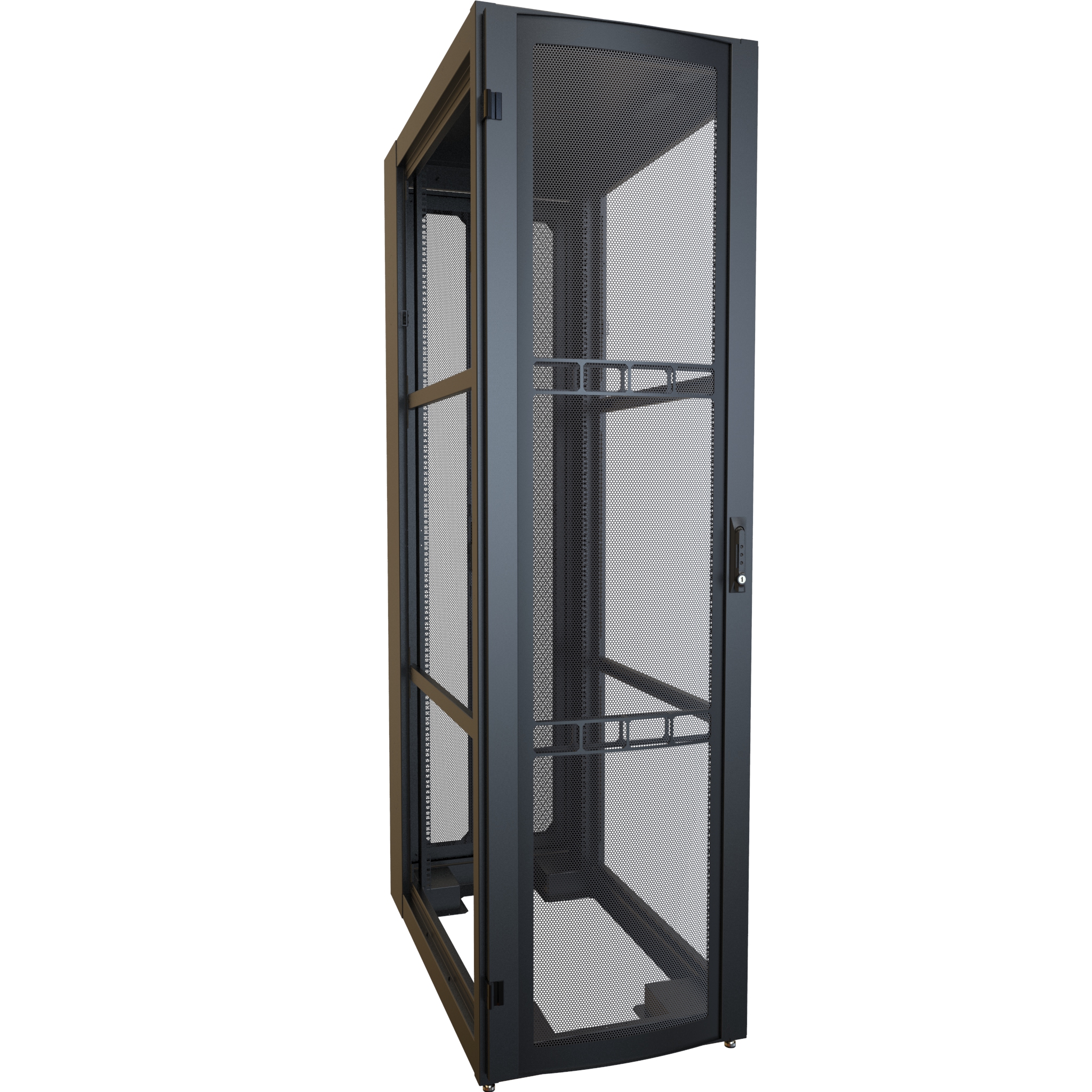

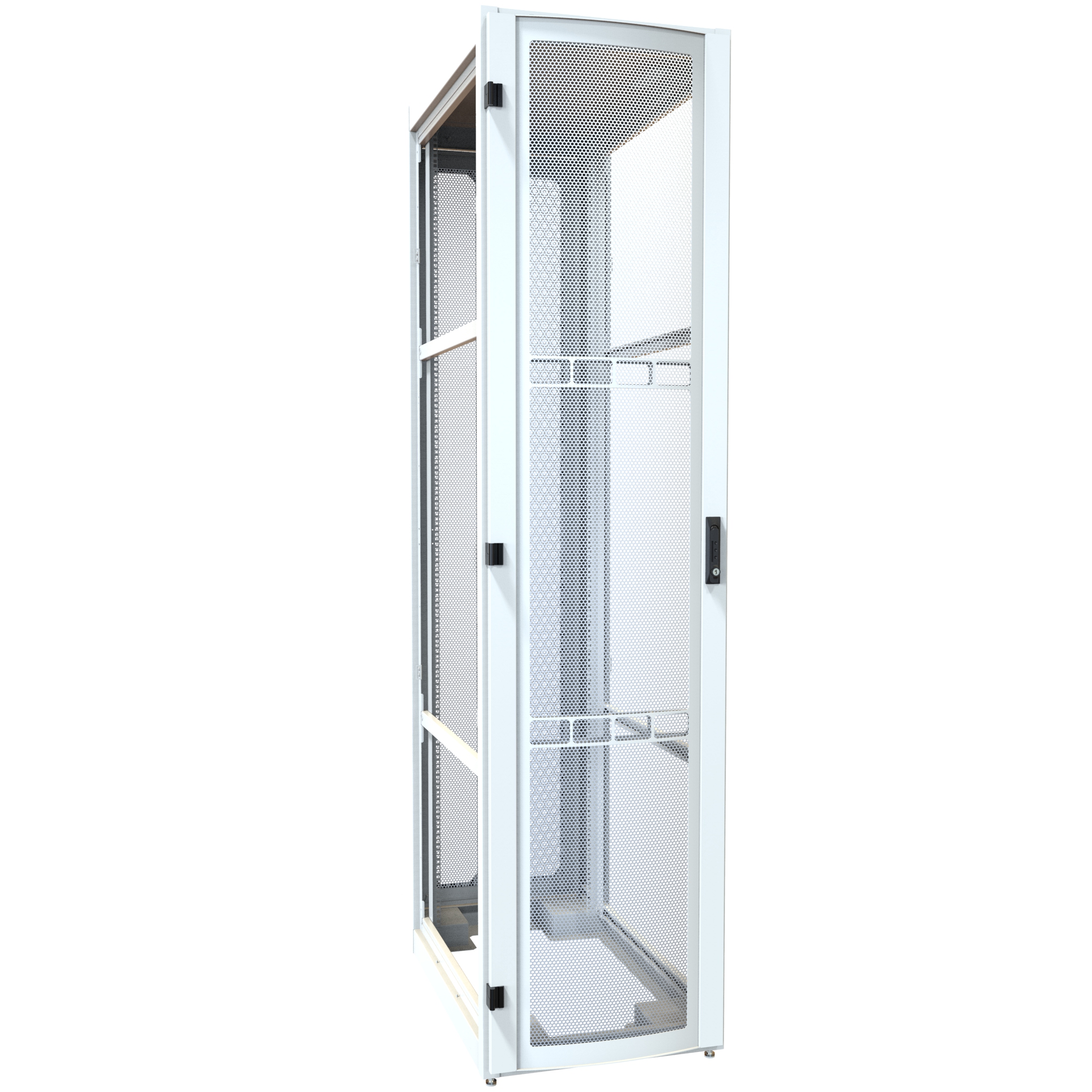

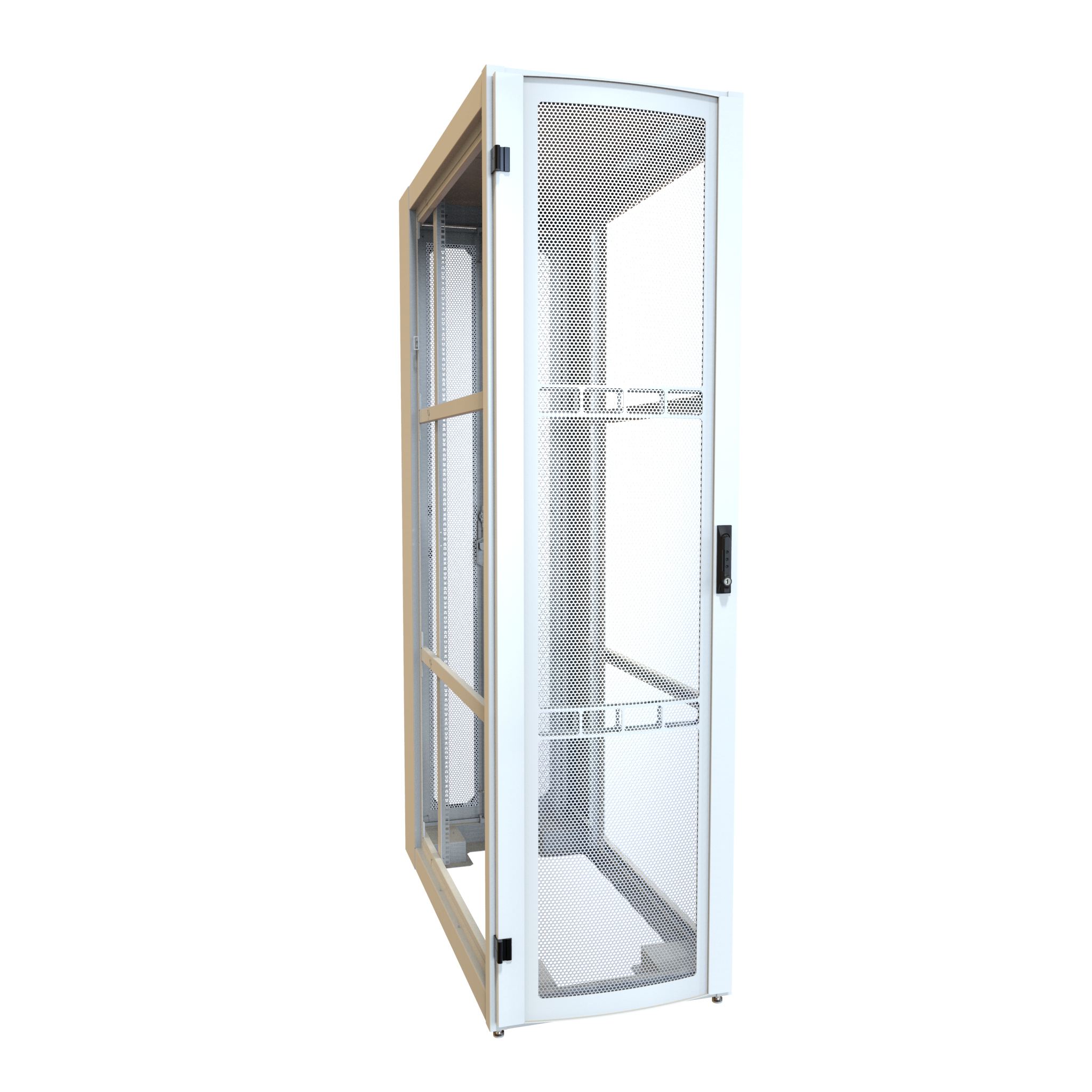

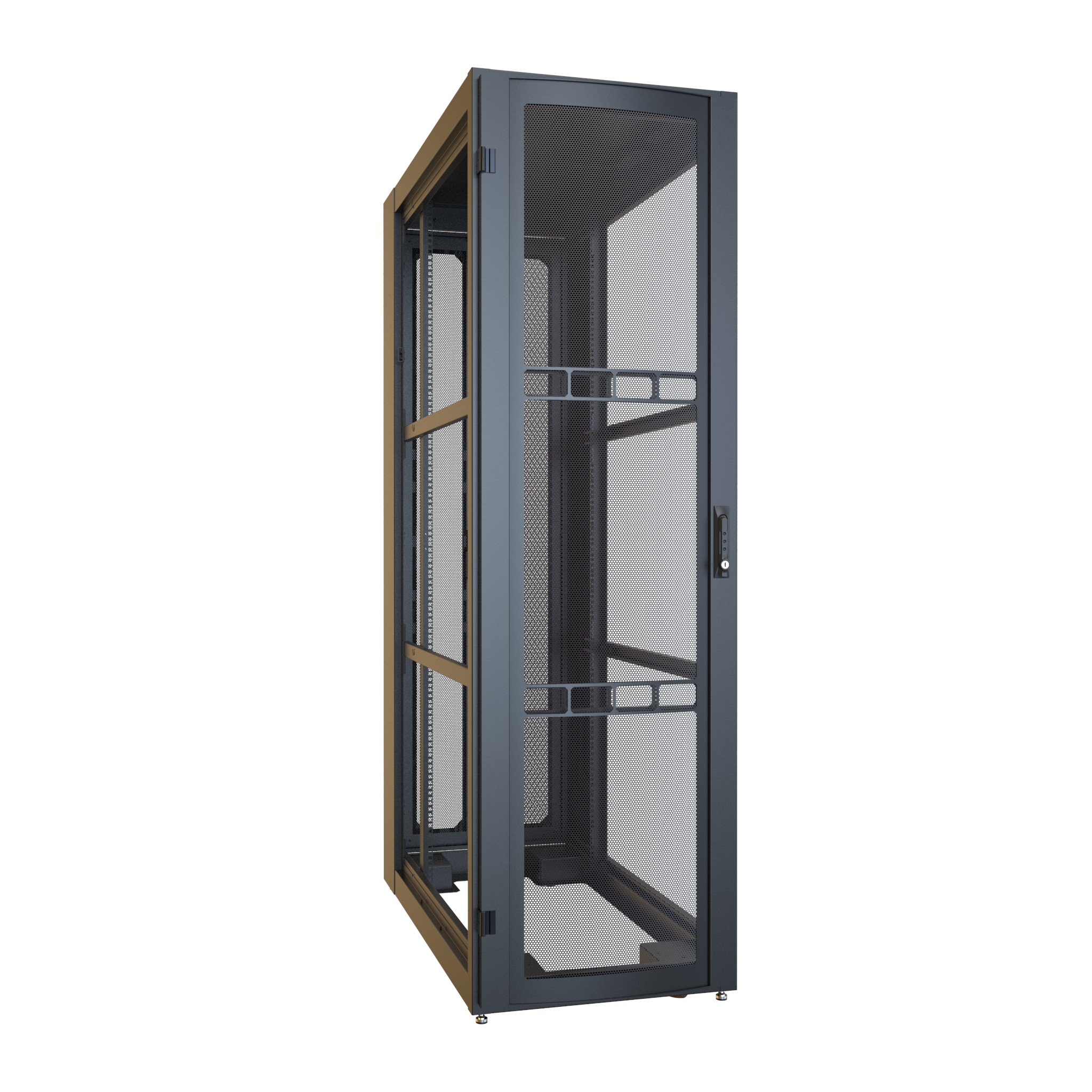

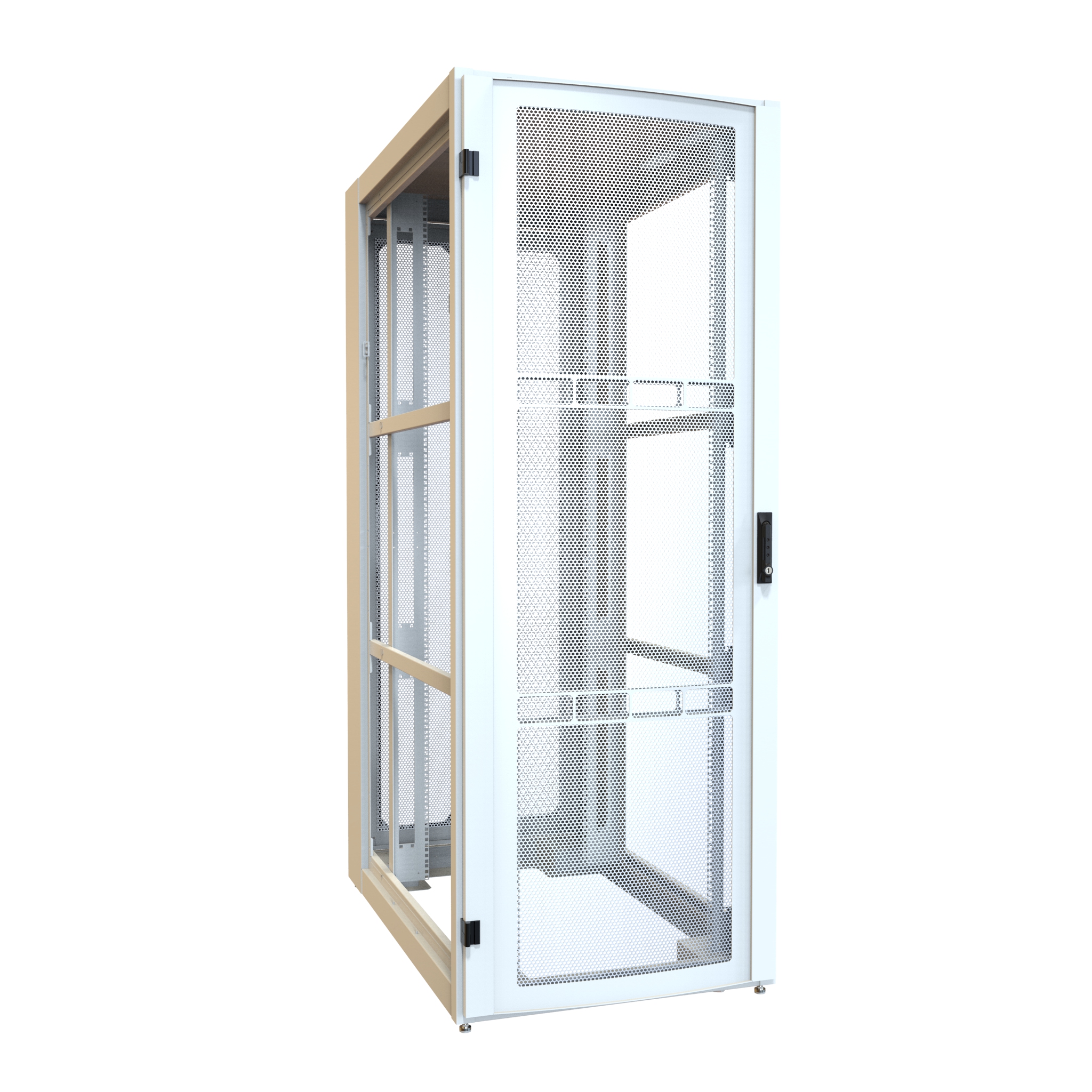

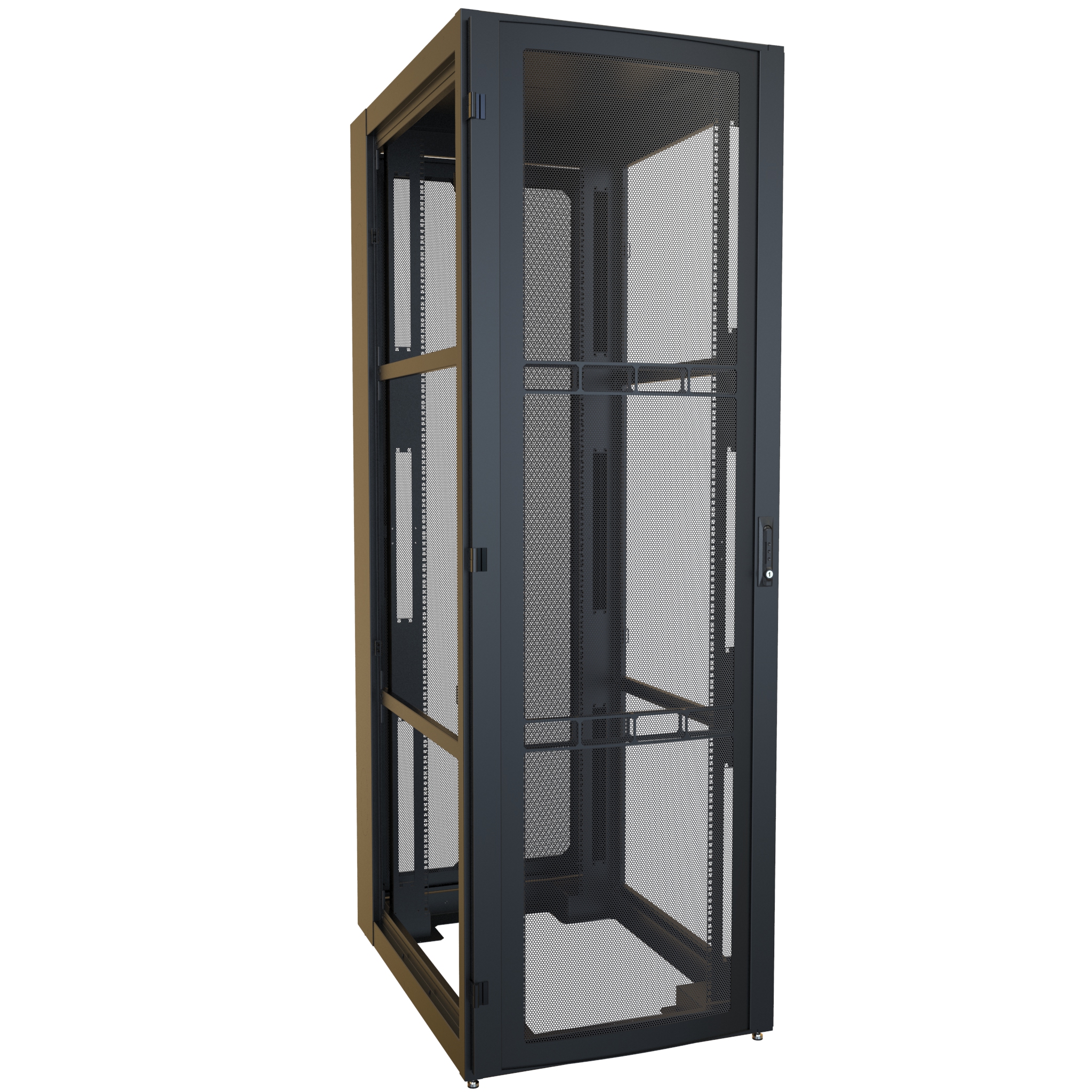

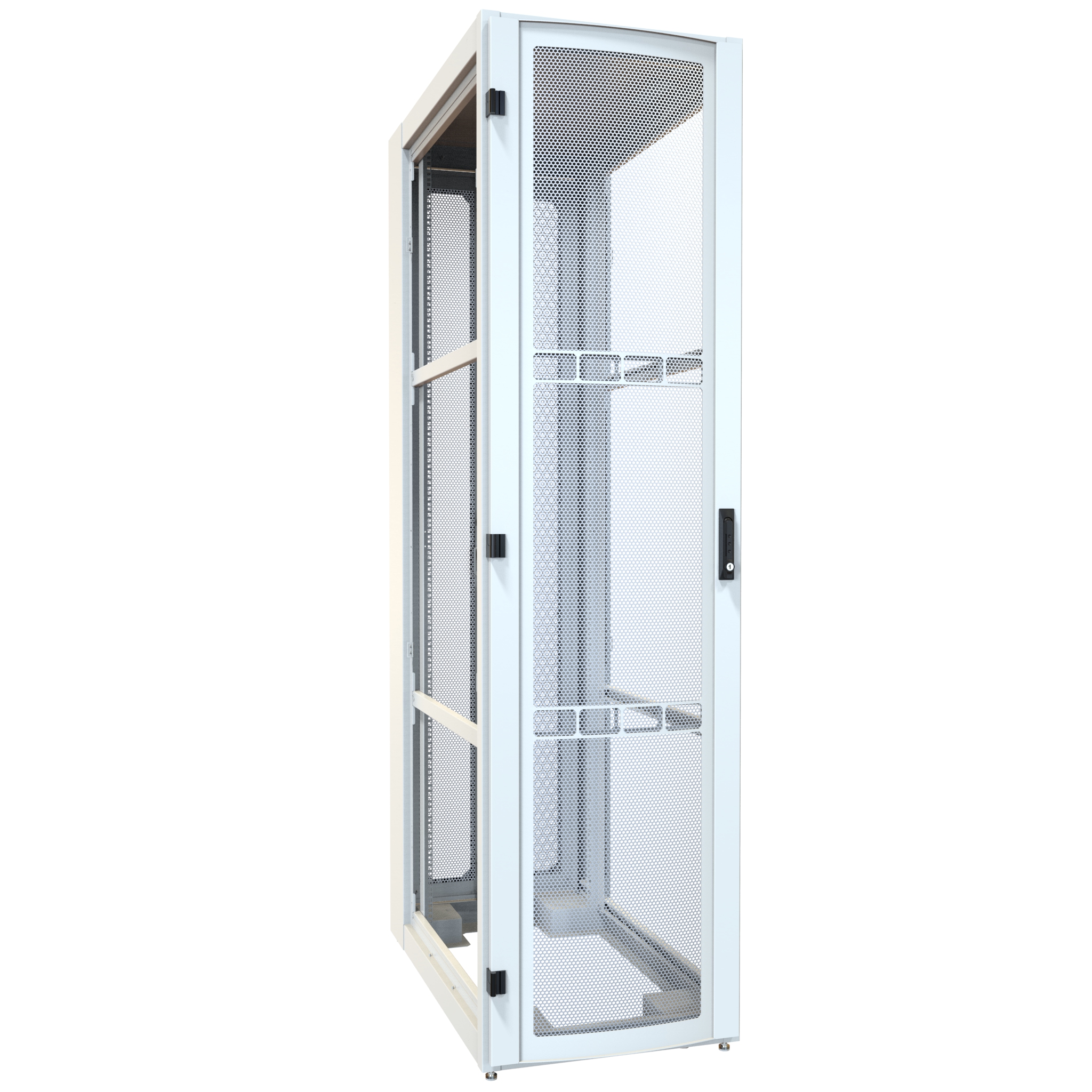

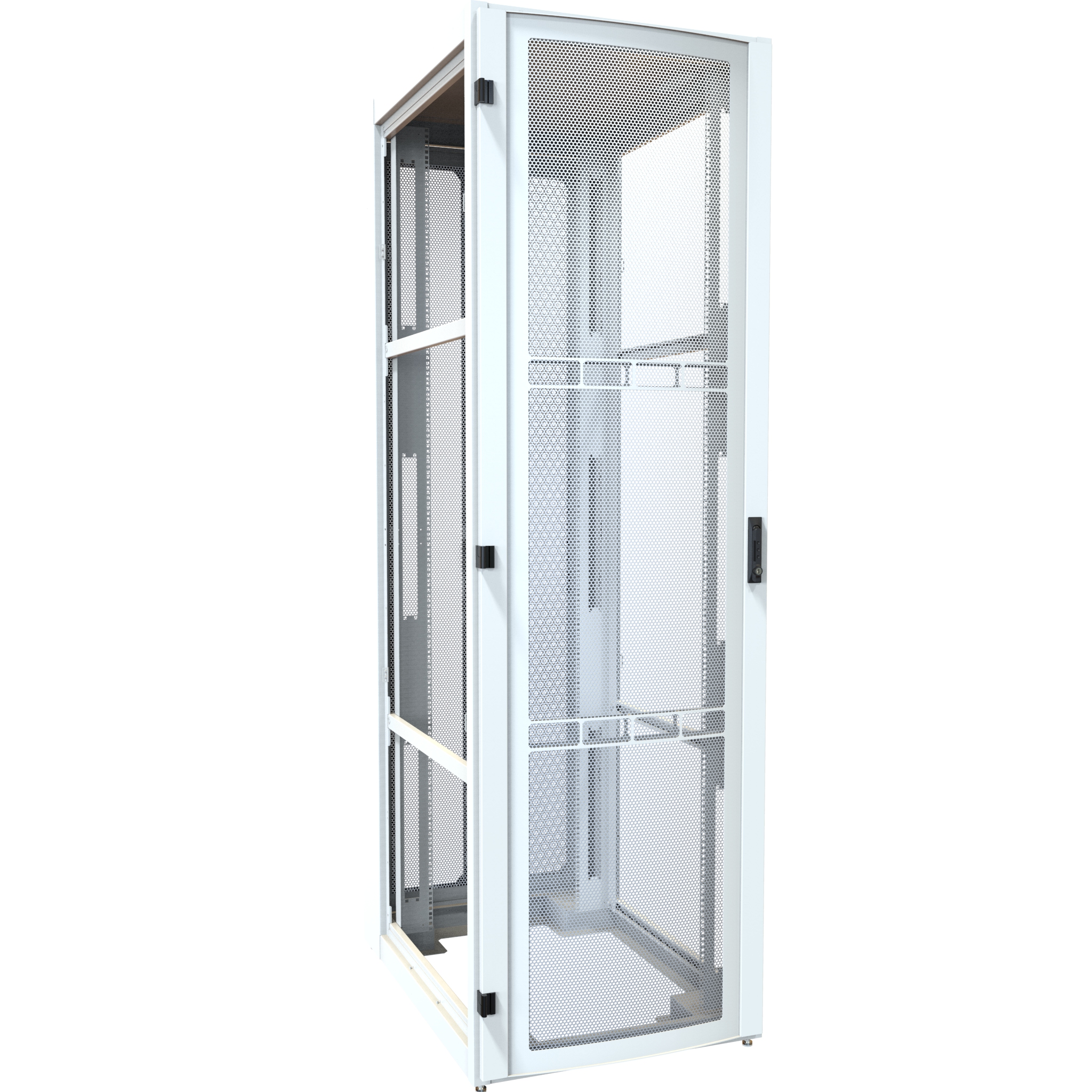

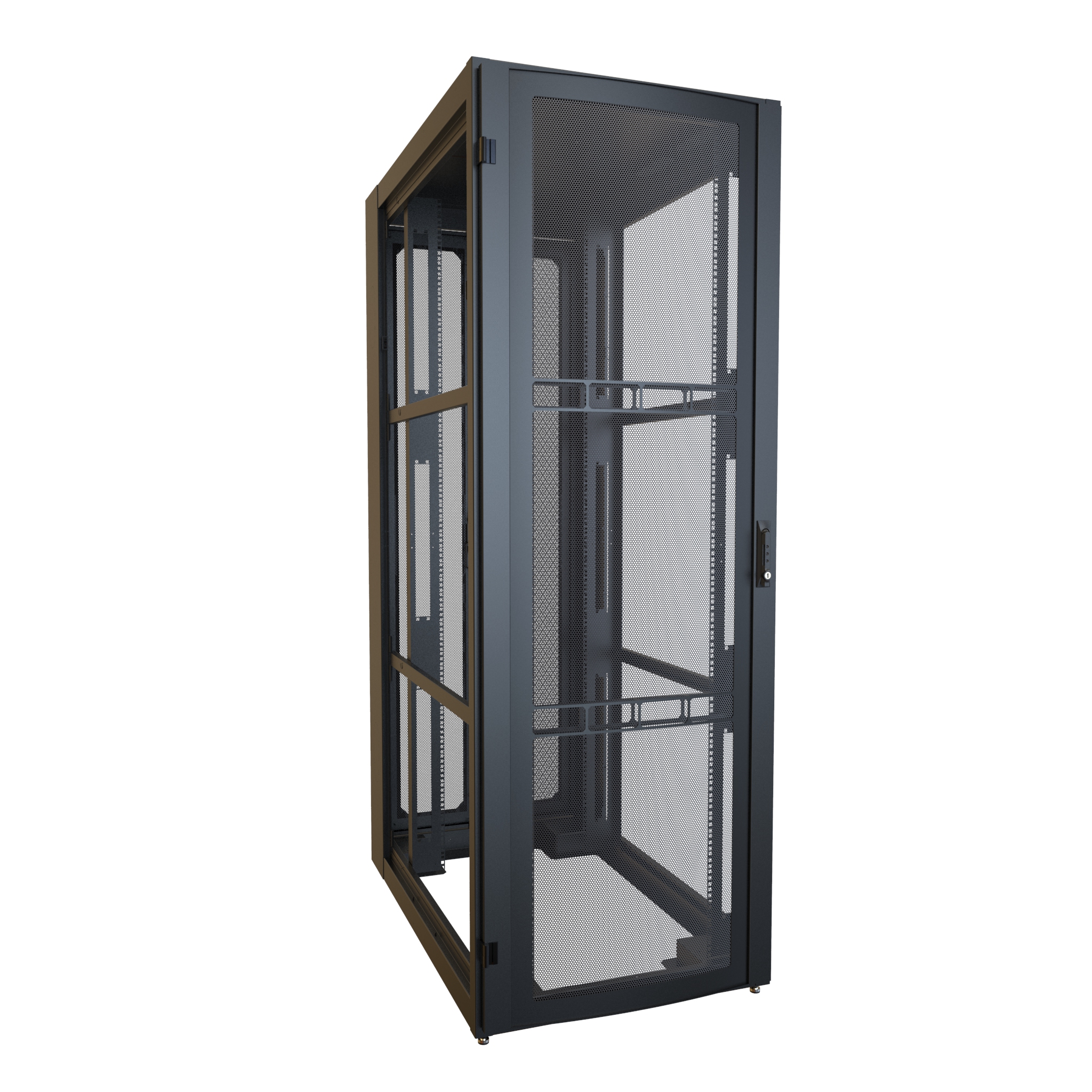

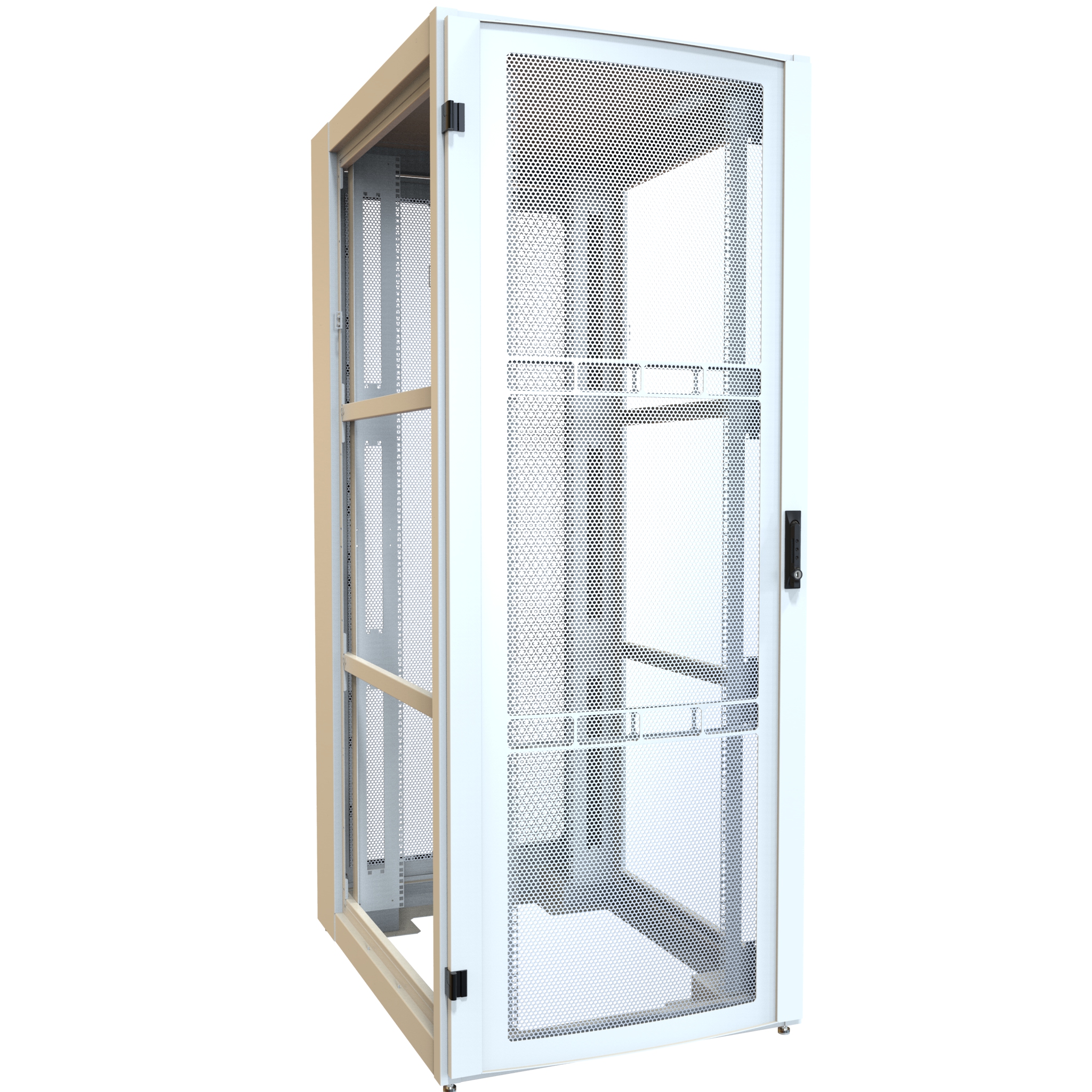

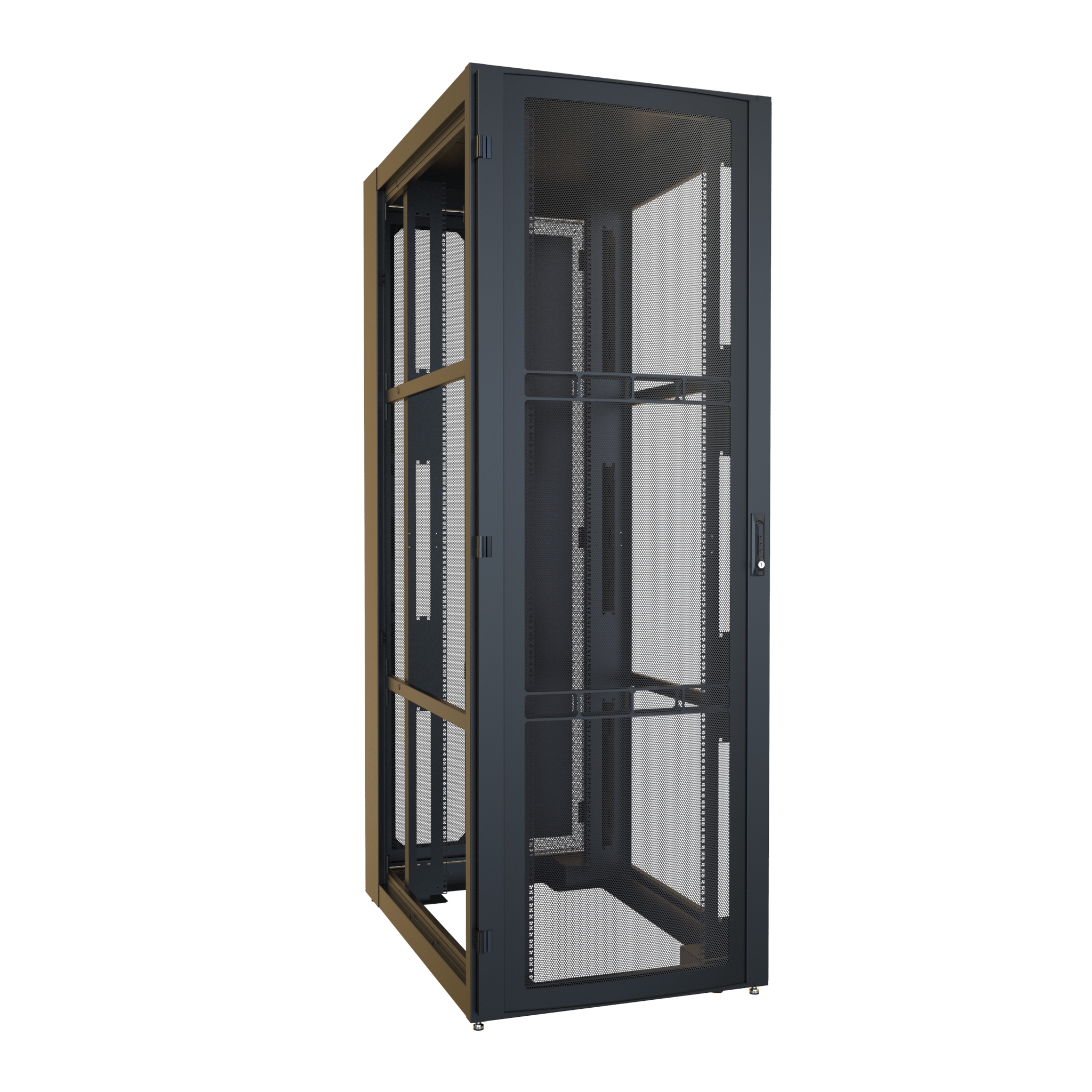

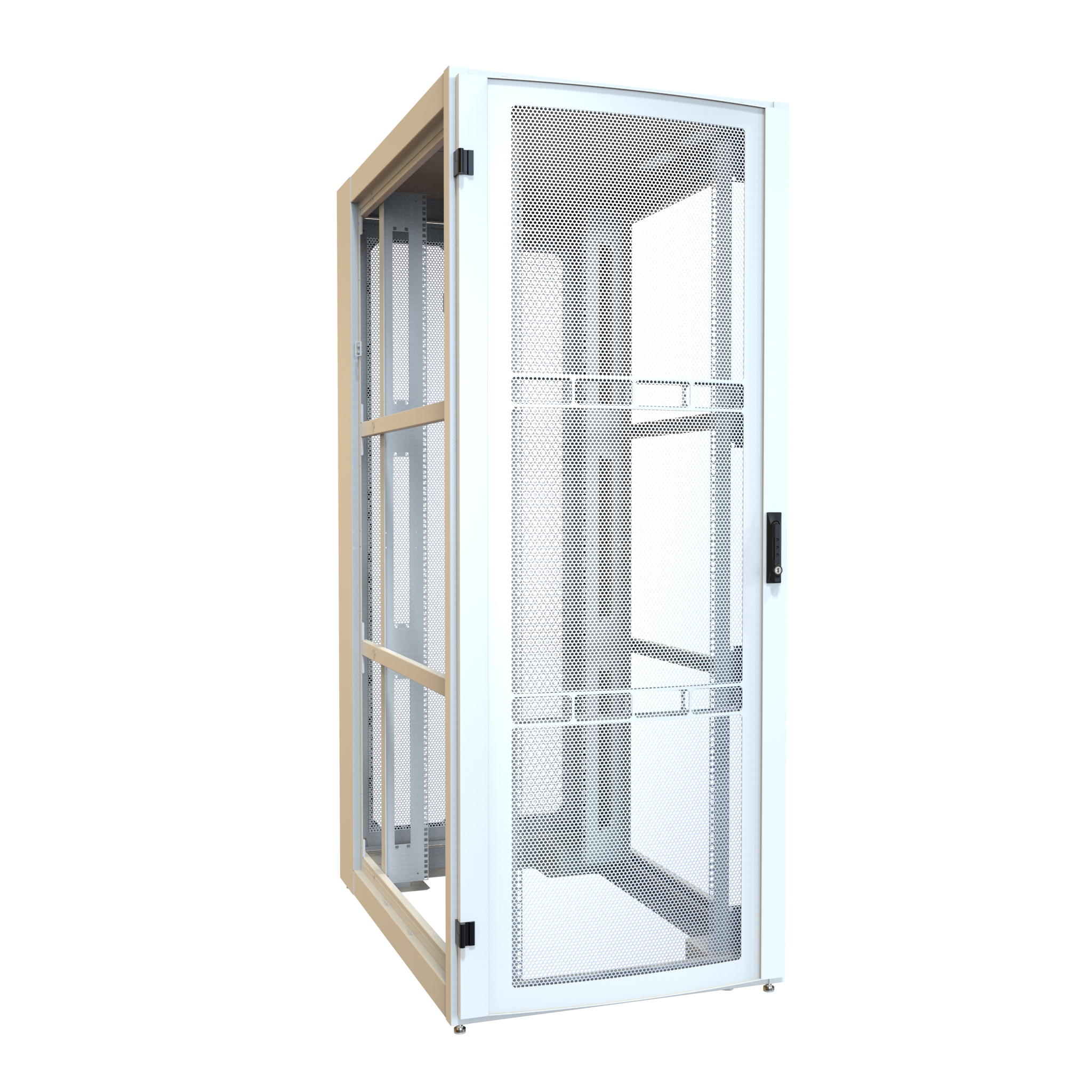

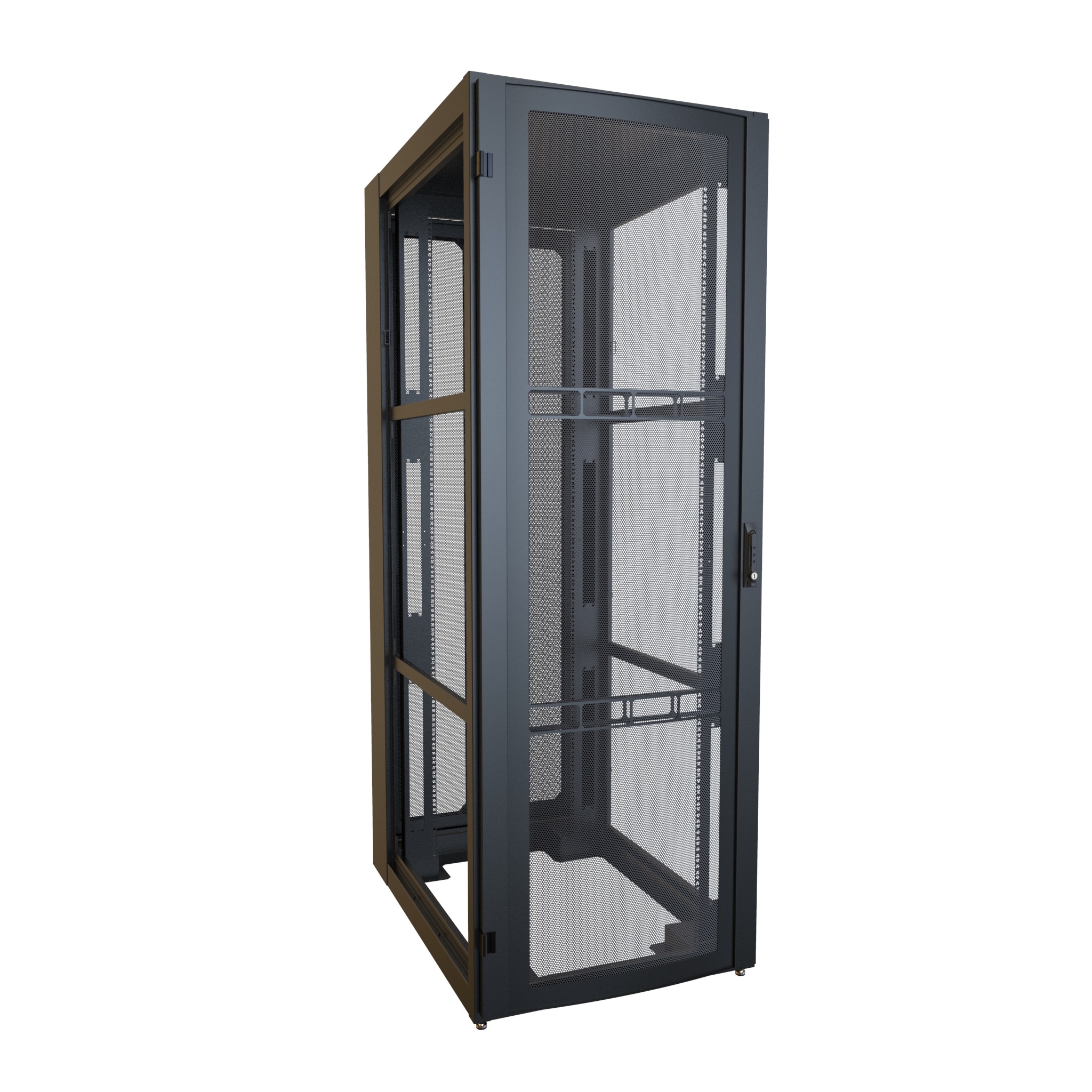

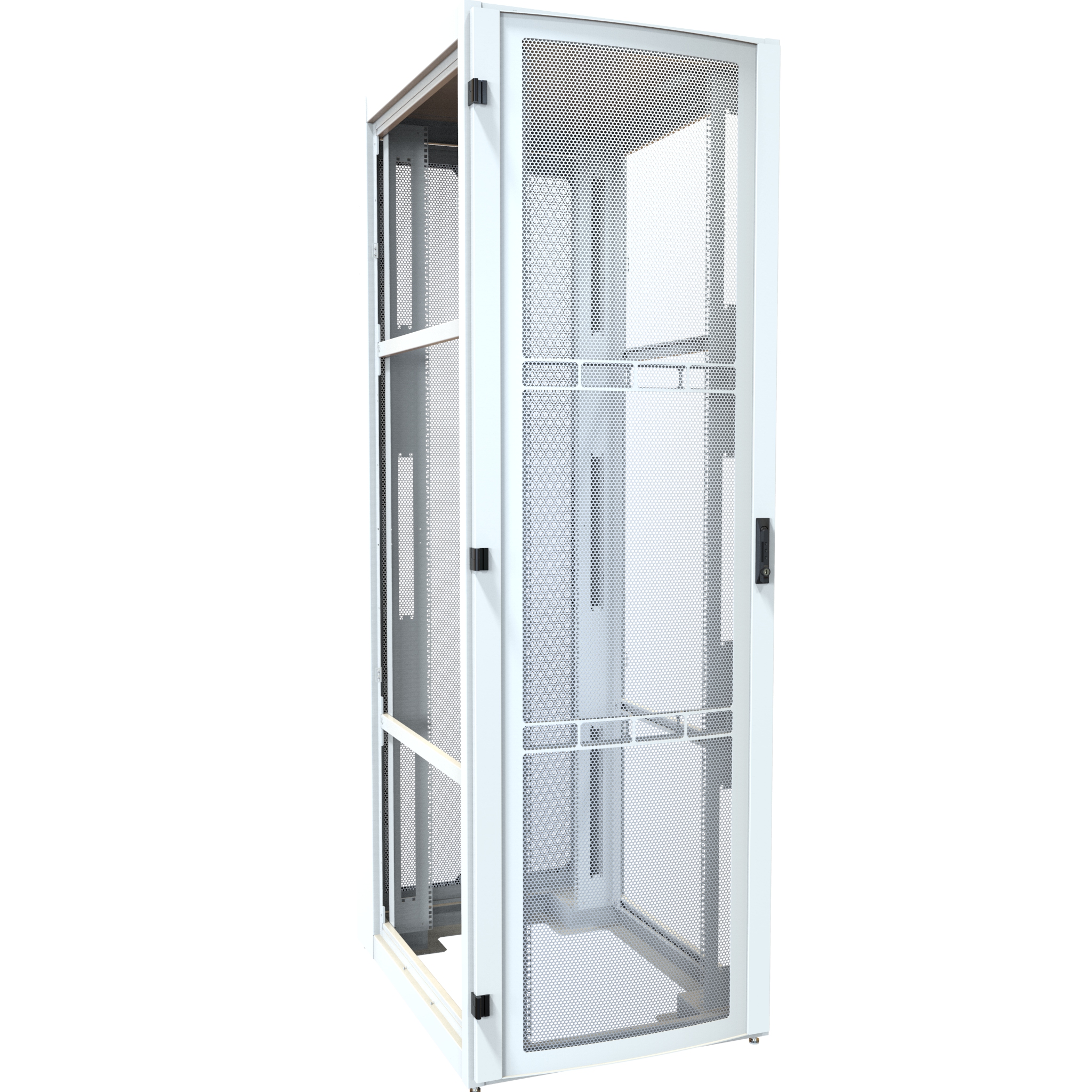

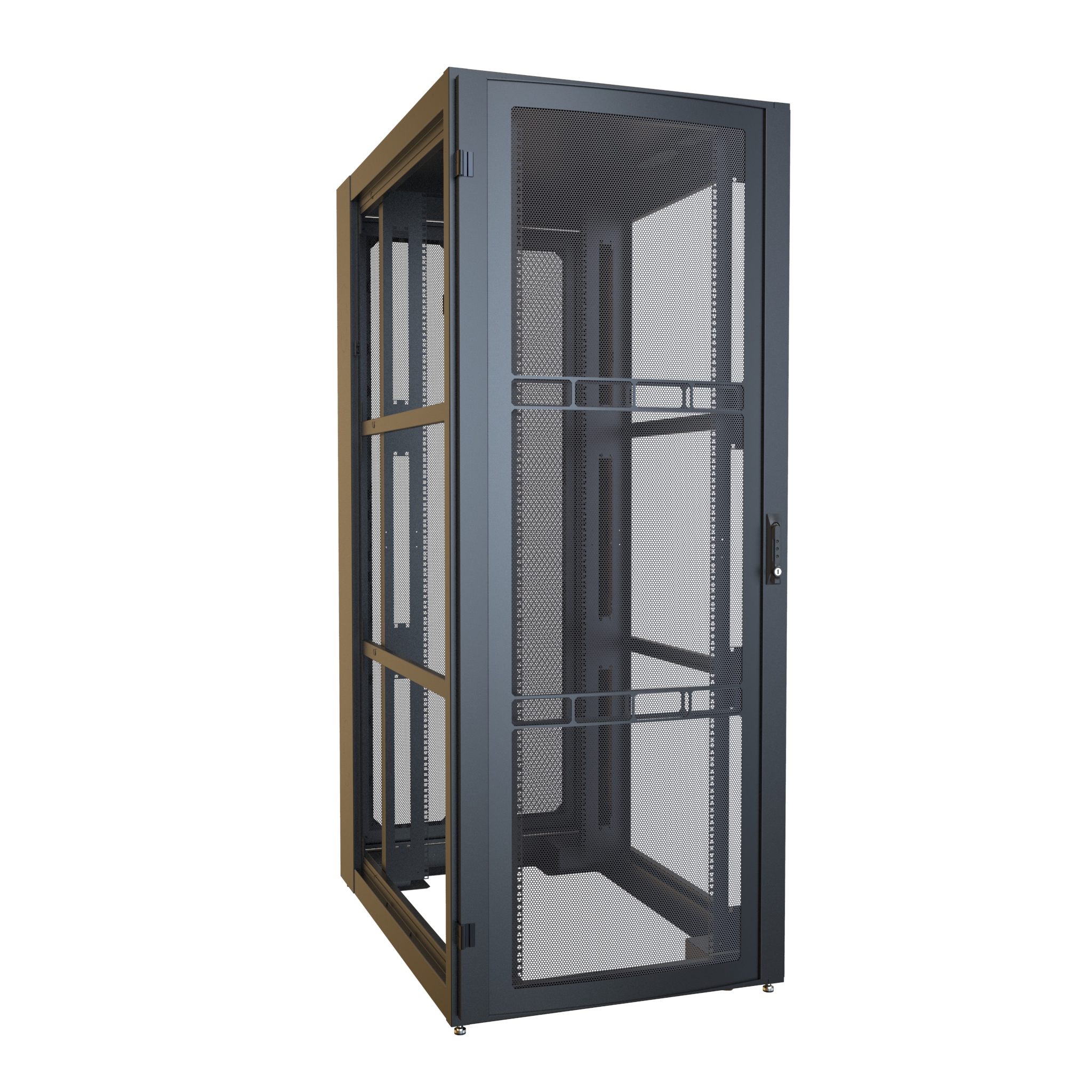

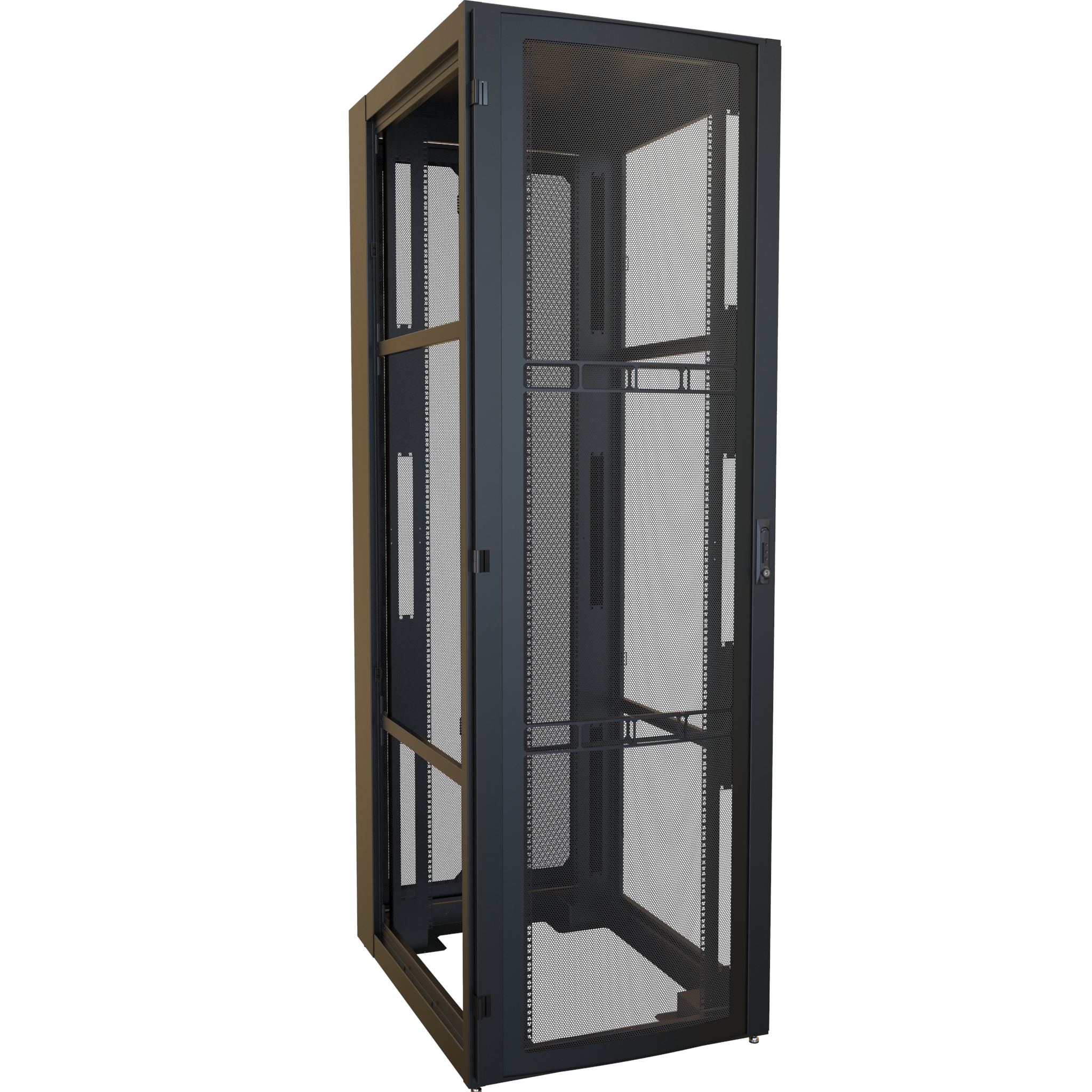

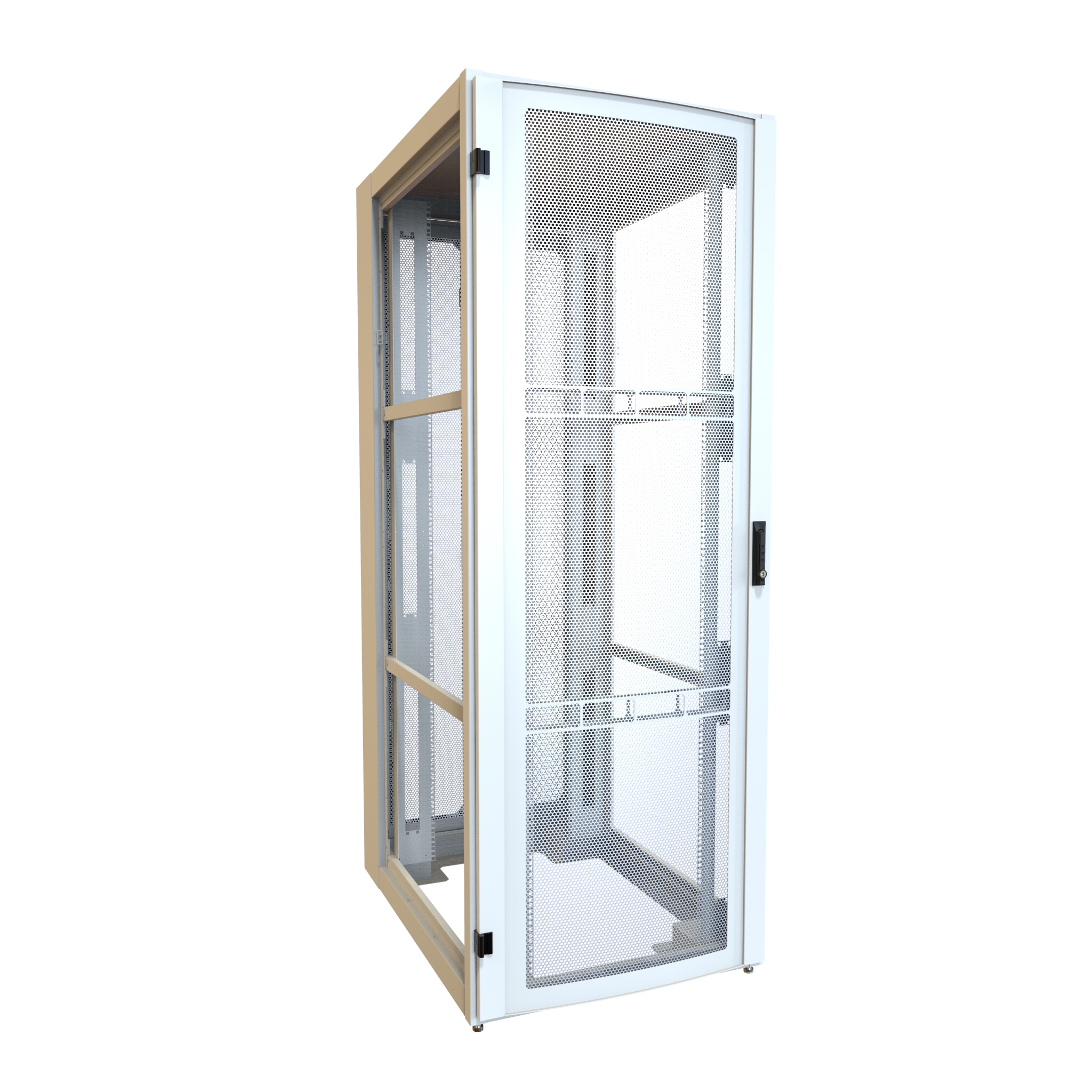

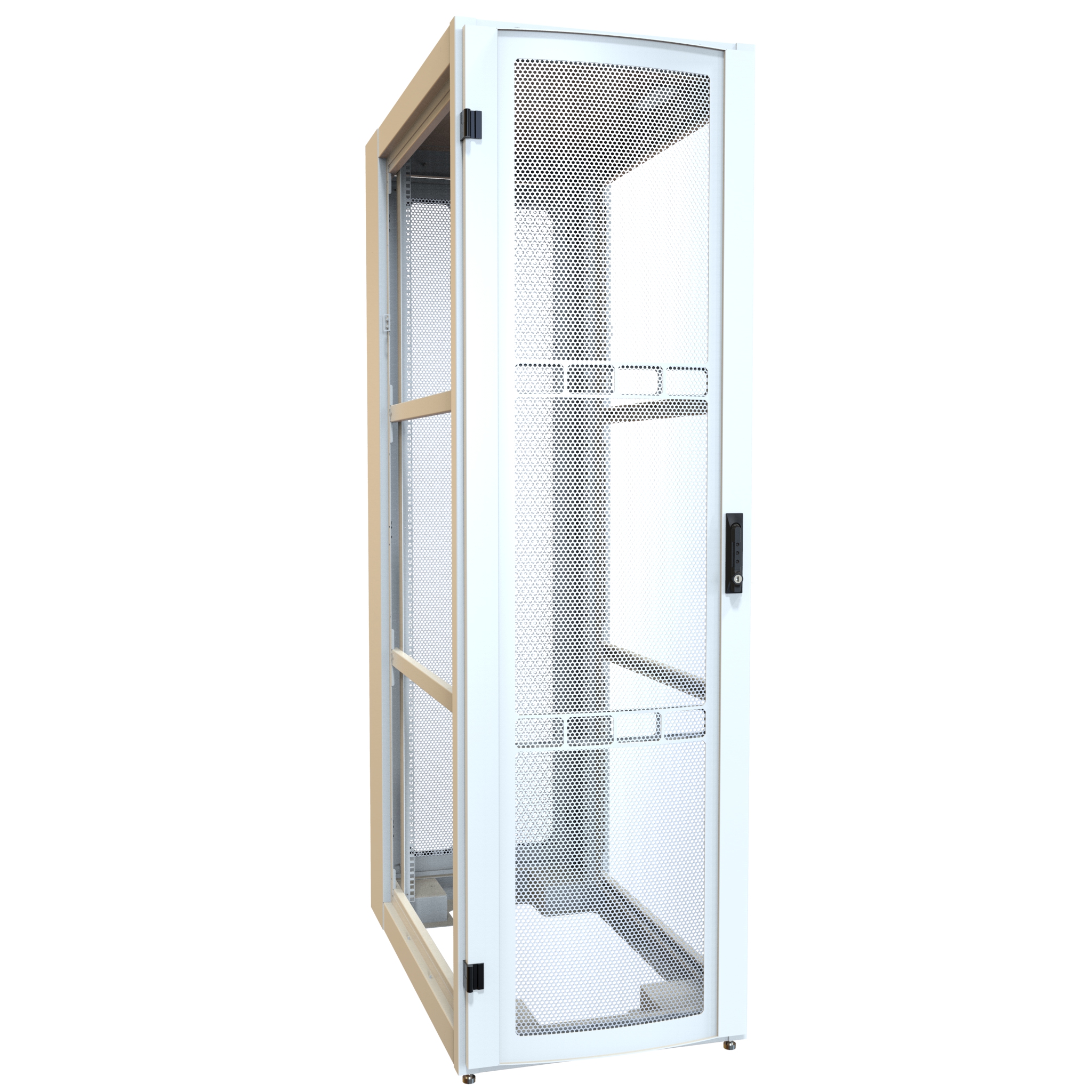

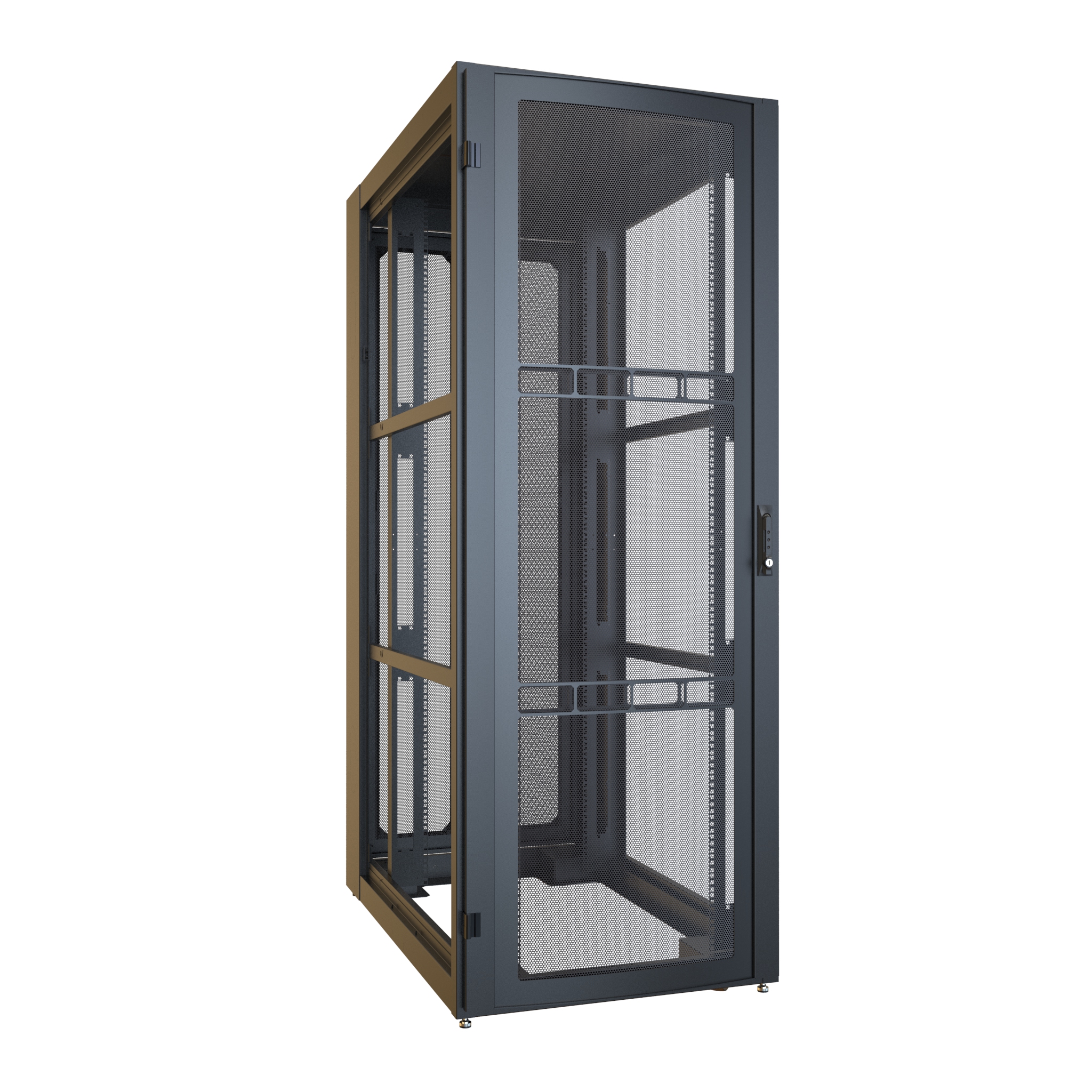

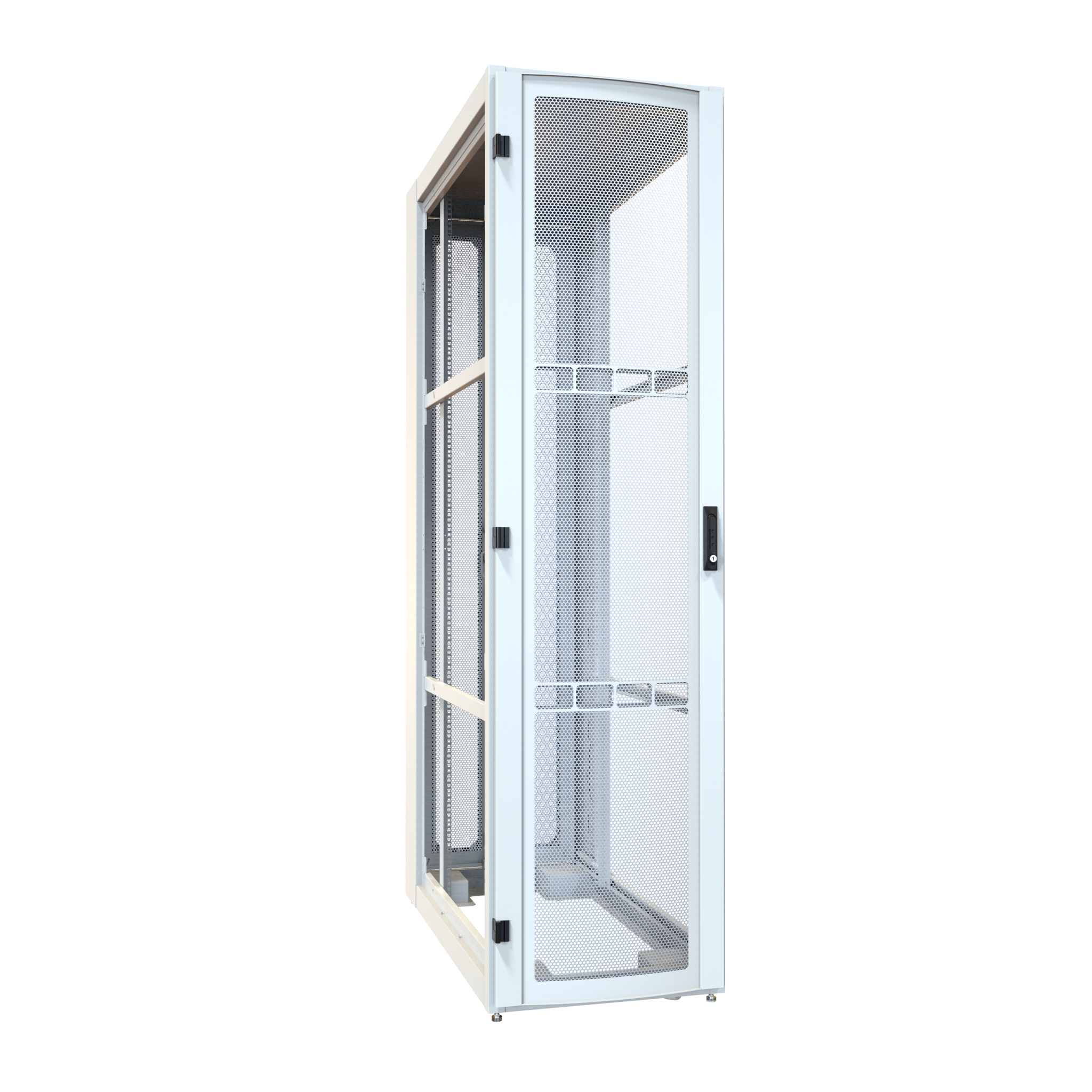

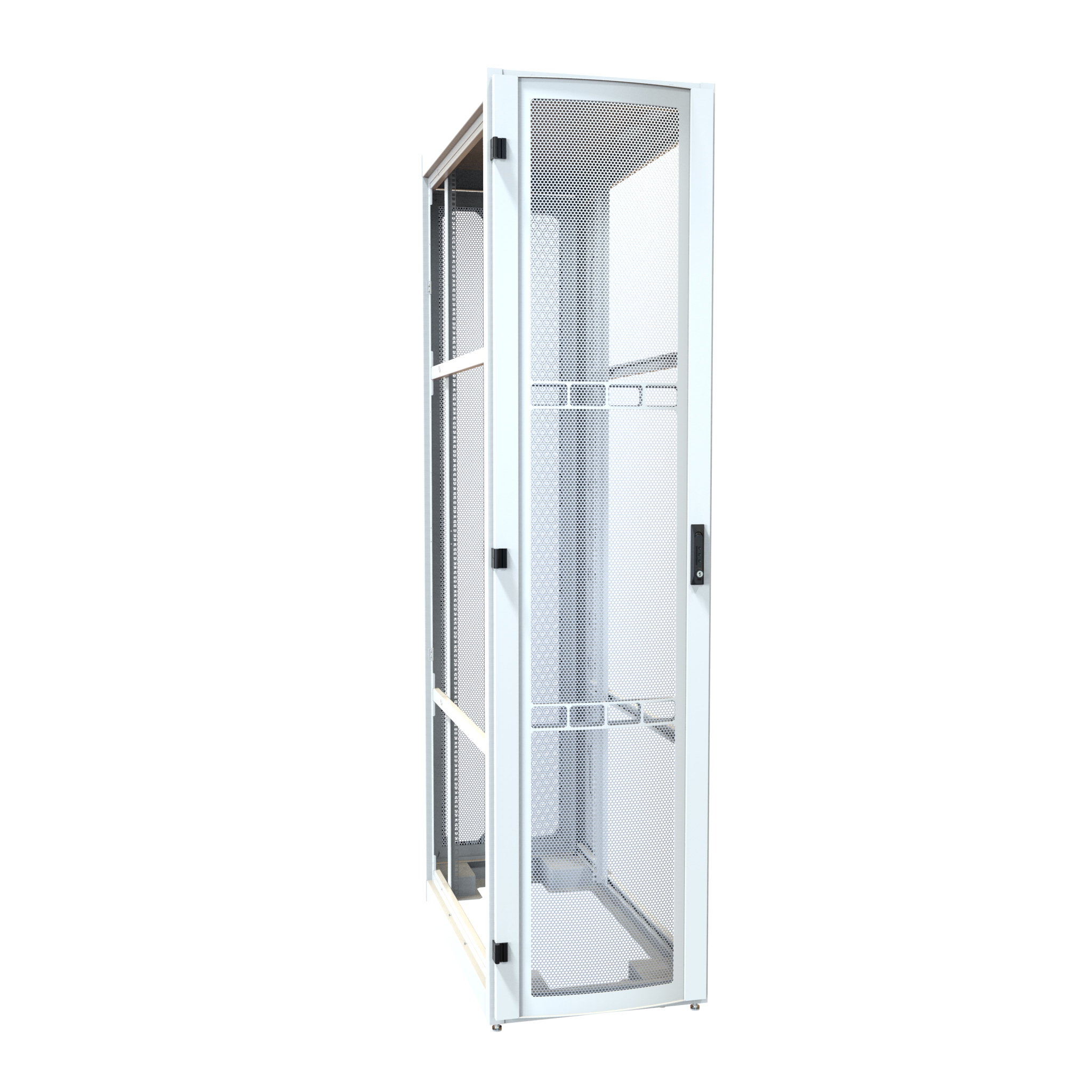

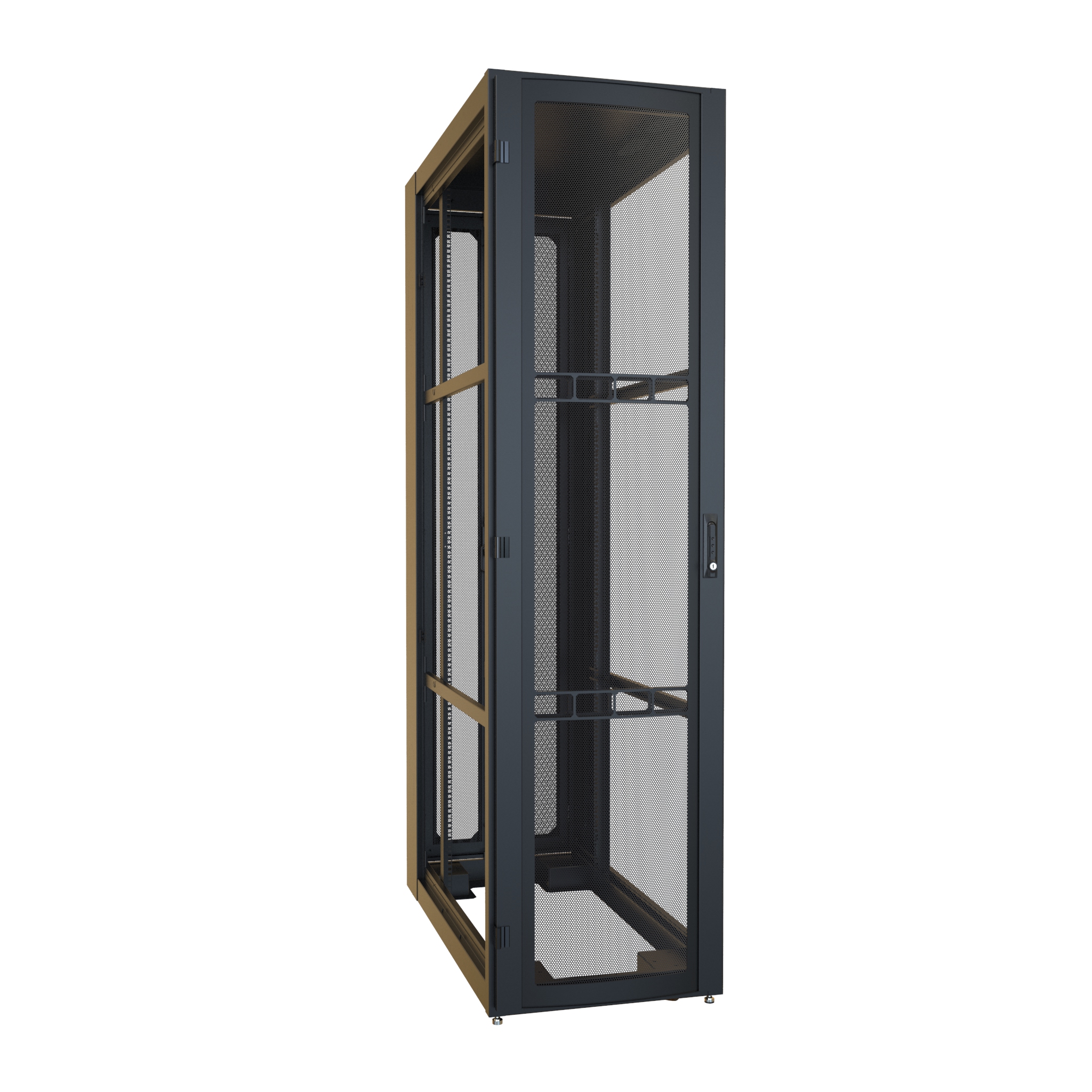

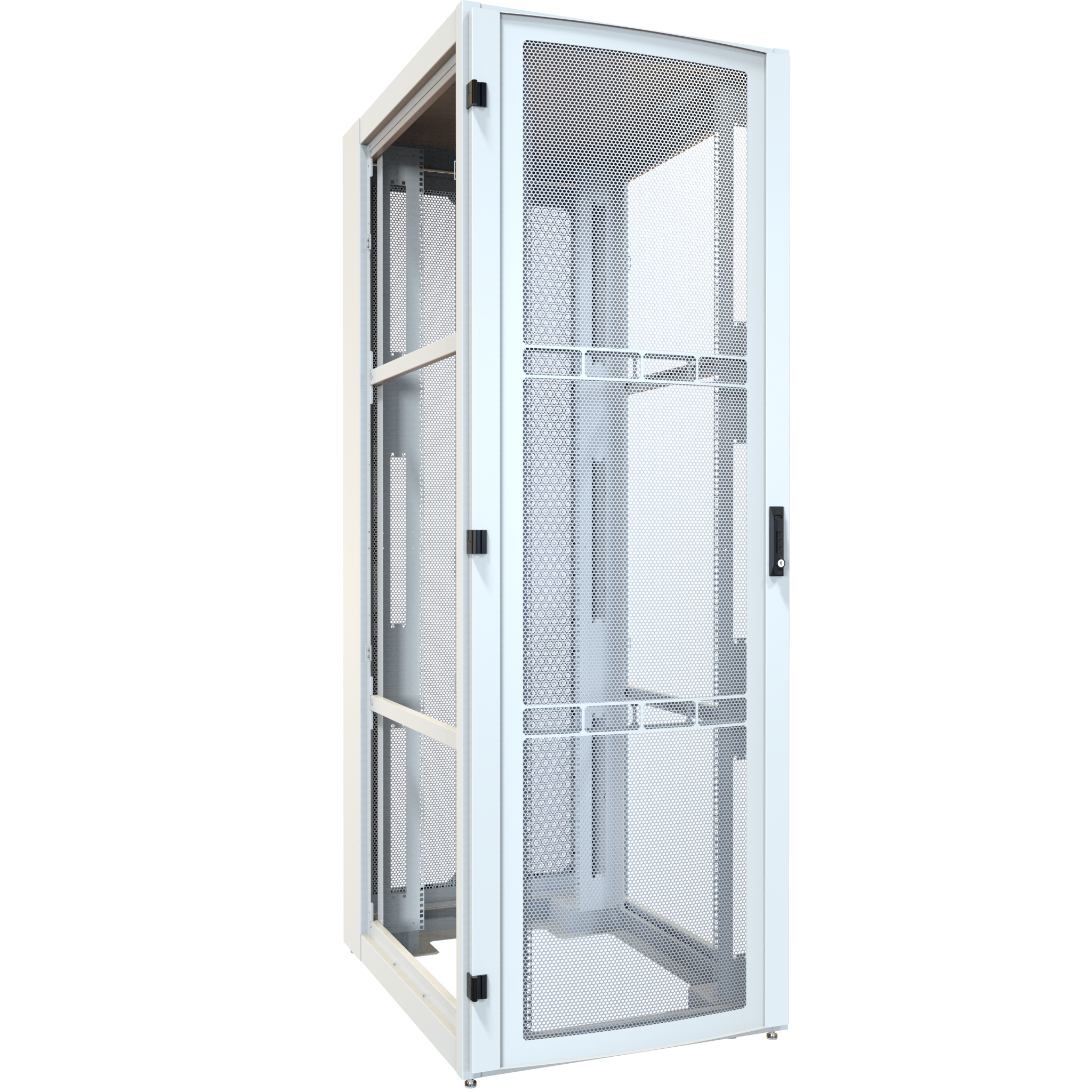

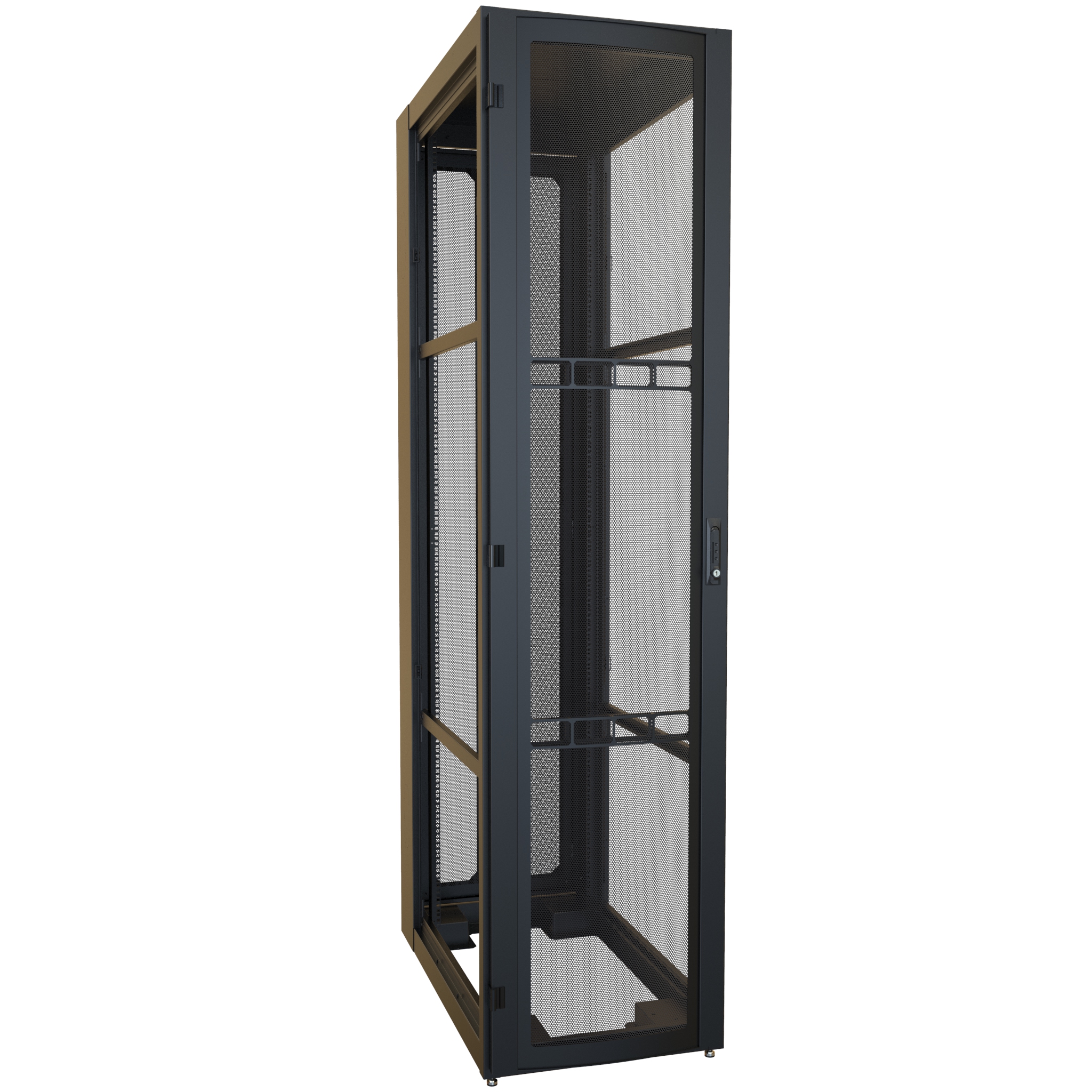

High-Performance Server Rack Cabinet · H1 Series

Key Features and Benefits

• ■14-gauge mild steel welded frame with 12-gauge reinforced corner brackets and 16-gauge doors (UL2416 rated to 3,000 lb / 1,360 kg) provides maximum structural strength for server, network, and storage equipment.
• ■Flagship cabinet platform with enhanced airflow and security features supports high-density IT environments and demanding data center applications.

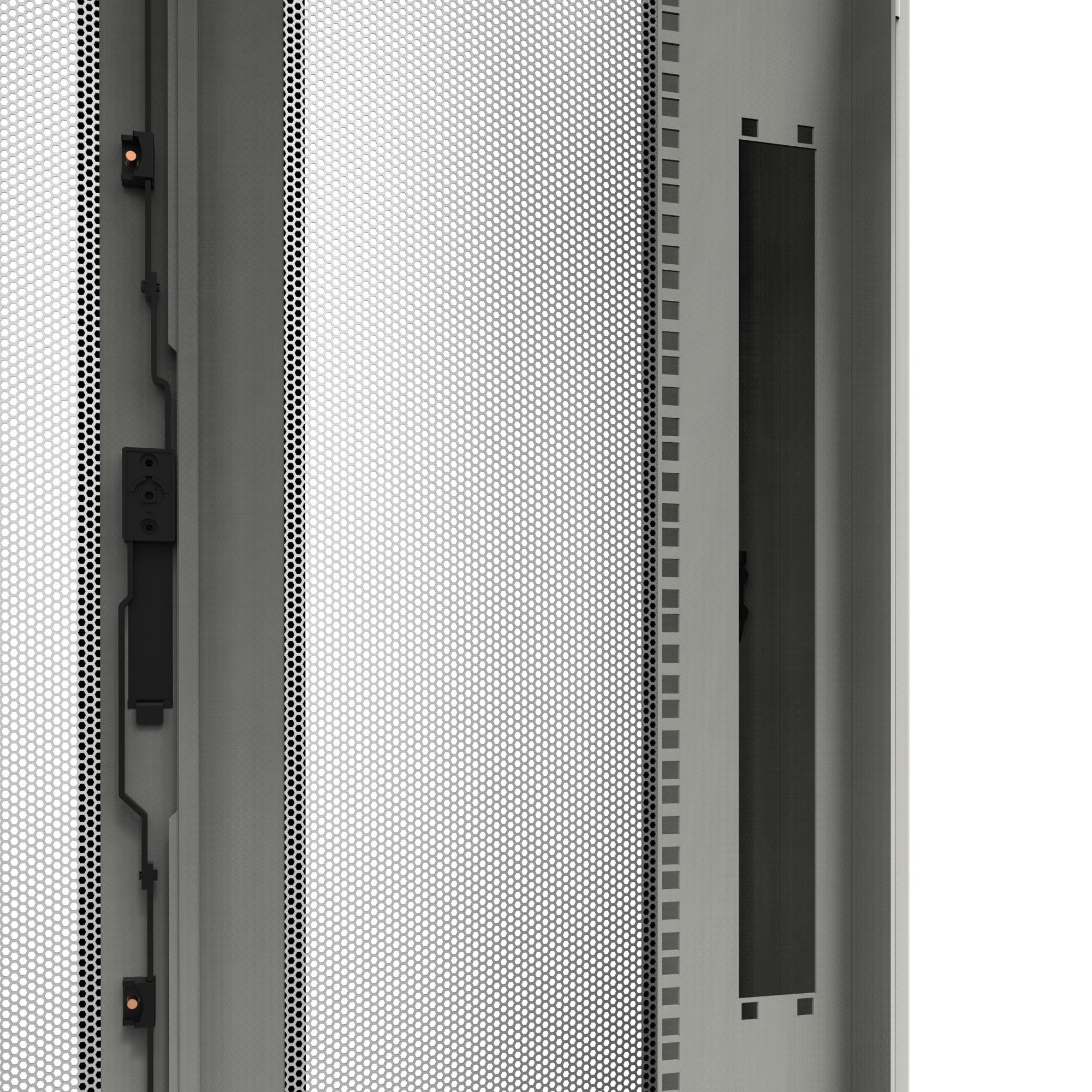

• ■Two (2) pairs of infinitely adjustable EIA-310 compliant square hole mounting rails (12-gauge steel) support flexible equipment installation and high-density configurations.
• ■Perforated front and split rear doors (79% airflow) support cooling requirements for active equipment.

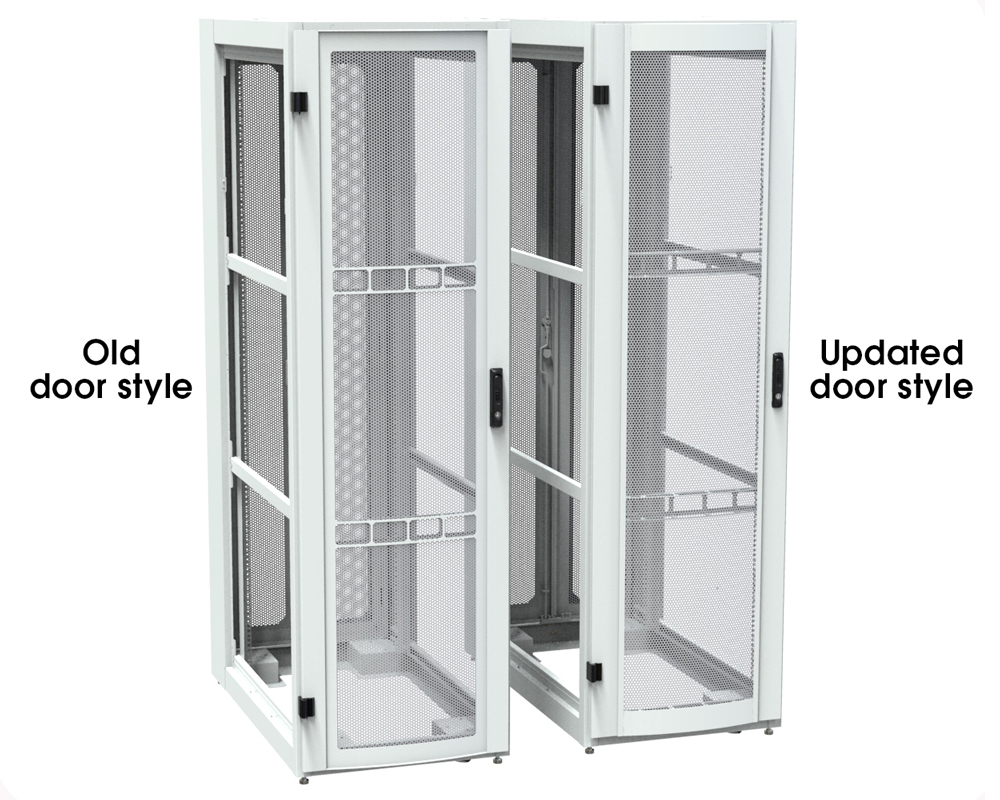

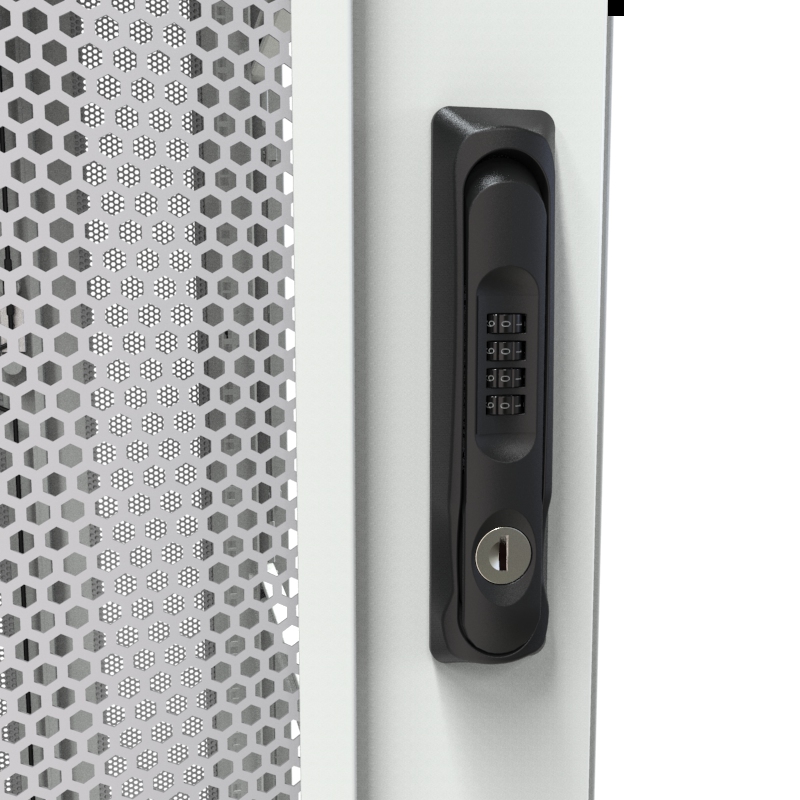

• ■Surface-mounted doors with locking swing handle and security features support controlled access and full mounting depth utilization.
• ■Multiple width options (24", 30", 31.5") support cable management, vertical accessories, and high-density deployments without obstructing rails.
• ■Interchangeable top panels with cable entry and fan knockouts support airflow management and overhead cable routing.
• ■Integrated cable entry knockouts and vertical cable management support improve routing efficiency and scalability.
• ■Factory-installed leveling feet and recessed casters support flexible installation and positioning.

Compliance and Certifications

The H1 Series server rack cabinet is Hammond’s flagship enclosure solution for data center, network, and enterprise IT environments. Constructed from heavy-duty steel and UL2416 rated to 3,000 lb, it delivers maximum strength, scalability, and performance.

With advanced airflow, integrated cable management, and enhanced security features, the H1 supports high-density deployments and mission-critical infrastructure requiring reliability and flexibility.

• ■UL2416 listed rack (3,000 lb load rating) ensures verified structural performance for high-capacity installations.
• ■Seismic rated to 1,200 lb dynamic load (IBC, CBC, NBC, ASCE standards) supports deployment in regulated and high-risk environments.
• ■Meets PCI DSS (Payment Card Industry Data Security Standard) supports secure data and payment system installations.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.

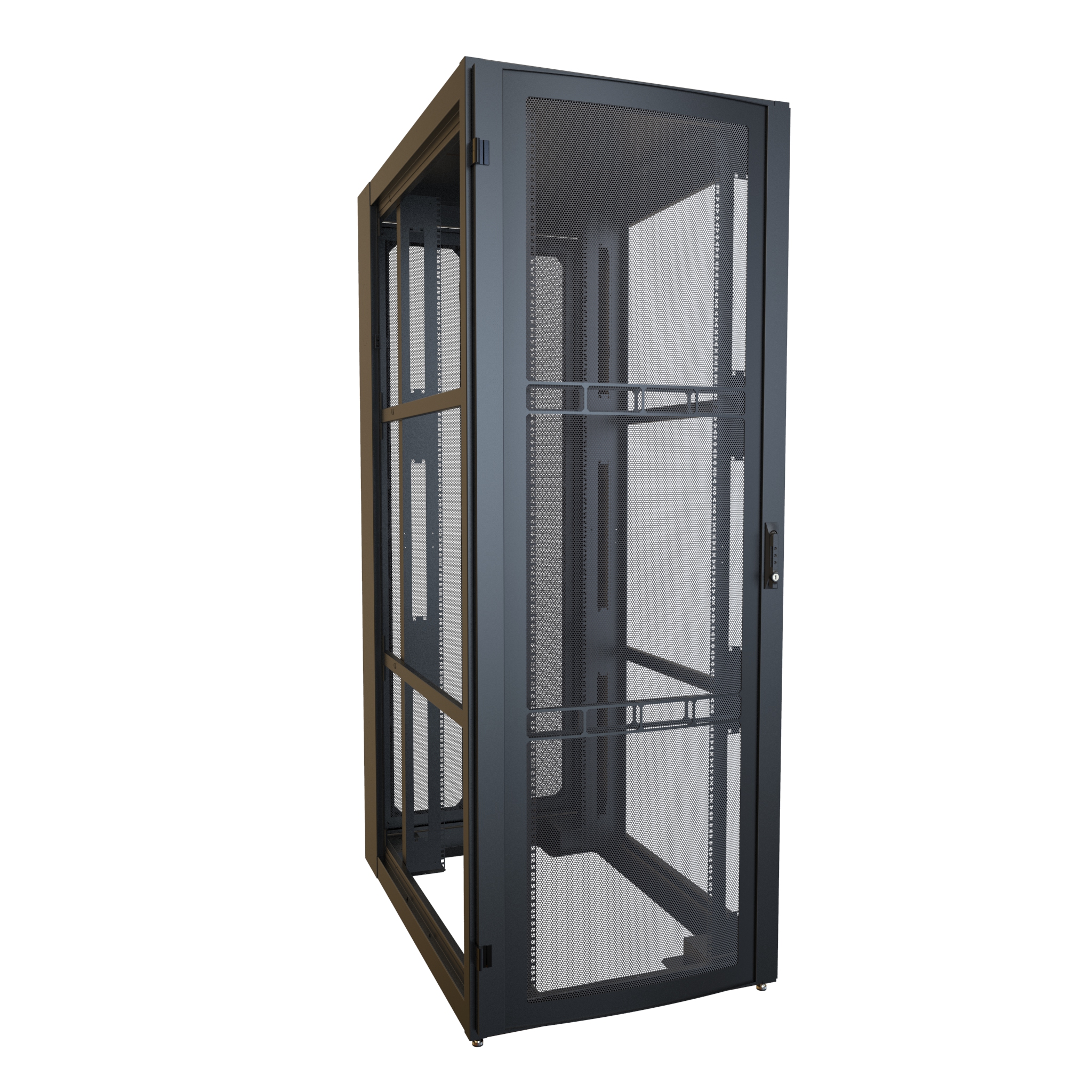

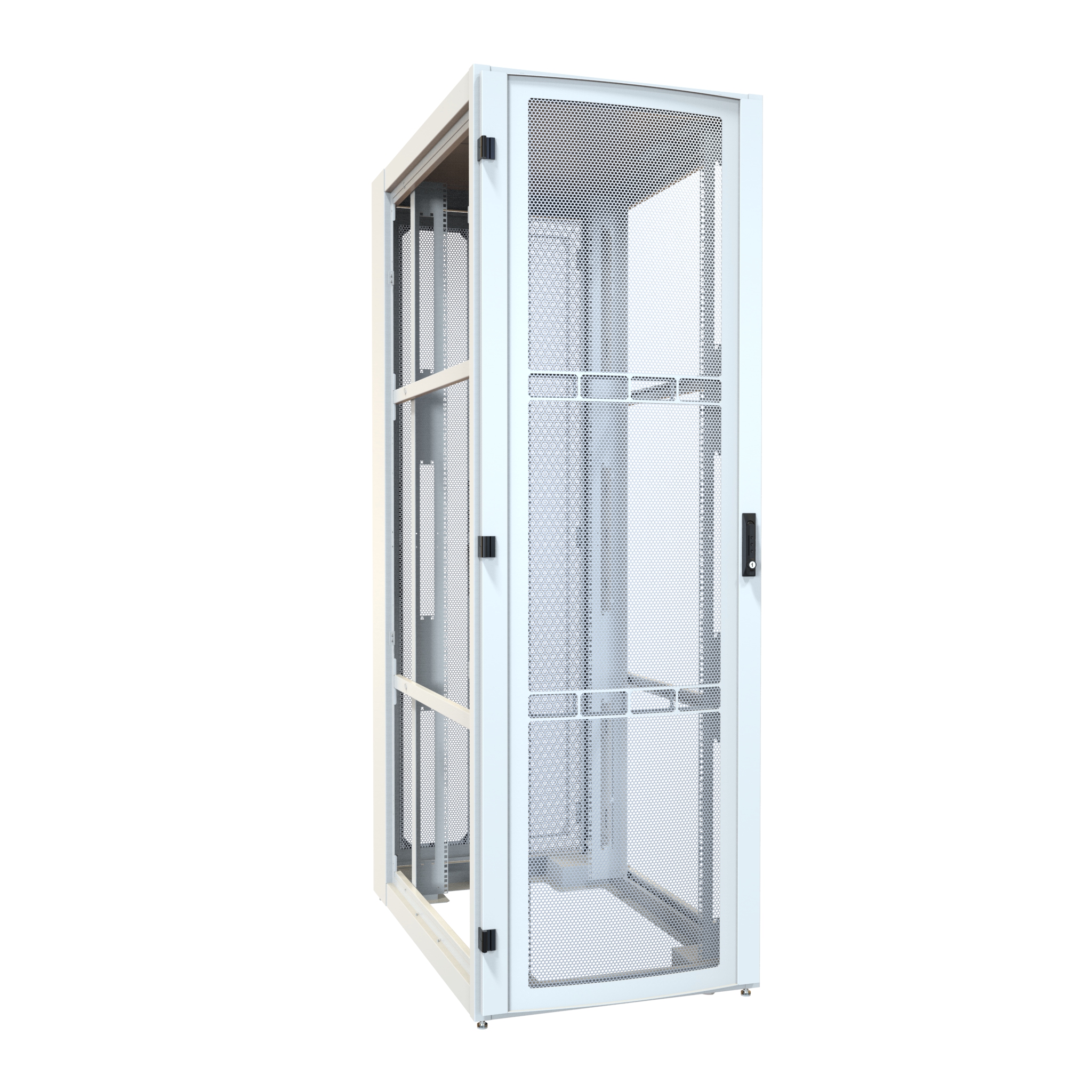

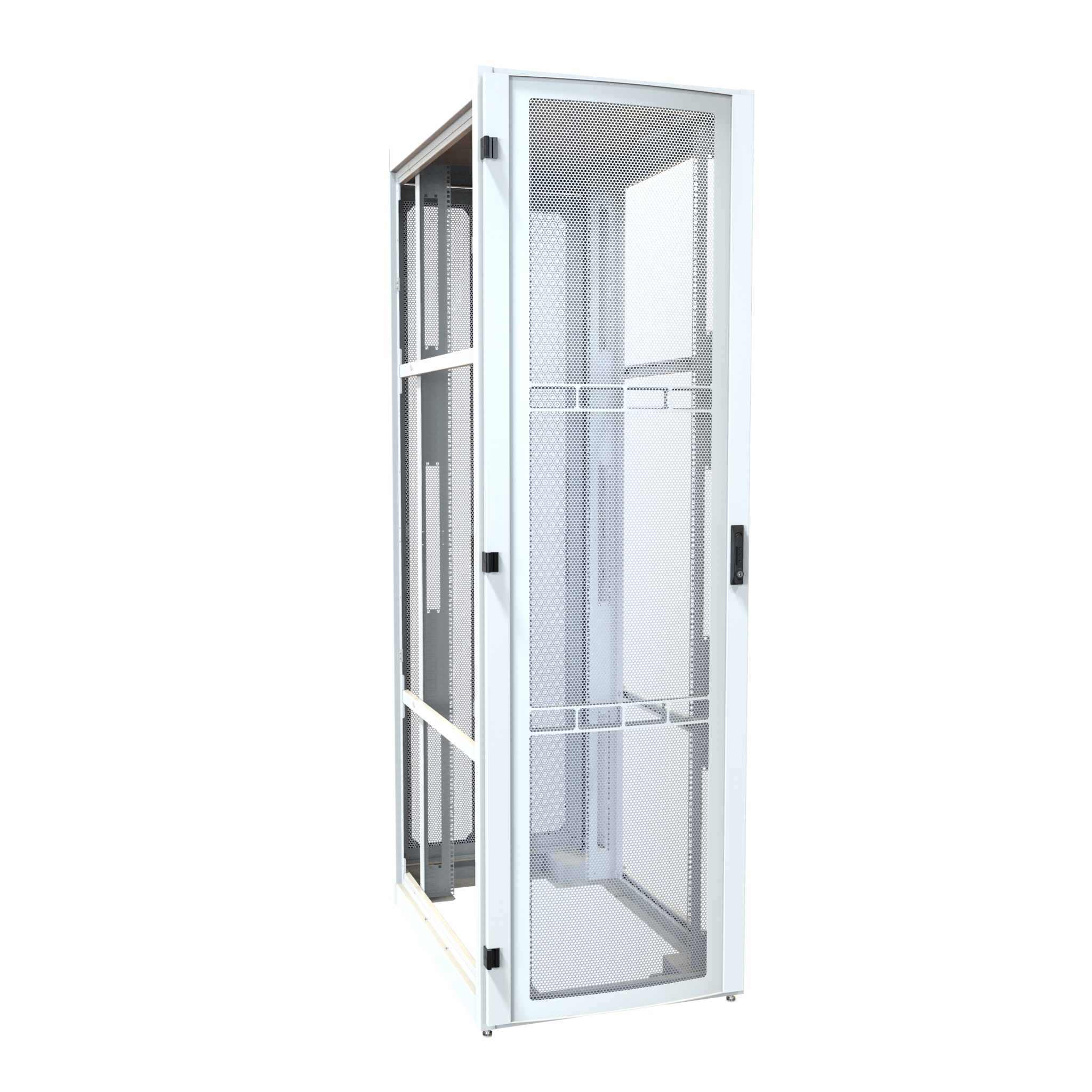

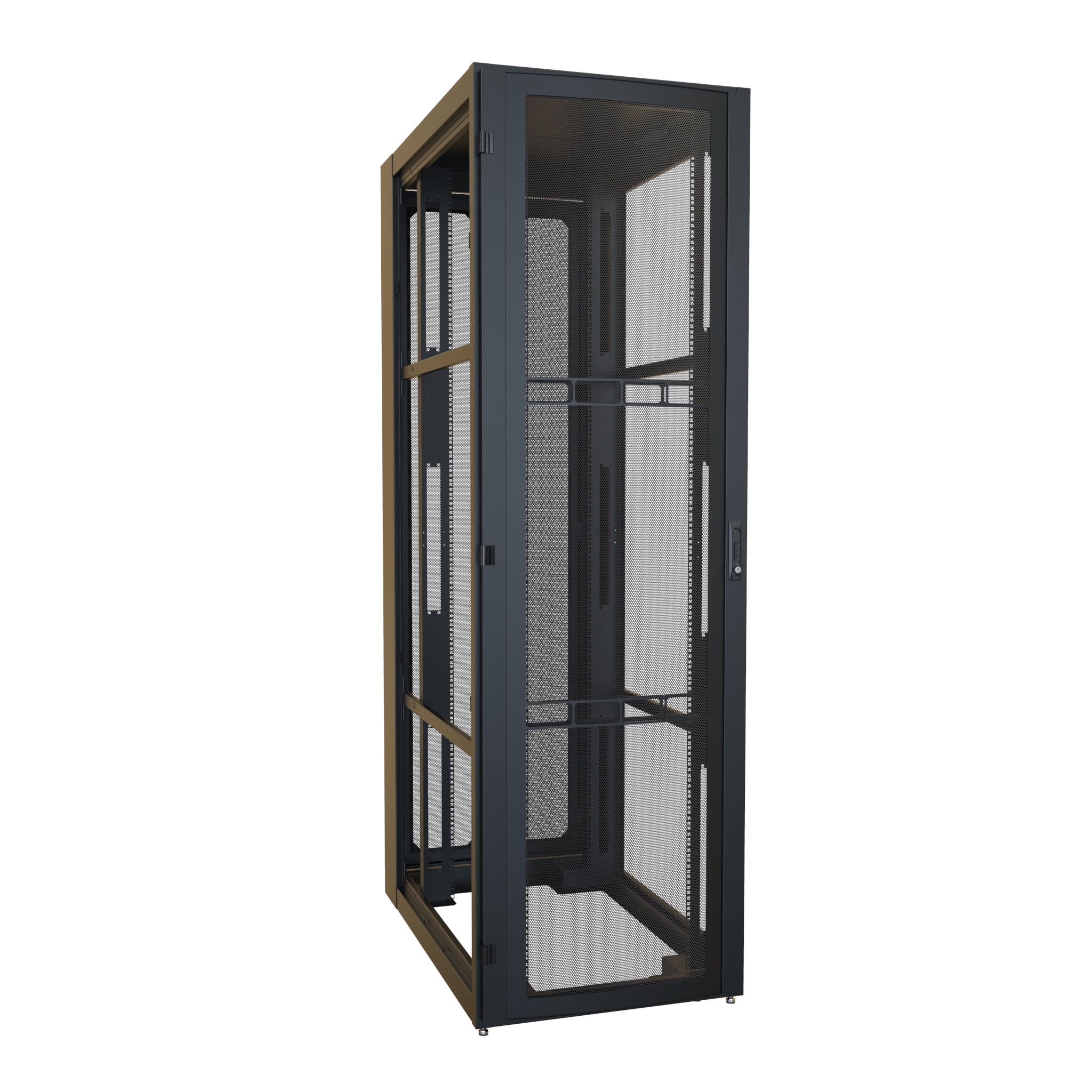

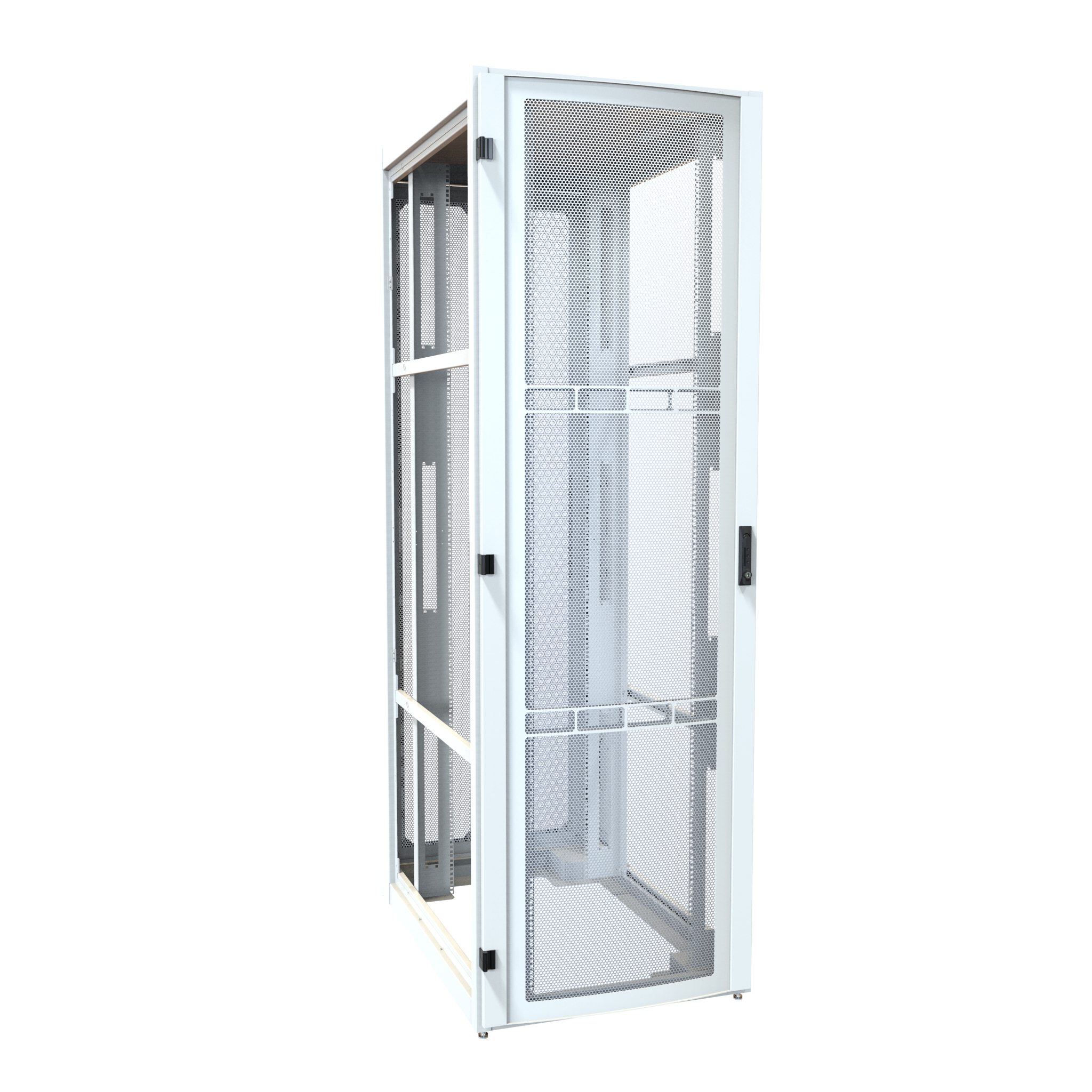

• ■Black or white powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

When another product may be a better choice

• ■When you need a pre-configured cabinet for faster deployment, consider our C4RR_A Series.
• ■When you need a cost-effective assembled cabinet for general IT applications, consider our RB-DC Series.
• ■When you need a multi-tenant or colocation cabinet with segmented access for shared environments, consider our CLC Series.

Included Components

• ■Welded steel frame with factory-installed nylon leveling feet, recessed casters and grounding studs.
• ■Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails. Includes. Starter pack of CAGKIT1032-50 screws and cage nuts.
• ■One (1) perforated front door (79% open area vented) with a locking swing handle.

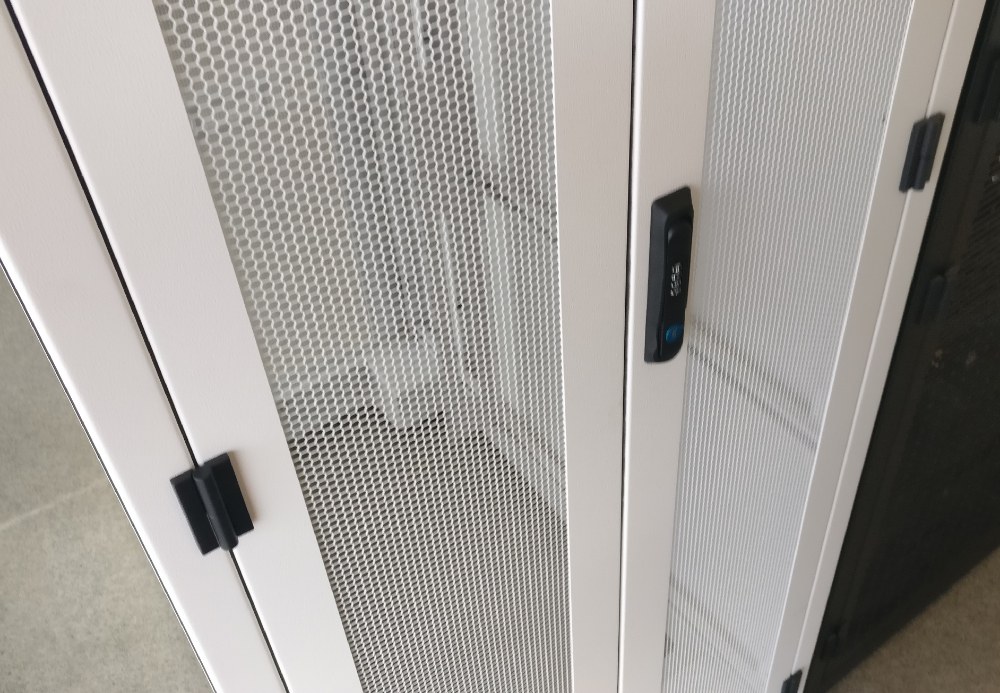

• ■One (1) perforated split/barn rear door (79% open area vented) with locking swing handle.
• ■One (1) solid and one (1) brushed cable entry top panels are interchangeable.
• ■One (1) PDU cable tray is mounted in the rear.

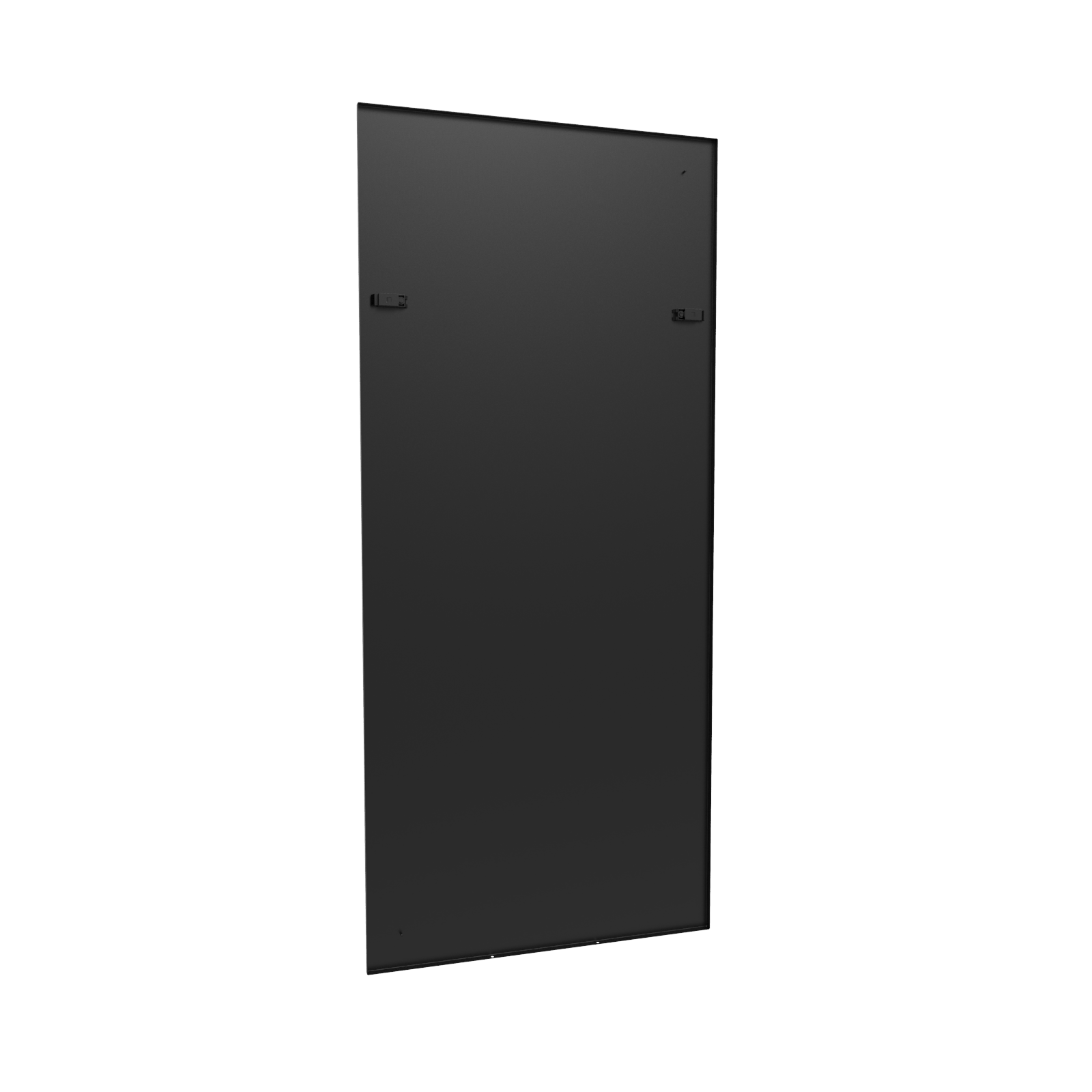

• ■Note: Cabinet side panels are NOT included and are sold separately. (See table below).
