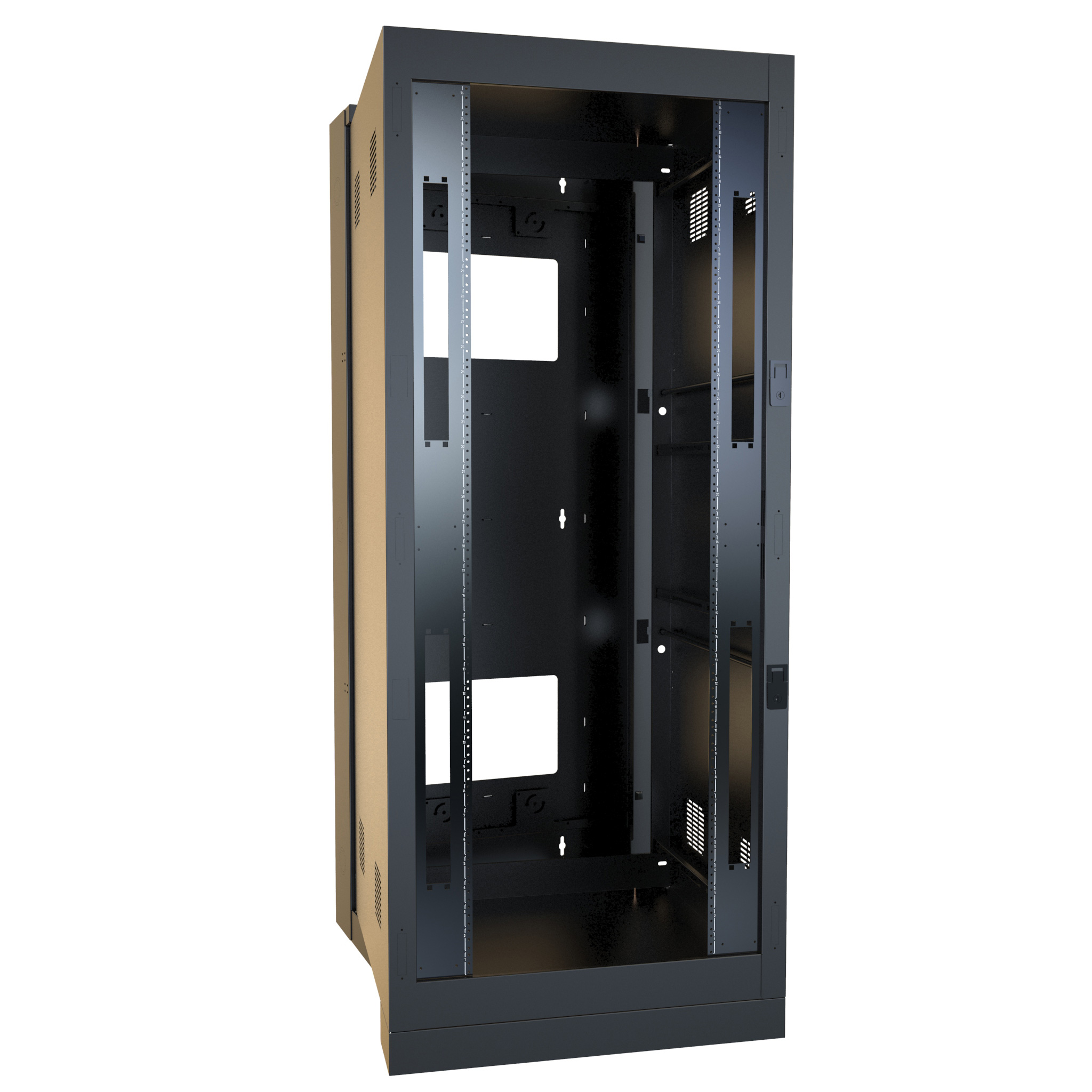

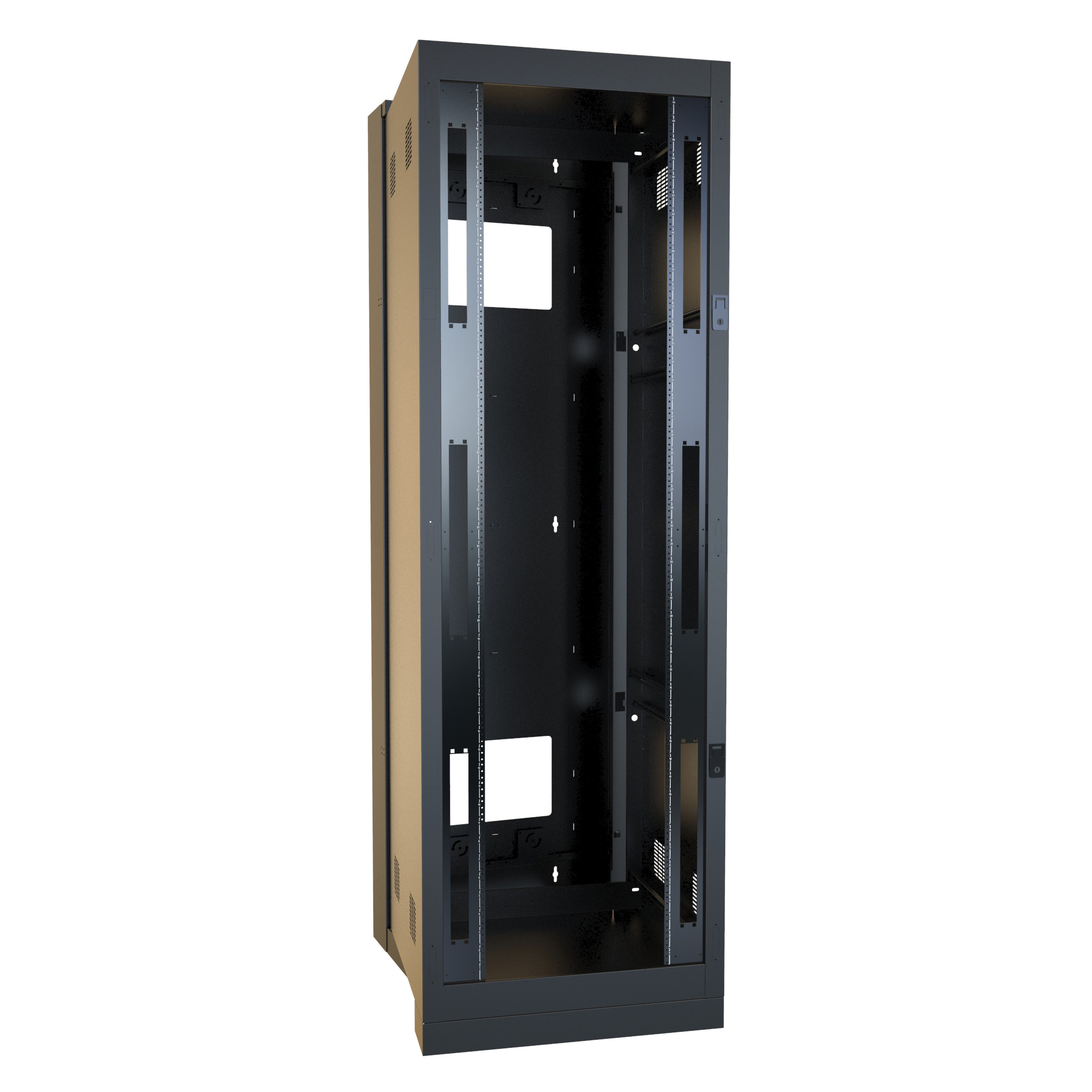

Wall and Floor Mount Rack Cabinet (700 lb) · HWF Series

Key Features and Benefits

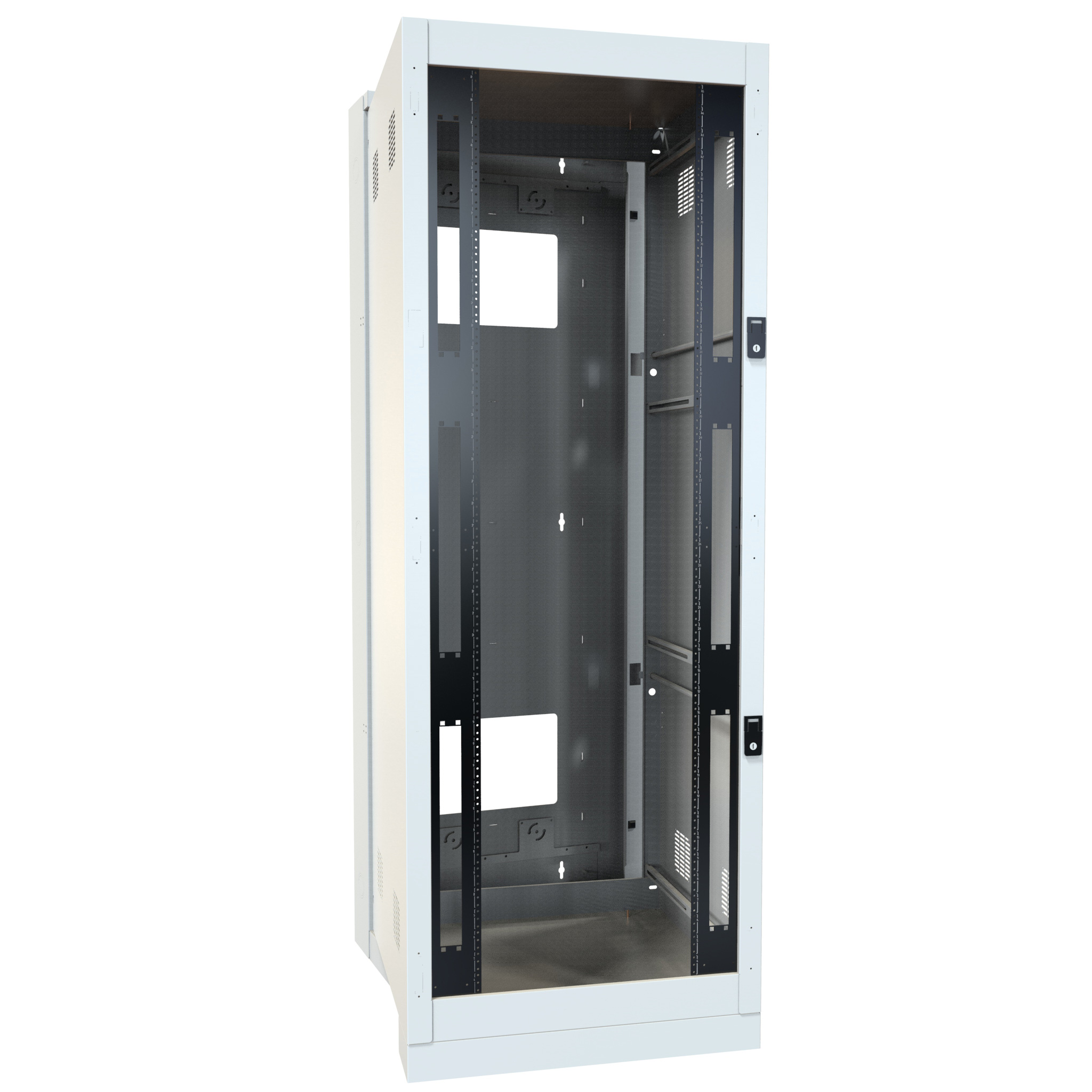

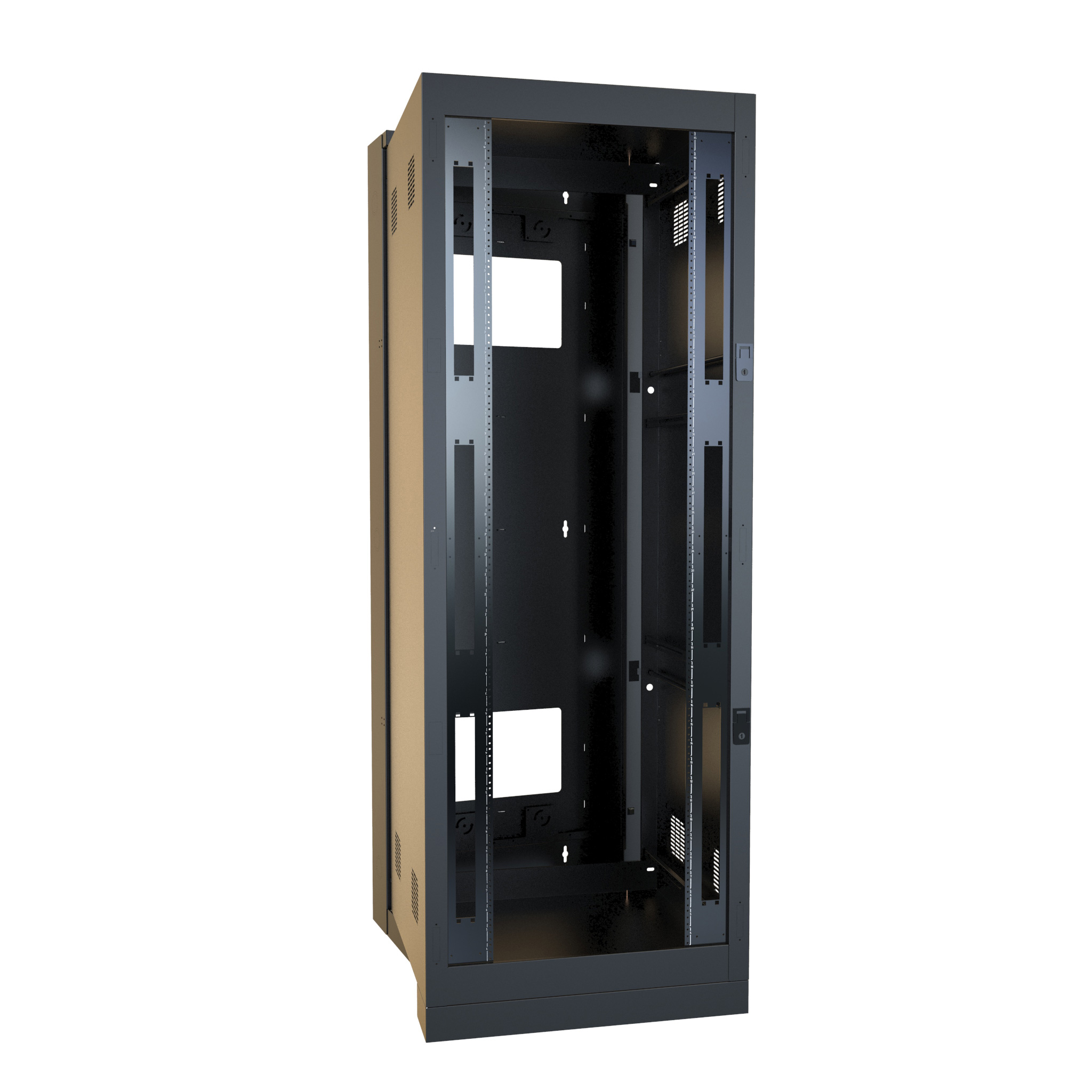

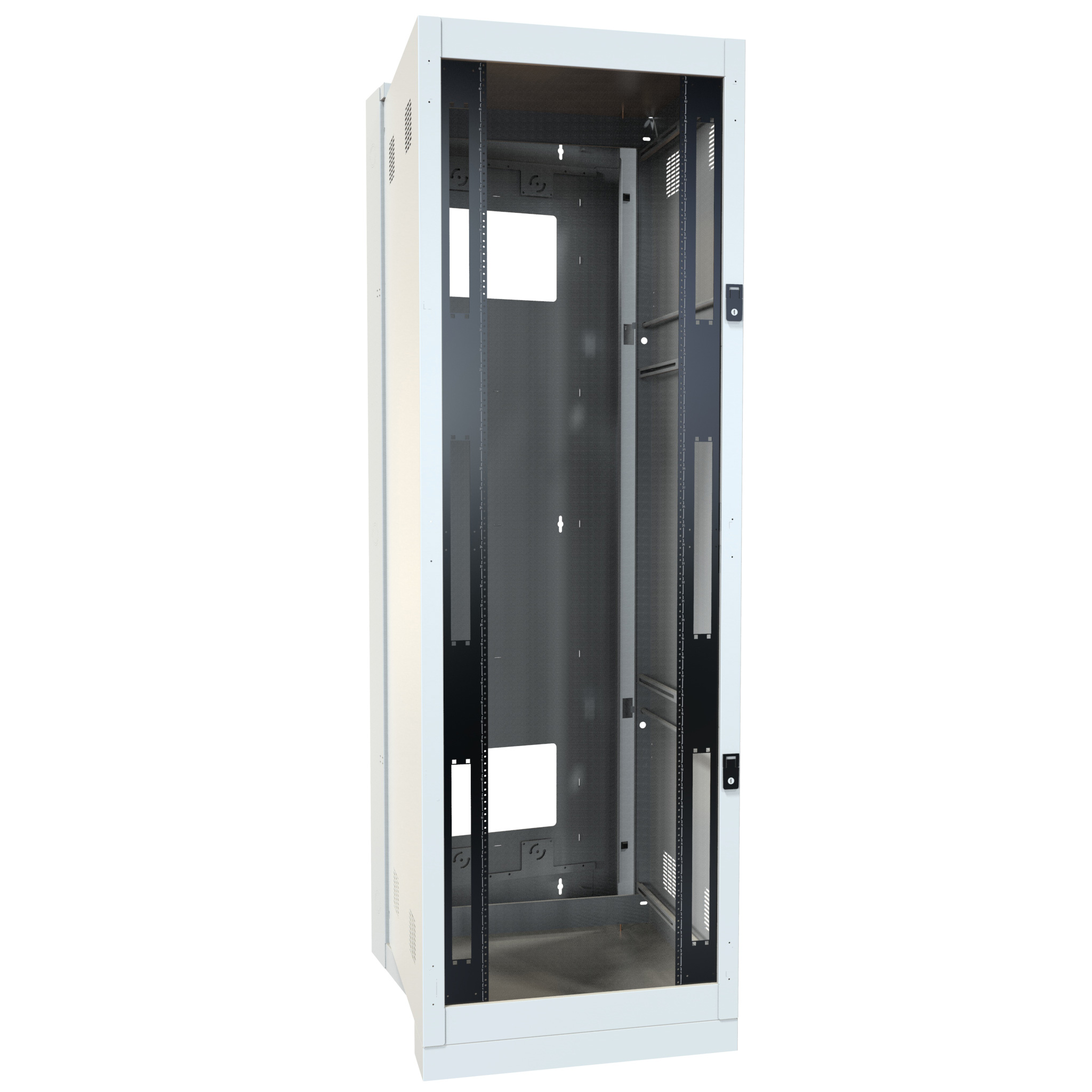

The HWF Series swing-out wall and floor mount rack cabinet provides a high-capacity solution for mounting 19-inch rack equipment in IT and telecom environments. Designed to mount to the wall while supported by the floor, it reduces wall load while maintaining stability for heavy equipment installations.

With UL2416 load ratings up to 700 lb and seismic ratings up to 400 lb, the HWF is ideal for regulated and critical infrastructure environments. Its swing-out design allows full rear access, while optional doors provide security, airflow, and visibility options.

• ■14-gauge welded rear section and base with 16-gauge swing-out section (UL2416 rated to 700 lb (317 kg), seismic rated to 400 lb (181.44 kg)) supports high-density network and telecom equipment.
• ■Hybrid wall and floor-mounted cabinet design (19" rack compatible) mounts to the wall while sitting on the floor with leveling feet, reducing wall load and improving stability.
• ■Swing-out cabinet section with caster support provides full front and rear access for installation and servicing without removing equipment.
• ■One (1) pair of adjustable 10-32 threaded mounting rails (30" wide with accessory space) supports flexible equipment positioning and standard rack compatibility. Includes starter hardware pack with SCREW1032-50 screws for equipment installation.
• ■10-32 tapped rails are field-replaceable with square hole rails (sold separately) supports different mounting preferences and equipment requirements.
• ■3U top section supports additional accessories such as fans, cable management, or power distribution. Includes CLPKIT1032-25 clip nuts and screws for equipment installation.
• ■Multiple conduit knockouts and large rear cable openings support structured cable routing and mounting over electrical services.
• ■Dedicated bonding and grounding points support proper electrical installation and compliance.

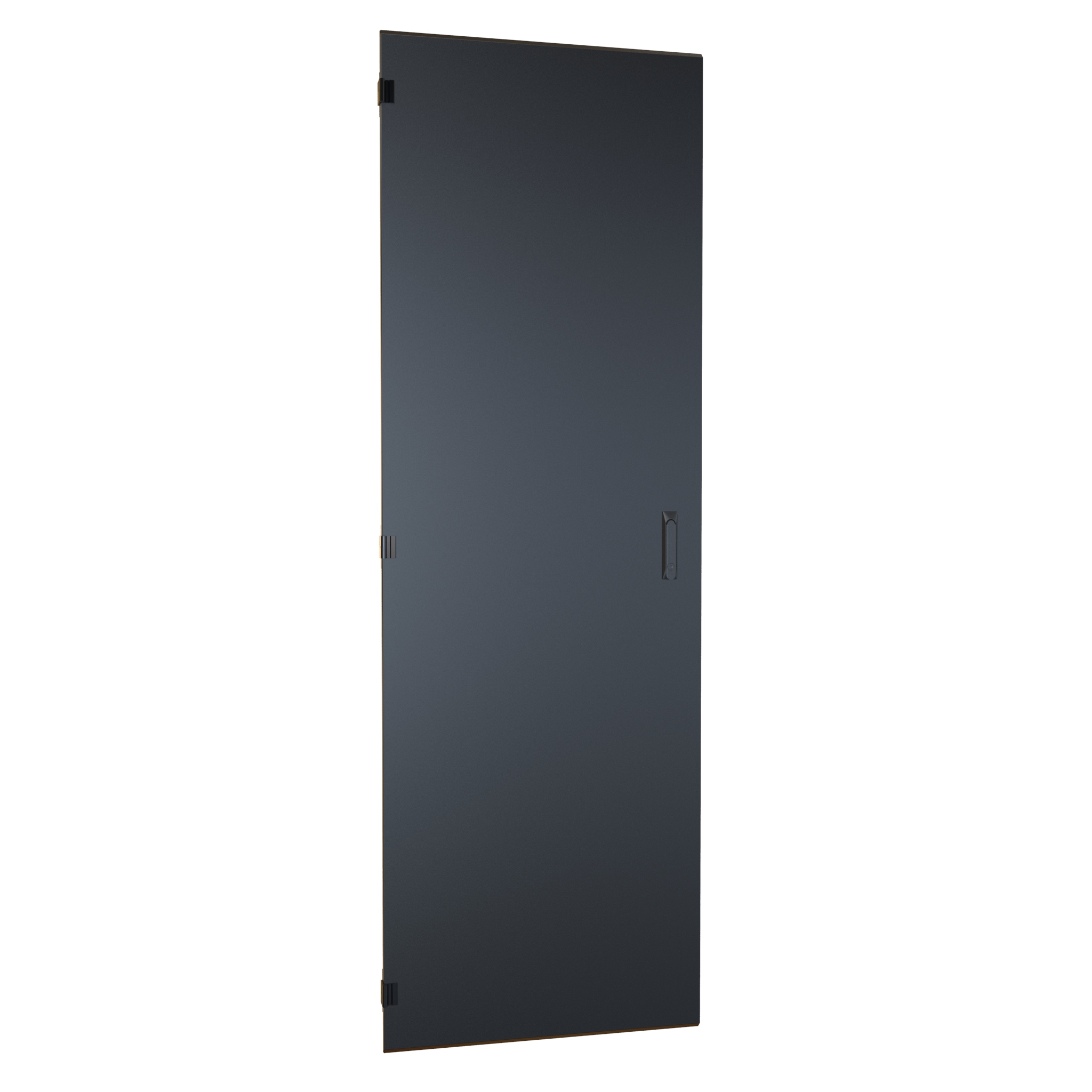

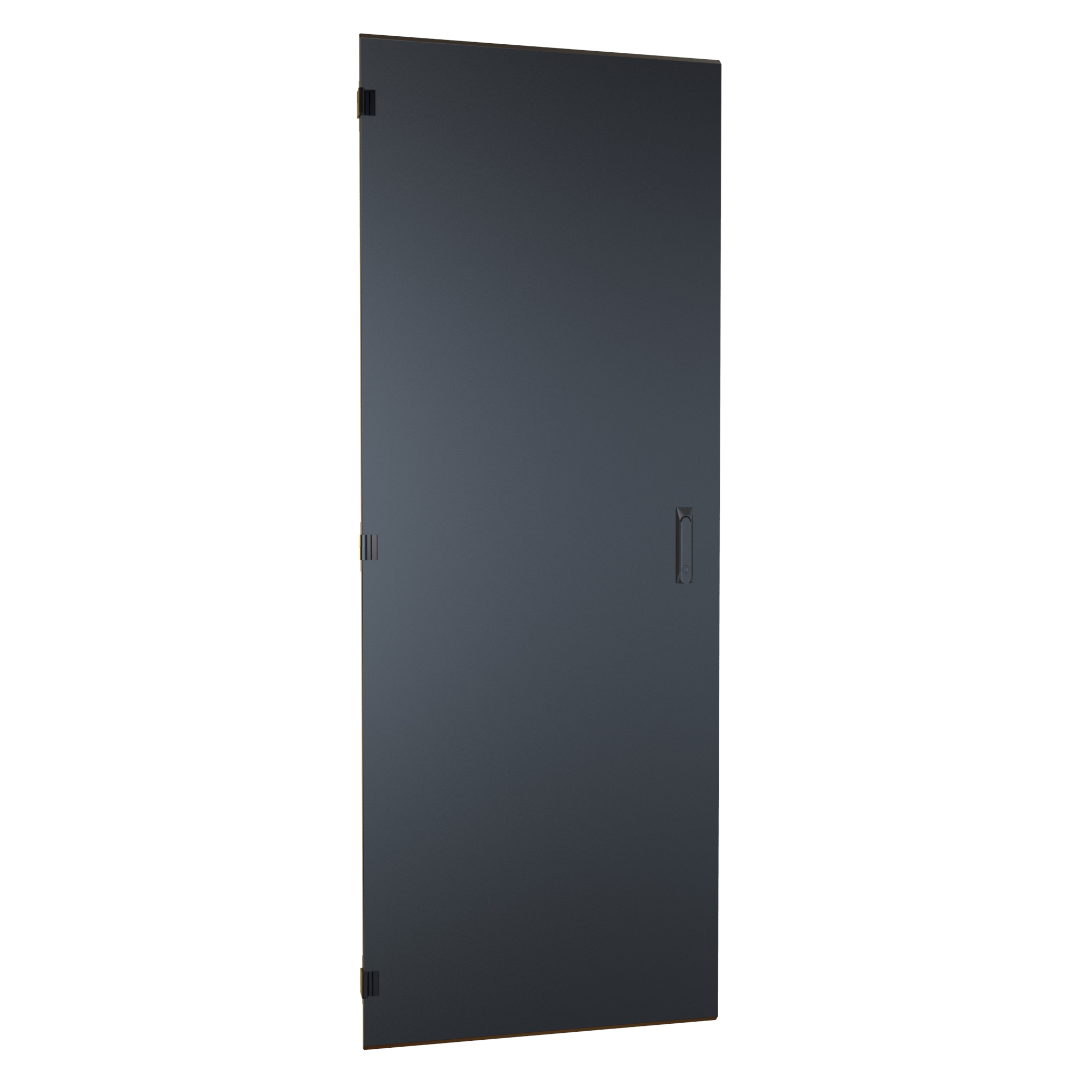

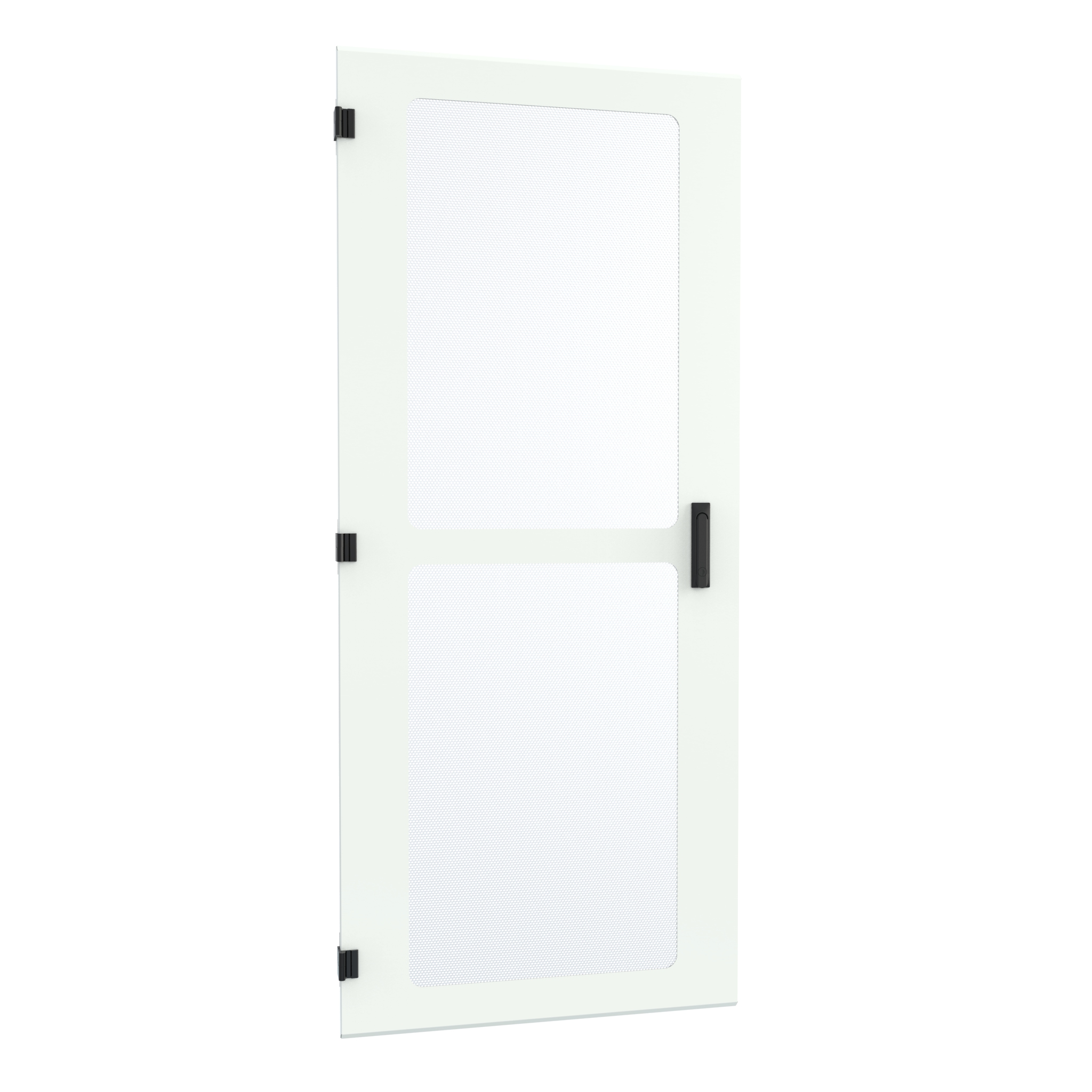

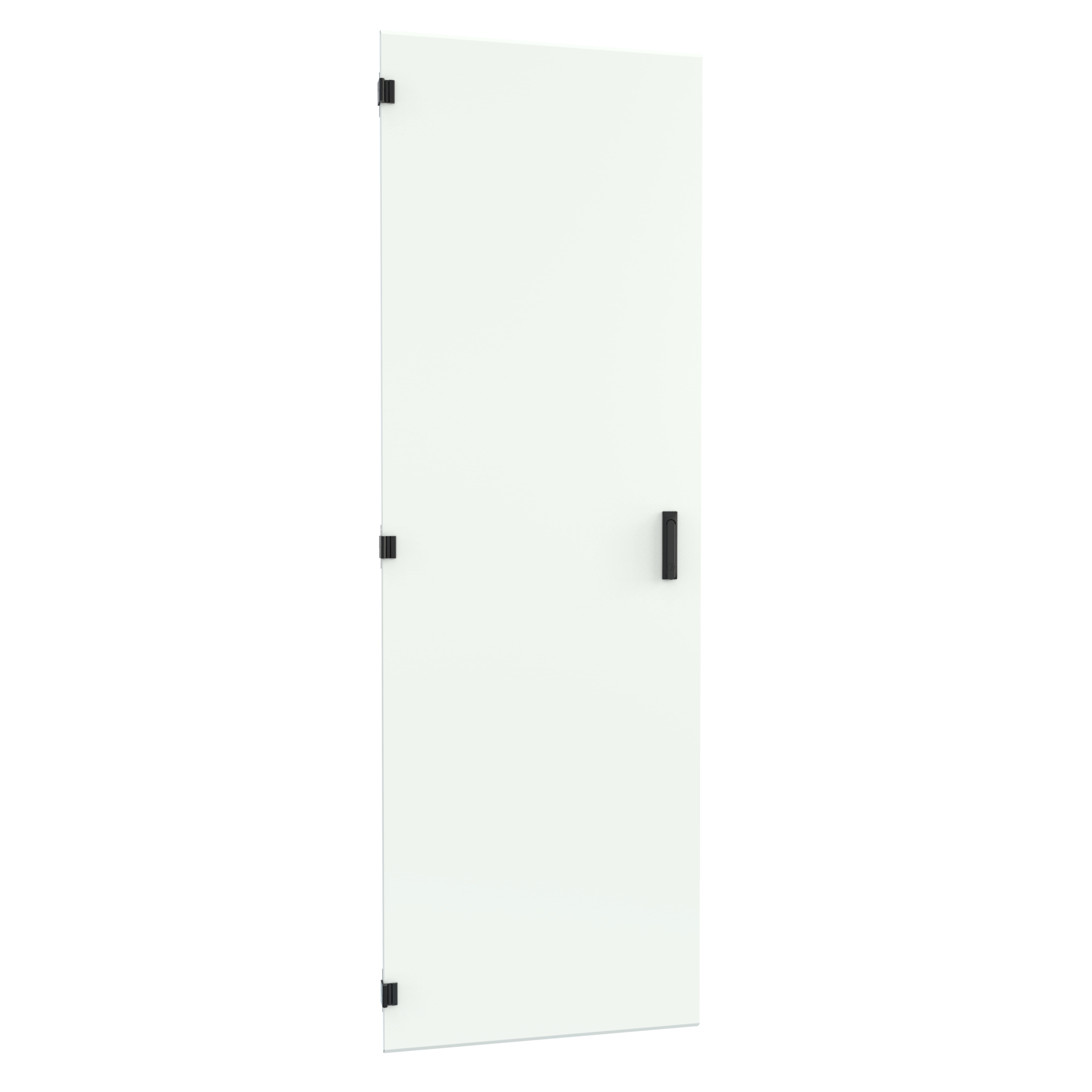

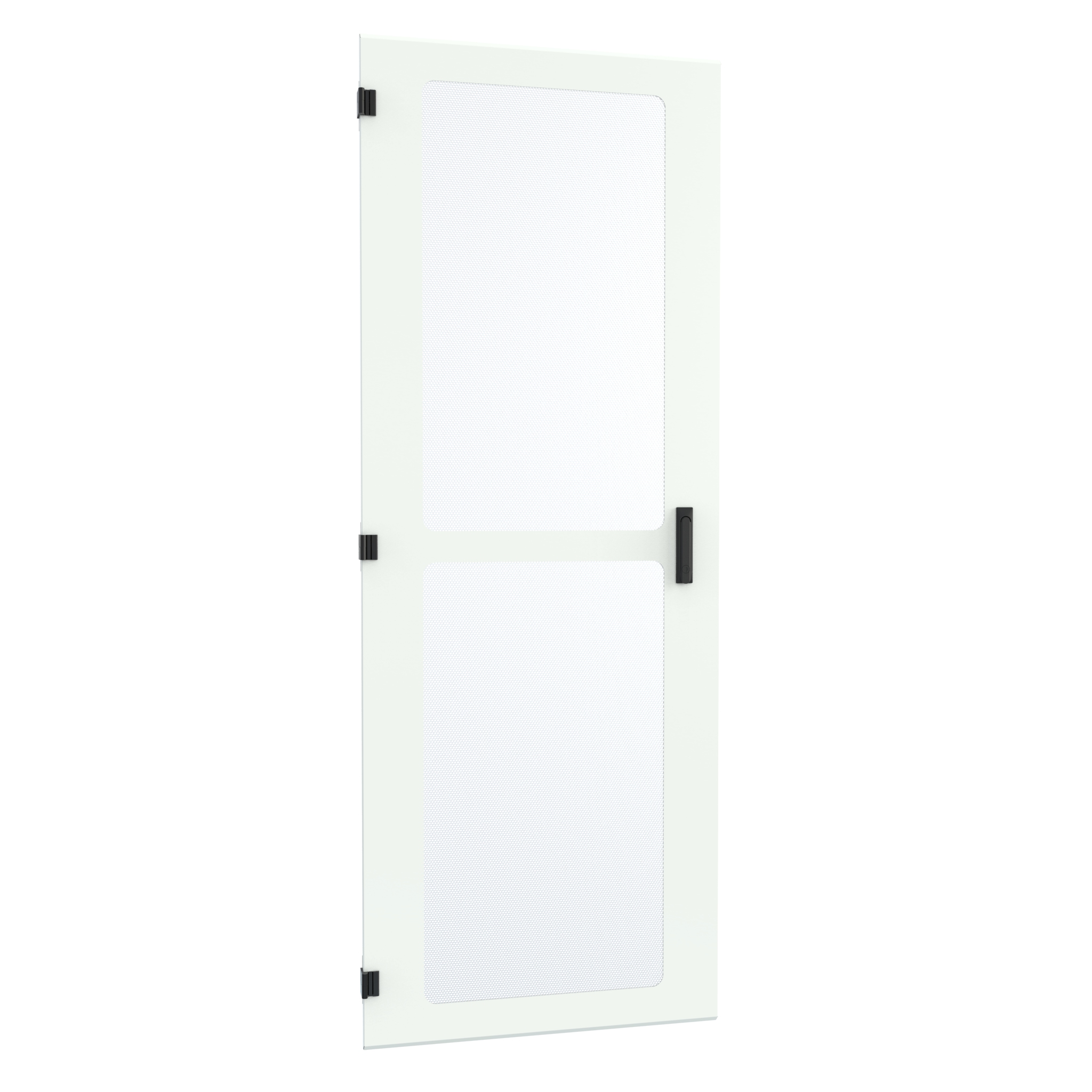

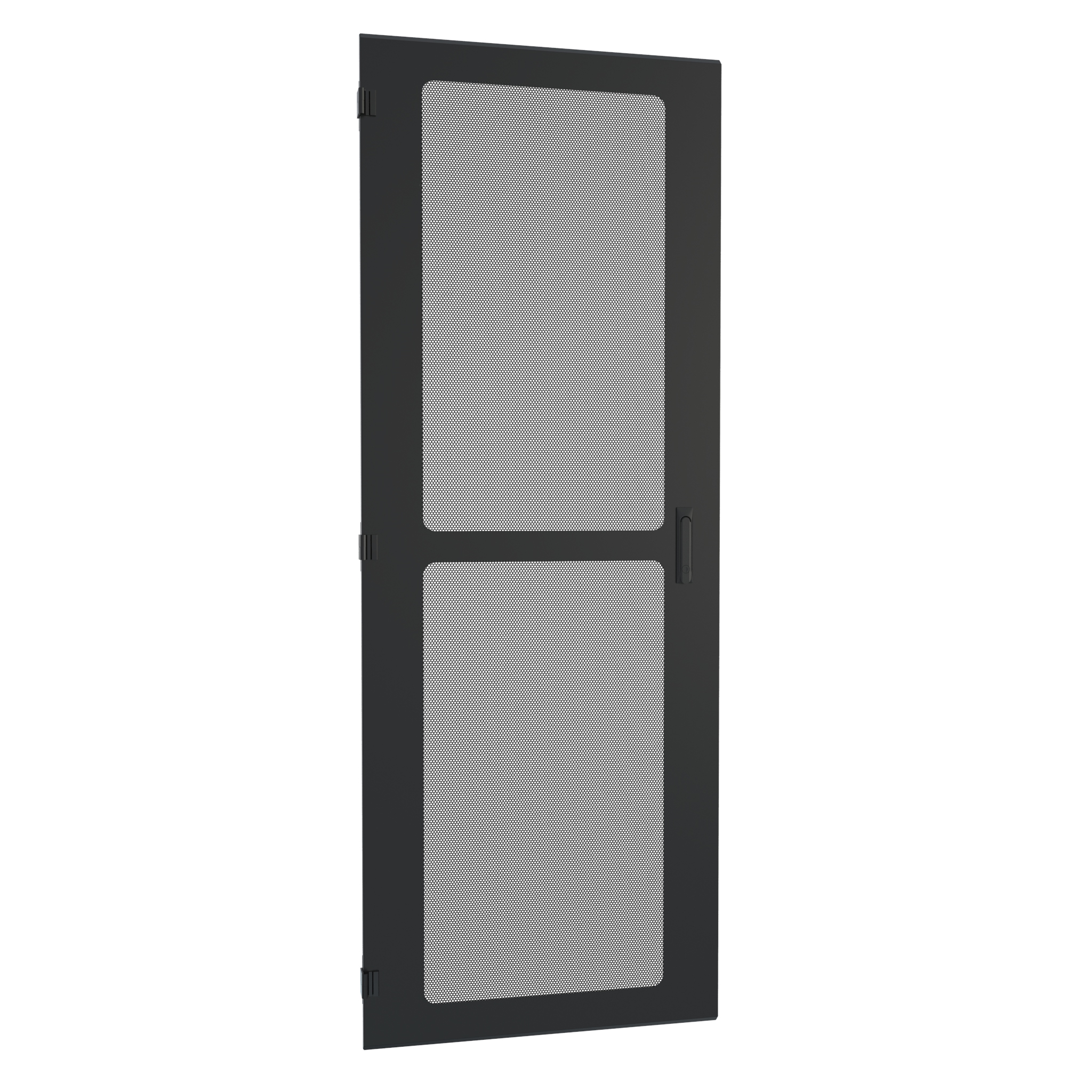

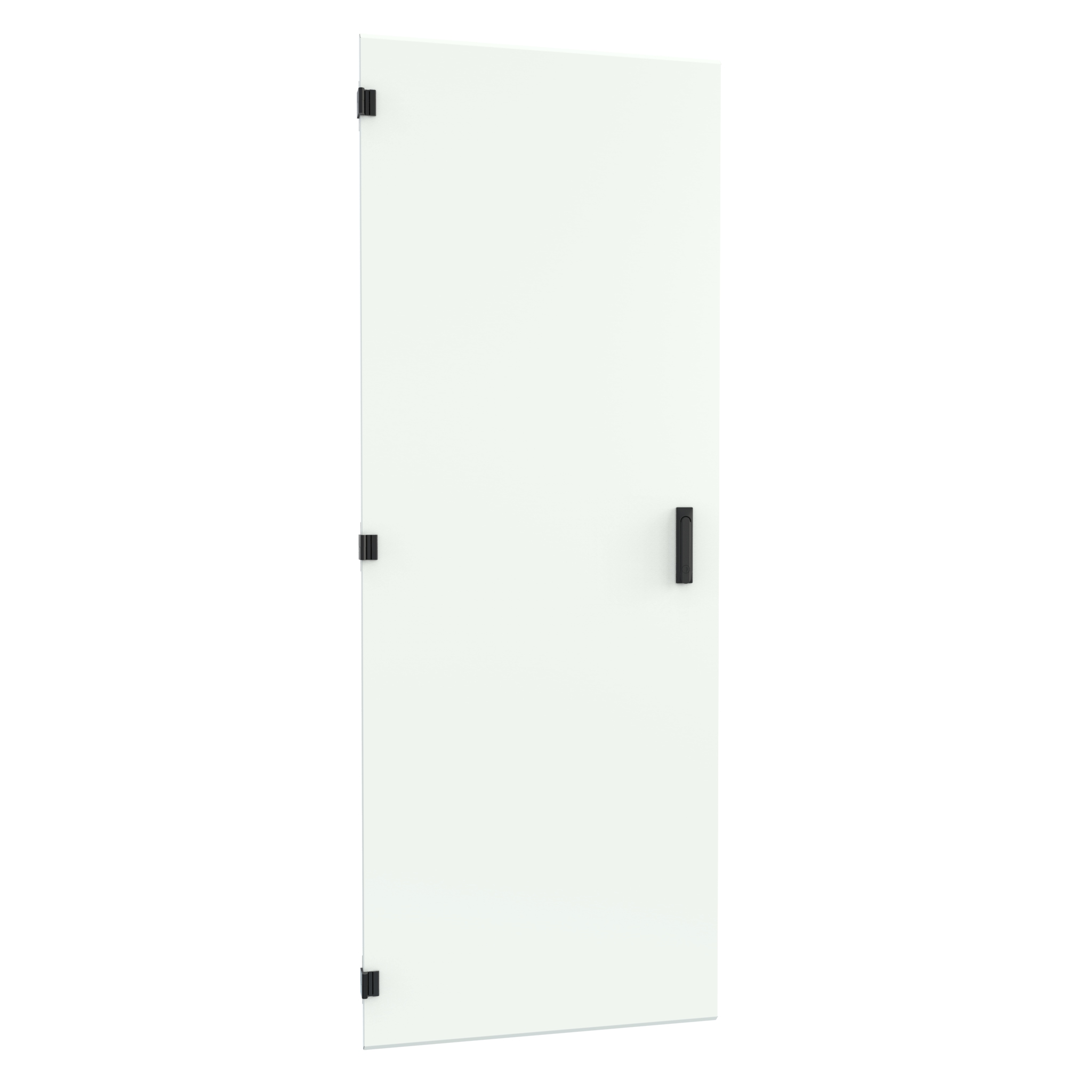

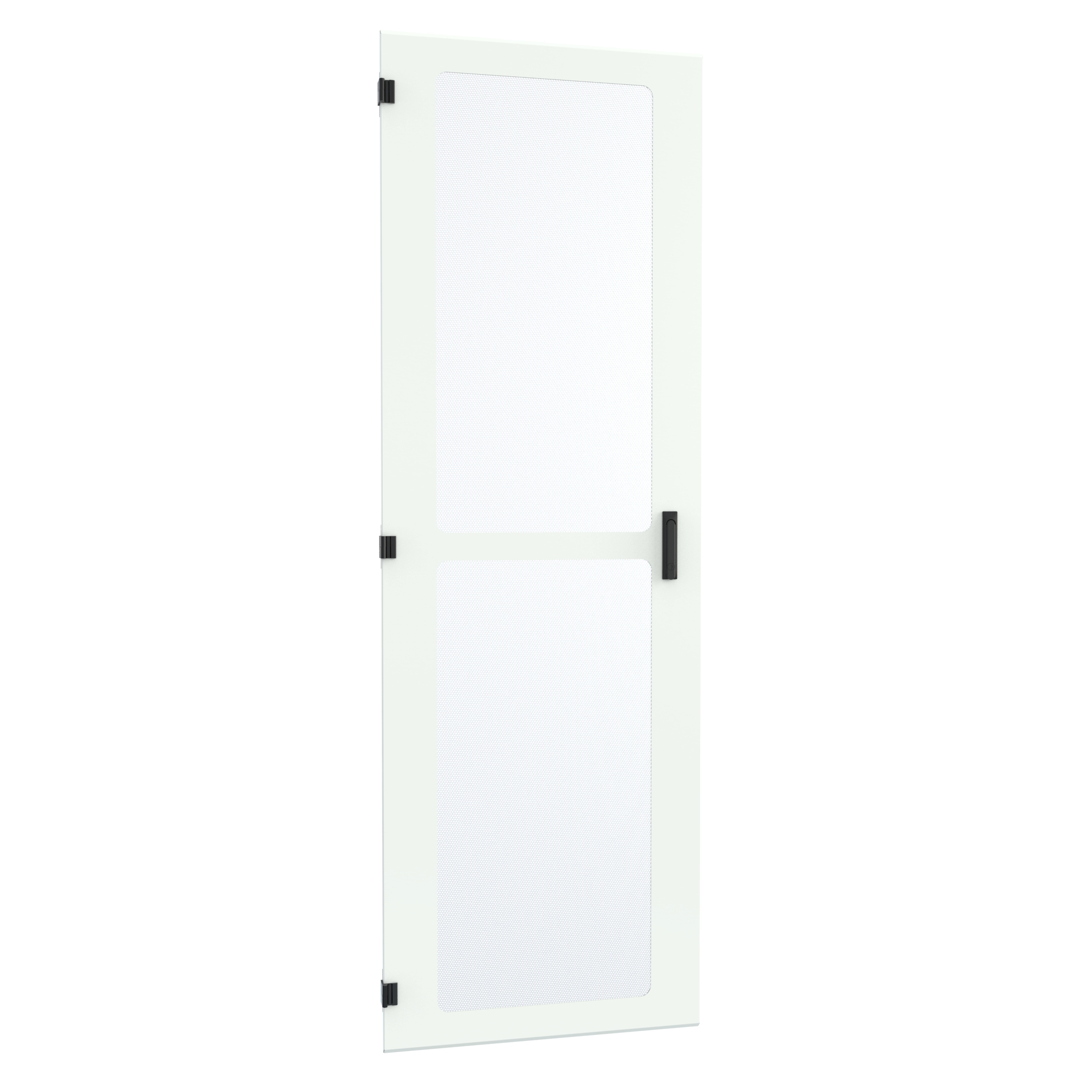

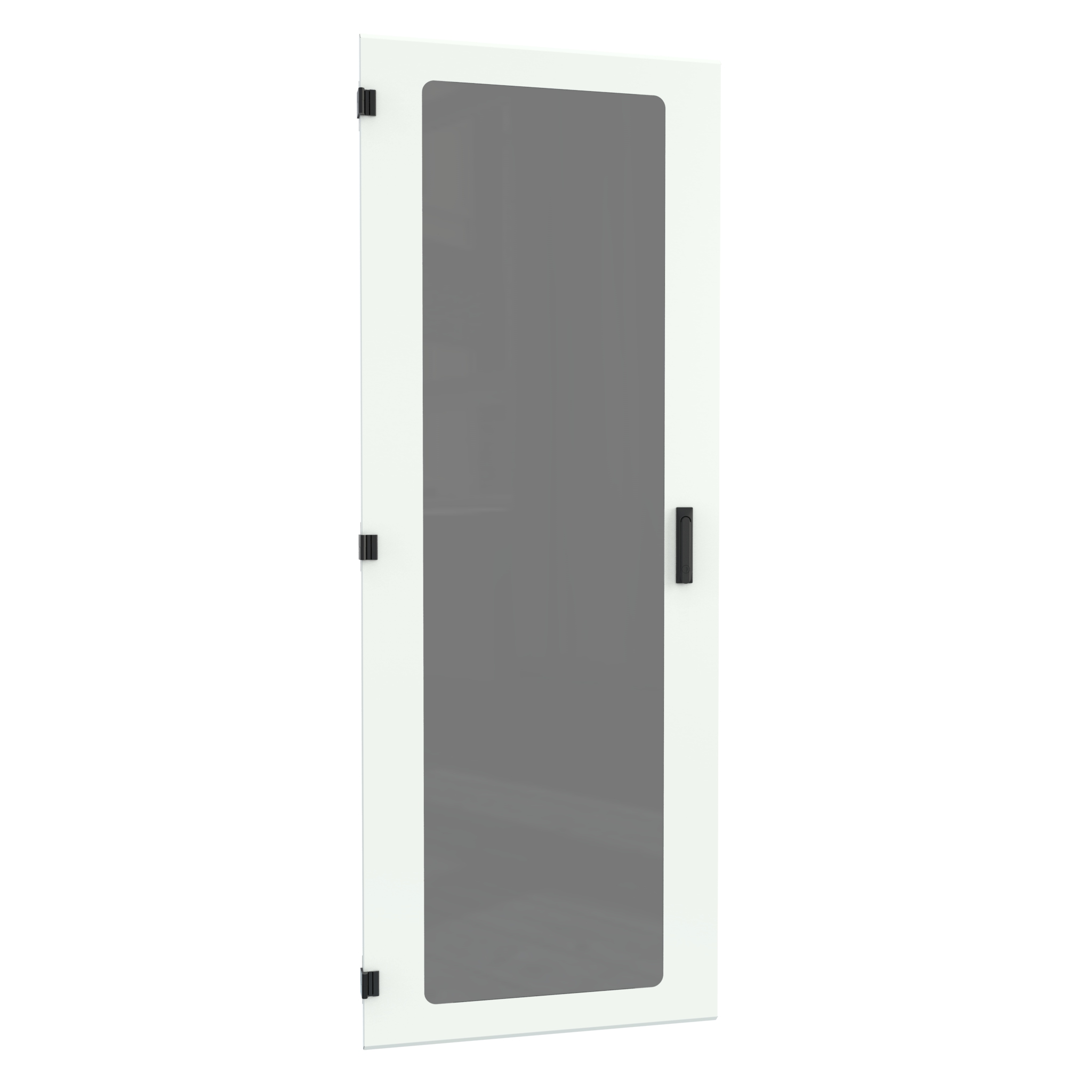

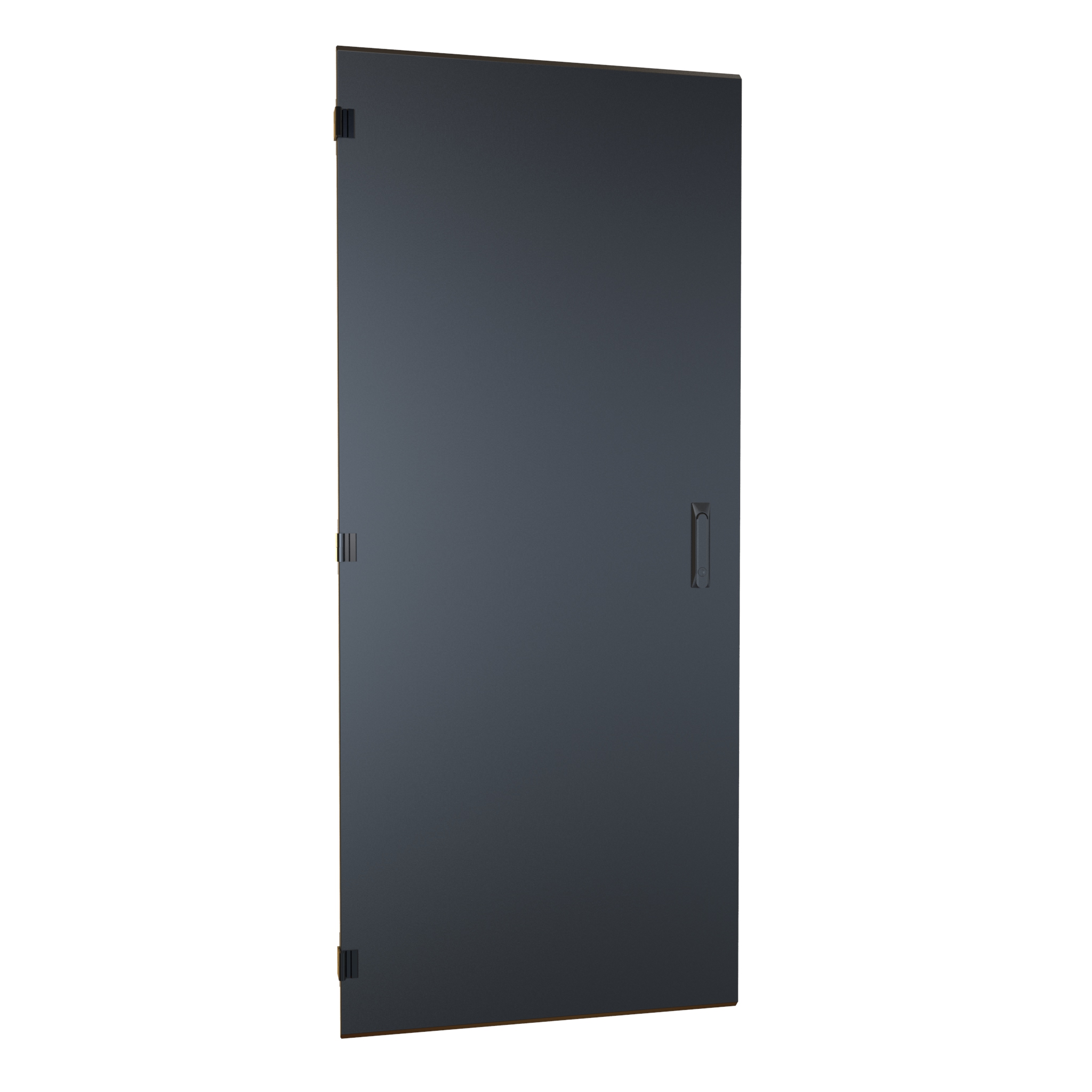

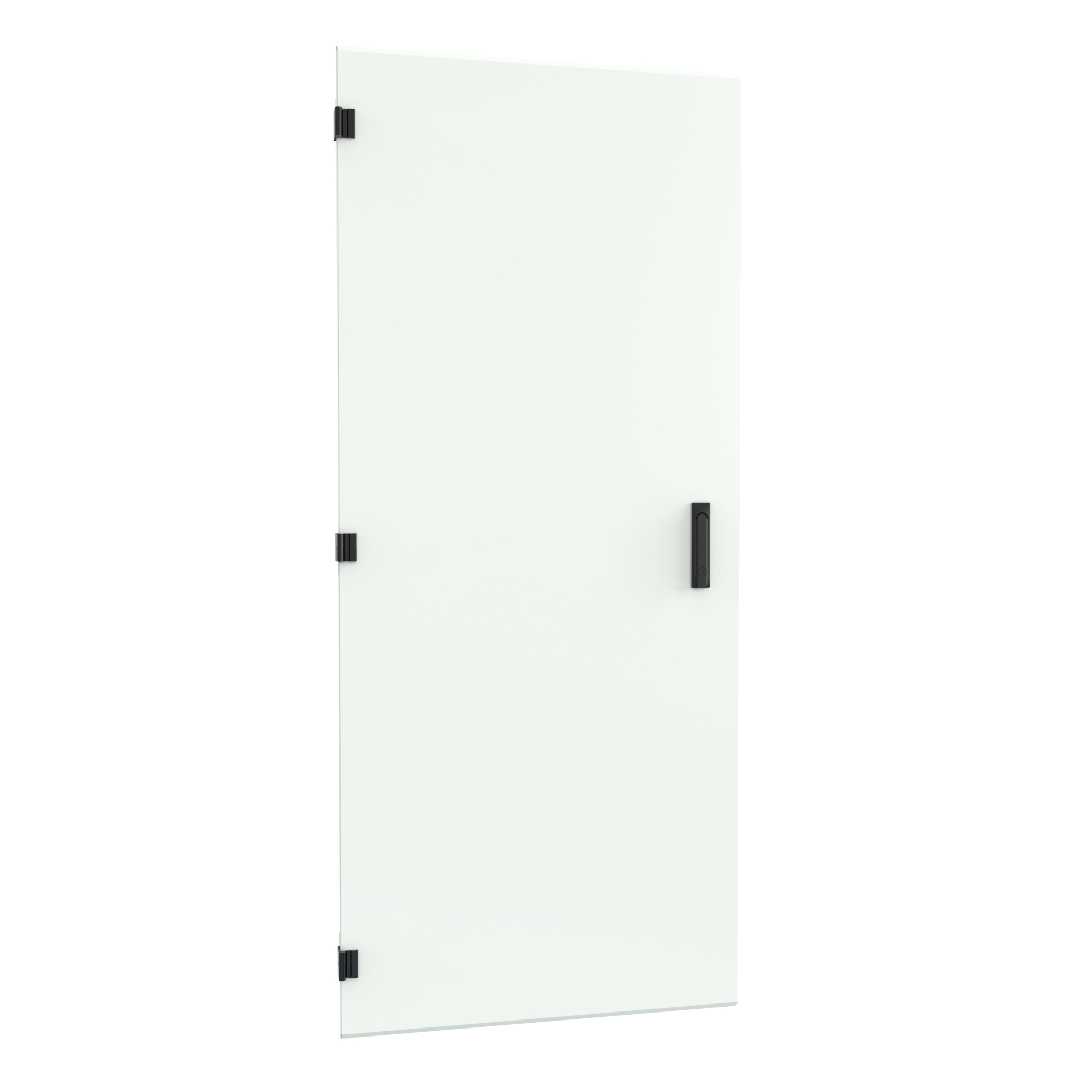

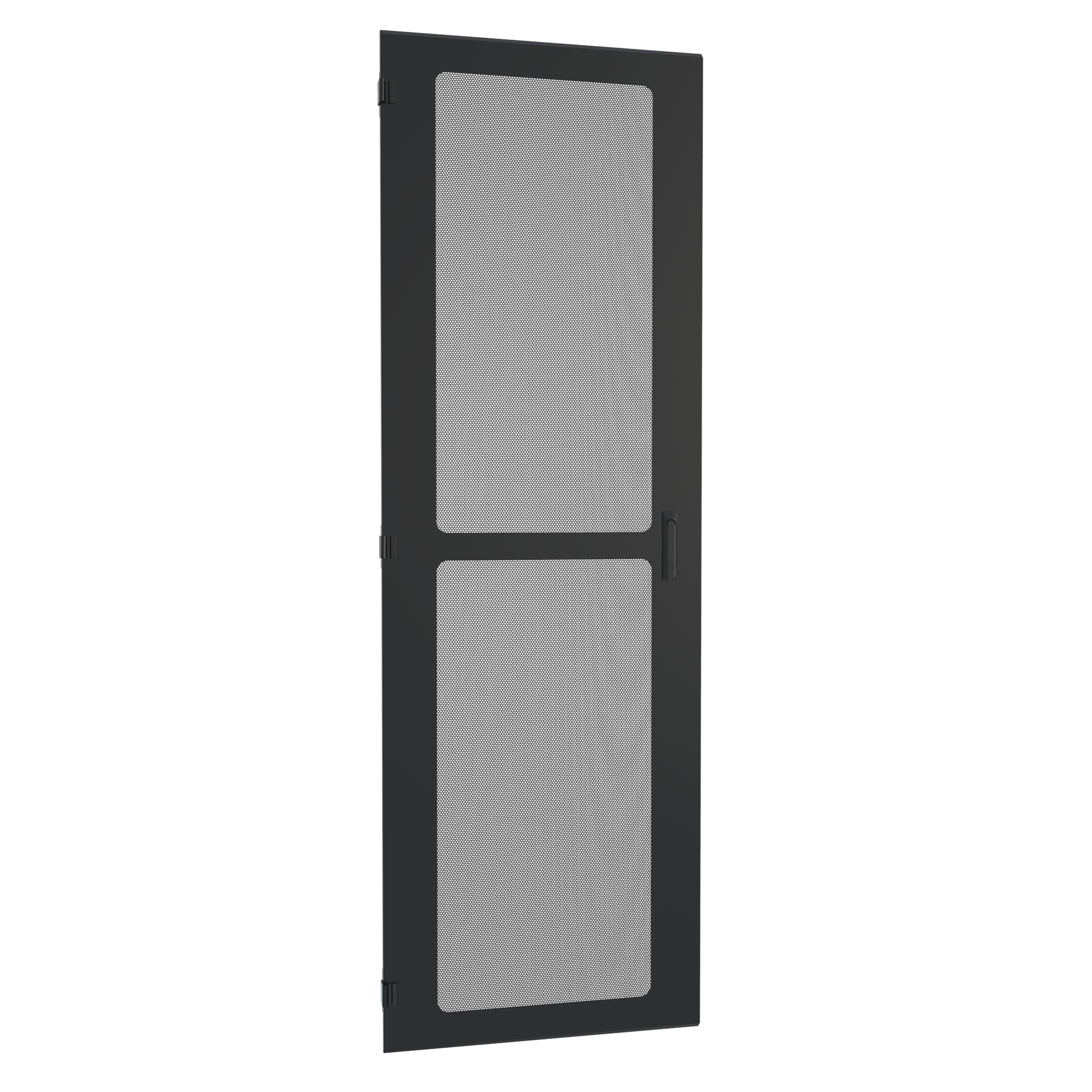

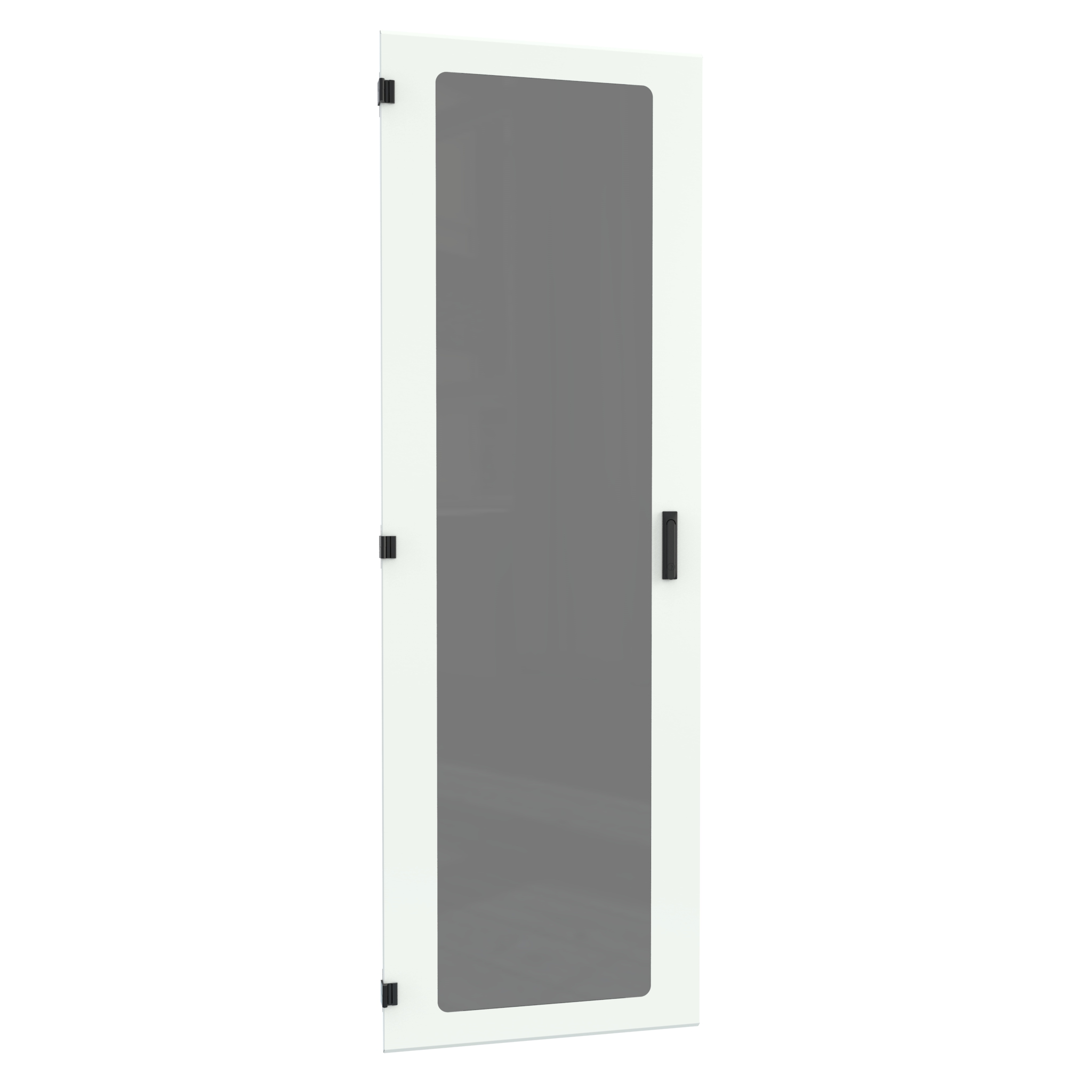

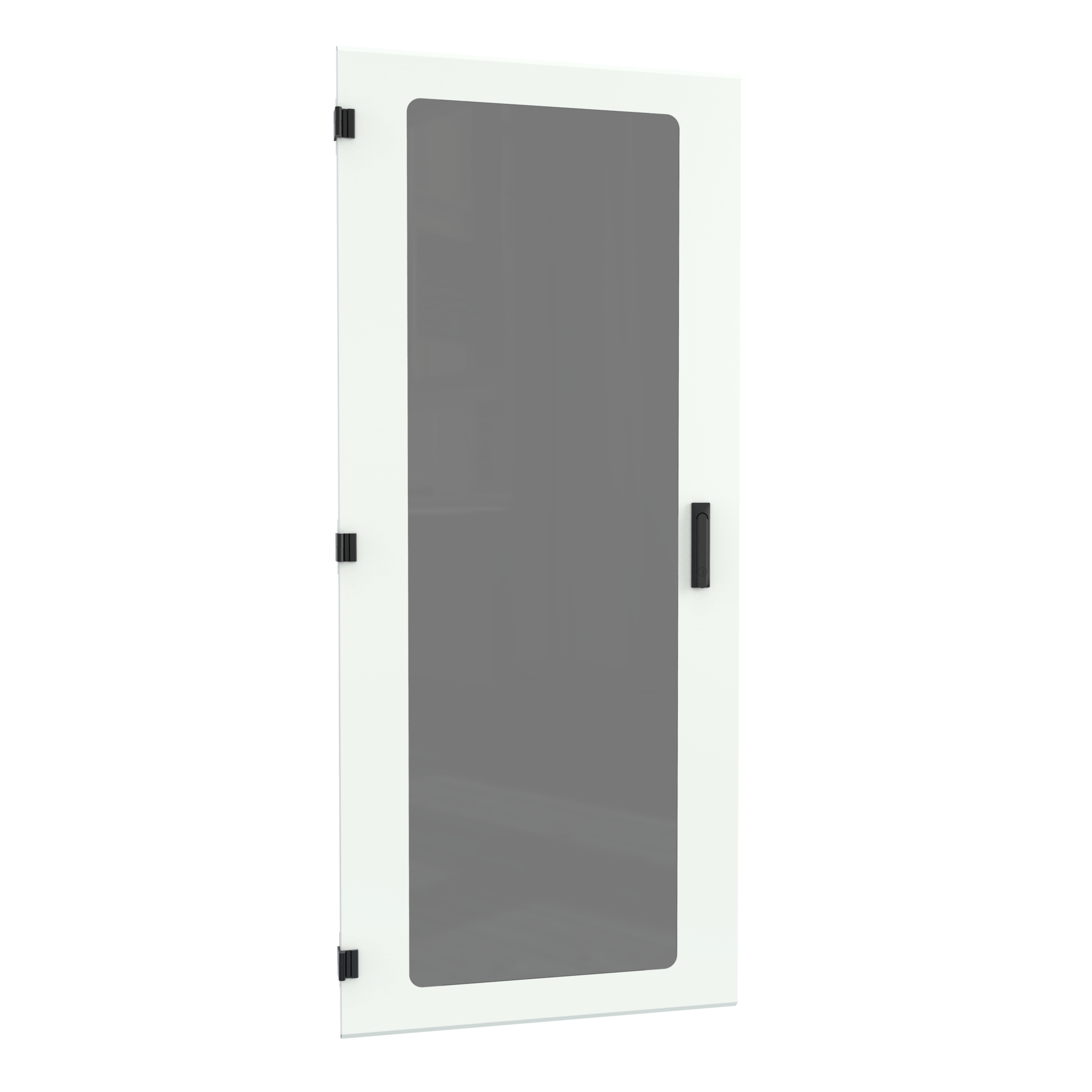

• ■Optional locking doors (solid, vented, or window) provide security and airflow options depending on application.
• ■Seismic rated to 400 lb (181.44 kg) dynamic load (Ip = 1.5) in accordance with IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
• ■UL2416 listed (700 lb load rating) ensures verified structural performance for regulated environments.
• ■Meets PCI DSS requirements (with door installed) supports applications requiring payment card data security standards.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.

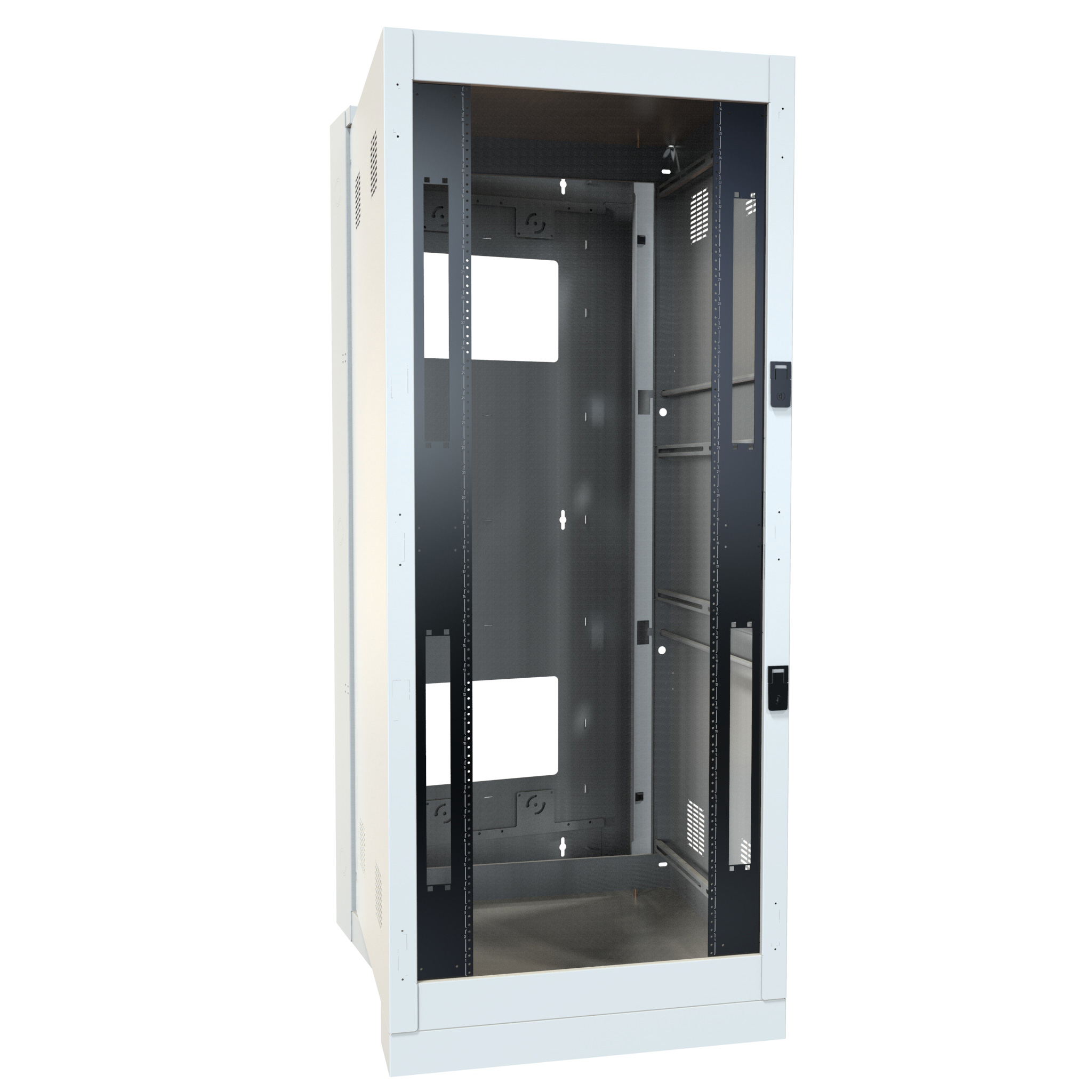

• ■Black or white powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

When another product may be a better choice

When you need a wall-mounted cabinet without floor support, consider our HWC Series. When you need environmental protection (dust or water), consider our NWC or NWM Series cabinets.
