Standard-Depth Server Rack Cabinet · RB-DC Series

Brand: Hammond Manufacturing · 2 part numbers

Cost-effective assembled server rack cabinet designed for IT, network, and data center installations requiring fast deployment and reliable performance.

■16-gauge steel construction with a 2,200 lb load tested capacity provides reliable support for servers, switches, UPS systems, storage, and other rack-mounted equipment.
■Ships fully assembled with doors, side panels, mounting rails, casters, and leveling feet installed to reduce on-site installation time.
■Standard 24-inch width and approximately 42-inch depth provide a familiar footprint for server and networking applications.
■Two pairs of adjustable-depth EIA-310 square-hole mounting rails accommodate a wide range of 19-inch rack equipment and include starter M6 mounting hardware.
■Perforated front and split rear doors provide approximately 63% open area to support front-to-rear airflow for active IT equipment.
■Locking, removable front and rear doors and split side panels provide equipment security while maintaining convenient service access.

from $129.80

2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your RB-DC Series part number

Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

3 of 3 part numbers · 2 priced online

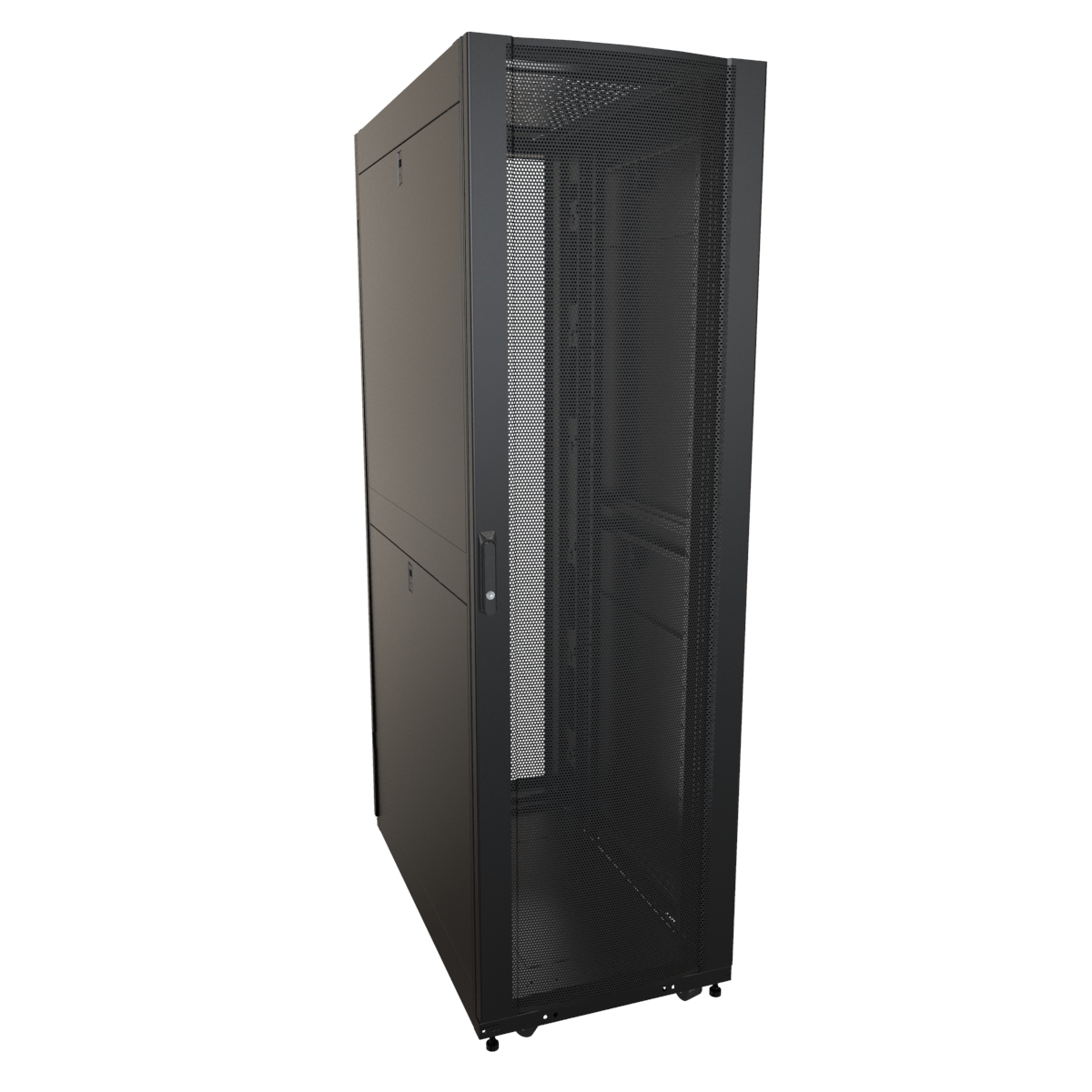

RB-DC4242

42U 42D Server Cabinet

Rack Units 42
Paint Color RAL9005 Black

$1,687.40In stock

Buy now

RB-DCST42

Rb-Dc Solid Top Panel For 42"D

$129.80In stock

Buy now

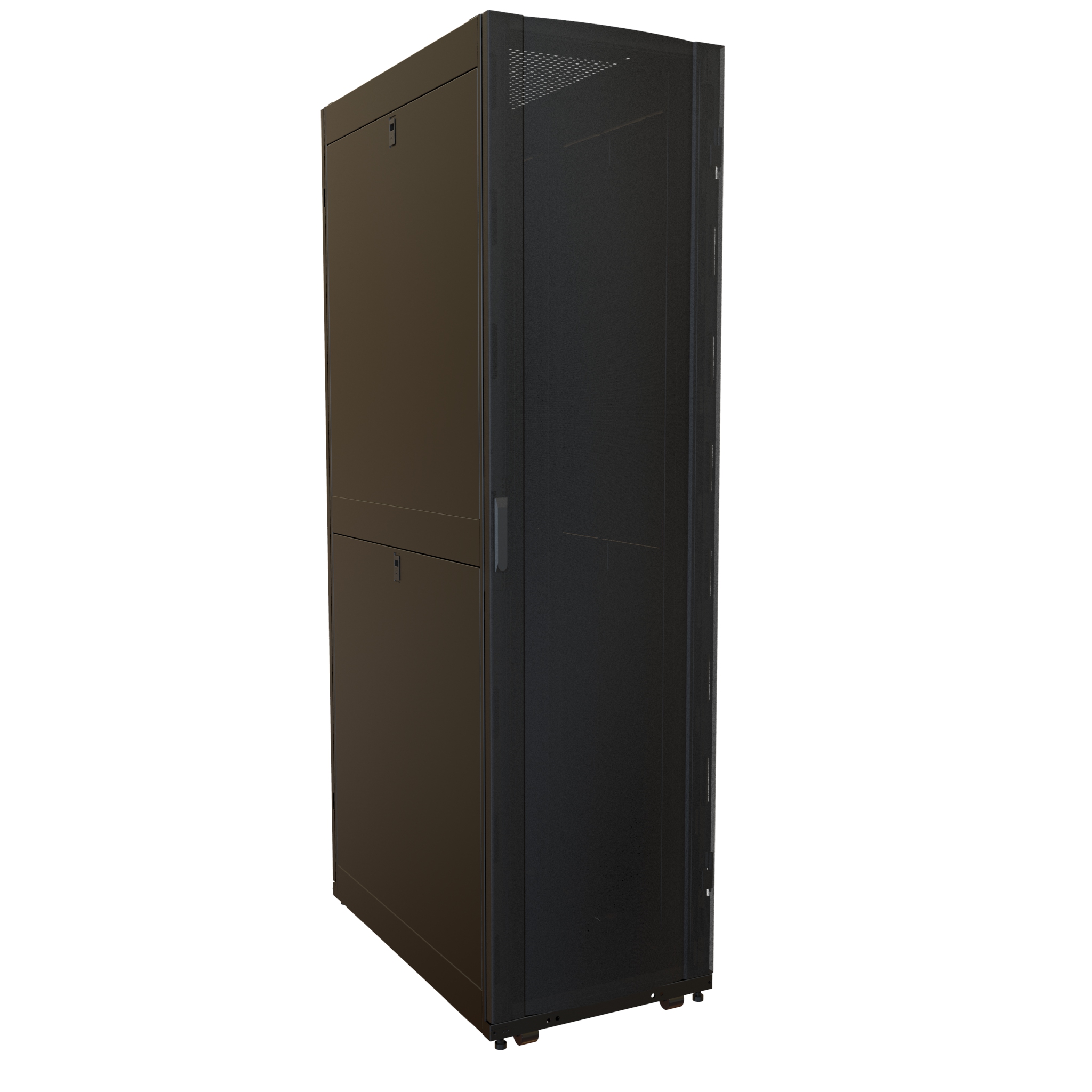

RB-DC4842

48U 42D Server Cabinet

Rack Units 48
Paint Color Black

QuoteRequest a quote

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Overall Dimensions · Height	Overall Dimensions · Width	Overall Dimensions · Depth	Rack · Units	Mounting Dimensions · Height	Mounting Dimensions · Width	Usable Depth · With PDU Tray	Usable Depth · Without PDU Tray	Price	Order
RB-DC4242	78.64	23.62	42.74	42U	73.50	19.00	30.20	35.38	$1,687.40In stock	Buy now

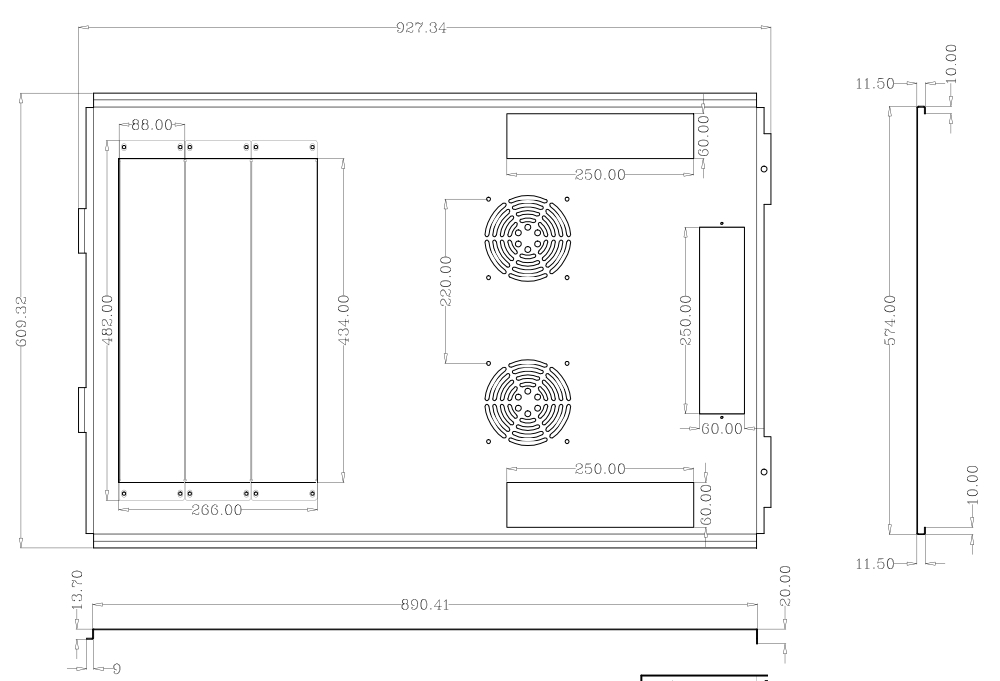

Optional Solid Top Panel

col1	col2	Price	Order
Part No.	RB-DCST42	$129.80In stock	Buy now

Key Features and Benefits

The RB-DC Series is a cost-effective, fully assembled server rack cabinet designed for low- to medium-density IT, networking, edge, and data center applications. Available in 24U and 42U heights, it combines a standard-width cabinet footprint with adjustable mounting rails, secure removable panels, integrated cable management, and front-to-rear airflow. With doors, side panels, mounting rails, casters, and leveling feet already installed, the RB-DC reduces assembly time and provides a complete rack enclosure ready for equipment installation.

■16-gauge steel construction with a 2,200 lb load tested capacity provides reliable support for servers, switches, UPS systems, storage, and other rack-mounted equipment.
■Ships fully assembled with doors, side panels, mounting rails, casters, and leveling feet installed to reduce on-site installation time.
■Standard 24-inch width and approximately 42-inch depth provide a familiar footprint for server and networking applications.
■Two pairs of adjustable-depth EIA-310 square-hole mounting rails accommodate a wide range of 19-inch rack equipment and include starter M6 mounting hardware.

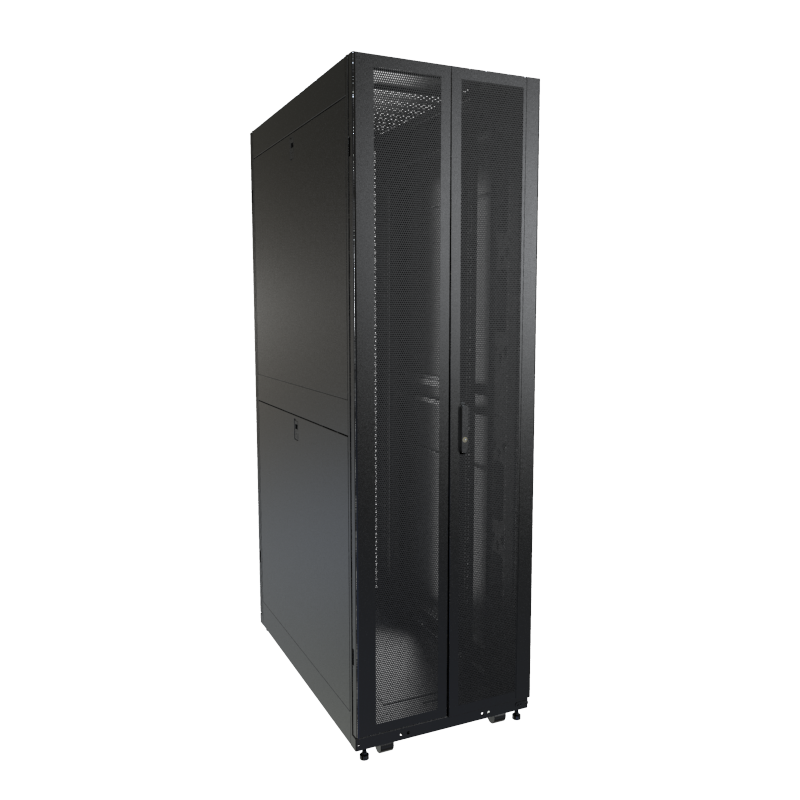

■Perforated front and split rear doors provide approximately 63% open area to support front-to-rear airflow for active IT equipment.

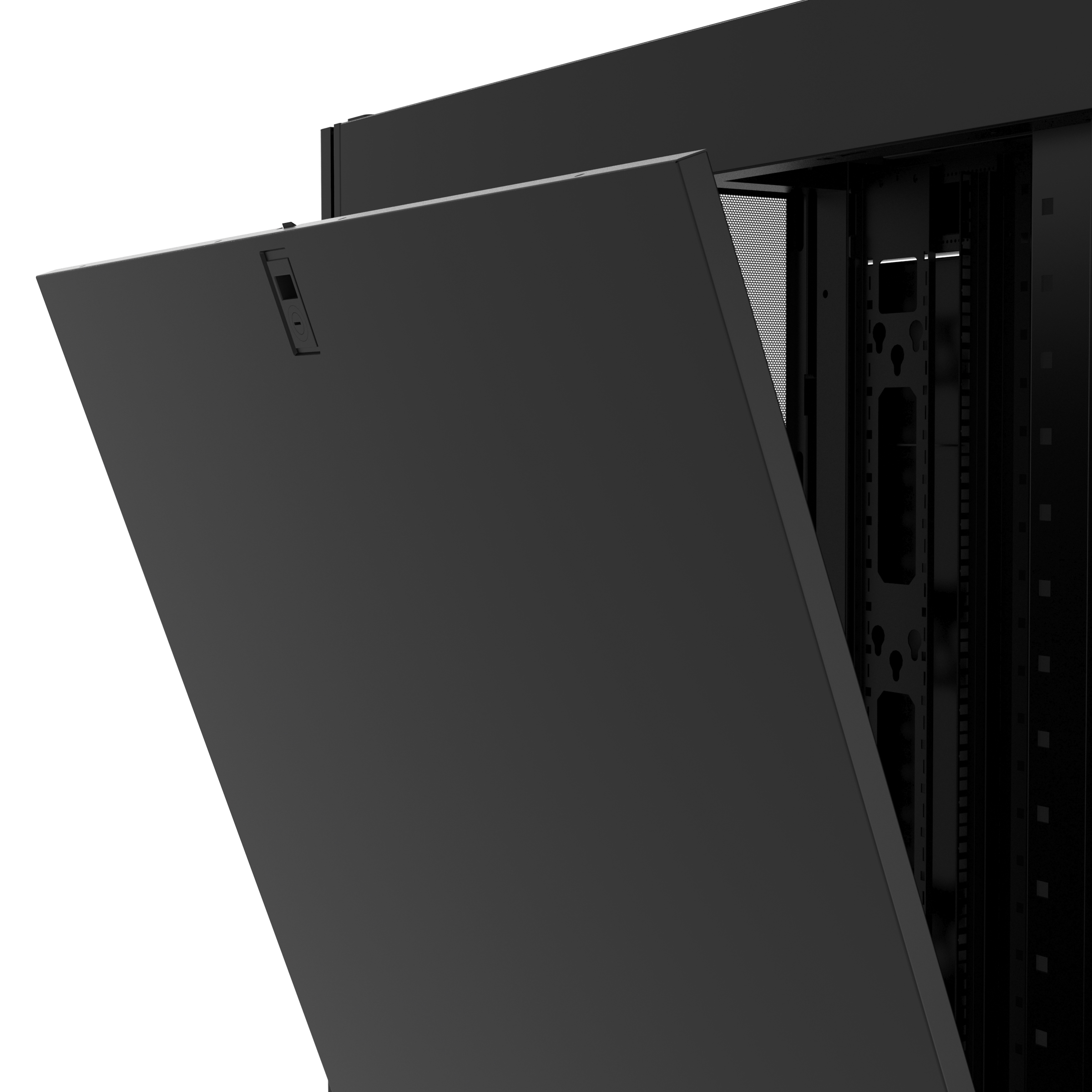

■Locking, removable front and rear doors and split side panels provide equipment security while maintaining convenient service access.
■Integrated vertical PDU and cable management trays help organize power distribution and cabling without consuming rack units.
■Removable vented top panel includes cable entry points for overhead cable routing and optional fan integration.
■Open bottom provides unrestricted cable entry for raised-floor and below-cabinet installations.
■Integrated joining hardware makes it easy to bay multiple cabinets together as infrastructure expands.
■Recessed casters simplify positioning while adjustable leveling feet provide a stable final installation.
■Locking doors and side panels support physical equipment security for environments subject to PCI DSS requirements.
■Black powder coat finish provides a durable finish and meets applicable RoHS requirements.

When another product may be a better choice

Part of the Rack Basics® line designed for simple, reliable, and affordable installations.

■When you need a premium, fully configured cabinet with higher load capacity and advanced airflow options, consider our C4RR_A Series, based on our C4 platform and shipped ready for deployment.
■When you need a complete, high-performance cabinet solution with enhanced cooling, cable management, and security features, consider our H1 Series.

Documents

Specification Sheet

Additional information

Where the series works best

■Server rooms and equipment rooms
■MDF and IDF network rooms
■Small and mid-size data centers
■Edge computing locations
■Corporate IT infrastructure
■Education and institutional networks
■Retail and distributed IT environments
■Security and surveillance infrastructure
■Servers and storage equipment
■Network switches and patching
■UPS and power distribution equipment
■Edge computing infrastructure
■IT equipment consolidation
■Secure network equipment installations
