Lacer Strip 10PK
- Offset Angle No Offset
- Hook and Loop Incl No
$77.88In stock
Buy now

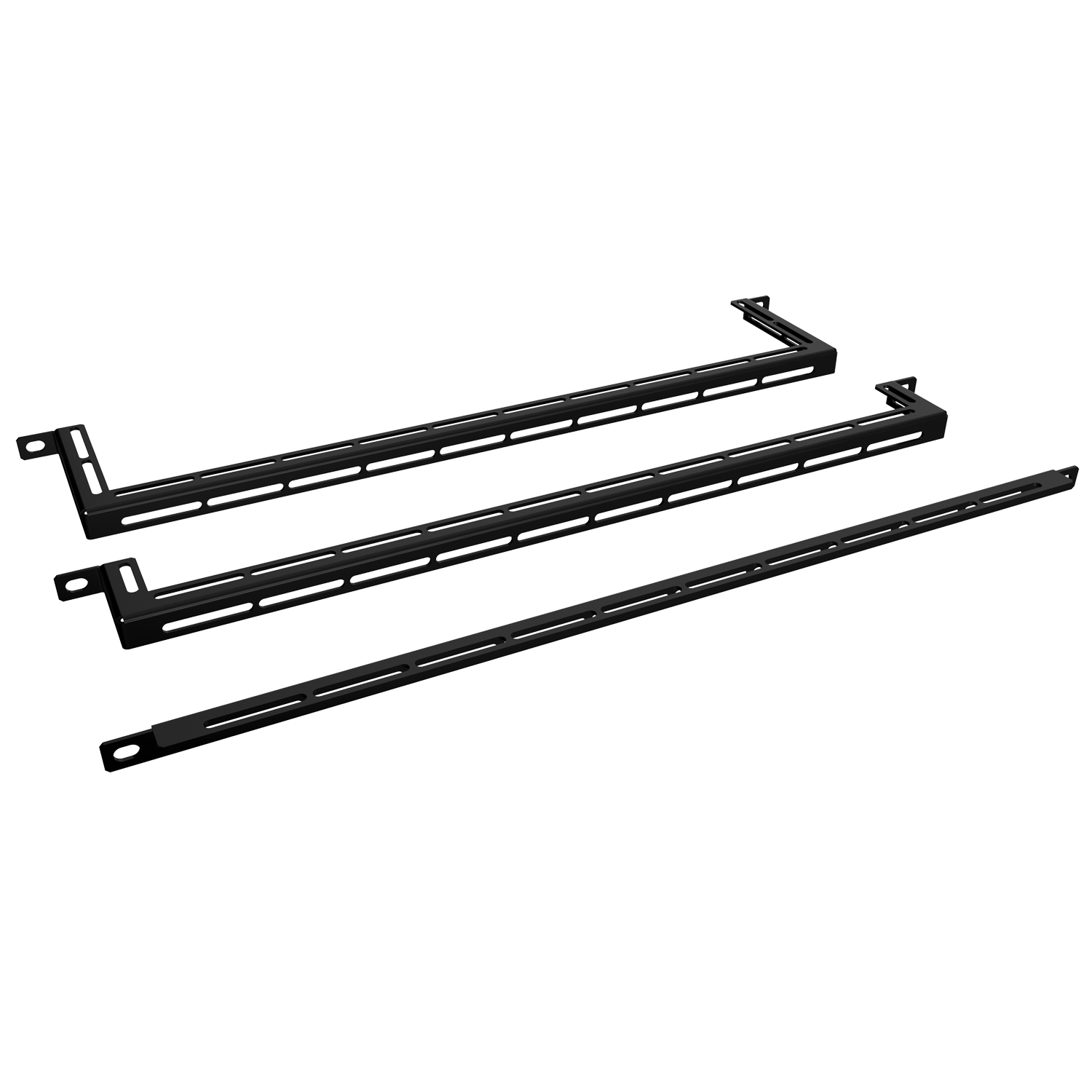

Horizontal Cable Management Bar Steel Cable Support Bar · HCM Series
Brand: Hammond Manufacturing · 7 part numbers
Horizontal cable management bar designed for cable support, routing, and strain relief behind rack-mounted equipment.
- ■Steel construction provides durable cable support and effective strain relief for IT, AV, and network installations.
- ■Cable management bar design supports routing and anchoring of cable bundles behind rack-mounted equipment.
- ■Mounts to EIA-310 mounting rails, allowing flexible placement without consuming a full rack unit.
- ■Provides standoff spacing from rack rails to improve cable routing and reduce congestion behind equipment.
- ■Reduces strain on connectors and ports by supporting cable weight and maintaining proper bend radius.
- ■Ideal for use behind patch panels, switches, and servers to support cable bundles.
from $29.85
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HCM Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
0U 19IN Hcm With Cable Straps
- Offset Angle 45 Degrees
- Hook and Loop Incl Yes
$29.85In stock
Buy now
2D Offset Lacing Strip 10PK
- Offset Angle 90 Degrees
- Hook and Loop Incl No
$97.35Backorder
Buy now
4D Offset Lacing Strip 10PK
- Offset Angle 90 Degrees
- Hook and Loop Incl No
$103.84In stock
Buy now
6D Offset Lacing Strip 10PK
- Offset Angle 90 Degrees
- Hook and Loop Incl No
$110.33In stock
Buy now
8D Offset Lacing Strip 10PK
- Offset Angle 90 Degrees
- Hook and Loop Incl No
$123.31In stock
Buy now
0U 23IN Hcm With Cable Straps
- Offset Angle 45 Degrees
- Hook and Loop Incl Yes
$36.34In stock
Buy nowDimension tables (inches / mm)
Formed Cable Manager (Sold in Packs of 10)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Offset · Angle | Hook and Loop · Included | Qty Included · in Package | Price | Order |
|---|---|---|---|---|---|---|---|---|

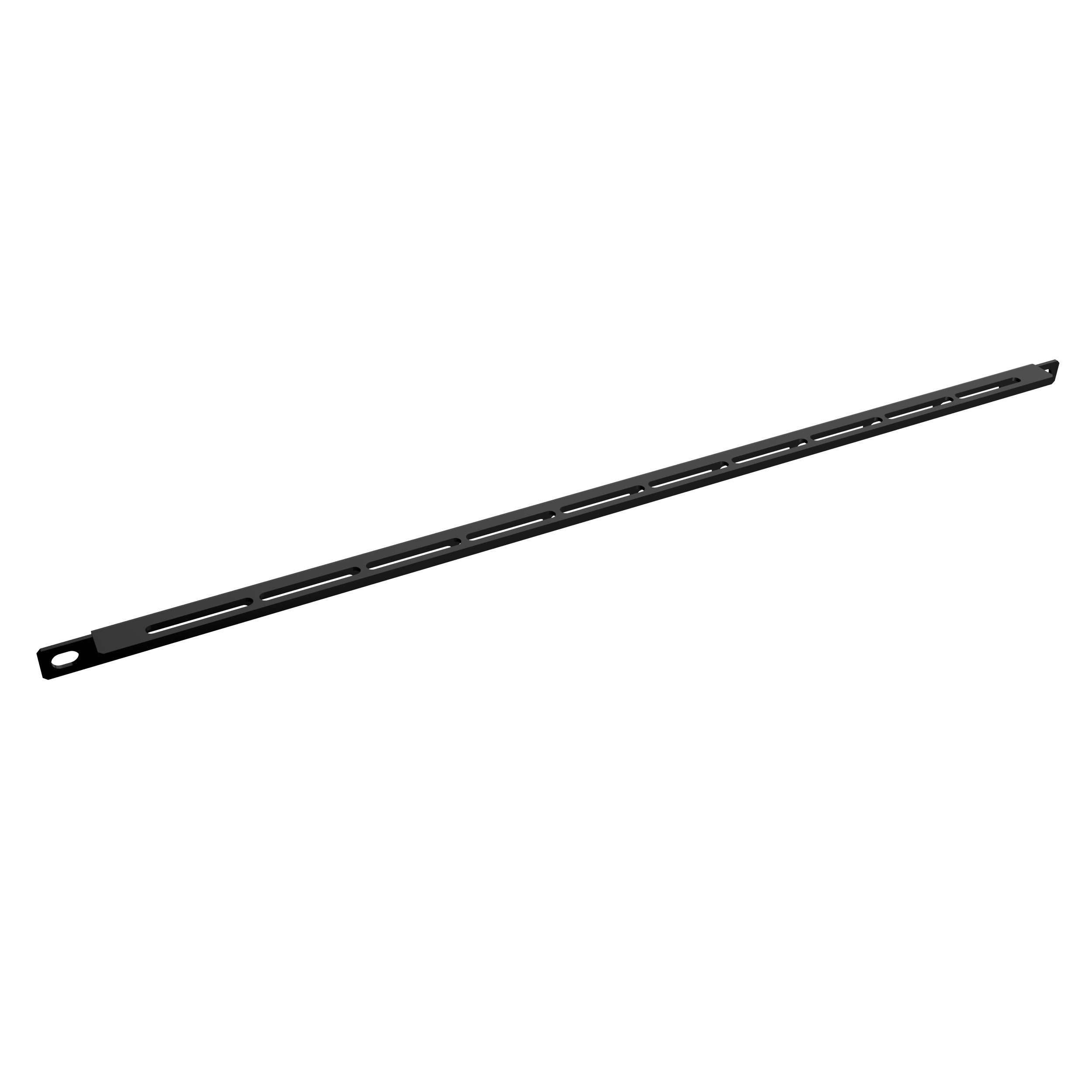

| HCM190BK | 0.62 | 19.00 | 0.00 | No Offset | No | 10 | $77.88In stock | Buy now |

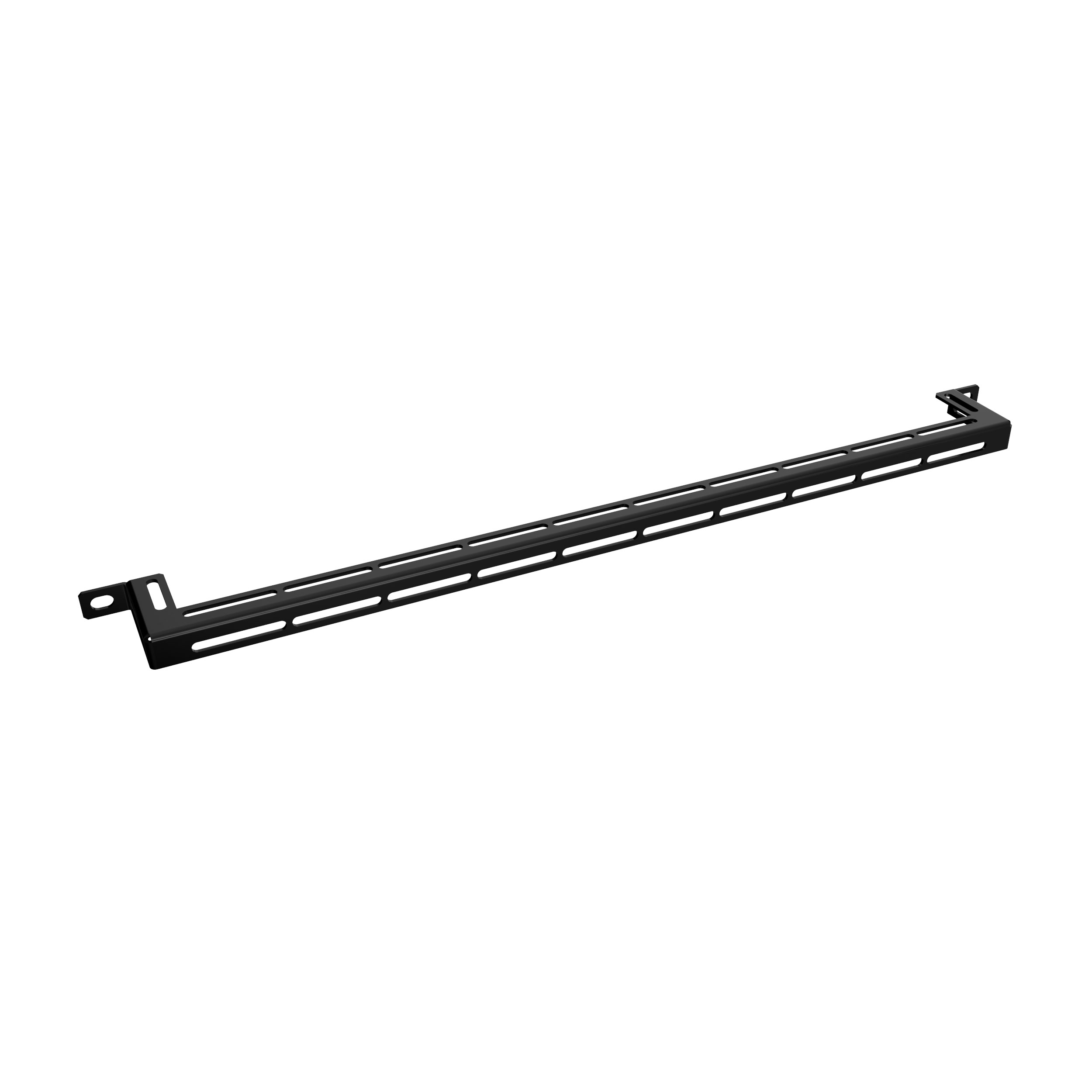

| HCM192BK | 0.62 | 19.00 | 2.00 | 90 Degrees | No | 10 | $97.35Backorder | Buy now |

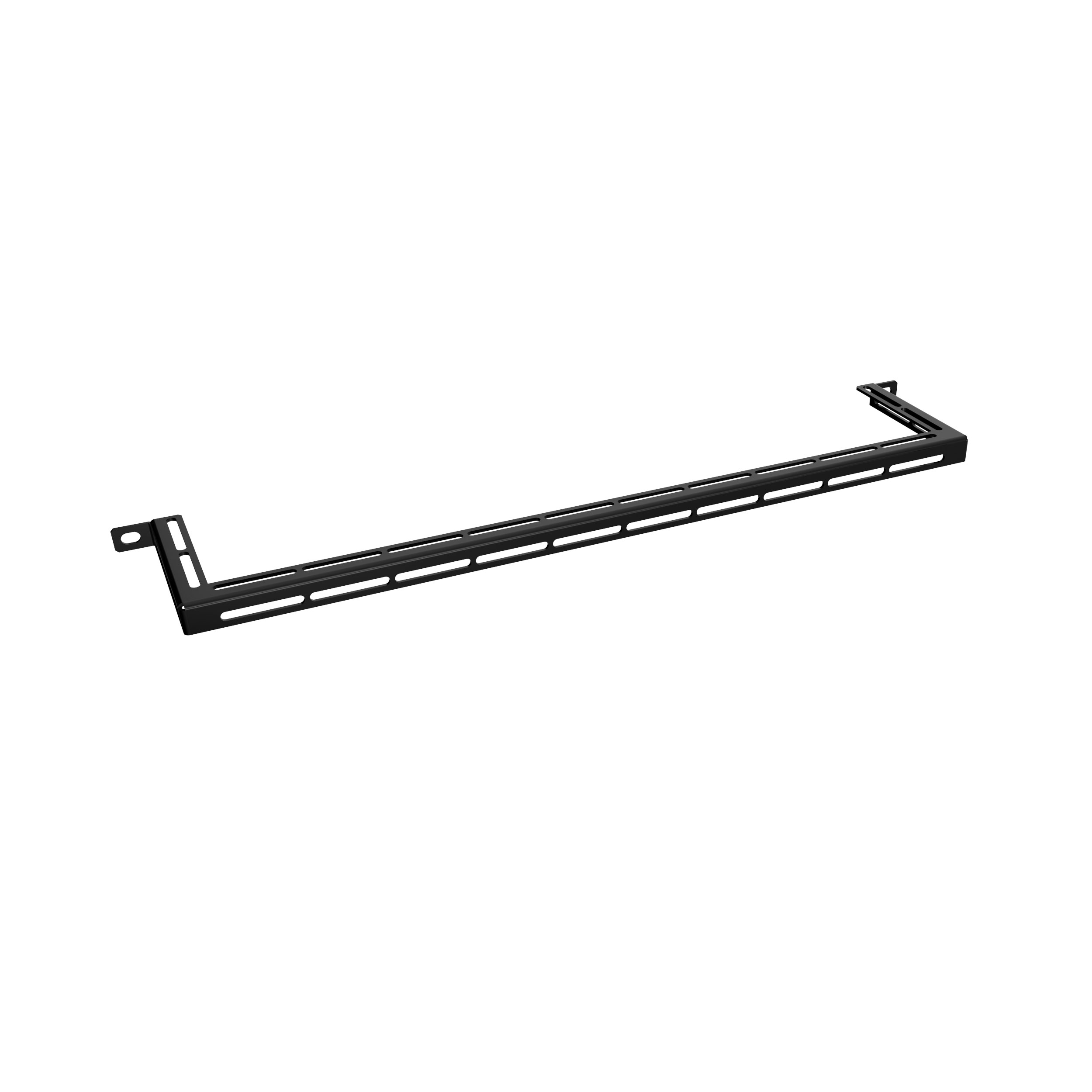

| HCM194BK | 0.62 | 19.00 | 4.00 | 90 Degrees | No | 10 | $103.84In stock | Buy now |

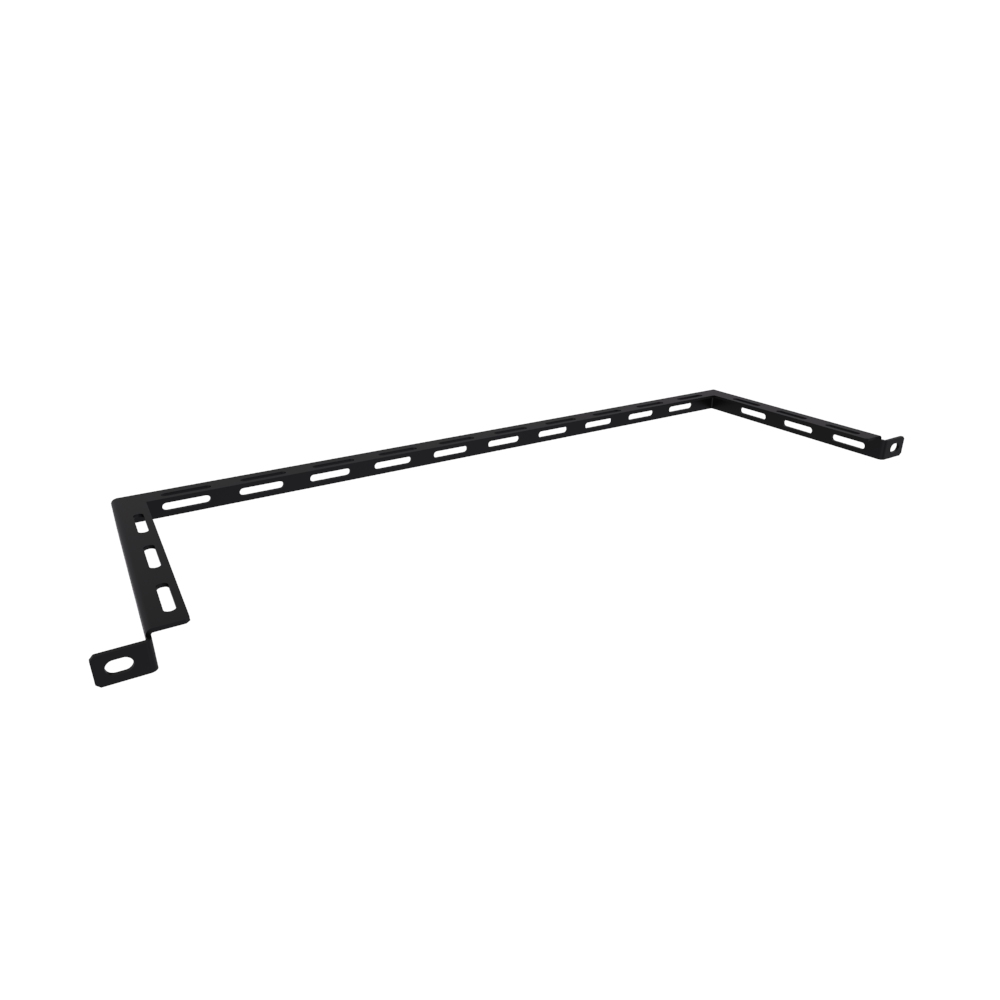

| HCM196BK | 0.62 | 19.00 | 6.00 | 90 Degrees | No | 10 | $110.33In stock | Buy now |

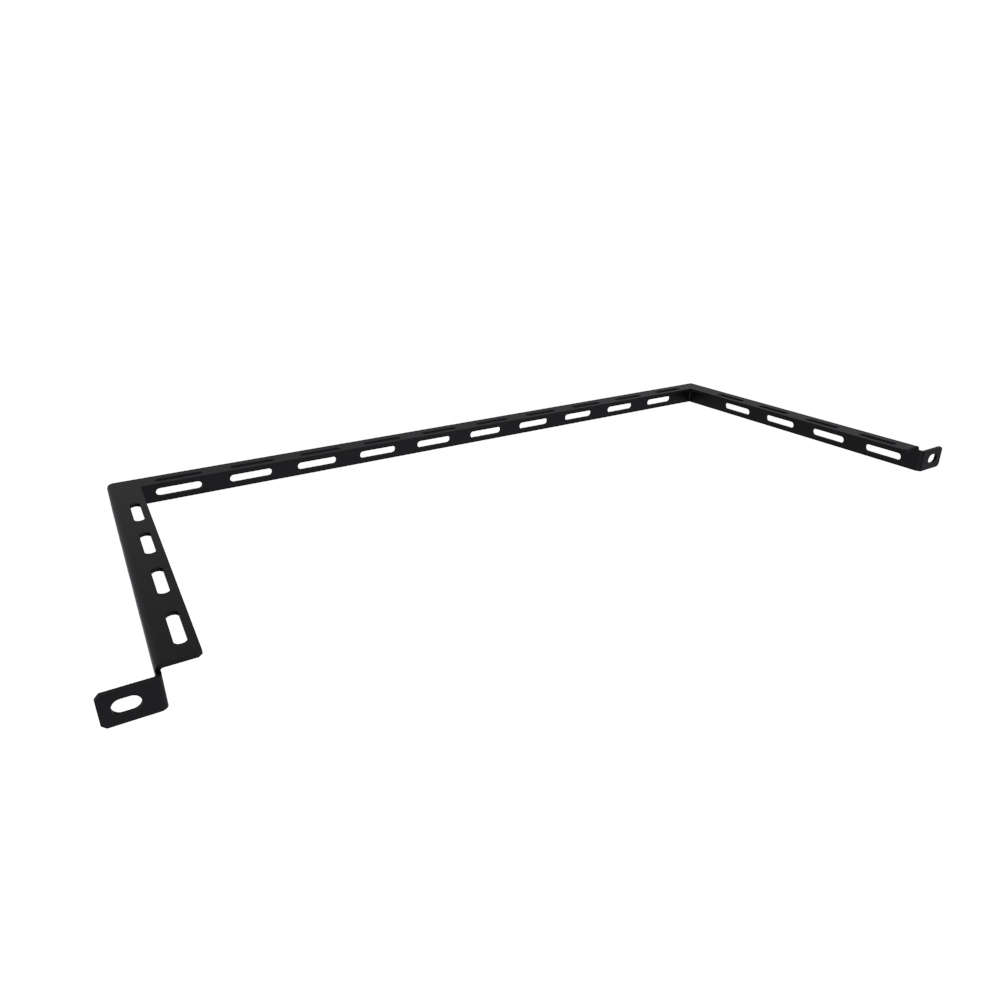

| HCM198BK | 0.62 | 19.00 | 8.00 | 90 Degrees | No | 10 | $123.31In stock | Buy now |
Flat Cable Manager (Sold Individually)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Offset · Angle | Hook and Loop · Included | Qty Included · in Package | Price | Order |
|---|---|---|---|---|---|---|---|---|

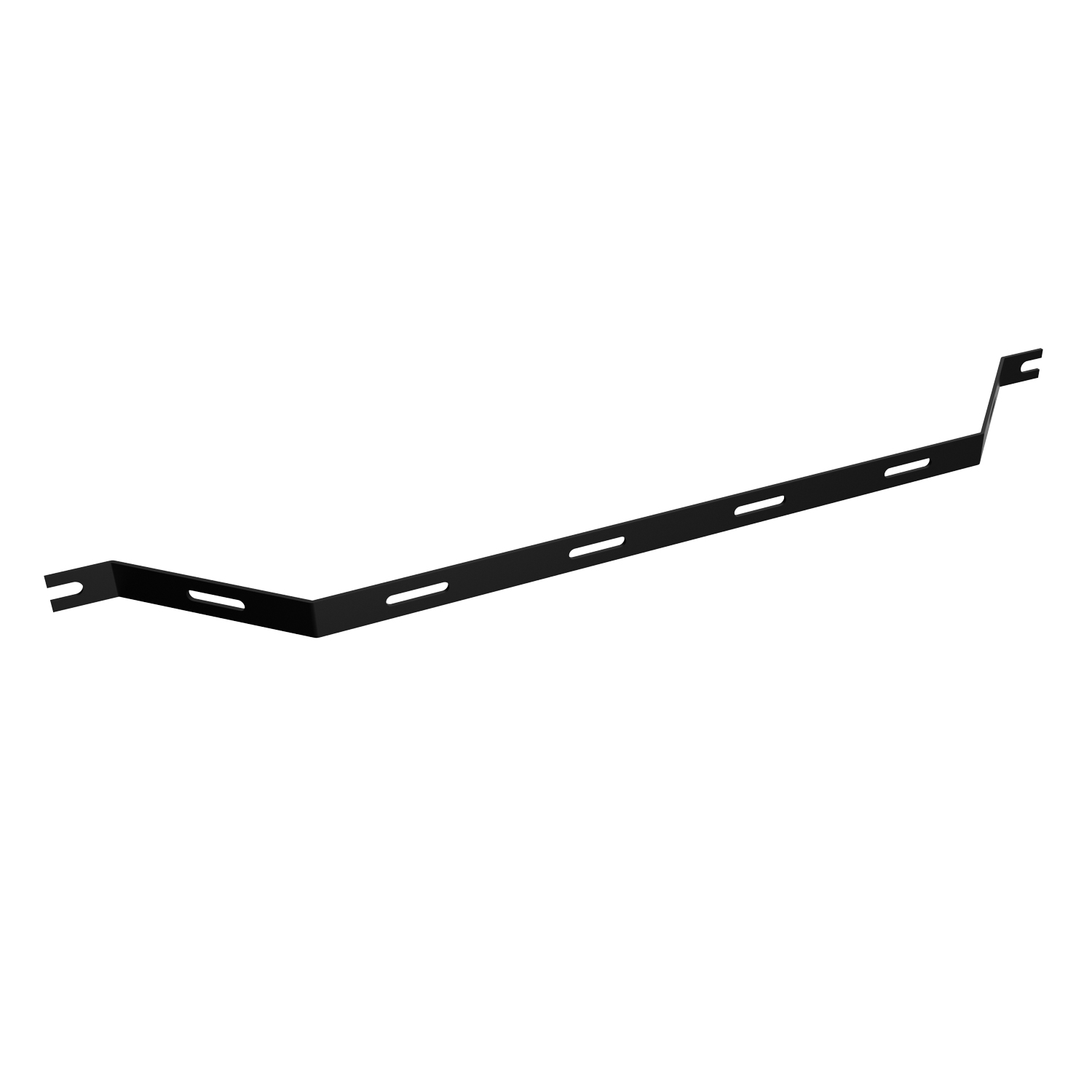

| HCM190UBK1 | 0.62 | 19.00 | 2.50 | 45 Degrees | Yes | 1 | $29.85In stock | Buy now |

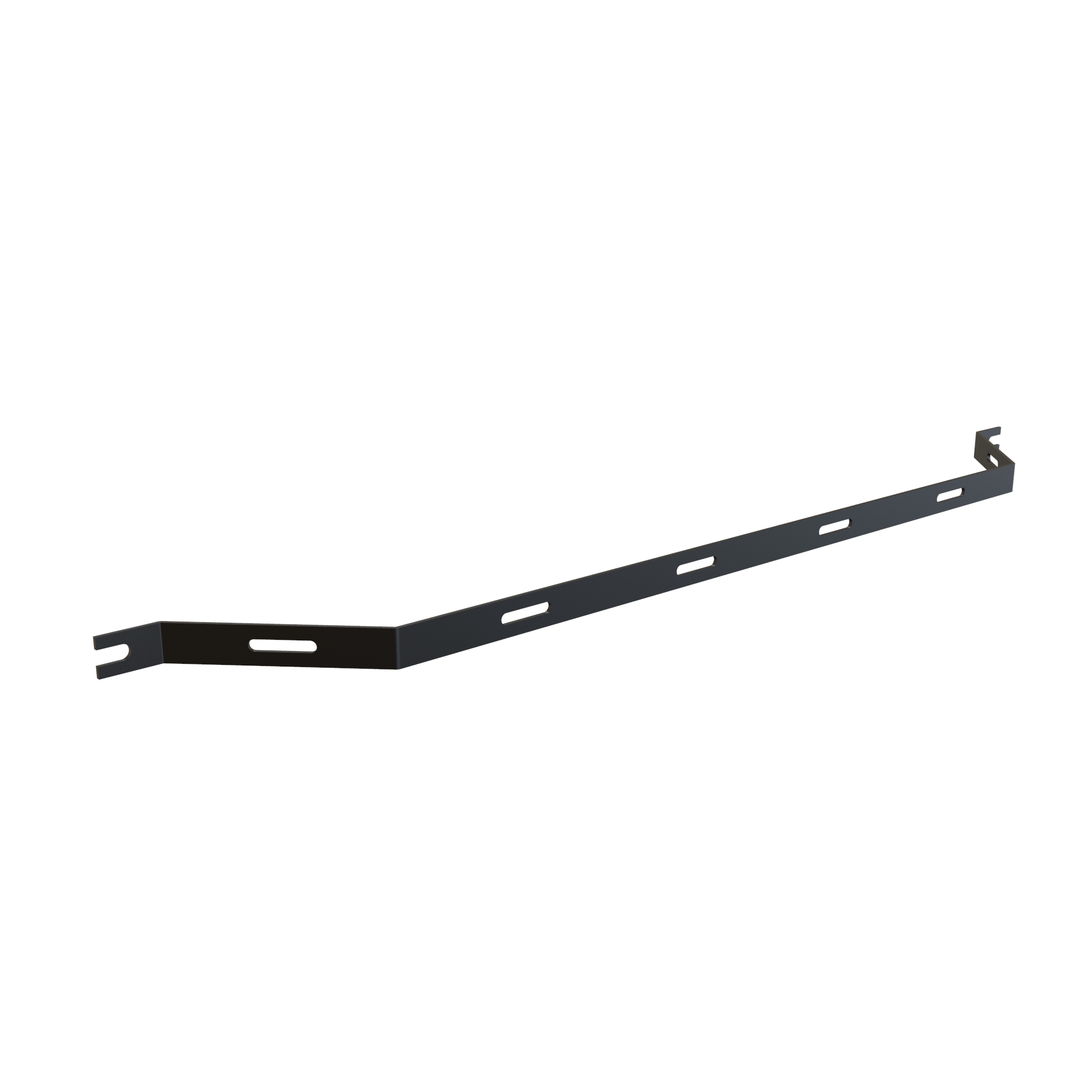

| HCM230UBK1 | 0.62 | 23.00 | 2.50 | 45 Degrees | Yes | 1 | $36.34In stock | Buy now |
Key Features and Benefits
The HCM Series horizontal cable management bars provide a simple and effective solution for supporting and routing cables in 19-inch rack systems. Designed as standoff bars, they create space behind equipment to improve cable organization and reduce strain on connections.
Unlike enclosed cable managers, the HCM Series focuses on cable support and strain relief rather than cable containment. By maintaining proper cable routing paths and spacing, these bars improve airflow, reduce congestion, and enhance long-term reliability in rack installations.
- ■Steel construction provides durable cable support and effective strain relief for IT, AV, and network installations.
- ■Cable management bar design supports routing and anchoring of cable bundles behind rack-mounted equipment.
- ■Mounts to EIA-310 mounting rails, allowing flexible placement without consuming a full rack unit.
- ■Provides standoff spacing from rack rails to improve cable routing and reduce congestion behind equipment.
- ■Reduces strain on connectors and ports by supporting cable weight and maintaining proper bend radius.
- ■Ideal for use behind patch panels, switches, and servers to support cable bundles.
- ■Can be used individually or stacked vertically to support larger cable volumes.
- ■Low-profile design maximizes usable rack space while adding cable support functionality.
- ■Compatible with hook and loop straps such as our TS Series for clean, reusable cable bundling.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.
Documents
Additional information
Where the HCM Series Works Best
- ■Data centers and IT rooms.
- ■Network and telecom installations.
- ■AV and broadcast environments.
- ■Structured cabling deployments.
- ■Installations requiring rear cable support and spacing.
- ■Supporting cable bundles behind patch panels and switches.
- ■Providing strain relief for network and power cables.
- ■Creating standoff space to improve cable routing behind equipment.
- ■Maintaining proper bend radius and reducing connector stress.
- ■Supporting high-density cable installations with stacked configurations.
