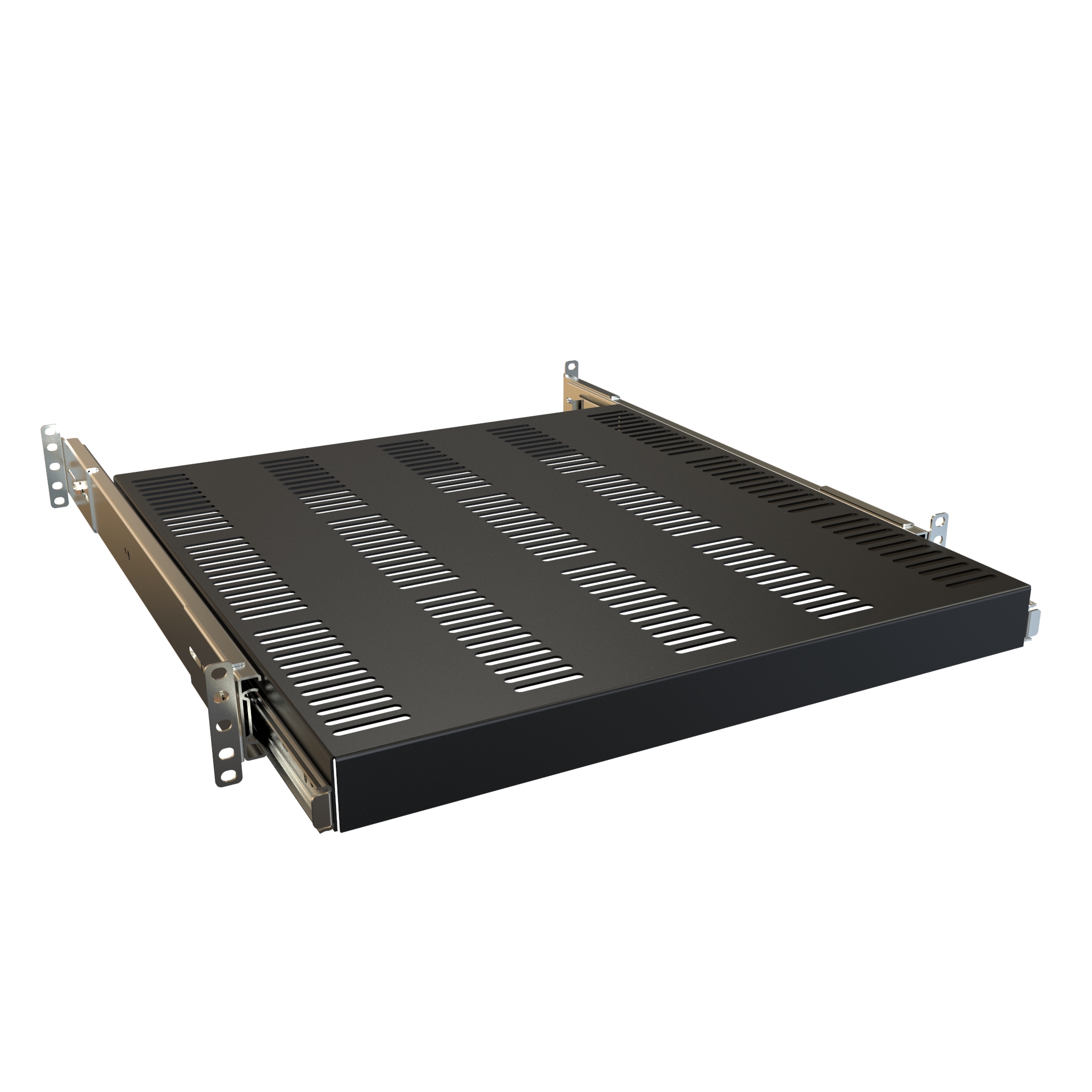

Sliding Adjustable Depth Steel Rack Shelf · RSUS Series

Key Features and Benefits

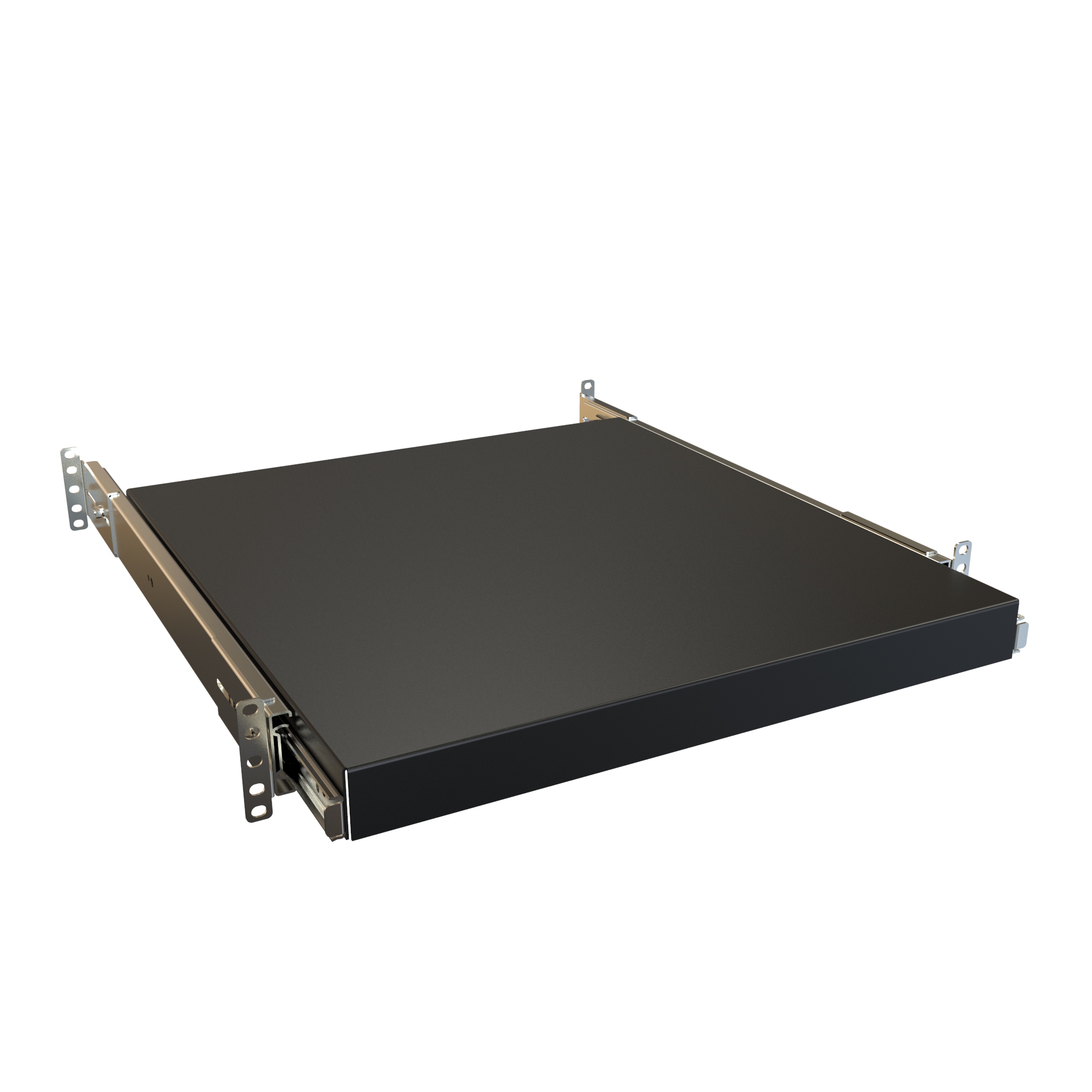

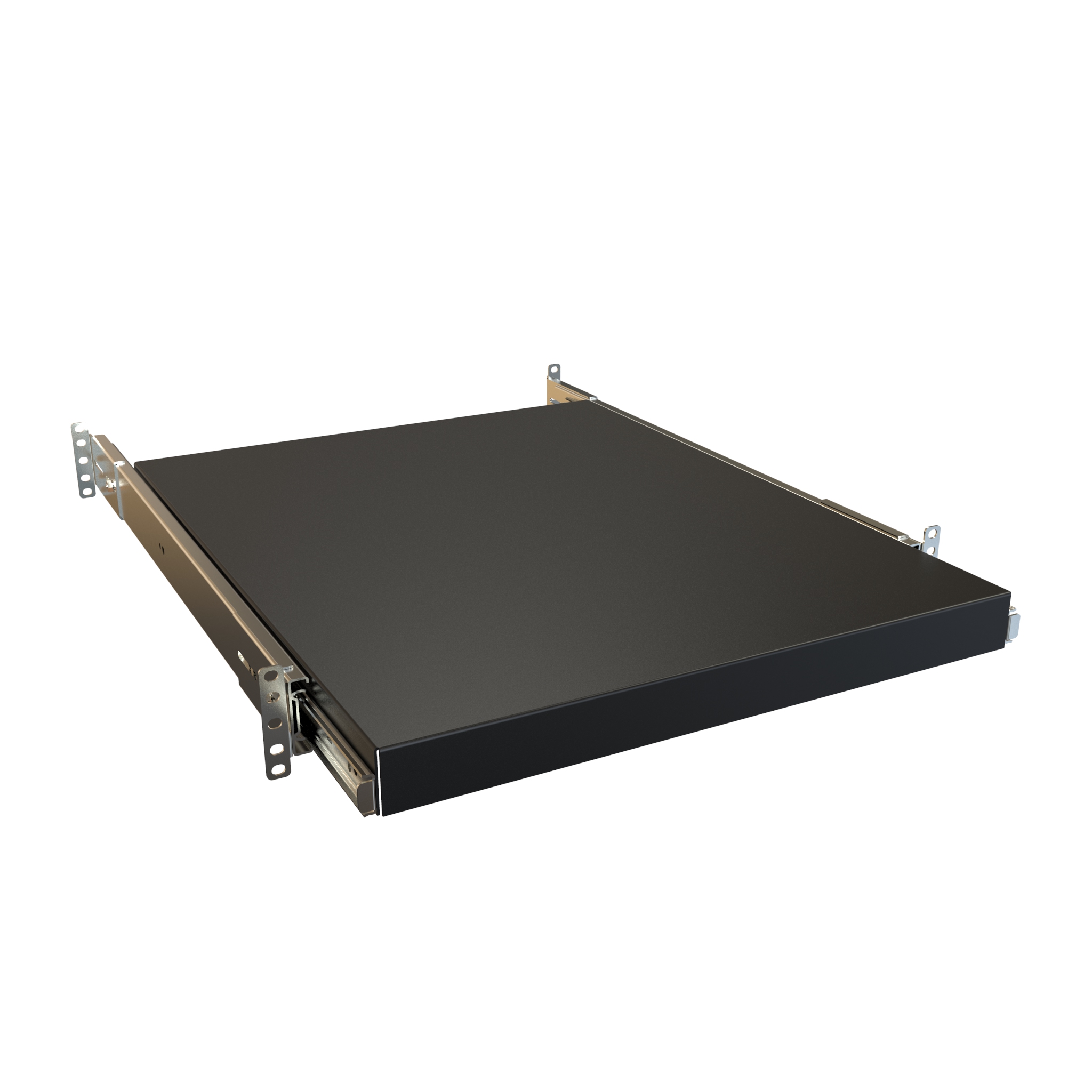

The RSUS Series Sliding Rack Shelf provides convenient access to non-rackmount equipment while accommodating a wide range of rack depths. Its adjustable mounting design, heavy-duty ball-bearing slides, and choice of solid or vented shelves make it an ideal solution for supporting test equipment, servers, UPS units, AV components, and other devices that require regular access.

Available in multiple shelf depths with load capacities up to 130 pounds, the RSUS Series combines smooth sliding operation with durable steel construction for dependable performance in data centers, telecommunications rooms, industrial facilities, and AV installations. Manufactured in North America, it delivers the flexibility and reliability needed for demanding rack applications.

• ■16-gauge steel construction supports up to 130 lb (59 kg) while providing a durable sliding platform for non-rackmount equipment in standard 4-post racks and cabinets.
• ■Adjustable mounting design fits rail depths from 6 to 28 inches, depending on the model, making it compatible with a wide range of server cabinets and open frame racks.

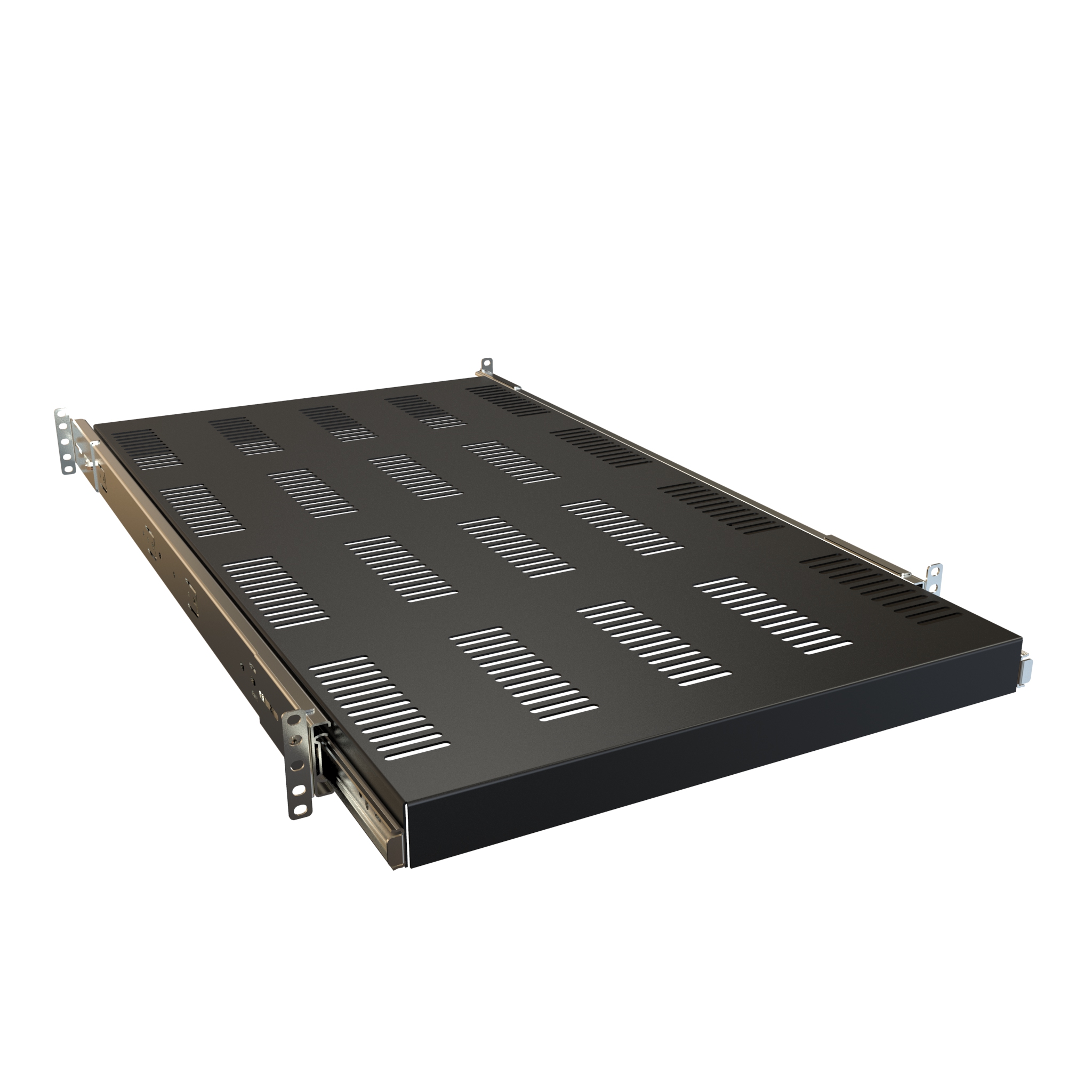

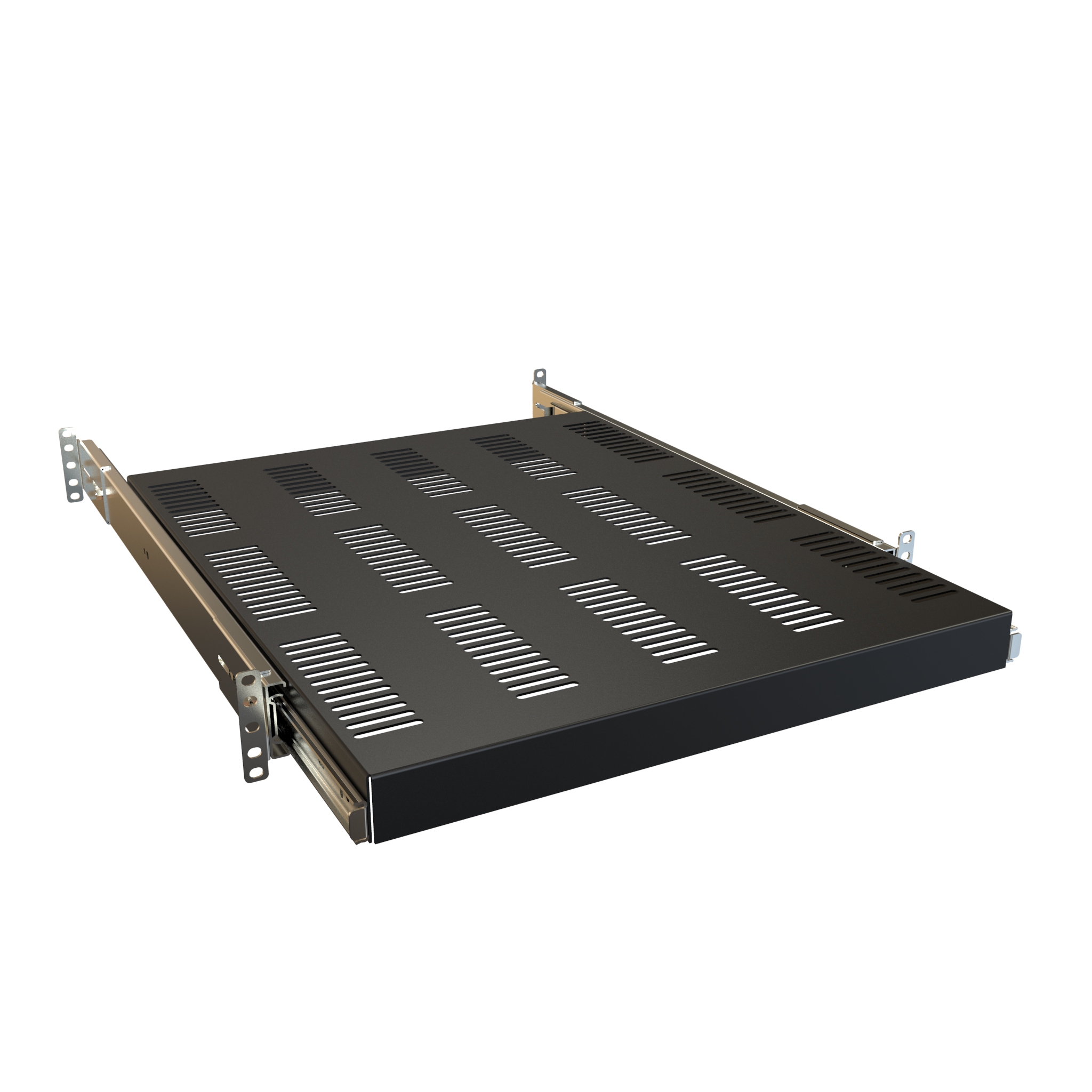

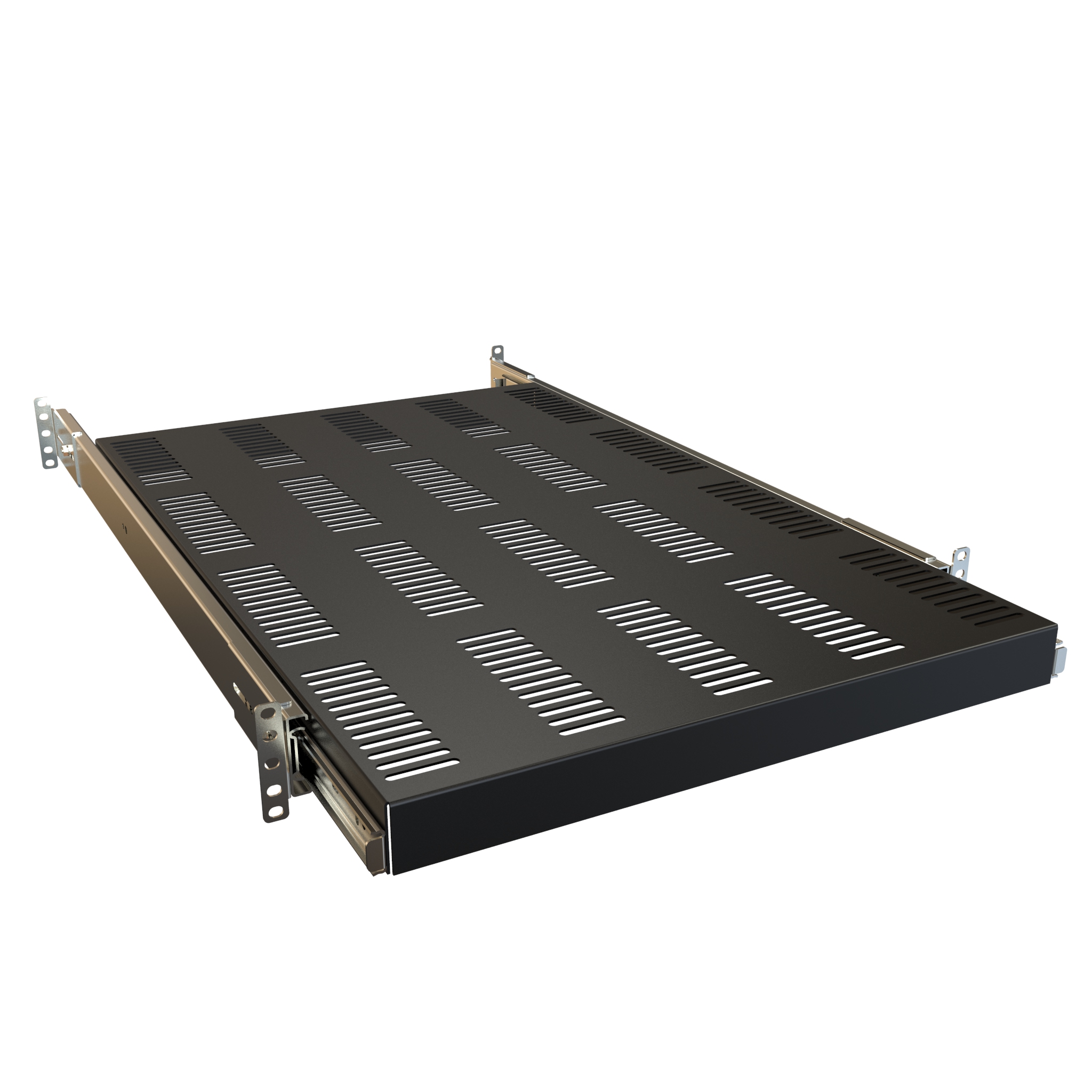

• ■Available in solid or vented configurations to maximize equipment support or improve airflow around heat-generating devices.
• ■Heavy-duty ball-bearing slides provide smooth operation and include an integrated stop mechanism to prevent the shelf from accidentally pulling completely out during servicing.

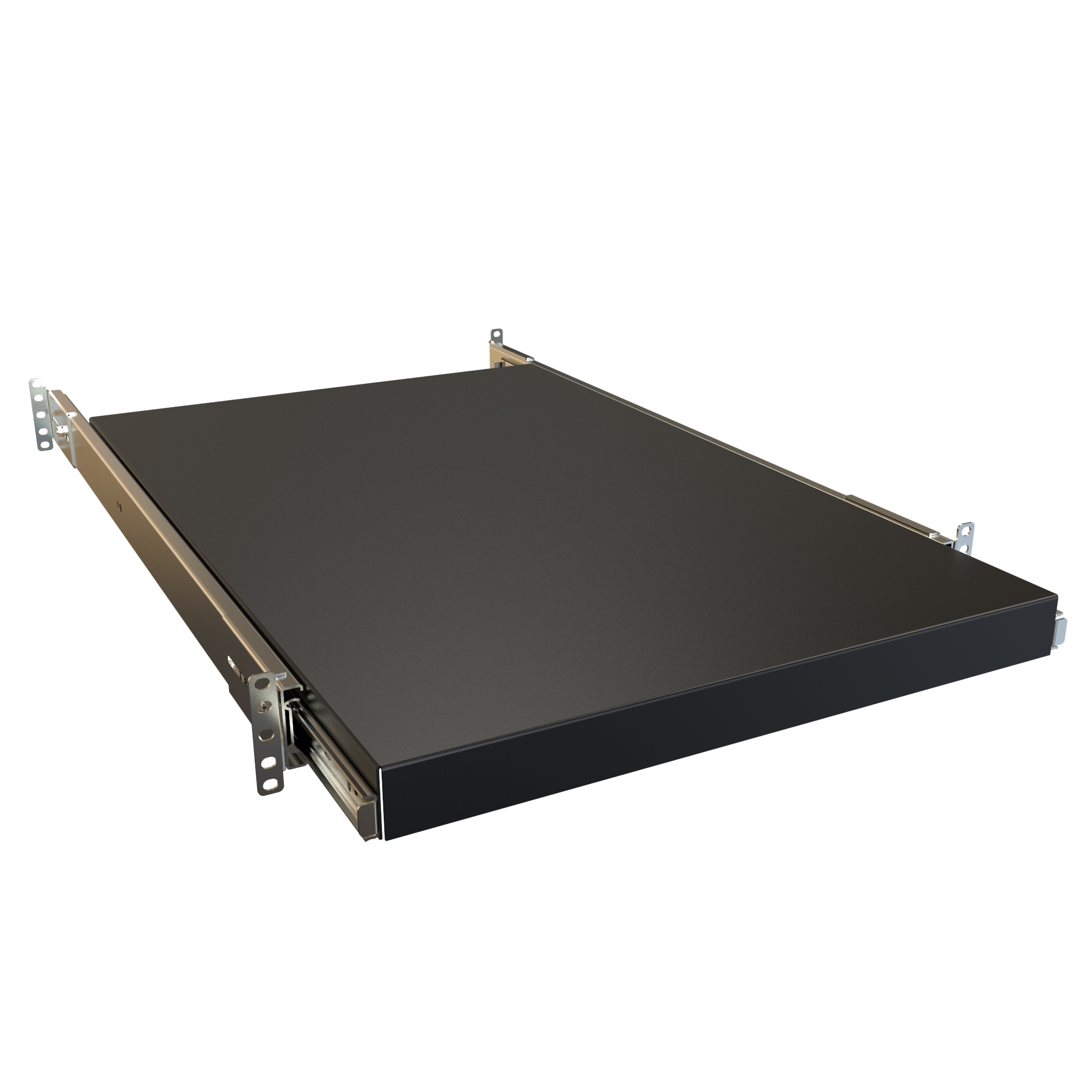

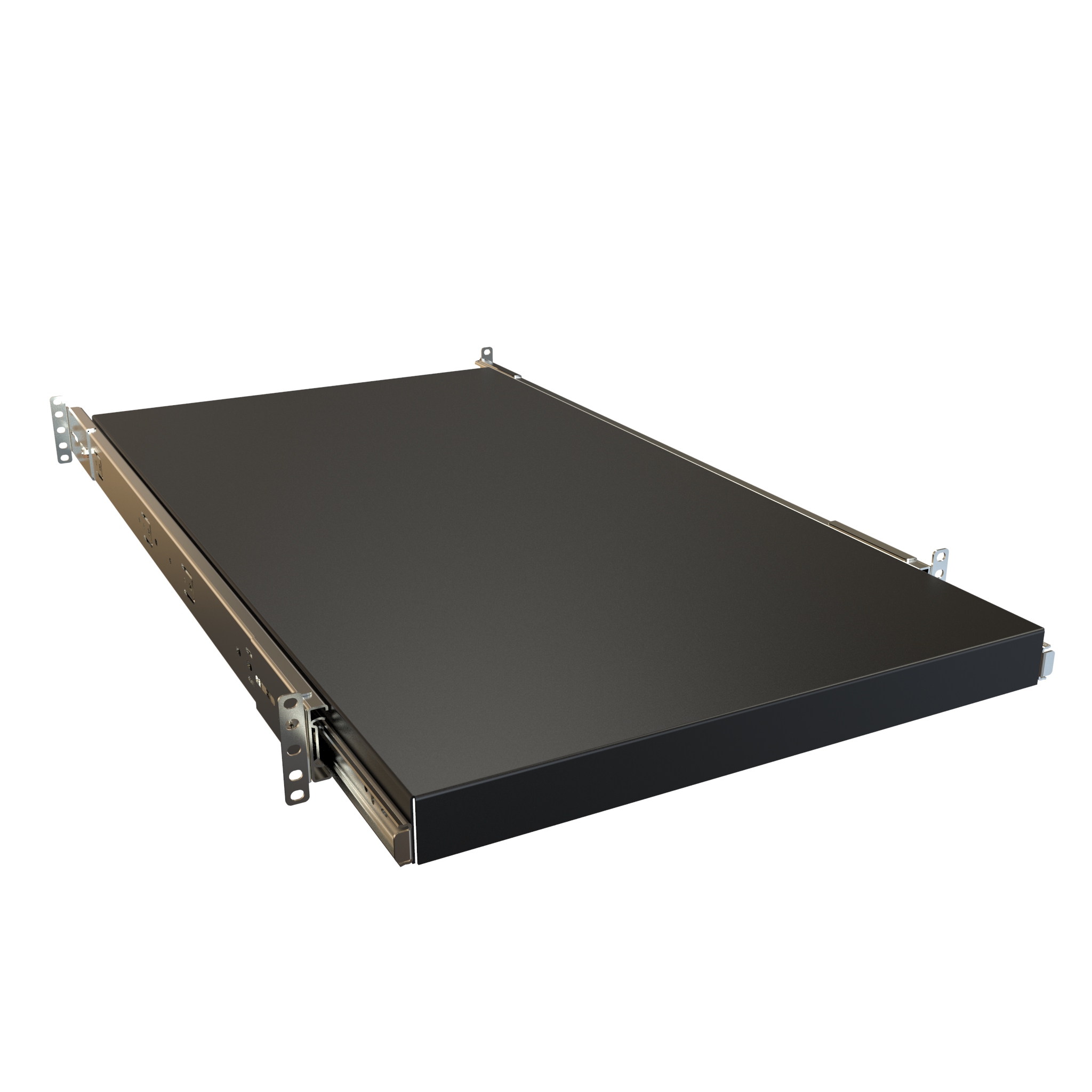

• ■Offered in 18, 21, 26, and 31-inch shelf depths with slide travel up to 28 inches, allowing equipment to be fully extended for maintenance and service.

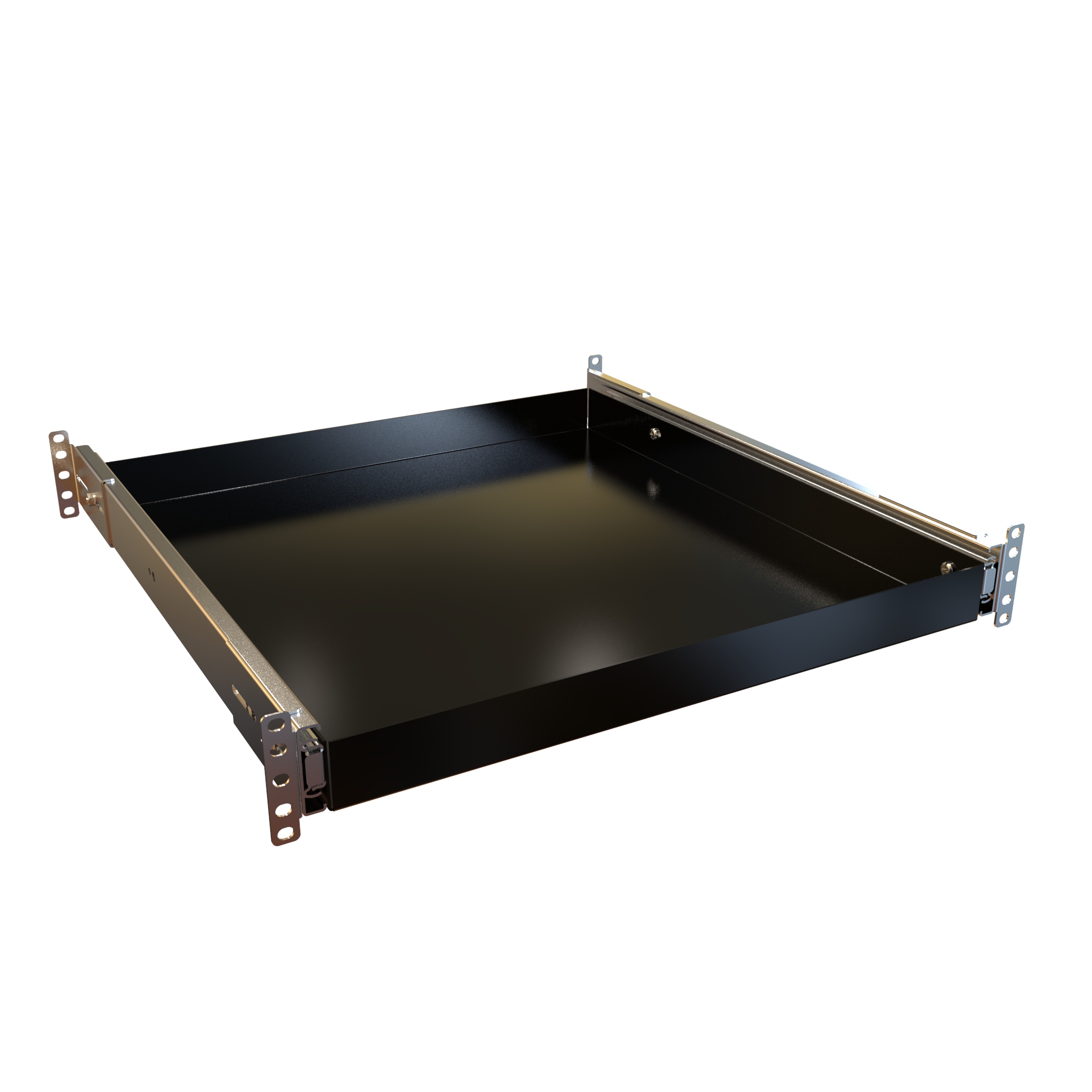

• ■Can be used as a traditional equipment shelf or as a service tray for temporarily supporting equipment during installation and maintenance.
• ■Designed for installation in 4-post racks and cabinets and requires two pairs of mounting rails. The shelf occupies 2U of rack space and requires 3U of clearance.
• ■Ball-bearing slides are tested to BIFMA standards for a minimum of 55,000 cycles, ensuring dependable long-term operation.
• ■Manufactured in North America, ensuring consistent quality, materials, and production standards.
• ■TAA-compliant, manufactured in North America within an ISO 9001 certified facility.
• ■Black powder coat finish (GREENGUARD Gold Certified, TSCA, and RoHS compliant) provides a durable, environmentally responsible finish.

When Another Product May Be a Better Choice

• ■When you need a higher-capacity adjustable sliding shelf, consider our RSP Series .
