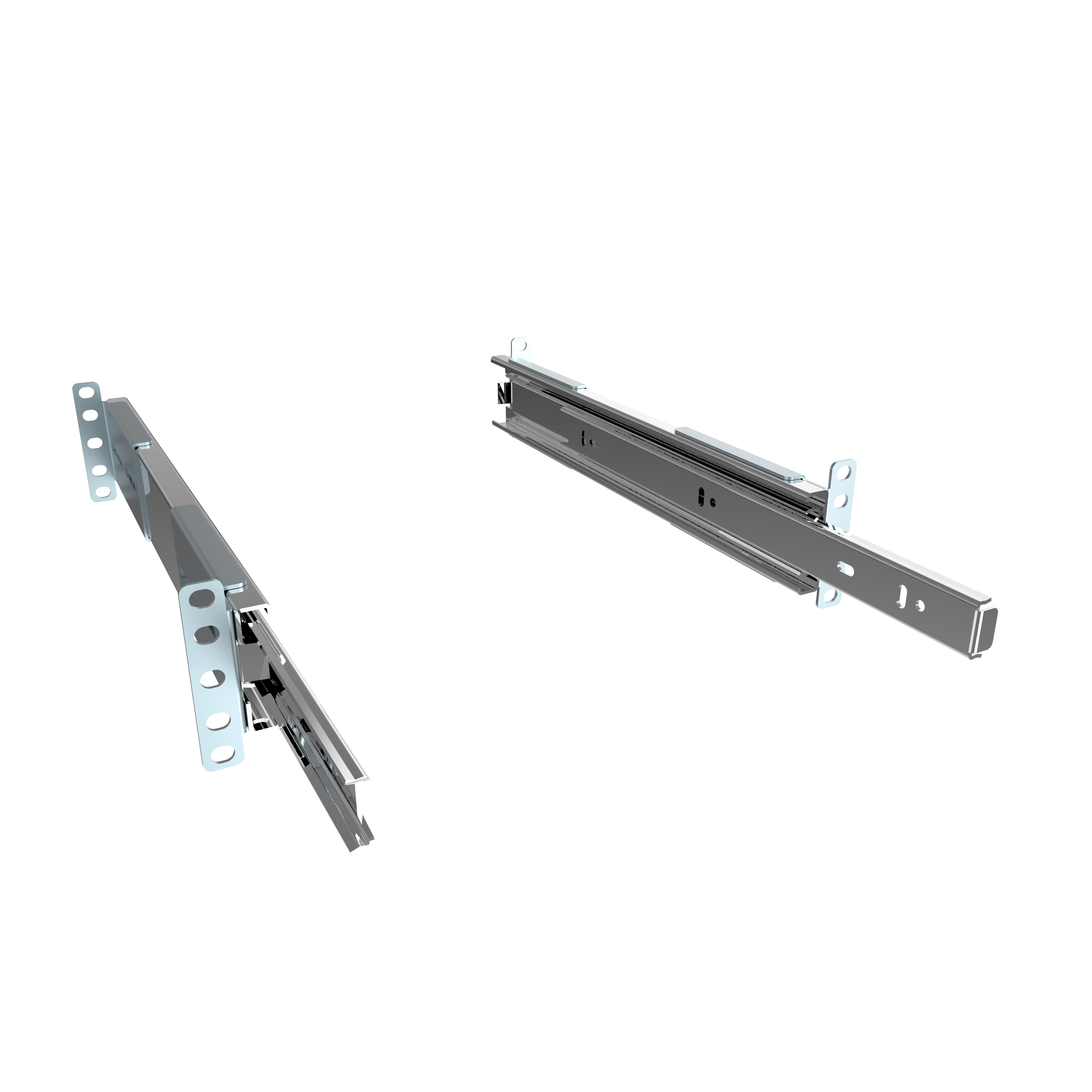

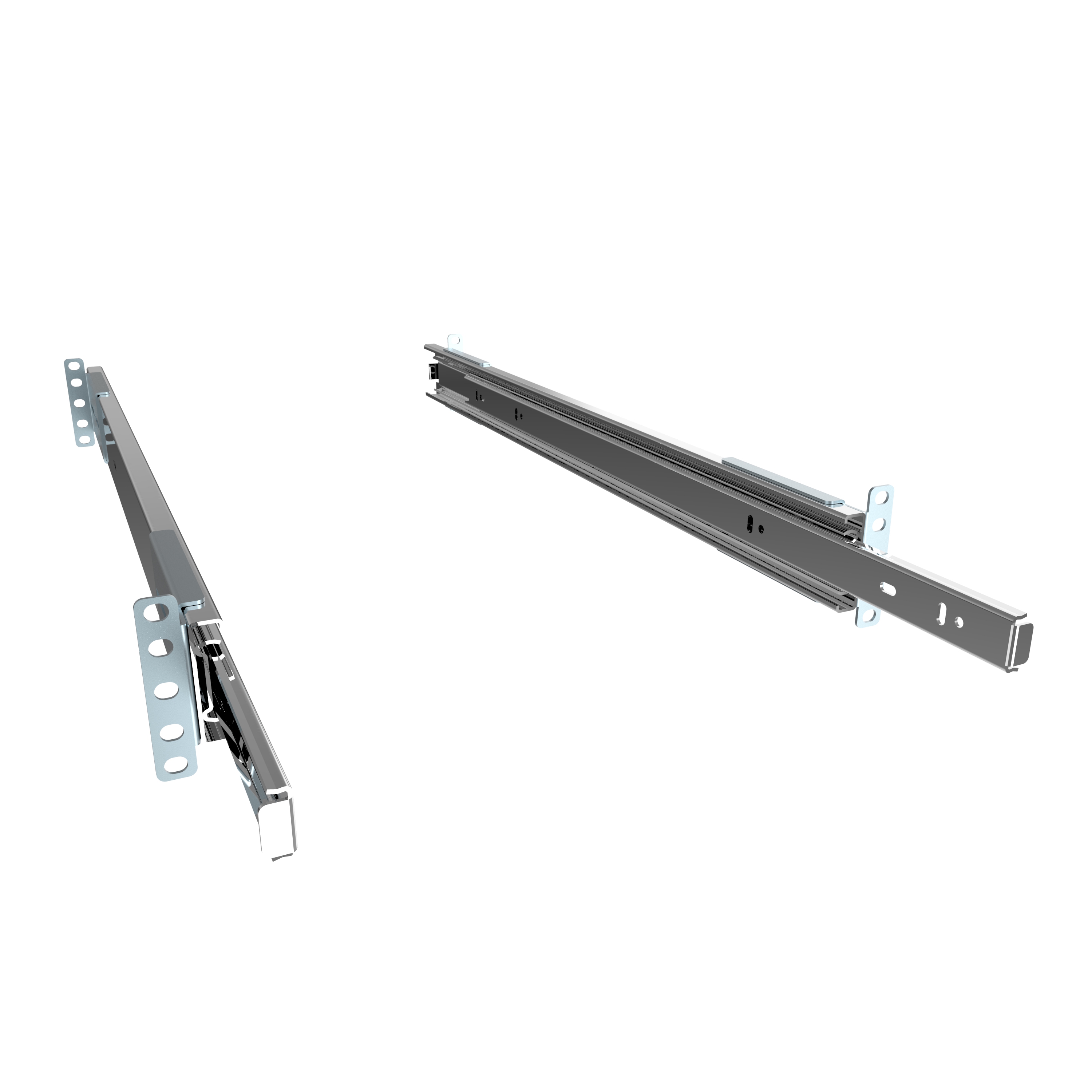

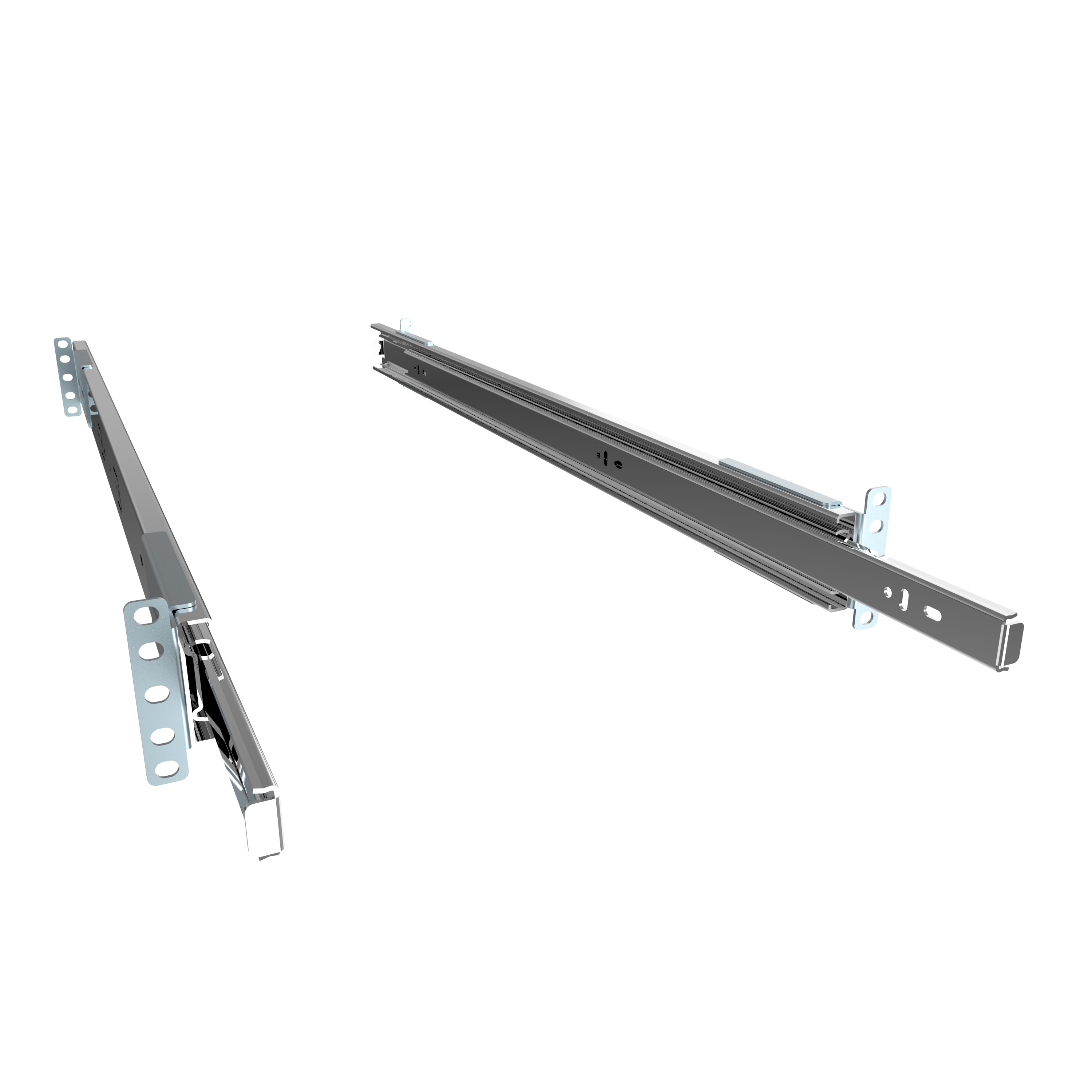

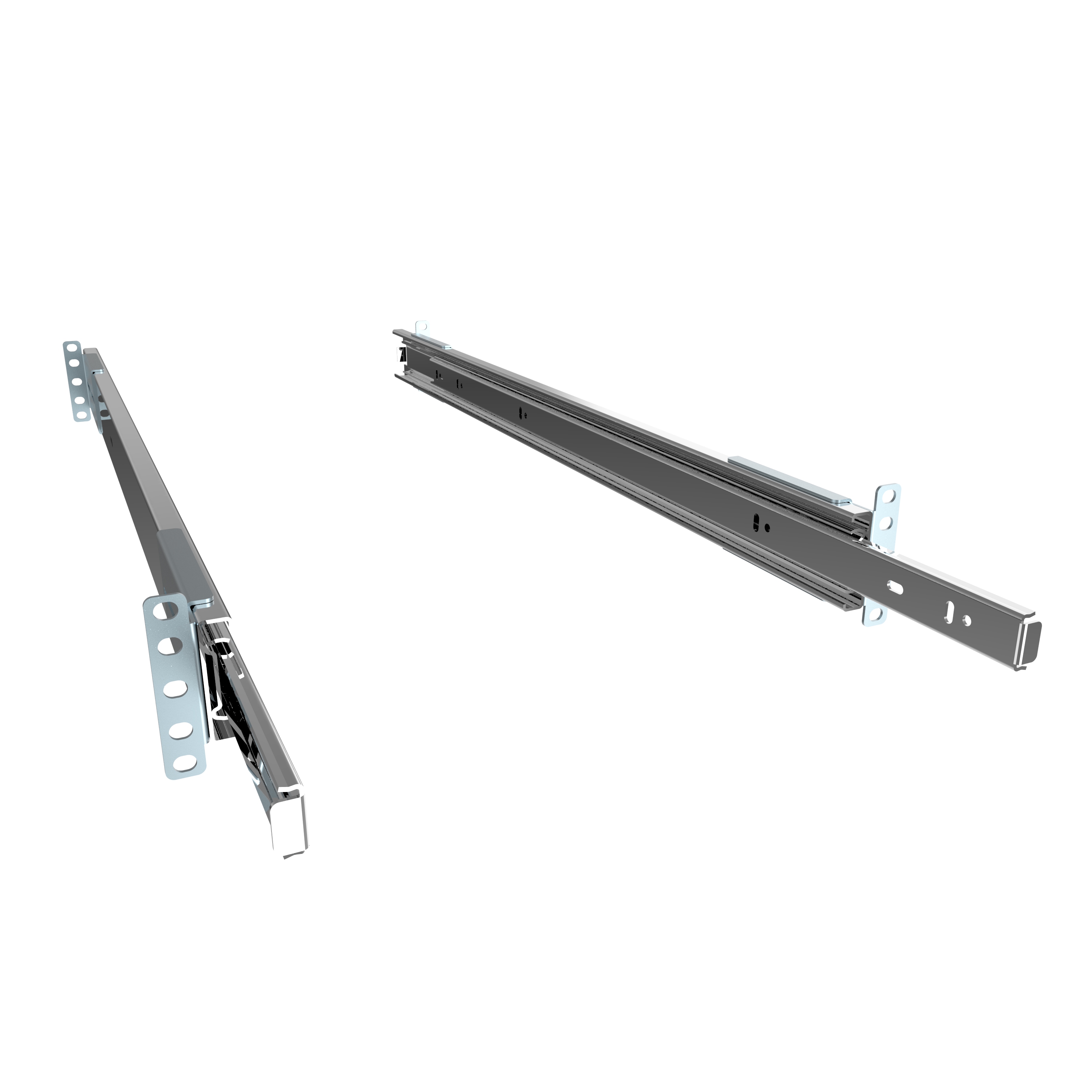

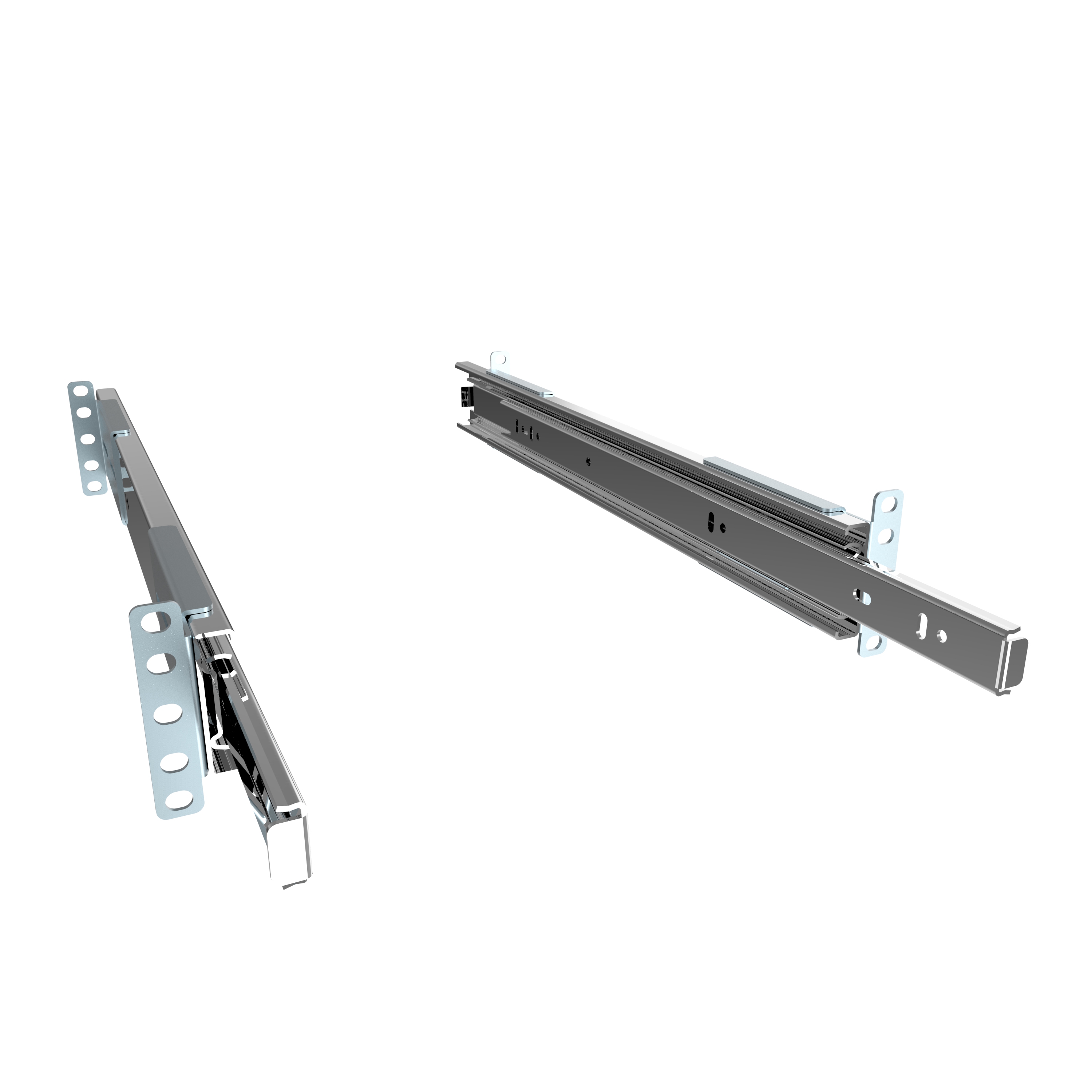

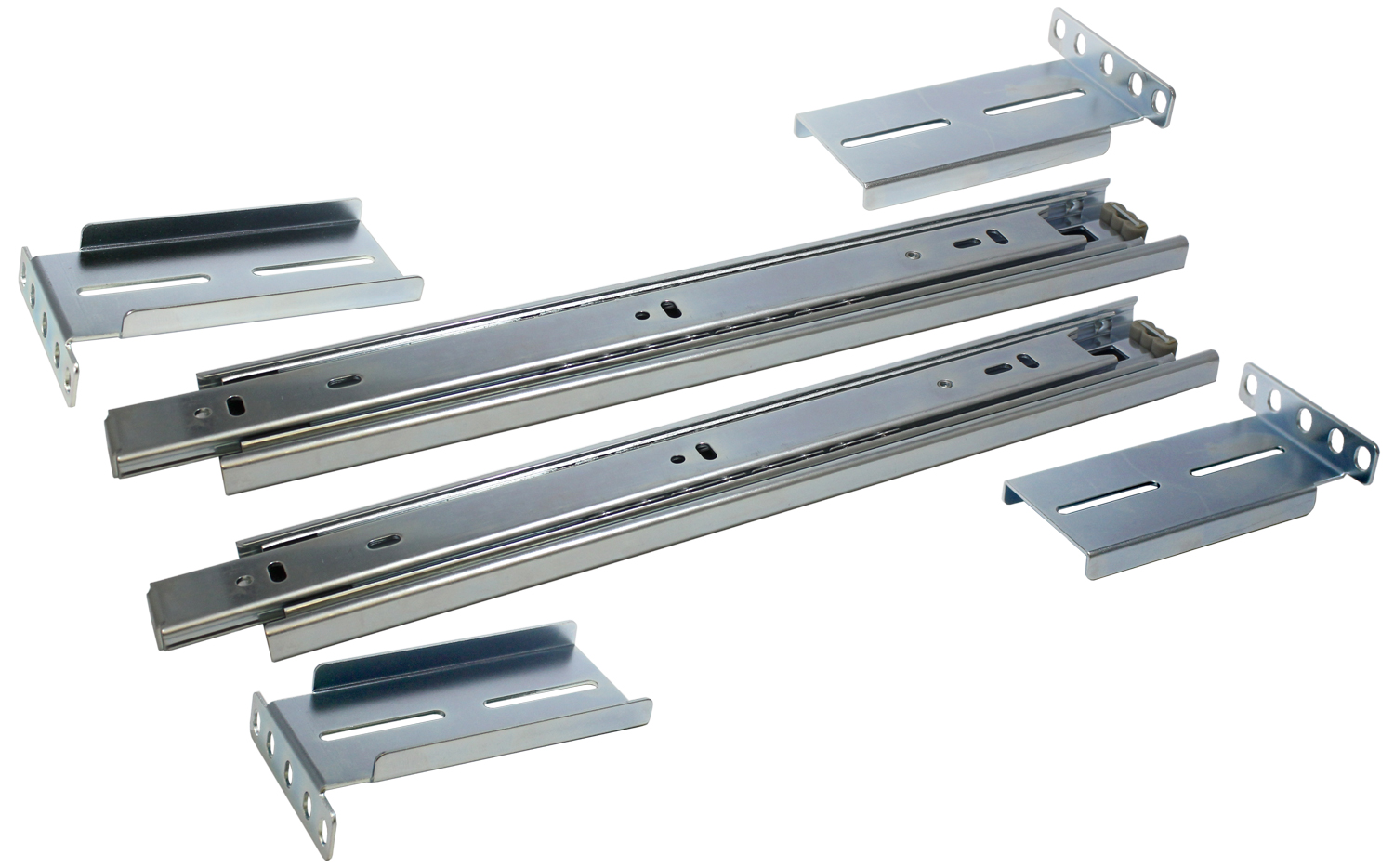

Universal Rack Mount Slide Rail Kit · RSLIDE Series

Key Features and Benefits

The RSLIDE Series Universal Rack Mount Slide Rail Kit provides a flexible mounting solution for OEM equipment, custom chassis, industrial electronics, and replacement rack rail applications. Unlike proprietary server rails that only fit a single manufacturer, the RSLIDE Series is designed to adapt to a wide range of standard 19-inch equipment racks and cabinets, making it an ideal choice for equipment manufacturers, system integrators, and retrofit projects.

Heavy-duty ball-bearing slides deliver smooth extension while supporting loads up to 145 pounds. Adjustable mounting depth, multiple slide lengths, and a built-in positive stop allow designers to integrate sliding equipment into new or existing rack systems with confidence. Whether replacing discontinued rails, building a custom server, or creating a sliding industrial chassis, the RSLIDE Series offers a dependable universal solution.

• ■Heavy-duty ball-bearing slide rails support up to 145 lb (65 kg), providing smooth, reliable extension for custom chassis, electronic equipment, and sliding shelves.
• ■Universal adjustable mounting depth accommodates a wide range of rack and cabinet depths, making the kit compatible with Hammond products as well as many third-party racks and enclosures.
• ■Designed as an OEM mounting solution for custom-built equipment, industrial electronics, servers, instrumentation, battery systems, and chassis requiring sliding access.
• ■Supports equipment up to 16.64 inches wide between the slide rails, allowing integration into a wide variety of custom equipment designs.
• ■Built-in positive stop mechanism helps prevent equipment from accidentally sliding completely out of the rails during servicing.
• ■Precision double-rail ball-bearing construction provides smooth operation while supporting frequent servicing and maintenance.
• ■Tested to BIFMA durability standards for a minimum of 55,000 operating cycles, demonstrating long-term reliability in demanding environments.
• ■Available in multiple slide lengths from 12 to 28 inches to match virtually any rack-mounted equipment design.
• ■Zinc-plated finish provides excellent corrosion resistance for long service life.
• ■RoHS compliant.
