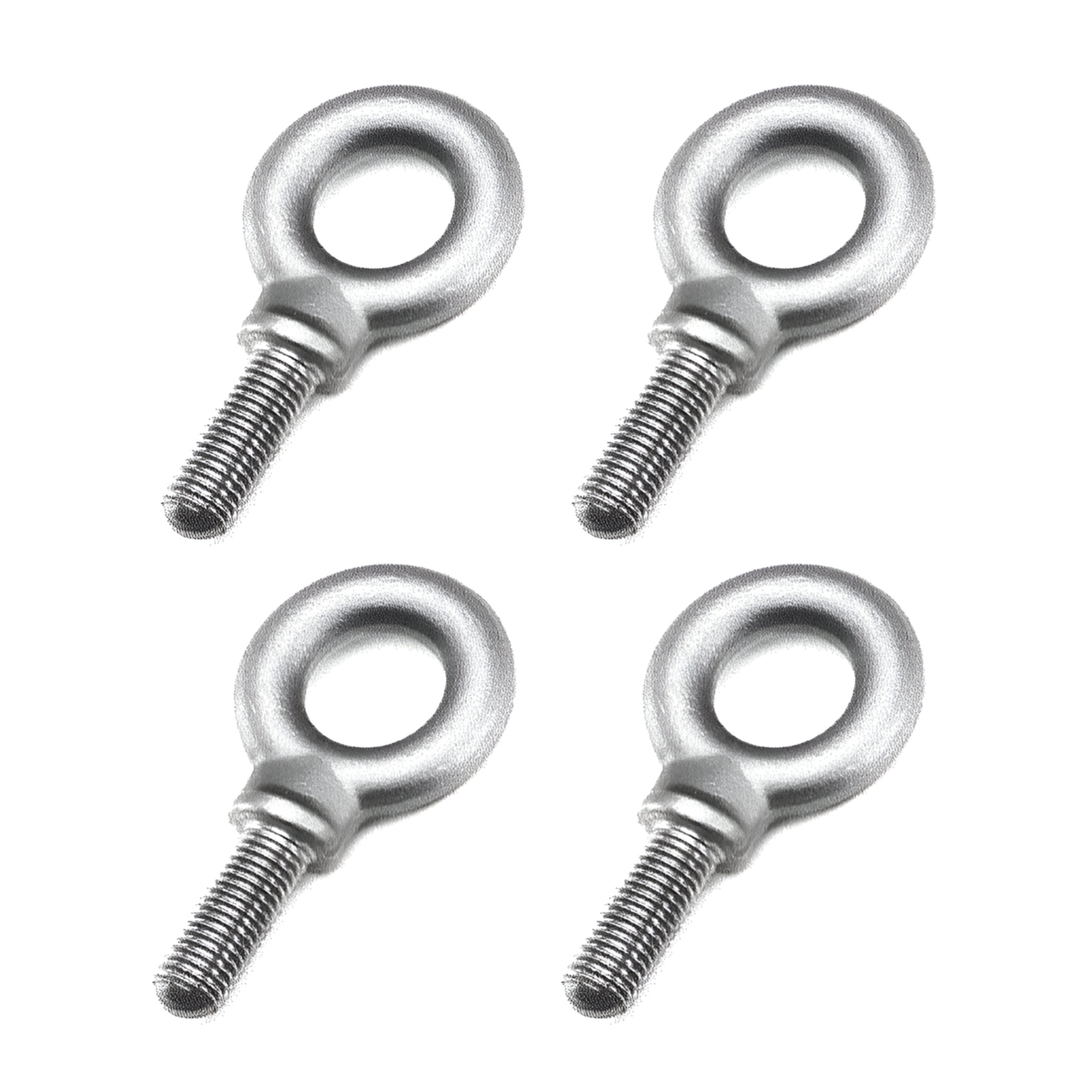

Lifting Eye Bolt Kit · HDMELB Series

Brand: Hammond Manufacturing · 1 part number

Heavy-duty lifting eye bolt kit designed for safe handling and positioning of Hammond cabinets.

■Constructed of C1030/C1035 Carbon Steel.
■Helps simplify enclosure transport, positioning, and installation in industrial environments.
■Supports safer lifting practices when moving large modular enclosure systems.
■Sold in packs of four (4) for complete enclosure lifting support.
■Mounts to the front rails and rests against the body of the cabinet or rack.
■ASTM B633 Zinc-plated finished, FE/Zn 5, Type III.

from $51.92

1 of 1 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your HDMELB Series part number

Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

1 of 1 part numbers · 1 priced online

HDMELB

Lifting Eyebolts For Hdme

$51.92In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	A · Thrd Dia-TPI · (UNC-2A*)	B · Shank · Length	C · Eye · I.D.	D · Eye O.D. · (Nominal)	F · Eye · Sect. Ø	G · Collar · Diameter	H · Collar · Thickness	J · Loaction	Price	Order
HDMELB	1/2-13	1.56	1.19	2.12	0.47	0.91	0.22	1.38	$51.92In stock	Buy now

Features

■Constructed of C1030/C1035 Carbon Steel.
■Helps simplify enclosure transport, positioning, and installation in industrial environments.
■Supports safer lifting practices when moving large modular enclosure systems.
■Sold in packs of four (4) for complete enclosure lifting support.
■Mounts to the front rails and rests against the body of the cabinet or rack.
■ASTM B633 Zinc-plated finished, FE/Zn 5, Type III.
■2,400 lbs (1,088.62 kg) load rating.
■RoHS Compliant.
