LED Light AC W/Switch Screw Mt
- Voltage 90-260V AC
- On/Off Switch
- Mount Screw
- Max Daisy Chain 8
$207.97In stock
Buy now

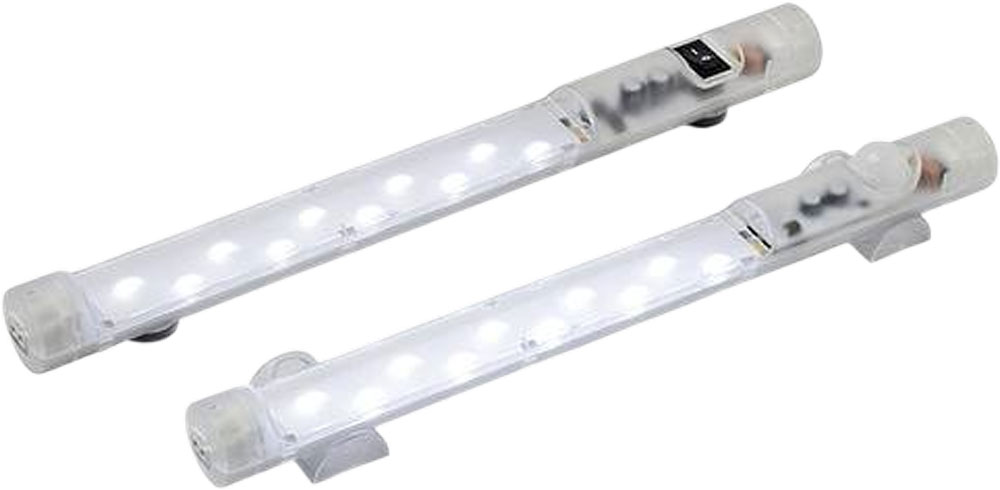

Compact LED Light Kit · LEDLK Series
Brand: Hammond Manufacturing · 15 part numbers
- ■Housing constructed in transparent plastic.
- ■Screw mounting and magnet mounting options - see chart.
- ■Rocker switch or motion sensor options - see chart.
- ■Easily connect up to ten (10) light kits together in a daisy chain using LEDXXCORDCON cords. (LEDACNS-ECON cannot be daisy chained).
- ■Connection: 2-pole plug with snap lock; AC: max. 2.5 A / AC 240 V, white connector; DC: max. 2.5 A / DC 60 V, blue connector. (LEDACNS-ECON wired directly, Cage clamp connections).
- ■Requires hard-wired connection using LEDXXCORDPOW power cord with leads and plug or power brick (not included). (LEDACNS-ECON wired directly, not using accessory power cord).
from $11.43
13 of 15 part numbers priced · in stock · ships by ground · volume pricing on request
Note that the cord on this product is intended to be hard-wired. There are currently no standard plug types for this product.
Configure & price
Find your LEDLK Series part number
Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
15 of 15 part numbers · 13 priced online
10-32 Spring Nut/Screws (4EA)
$11.43In stock

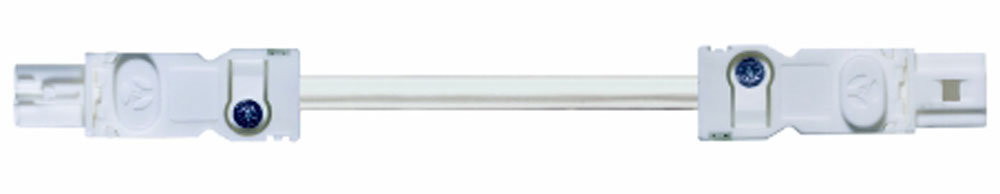

Buy nowLED Light AC Connect Cord 1M
- Type Connector/Daisy Chain Cord
- Source AC
$39.26In stock

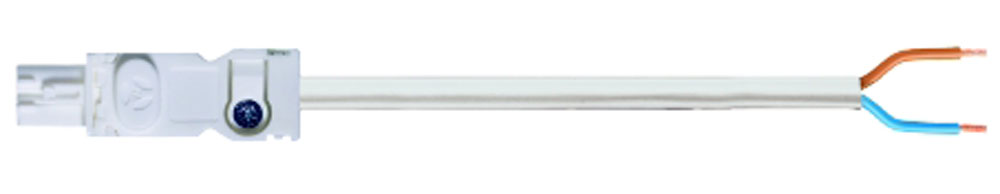

Buy nowLED Light AC Power Cord 2M
- Type Power Cord w/leads
- Source AC
$32.19In stock
Buy nowLED Light AC W/Sensor Mag Mt
- Voltage 90-260V AC
- On/Off Sensor
- Mount Magnet
- Max Daisy Chain 10
$222.82In stock
Buy nowLED Light AC W/Sensor Screw Mt
- Voltage 90-260V AC
- On/Off Sensor
- Mount Screw
- Max Daisy Chain 10
$222.82In stock
Buy nowLED Light AC No Sw/Sen Scr Mounting
- Voltage 90-260V AC
- On/Off NA
- Mount Screw
- Max Daisy Chain NA
QuoteRequest a quote
LED Light AC W/Switch Mag Mt
- Voltage 90-260V AC
- On/Off Switch
- Mount Magnet
- Max Daisy Chain 10
$143.69In stock
Buy nowLED Light AC W/Switch Screw Mt
- Voltage 90-260V AC
- On/Off Switch
- Mount Screw
- Max Daisy Chain 10
$143.69In stock
Buy nowLED Light DC Connect Cord 1M
- Type Connector/Daisy Chain Cord
- Source DC
$39.26In stock
Buy nowLED Light DC Power Cord 2M
- Type Power Cord w/leads
- Source DC
$32.19In stock
Buy nowLED Light DC W/Sensor Mag Mt
- Voltage 20-60V DC
- On/Off Sensor
- Mount Magnet
- Max Daisy Chain 10
$286.32In stock
Buy nowLED Light DC W/Sensor Screw Mt
- Voltage 20-60V DC
- On/Off Sensor
- Mount Screw
- Max Daisy Chain 10
$286.32In stock
Buy nowLED Light DC W/Switch Mag Mt
- Voltage 20-60V DC
- On/Off Switch
- Mount Magnet
- Max Daisy Chain 10
$205.14In stock
Buy nowLED Light DC W/Switch Screw Mt
- Voltage 20-60V DC
- On/Off Switch
- Mount Screw
- Max Daisy Chain 10
QuoteRequest a quote

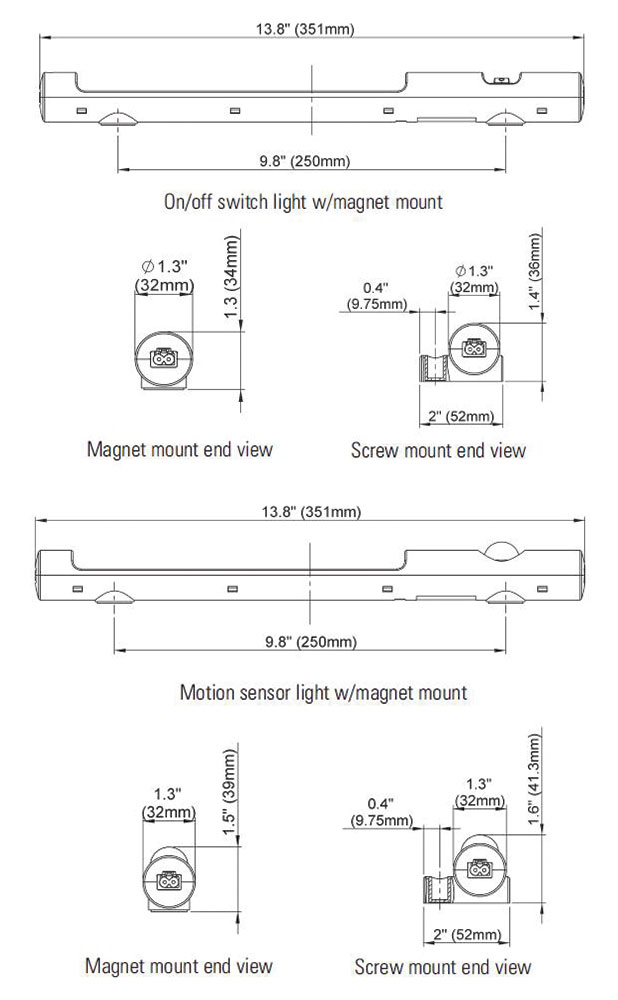

Dimension tables (inches / mm)
LED Light Kits
| Part No. | Voltage | On/Off | Mount | Max Daisy Chain | Price | Order |
|---|---|---|---|---|---|---|
| LEDACSWMAG | 90-260V AC | Switch | Magnet | 10 | $143.69In stock | Buy now |
| LEDACMSMAG | 90-260V AC | Sensor | Magnet | 10 | $222.82In stock | Buy now |
| LEDACSWSCR | 90-260V AC | Switch | Screw | 10 | $143.69In stock | Buy now |
| LEDACMSSCR | 90-260V AC | Sensor | Screw | 10 | $222.82In stock | Buy now |
| LEDACNS-ECON | 90-260V AC | NA | Screw | NA | Quote | Quote |
| LEDDCSWMAG | 20-60V DC | Switch | Magnet | 10 | $205.14In stock | Buy now |
| LEDDCMSMAG | 20-60V DC | Sensor | Magnet | 10 | $286.32In stock | Buy now |
| LEDDCSWSCR | 20-60V DC | Switch | Screw | 10 | Quote | Quote |
| LEDDCMSSCR | 20-60V DC | Sensor | Screw | 10 | $286.32In stock | Buy now |
HD LED Light
| Part No. | Voltage | On/Off | Mount | Max Daisy Chain | Price | Order |
|---|---|---|---|---|---|---|
| HDLED120SCR | 90-260V AC | Switch | Screw | 8 | $207.97In stock | Buy now |
LED Light Kit Cords
Units shown: inch . Switch units to: mm
| Part No. | Type | Source | Length | Price | Order |
|---|---|---|---|---|---|
| LEDACCORDPOW | Power Cord w/leads | AC | 78.75 | $32.19In stock | Buy now |
| LEDDCCORDPOW | Power Cord w/leads | DC | 78.75 | $32.19In stock | Buy now |
| LEDACCORDCON | Connector/Daisy Chain Cord | AC | 39.38 | $39.26In stock | Buy now |
| LEDDCCORDCON | Connector/Daisy Chain Cord | DC | 39.38 | $39.26In stock | Buy now |
Features
- ■Housing constructed in transparent plastic.
- ■Screw mounting and magnet mounting options - see chart.
- ■Rocker switch or motion sensor options - see chart.
- ■Easily connect up to ten (10) light kits together in a daisy chain using LEDXXCORDCON cords. (LEDACNS-ECON cannot be daisy chained).
- ■Connection: 2-pole plug with snap lock; AC: max. 2.5 A / AC 240 V, white connector; DC: max. 2.5 A / DC 60 V, blue connector. (LEDACNS-ECON wired directly, Cage clamp connections).
- ■Requires hard-wired connection using LEDXXCORDPOW power cord with leads and plug or power brick (not included). (LEDACNS-ECON wired directly, not using accessory power cord).
Specifications
- ■Standard LED provide 400 Lm at 120° (1,200 Lm at 360° or equivalent 95W light bulb). HD LED provides 1700 Lm.
- ■Standard LED lamp length 13.82" (350mm), HD LED Lamp length 23.62" (600mm)
- ■LED temperature 6,000 to 7,000 K.
- ■Operating / Storage temperature: -40 to +104 °F (-40 to +40 °C) / -40 to +185 °F (-40 to +85 °C).
- ■Operating / Storage humidity: max. 90 %RH (non-condensing).
- ■Service life: 60,000 hrs. at 68 °F (20 °C).
- ■Max. 5W power consumption (~ 75 W incandescent bulb). HD LED 15W power consumption.
- ■Protection class / Protection type: II (double insulated) / IP20
Documents
Additional information
LED Light Kits
| Part No. | Voltage | On/Off | Mount | Max Daisy Chain |
|---|---|---|---|---|
| LEDACSWMAG | 90-260V AC | Switch | Magnet | 10 |
| LEDACMSMAG | 90-260V AC | Sensor | Magnet | 10 |
| LEDACSWSCR | 90-260V AC | Switch | Screw | 10 |
| LEDACMSSCR | 90-260V AC | Sensor | Screw | 10 |
| LEDACNS-ECON | 90-260V AC | NA | Screw | NA |
| LEDDCSWMAG | 20-60V DC | Switch | Magnet | 10 |
| LEDDCMSMAG | 20-60V DC | Sensor | Magnet | 10 |
| LEDDCSWSCR | 20-60V DC | Switch | Screw | 10 |
| LEDDCMSSCR | 20-60V DC | Sensor | Screw | 10 |
HD LED Light
| Part No. | Voltage | On/Off | Mount | Max Daisy Chain |
|---|---|---|---|---|
| HDLED120SCR | 90-260V AC | Switch | Screw | 8 |
LED Light Kit Cords
| Part No. | Type | Source | Length |
|---|---|---|---|
| LEDACCORDPOW | Power Cord w/leads | AC | 78.75 |
| LEDDCCORDPOW | Power Cord w/leads | DC | 78.75 |
| LEDACCORDCON | Connector/Daisy Chain Cord | AC | 39.38 |
| LEDDCCORDCON | Connector/Daisy Chain Cord | DC | 39.38 |
Light Channel Hardware
| Part No. | Description |
|---|---|
| LCMTG1032 | Light channel mounting hardware - 4 x spring nuts/10-32 screws |
