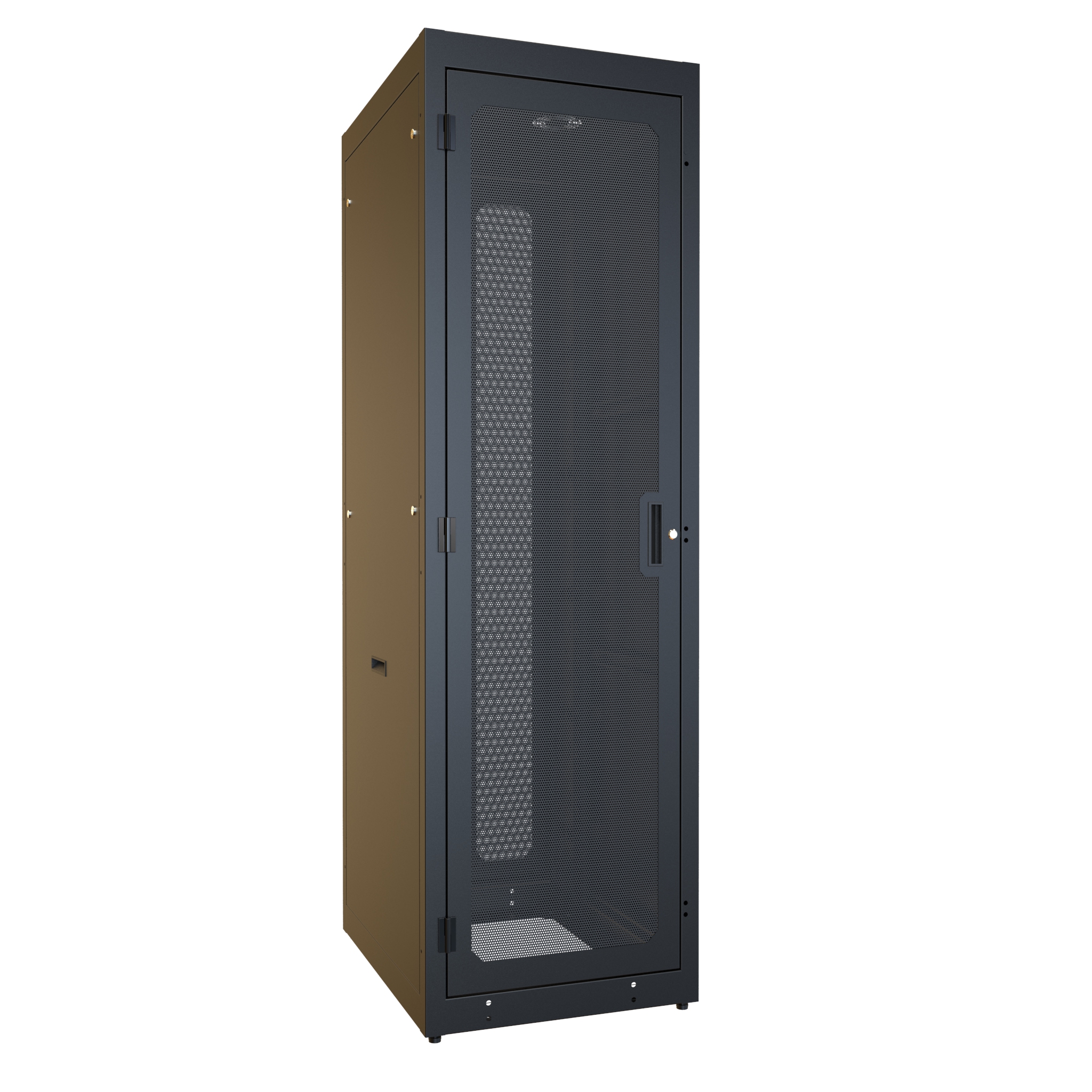

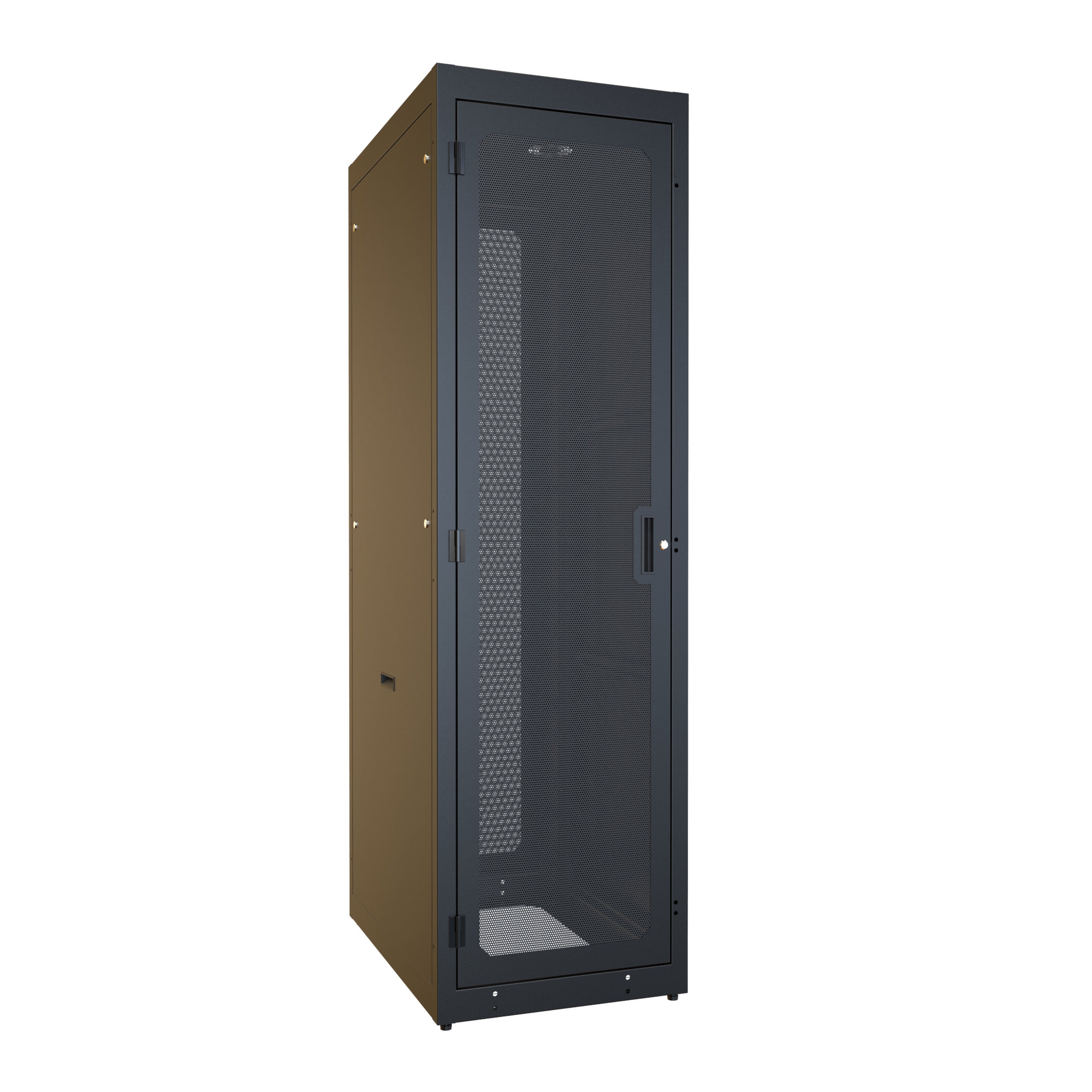

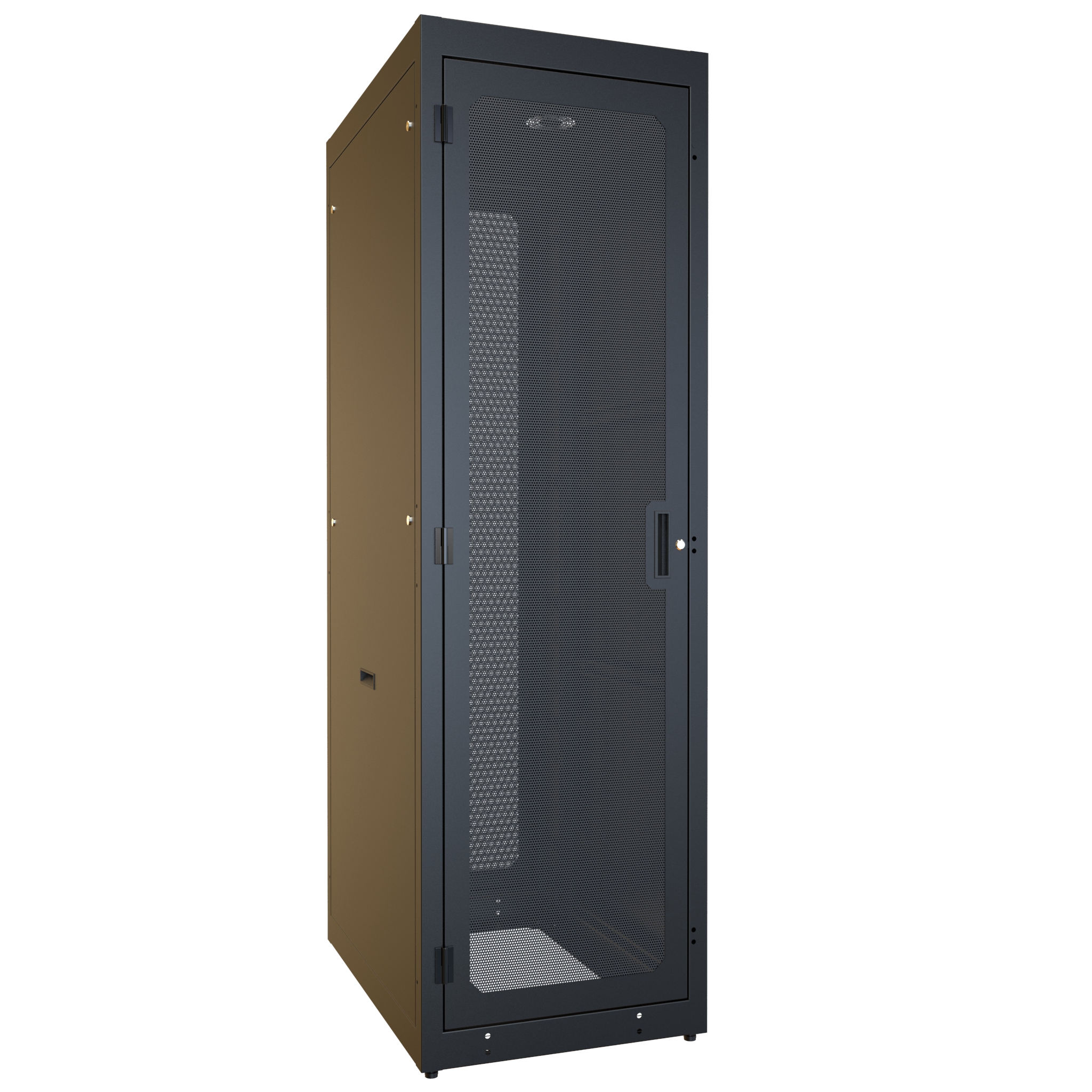

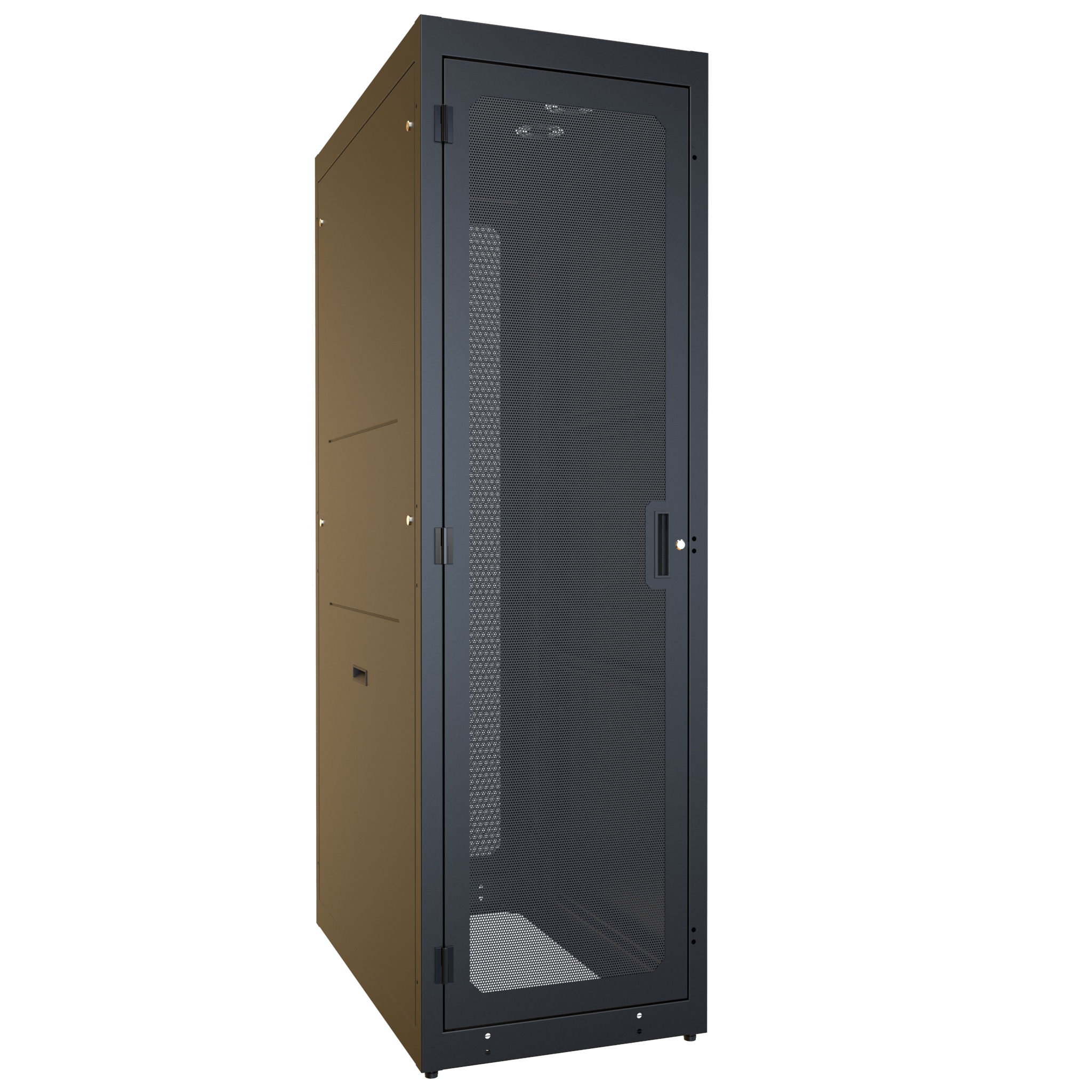

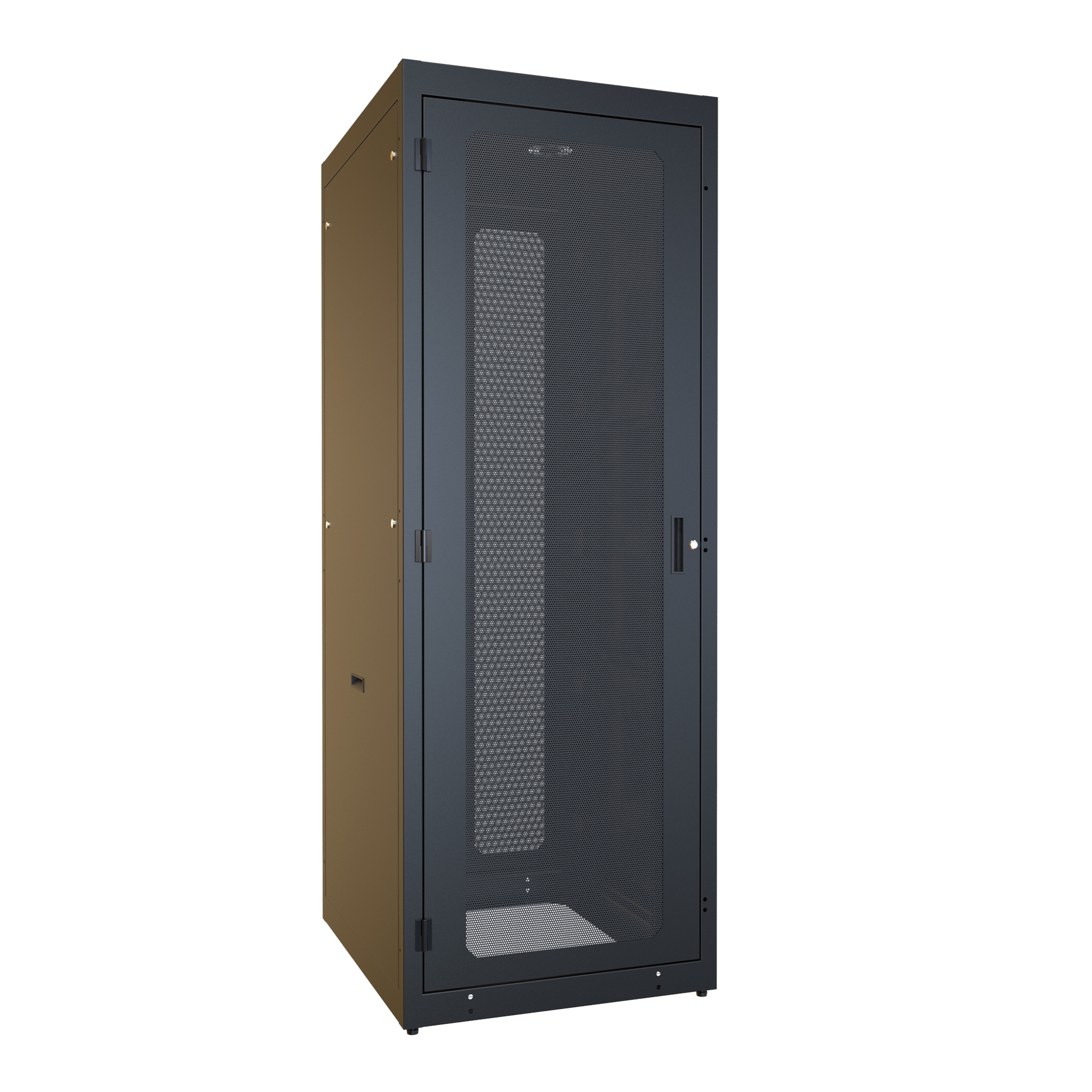

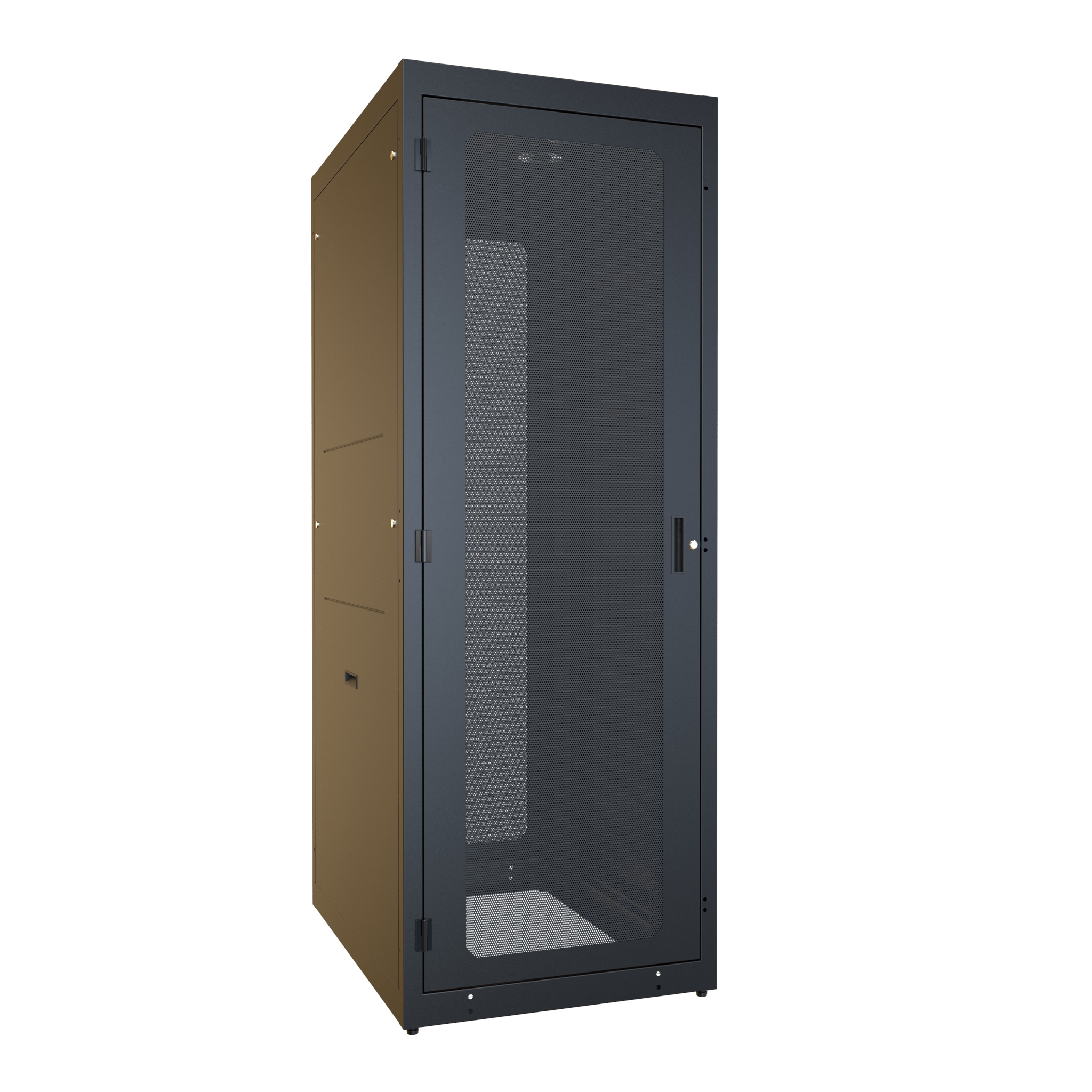

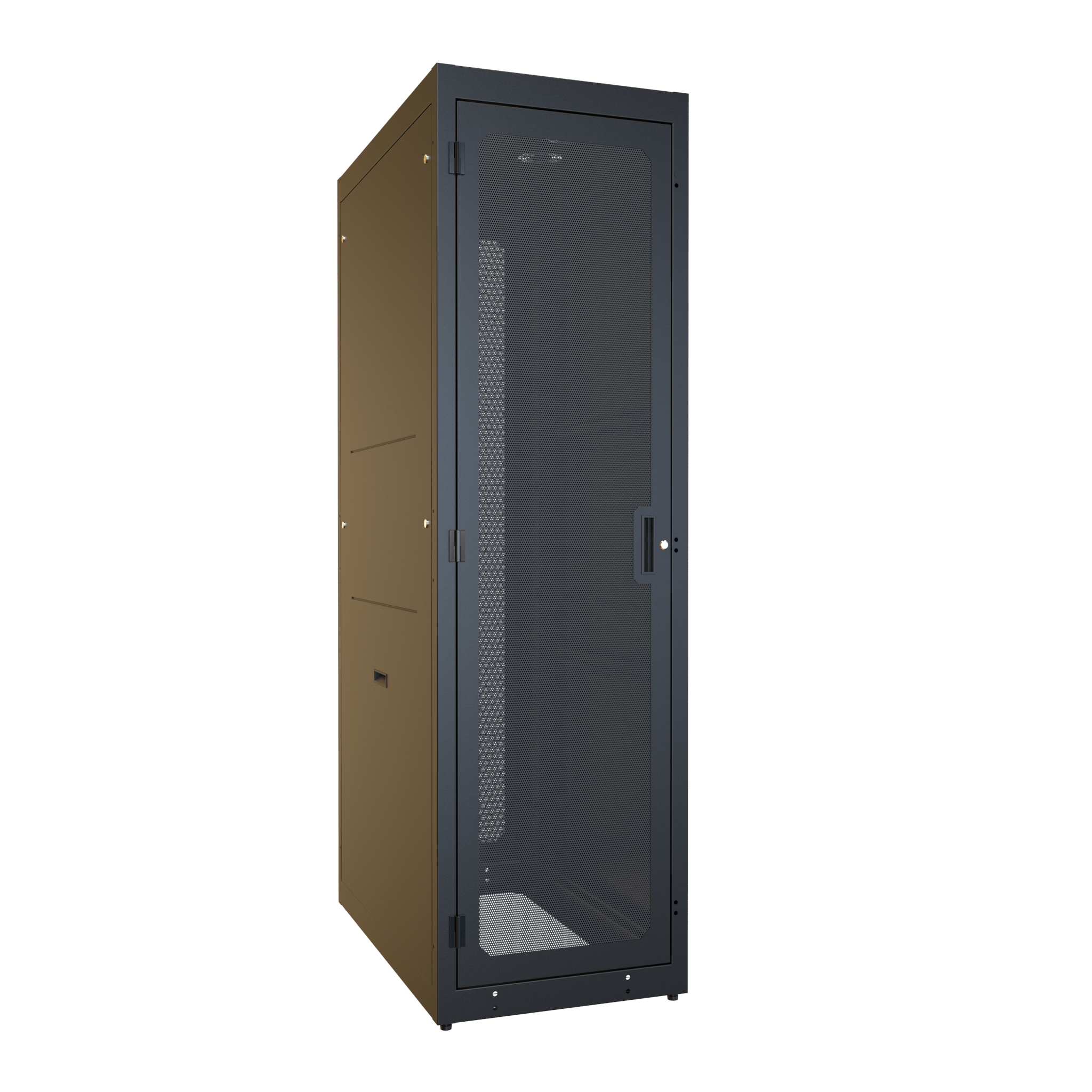

Pre-Configured Server Rack Cabinet (3,000 lb) · C4RR_S Series

Key Features and Benefits

• ■14-gauge welded steel frame with 12-gauge reinforced corner brackets and 16-gauge doors and side panels (3000 lb capacity) provides high-strength support for server, network, and IT equipment.
• ■Pre-configured cabinet design based on the C4 platform supports rapid deployment and reduces design and configuration time.
• ■Ships assembled with standardized configurations allows immediate installation without custom engineering.
• ■Two (2) pairs of infinitely adjustable EIA-310 compliant square hole mounting rails (12-gauge steel) support flexible equipment installation. Includes a starter pack of cage nuts and mounting hardware.
• ■Perforated front and split rear doors (up to 79% open area) support airflow requirements for active IT equipment.
• ■Integrated vertical cable trays with tool-less PDU mounting support improve cable organization and simplify installation.
• ■Multiple widths (24" and 30") and depths (31.5", 36", 42") support a wide range of deployment requirements and cabling strategies.
• ■Interchangeable top panel with cable entry and fan knockouts supports airflow management and overhead cable routing.
• ■Grounding and bonding provisions throughout frame, doors, and panels support safe installation and compliance requirements.
• ■Compliance and Certifications
• ■UL2416 listed rack (3000 lb load rating) ensures verified structural performance for high-capacity installations.
• ■Seismic rated to 1200 lb dynamic load (IBC, CBC, NBC, ASCE standards) supports deployment in regulated and high-risk environments.
• ■Meets PCI DSS (Payment Card Industry Data Security Standard) when properly configured supports secure IT and data center deployments.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

Included Components

The C4RR_S Series pre-configured seismic server rack cabinet provides a high-capacity, standardized solution for data center and IT environments. Built on the C4 platform and rated to 3000 lb, it delivers structural performance and compliance for demanding infrastructure deployments.

With factory-configured components, high airflow doors, and integrated cable management, the C4RR_S enables rapid deployment while supporting scalability, reliability, and efficient equipment installation.

• ■Welded steel frame with factory-installed nylon leveling feet, ground studs, and mounting points for optional casters.
• ■Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails.
• ■Starter pack of CAGKIT1032-25 screws and cage nuts.
• ■Two (2) removable side panels (with 1/4 turn latches).
• ■One (1) four (4) fan cutout top panel.
• ■One (1) vented front door (65% open area vented) with a quarter-turn lock.
• ■One (1) vented split/barn rear door (65% open area vented) with quarter-turn lock.
• ■Two (2) vertical cable trays with button PDU mounting.

When another product may be a better choice

• ■When you need a fully configurable cabinet system for custom builds, consider our C4 Series.
• ■When you need a pre-configured cabinet with expanded configuration options, consider our C4RR_A Series.
• ■When you need a flagship cabinet with advanced airflow and security features, consider our H1 Series.
• ■When you need a cost-effective assembled cabinet for general IT applications, consider our RB-DC Series.
