24U C4 Vertical Cable Manager
- Frame Series Compa C4 30" wide
$259.60In stock
Buy now
Vertical Cable Manager with Hinged Door · C4VCM Series
Brand: Hammond Manufacturing · 7 part numbers

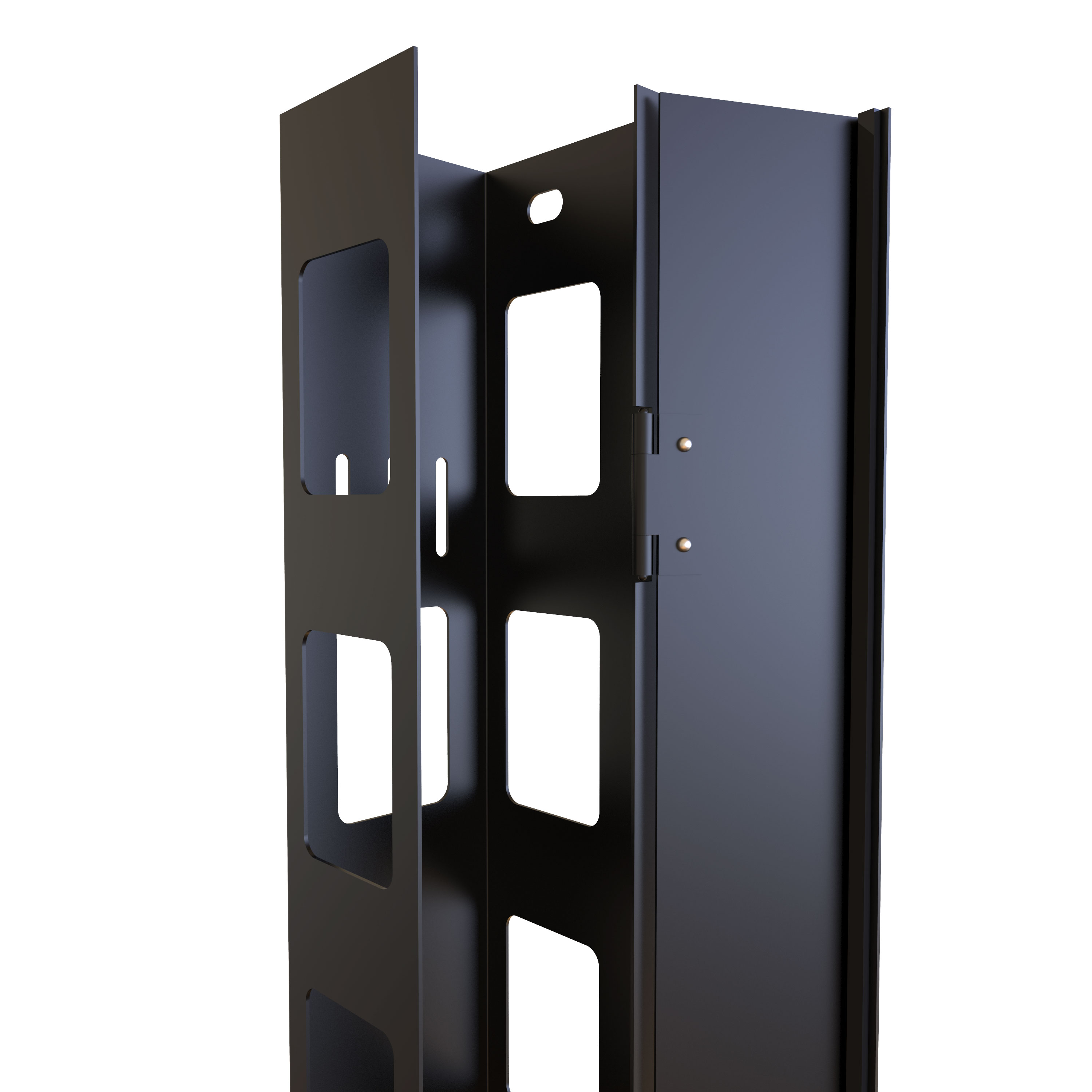

All-steel vertical cable manager with hinged door designed for simple, durable cable routing inside server cabinets.
- ■16-gauge steel construction provides durable vertical cable routing and long-term reliability in cabinet environments.
- ■Formed steel body with integrated hinged door provides cable containment and protection.
- ■Mounts vertically inside the C4 , C4RR_S , C4RR_A , C4RR_D , and DCZ4 cabinet series for integrated cable management.
- ■Includes mounting hardware.
- ■Simple open-channel design supports flexible cable routing without structured finger duct limitations.
- ■Hinged door allows quick access for cable moves, adds, and changes.
from $142.78
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your C4VCM Series part number
Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Vertical Managers
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Mounting Dimensions · Height | Mounting Dimensions · Rack Units | Frame Series · Compatability | Price | Order |
|---|---|---|---|---|---|---|---|---|
| C4VCM42BK1 | 42.00 | 3.62 | 4.00 | 42.00 | 24U | C4 30" wide | $259.60In stock | Buy now |
| C4VCM73BK1 | 73.00 | 3.62 | 4.00 | 73.00 | 42U | C4 30" wide, DCZ4 | $324.50In stock | Buy now |
| C4VCM77BK1 | 77.00 | 3.62 | 4.00 | 77.00 | 44U | C4 30" wide, DCZ4 | $376.42In stock | Buy now |
Vertical Finger Managers
| Compatible with · Cabinet Height | For Use with 24" · Wide Cabinet Frame · No Cover (Part No.) | For Use with 30" · Wide Cabinet Frame · Cover Included (Part No.) | Price | Order |
|---|---|---|---|---|
| 42U | C4VFM42UBK | C4VFMC3042UBK | $142.78In stockC4VFM42UBK | Buy now |
| 44U | C4VFM44UBK | C4VFMC3044UBK | $155.76In stockC4VFM44UBK | Buy now |
Key Features and Benefits
The C4VCM Series vertical cable managers provide a simple and durable solution for organizing cables within C4 server cabinets. Constructed entirely from steel, they offer long-term reliability and cable containment without the complexity of finger duct systems.
Designed for installers who prefer a straightforward approach, the C4VCM Series supports flexible cable routing, easy access, and clean organization in cabinet-based environments.
- ■16-gauge steel construction provides durable vertical cable routing and long-term reliability in cabinet environments.
- ■Formed steel body with integrated hinged door provides cable containment and protection.
- ■Mounts vertically inside the C4 , C4RR_S , C4RR_A , C4RR_D , and DCZ4 cabinet series for integrated cable management.
- ■Includes mounting hardware.
- ■Simple open-channel design supports flexible cable routing without structured finger duct limitations.
- ■Hinged door allows quick access for cable moves, adds, and changes.
- ■Available in multiple heights (24U, 42U, 44U) to match cabinet configurations.
- ■Compact 3.62 in width and 4 in depth minimizes cabinet space usage while providing cable organization.
- ■Ideal for moderate cable density applications where simplicity and durability are prioritized.
- ■Includes mounting hardware for fast installation.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.
Documents
Additional information
Where the C4VCM Series Works Best
- ■C4 server cabinet installations
- ■Data centers and IT rooms
- ■Network and telecom environments
- ■Government and regulated installations
- ■Applications requiring durable, low-maintenance cable management
- ■Managing vertical cable runs inside server cabinets
- ■Supporting moderate cable density installations
- ■Providing durable cable containment with minimal complexity
- ■Environments where long-term durability is preferred over advanced features
- ■Retrofit installations replacing legacy cable managers
Vertical Managers
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Mounting Dimensions · Height | Mounting Dimensions · Rack Units | Frame Series · Compatability |
|---|---|---|---|---|---|---|
| C4VCM42BK1 | 42.00 | 3.62 | 4.00 | 42.00 | 24U | C4 30" wide |
| C4VCM73BK1 | 73.00 | 3.62 | 4.00 | 73.00 | 42U | C4 30" wide, DCZ4 |
| C4VCM77BK1 | 77.00 | 3.62 | 4.00 | 77.00 | 44U | C4 30" wide, DCZ4 |
Vertical Finger Managers
| Compatible with · Cabinet Height | For Use with 24" · Wide Cabinet Frame · No Cover | For Use with 30" · Wide Cabinet Frame · Cover Included |
|---|---|---|
| 42U | C4VFM42UBK | C4VFMC3042UBK |
| 44U | C4VFM44UBK | C4VFMC3044UBK |
