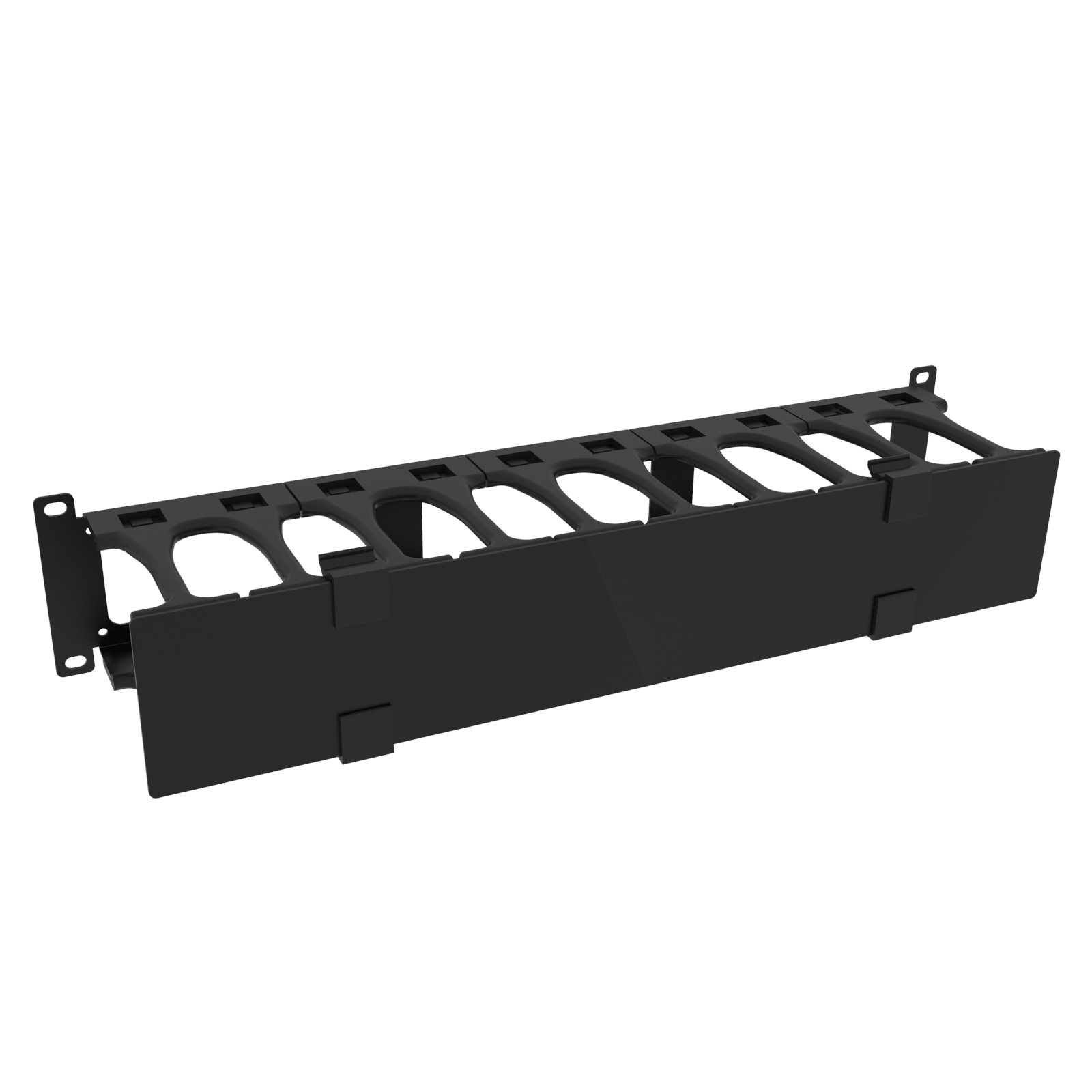

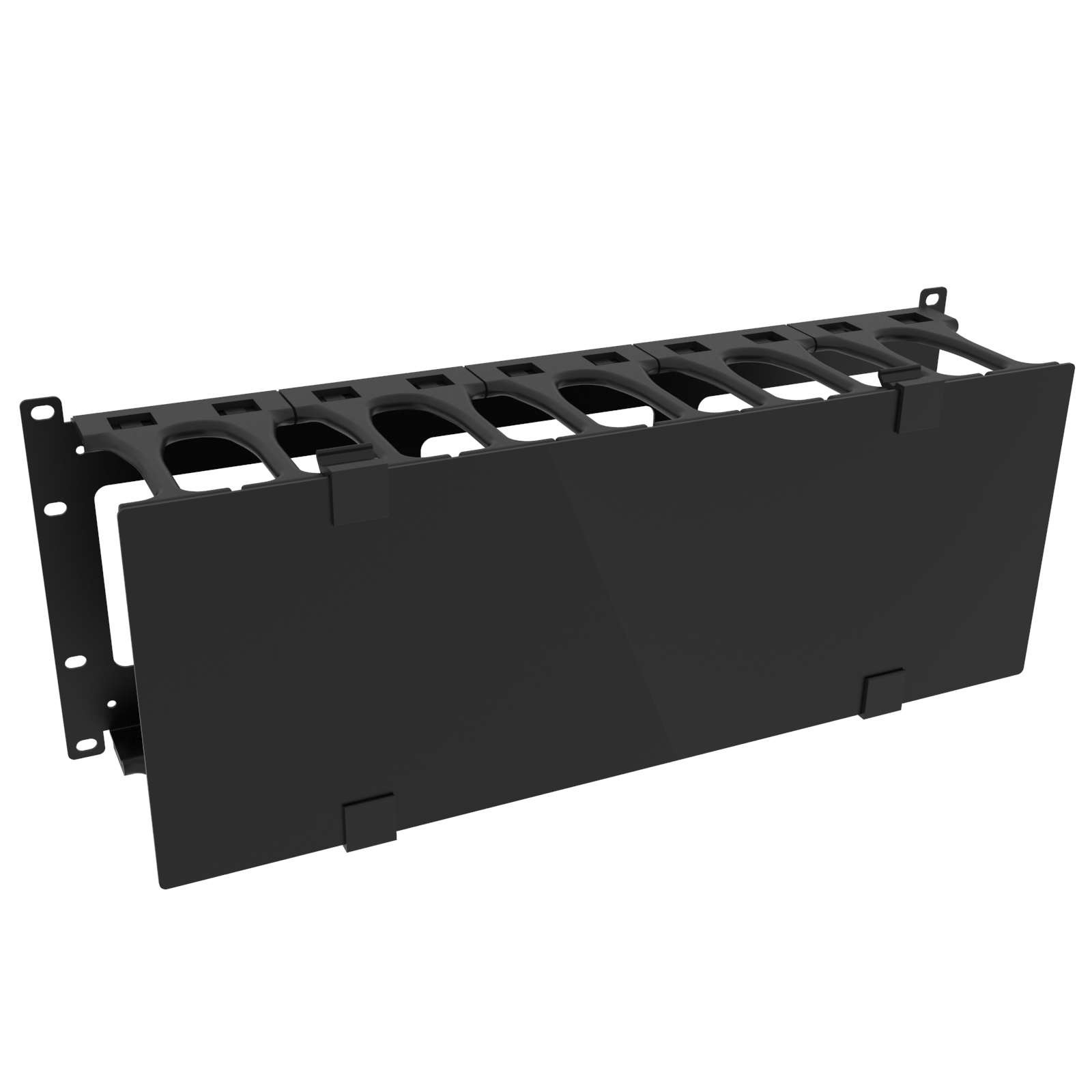

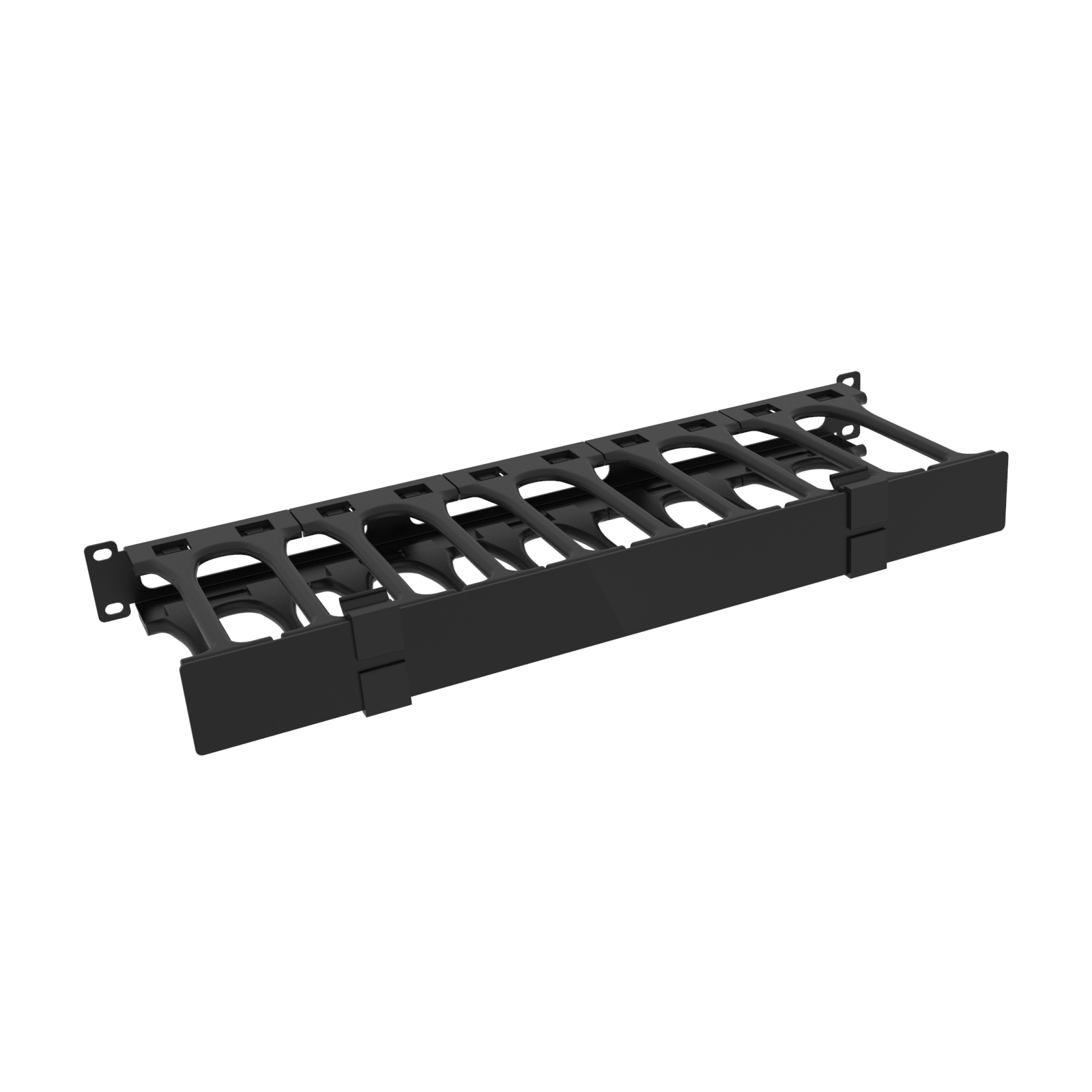

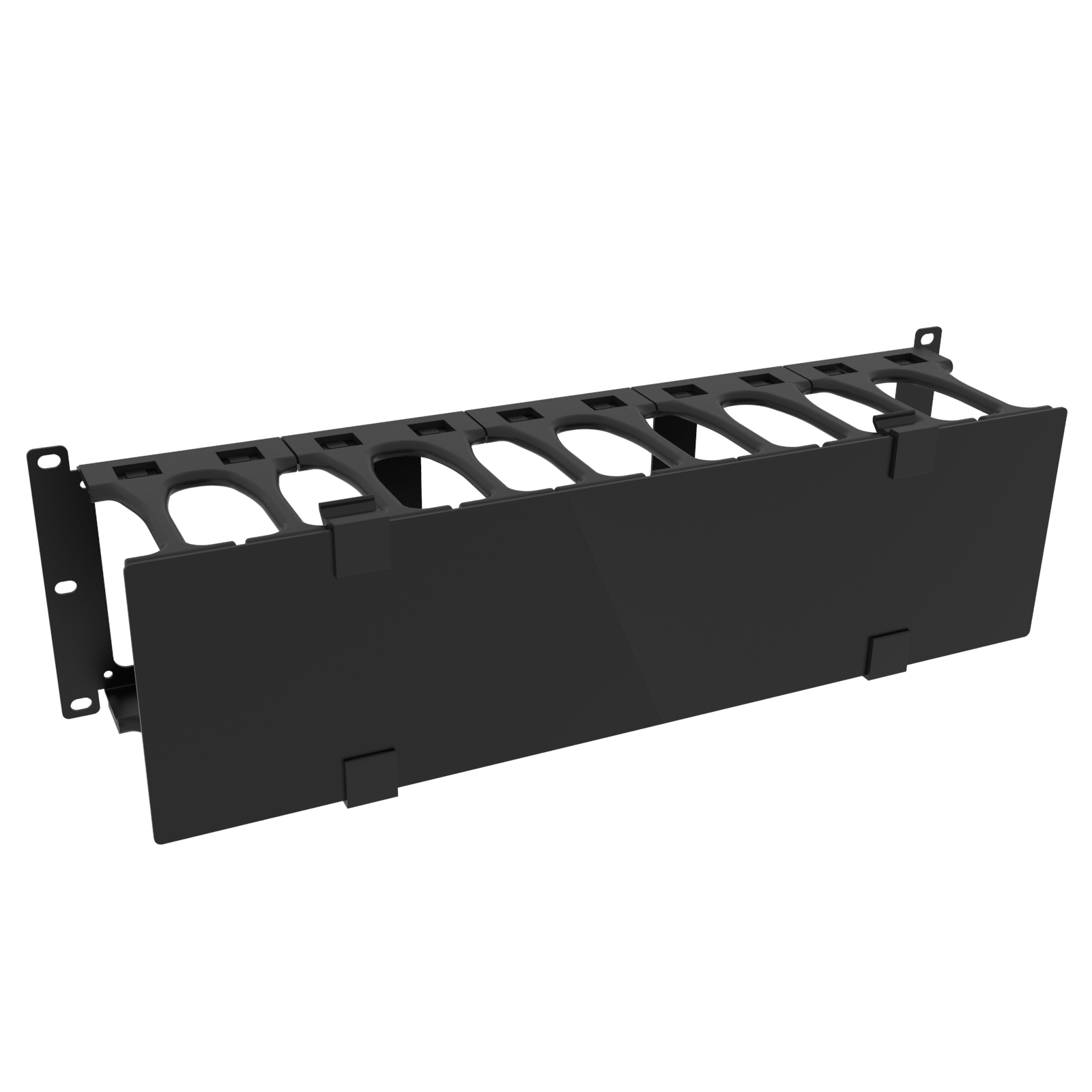

Horizontal Finger Cable Manager with Cover · RB-HFM Series
Brand: Hammond Manufacturing · 10 part numbers
Horizontal finger cable manager with cover designed for organized, high-density cable routing in 19-inch racks.
- ■16-gauge steel construction with polycarbonate fingers supports durable cable management and structured routing.
- ■Finger-style design organizes cables into defined pathways for improved cable separation and routing.
- ■UL94V-0 polycarbonate fingers provide superior flame resistance compared to lower-grade plastics used in competitive products.

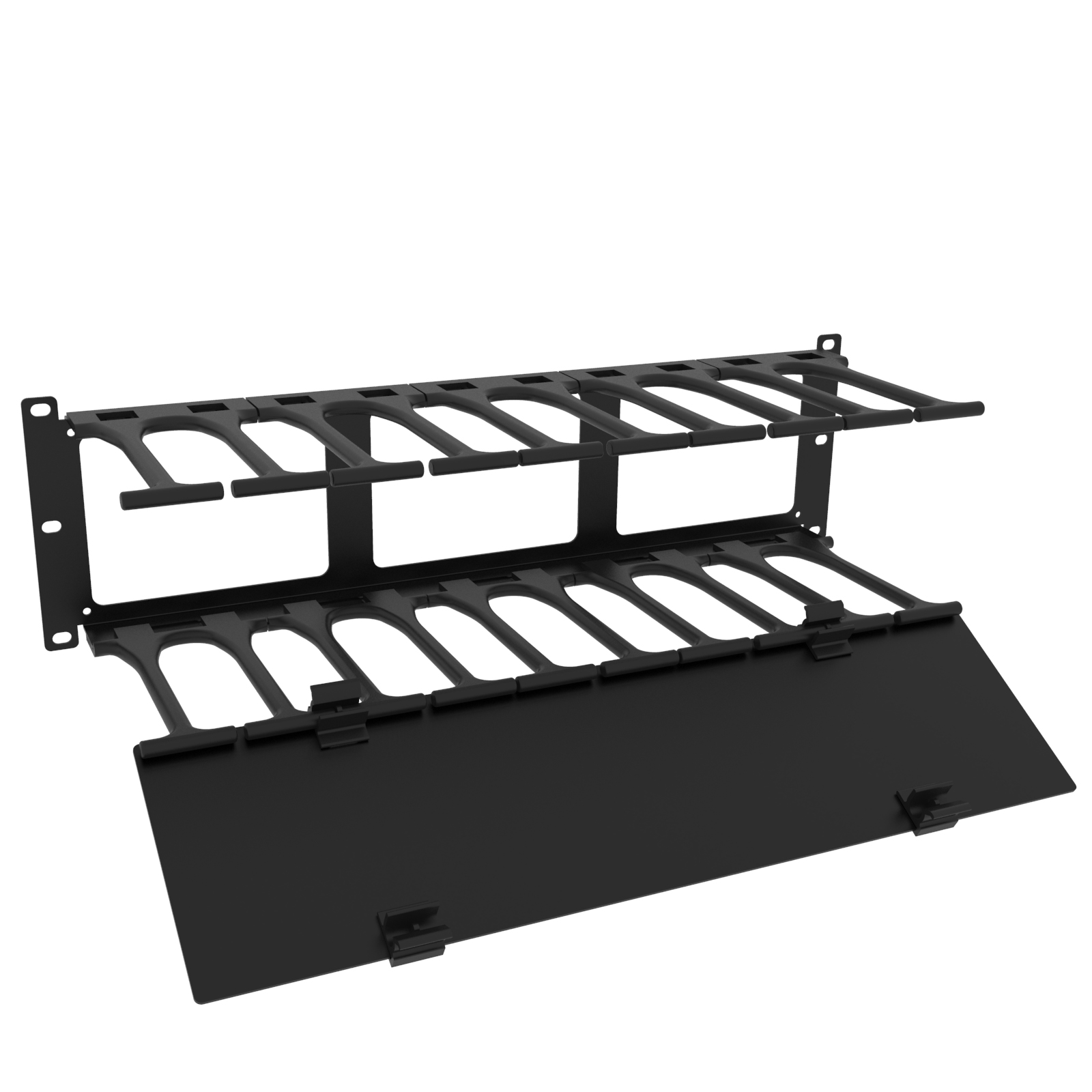

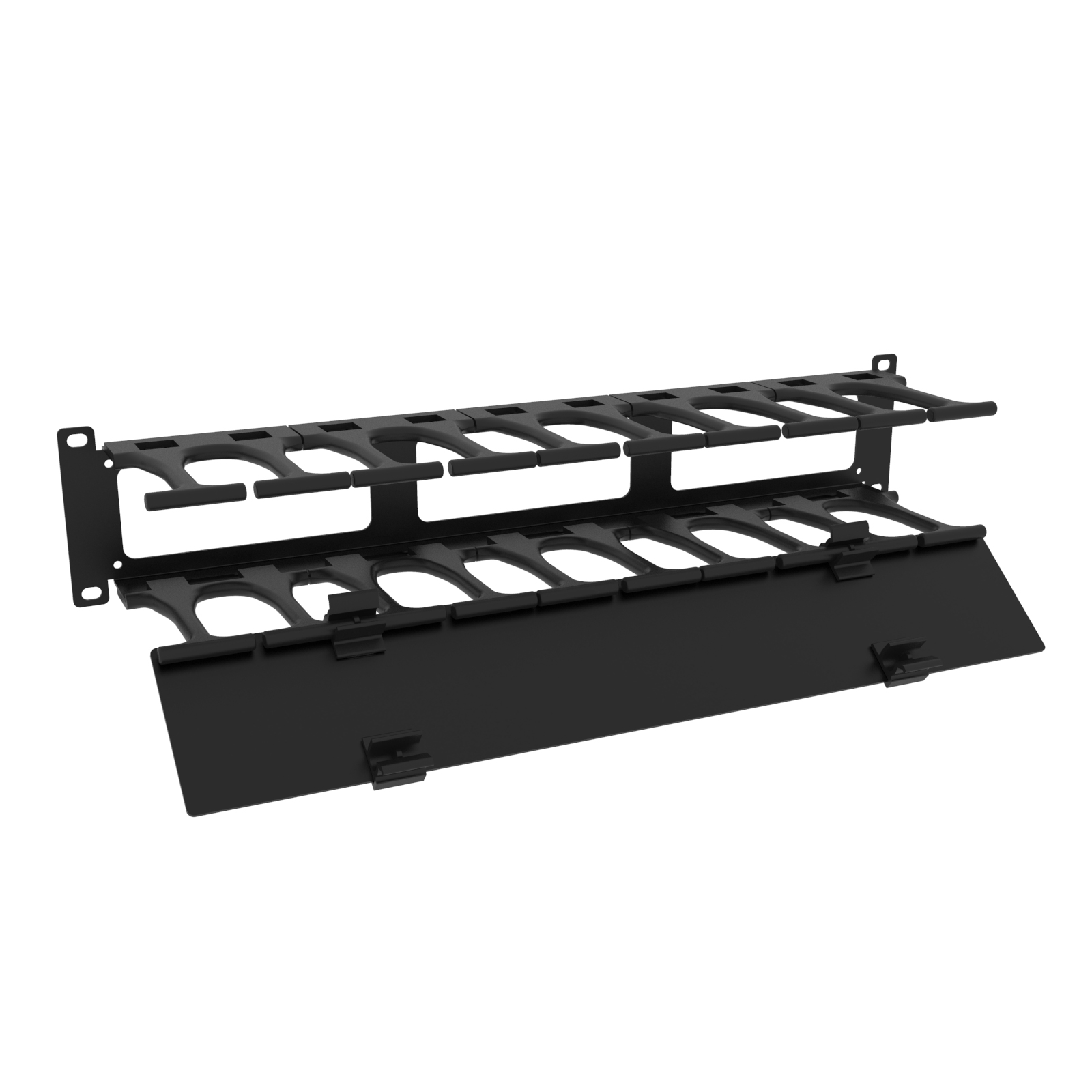

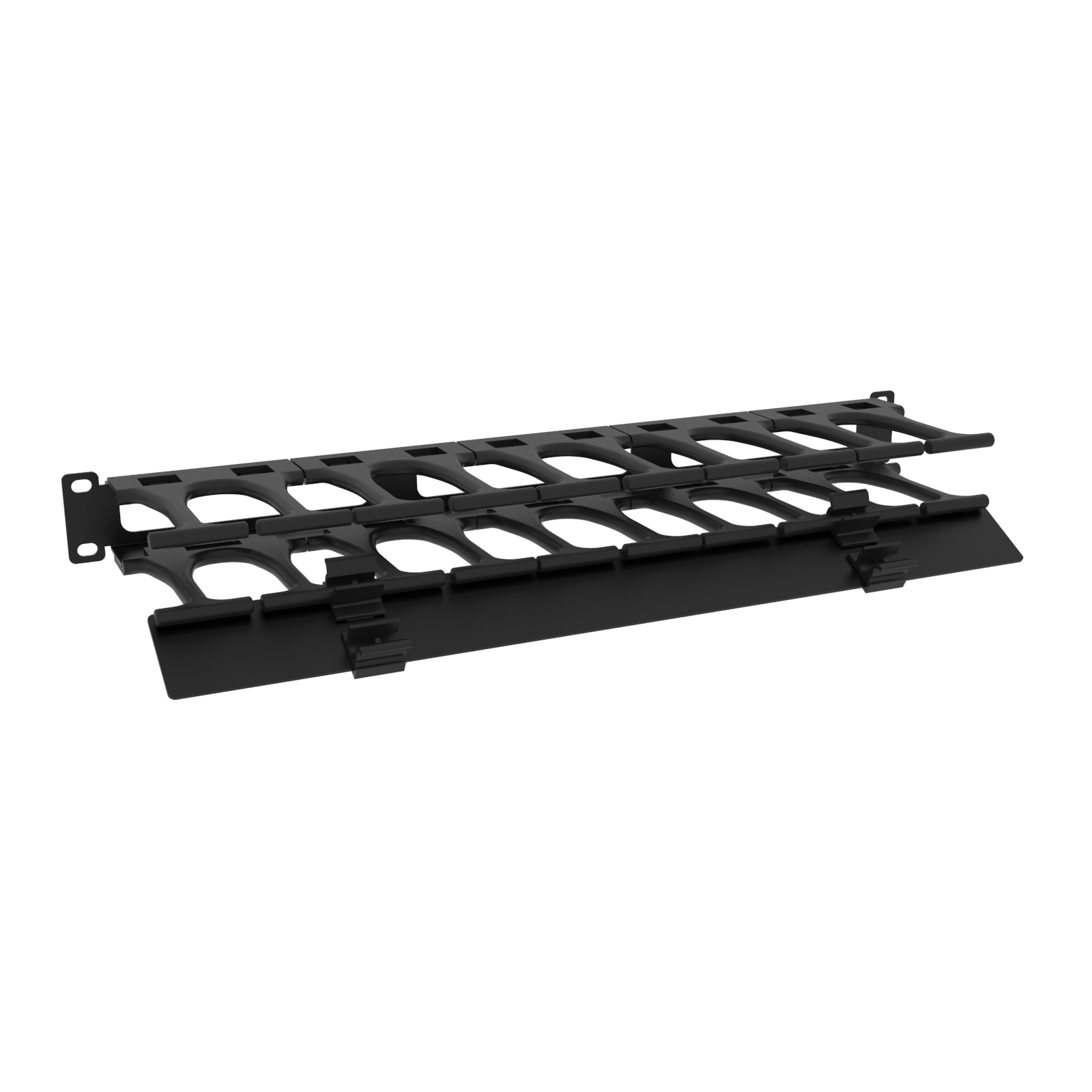

- ■Removable cover conceals cables for a clean, professional appearance and improved airflow management.
- ■Available in 1U, 2U, 3U, and 4U sizes to support increasing cable density requirements. Double-Sided version is available in 1U, 2U, and 4U.
- ■Double-Sided version is available in 1U, 2U, and 4U.
from $84.37
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RB-HFM Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
1U Dbl Sided Finger Manager
$90.86In stock
Buy now
2U Finger Manager With Door
$90.86In stock
Buy now
2U Dbl-Sided Finger Manager
$103.84In stock
Buy now
4U Finger Manager With Door
$103.84In stock
Buy now
4U Dbl-Sided Finger Manager
$129.80In stock
Buy now

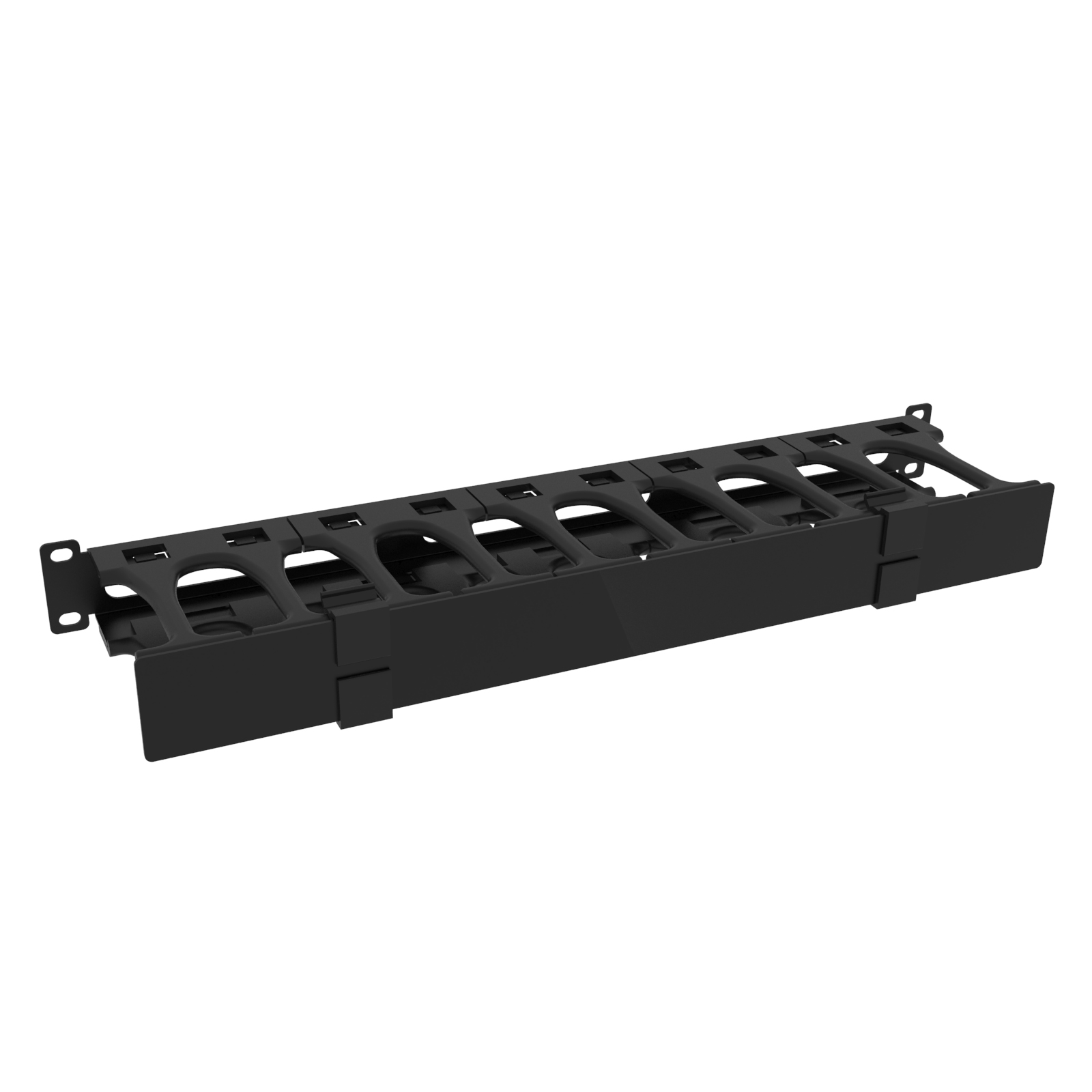

1U Finger Manager With Door
$84.37In stock
Buy now
2U Finger Manager With Door
$87.62In stock
Buy now
3U Finger Manager With Door
$94.11In stock
Buy now
4U Finger Manager With Door
$100.60Backorder
Buy nowDimension tables (inches / mm)
Single-Sided
Units shown: inch . Switch units to: mm
| Part No. | Overall Dinmensions · Height | Overall Dinmensions · Width | Overall Dinmensions · Depth | Usable Mounting Dimensions · Rack Units | Usable Mounting Dimensions · Height | Price | Order |
|---|---|---|---|---|---|---|---|
| RB-HFMS1 | 1.47 | 19.00 | 4.81 | 1U | 1.75 | $84.37In stock | Buy now |
| RB-HFMD1 | 1.47 | 19.00 | 6.54 | 1U | 1.75 | $87.62In stock | Buy now |
| RB-HFMS2 | 3.22 | 19.00 | 4.81 | 2U | 3.50 | $87.62In stock | Buy now |
| RB-HFMD2 | 3.22 | 19.00 | 6.54 | 2U | 3.50 | $90.86In stock | Buy now |
| RB-HFMS3 | 5.22 | 19.00 | 4.81 | 3U | 5.25 | $94.11In stock | Buy now |
| RB-HFMS4 | 6.97 | 19.00 | 4.81 | 4U | 7.00 | $100.60Backorder | Buy now |
| RB-HFMD4 | 6.97 | 19.00 | 6.54 | 4U | 7.00 | $103.84In stock | Buy now |
Double-Sided
Units shown: inch . Switch units to: mm
| Part No. | Overall Dinmensions · Height | Overall Dinmensions · Width | Overall Dinmensions · Depth | Usable Mounting Dimensions · Rack Units | Usable Mounting Dimensions · Height | Price | Order |
|---|---|---|---|---|---|---|---|
| RB-HFMD1B | 1.75 | 19.00 | 11.62 | 1U | 1.75 | $90.86In stock | Buy now |
| RB-HFMD2B | 3.50 | 19.00 | 11.62 | 2U | 3.50 | $103.84In stock | Buy now |
| RB-HFMD4B | 7.00 | 19.00 | 11.62 | 4U | 7.00 | $129.80In stock | Buy now |
Key Features and Benefits
The RB-HFM Series horizontal finger cable managers provide structured cable organization for 19-inch rack systems. Designed with integrated fingers and a removable cover, they guide cables into defined pathways while maintaining a clean and professional appearance.
Unlike open ring managers, the RB-HFM Series improves cable separation and routing control, making it ideal for higher-density installations. Rear pass-through openings and multiple rack unit sizes allow flexible configuration, supporting both simple and complex cable management requirements.
Part of the Rack Basics® line designed for simple, reliable, and affordable installations.
- ■16-gauge steel construction with polycarbonate fingers supports durable cable management and structured routing.
- ■Finger-style design organizes cables into defined pathways for improved cable separation and routing.
- ■UL94V-0 polycarbonate fingers provide superior flame resistance compared to lower-grade plastics used in competitive products.
- ■Removable cover conceals cables for a clean, professional appearance and improved airflow management.
- ■Available in 1U, 2U, 3U, and 4U sizes to support increasing cable density requirements. Double-Sided version is available in 1U, 2U, and 4U.
- ■Double-Sided version is available in 1U, 2U, and 4U.

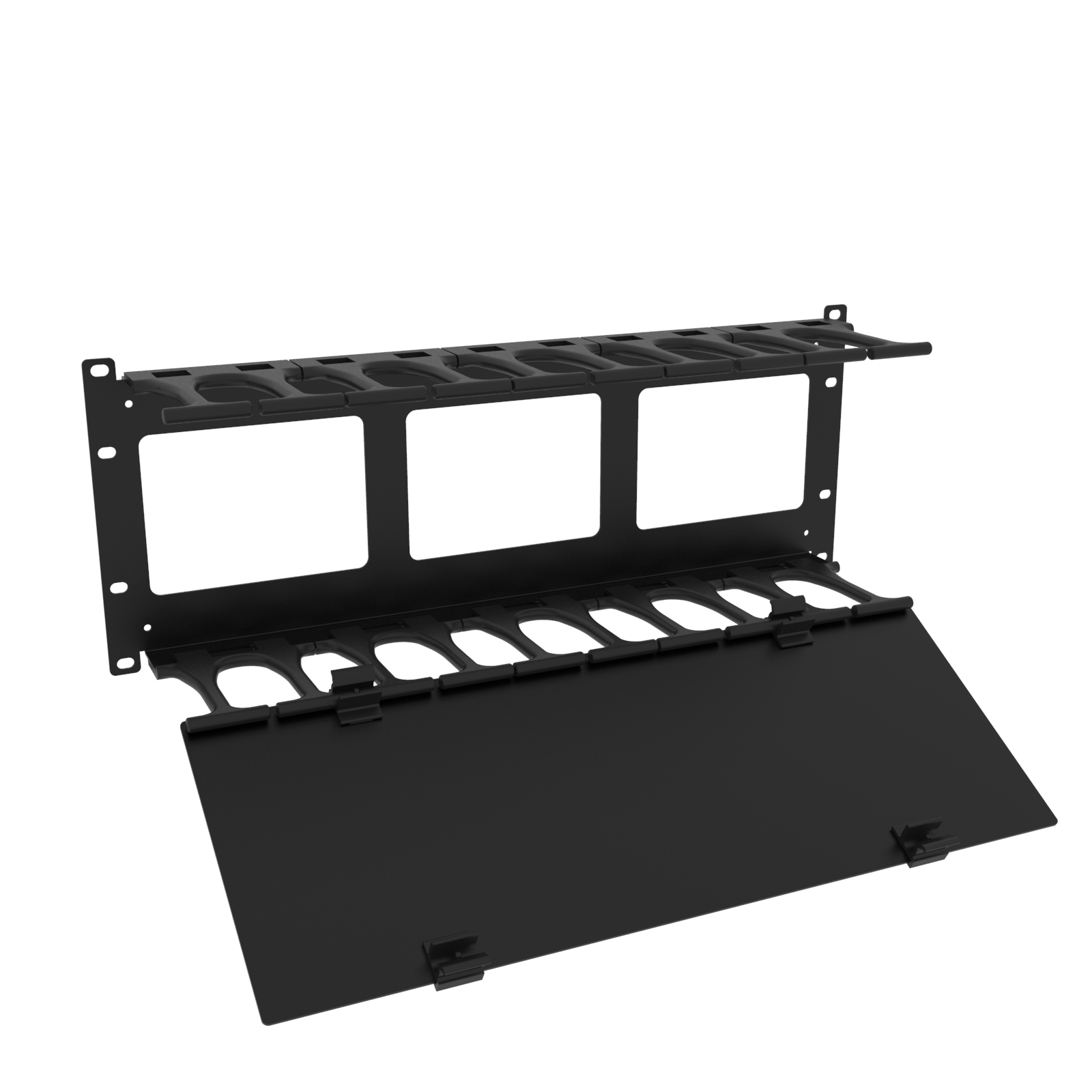

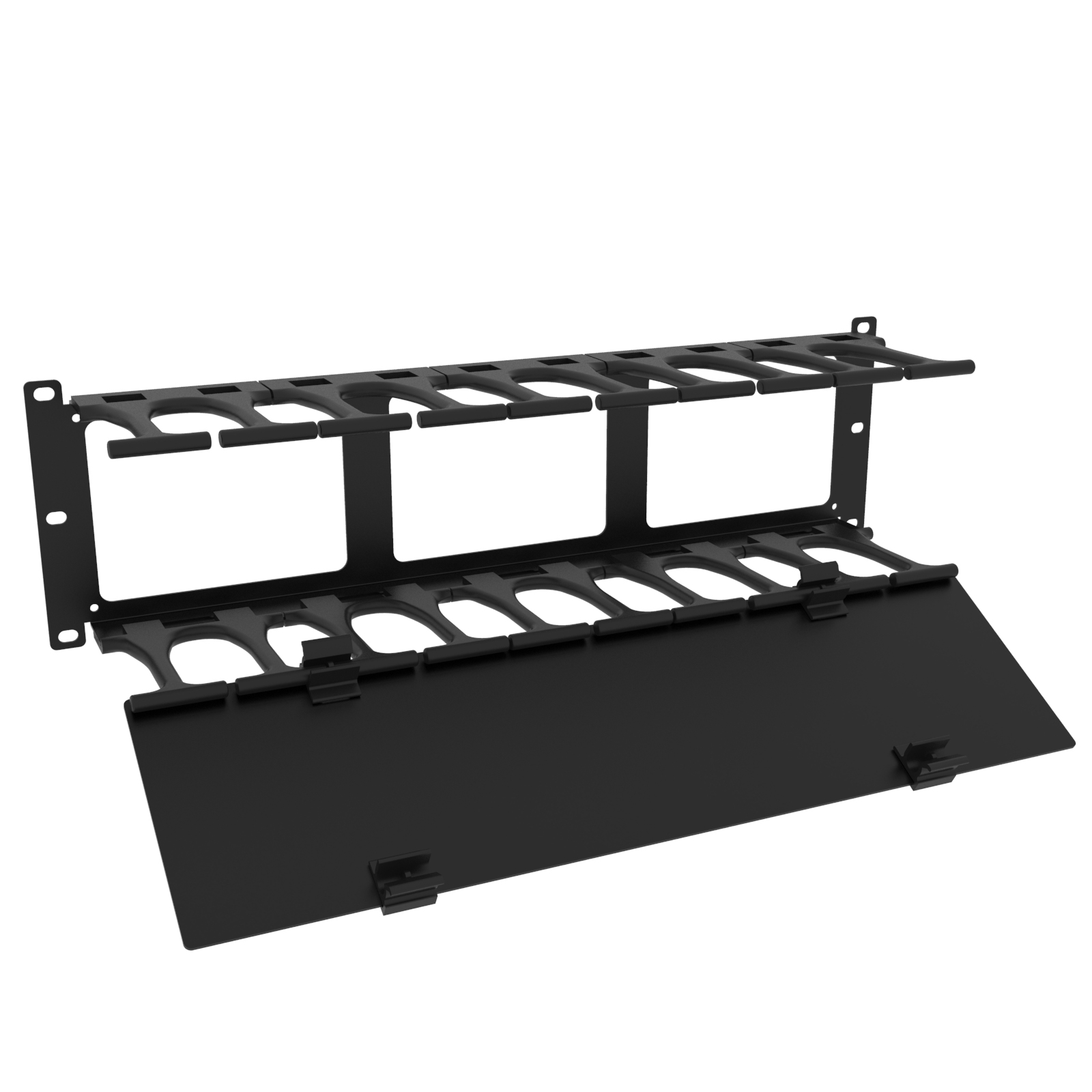

- ■Rear cutouts allow cable pass-through for improved routing flexibility.
- ■Designed for standard 19-inch EIA-compliant rack mounting.
- ■Can be installed back-to-back for double-sided cable management in high-density applications.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.
Documents
Additional information
Where the RB-HFM Series Works Best
- ■Data centers and IT rooms.
- ■Network and telecom installations.
- ■AV and broadcast environments.
- ■Structured cabling deployments.
- ■Medium to high cable density applications.
- ■Organizing patch cables between switches and patch panels.
- ■Supporting structured cable routing in higher-density racks.
- ■Improving cable visibility and access during maintenance.
- ■Creating clean, professional rack installations with concealed cabling.
