Hammond RB-HFMD1 1U Horizontal Finger Cable Manager With Cover

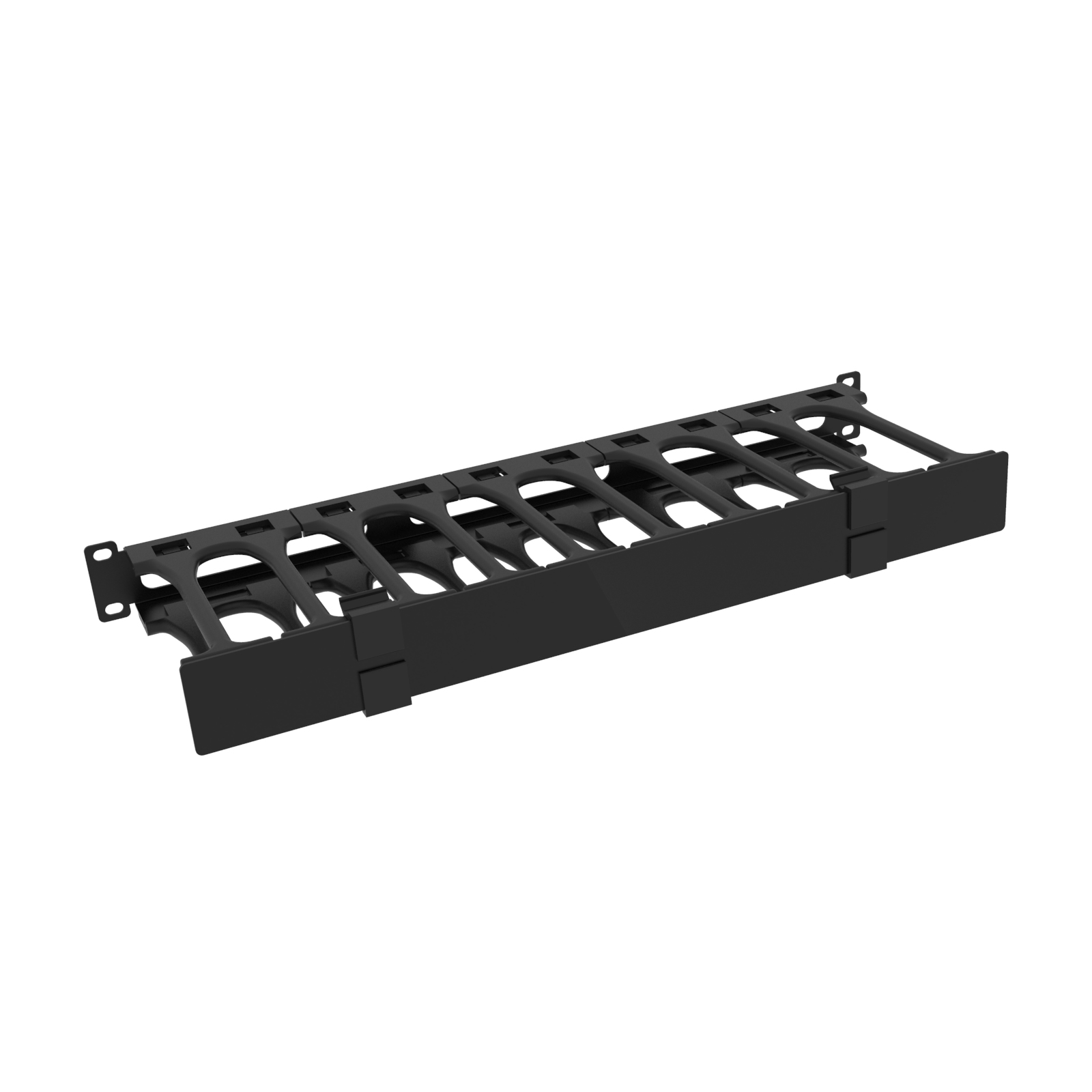

The RB-HFMD1 is a 1U horizontal finger cable manager with a removable cover, designed for organized, high-density cable routing in standard 19-inch racks. It suits IT and network technicians, structured cabling installers, and AV integrators who need patch cords guided into defined pathways between switches and patch panels rather than left loose across the rack face.

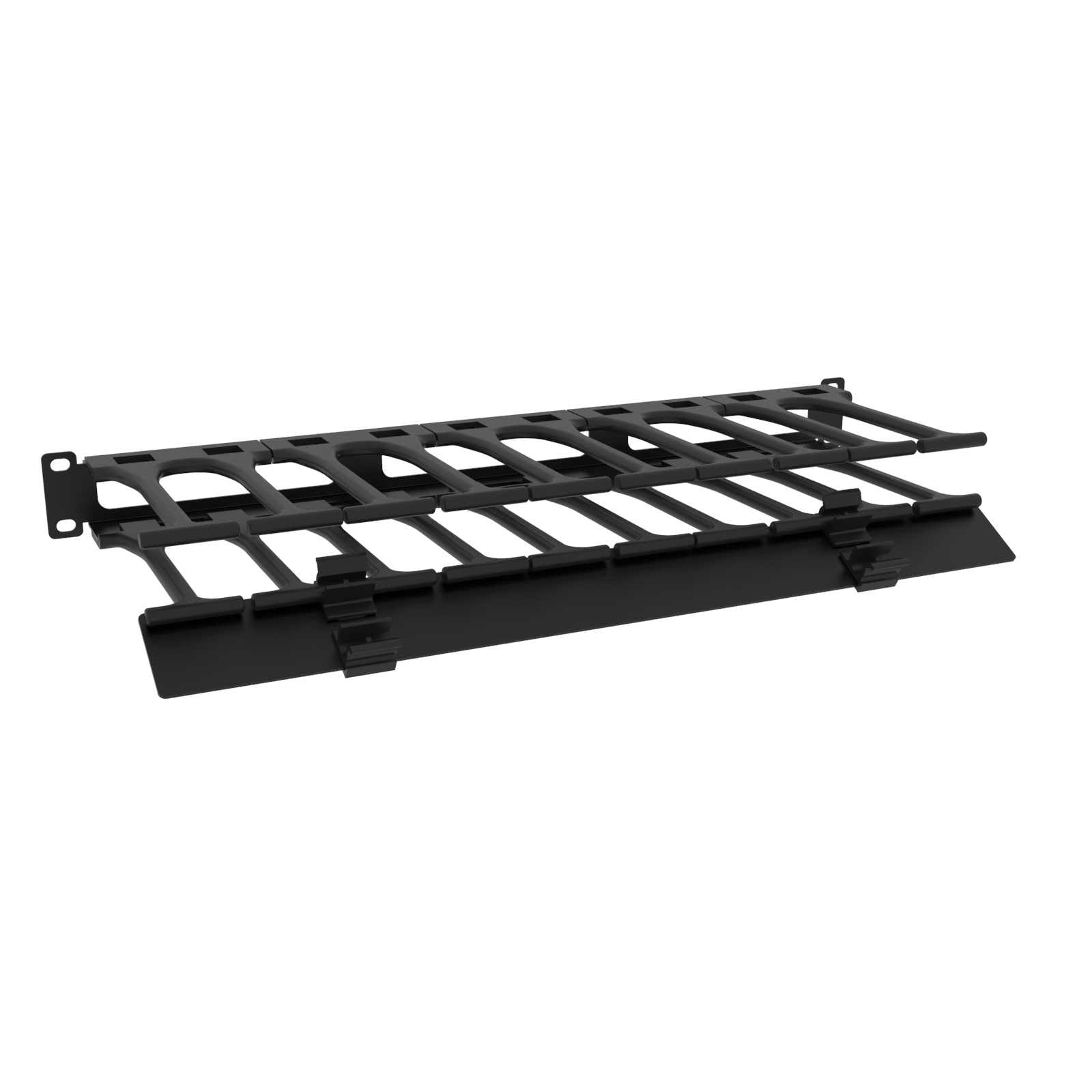

Construction is 16-gauge steel with polycarbonate fingers. The fingers are UL94V-0 rated for flame resistance, and the finger-style layout improves cable separation and routing control compared with open ring managers. The removable cover conceals cables for a clean, professional appearance and helps with airflow management. The finish is black powder coat, described as GREENGUARD, TSCA and RoHS compliant to support indoor air quality and environmental compliance.

Overall dimensions for RB-HFMD1 are 1.47 in (37 mm) high by 19.02 in (483 mm) wide by 6.54 in (166 mm) deep, with 1.75 in (44 mm) of usable 1U mounting height on a 19-inch EIA-compliant mounting pattern of 18.32 in (465 mm). Inside dimensions measure 6.33 in (161 mm) and 1.03 in (26 mm). The top cable pass-through opening measures 1.45 in (37 mm) by 4.47 in (114 mm), and the rear cable pass-through opening measures 5.00 in (127 mm) by 0.77 in (20 mm) for added routing flexibility.

The unit ships pre-assembled, consisting of the HFMD 1U back and HFMD 1U cover, and mounting hardware is not included. Units can be installed back-to-back for double-sided cable management in higher-density racks. RB-HFMD1 is TAA-compliant and manufactured in North America (country of origin CA), with USMCA, RoHS and REACH compliance and ECCN EAR99. Shipping weight is 3 lbs (1.36 kg).
