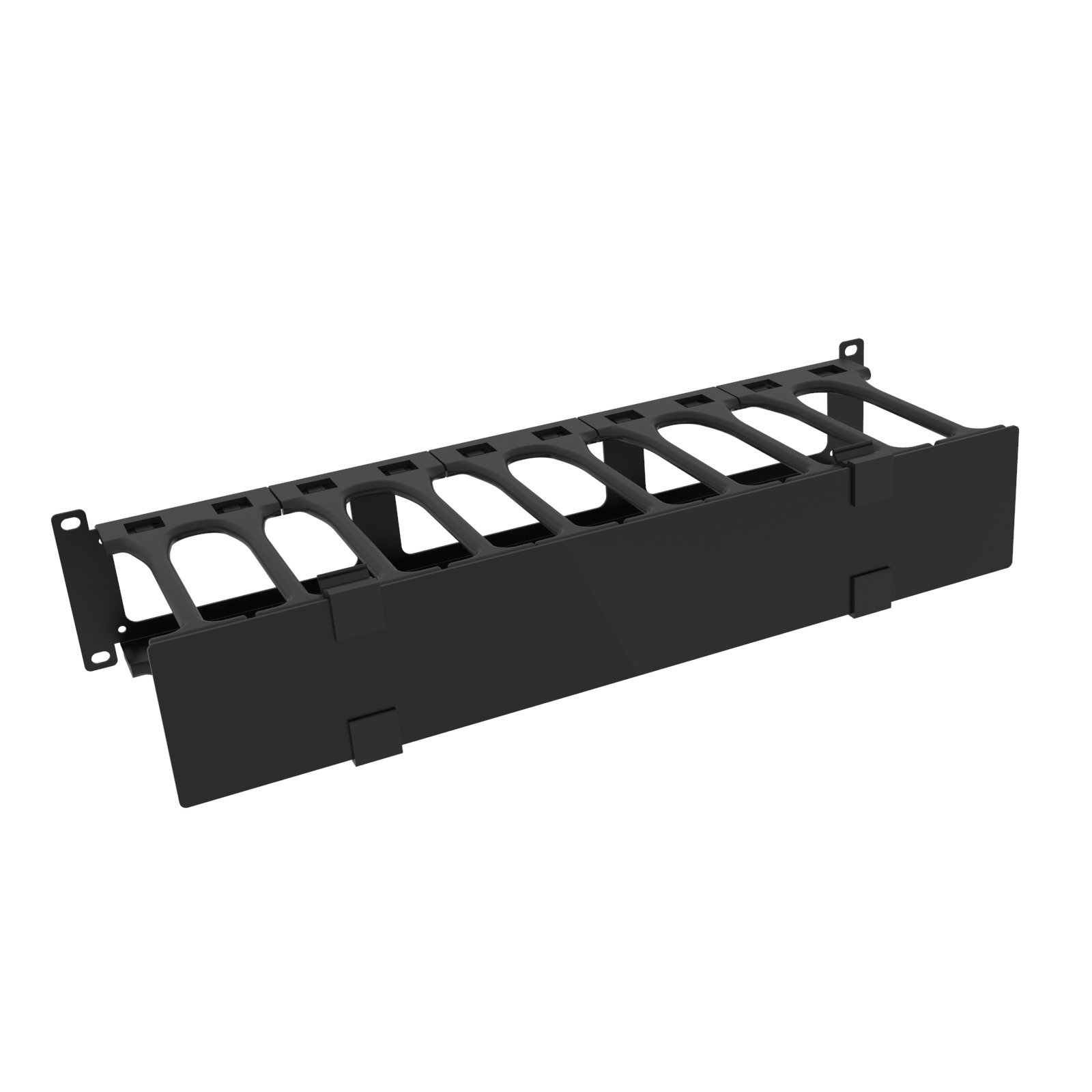

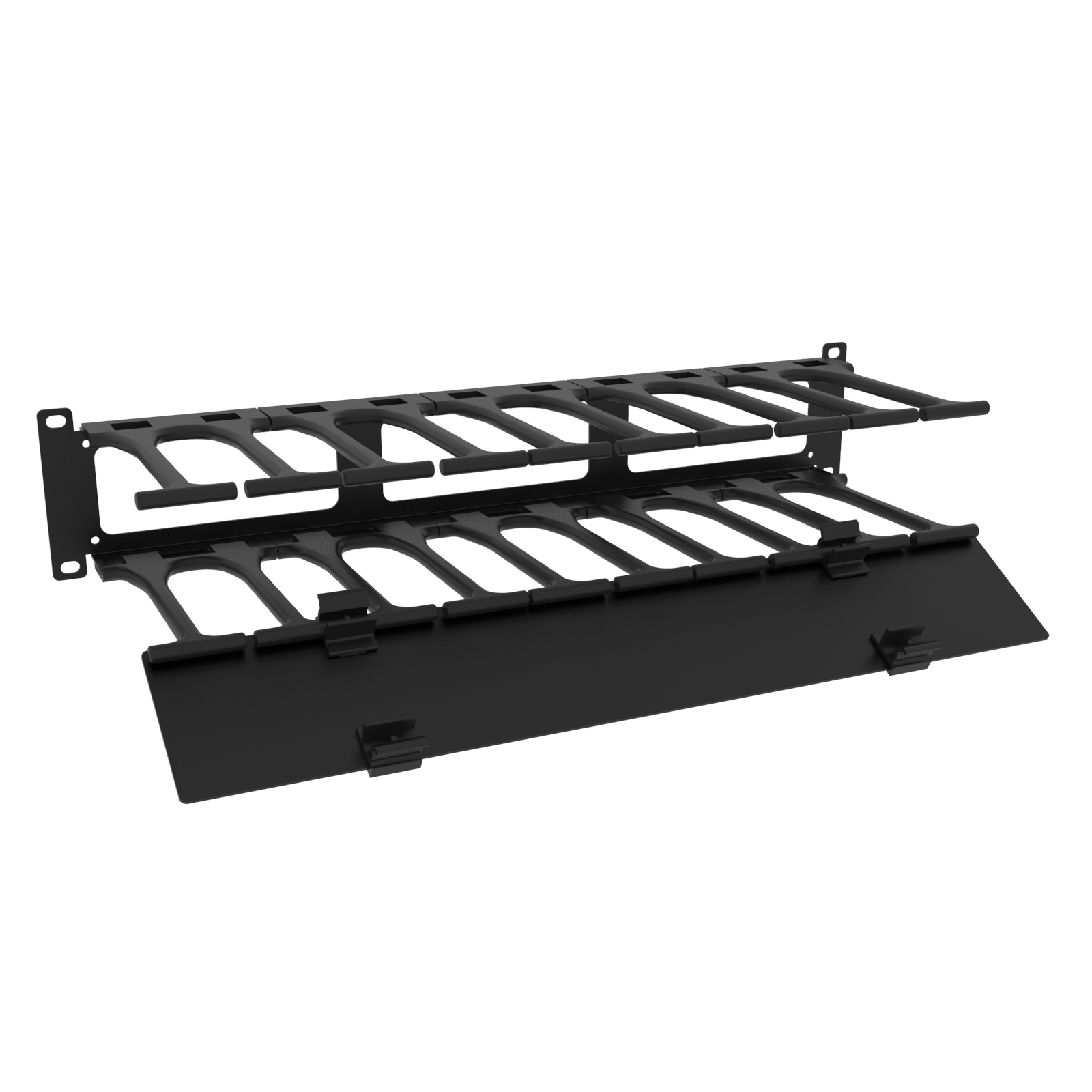

Hammond RB-HFMD2 2U 19-Inch Finger Cable Manager With Cover

The RB-HFMD2 is a 2U horizontal finger cable manager with a removable cover, built for organized, higher-density cable routing in standard 19-inch racks. It suits IT and network technicians, AV integrators and structured cabling installers who need patch cables guided into defined pathways between switches and patch panels rather than left loose across the rack face.

Construction is 16-gauge steel with polycarbonate fingers, finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant. The fingers are UL94V-0 rated polycarbonate for flame resistance, and the finger-style layout improves cable separation and routing control compared with open ring managers. The removable cover conceals cabling for a clean appearance and improved airflow management.

Nominal size is 3.5 in x 19 in x 6.5 in (89 mm x 483 mm x 165 mm), with the series table listing overall dimensions of 3.22 in high, 19.00 in wide and 6.54 in deep. Usable mounting height is 3.50 in (2U) on 19-inch EIA-compliant rack mounting, with 18.32 in (465 mm) between mounting holes. Inside dimensions are 6.33 in (161 mm) and 2.38 in (60 mm), and shipping weight is 2.7 lbs (1.22 kg).

• Top cable pass-through openings measuring 1.45 in (37 mm) and 4.47 in (114 mm).
• Rear cable pass-through openings measuring 5.00 in (127 mm) and 1.85 in (47 mm).

RB-HFMD2 ships pre-assembled as a two-piece assembly (2U back and 2U cover); mounting hardware is not included. The unit can be installed back-to-back for double-sided management in high-density applications. It is TAA-compliant and manufactured in North America, with USMCA, RoHS and REACH compliance for procurement and environmental requirements. Part of the Rack Basics line.
