Multi-Bay Colocation Server Rack Cabinet · CLC Series

Key Features and Benefits

• ■14-gauge welded steel frame with 12-gauge reinforced corner brackets and 16-gauge doors and panels; UL Listed 2416 with a 3,000 lb load rating provides high-capacity support for shared IT infrastructure.

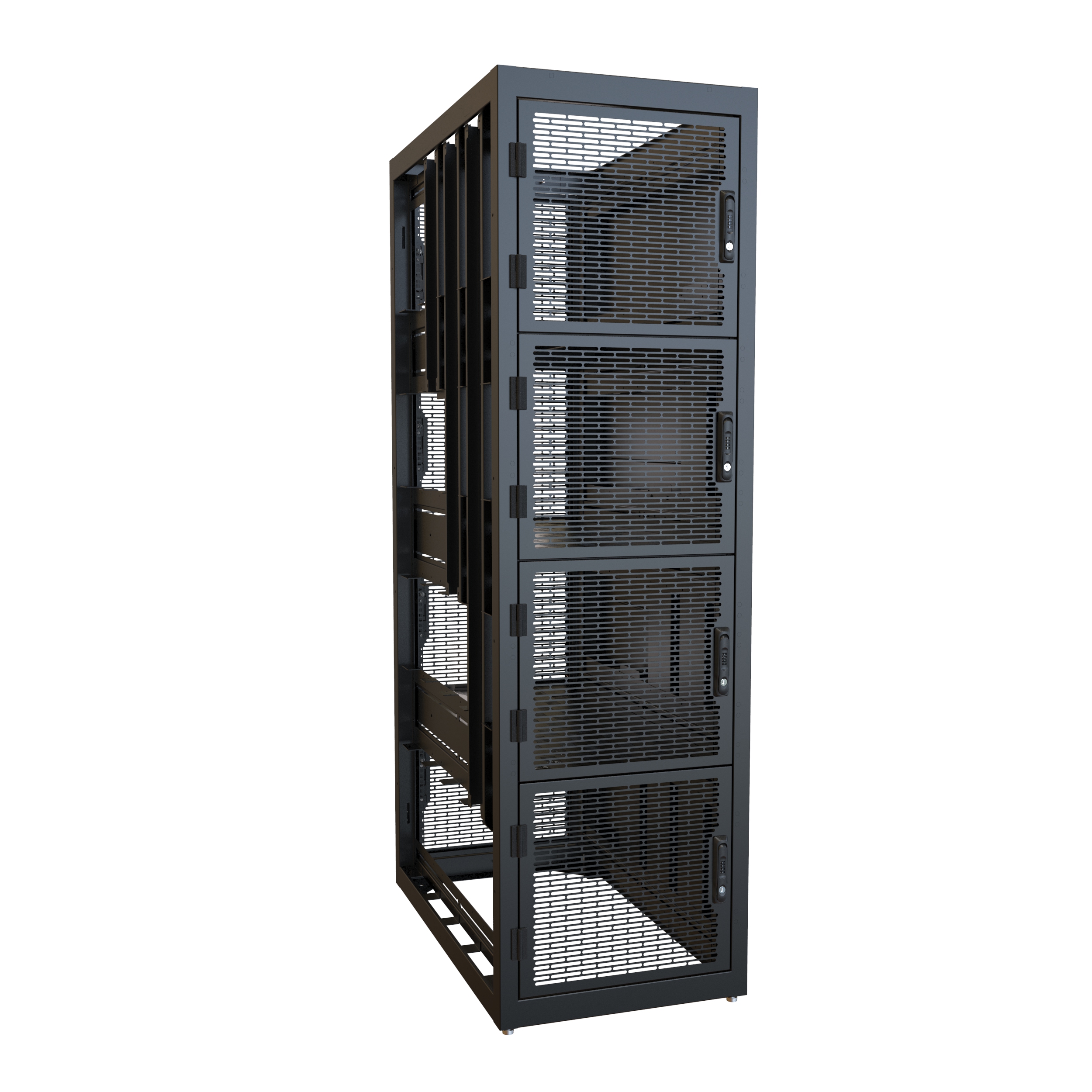

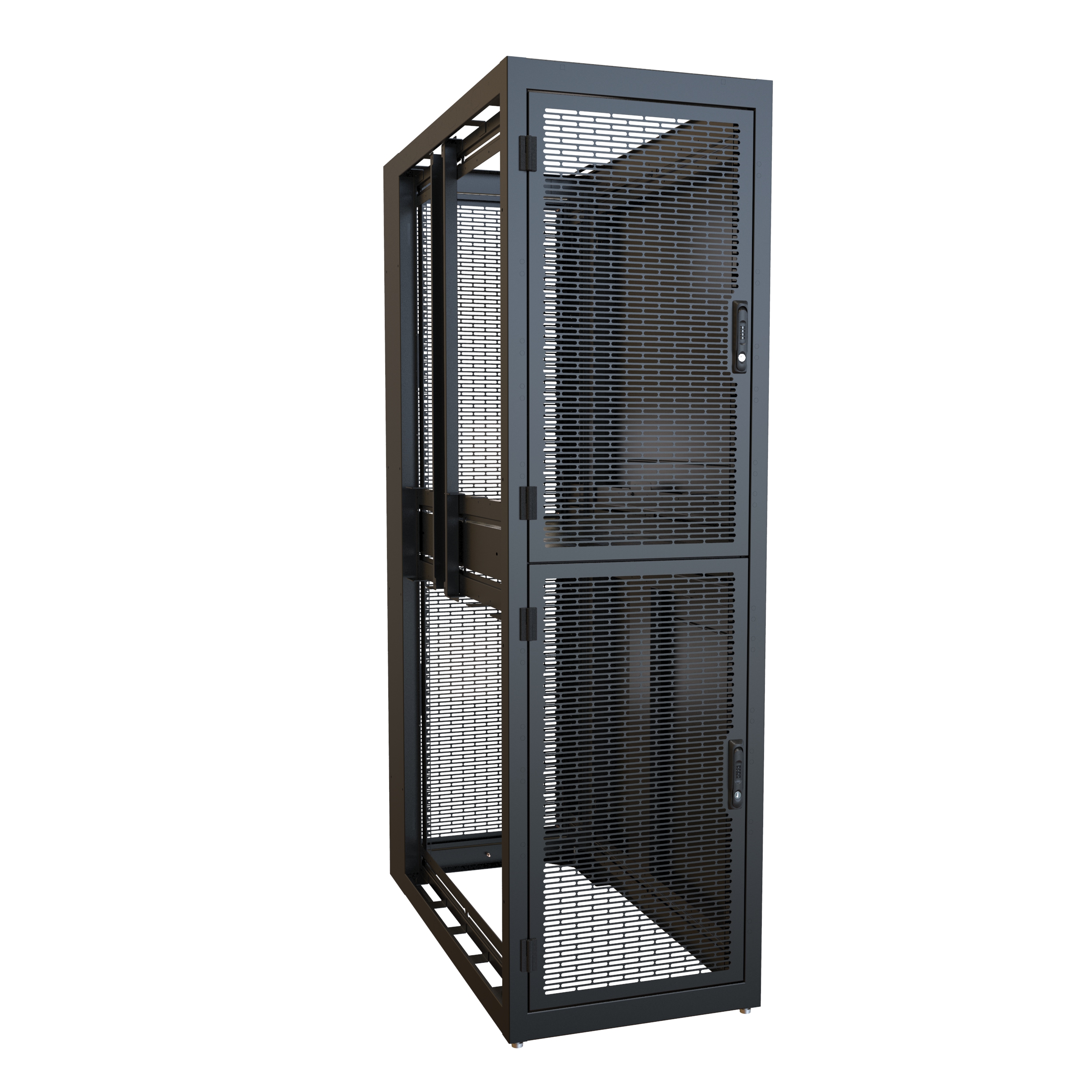

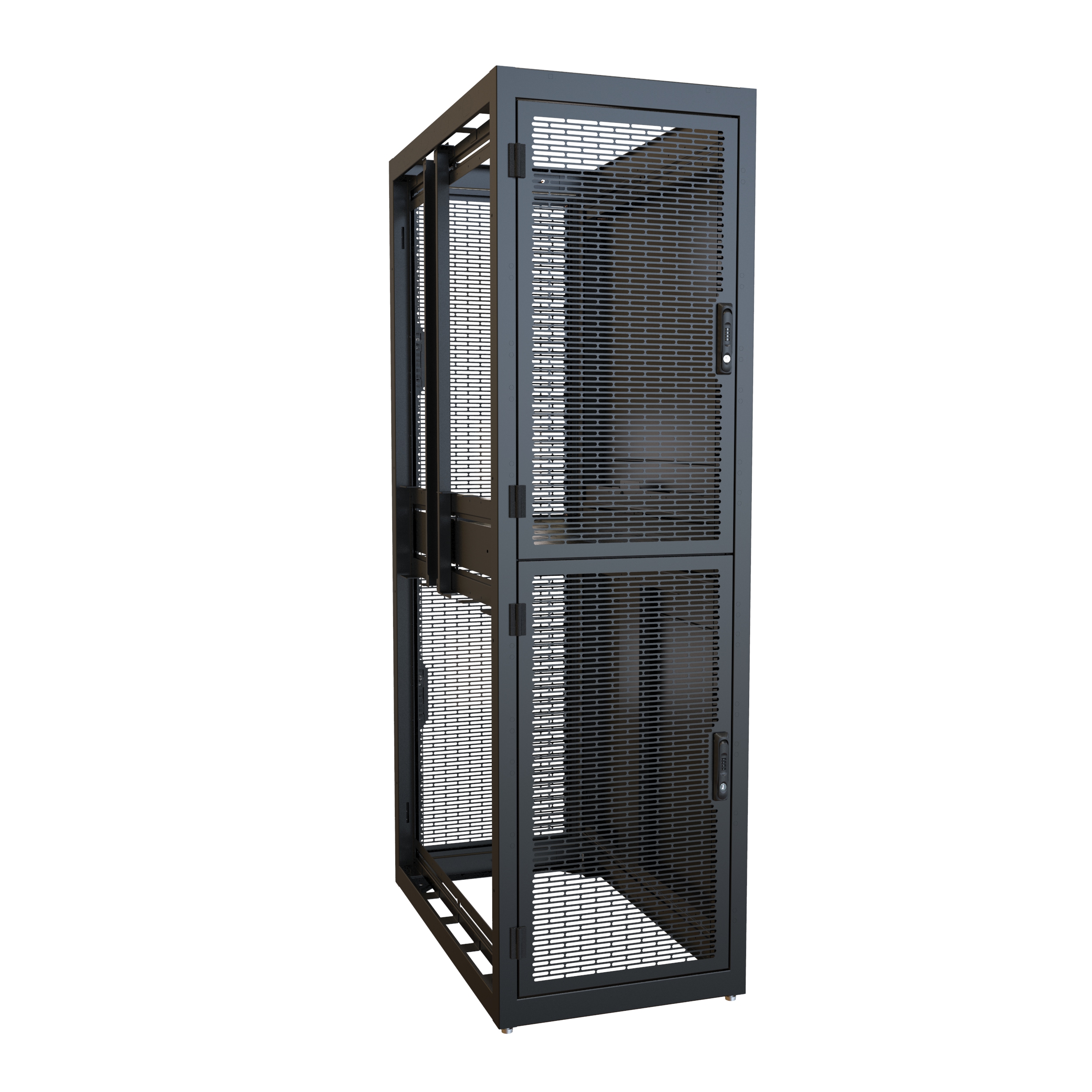

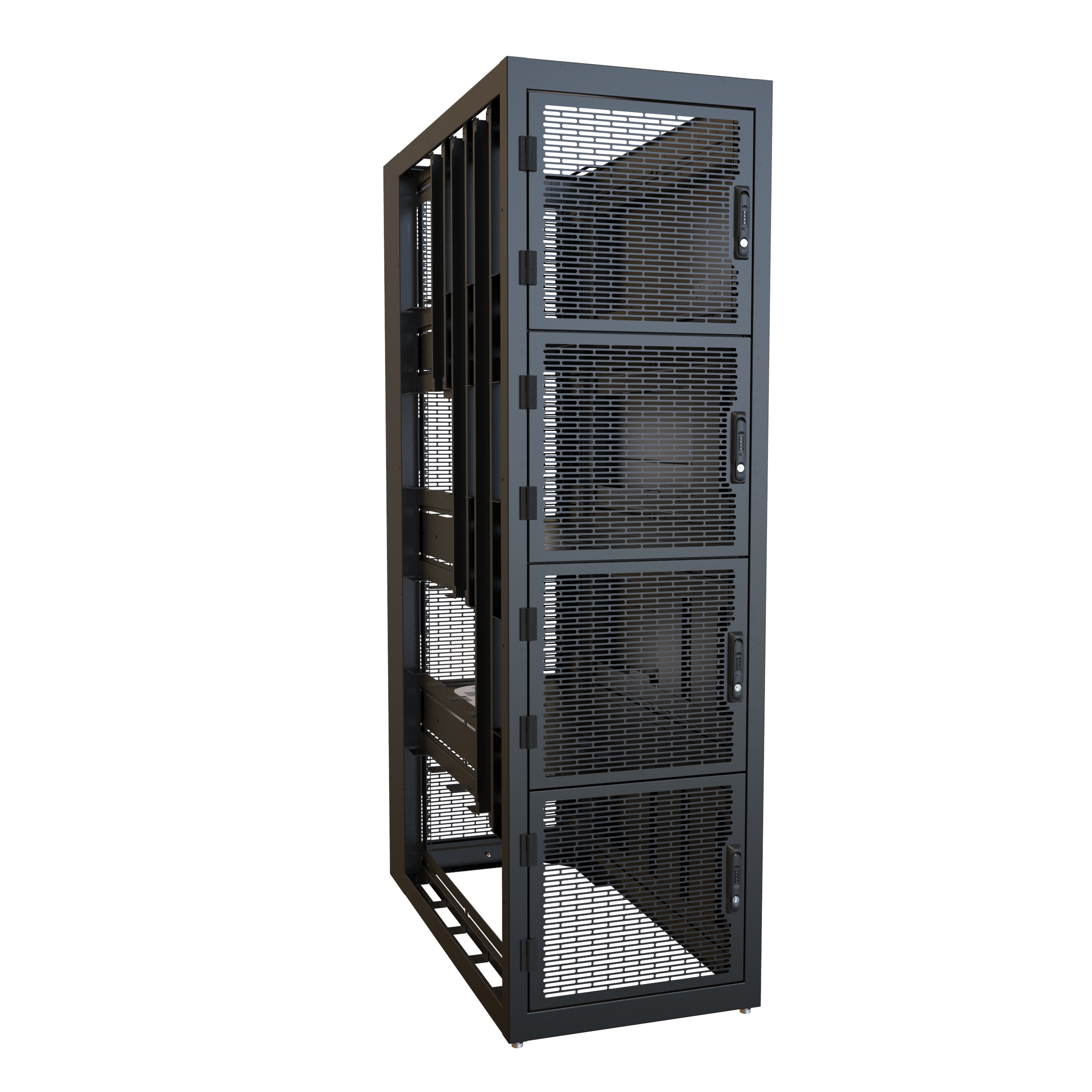

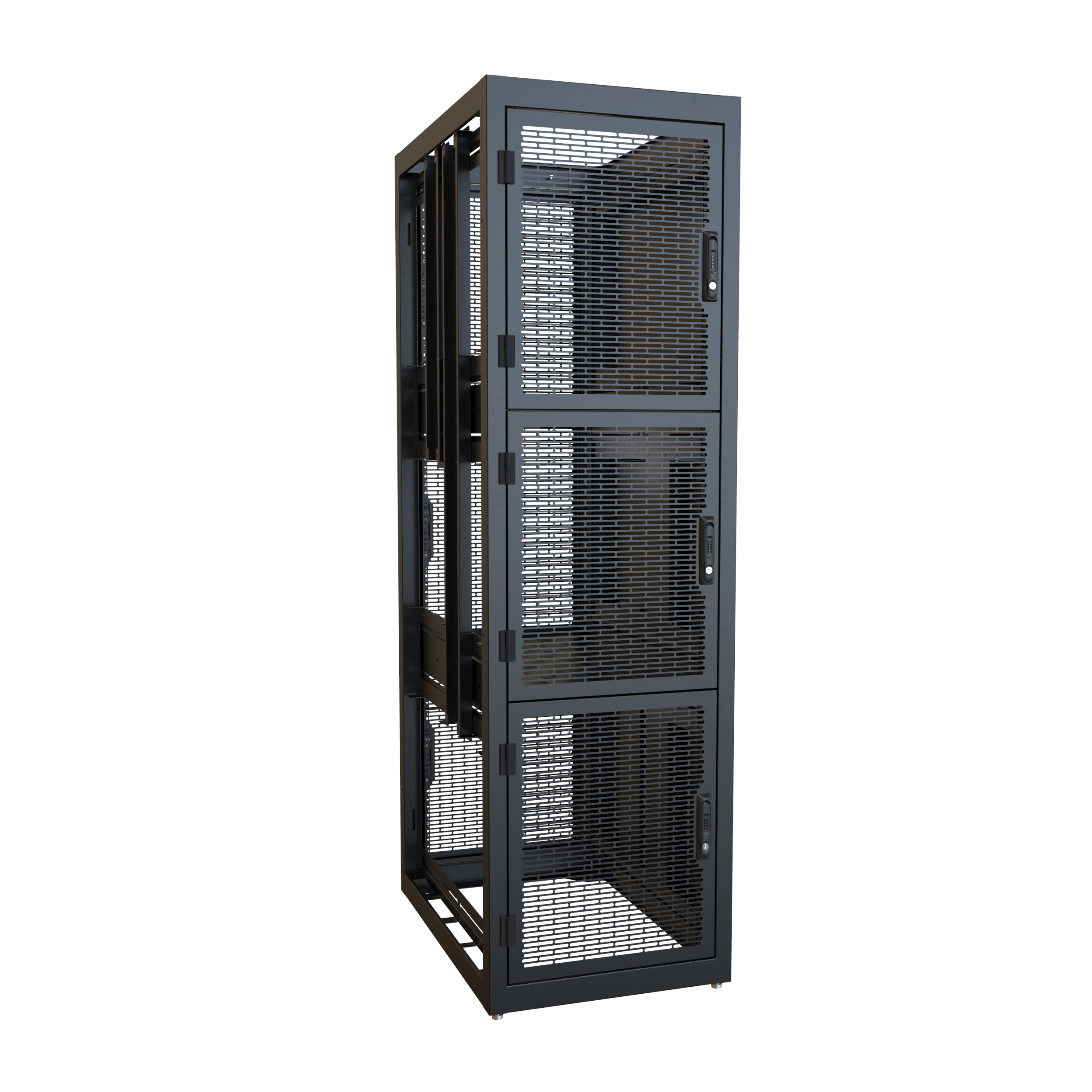

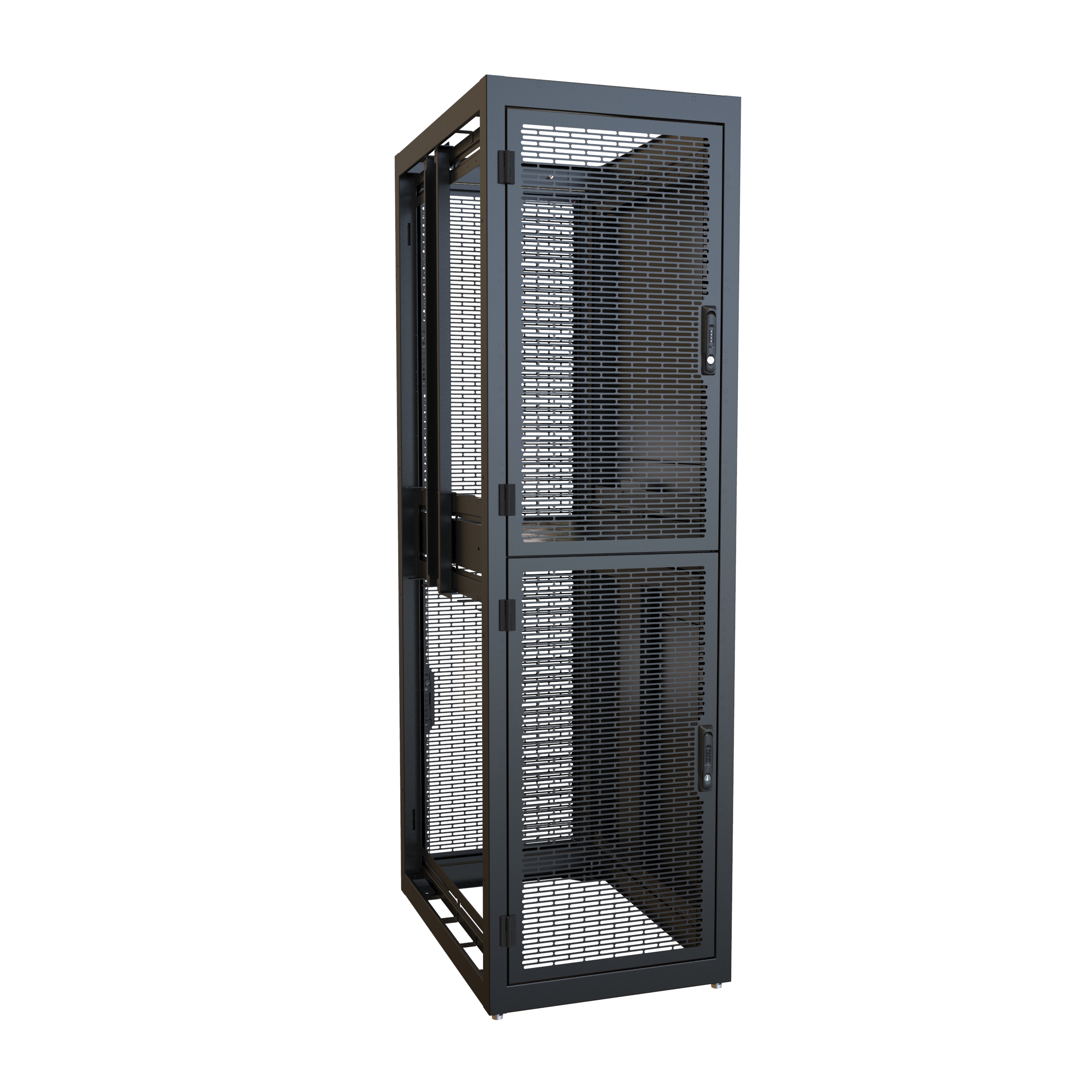

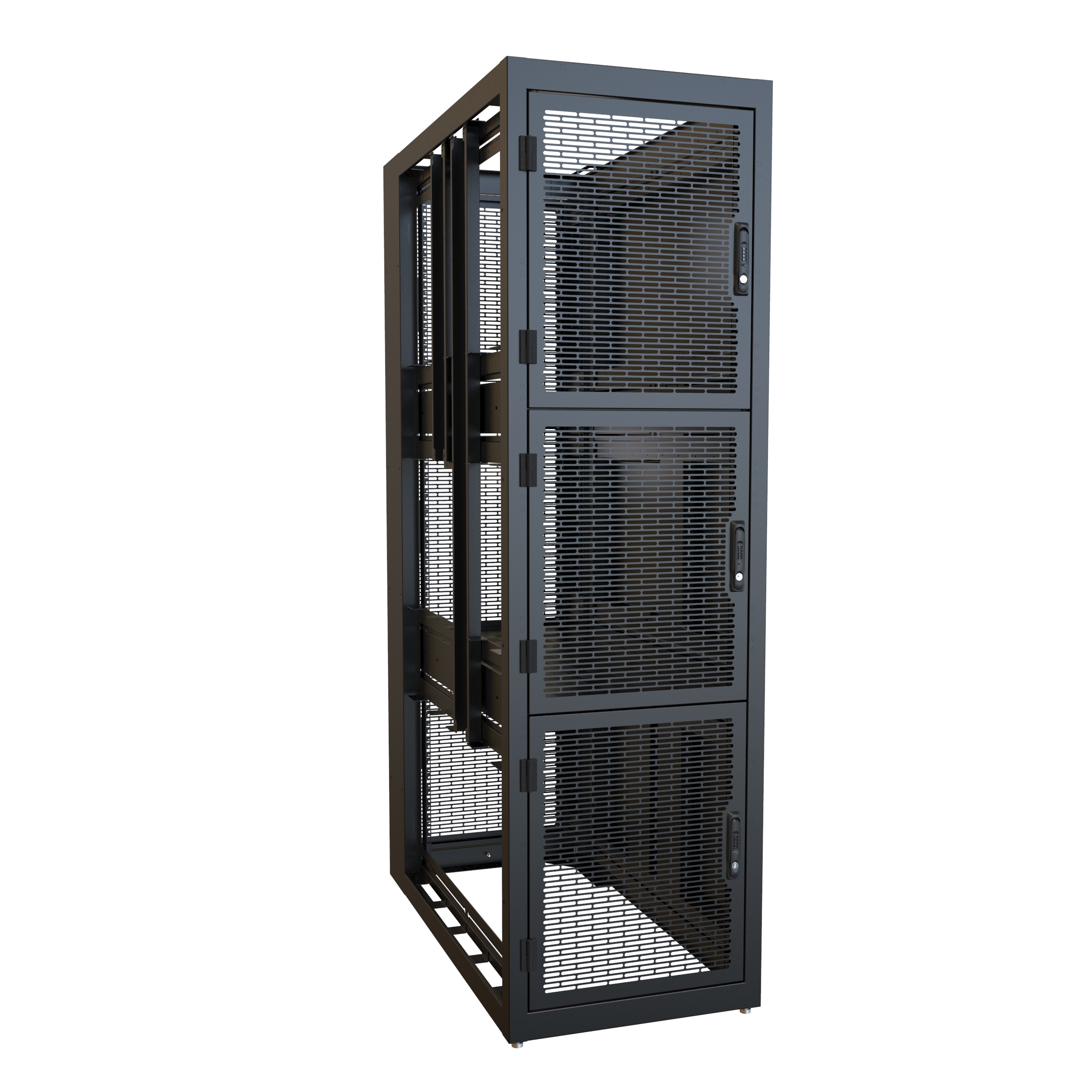

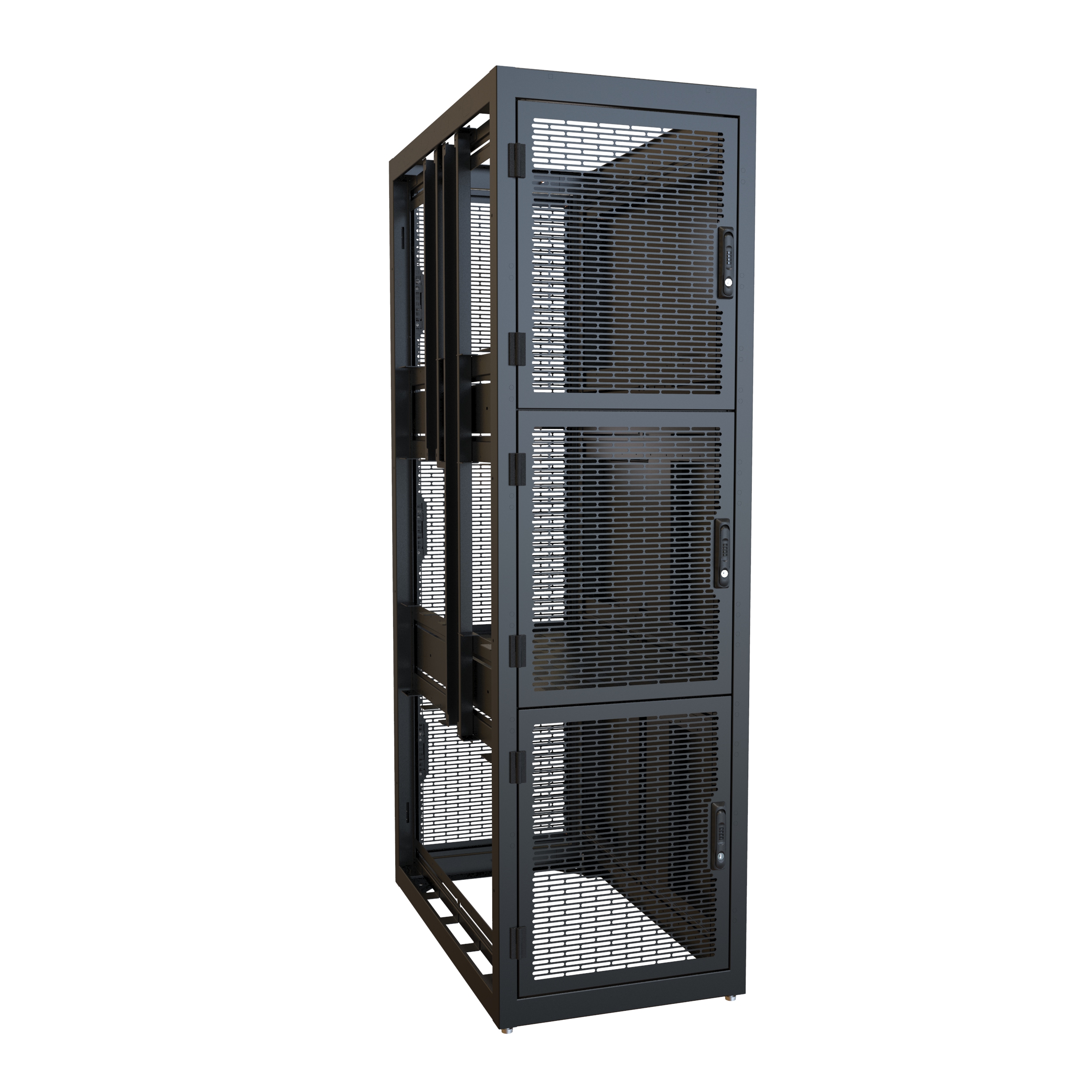

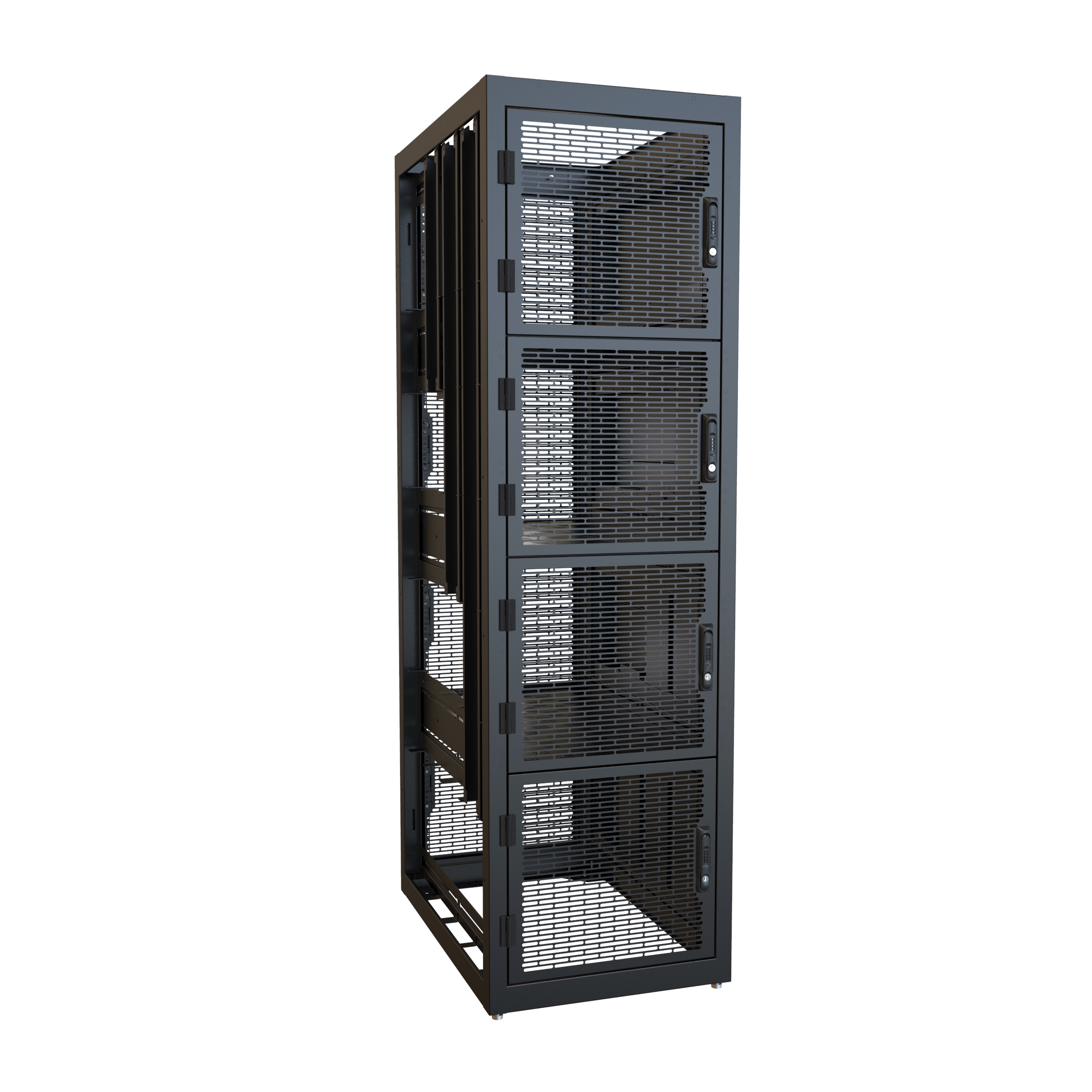

• ■Available in two (2), three (3), and four (4)-bay configurations, allowing multiple tenants, departments, or customers to securely share a single cabinet footprint. 2-bay: 21U per compartment 3-bay: 14U per compartment 4-bay: 10U per compartment
• ■2-bay: 21U per compartment
• ■3-bay: 14U per compartment
• ■4-bay: 10U per compartment

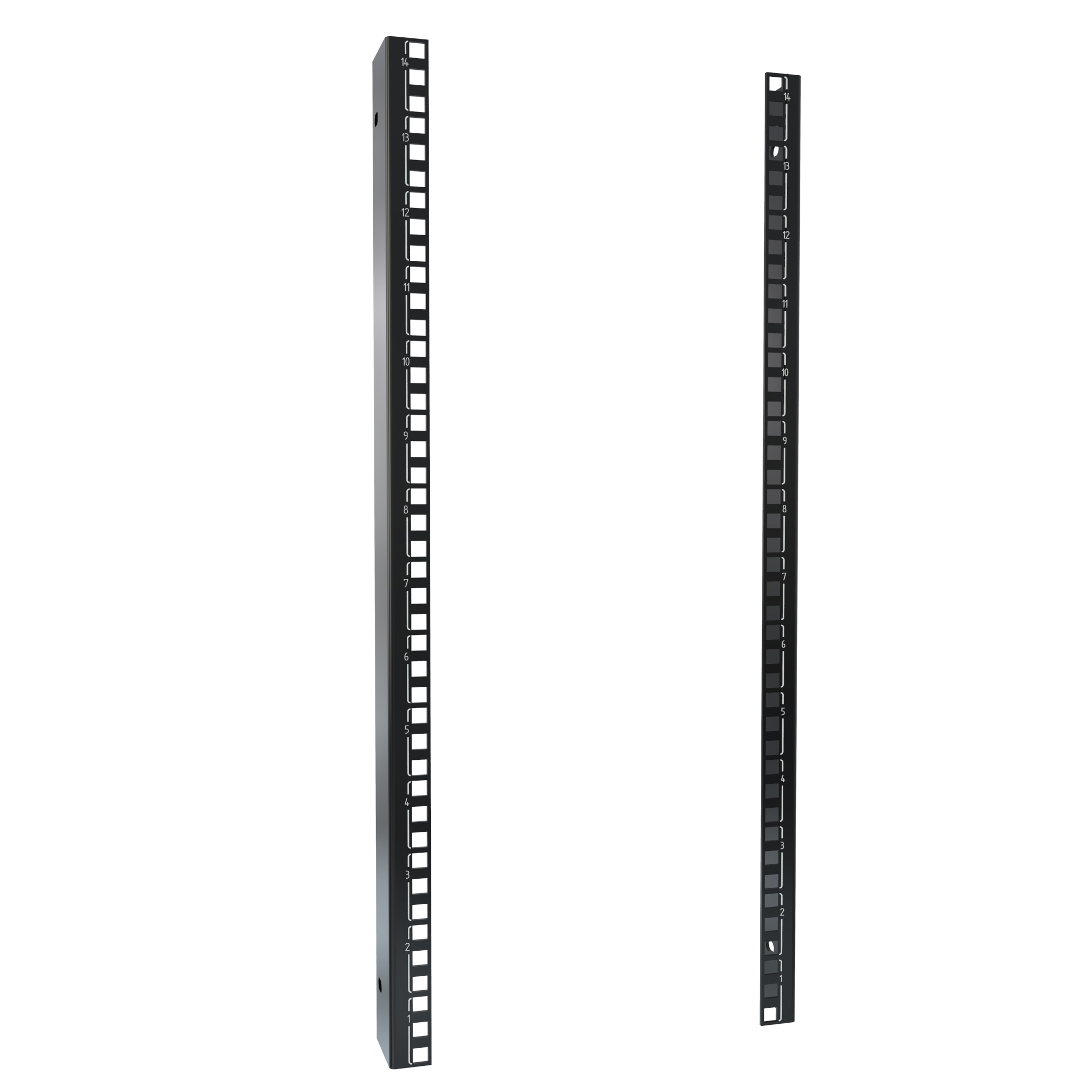

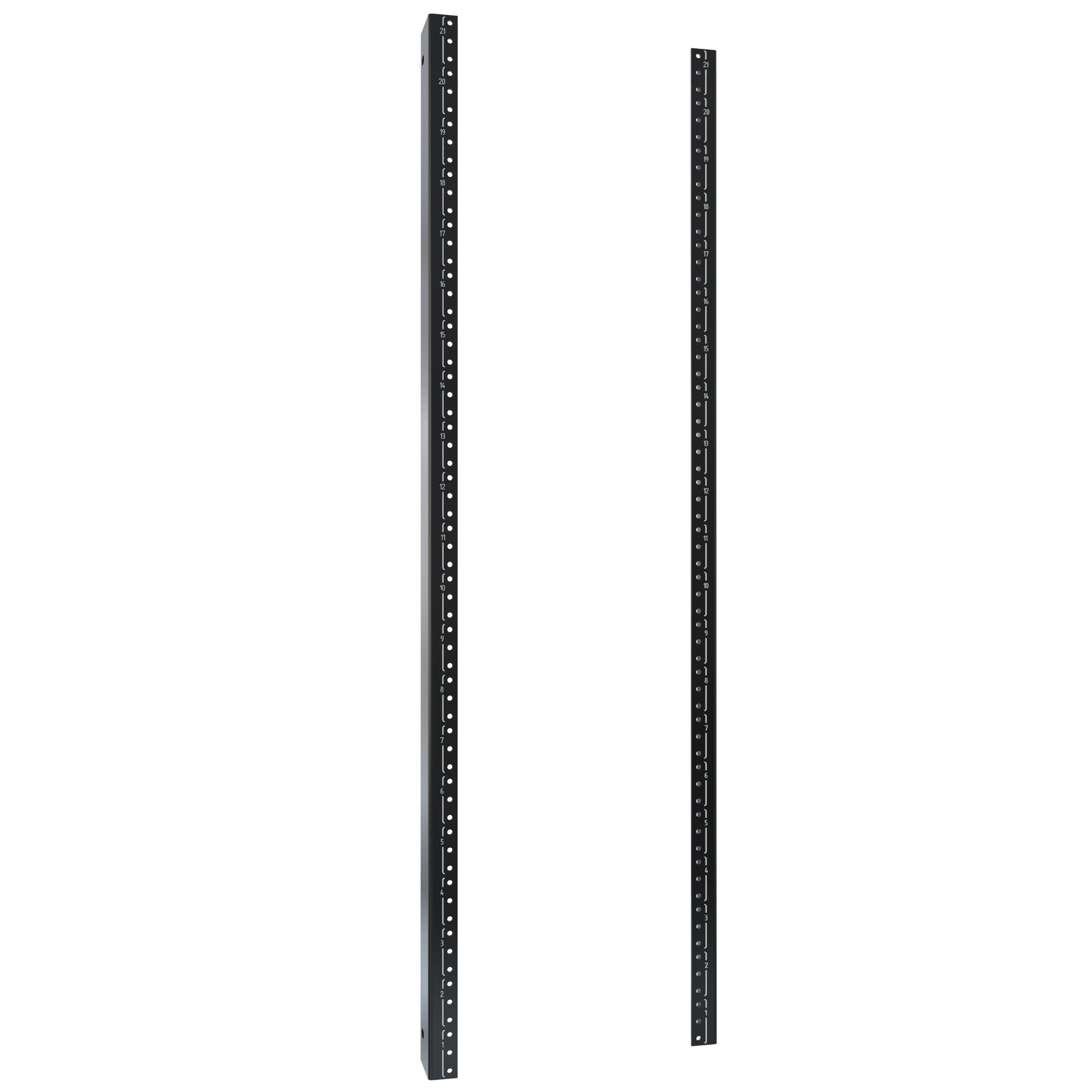

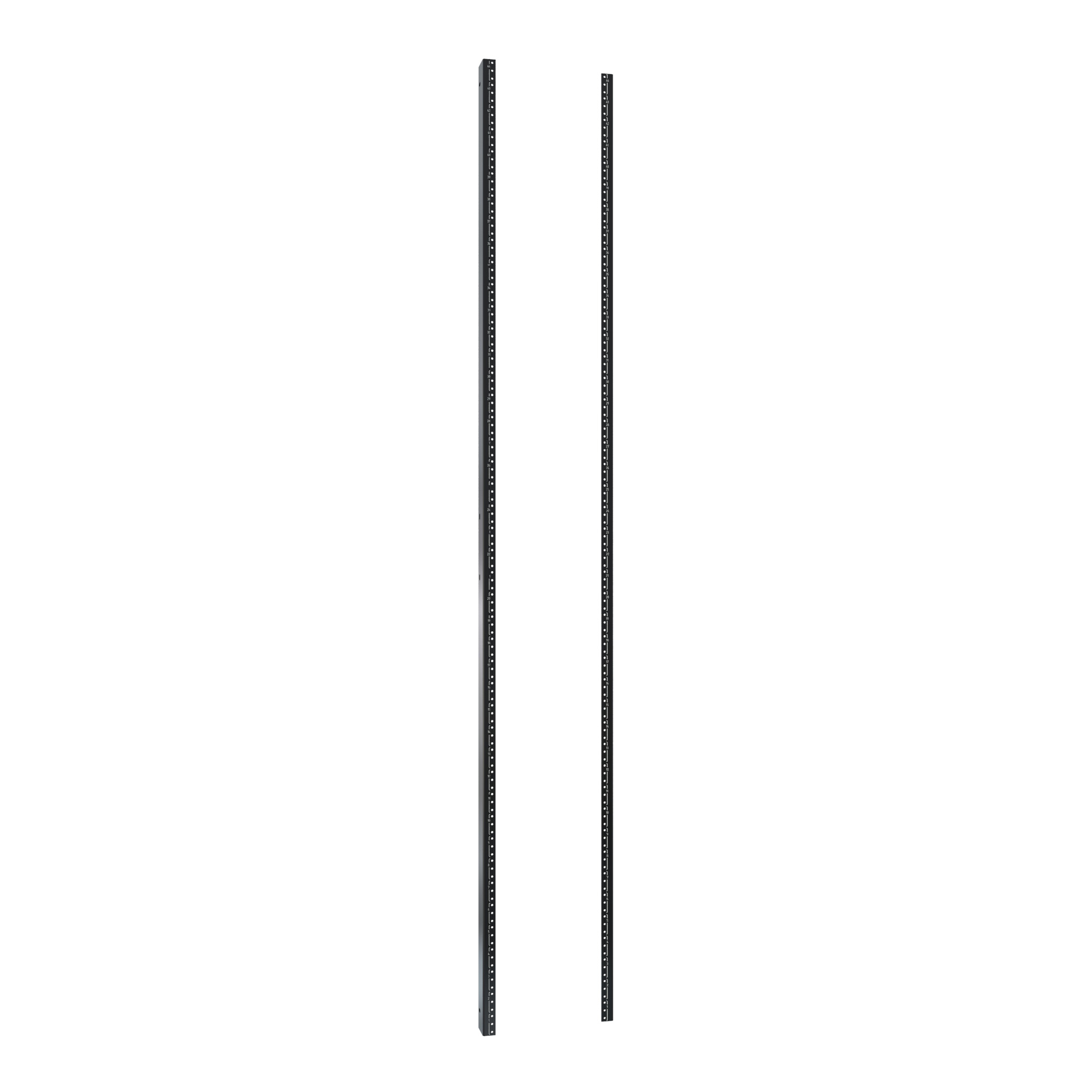

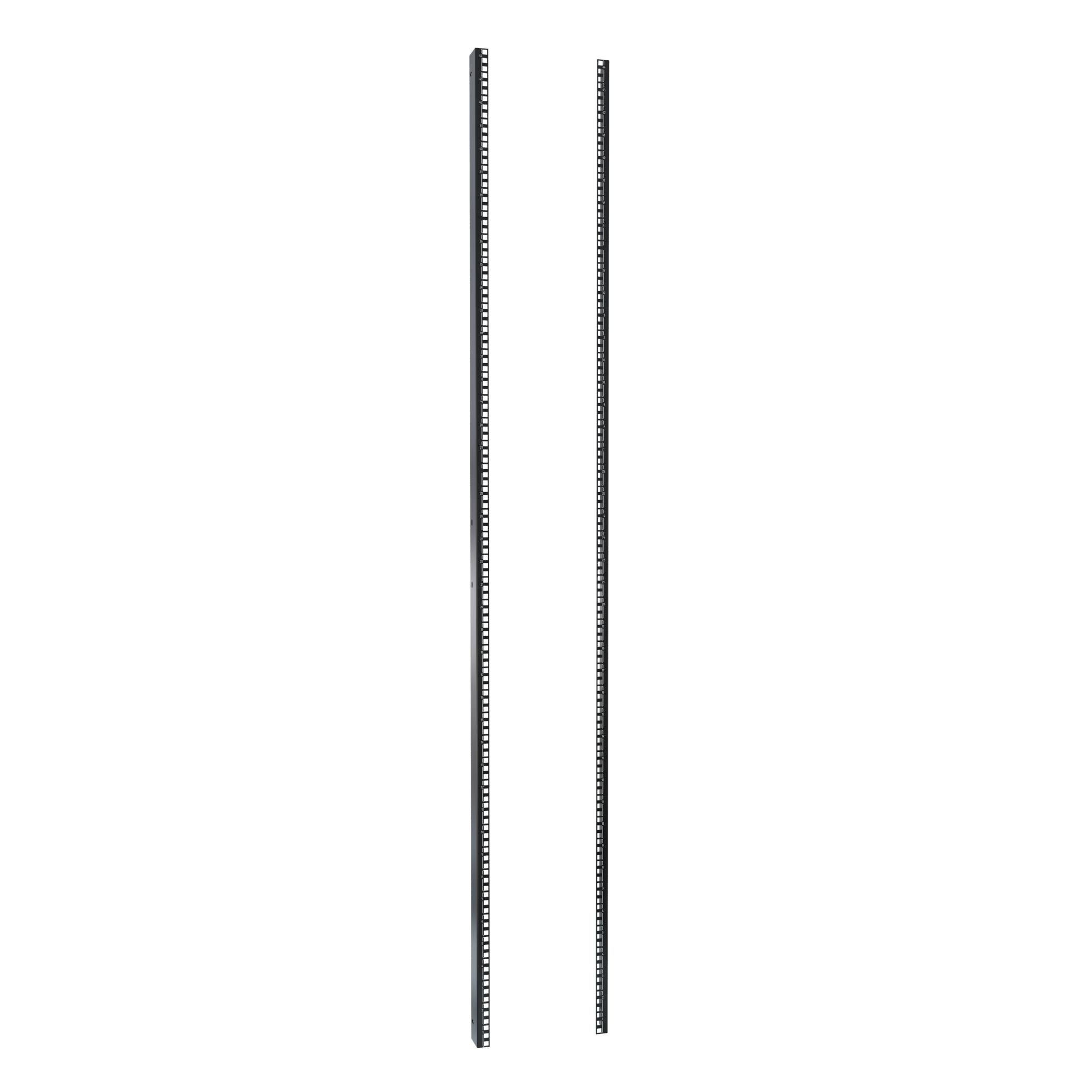

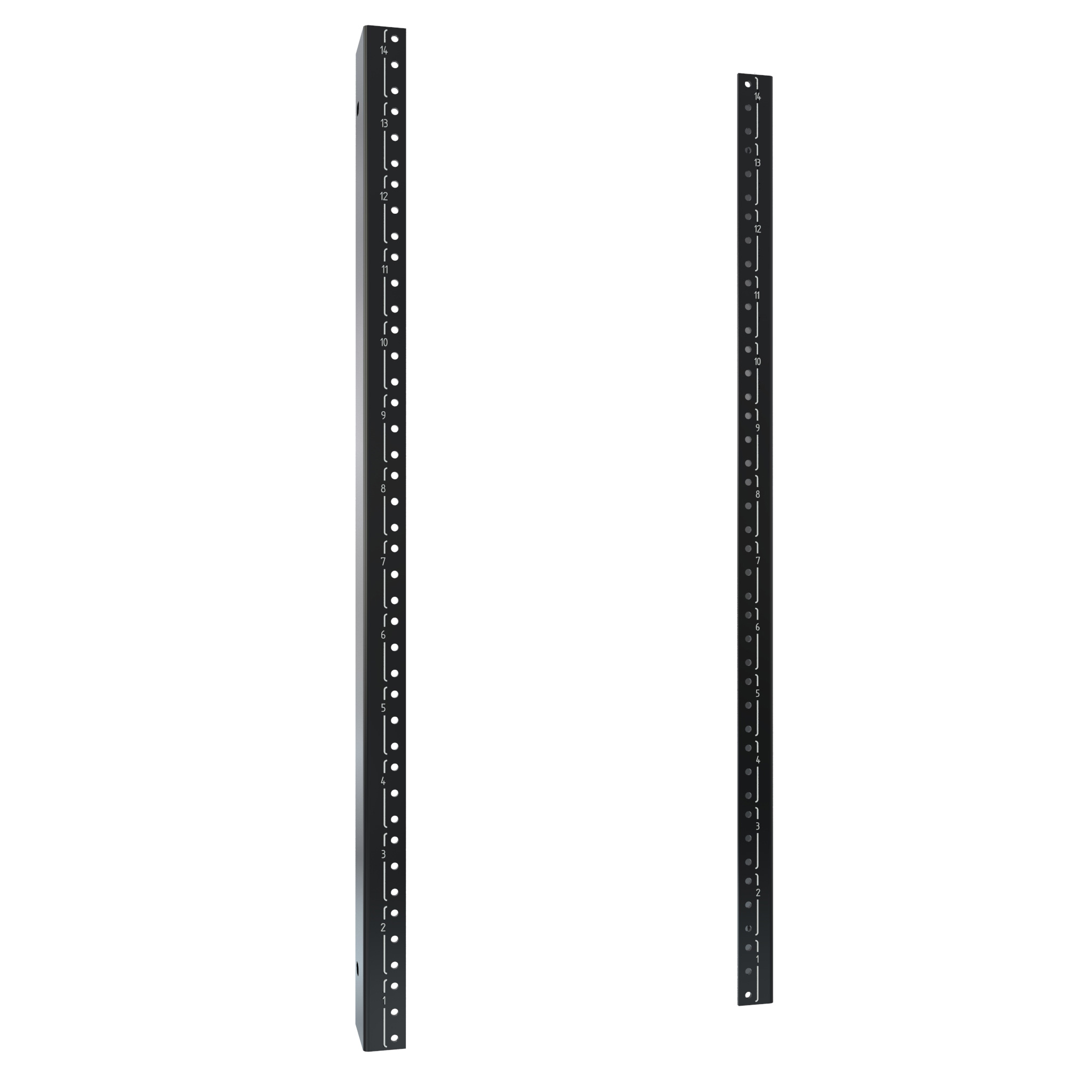

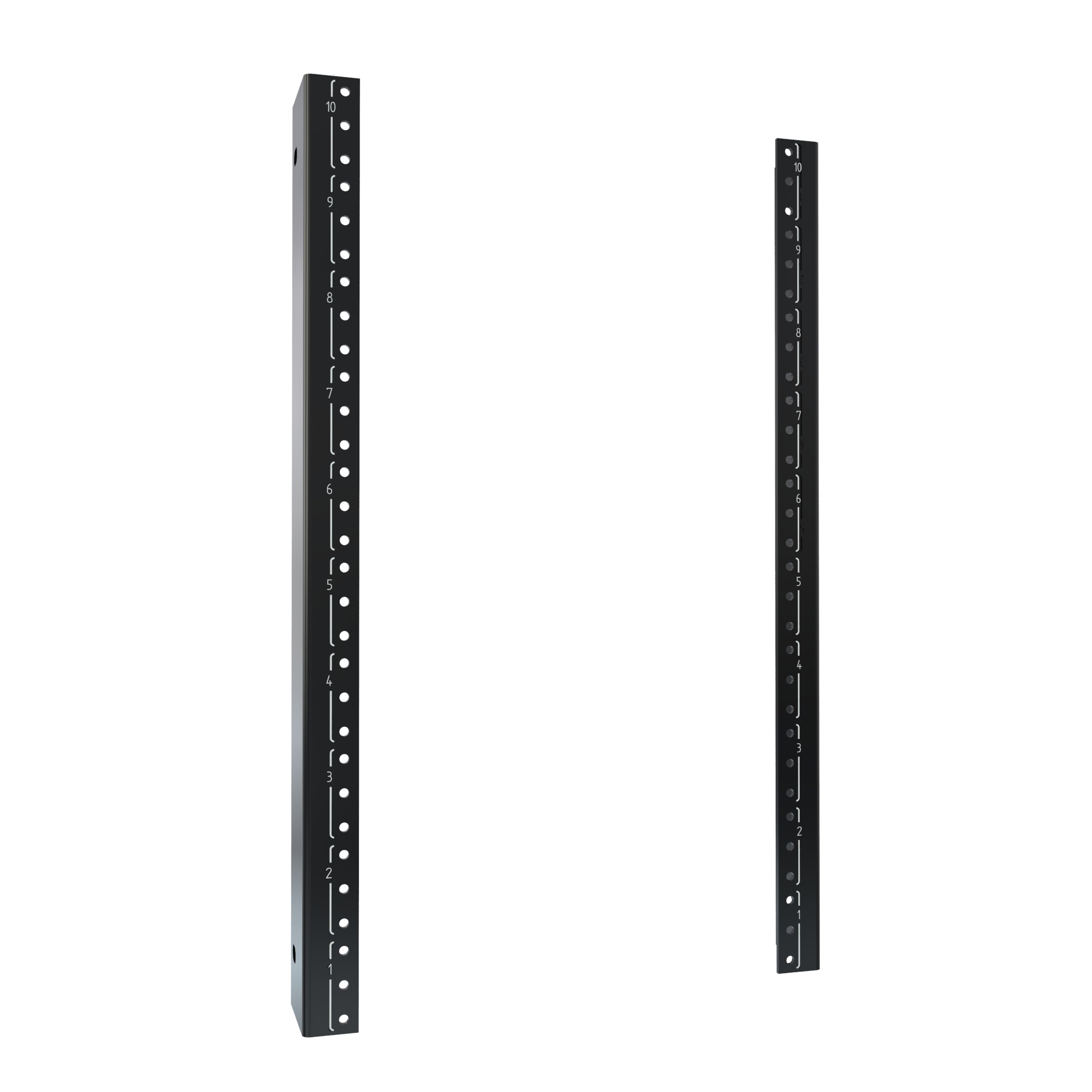

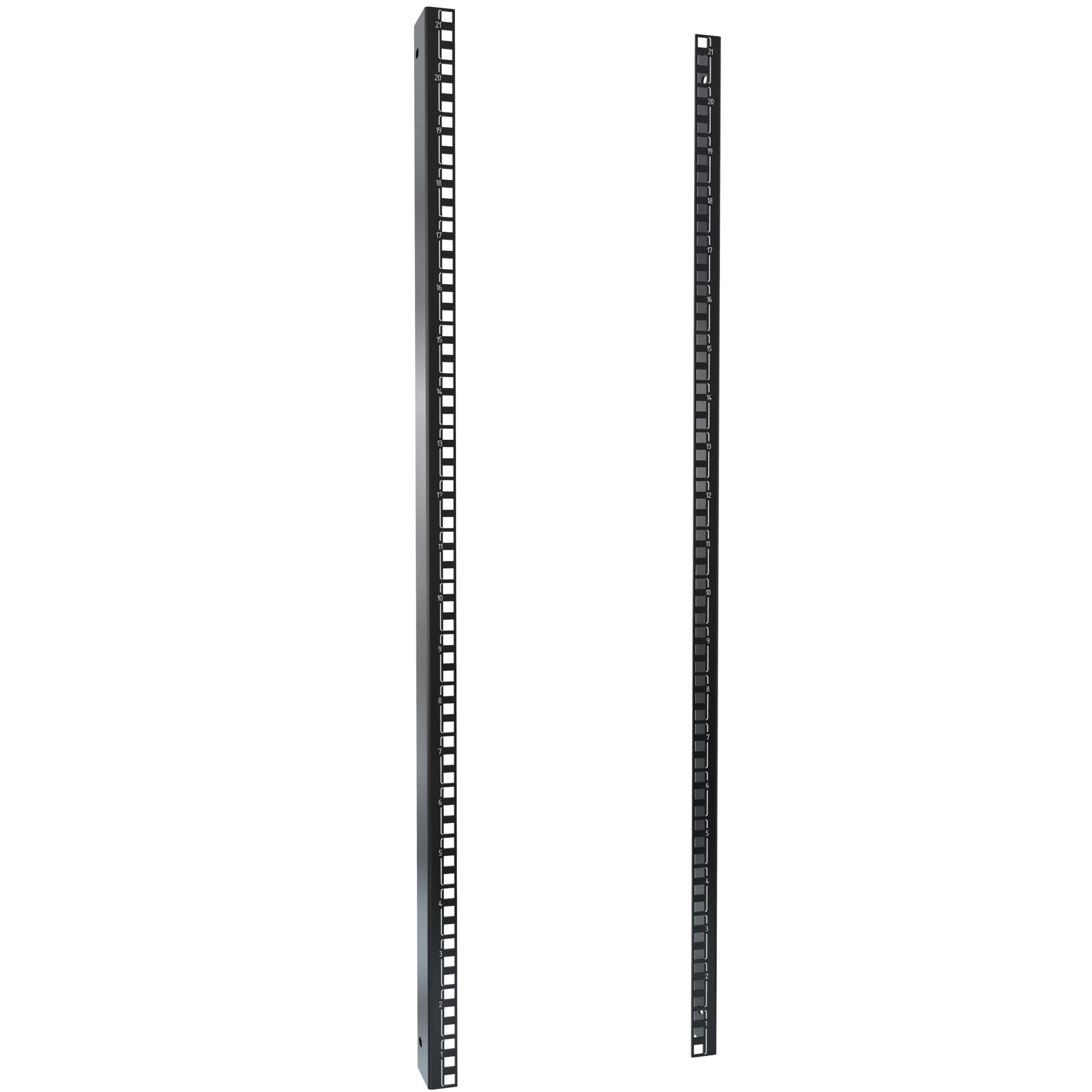

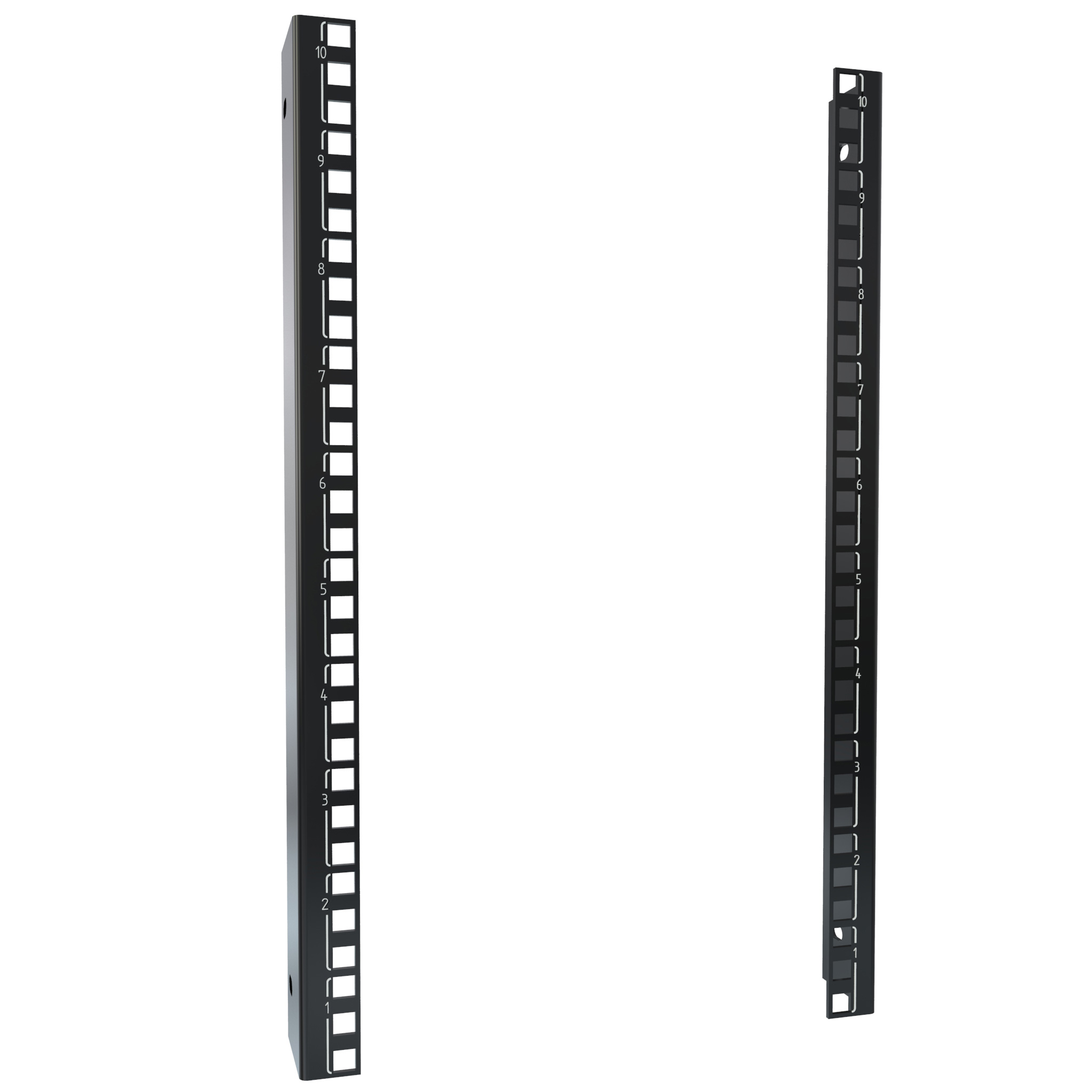

• ■Each bay includes two (2) pairs of adjustable-depth EIA-310 square-hole mounting rails for standard 19-inch rack equipment.
• ■Individual perforated front doors with locking swing handles provide controlled access to each equipment compartment while supporting equipment airflow.
• ■Vented divider shelves physically separate equipment bays while removable rear panels provide space for vertical PDU installation and cable routing.
• ■Dedicated security plates and cable manager covers are available to restrict access between compartments and support secure multi-tenant installations.

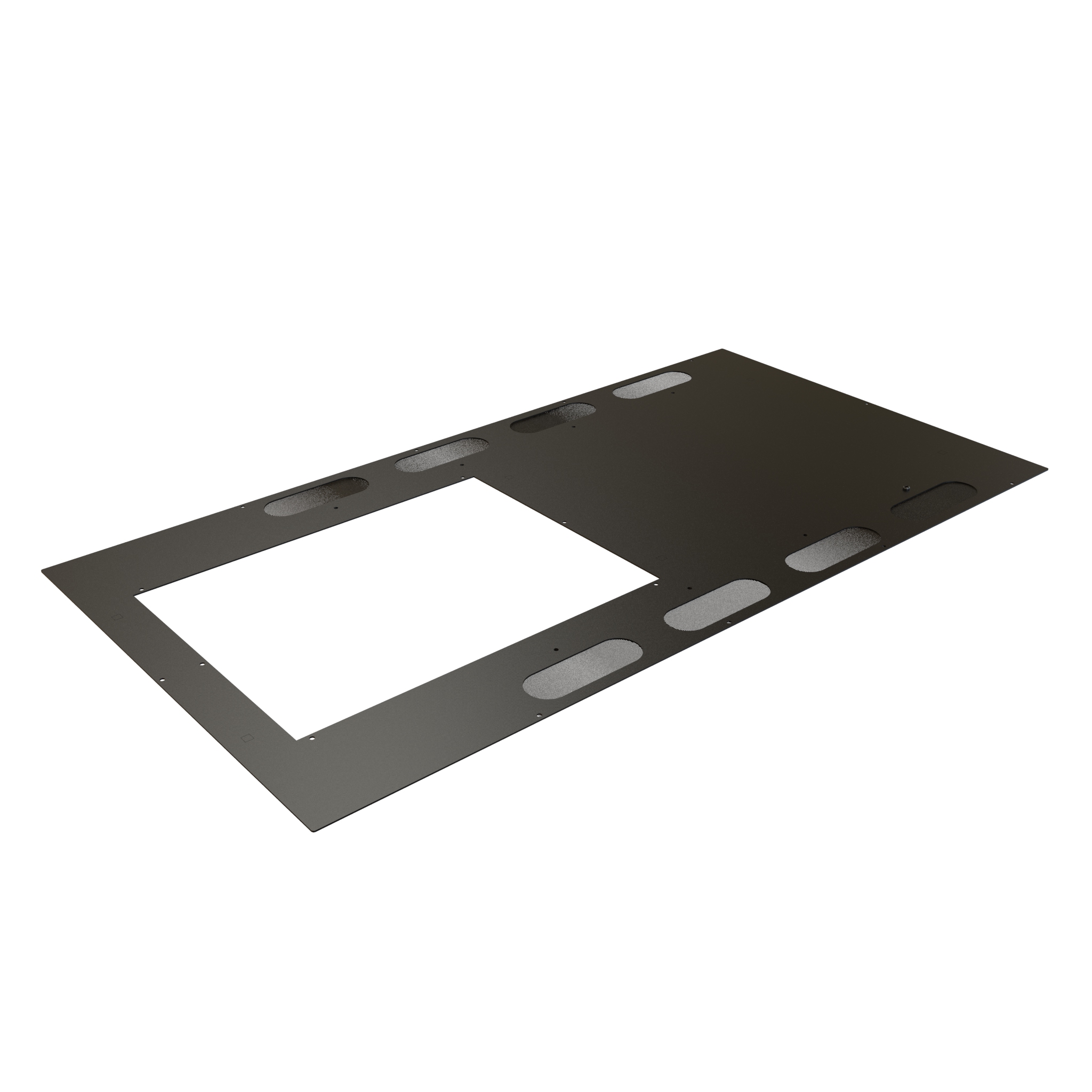

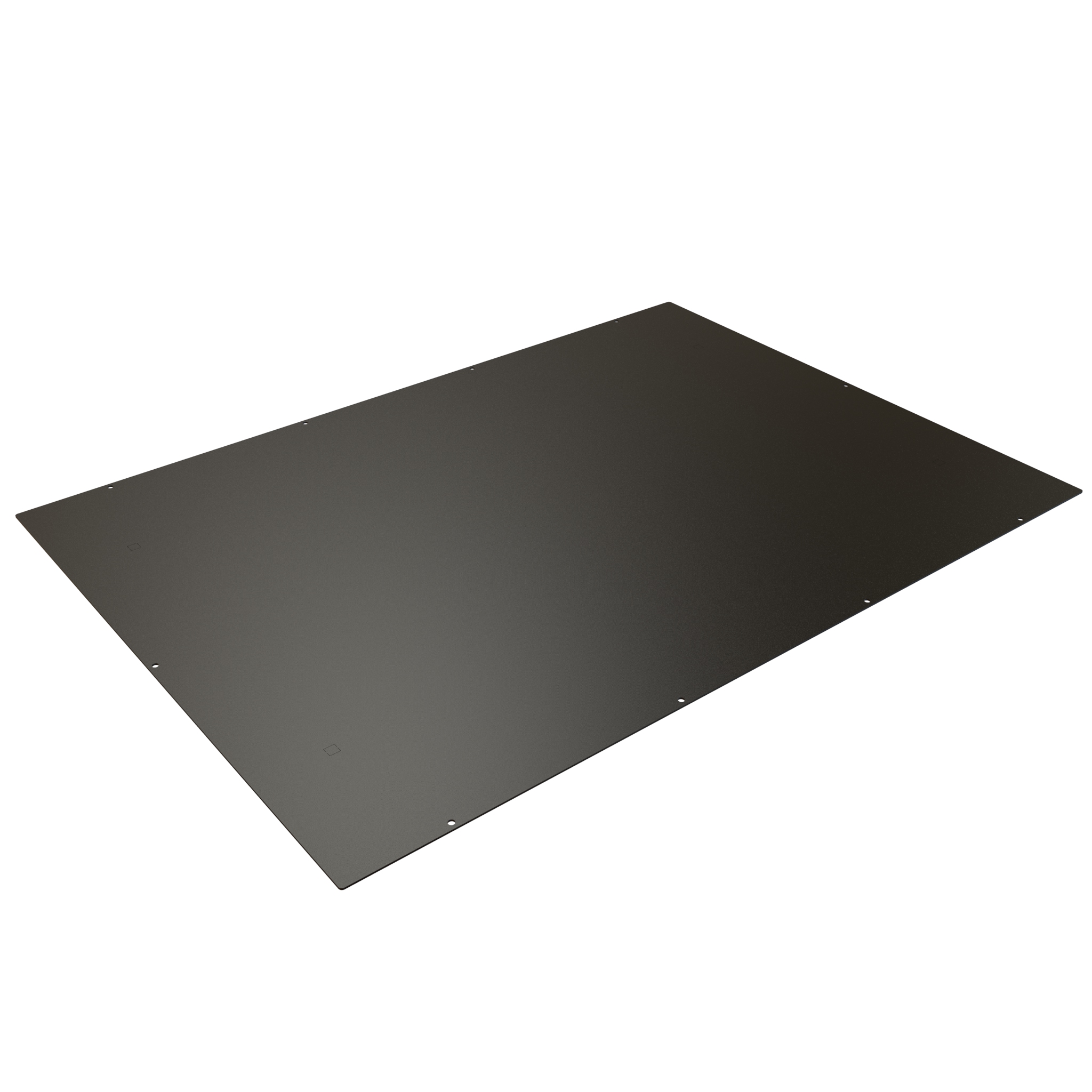

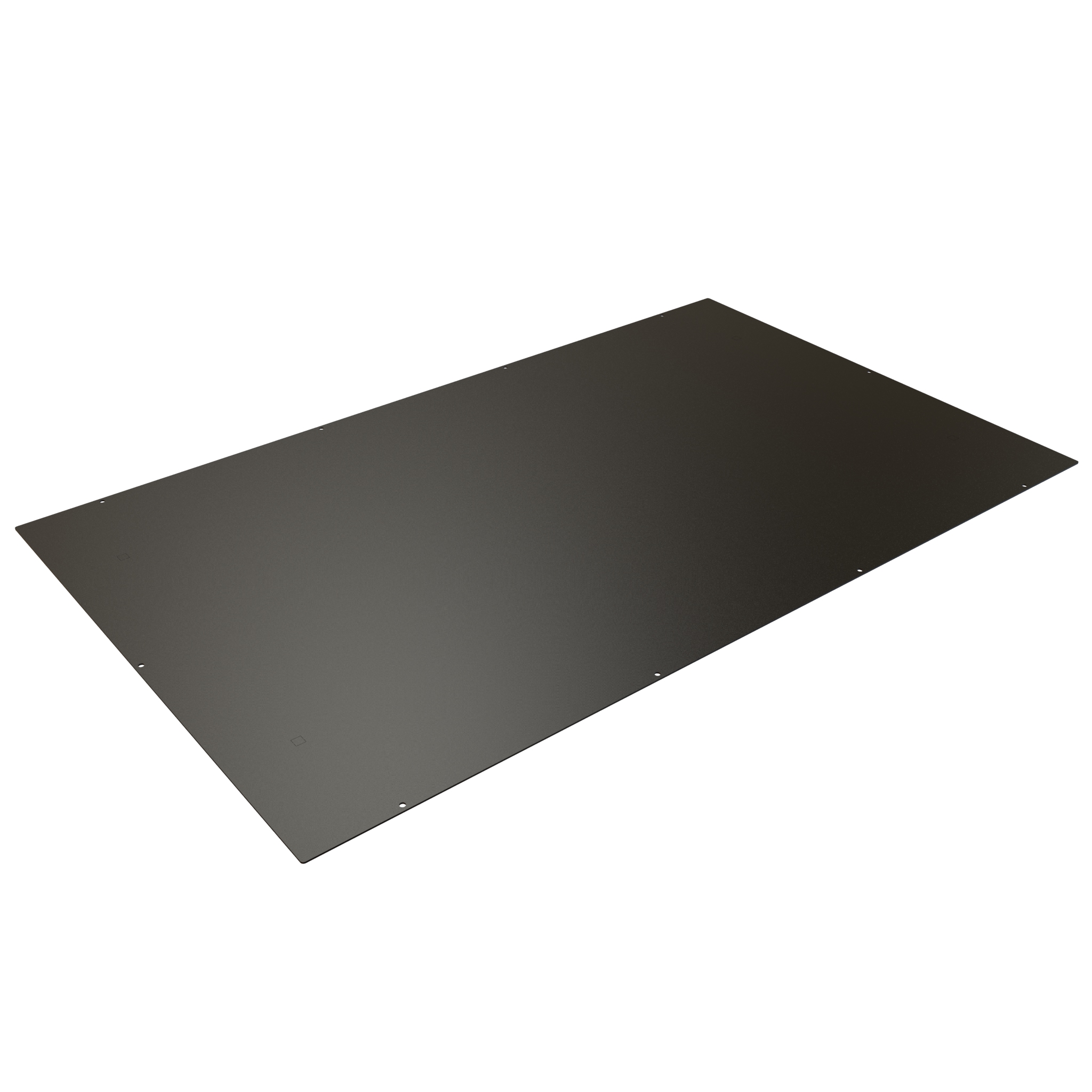

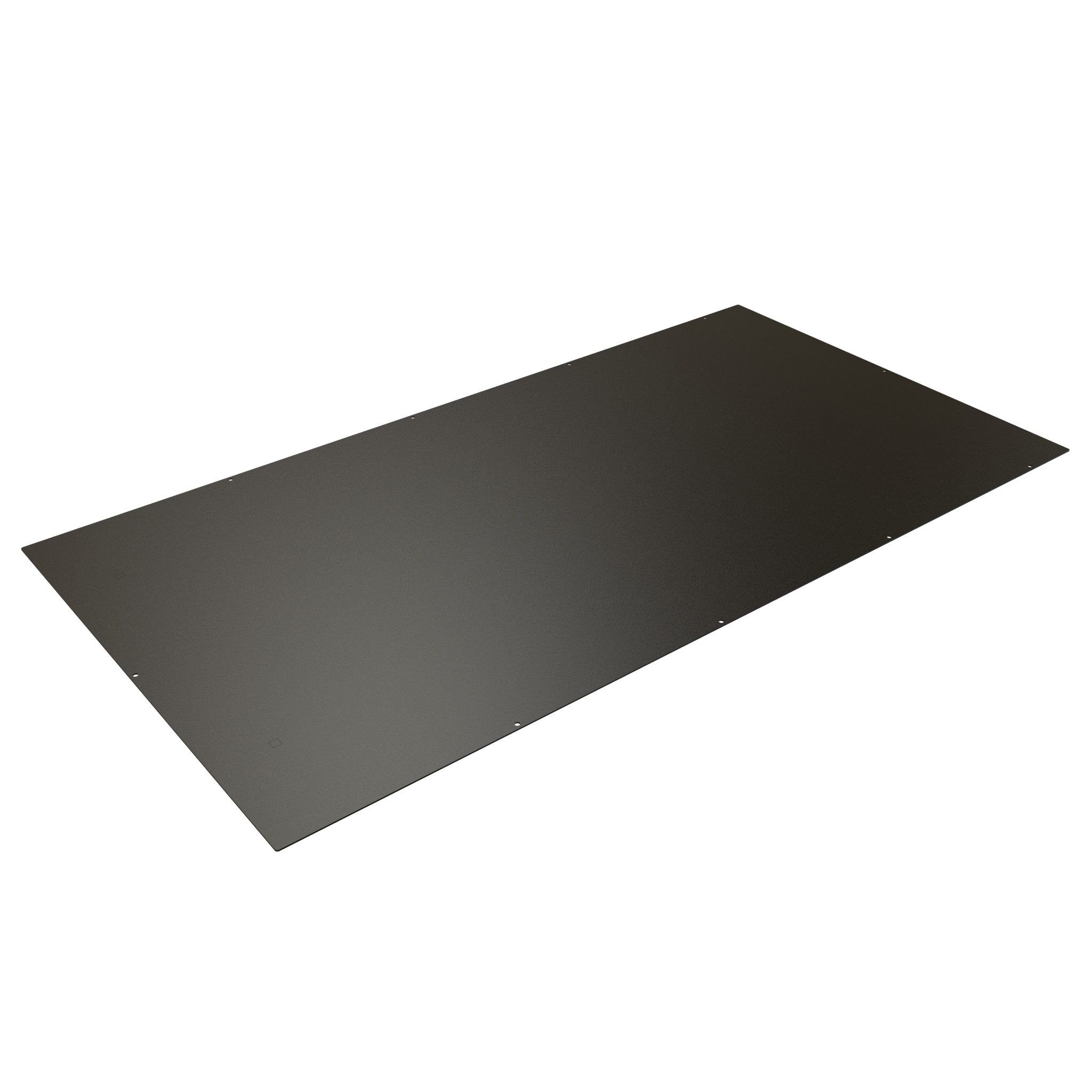

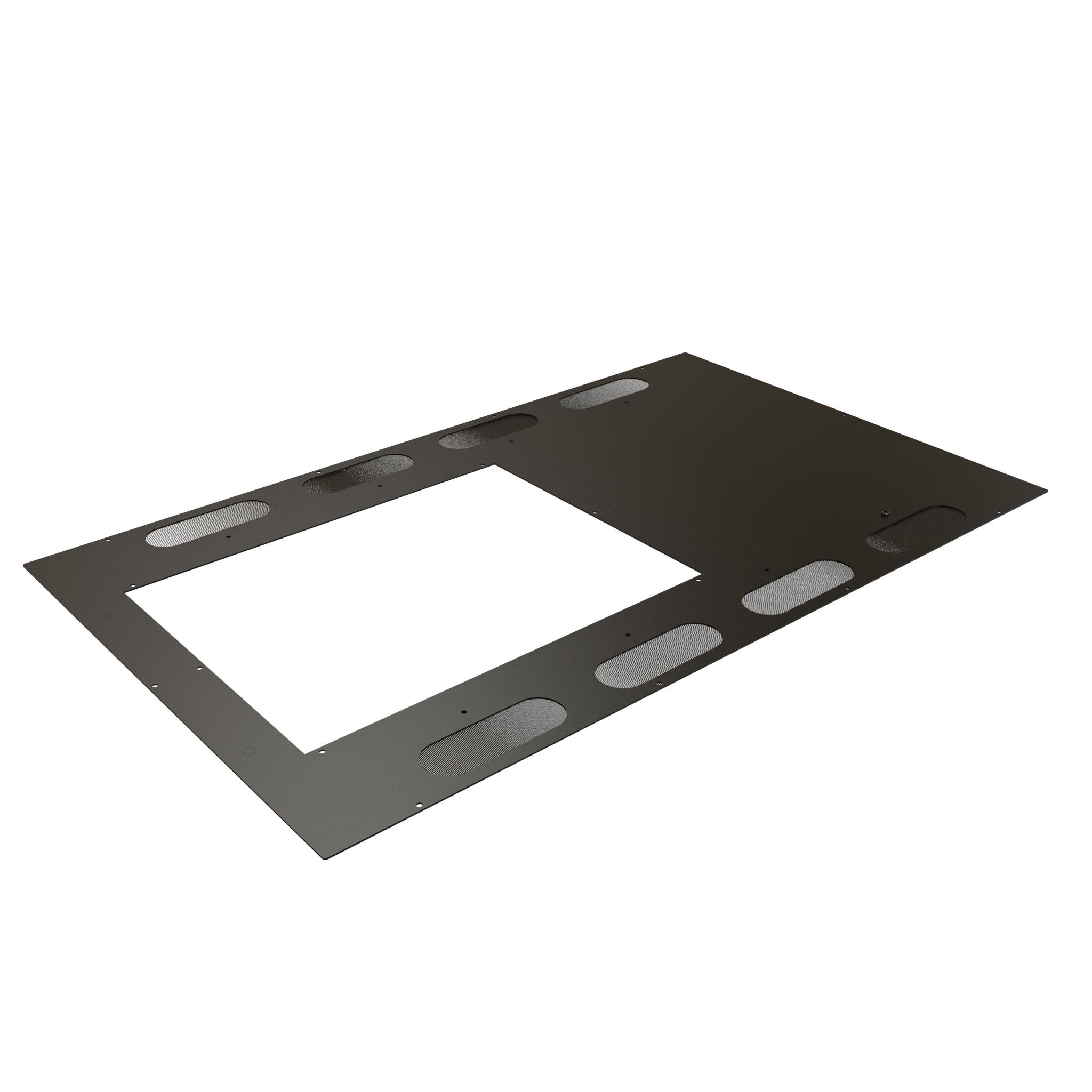

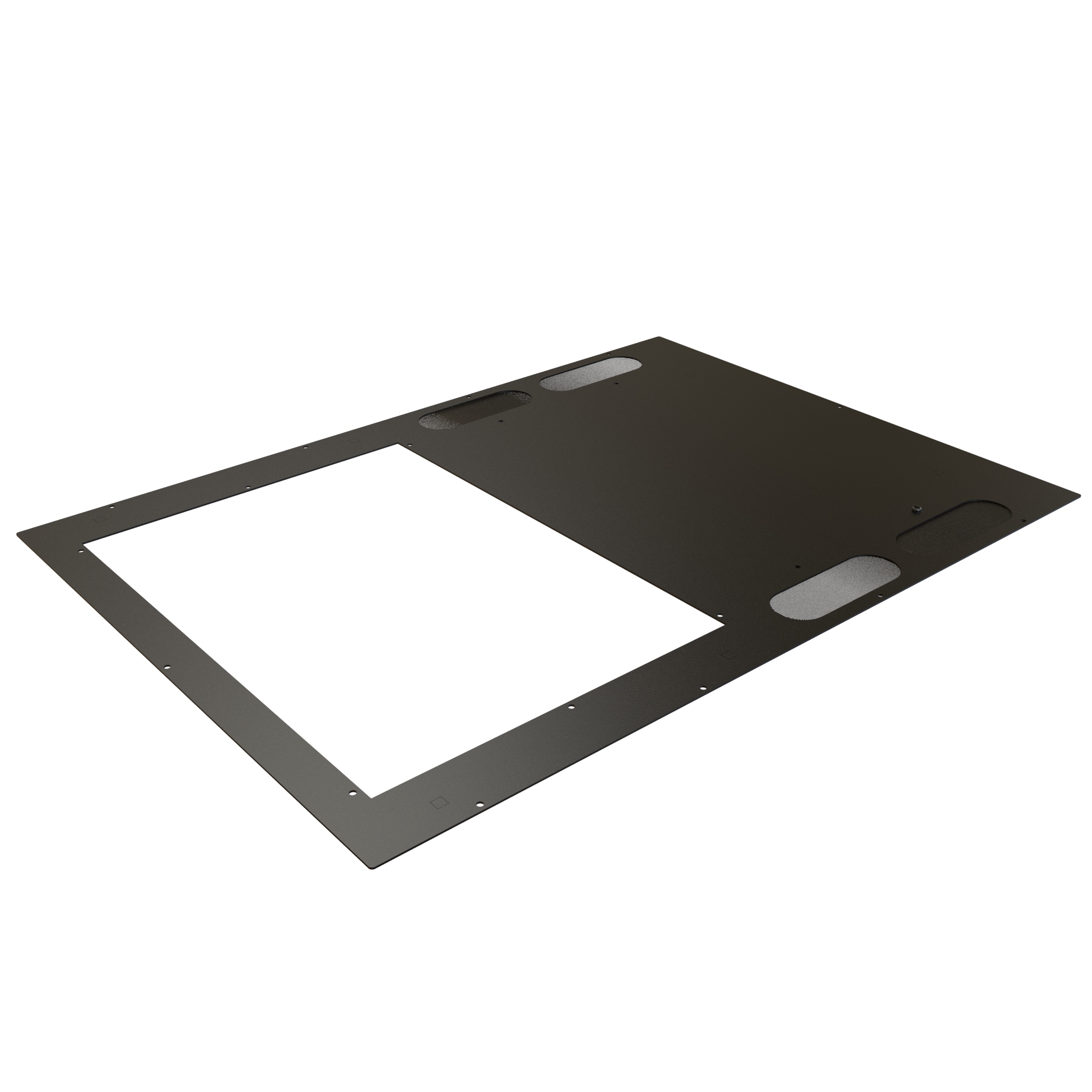

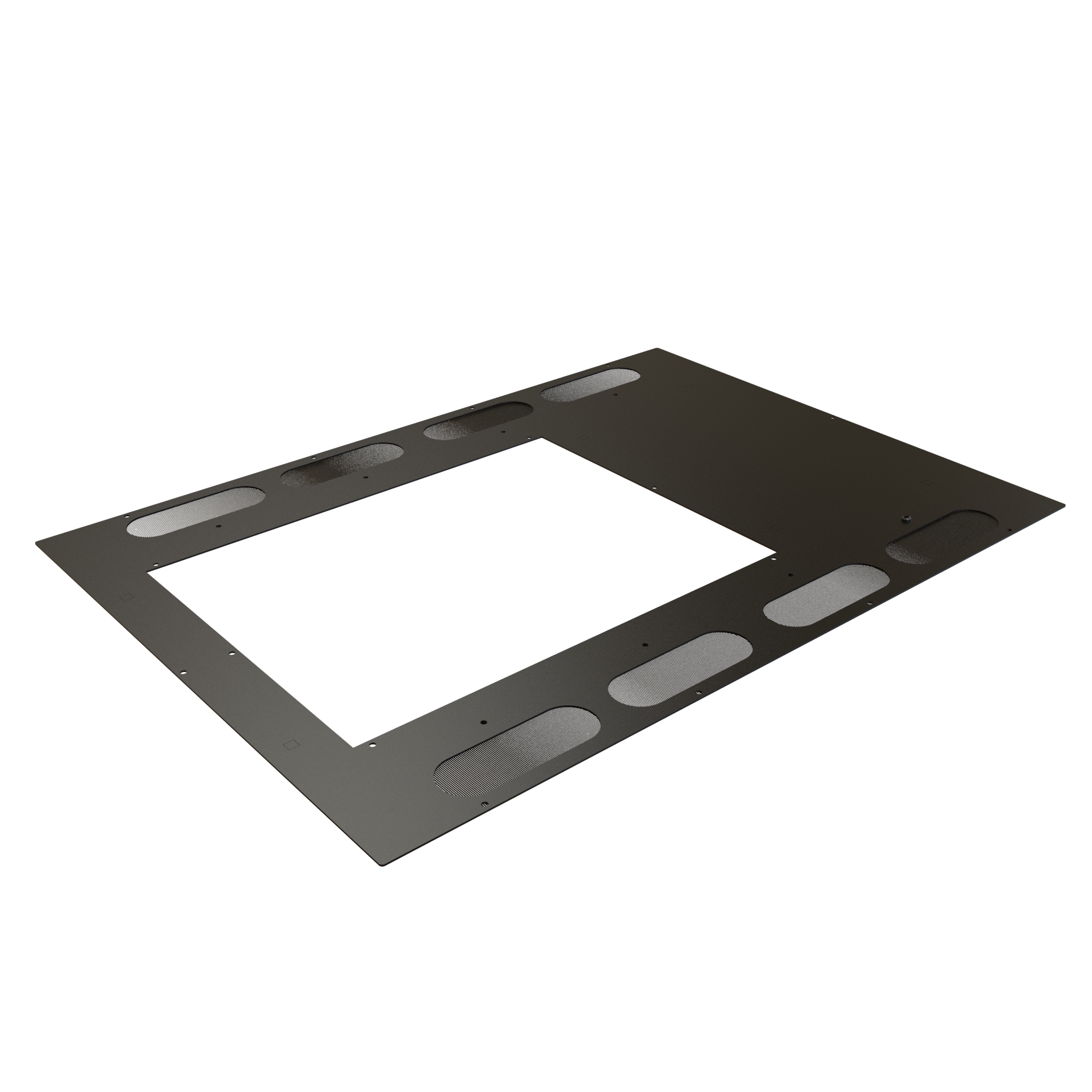

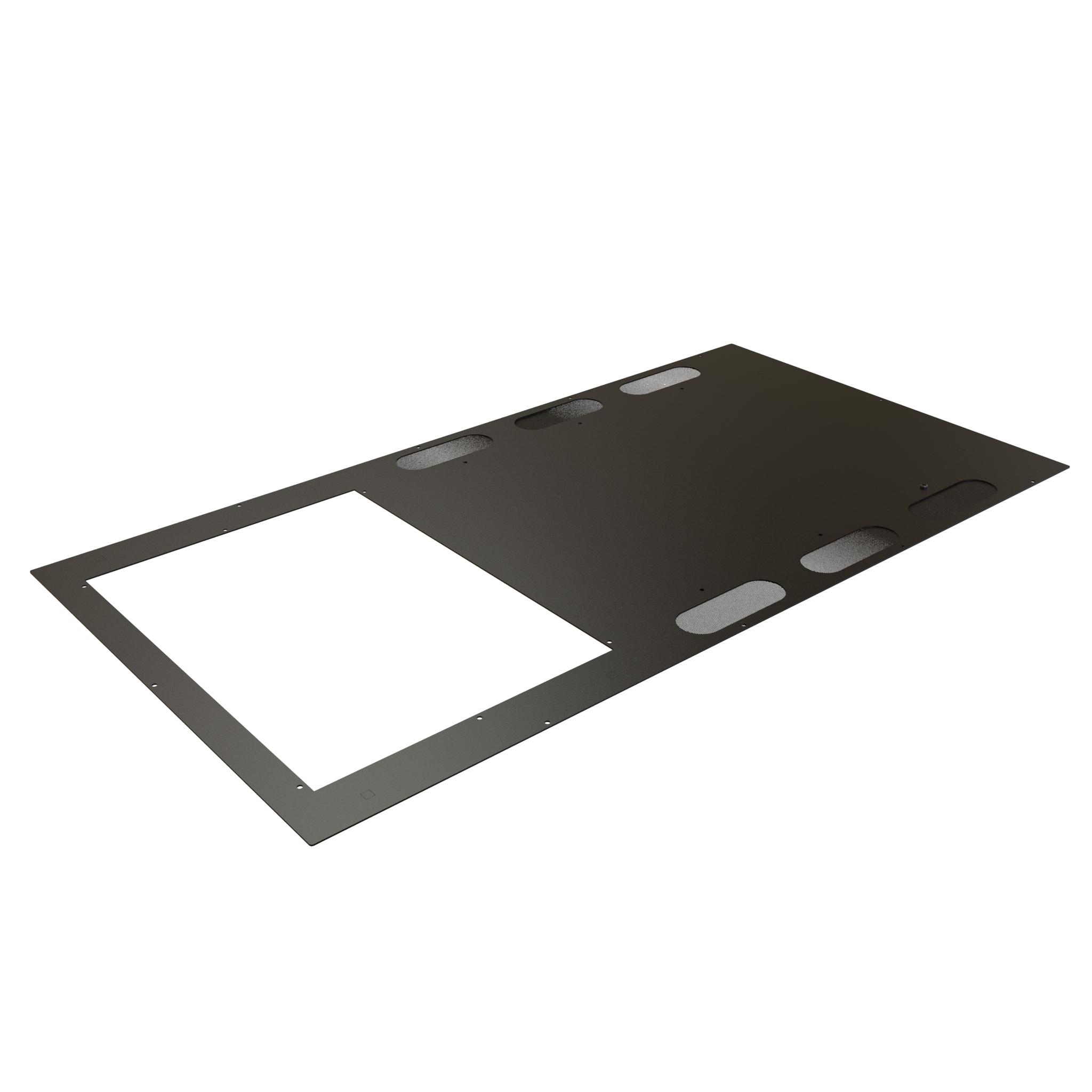

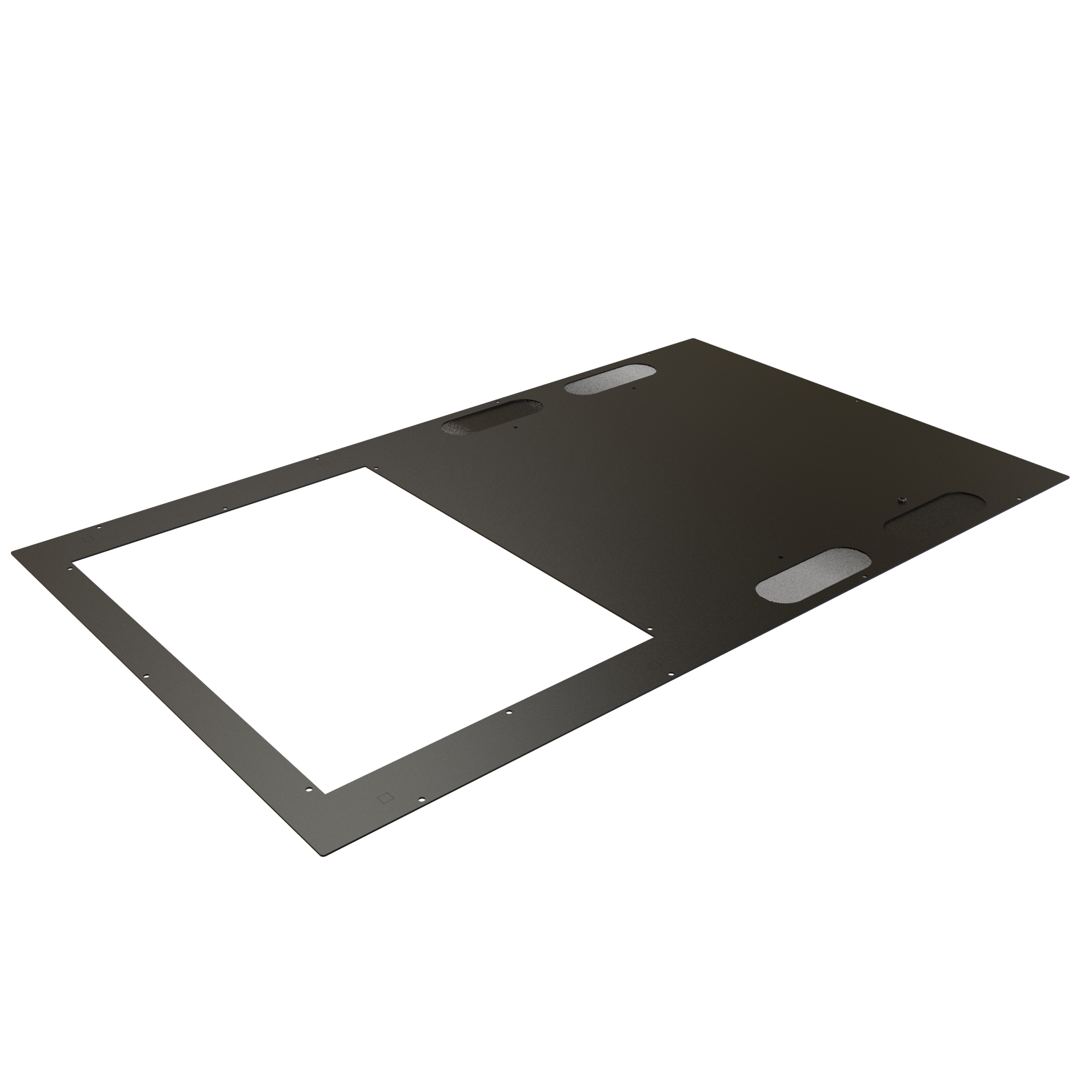

• ■Side cable pass-through knockouts and multiple top-panel options support organized overhead and inter-cabinet cable routing.
• ■Compatible with Hammond thermal containment, cable trough, chimney, PDU, grounding, and cable-management accessories for scalable data center deployments.
• ■Available in 36", 42", and 48" depths to accommodate network, server, storage, and power equipment.

Compliance and Certifications

The CLC Series is a multi-bay colocation server rack cabinet designed to securely divide a single cabinet into independently accessible equipment compartments. Available in up to 4-bay configurations, it provides 21U, 14U, or 10U of rack space per bay while maintaining a 3,000 lb UL 2416 load rating. Designed for colocation facilities, service providers, and shared enterprise infrastructure, the CLC supports independent equipment access, vertical power distribution, secure cable routing, and integration with Hammond containment and cable-management systems.

• ■UL2416 listed rack (3,000 lb load rating) ensures verified structural performance for high-capacity installations.
• ■Seismic tested to a 1,200 lb dynamic equipment load for applicable IBC, CBC, NBCC, and ASCE requirements when properly anchored using the C4K-Z4 bolt-down kit.

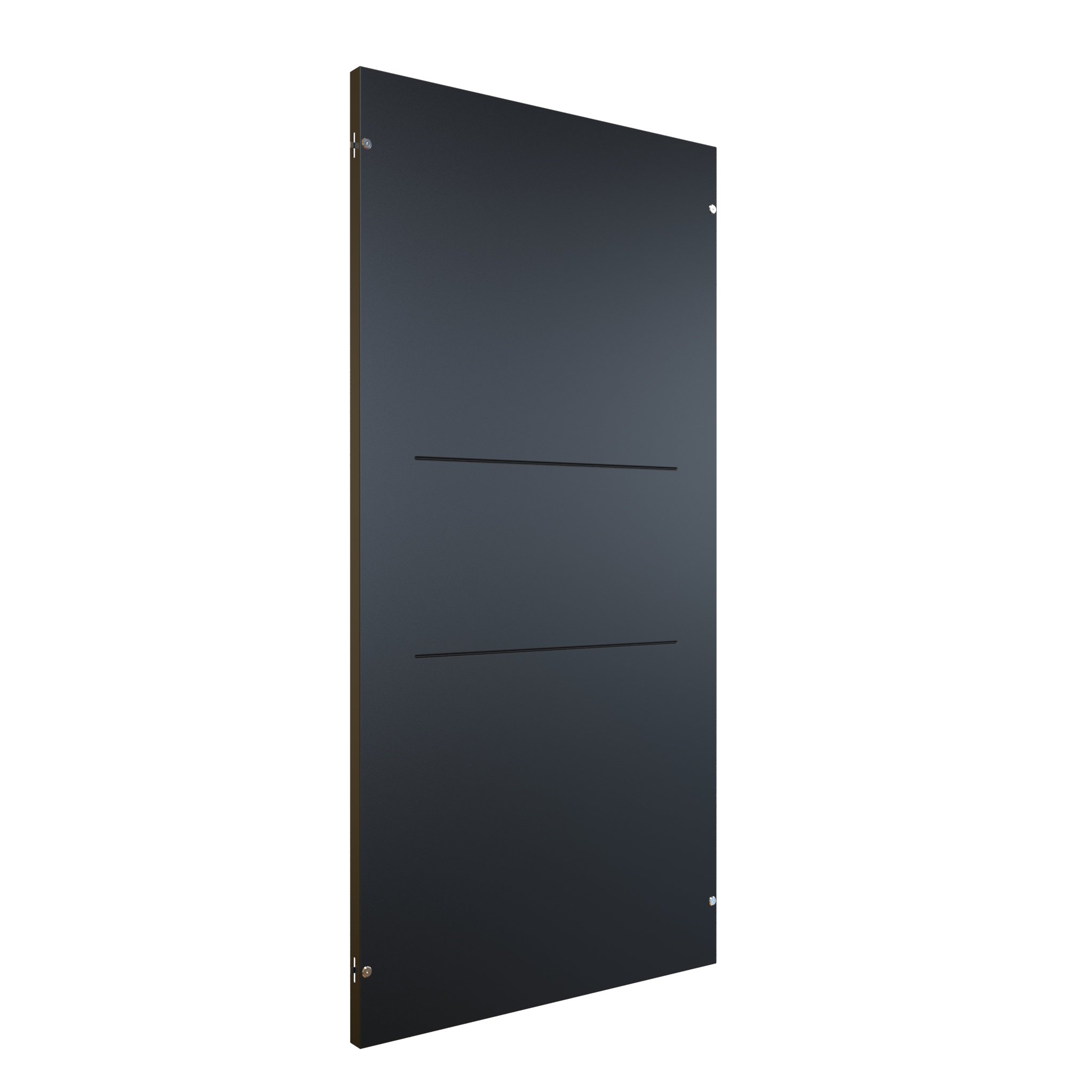

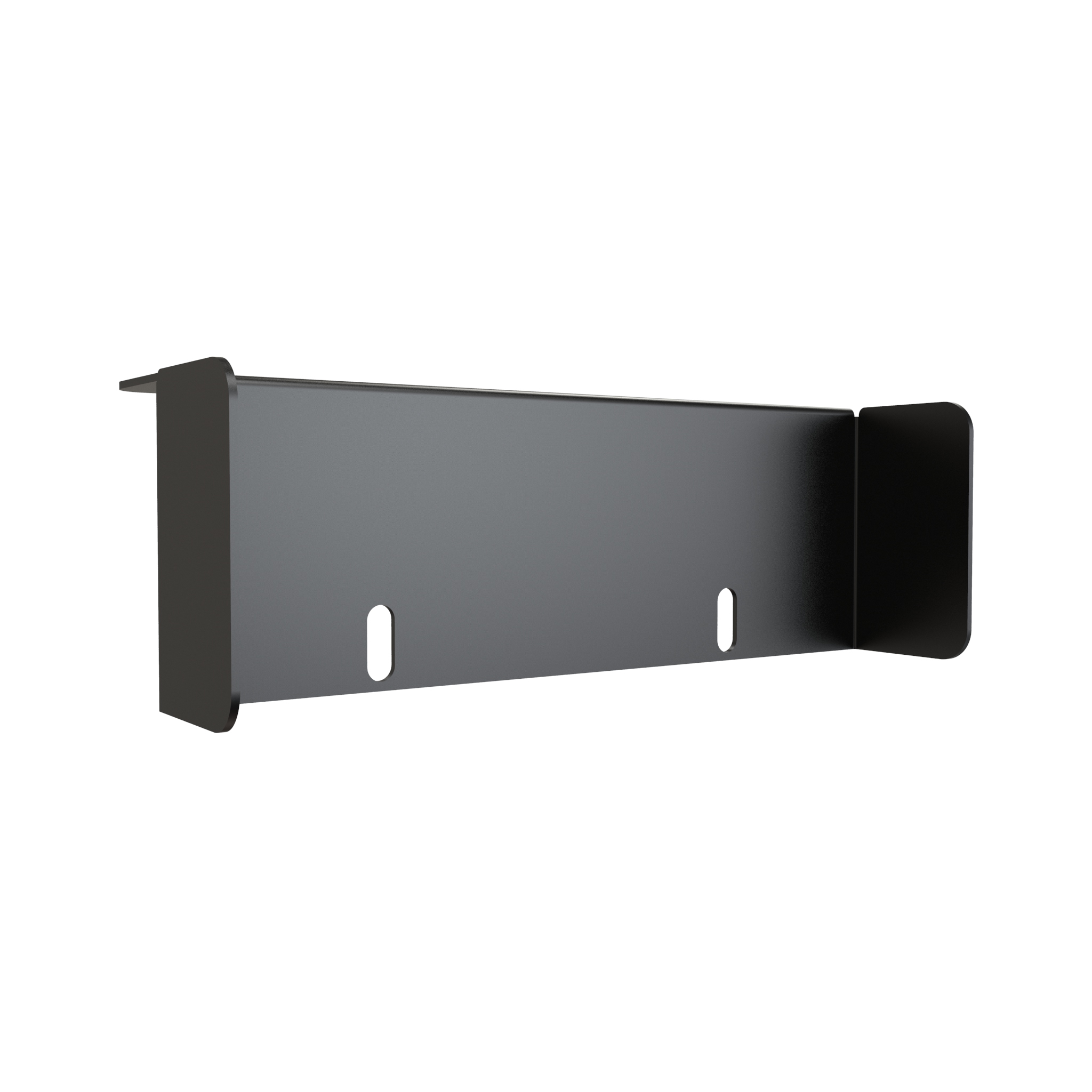

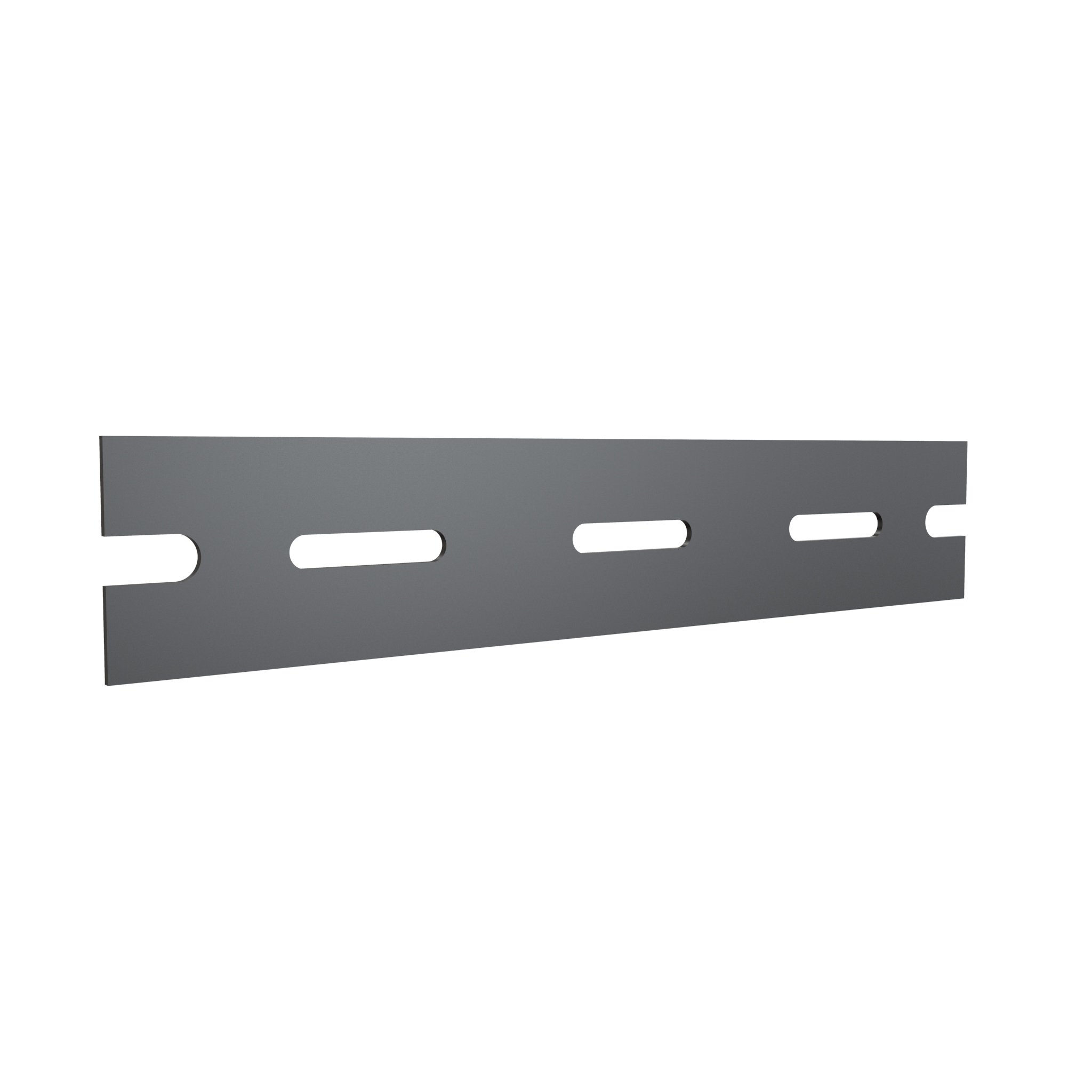

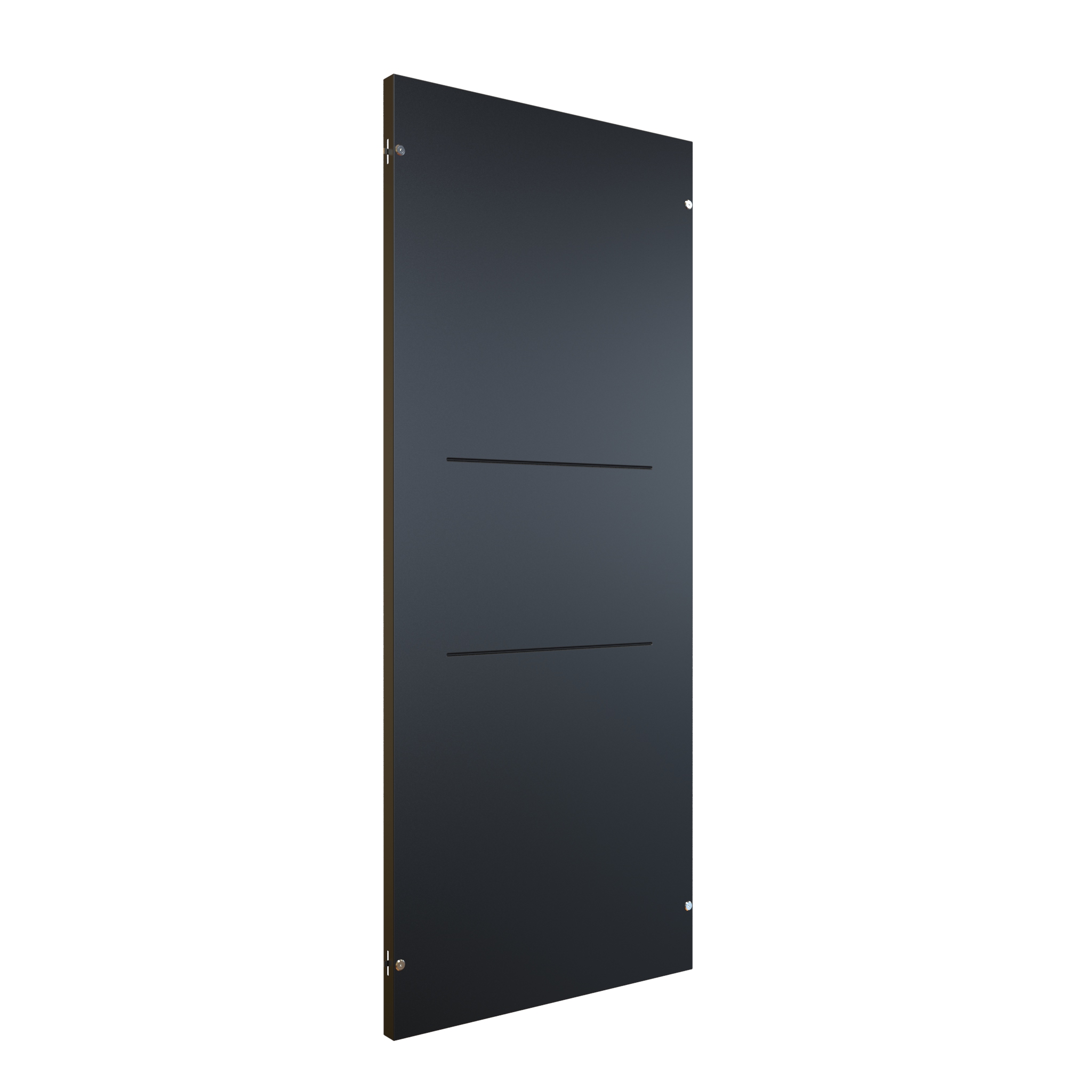

• ■Meets PCI DSS (Payment Card Industry Data Security Standard) when properly configured, including when multiple cabinets are connected, the open side is enclosed using the appropriate side panels, and cable manager security plates ( CLCCMSP ) and cable manager security covers ( CLCCMSC ) are installed.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.
