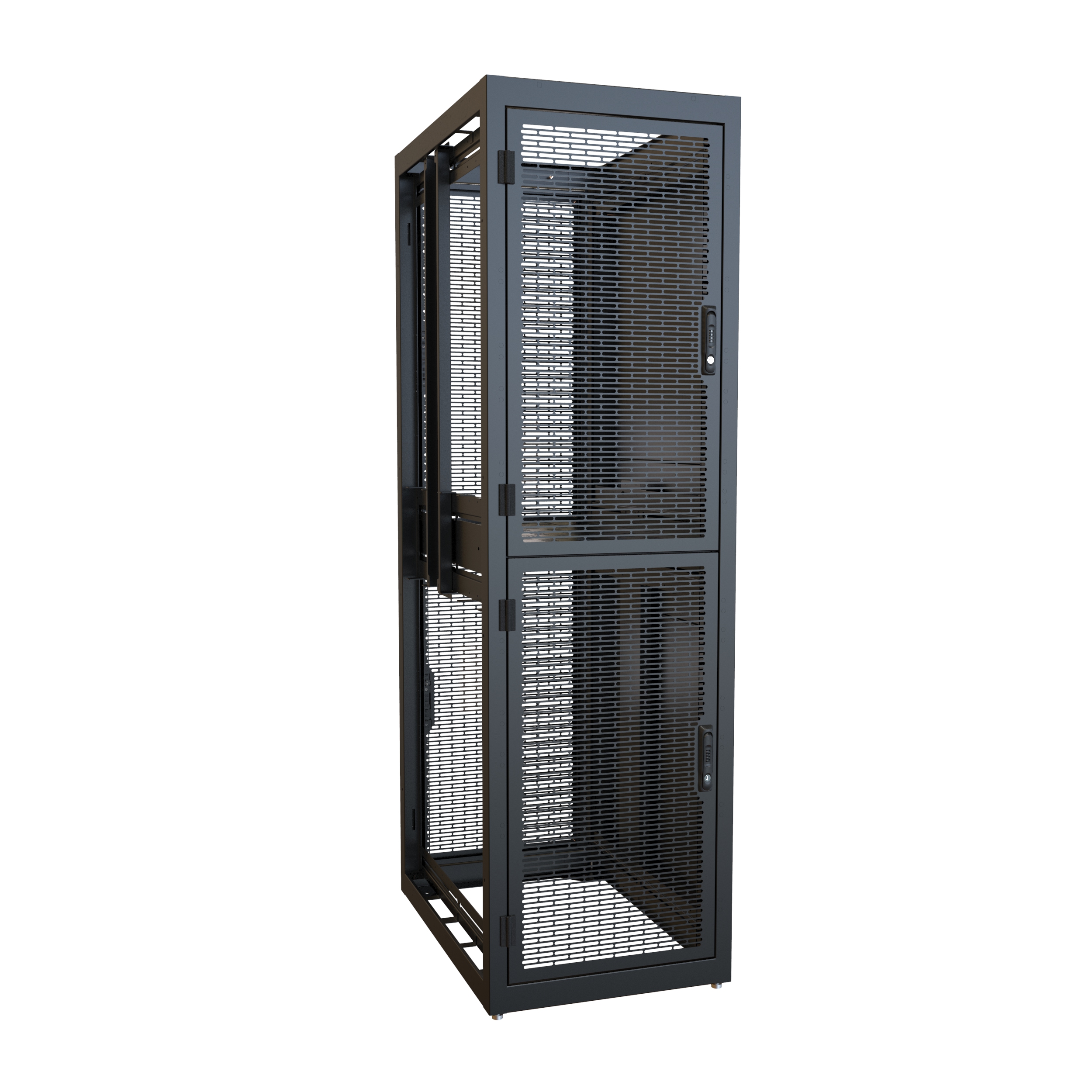

Hammond CLC2B36BK 2-Bay 21U Colocation Server Cabinet, 36" Deep

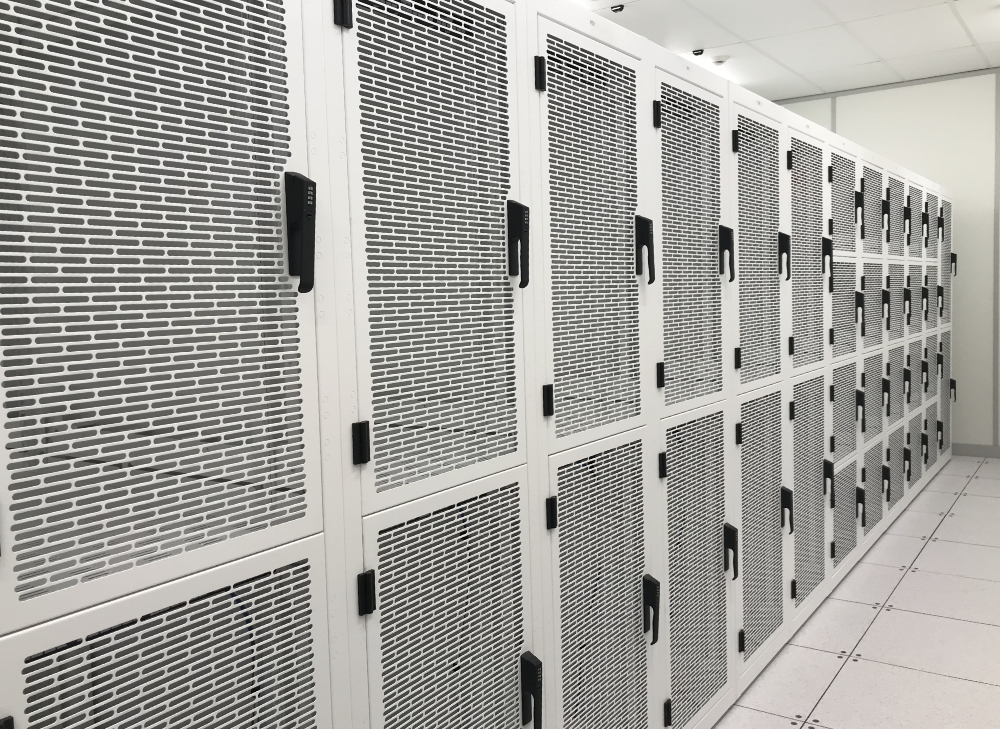

The CLC2B36BK is a 2-bay colocation server rack cabinet that divides one 24 in wide, 36 in deep footprint into two independently accessible compartments of 21U each. It is built for colocation data centers, managed hosting and service provider facilities, meet-me rooms and shared enterprise or multi-department IT environments where separate tenants need their own lockable equipment space without adding floor area.

Construction is a 14-gauge welded mild steel frame with 12-gauge reinforced corner brackets and 16-gauge doors and panels, finished in RAL9005 black powder coat. The cabinet is a UL2416 listed rack with a 3,000 lb (1,360 kg) load rating under UL file E474597, and the series is seismic tested to a 1,200 lb dynamic equipment load for applicable IBC, CBC, NBCC and ASCE requirements when properly anchored with the C4K-Z4 bolt-down kit.

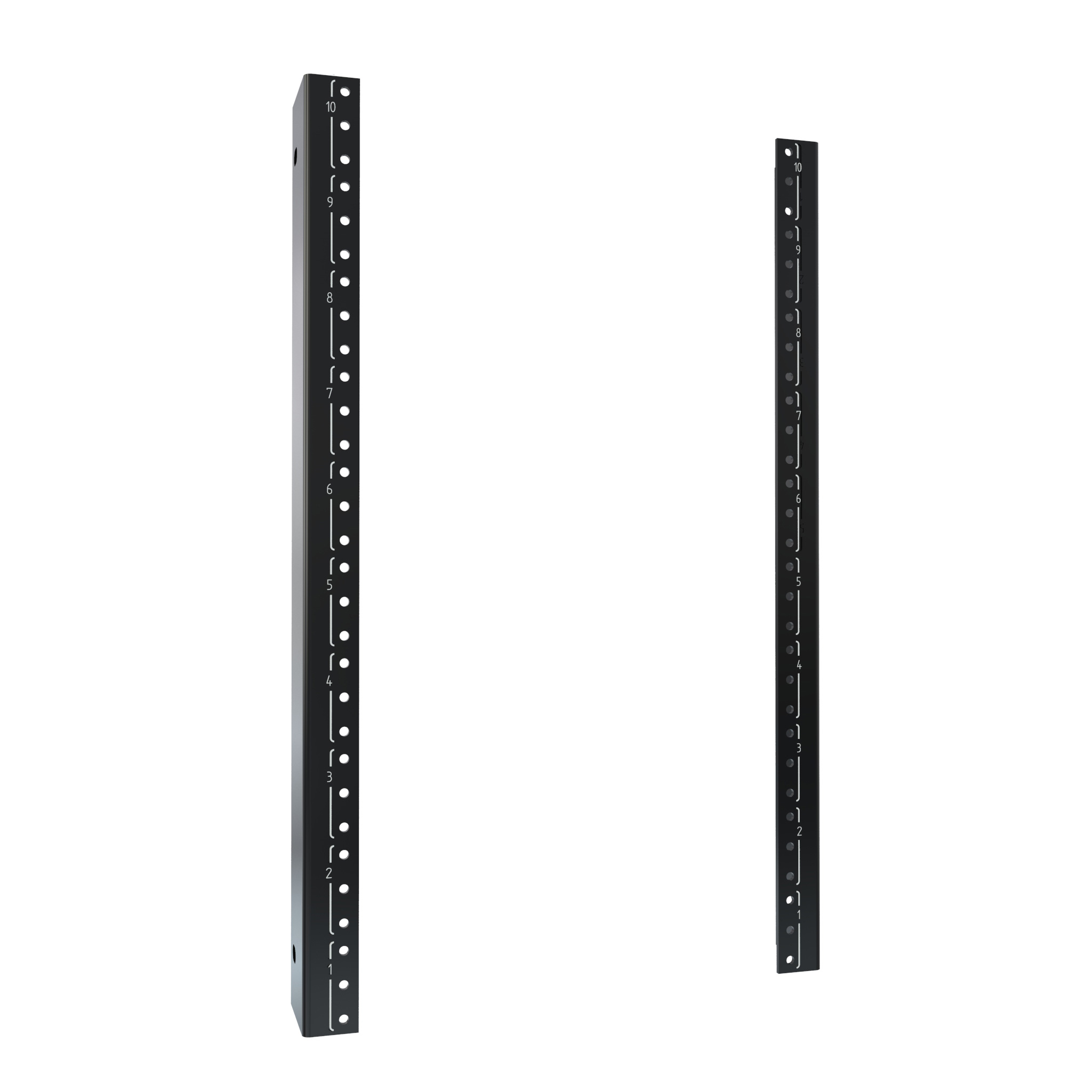

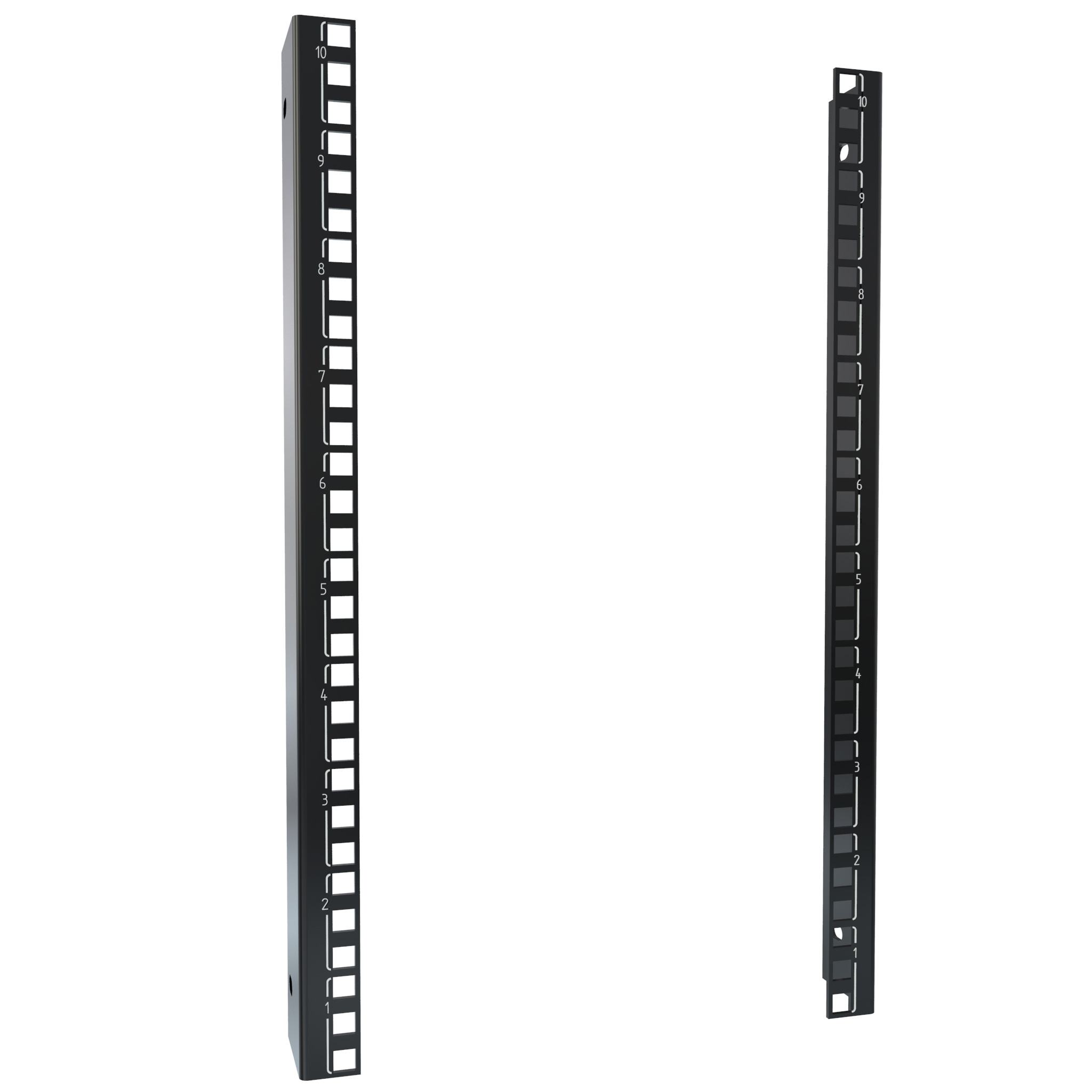

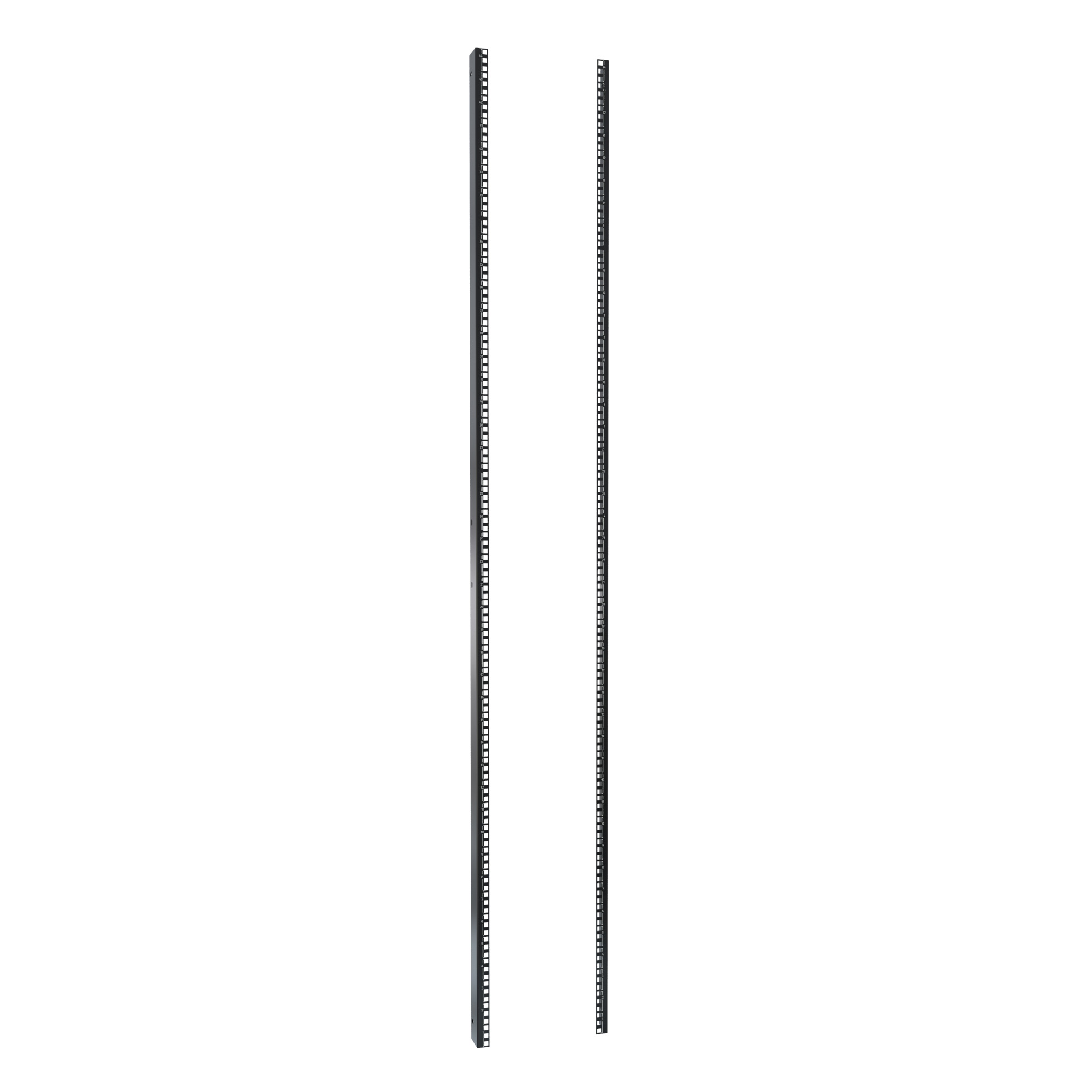

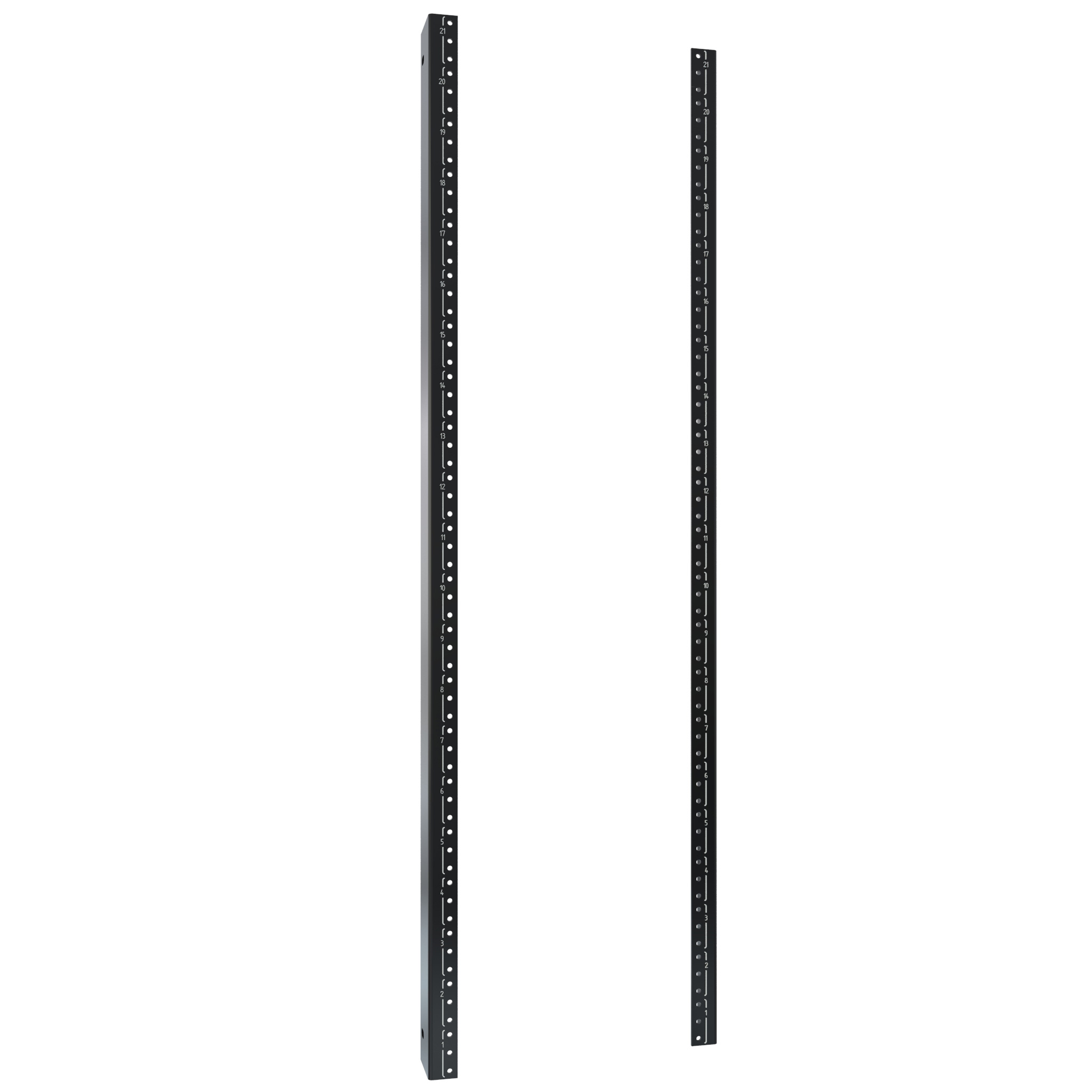

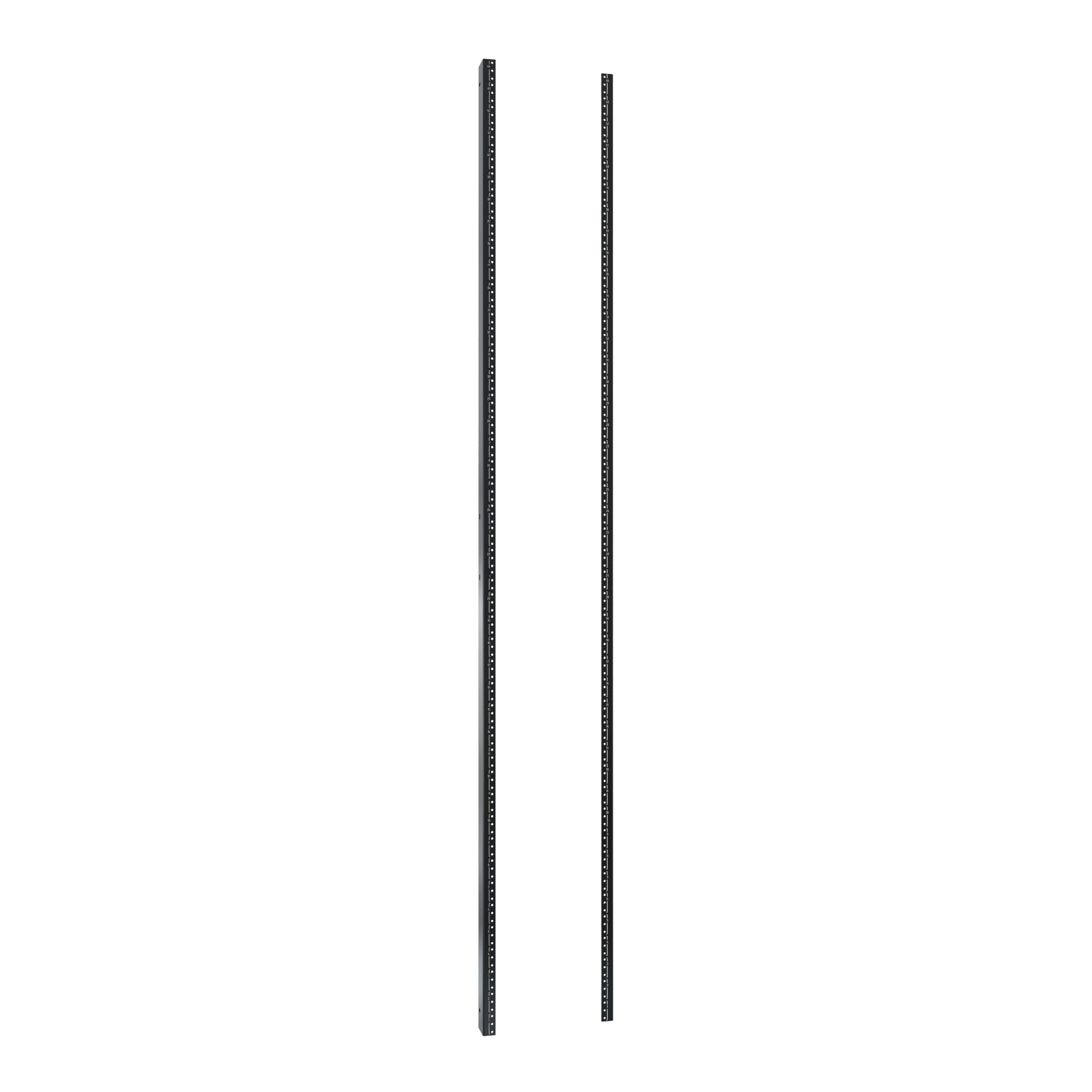

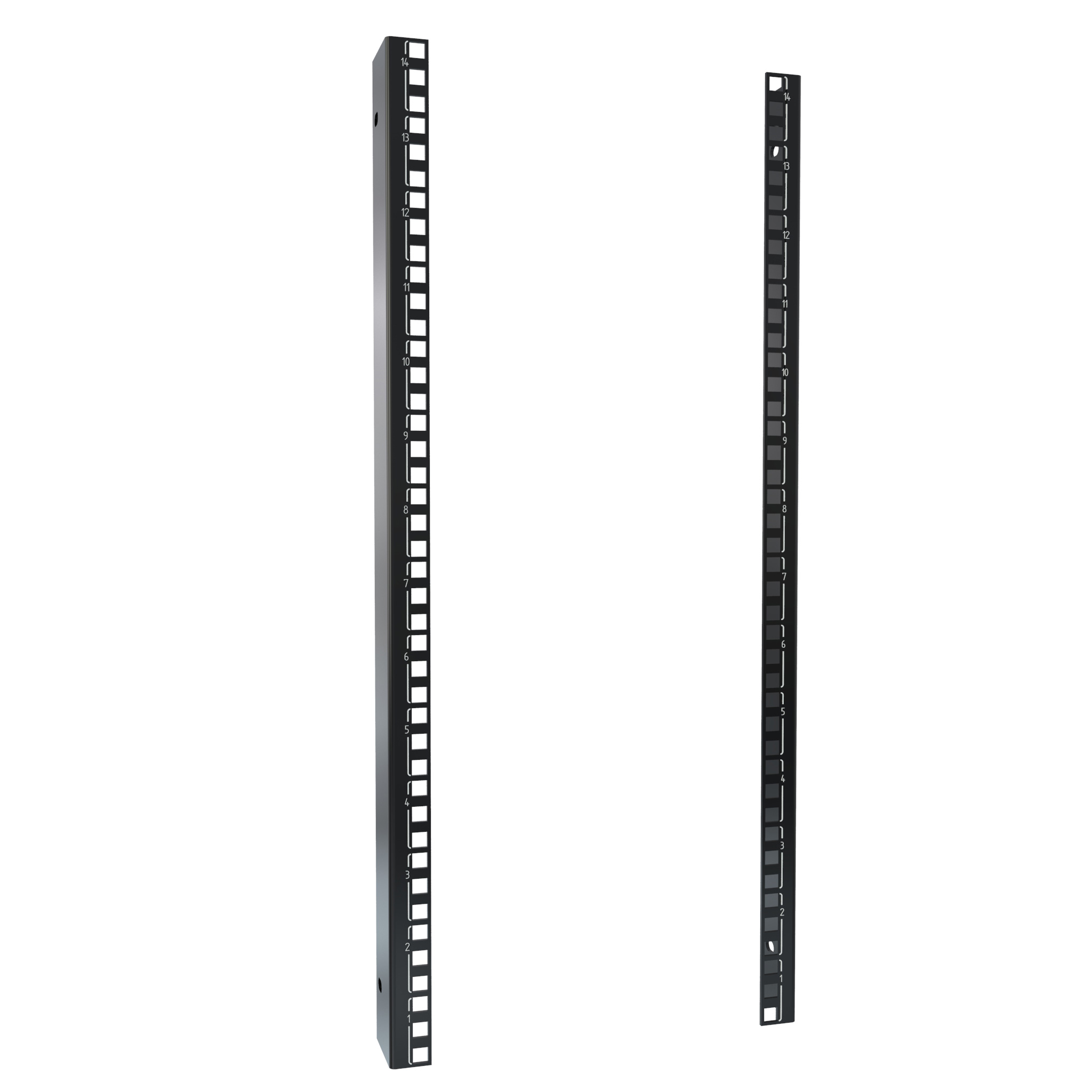

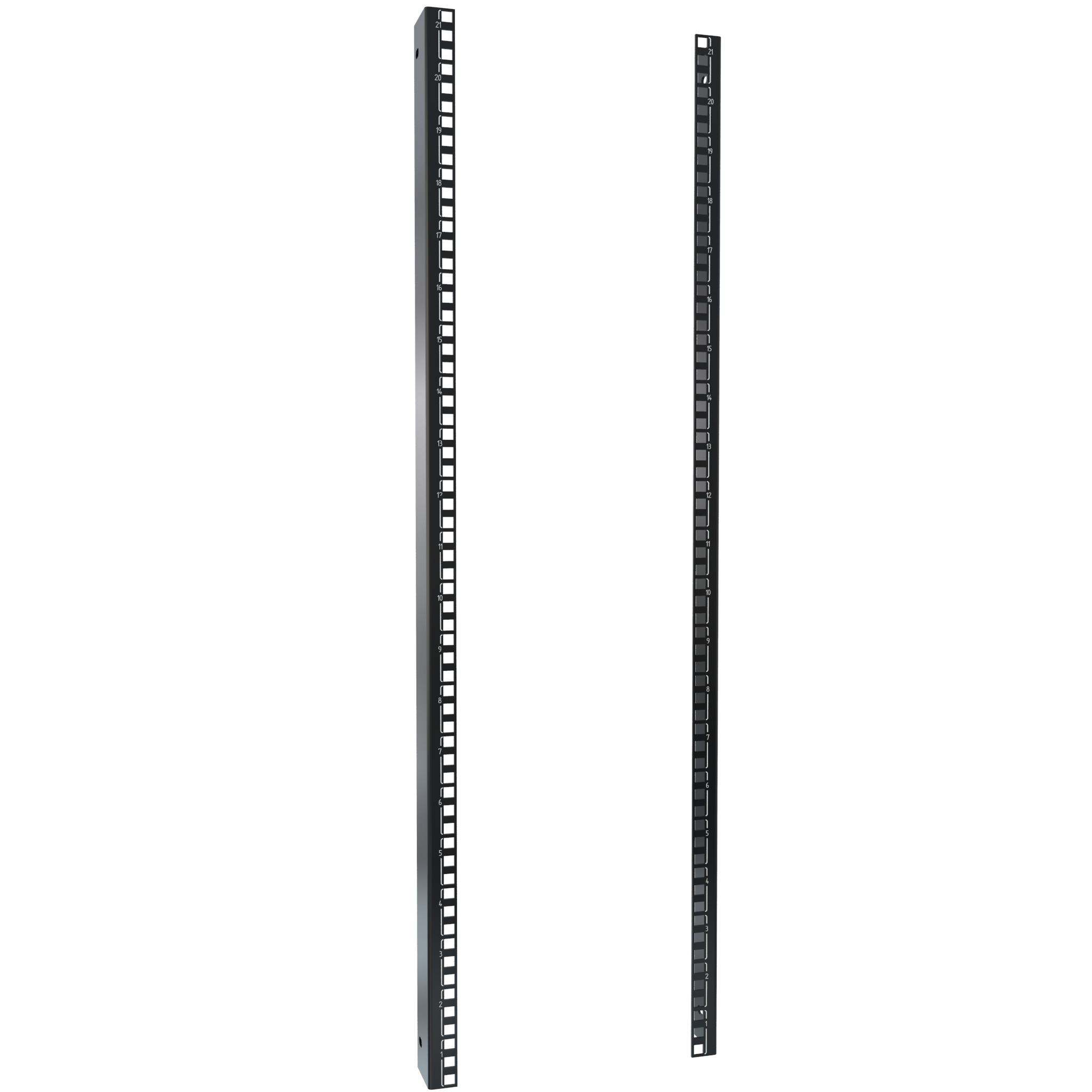

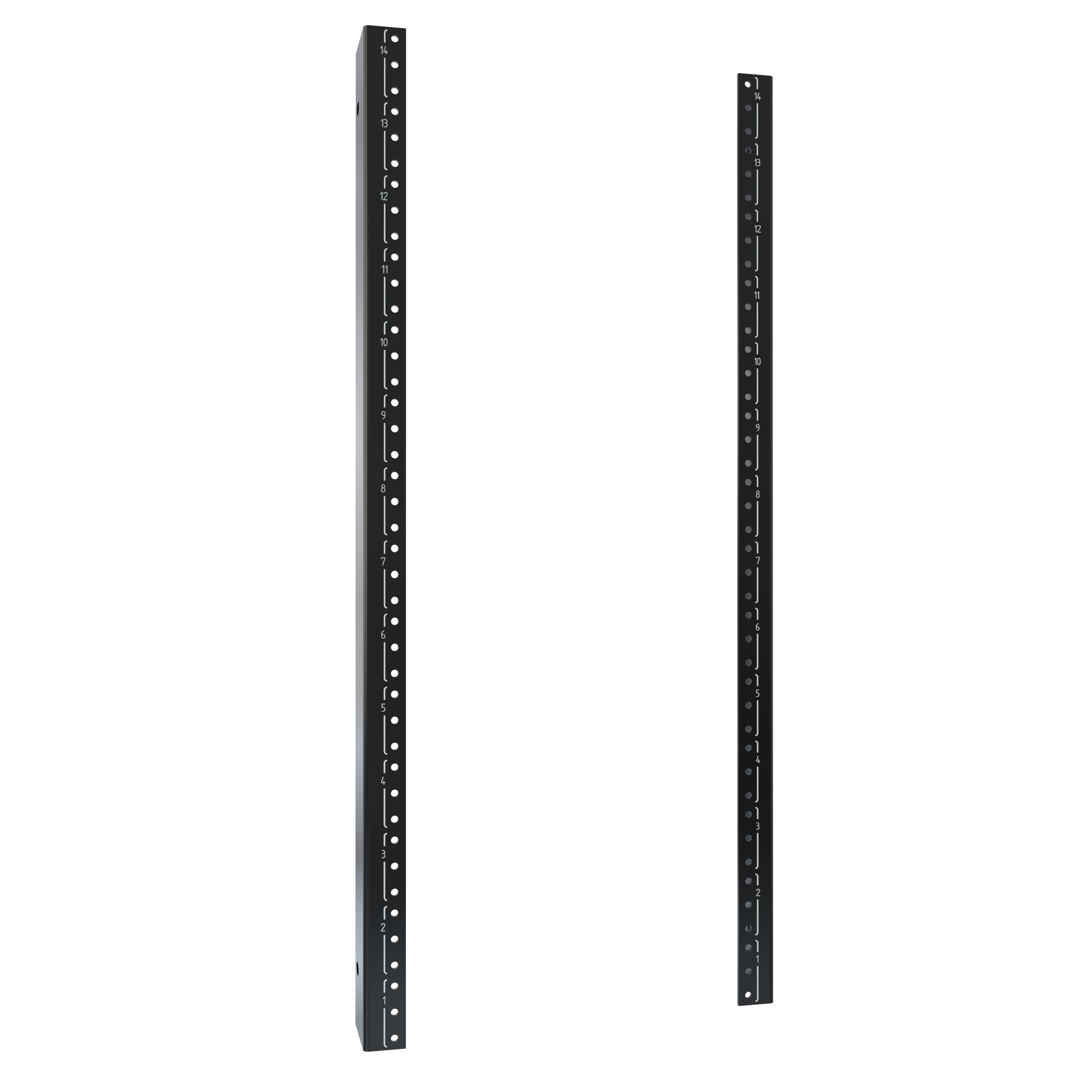

Overall dimensions are 83.02 in x 24.00 in x 36.00 in (2,109 mm x 610 mm x 914 mm), with 37.88 in (962 mm) of mounting height per bay and 34.13 in (867 mm) of usable mounting depth. Each bay includes two pairs of adjustable-depth EIA square-hole mounting rails with 10-32 cage nuts for standard 19-inch equipment; mounting hardware is not included, and the top panel is ordered separately.

• Flush-mounted perforated doors at 63% AFR with combination locking swing handles for per-bay access control

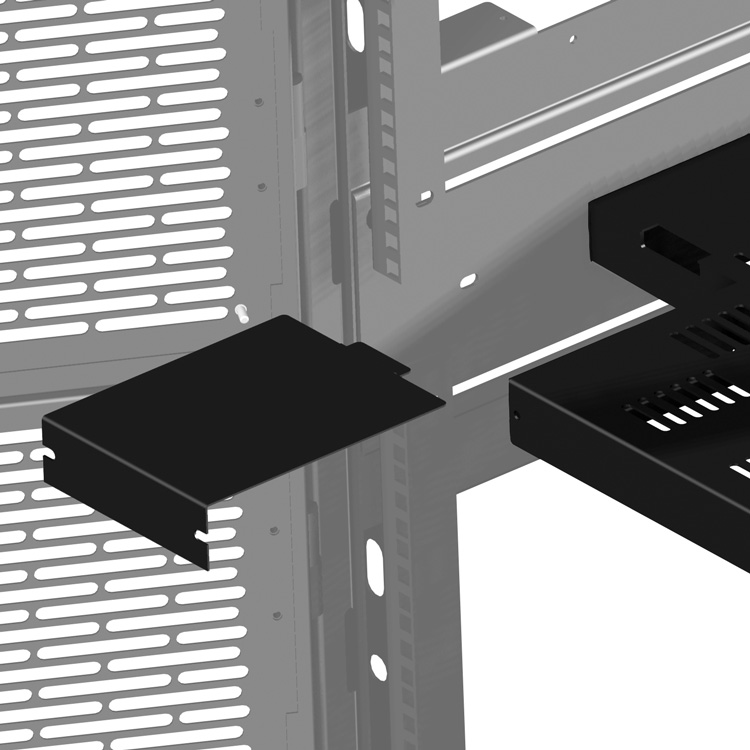

• Fixed vented divider shelf with shelf cutout cover plates plus removable rear panel area for vertical PDU mounting and cable routing

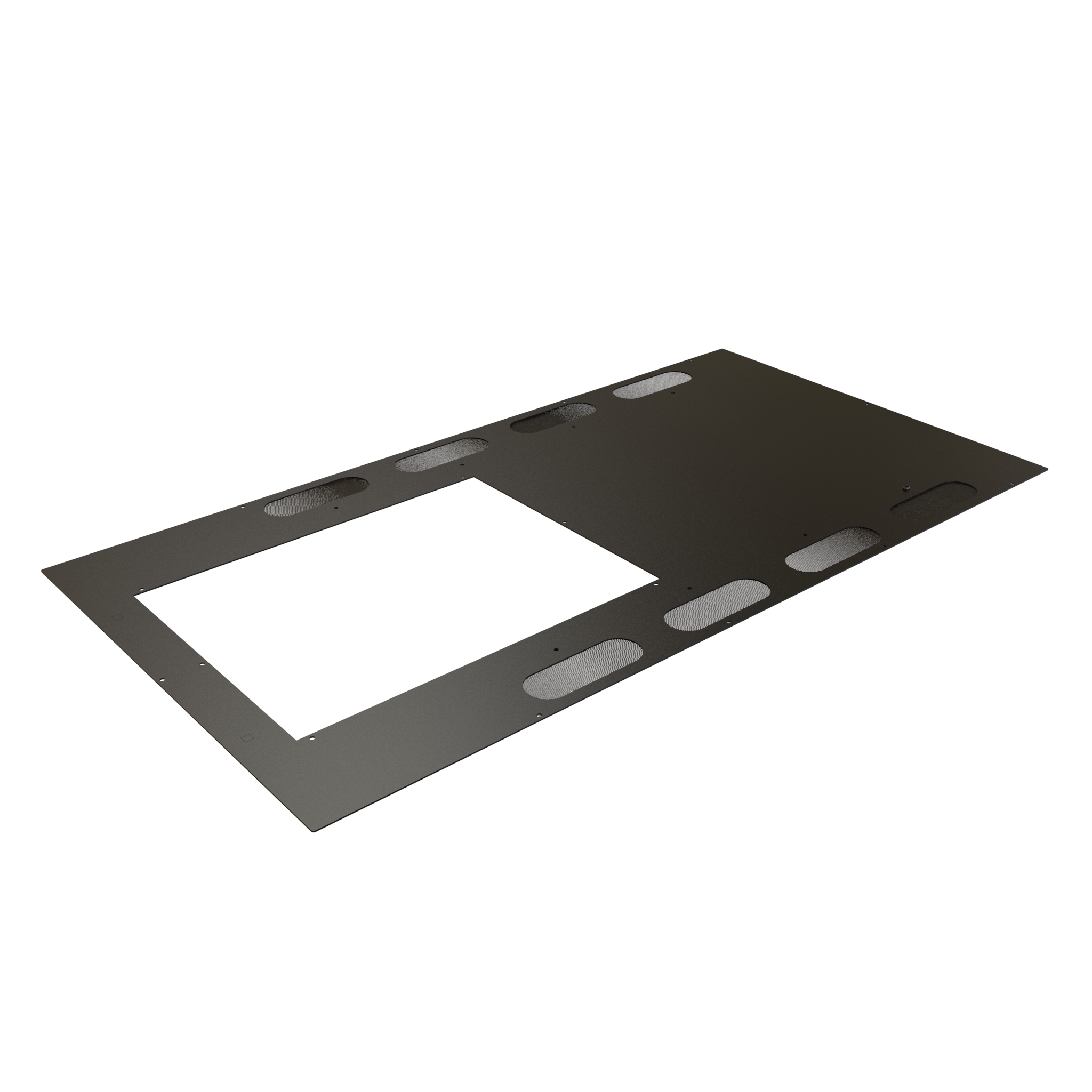

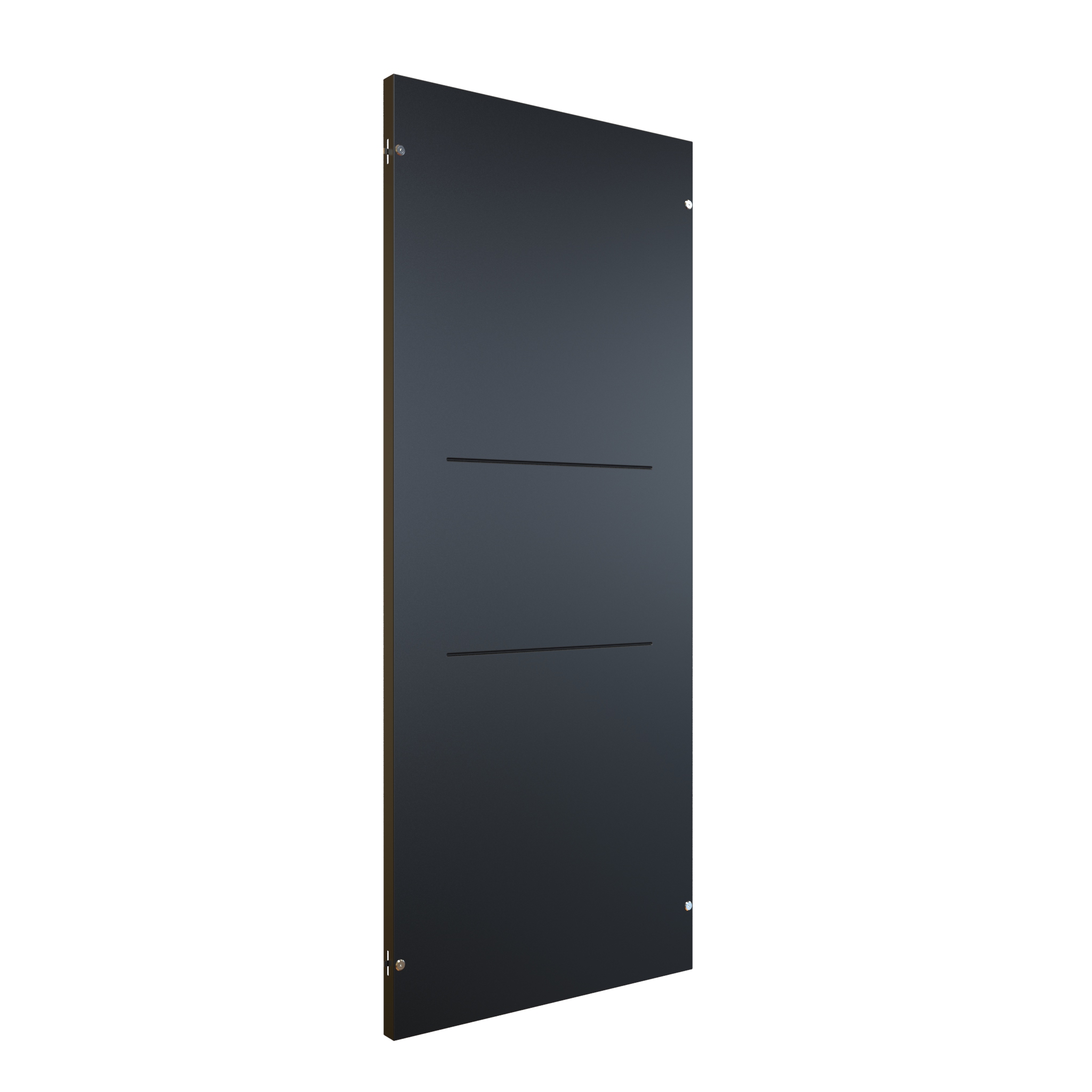

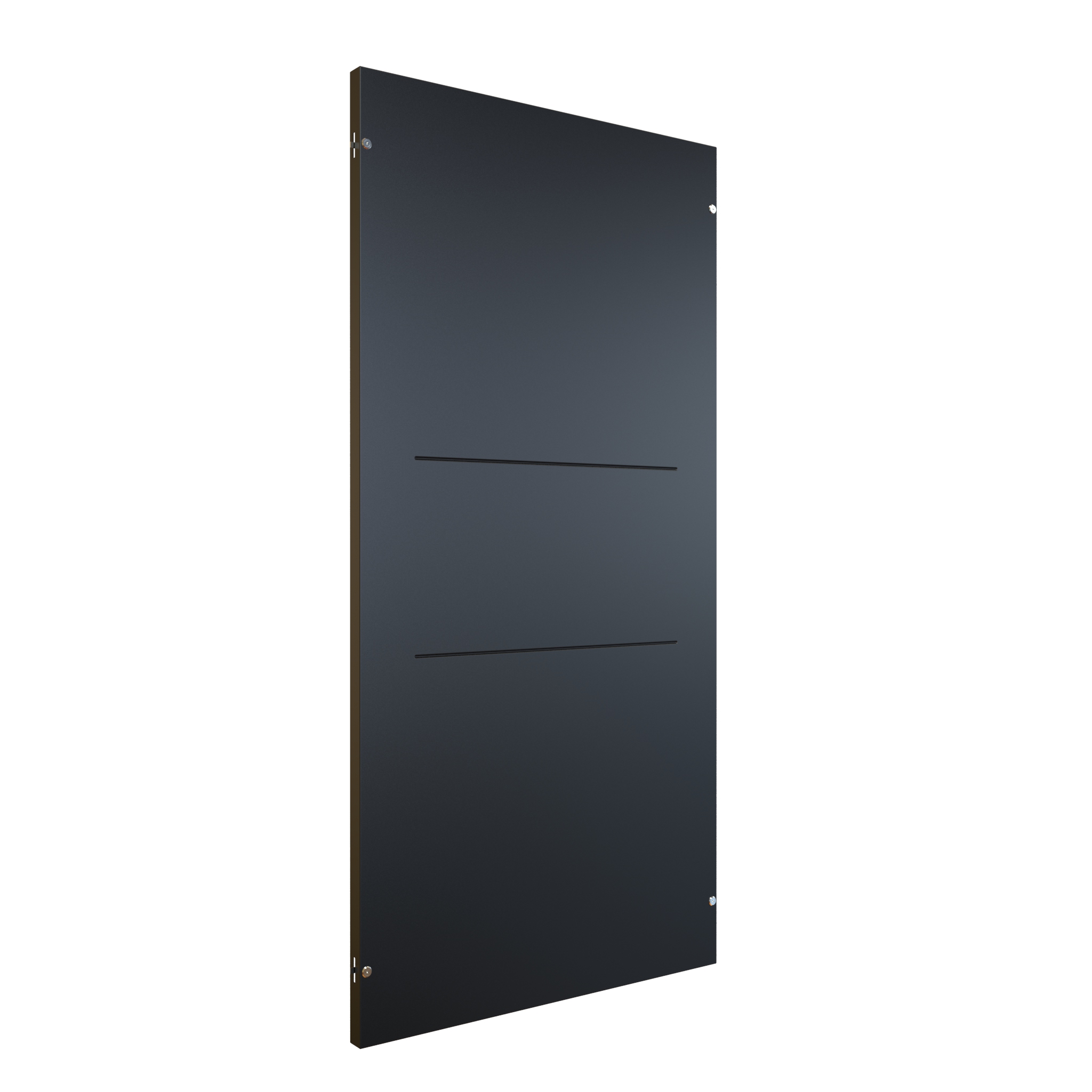

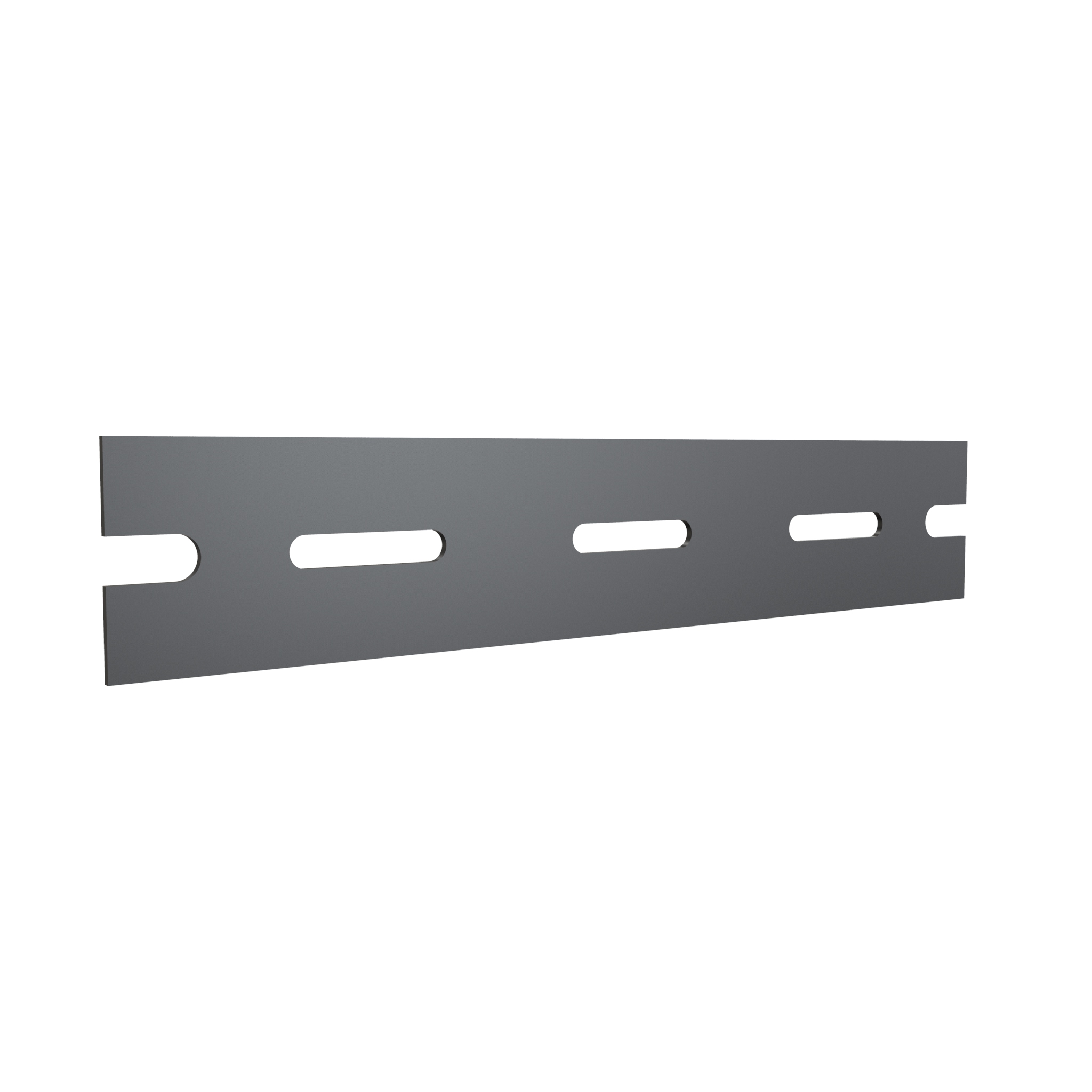

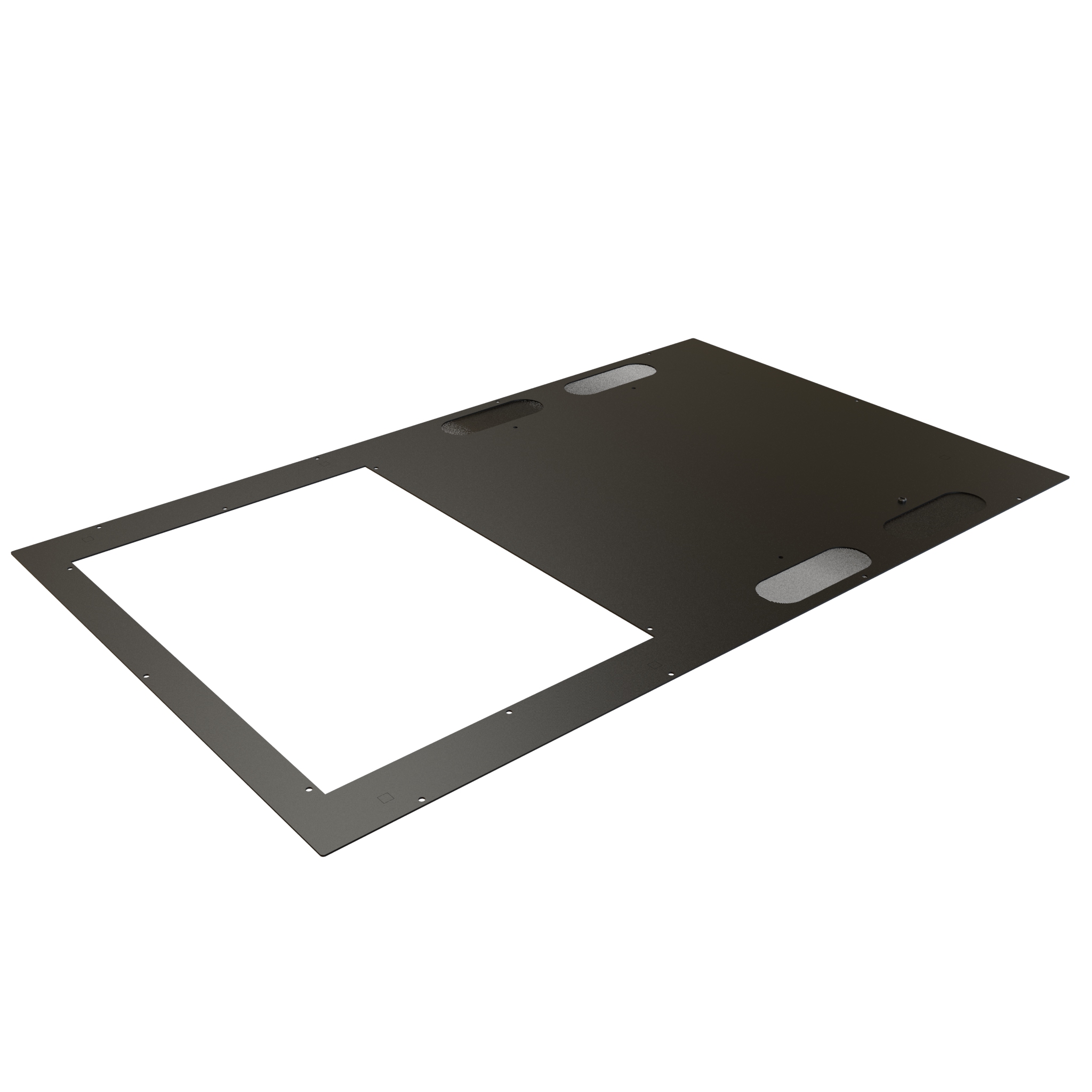

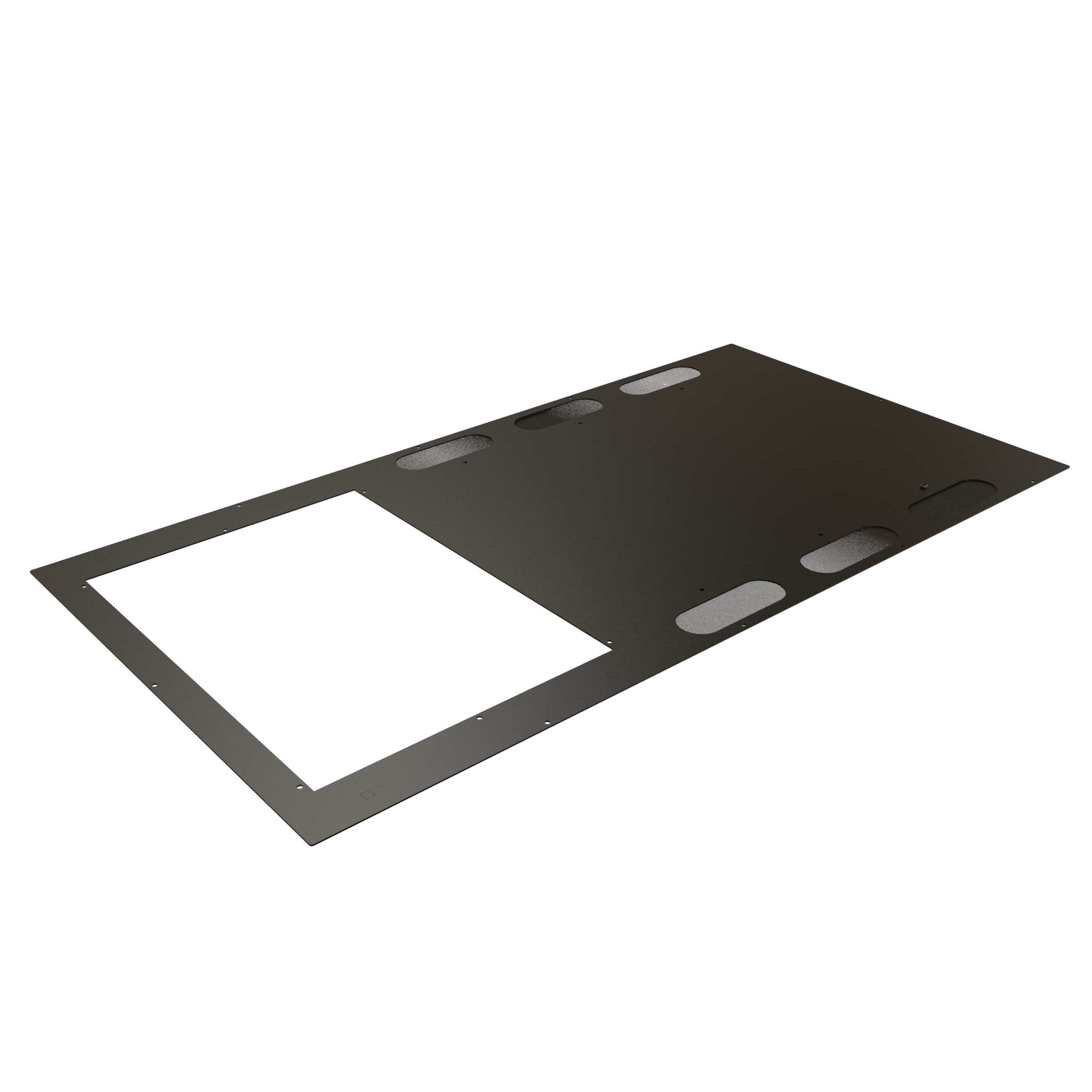

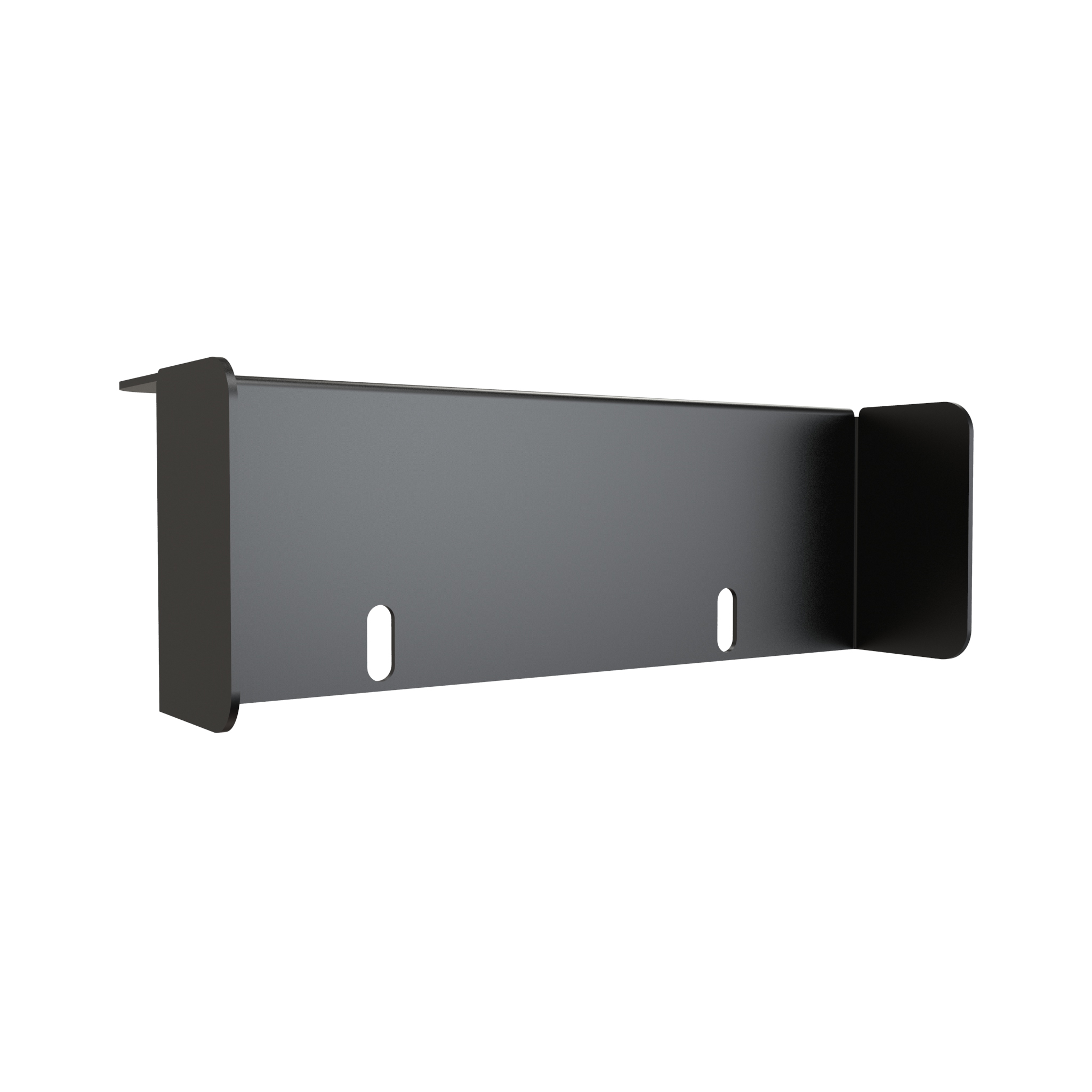

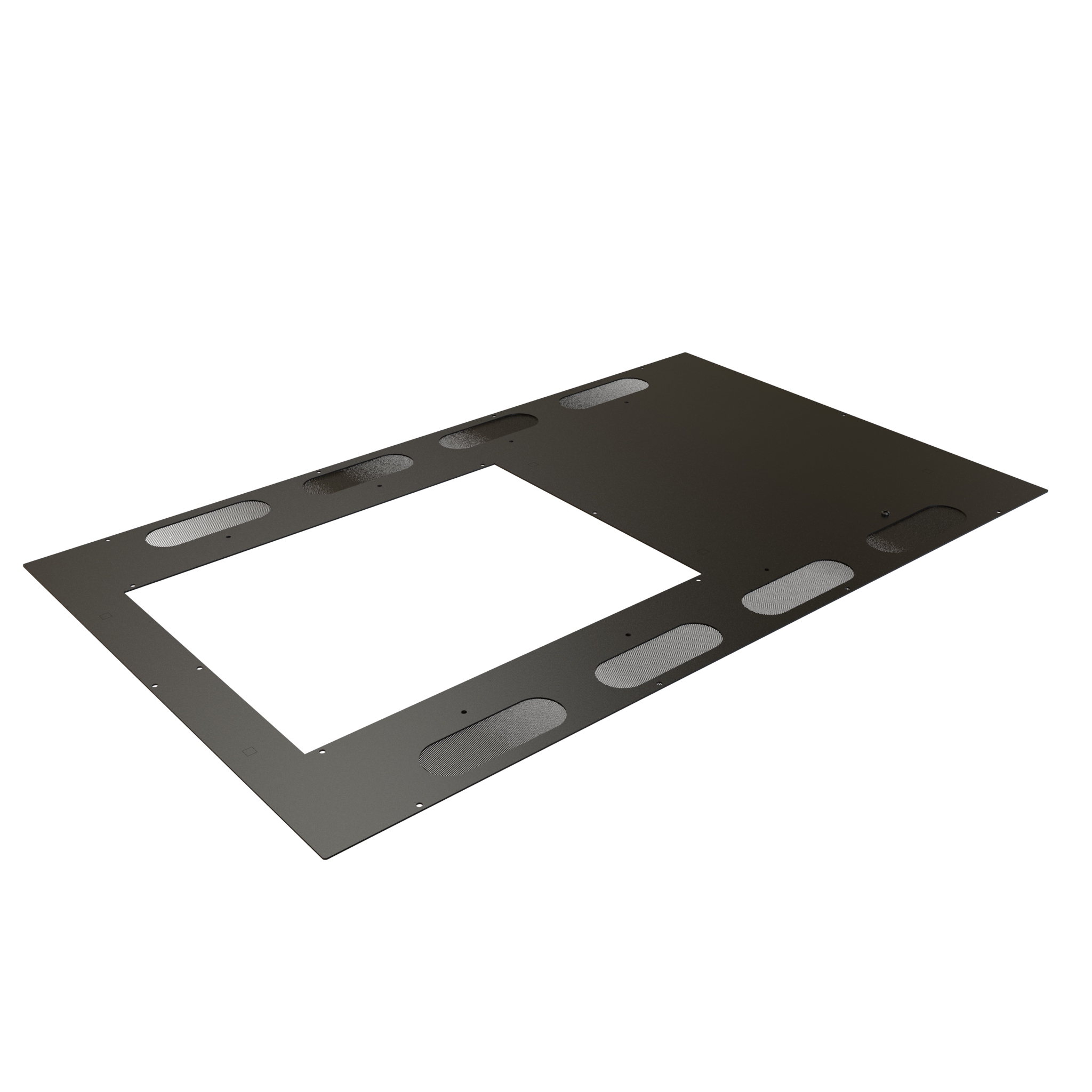

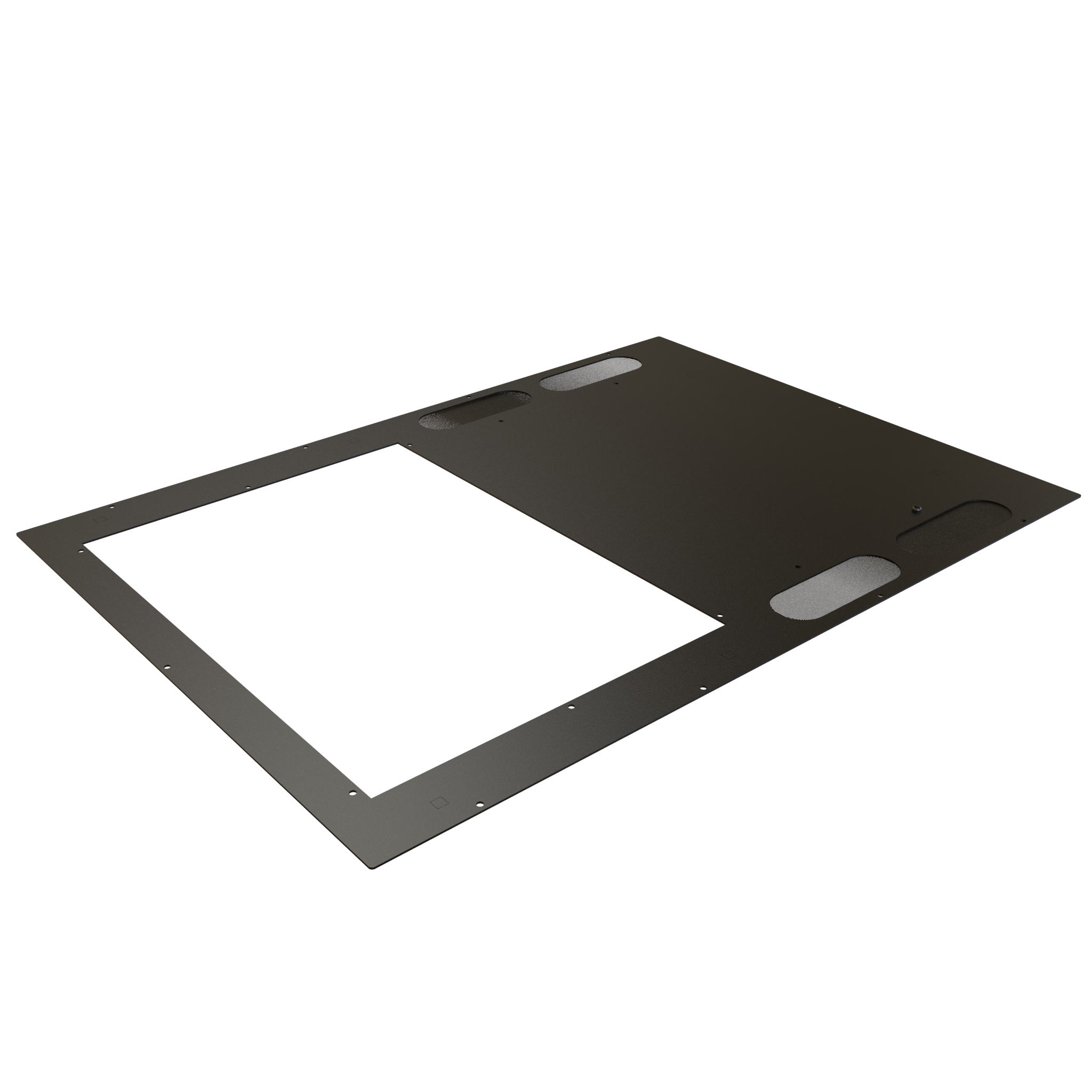

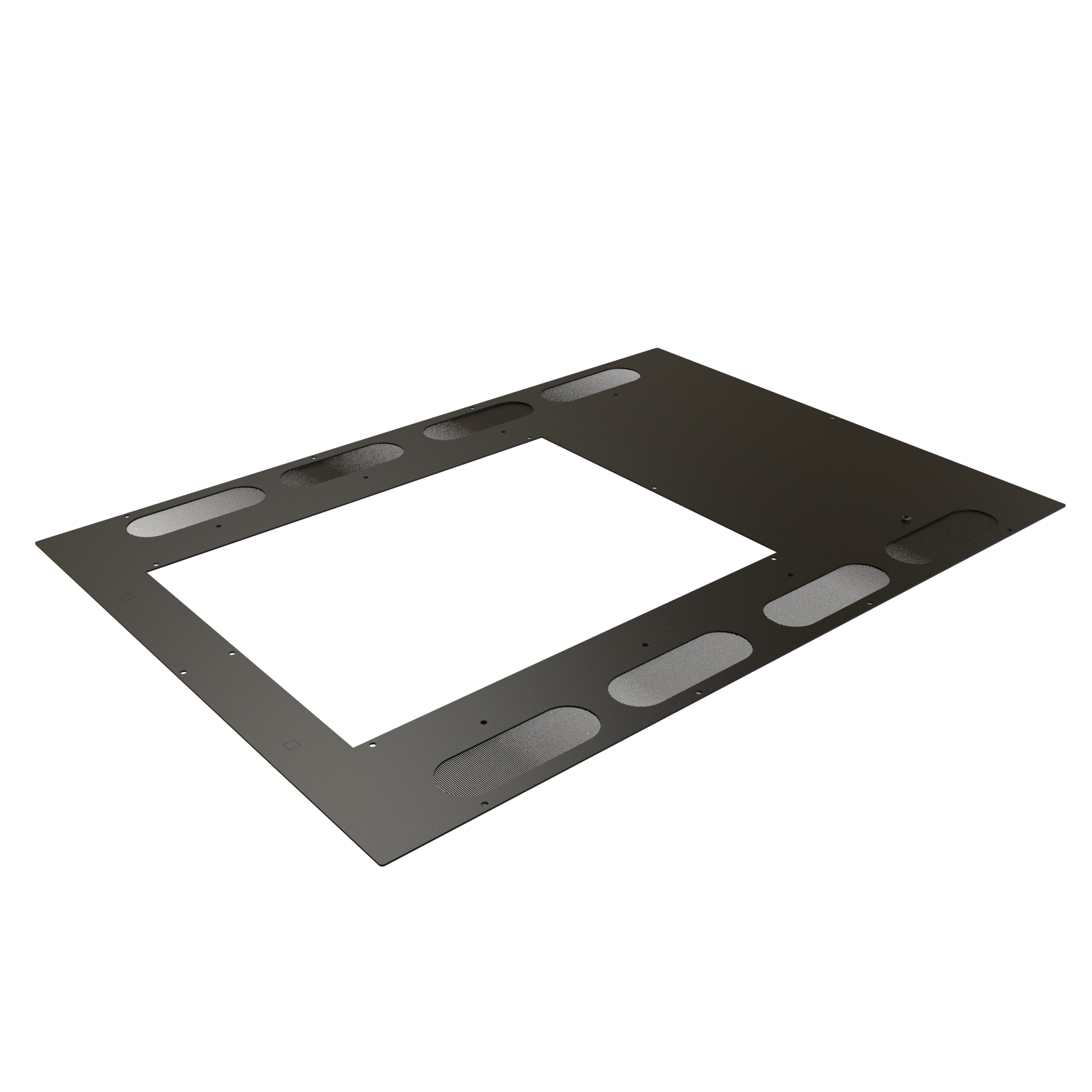

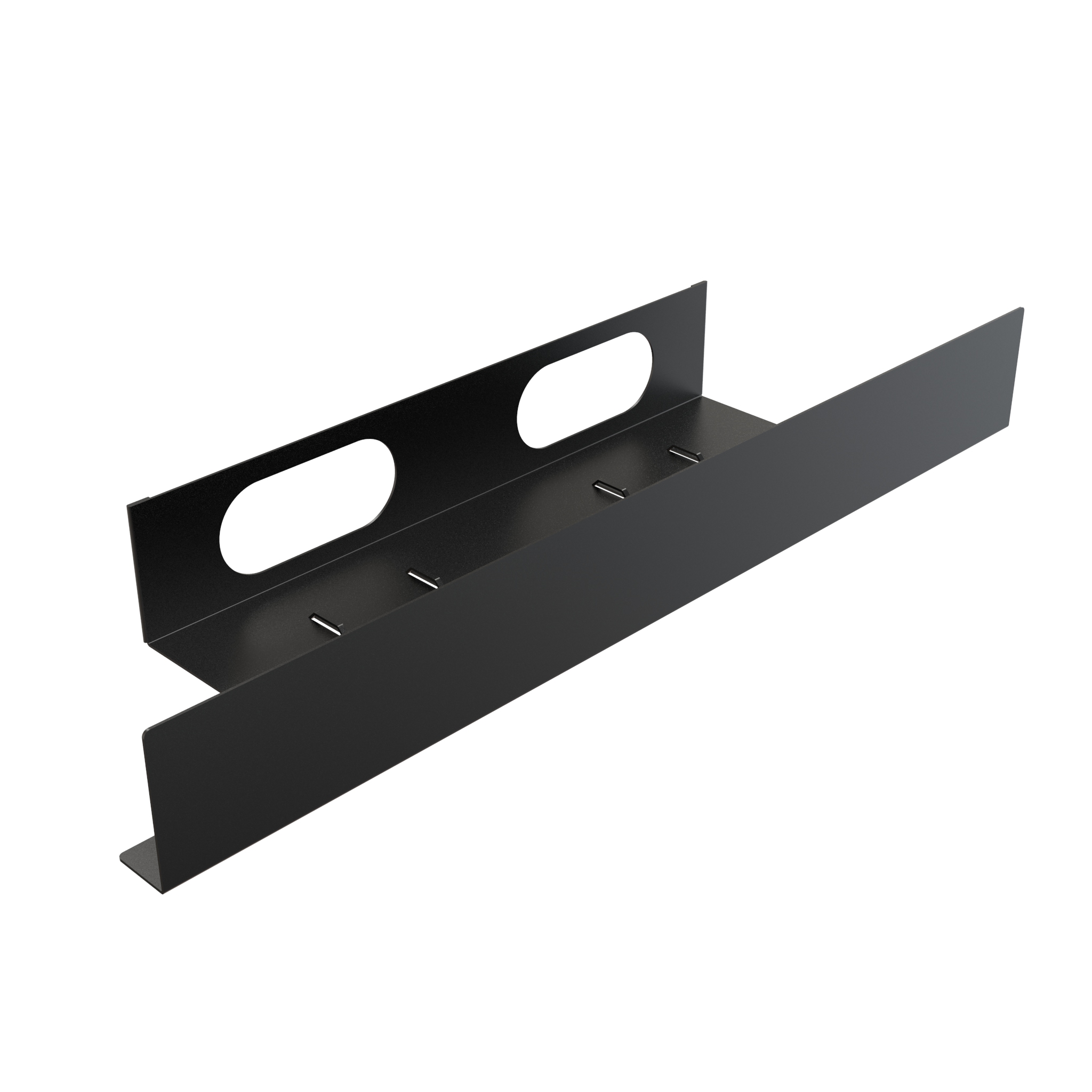

Side cable pass-through knockouts and the CLC top panel options support overhead and inter-cabinet routing, and CLC2B36BK works with Hammond containment, cable trough, chimney, PDU, grounding and cable-management accessories. The cabinet is TAA-compliant and manufactured in Canada, and meets PCI DSS when properly configured with side panels, CLCCMSP security plates and CLCCMSC covers.
