Hammond CLC4B36BK 4-Bay 10U Colocation Server Cabinet, 36" Deep

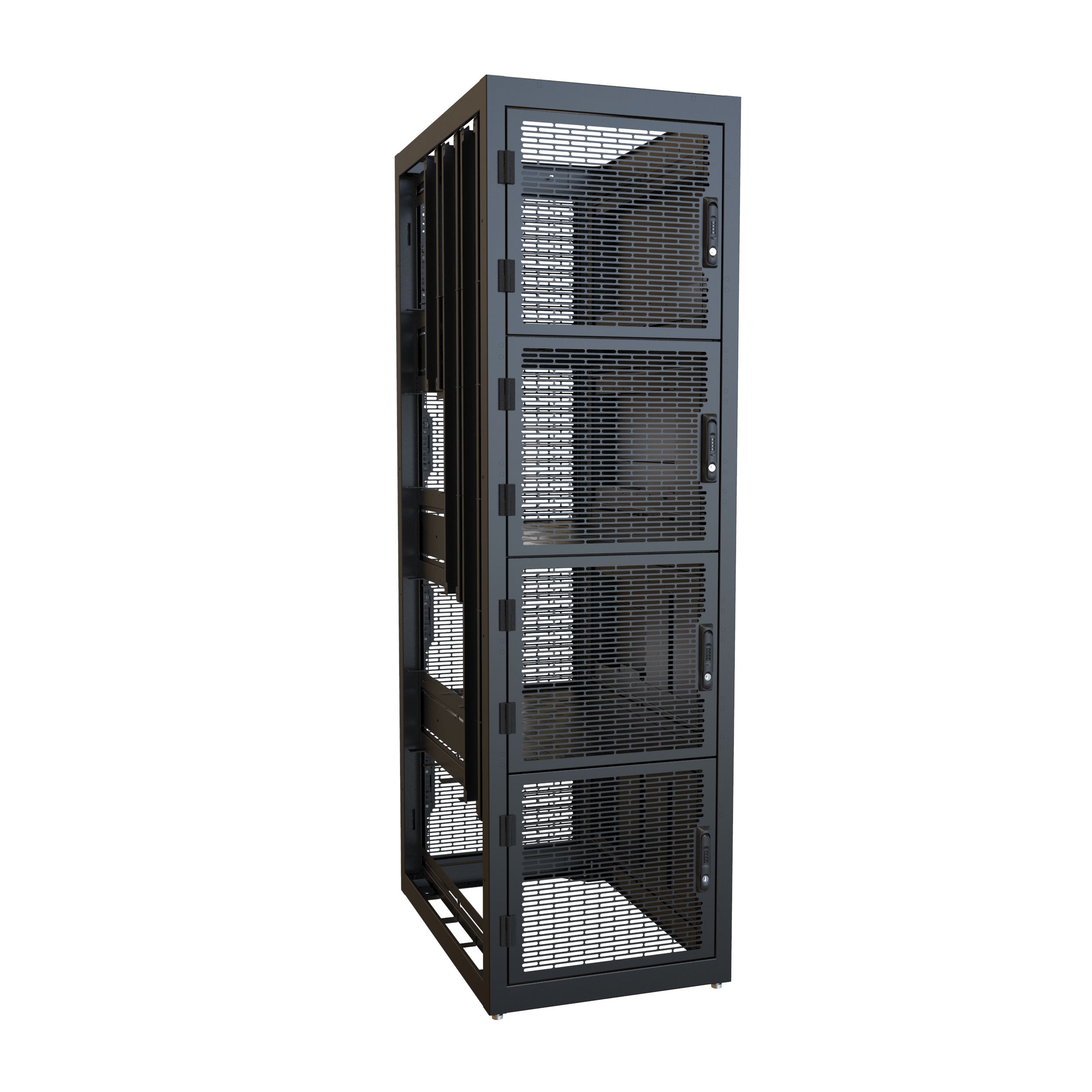

The CLC4B36BK is a 4-bay, 36-inch deep colocation server rack cabinet that divides a single 24 in wide footprint into four independently accessible equipment compartments of 10U each. It is built for colocation data centers, managed hosting and service provider facilities, meet-me rooms and shared enterprise environments where several tenants, customers or departments need secure, separately locked space inside one cabinet.

Construction is a 14-gauge welded steel frame with 12-gauge reinforced corner brackets and 16-gauge doors and panels, finished in RAL9005 black textured powder coat. The cabinet is UL Listed to UL 2416 (UL file E474597) with a 3,000 lb (1,360 kg) load rating and is seismic tested to a 1,200 lb dynamic equipment load for applicable IBC, CBC, NBCC and ASCE requirements when anchored with the C4K-Z4 bolt-down kit.

Overall dimensions are 83.02 in x 24.00 in x 36.00 in (2,109 mm x 610 mm x 914 mm), with 34.13 in (867 mm) of usable mounting depth and 18.19 in (462 mm) of mounting height per bay. Each bay is served by two pairs of adjustable-depth, EIA-compliant square-hole mounting rails with 10-32 cage nuts for standard 19-inch equipment; mounting hardware is not included, and the top panel is ordered separately.

Each of the four compartments has its own flush-mounted perforated vented door with a combination lock swing handle, and the doors provide 63% airflow. Fixed vented divider shelves with cutout cover plates separate the bays, per-bay cable managers support routing, and a lockable side/barrier panel plus containment provisions are included on this CLC4B36BK assembly. Side cable pass-through knockouts, optional top panels, bottom panels, security plates (CLCCMSP) and covers (CLCCMSC) support PCI DSS configurations when properly deployed.
