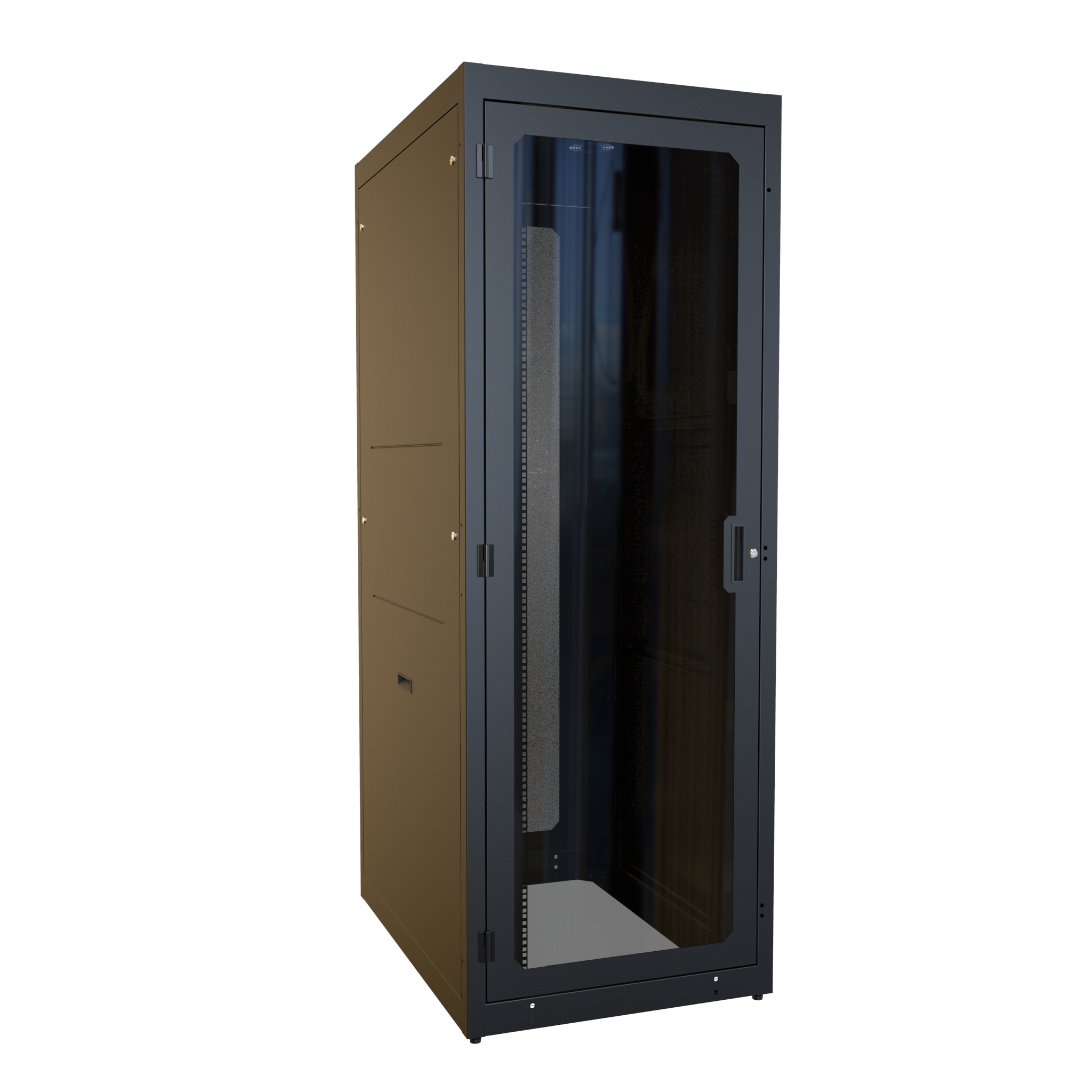

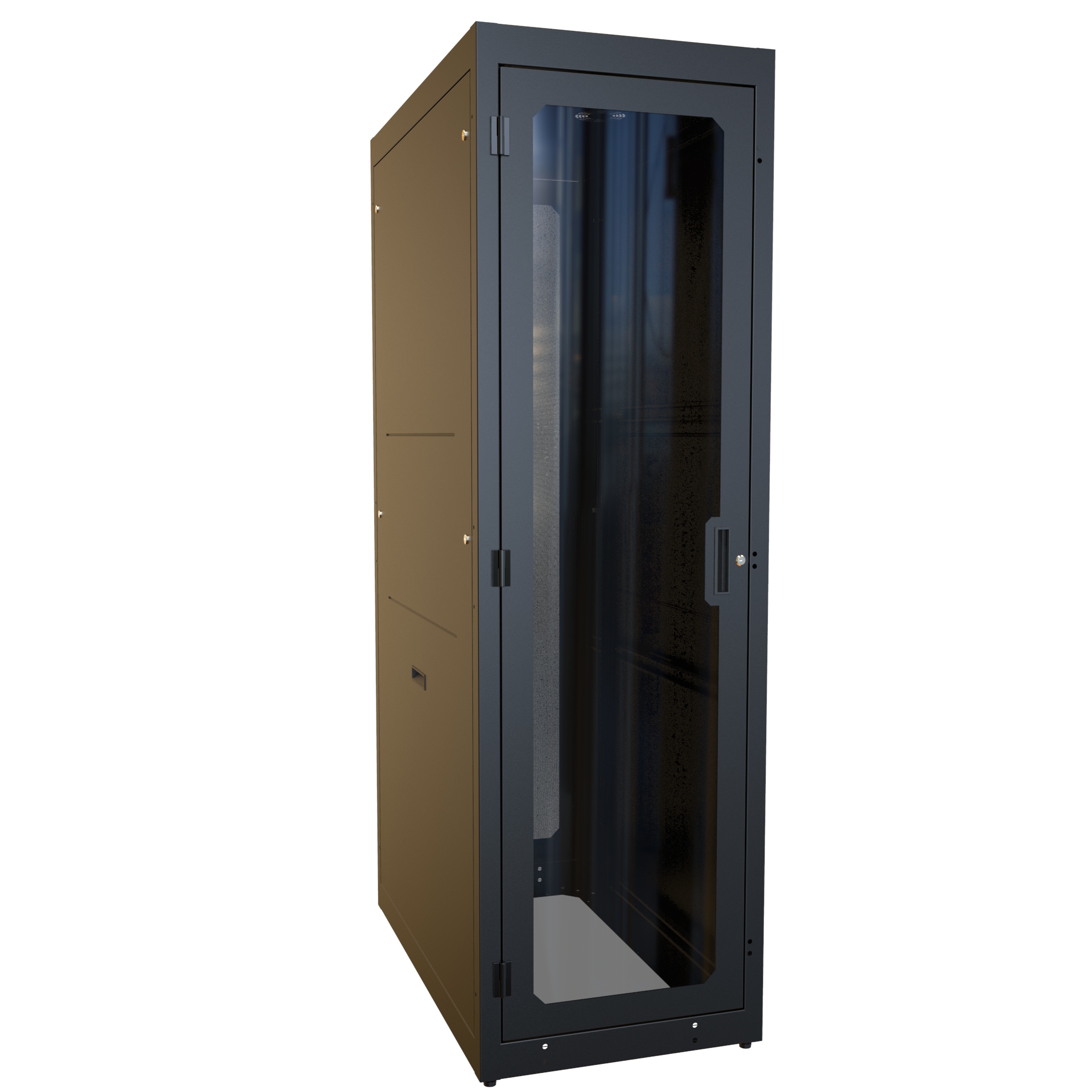

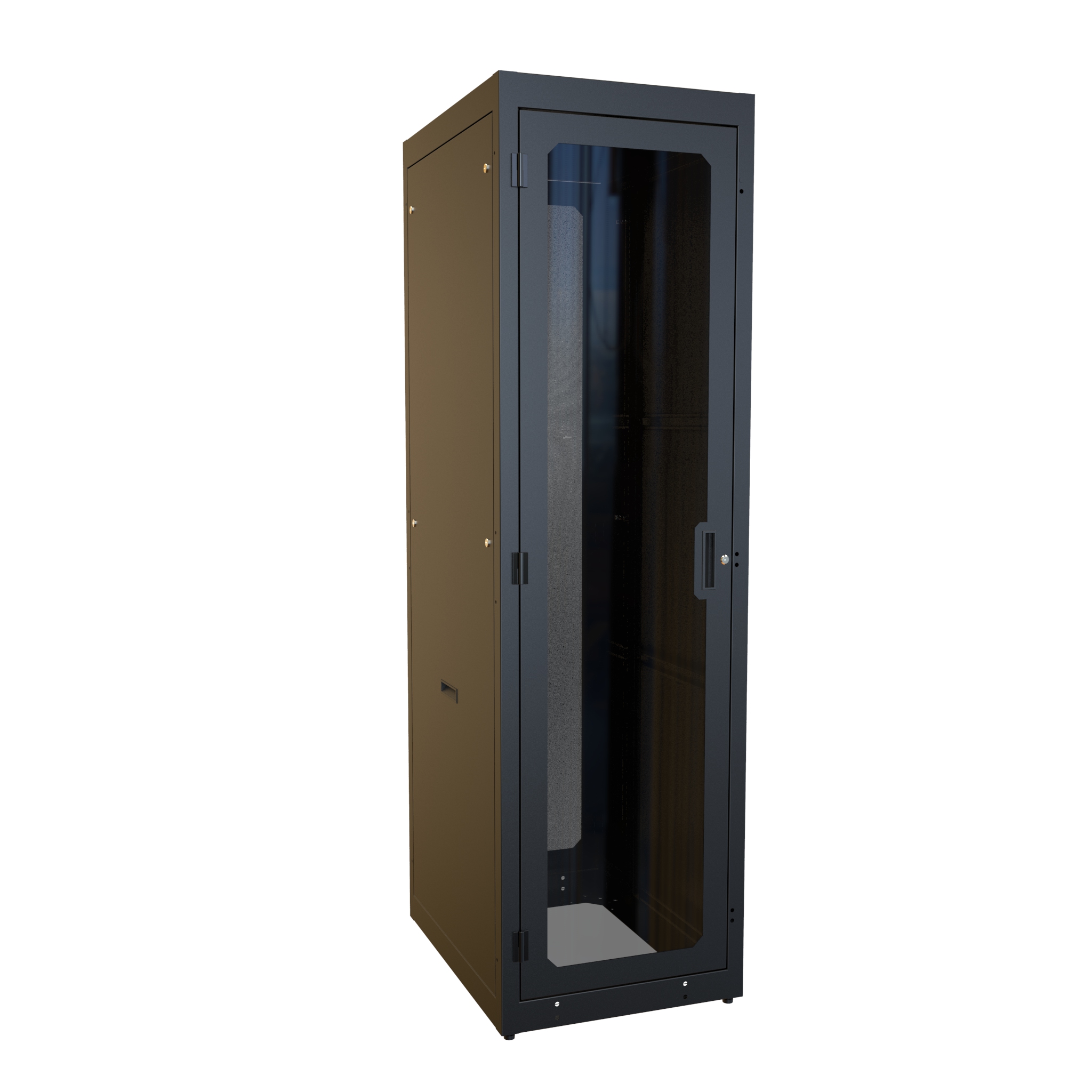

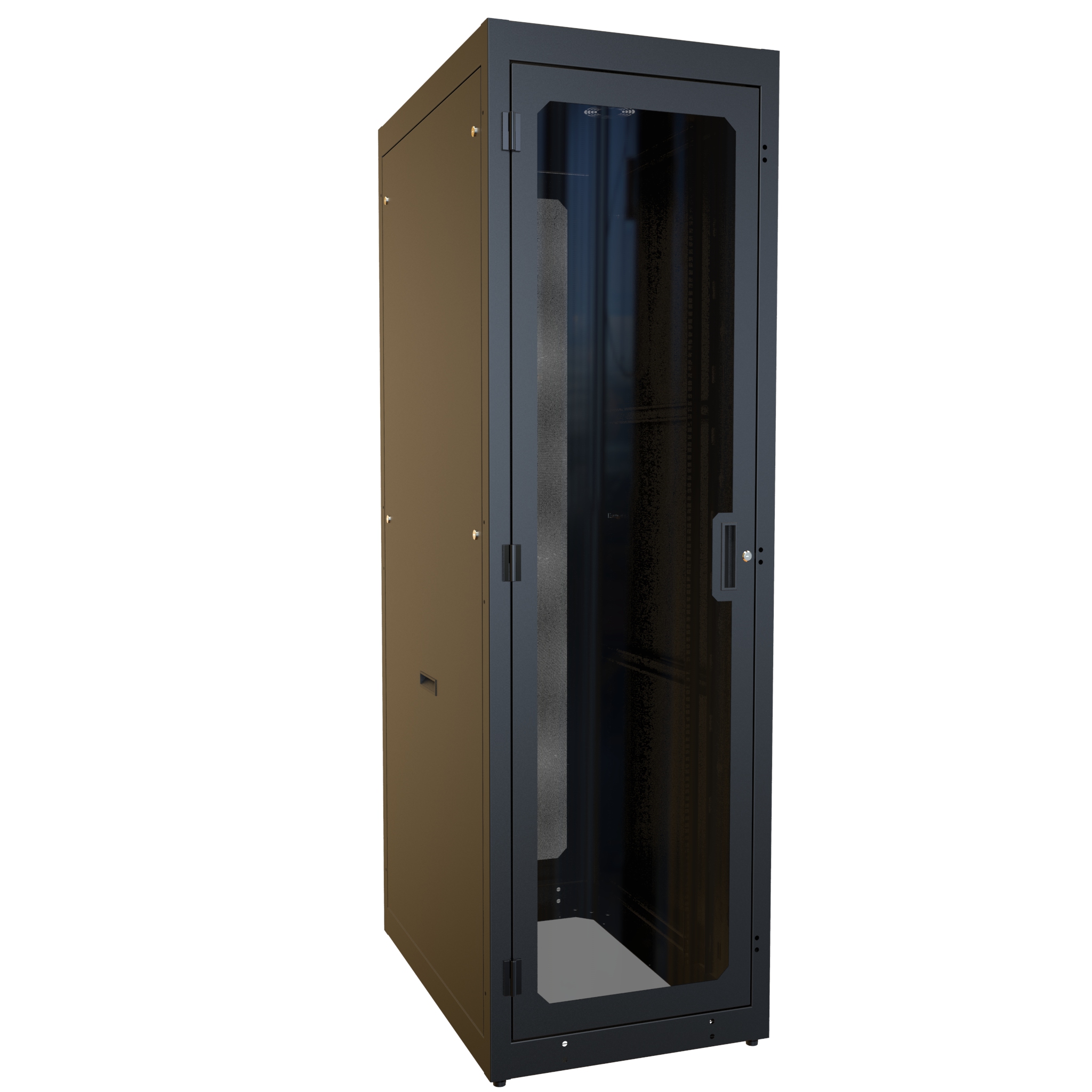

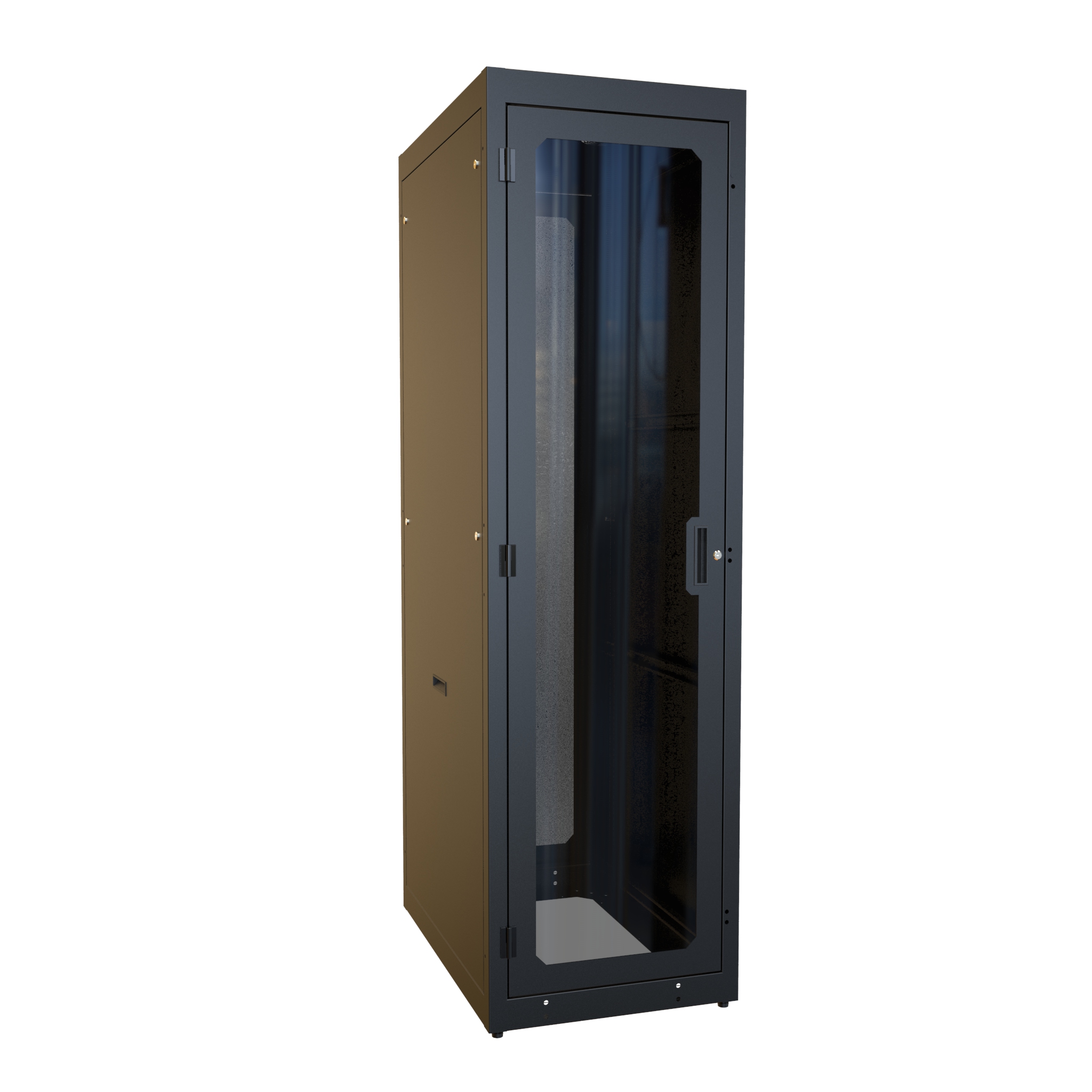

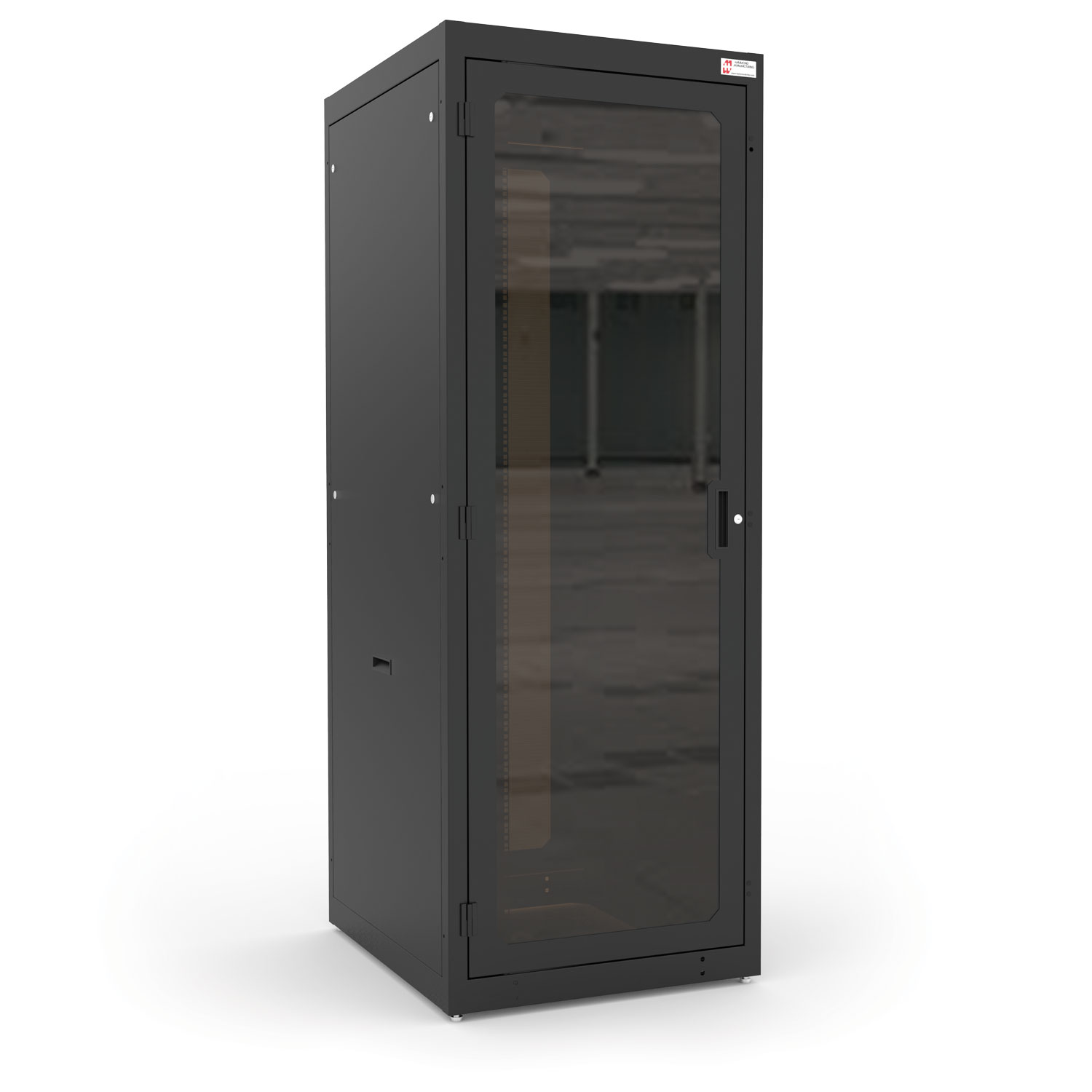

Pre-Configured Server Rack Cabinet (3000 lb) · C4RR_D Series

Key Features and Benefits

• ■14-gauge welded steel frame with 12-gauge reinforced corner brackets and 16-gauge doors and side panels (3000 lb capacity) provides high-strength support for server, network, and IT equipment.
• ■Pre-configured cabinet design based on the C4 platform supports rapid deployment and reduces design and configuration time.
• ■Ships assembled with factory-installed components allows immediate installation in data center environments.
• ■Two (2) pairs of infinitely adjustable EIA-310 compliant square hole mounting rails (12-gauge steel) support flexible equipment installation. Includes a starter pack of mounting hardware.
• ■Flush-mounted front and rear doors (approx. 65% open area) support airflow for active IT and network equipment.
• ■Integrated vertical cable tray with tool-less PDU mounting improves cable organization and simplifies installation.
• ■Available in 24" and 30" widths with multiple depths (31.5", 36", 42") supports a wide range of deployment requirements and cabling strategies.
• ■Top panel with cable entry holes and fan cutouts supports overhead cable routing and airflow integration.
• ■Grounding and bonding provisions throughout frame, doors, and panels support safe installation and compliance requirements.

Compliance and Certifications

• ■UL2416 listed rack (3000 lb load rating) ensures verified structural performance for high-capacity installations.
• ■Seismic rated to 1200 lb dynamic load (IBC, CBC, NBC, ASCE standards) supports deployment in regulated environments.
• ■Meets PCI DSS (Payment Card Industry Data Security Standard) supports secure IT and data center deployments.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

Included Components

The C4RR_D Series pre-configured server rack cabinet provides a high-capacity solution for data center and network environments. Built on the C4 platform and rated to 3000 lb, it delivers structural strength, airflow, and cable management for demanding deployments.

With factory-installed components, integrated cable management, and high airflow doors, the C4RR_D supports rapid deployment while maintaining flexibility for server, network, and infrastructure installations.

• ■Welded steel frame with factory-installed nylon leveling feet, ground studs, and mounting points for optional casters.
• ■Two (2) pairs of adjustable depth EIA-compliant square hole punched mounting rails. Starter pack of CAGKIT1032-25 screws and cage nuts.
• ■Starter pack of CAGKIT1032-25 screws and cage nuts.
• ■Two (2) removable side panels (with 1/4 turn latches).
• ■One (1) four (4) fan cutout top panel.
• ■One (1) acrylic window front door with a quarter-turn lock.
• ■One (1) perforated rear door (65% open area vented) with a quarter-turn lock.
• ■One (1) vertical cable tray with button PDU mounting.
