Vertical Cable Tray with Optional PDU Mount for Server Cabinets · VCT Series
Brand: Hammond Manufacturing · 13 part numbers
Vertical cable tray designed for cable routing and optional toolless PDU mounting across multiple cabinet platforms.
- ■16-gauge steel construction provides durable vertical cable routing and support across cabinet environments.
- ■Designed to fit a wide range of Hammond cabinets and compatible third-party enclosures for flexible deployment.
- ■Folded (flanged) edges increase structural strength and improve cable handling and organization.
- ■Includes cutouts for cable ties or hook and loop straps for flexible cable routing and strain relief.

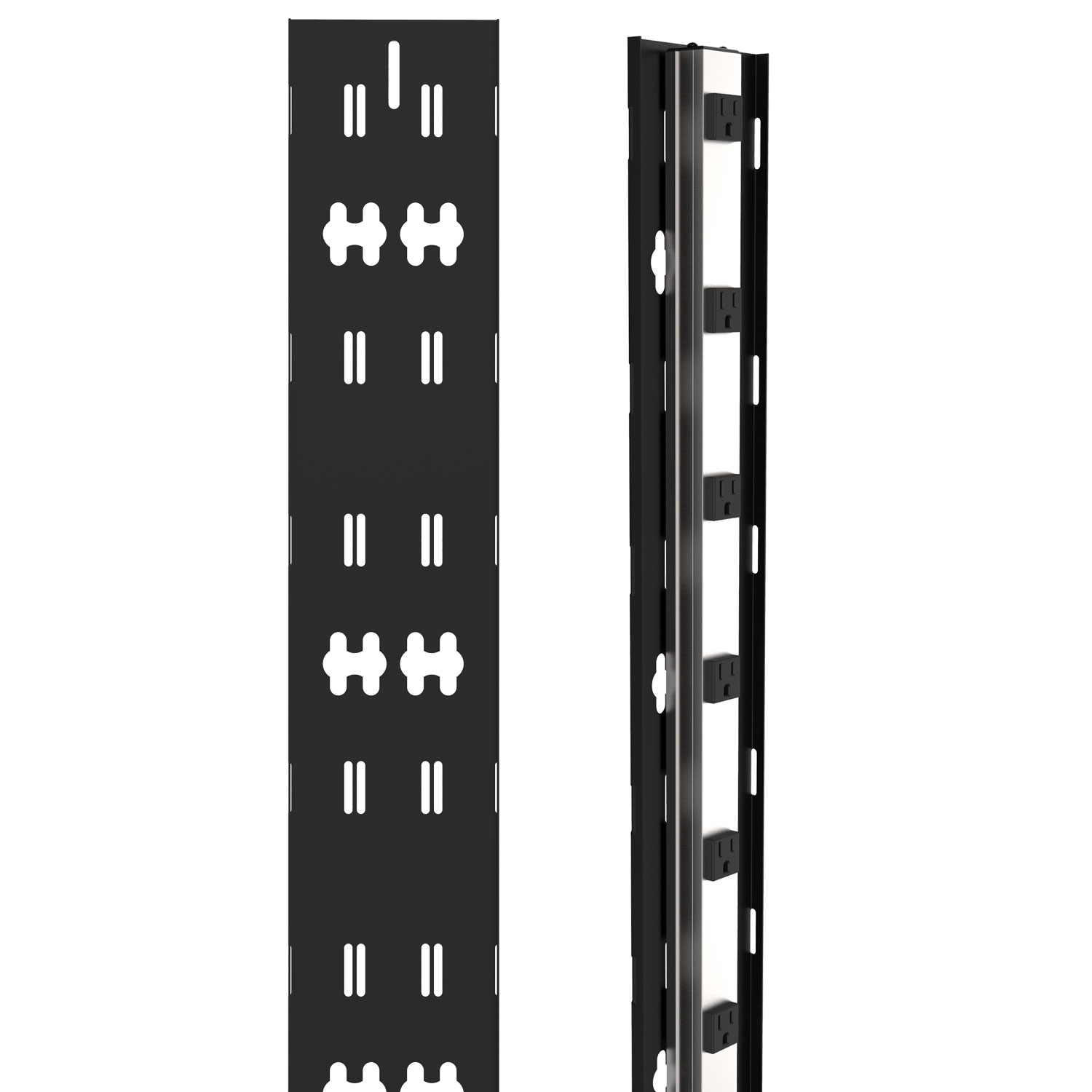

- ■VCTPDU models include cutouts for toolless mounting of most PDUs with button-style mounting hardware.
- ■Supports combined cable routing and power distribution within a single vertical pathway.
from $51.92
12 of 13 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your VCT Series part number
Filter 13 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
13 of 13 part numbers · 12 priced online
24U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, C4, HWM, REFK
$51.92In stock
Buy now
28U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, REFK
$58.41In stock
Buy now
32U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, HWM, REFK
$64.90In stock
Buy now
36U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, REFK
$64.90In stock
Buy now
40U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, REFK
$71.39Backorder
Buy now
42U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, C4, CLC, H1, REFK, HDME20
$77.88In stock
Buy now
44U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, C4, REFK
$77.88In stock
Buy now
45U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, C4, REFK, HDME20
$84.37In stock
Buy now
49U Vertical Cable Tray
- Includes Tooless P No
- Product Compatabil C2, REFK
$90.86In stock
Buy now
42U Vertical Cable Tray W/Pdu Mounting
- Includes Tooless P Yes
- Product Compatabil C2, C4, CLC, H1, REFK, HDME20
$90.86In stock
Buy now
44U Vertical Cable Tray W/Pdu Mounting
- Includes Tooless P Yes
- Product Compatabil C2, C4, CLC, REFK
$97.35In stock
Buy now
45U Vertical Cable Tray W/Pdu Mounting
- Includes Tooless P Yes
- Product Compatabil C2, C4, CLC, REFK, HDME20
$103.84In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | Mounting Dimensions · Height | Mounting Dimensions · Rack Units | Includes Tooless · PDU Mounting | Product · Compatability | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| VCT28 | 28.00 | 3.00 | 0.50 | 28.00 | 16U | No | RCHS, RCHV | Quote | Quote |
| VCT42 | 42.00 | 3.00 | 0.50 | 42.00 | 24U | No | C2, C4, HWM, REFK | $51.92In stock | Buy now |
| VCT49 | 49.00 | 3.00 | 0.50 | 49.00 | 28U | No | C2, REFK | $58.41In stock | Buy now |
| VCT56 | 56.00 | 3.00 | 0.50 | 56.00 | 32U | No | C2, HWM, REFK | $64.90In stock | Buy now |
| VCT63 | 63.00 | 3.00 | 0.50 | 63.00 | 36U | No | C2, REFK | $64.90In stock | Buy now |
| VCT70 | 70.00 | 3.00 | 0.50 | 70.00 | 40U | No | C2, REFK | $71.39Backorder | Buy now |
| VCT73 | 73.00 | 3.00 | 0.50 | 73.00 | 42U | No | C2, C4, CLC, H1, REFK, HDME20 | $77.88In stock | Buy now |
| VCT77 | 77.00 | 3.00 | 0.50 | 77.00 | 44U | No | C2, C4, REFK | $77.88In stock | Buy now |

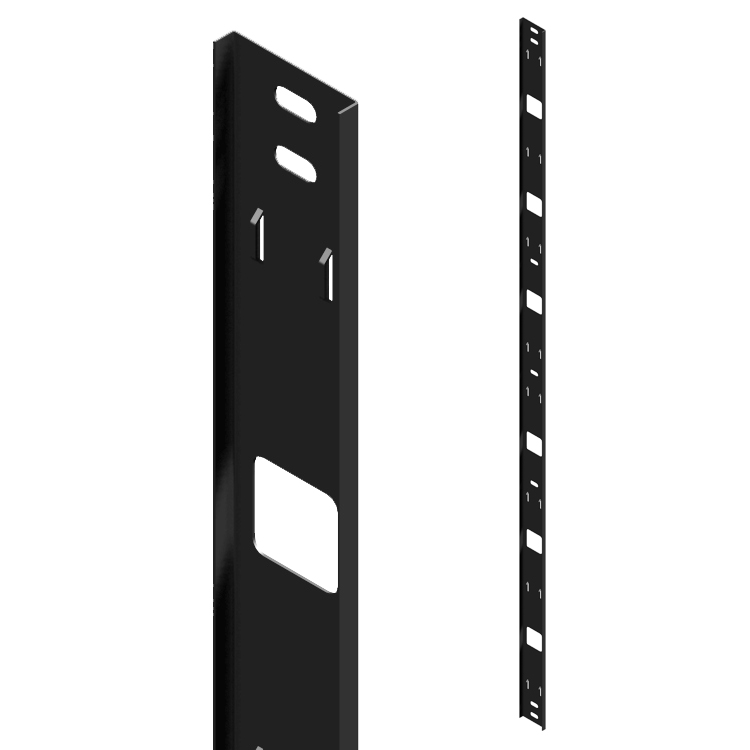

| VCT78 | 78.75 | 3.00 | 0.50 | 78.75 | 45U | No | C2, C4, REFK, HDME20 | $84.37In stock | Buy now |
| VCT85 | 85.00 | 3.00 | 0.50 | 85.00 | 48U | No | C2, REFK | $90.86In stock | Buy now |

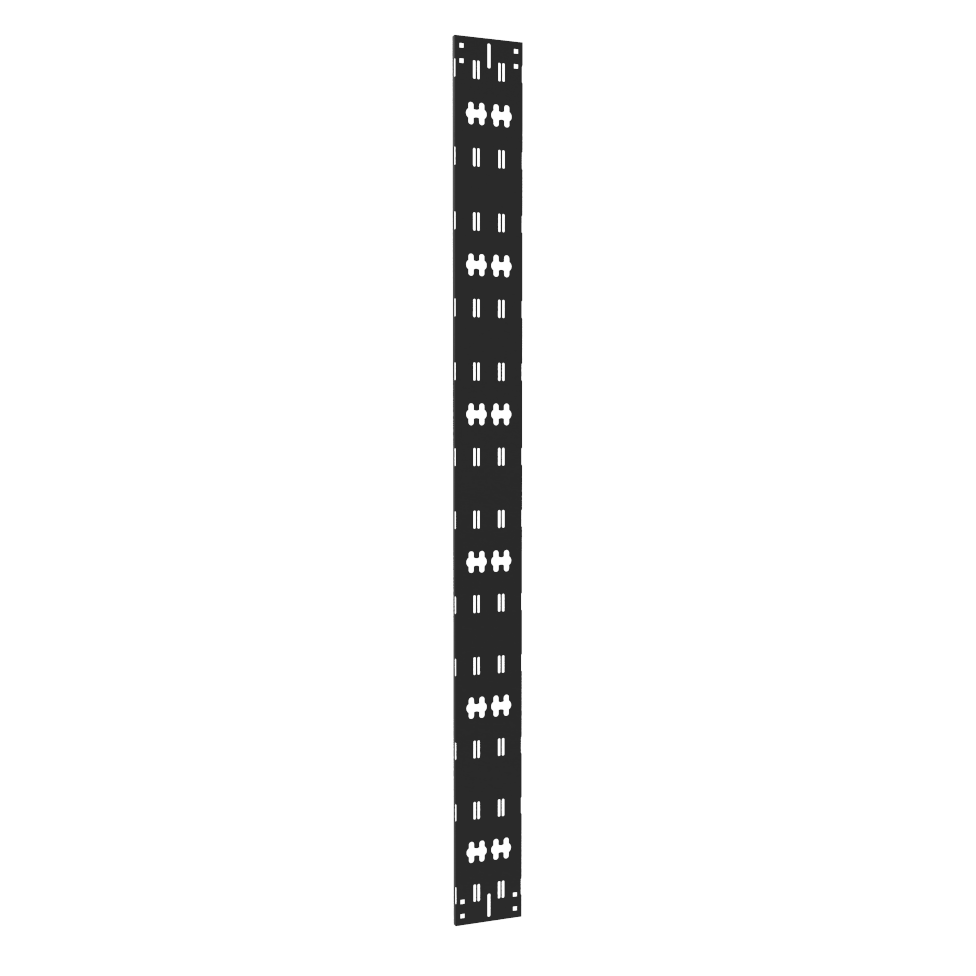

| VCTPDU73 | 73.50 | 6.00 | 0.50 | 73.50 | 42U | Yes | C2, C4, CLC, H1, REFK, HDME20 | $90.86In stock | Buy now |
| VCTPDU77 | 77.00 | 6.00 | 0.50 | 77.00 | 44U | Yes | C2, C4, CLC, REFK | $97.35In stock | Buy now |
| VCTPDU78 | 78.75 | 6.00 | 0.50 | 78.75 | 45U | Yes | C2, C4, CLC, REFK, HDME20 | $103.84In stock | Buy now |
Key Features and Benefits
The VCT Series vertical cable trays provide a flexible solution for cable routing and support within server cabinets. Designed for compatibility across multiple cabinet platforms, they offer an open, structured pathway for managing cable bundles while maintaining accessibility.
With integrated tie-down points and optional toolless PDU mounting in VCTPDU models, the VCT Series supports both cable management and power distribution, making it ideal for scalable rack installations.
- ■16-gauge steel construction provides durable vertical cable routing and support across cabinet environments.
- ■Designed to fit a wide range of Hammond cabinets and compatible third-party enclosures for flexible deployment.
- ■Folded (flanged) edges increase structural strength and improve cable handling and organization.
- ■Includes cutouts for cable ties or hook and loop straps for flexible cable routing and strain relief.
- ■VCTPDU models include cutouts for toolless mounting of most PDUs with button-style mounting hardware.
- ■Supports combined cable routing and power distribution within a single vertical pathway.
- ■Provides a simple, open platform for managing cable bundles without restricting routing paths.
- ■Available in multiple heights to match cabinet sizes and rack unit requirements.
- ■Includes mounting hardware for fast installation.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
Documents
Additional information
Where the VCT Series Works Best
- ■Server cabinet installations across multiple product lines
- ■Data centers and IT rooms
- ■Network and telecom environments
- ■Power distribution-heavy deployments
- ■Installations requiring flexible cable routing
- ■Managing vertical cable runs inside server cabinets
- ■Adding cable routing pathways without enclosed managers
- ■Mounting PDUs without consuming rack unit space (VCTPDU models)
- ■Supporting structured cable routing with tie-down points
- ■Expanding cable and power capacity within existing cabinets
