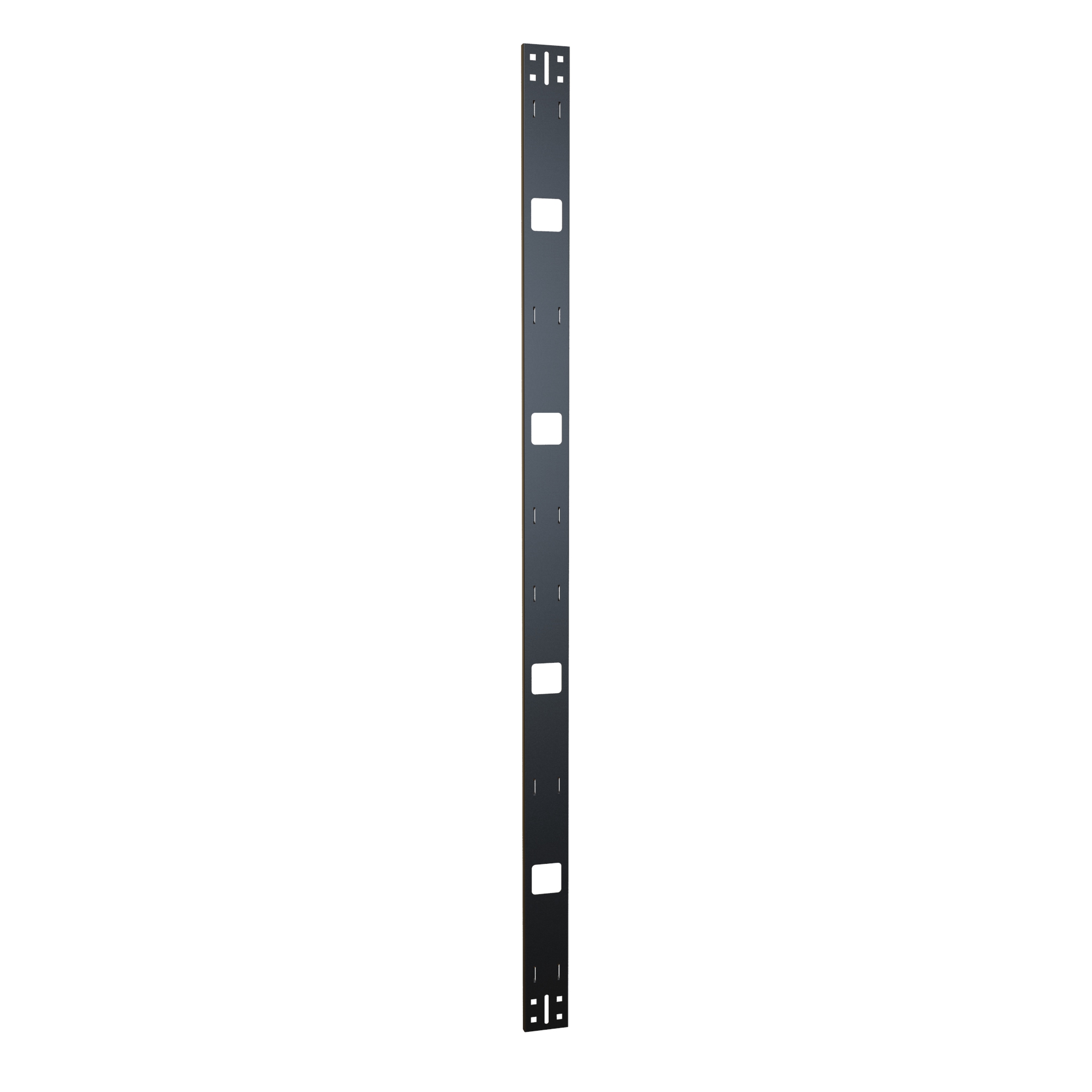

Hammond VCT63 36U Vertical Cable Tray, 63 in Steel

The VCT63 is a 36U vertical cable tray used to route and support cable bundles inside server cabinets. Standing 63.00 in (1600 mm) tall with a 3.00 in (76 mm) wide face and a 0.50 in (13 mm) depth, it gives IT and AV integrators, data center technicians and network installers an open vertical pathway for cable runs without using enclosed cable managers or consuming rack unit space.

Construction is 16-gauge mild steel with folded (flanged) edges that add structural strength and make cable handling and organization easier. The tray is finished in a black powder coat (painted black texture) that is GREENGUARD, TSCA and RoHS compliant. VCT63 is RoHS, REACH and USMCA compliant, TAA-compliant and manufactured in North America, which supports government and public-sector procurement requirements.

Cutouts along the tray accept cable ties or hook and loop straps for flexible routing and strain relief, and include 2.00 in x 2.00 in [51 mm x 51 mm] square cutouts, 0.38 x 0.38 [10 mm x 10 mm] cutouts and 0.28 in x 2.00 in [7 mm x 51 mm] obround openings. Mounting hardware is included for fast installation, and the mounting height matches the 63.00 in (1600 mm) overall height for a 36U pathway.

This part number is listed as compatible with Hammond C2 and REFK cabinet platforms, and the VCT Series is designed to fit a wide range of Hammond cabinets and compatible third-party enclosures. VCT63 does not include toolless PDU mounting cutouts; those are provided on VCTPDU models. Shipping weight is 10 lbs (4.54 kg).
