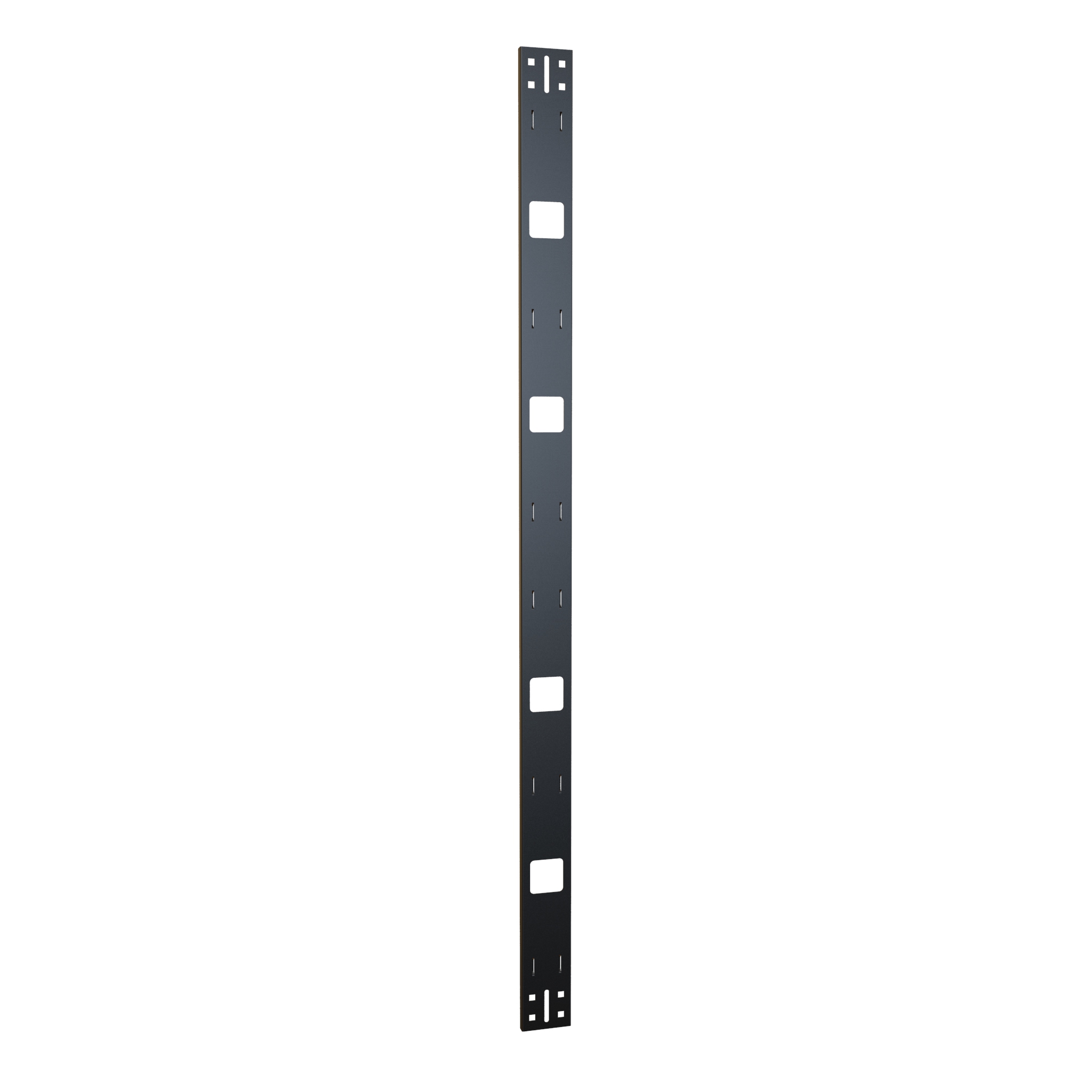

Hammond VCT56 32U Vertical Cable Tray, 56 in Steel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 32U vertical cable tray, 56.00 in (1422 mm) overall and mounting height for tall server cabinets
- 16-gauge mild steel construction with folded (flanged) edges for added strength and easier cable handling
- Cutouts accept cable ties or hook and loop straps for tie-down points and strain relief
- Slim 3.00 in (76 mm) wide x 0.50 in (13 mm) deep profile routes cable without consuming rack units
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant; drawing notes painted black textured
- Listed compatible with Hammond C2, HWM and REFK cabinet platforms plus compatible third-party enclosures
- Mounting hardware included for fast installation
- TAA-compliant, manufactured in North America (Country of Origin: CA) for government procurement
The VCT56 is a 32U vertical cable tray for routing and supporting cable bundles inside server cabinets. It gives IT and network installers, data center technicians and AV integrators an open vertical pathway along the side of a cabinet, keeping patch cords and trunk cables organized and accessible without using an enclosed cable manager.
Construction is 16-gauge mild steel with folded (flanged) edges that add structural strength and make cable handling easier. The tray is finished in a black powder coat (GREENGUARD, TSCA and RoHS compliant) and the drawing specifies a painted black textured finish. Cutouts along the body accept cable ties or hook and loop straps for tie-down points and strain relief, and a square 2.00 in x 2.00 in cutout plus obround 0.28 in x 2.00 in slots are provided in the panel.
Overall dimensions are 56.00 in (1422 mm) high, 3.00 in (76 mm) wide and 0.50 in (13 mm) deep, with a mounting height of 56.00 in (1422 mm) covering 32 rack units. Shipping weight is 10 lbs (4.54 kg). Mounting hardware is included for fast installation.
VCT56 is listed as compatible with Hammond C2, HWM and REFK cabinet platforms, and the series is designed to fit a wide range of Hammond cabinets and compatible third-party enclosures. This part does not include toolless PDU mounting cutouts; those are provided on VCTPDU models.
- RoHS, REACH and USMCA compliant, TAA-compliant and made in Canada
- UNSPSC 43223305, ECCN EAR99, tariff code 7326.90.8688
Ideal For
- Managing vertical cable runs inside server cabinets
- Data centers and IT rooms
- Network and telecom environments
- Adding cable routing pathways without enclosed managers
- Expanding cable capacity within existing cabinets
Overview
| Series | VCT Series - Vertical Cable Tray with Optional PDU Mount for Server Cabinets |
| Description | 32U VERT CABLE TRAY |
| Part Number | VCT56 |
| Product Type | Vertical cable tray for cable routing and support in server cabinets |
Dimensions
| Obround Slot | 0.28 in x 2.00 in [7 mm x 51 mm] |
| Overall Depth | 0.50 in (13 mm) |
| Overall Width | 3.00 in (76 mm) |
| Square Cutout | 2.00 in x 2.00 in [51 mm x 51 mm] |
| Overall Height | 56.00 in (1422 mm) |
| Rectangular Cutout | 0.38 in x 0.38 in [10 mm x 10 mm] |
Accessories
| Related Accessories | Hook and Loop Cable Straps Pre-Cut 96 Inch; Rack Rail Mounting Hardware Kit |
Identifiers
| UPC | 623980078854 |
| UNSPSC | 43223305 |
| GTIN-14 | 00623980078854 |
| UPC W/o Check Digit | 62398007885 |
Rack Mounting
| Rack Units | 32U |
| Mounting Height | 56.00 in (1422 mm) |
| Mounting Hardware | Included |
| Product Compatibility | C2, HWM, REFK |
| Includes Toolless PDU Mounting | No |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 10 lbs (4.54 kg) |
| Country Of Origin | CA |
Construction & Finish
| Edges | Folded (flanged) edges for added structural strength |
| Gauge | 16-gauge steel |
| Finish | Black powder coat (GREENGUARD, TSCA, RoHS compliant) |
| Material | Mild Steel |
| Drawing Finish Note | Painted black textured |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How tall is the VCT56 and how many rack units does it cover?▾
The VCT56 is 56.00 in (1422 mm) in overall height with a mounting height of 56.00 in (1422 mm), covering 32 rack units (32U).
Can I mount a PDU on the VCT56?▾
No. The VCT56 is listed as not including toolless PDU mounting. The VCTPDU models (VCTPDU73, VCTPDU77, VCTPDU78) include cutouts for toolless mounting of most PDUs with button-style mounting hardware.
Which cabinets is the VCT56 compatible with?▾
The series ordering table lists VCT56 compatibility with C2, HWM and REFK platforms. The VCT Series is designed to fit a wide range of Hammond cabinets and compatible third-party enclosures.
Is mounting hardware included?▾
Yes. The drawing notes state mounting hardware is included for installation.
How do cables get secured to the tray?▾
The tray includes cutouts that accept cable ties or hook and loop straps, providing tie-down points for flexible routing and strain relief.
Is the VCT56 suitable for government projects?▾
The part is TAA-compliant and manufactured in North America, with a country of origin of CA, which supports government procurement requirements. It is also RoHS, REACH and USMCA compliant.
