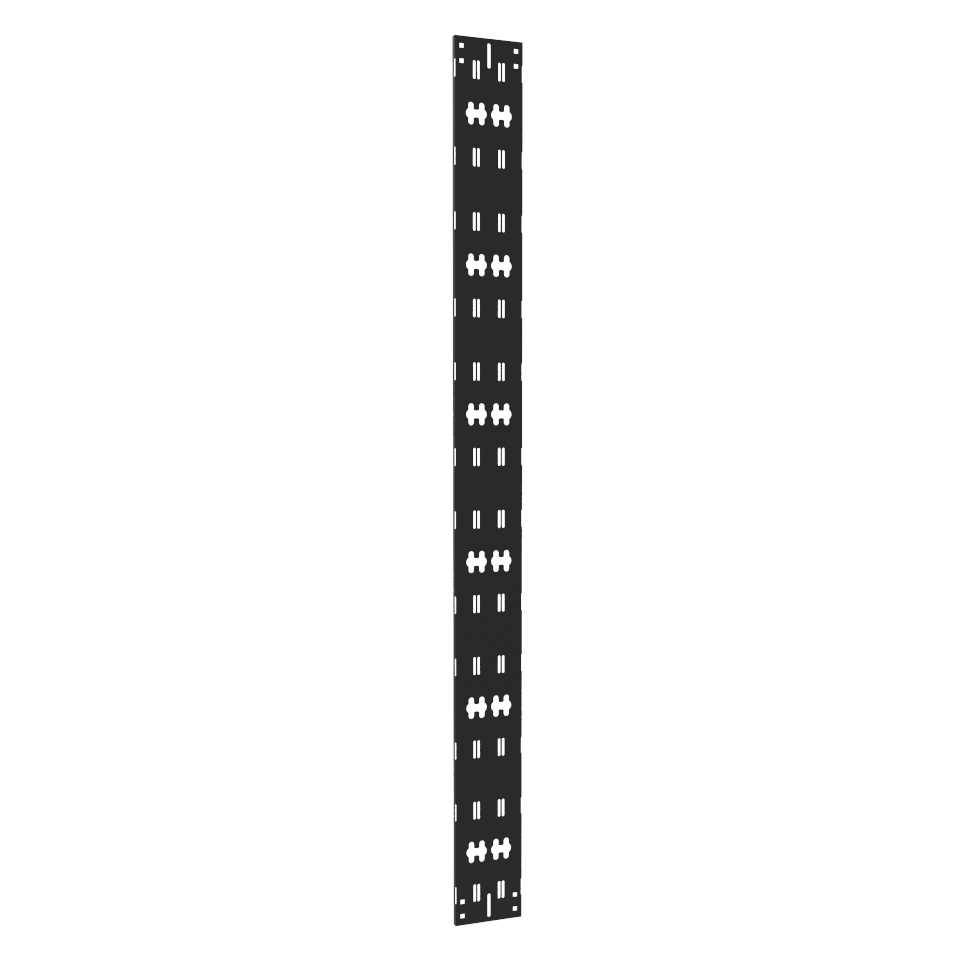

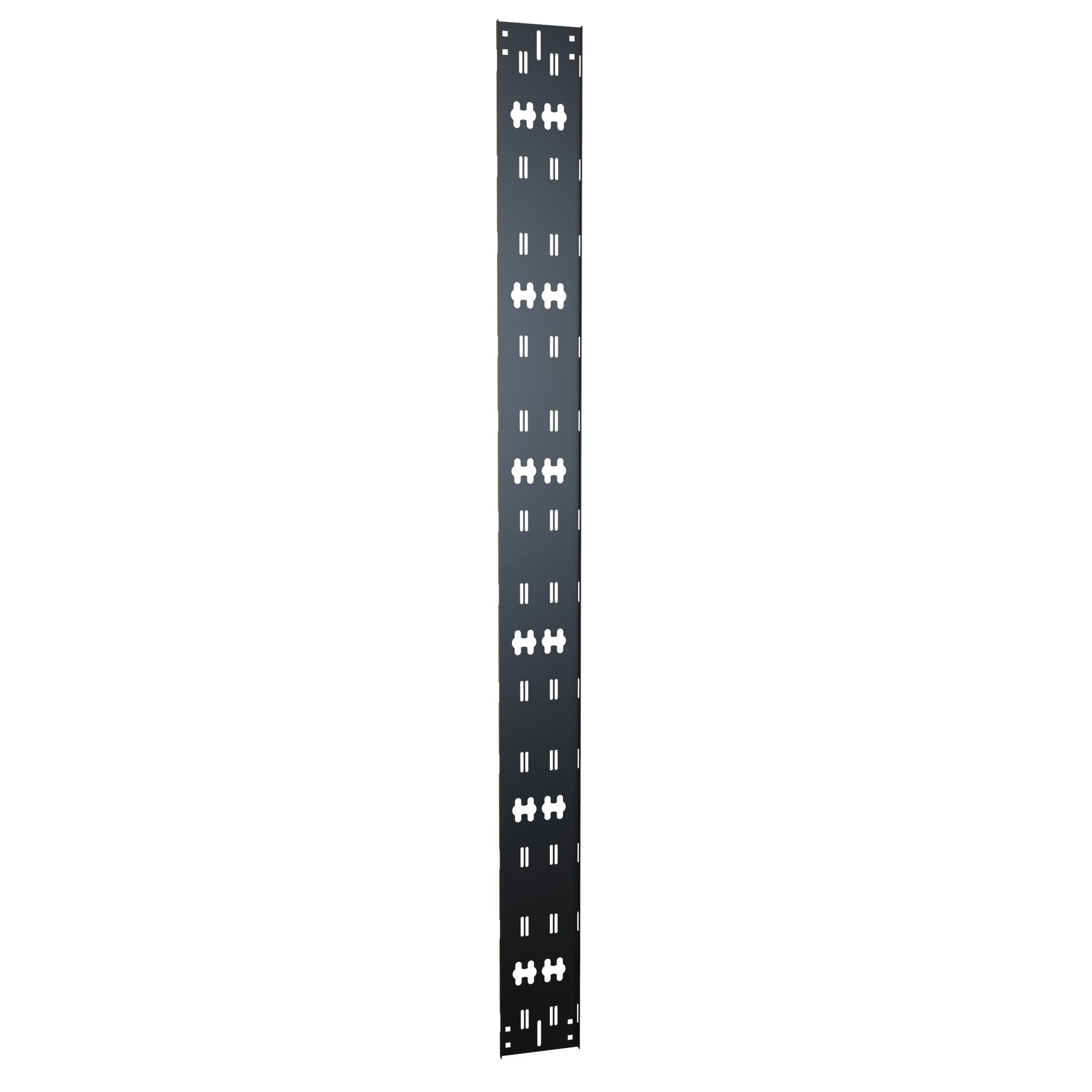

Hammond VCTPDU73 42U Vertical Cable Tray with PDU Mounting

The VCTPDU73 is a 42U vertical cable tray for server cabinets, giving data center, IT, network and telecom installers an open vertical pathway for routing and supporting cable bundles inside the cabinet. As a VCTPDU model, it also includes cutouts for toolless mounting of most PDUs with button-style mounting hardware, so power distribution can share the same vertical channel as the cable runs without consuming rack unit space.

Construction is 16-gauge mild steel with folded (flanged) edges that add structural strength and make cable handling and organization easier. The finish is a black powder coat that is GREENGUARD, TSCA and RoHS compliant, and the part is RoHS, REACH and USMCA compliant, TAA-compliant and manufactured in North America (country of origin CA) for government procurement requirements.

Overall dimensions are 73.50 in (1867 mm) high by 6.00 in (152 mm) wide by 0.50 in (13 mm) deep, with a mounting height of 73.50 in (1867 mm) covering 42U. The tray carries cutouts for cable ties or hook and loop straps for flexible routing and strain relief, including obround 0.28 in x 2.00 in (7 mm x 51 mm) and oblong 0.24 in x 1.50 in (6 mm x 38 mm) openings. Shipping weight is 10 lbs (4.54 kg).

VCTPDU73 includes mounting hardware for fast installation and is listed as compatible with Hammond C2, C4, CLC, H1, REFK and HDME20 products, as well as compatible third-party enclosures. Hook and loop cable straps (pre-cut 96 inch) and a rack rail mounting hardware kit are offered as series accessories.
