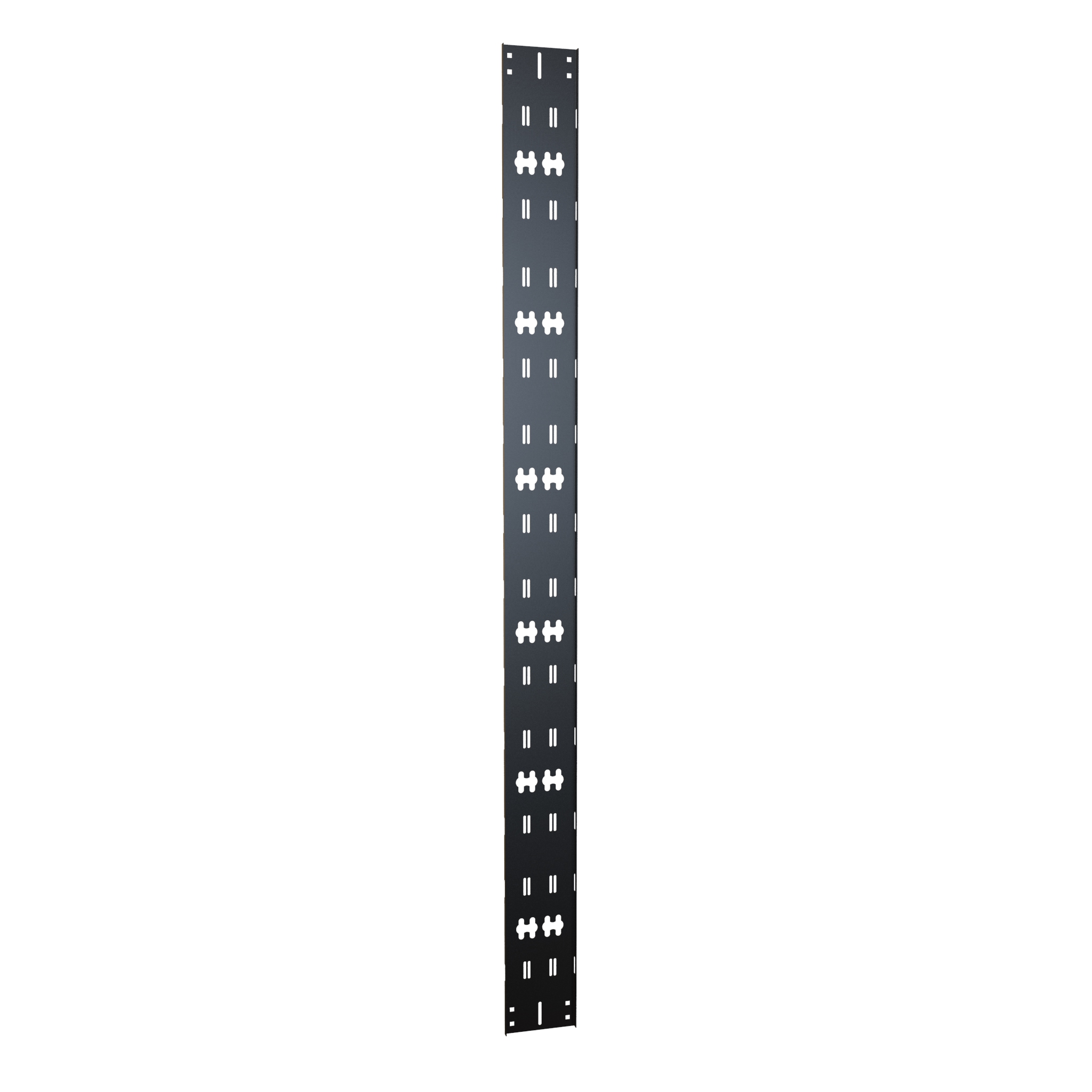

Hammond VCTPDU78 45U Vertical Cable Tray with PDU Mounting

The VCTPDU78 is a 45U vertical cable tray with toolless PDU mounting, intended for IT, network and telecom teams organizing vertical cable runs and rack-mount power strips inside server cabinets. It creates an open, structured pathway for cable bundles along the side of the cabinet while keeping those bundles accessible for changes and additions.

Construction is 16-gauge mild steel with folded (flanged) edges that increase structural strength and improve cable handling and organization. The finish is a black textured powder coat, described in the series data as GREENGUARD, TSCA and RoHS compliant. Cutouts along the tray accept cable ties or hook and loop straps for routing and strain relief, and the 6.00 in wide VCTPDU profile adds cutouts for toolless mounting of most PDUs that use button-style mounting hardware, so power distribution can share the same vertical pathway as the cabling.

Overall dimensions are 78.75 in (2000 mm) high by 6.00 in (152 mm) wide by 0.50 in (13 mm) deep, with a mounting height of 78.75 in (2000 mm) covering 45 rack units. Shipping weight is 10 lbs (4.54 kg). Mounting hardware is included for fast installation, and the tray is listed as compatible with Hammond C2, C4, CLC, REFK and HDME20 products, as well as compatible third-party enclosures.

VCTPDU78 is made in Canada, TAA compliant, USMCA compliant, RoHS and REACH compliant, and classified EAR99 — useful documentation for government and enterprise procurement. Mounting PDUs on the tray keeps them out of the 19 in mounting space, helping expand cable and power capacity within existing cabinets.
