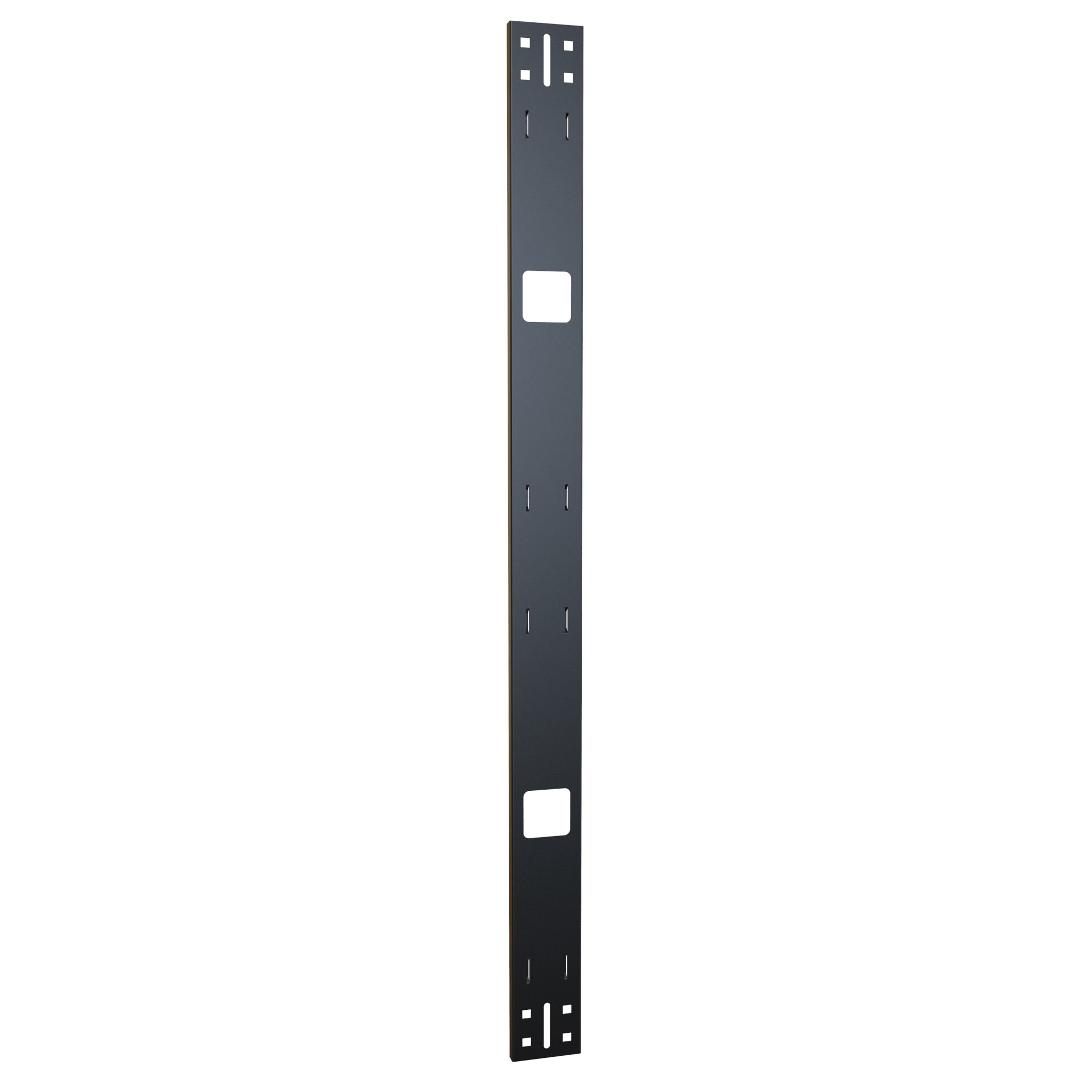

Hammond VCT42 24U Vertical Cable Tray, 42 in Steel

The VCT42 is a 24U vertical cable tray for server cabinets, giving IT integrators, data center technicians and network installers an open vertical pathway for routing and supporting cable bundles inside the cabinet. It is part of the VCT Series of vertical cable trays designed for cable routing across multiple cabinet platforms, and this model does not include toolless PDU mounting cutouts (those are found on the VCTPDU models).

Construction is 16-gauge steel with folded (flanged) edges that add structural strength and improve cable handling and organization. The tray is finished in a black textured powder coat that is GREENGUARD, TSCA and RoHS compliant, and the base material is listed as mild steel. Cutouts along the tray accept cable ties or hook and loop straps so bundles can be tied down for strain relief without restricting routing paths.

Overall dimensions are 42.00 in (1067 mm) high, 3.00 in (76 mm) wide and 0.50 in (13 mm) deep, with a mounting height of 42.00 in (1067 mm) covering 24 rack units. Drawing detail includes a 2.00 in x 2.00 in (51 mm x 51 mm) square cutout, 0.28 in x 2.00 in (7 mm x 51 mm) obround slots and 0.38 in x 0.38 in (10 mm x 10 mm) openings. Shipping weight is 10 lbs (4.54 kg).

Mounting hardware is included for fast installation, and the VCT42 is listed as compatible with Hammond C2, C4, HWM and REFK products. The part is TAA compliant, USMCA compliant, RoHS and REACH compliant, made in Canada, and classified under ECCN EAR99.
