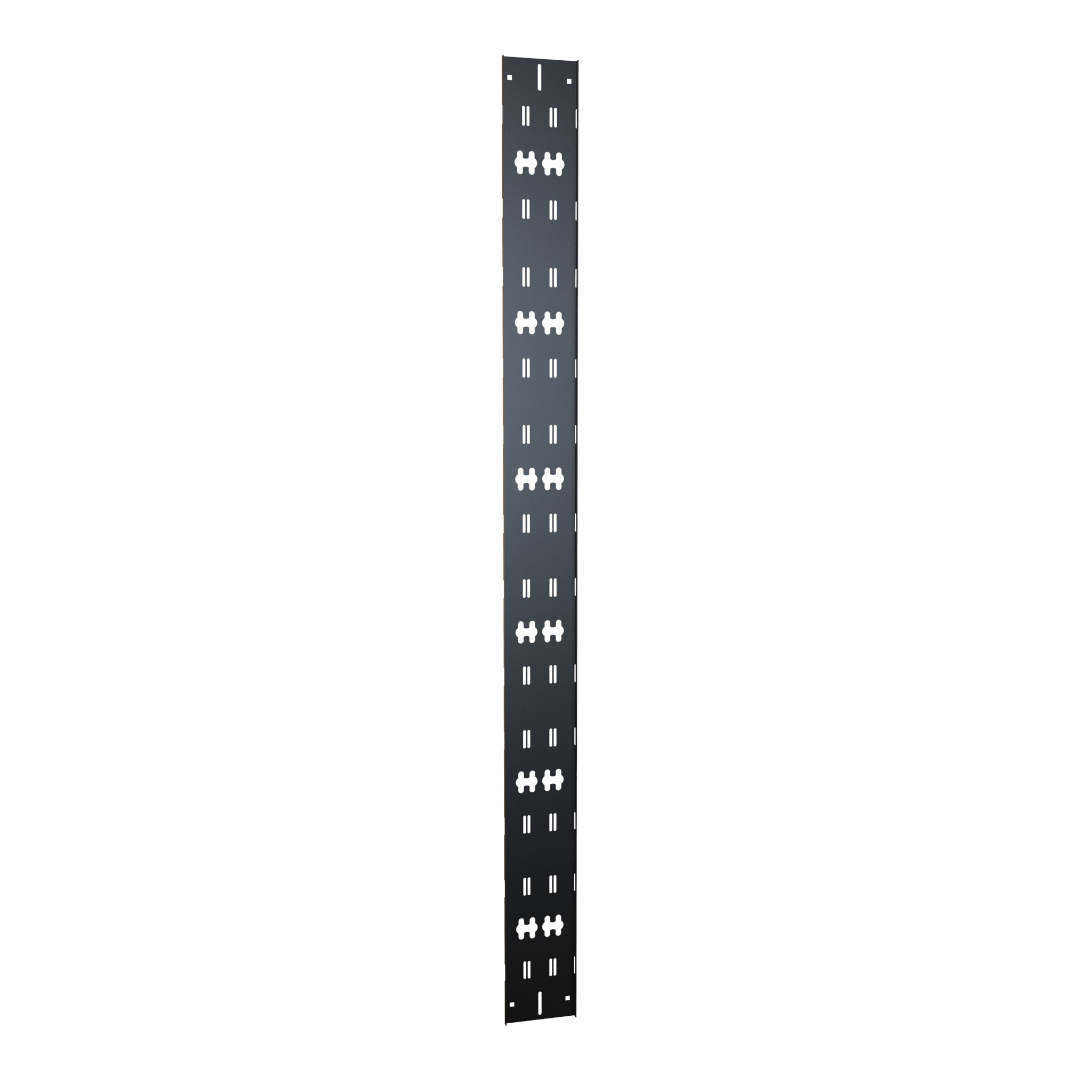

Hammond VCTPDU77 44U Vertical Cable Tray with Toolless PDU Mount

The VCTPDU77 is a 44U vertical cable tray with toolless PDU mounting, intended for IT, data center and network teams who need an organized vertical pathway for cable bundles inside server cabinets. It gives cables a simple, open route up the side of the cabinet while also providing a place to hang a power strip, so rack units stay free for active equipment.

Construction is 16-gauge mild steel with folded (flanged) edges that add structural strength and make cable handling and organization easier. The tray is finished in a black powder coat (GREENGUARD, TSCA and RoHS compliant) and is listed as painted black texture on the part drawing. It is TAA-compliant and manufactured in North America, with USMCA, RoHS and REACH compliance for procurement documentation.

Overall dimensions are 77.00 in (1956 mm) high, 6.00 in (152 mm) wide and 0.50 in (13 mm) deep, with a mounting height of 77.00 in (1956 mm) equal to 44 rack units. The wider 6.00 in profile of VCTPDU77 carries cutouts for toolless mounting of most PDUs with button-style mounting hardware, plus cutouts that accept cable ties or hook and loop straps for routing and strain relief. Shipping weight is 10 lbs (4.54 kg).

Mounting hardware is included for fast installation. This part is listed as compatible with C2, C4, CLC and REFK cabinet platforms, and the series is designed to fit a wide range of Hammond cabinets and compatible third-party enclosures. Listed accessories for the series include pre-cut 96 inch hook and loop cable straps and a rack rail mounting hardware kit.
