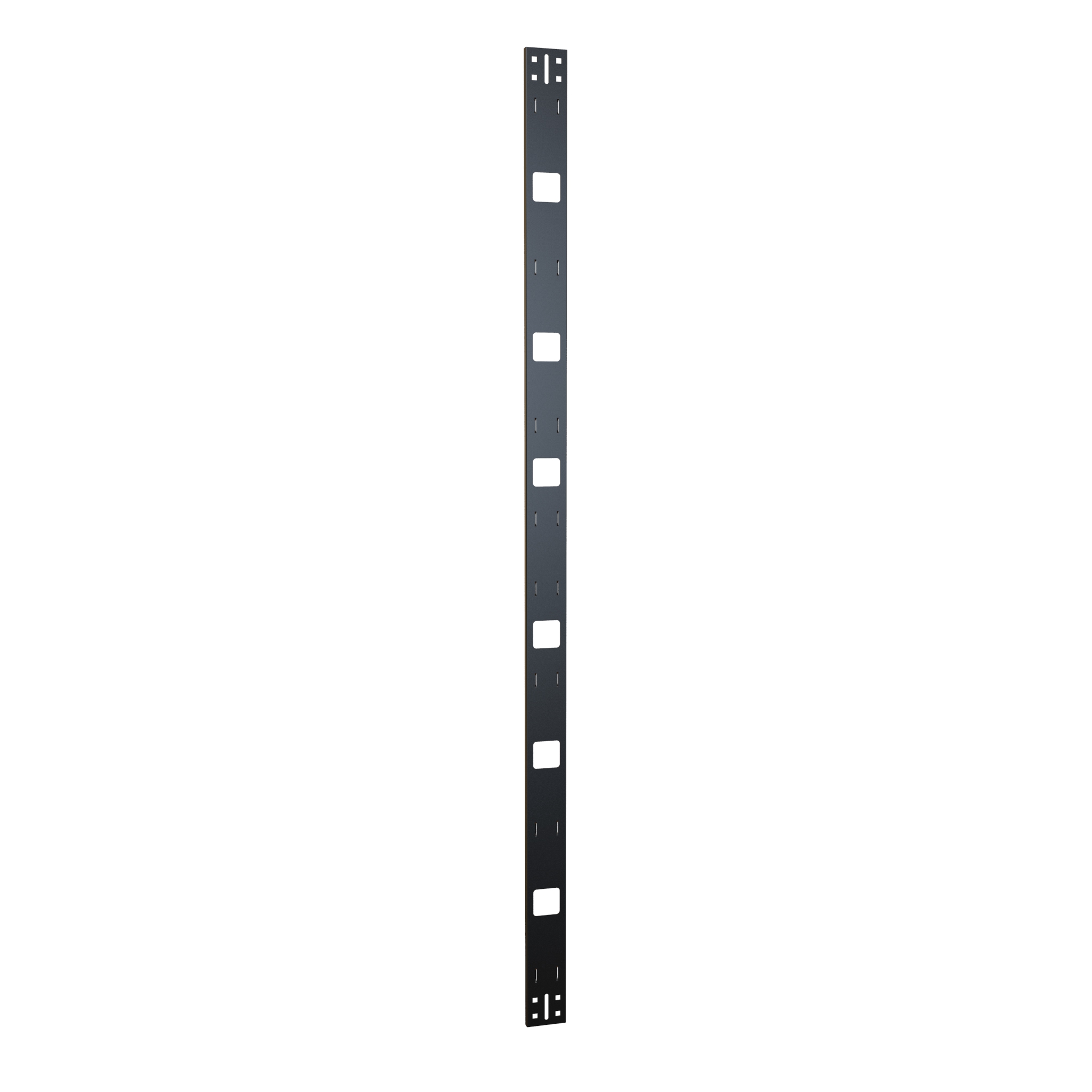

Hammond VCT70 40U Vertical Cable Tray, 70 in Steel

The VCT70 is a 40U vertical cable tray for routing and supporting cable bundles inside server cabinets. It gives IT and data center teams, network installers and facilities staff an open vertical pathway along the side of a cabinet, keeping patch and power cabling organized and accessible without occupying rack unit space in the mounting rails.

Construction is 16-gauge mild steel with folded (flanged) edges that add structural strength and make cable handling and organization easier. The finish is a black powder coat that is GREENGUARD, TSCA and RoHS compliant, supporting both environmental and durability requirements. The part is manufactured in North America (country of origin CA), is TAA compliant and is USMCA, RoHS and REACH compliant.

Overall dimensions are 70.00 in (1778 mm) high by 3.00 in (76 mm) wide by 0.50 in (13 mm) deep, with a 70.00 in (1778 mm) mounting height corresponding to 40U. Shipping weight is 5.4 lbs (2.45 kg). The tray body includes a 2.00 in x 2.00 in (51 mm x 51 mm) square cutout, 0.38 in x 0.38 in (10 mm x 10 mm) cutouts and 0.28 in x 2.00 in (7 mm x 51 mm) obround slots that serve as tie-down points for cable ties or hook and loop straps, providing strain relief while leaving routing paths open.

Mounting hardware is included for fast installation. The VCT70 is listed as compatible with Hammond C2 and REFK cabinet platforms, and the VCT Series is designed to fit a wide range of Hammond cabinets and compatible third-party enclosures. This part does not include toolless PDU mounting cutouts; those are provided on VCTPDU models. Accessories referenced for the series include pre-cut 96 inch hook and loop cable straps and a rack rail mounting hardware kit.
