Rack Cabinet Cooling Fan Kits · FK Series
Brand: Hammond Manufacturing · 6 part numbers
Active cooling fan kits that improve airflow, reduce equipment temperatures, and extend the life of rack-mounted electronics.
- ■Ball-bearing AC cooling fans provide active airflow to help reduce internal cabinet temperatures and extend the life of rack-mounted equipment. Available in one, two, and four-fan configurations.
- ■Choose between high CFM models for networking and server equipment or low-decibel models for AV, broadcast, classrooms, and office environments.
- ■Thermostat-controlled models automatically operate based on enclosure temperature, reducing unnecessary fan operation while maintaining proper cooling.
- ■Complete kits include fans, chrome safety guards, power cord, and mounting hardware for quick installation.
- ■Fan components are UL 507 recognized and CSA certified for dependable operation.
- ■Operating temperatures -20°C to +60°C. Relative humidity range 5% to 95% in a non-condensing space.
from $64.90
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Part details
Click a part number for full attributes, drawings and ordering. Dimensions switch between inches and millimetres.
DNFK - High CFM Fans
Units shown: inch . Switch units to: mm
| Part No. | Fan(s) · Included | Fan · Width | CFM | Noise · (dB) | Plug · Type | Maximum Fan · Distance | Cord Length | Fan Guards · Included | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| DNFK1AC120 | 1 | 4.72 | 100 | 56 | NEMA 1-15P | n/a | 72.00 | 2 | $64.90In stock | Buy now |
| DNFK2AC120 | 2 | 4.72 | 200 | 60 | NEMA 1-15P | 12.00 | 72.00 | 4 | $129.80In stock | Buy now |
| DNFK4AC120 | 4 | 4.72 | 400 | 80 | NEMA 1-15P | 12.00 | 72.00 | 8 | $227.15In stock | Buy now |
AVFK - Low-Decibel Fans
| Part No. | Fan(s) · Included | Fan · Width | Total · CFM | Noise · (dB) | Plug · Type | Maximum Fan · Distance | Cord Length | Fan Guards · Included | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|

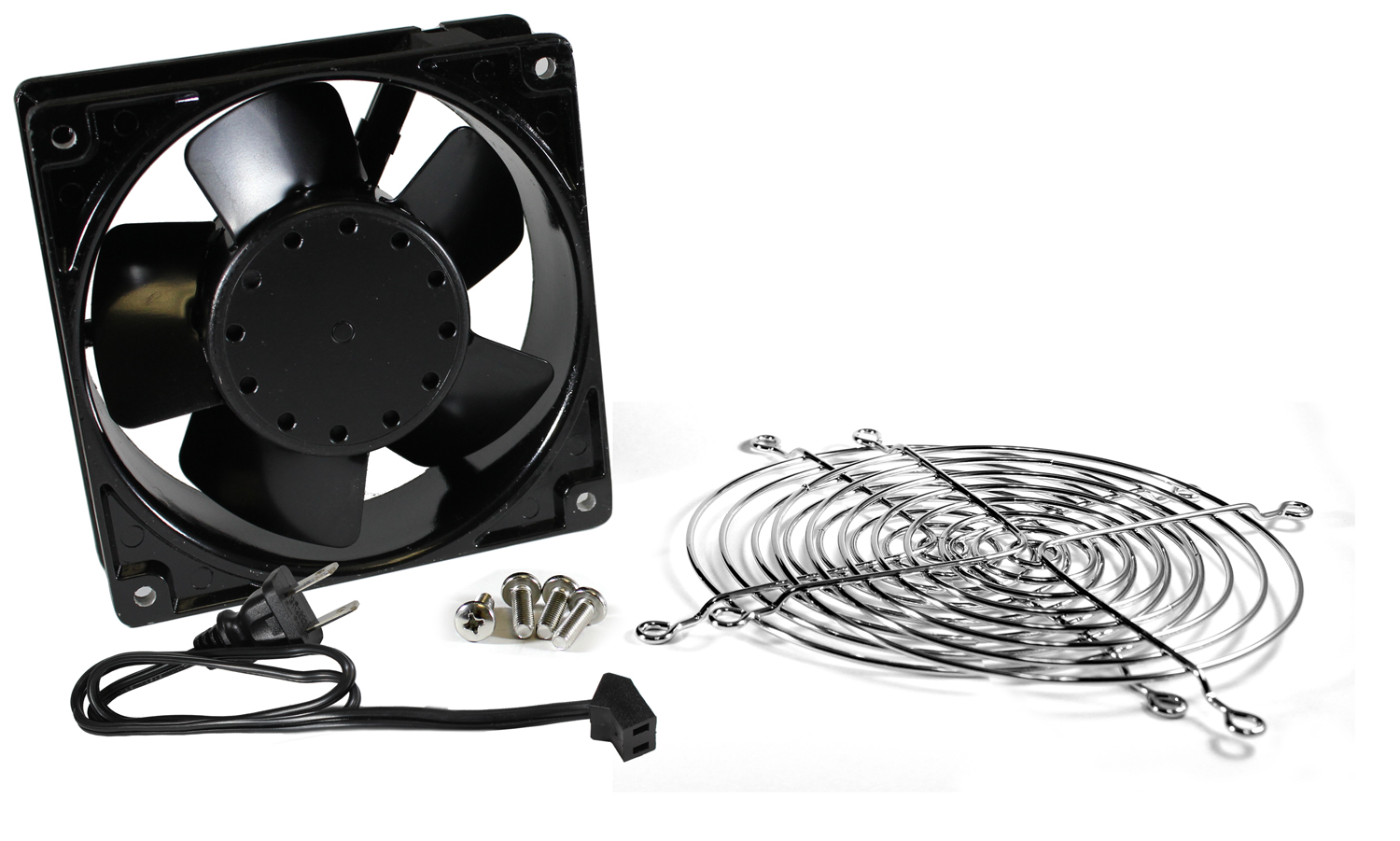

| AVFK1AC120 | 1 | 4.72 | 58 | 30 | NEMA 1-15P | n/a | 72.00 | 2 | $71.39In stock | Buy now |

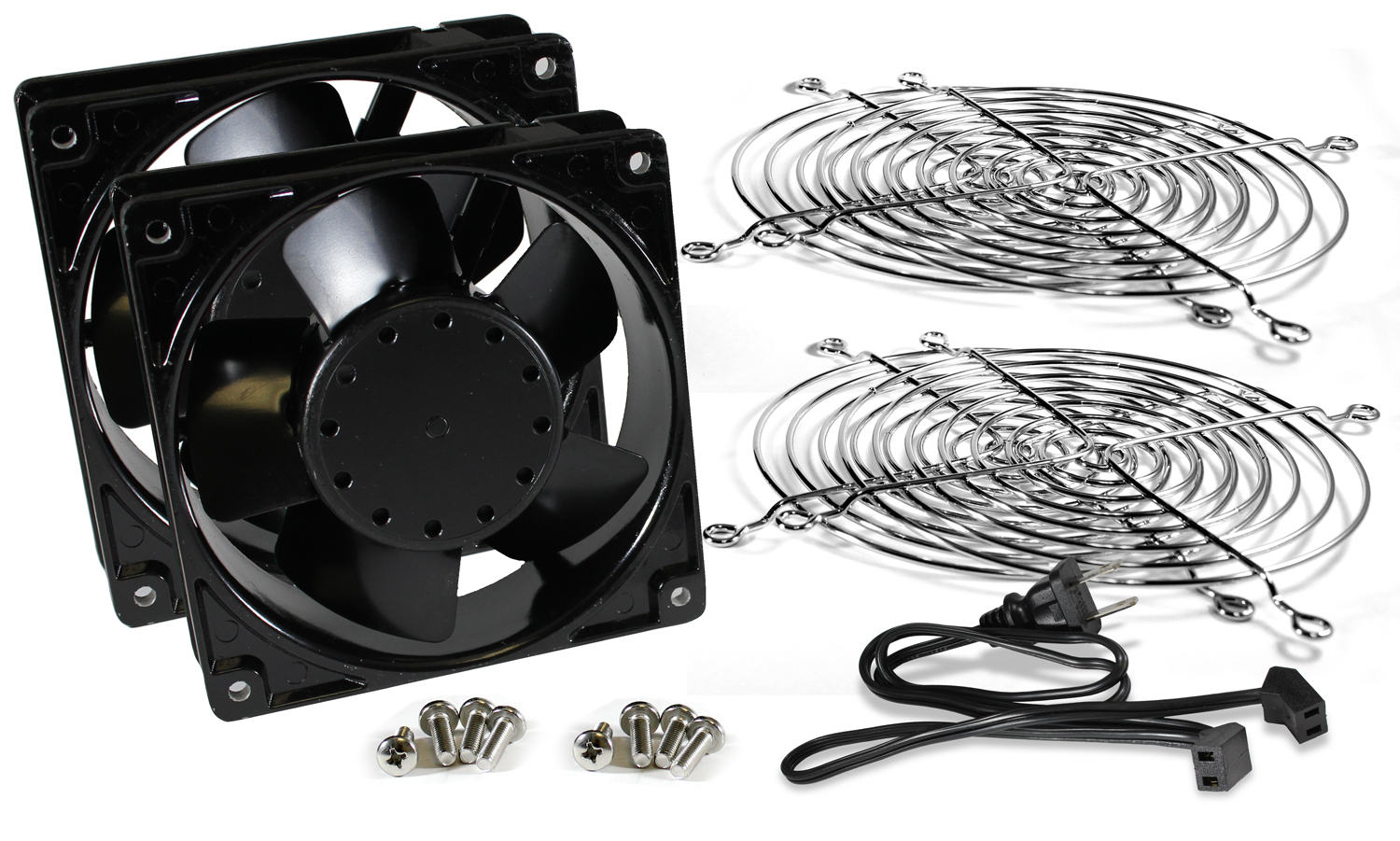

| AVFK2AC120 | 2 | 4.72 | 116 | 30 | NEMA 1-15P | 12.00 | 72.00 | 4 | $123.31In stock | Buy now |
| AVFK4AC120 | 4 | 4.72 | 232 | 30 | NEMA 1-15P | 12.00 | 72.00 | 8 | $201.19In stock | Buy now |
Key Features and Benefits
The FK Series Cooling Fan Kits help protect rack-mounted equipment by improving airflow and reducing internal cabinet temperatures. Active ventilation helps remove heat generated by servers, switches, industrial controls, UPS systems, and AV equipment, improving reliability and extending equipment life. Complete kits include ball-bearing fans, safety guards, power cords, and mounting hardware for quick installation.
The FK Series includes three cooling solutions to match different environments. DNFK models deliver maximum airflow for networking and server applications. AVFK models provide quiet operation for offices, conference rooms, classrooms, and AV installations. DTFK models combine filtered airflow with thermostat control for industrial and dust-sensitive environments where cooling should operate only when needed.
- ■Ball-bearing AC cooling fans provide active airflow to help reduce internal cabinet temperatures and extend the life of rack-mounted equipment. Available in one, two, and four-fan configurations.
- ■Choose between high CFM models for networking and server equipment or low-decibel models for AV, broadcast, classrooms, and office environments.
- ■Thermostat-controlled models automatically operate based on enclosure temperature, reducing unnecessary fan operation while maintaining proper cooling.
- ■Complete kits include fans, chrome safety guards, power cord, and mounting hardware for quick installation.
- ■Fan components are UL 507 recognized and CSA certified for dependable operation.
- ■Operating temperatures -20°C to +60°C. Relative humidity range 5% to 95% in a non-condensing space.
- ■Decibel (db) rating is measured at 12” to 24” from the source.
- ■TAA compliant, RoHS compliant, and REACH compliant.
- ■Assembled in North America.
When Another Product May Be a Better Choice
- ■When you need automatic temperature control and filtered airflow, choose the DTFK Series Thermostat-Controlled Fan Kits.
- ■When you need replacement fan cords or daisy-chain cables, choose the DNFC Fan Cord Series.
Documents
Additional information
Where the FK Series Works Best
- ■Network and telecommunications cabinets.
- ■Server racks and data center equipment.
- ■Industrial automation and control enclosures.
- ■AV, broadcast, and multimedia racks.
- ■Edge computing and remote equipment cabinets.
- ■Wall mount and free-standing rack cabinets requiring active ventilation.
- ■Removing heat from network switches and routers.
- ■Cooling servers and storage equipment.
- ■Ventilating industrial control cabinets.
- ■Maintaining reliable operating temperatures in AV installations.
- ■Adding active airflow to new or existing rack cabinets.
