120mm Fan/Thermo Exhaust, 120V
- Airflow Direction Exhaust Fan
- Filter Compatabili PFA20000
$194.70In stock
Buy now
New Sizes
Thermostat-Controlled Rack Cabinet Fan Kits · DTFK Series
Brand: Hammond Manufacturing · 6 part numbers
- ■Heavy-duty AC cooling fans with integrated thermostat automatically switch on and off based on enclosure temperature, helping maintain safe operating conditions while reducing unnecessary fan operation.
- ■Adjustable thermostat controls temperatures from 32°F to 140°F (0°C to 60°C), allowing cooling to match your application.
- ■Available as exhaust and intake fan configurations to support different airflow strategies and enclosure layouts. Airflow ranges from 105 CFM to 550 CFM, depending on the model.
- ■Designed for Hammond NWC Type 12 Filtered and selected NWM enclosures, while compatible with many Hammond products using the standard 4.7-inch fan opening. Additional mounting hardware is included where required.
- ■Complete kit includes the fan, integrated thermostat, 6-foot power cord, chrome safety grill, and mounting hardware for fast installation.
- ■Reduces continuous fan operation, helping decrease noise, energy consumption, and fan wear compared to continuously running cooling systems.
from $194.70
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your DTFK Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
4 of 4 part numbers · 4 priced online
150mm Fan/Thermo Intake, 120V
- Airflow Direction Intake Fan
- Filter Compatabili PFA40000
$207.68In stock
Buy now
120mm Fan/Thermo Exhaust, 120V
- Airflow Direction Exhaust Fan
- Filter Compatabili PFA30000
$207.68In stock
Buy now
254mm Fan/Thermo Intake, 120V
- Airflow Direction Intake Fan
- Filter Compatabili PFA60000
$272.58In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Airflow Direction | VAC | Fan Size | Unimpeded CFM | Noise (dB) | Plug Type | Cord Length | Filter Compatability | NWMFH Compatibility (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|

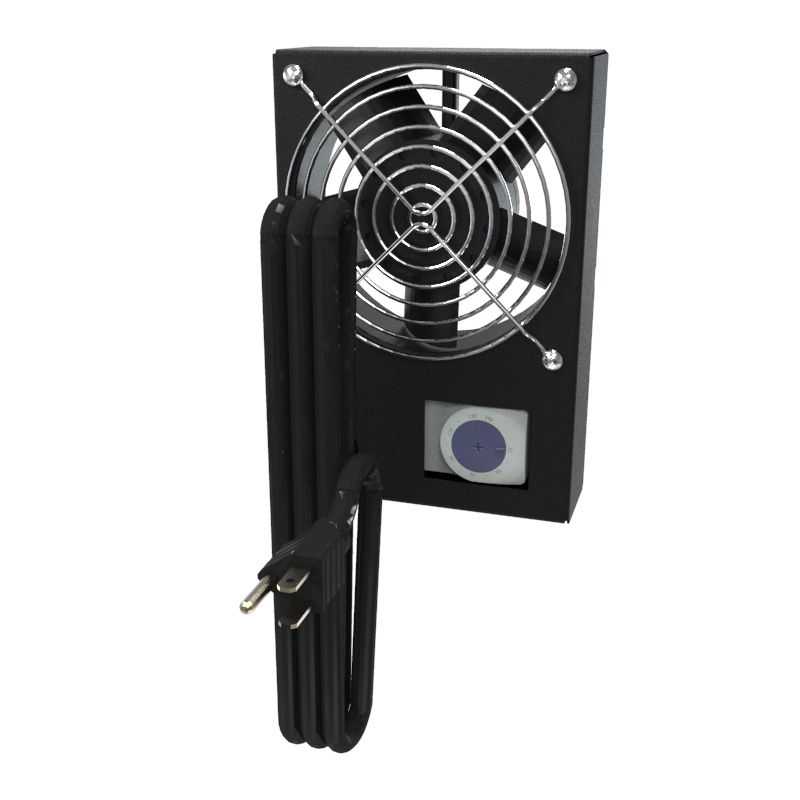

| DTFK1AC120E | Exhaust Fan | 115 | 4.70 | 105 | 56 | NEMA 5-15P | 72.00 | PFA20000 | NWMFH1 | $194.70In stockDTFK1AC120E | Buy now |

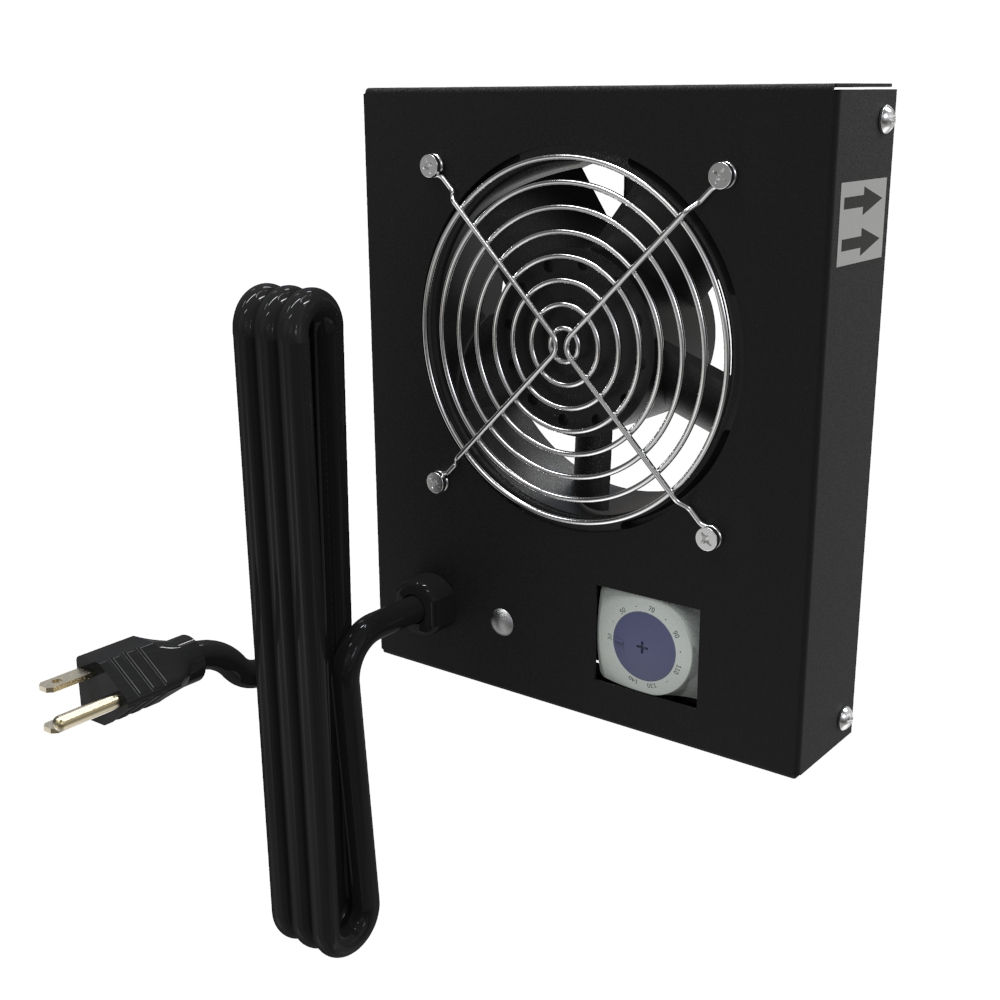

| DTFK1AC150E | Exhaust Fan | 115 | 4.70 | 105 | 56 | NEMA 5-15P | 72.00 | PFA30000 | NWMFH2 | $207.68In stockDTFK1AC150E | Buy now |

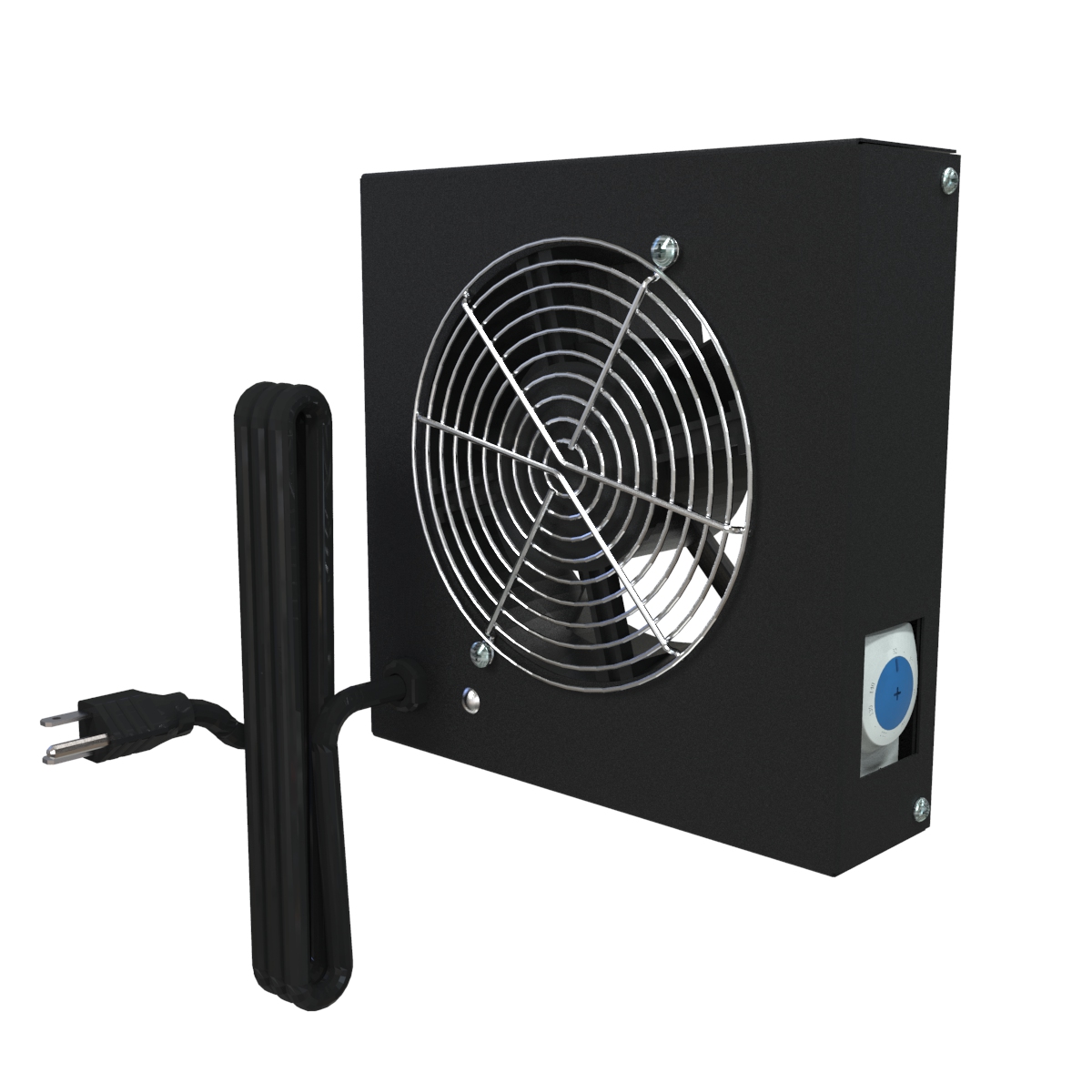

| DTFK1AC150 | Intake Fan | 115 | 6.00 | 230 | 70 | NEMA 5-15P | 72.00 | PFA40000 | NWMFH1 | $207.68In stockDTFK1AC150 | Buy now |

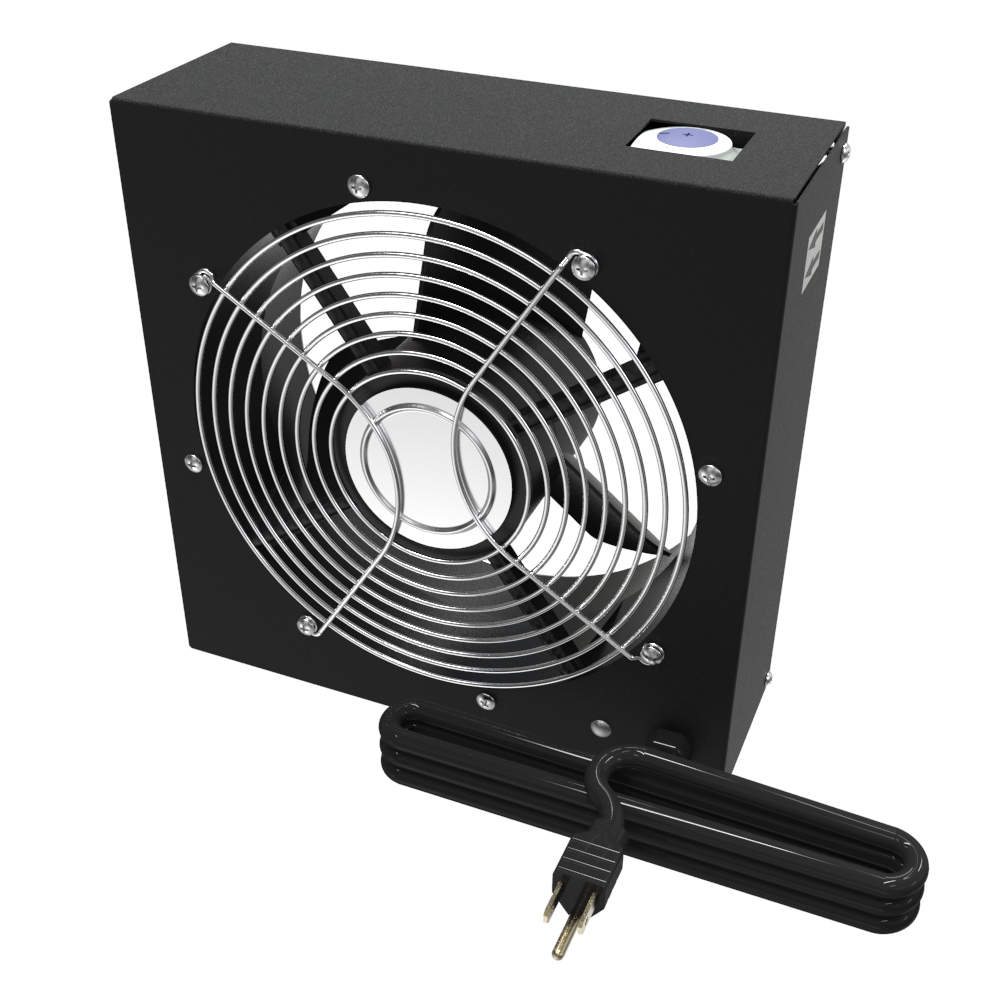

| DTFK1AC254 | Intake Fan | 115 | 10.00 | 550 | 70 | NEMA 5-15P | 72.00 | PFA60000 | NWMFH2 | $272.58In stockDTFK1AC254 | Buy now |
DTFK1AC120E Hammond Product Compatibility
| Exhaust Location | NWC | HWM | HWC | HLP | RCK | HWF | RB-FW | RB-SW | RB-DC | RB-AV | C2T19XXFXXX | C2T19XXVFXXX | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Side Rear | • | • | Quote | Quote | ||||||||||
| Top/Bottom Rear | • | • | Quote | Quote | ||||||||||
| Side Body | • | • | • | • | Quote | Quote | ||||||||
| Top/Bottom Body | • | • | • | Top Only | Top Only | • | • | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Key Features and Benefits
The DTFK Series Thermostat-Controlled Fan Kits provide intelligent cooling for rack cabinets and industrial enclosures by operating only when additional airflow is required. An integrated adjustable thermostat automatically activates the fan as enclosure temperatures rise and shuts it off once the desired temperature is restored. This helps protect sensitive electronics while reducing energy consumption, noise, and unnecessary fan wear.
Available in both intake and exhaust configurations with airflow up to 550 CFM, the DTFK Series is ideal for industrial automation, networking, telecommunications, and edge computing applications. Designed for Hammond filtered enclosures and compatible with many products featuring the standard 4.7-inch fan pattern, these kits offer an easy way to improve thermal management without continuous fan operation.
- ■Heavy-duty AC cooling fans with integrated thermostat automatically switch on and off based on enclosure temperature, helping maintain safe operating conditions while reducing unnecessary fan operation.
- ■Adjustable thermostat controls temperatures from 32°F to 140°F (0°C to 60°C), allowing cooling to match your application.
- ■Available as exhaust and intake fan configurations to support different airflow strategies and enclosure layouts. Airflow ranges from 105 CFM to 550 CFM, depending on the model.
- ■Designed for Hammond NWC Type 12 Filtered and selected NWM enclosures, while compatible with many Hammond products using the standard 4.7-inch fan opening. Additional mounting hardware is included where required.
- ■Complete kit includes the fan, integrated thermostat, 6-foot power cord, chrome safety grill, and mounting hardware for fast installation.
- ■Reduces continuous fan operation, helping decrease noise, energy consumption, and fan wear compared to continuously running cooling systems.
- ■Fan components are UL 507 recognized and CSA certified for dependable operation.
- ■Operating temperature range of -20°C to +60°C with 5% to 95% non-condensing humidity.
- ■Decibel (db) rating is measured at 12” to 24” from the source.
- ■TAA compliant, RoHS compliant, and REACH compliant. Manufactured in North America.
Documents
Additional information
Where the DTFK Series Works Best
- ■Industrial control panels with varying heat loads.
- ■Type 12 filtered enclosures.
- ■Edge computing and remote equipment cabinets.
- ■Network and telecommunications cabinets.
- ■Manufacturing facilities with dusty environments.
- ■Installations where continuous fan operation is unnecessary.
- ■Automatically cooling PLCs and industrial control equipment.
- ■Maintaining operating temperatures for network switches and communications equipment.
- ■Ventilating filtered enclosures without continuous fan operation.
- ■Reducing heat buildup in unattended equipment cabinets.
- ■Retrofitting existing enclosures with intelligent cooling.
