Filter Fan Grills XPFA Series

Filter Fan Grills · XPFA Series

Brand: Hammond Manufacturing · 20 part numbers

  • ■Create your own filter fans or exhaust grills
  • ■Mounts easily with 4 screws using template and hardware provided.
  • ■Designed to meet IP5X dust resistance.

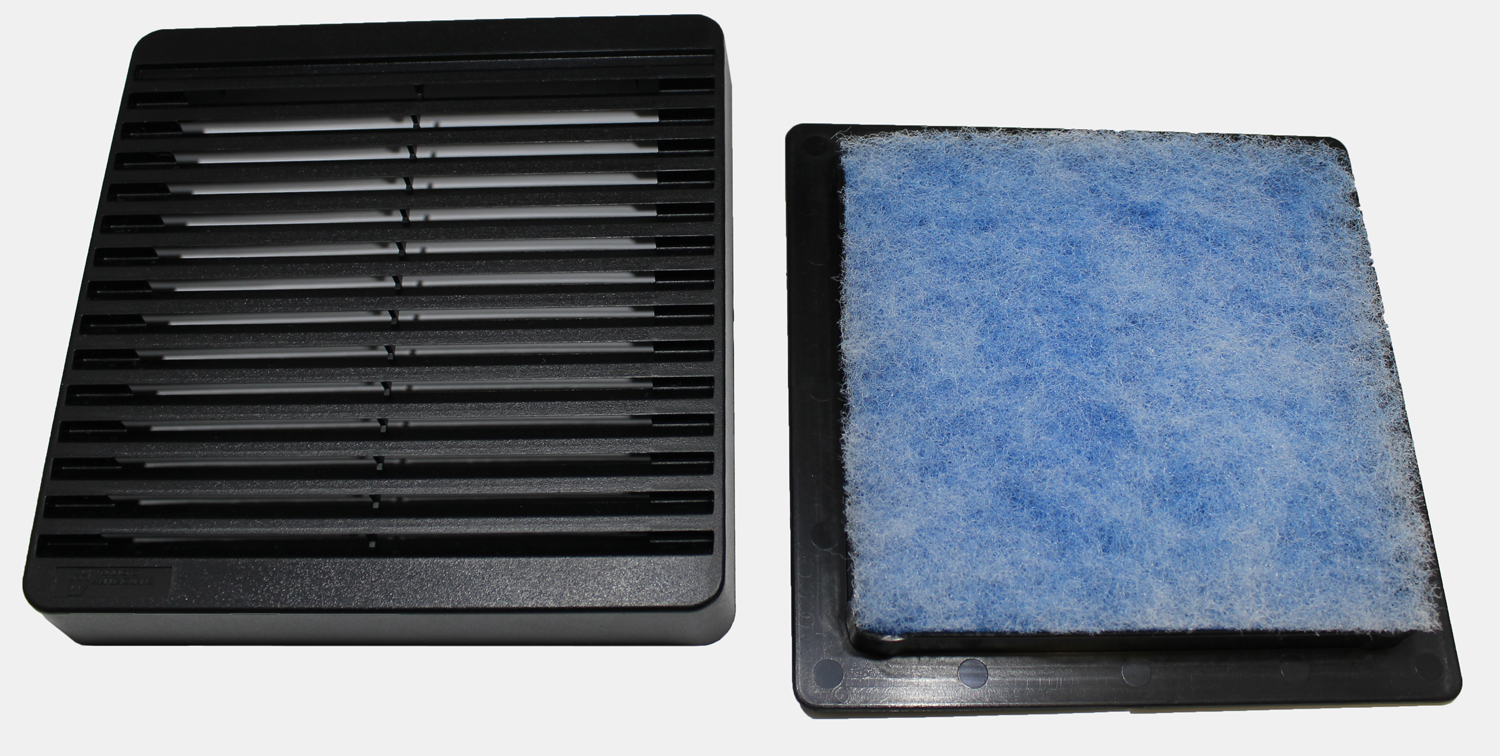

  • ■Includes flame retardant ABS plastic grill and flame retardant synthetic filter.
  • ■Integral EVA foam gasket on the reverse side of grill seals against the mounting surface.

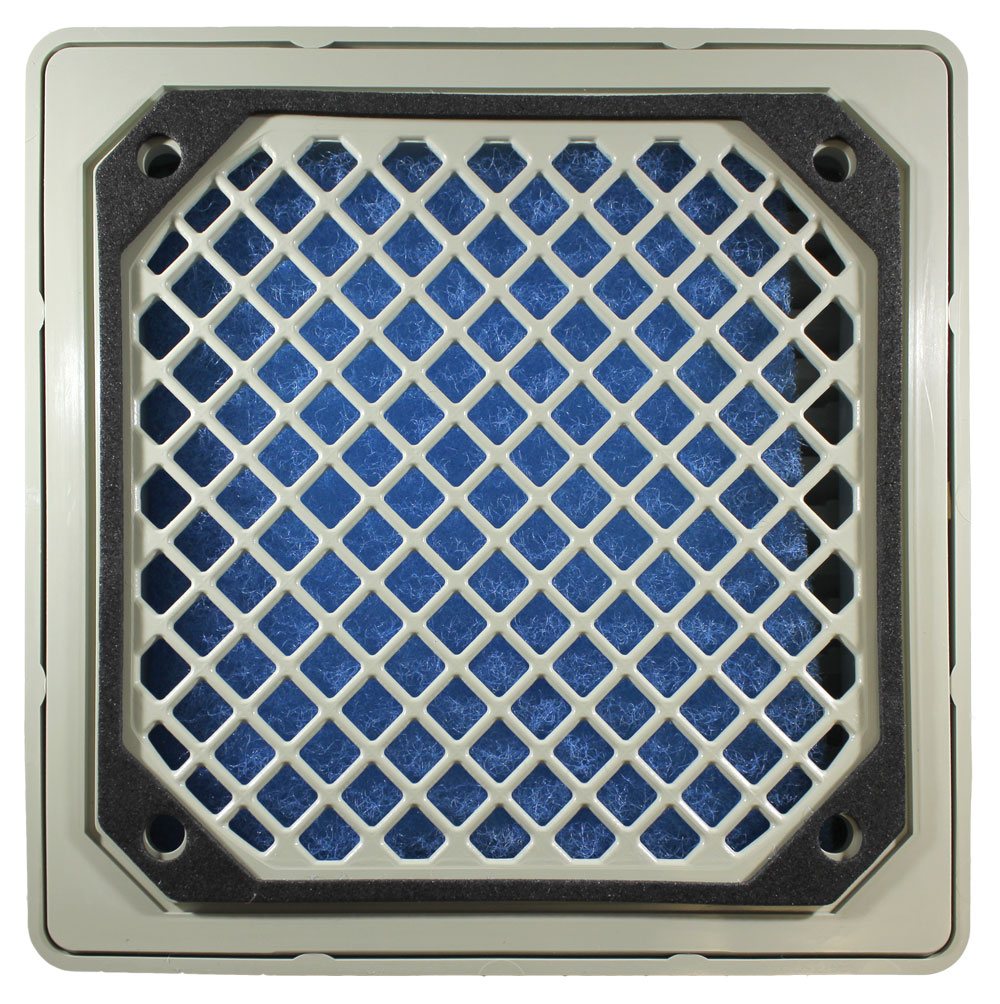

  • ■Hole cutout is NOT critical as the rear of the filter grill seals to the surface (see rear photo below)

from $10.59

20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644

This product does NOT maintain NEMA Type Ratings. Please see our NEMA Rated Filter Fans .

Part detailsFeaturesDocuments

Configure & price

Find your XPFA Series part number

Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

20 of 20 part numbers · 20 priced online

PFF1000

5 Filters - PF1000

  • Use with XPFA Seri XPFA80
  • Use with DNFF Seri DNFF080
$11.31In stock
Buy now
PFF2000

5 Filters - PF2000

  • Use with XPFA Seri XPFA120
  • Use with DNFF Seri DNFF120
$14.84In stock
Buy now
PFF4000

5 Filters - XPFA150

  • Use with XPFA Seri XPFA150
  • Use with DNFF Seri DNFF150
$18.60In stock
Buy now
PFF6000

5 Filters - XPFA254

  • Use with XPFA Seri XPFA254
  • Use with DNFF Seri DNFF254
$24.30In stock
Buy now

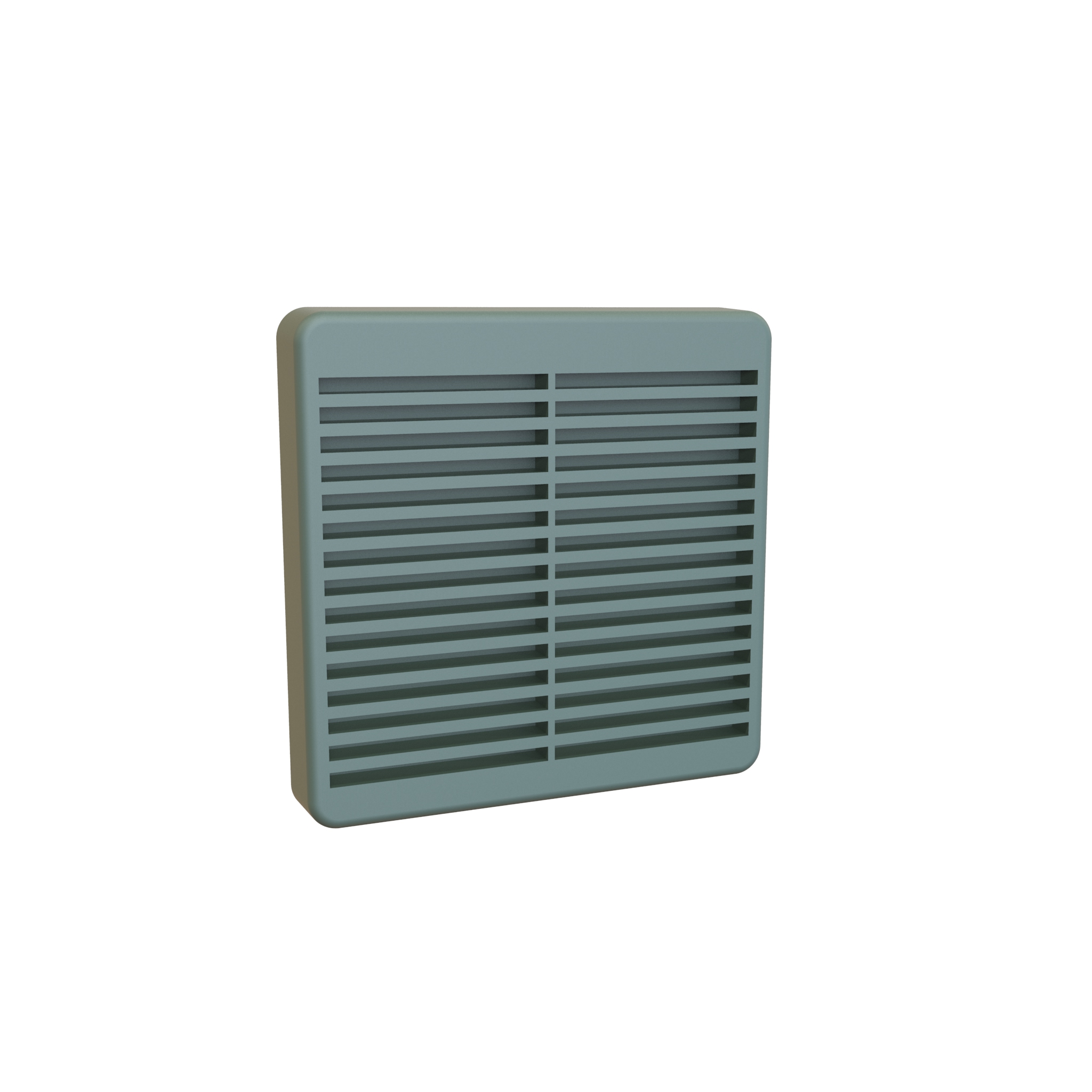

XPFA80GY

80MM Filter Grill ASA61 Grey

$10.59In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

BlackGray/BeigeANSI 61 GrayLight GrayOverall Dimensions · HOverall Dimensions · WOverall Dimensions · DUse With Square · Fan SizePriceOrder

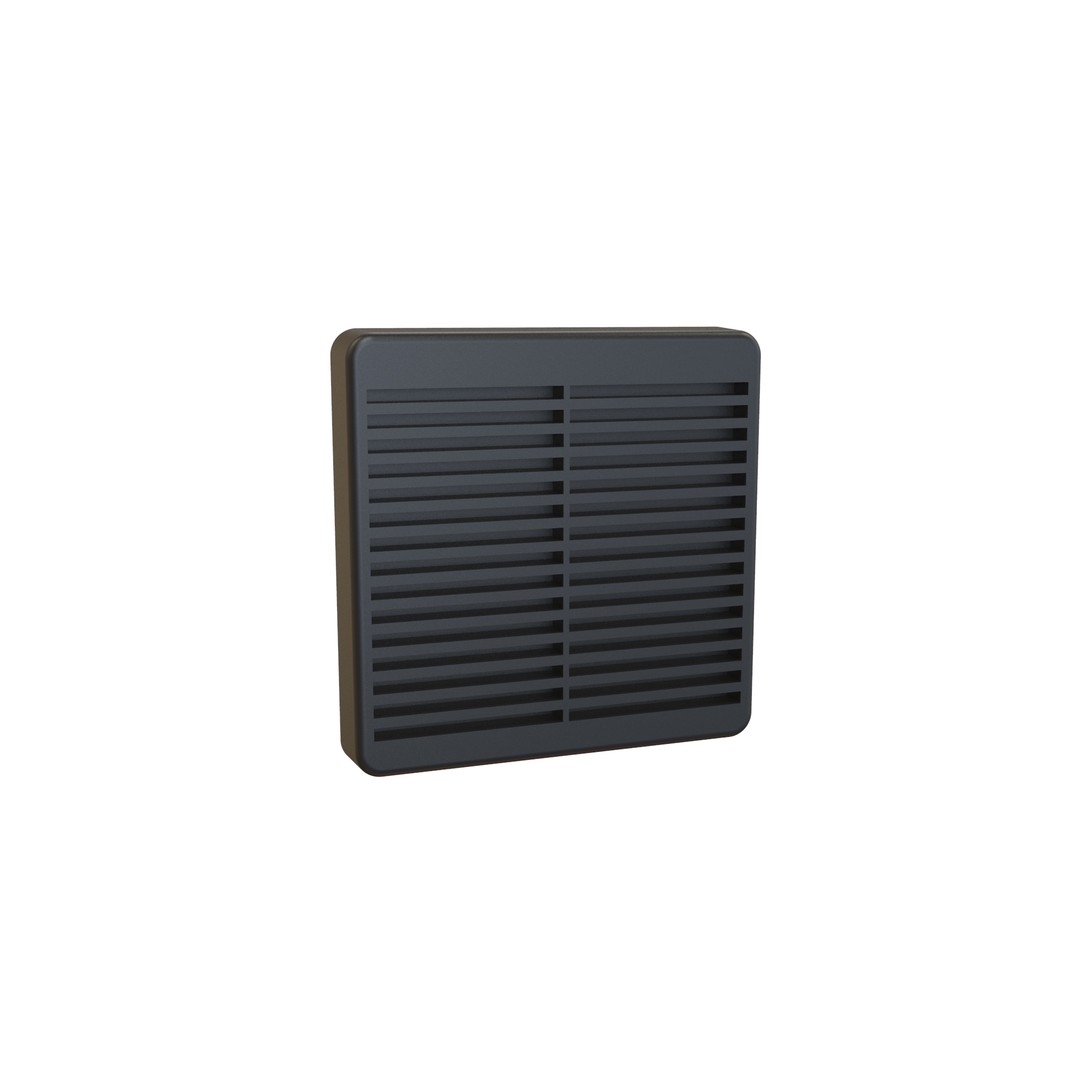

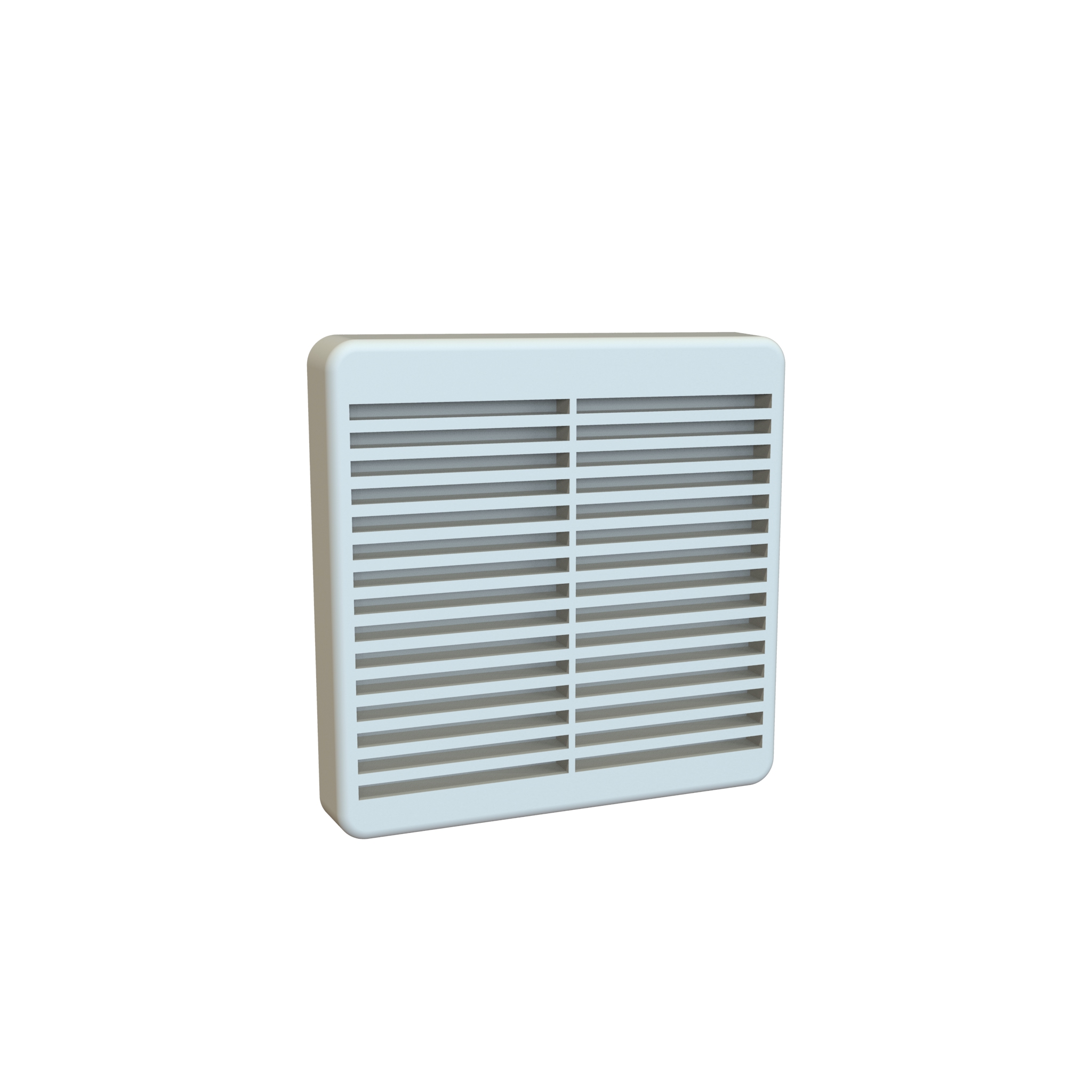

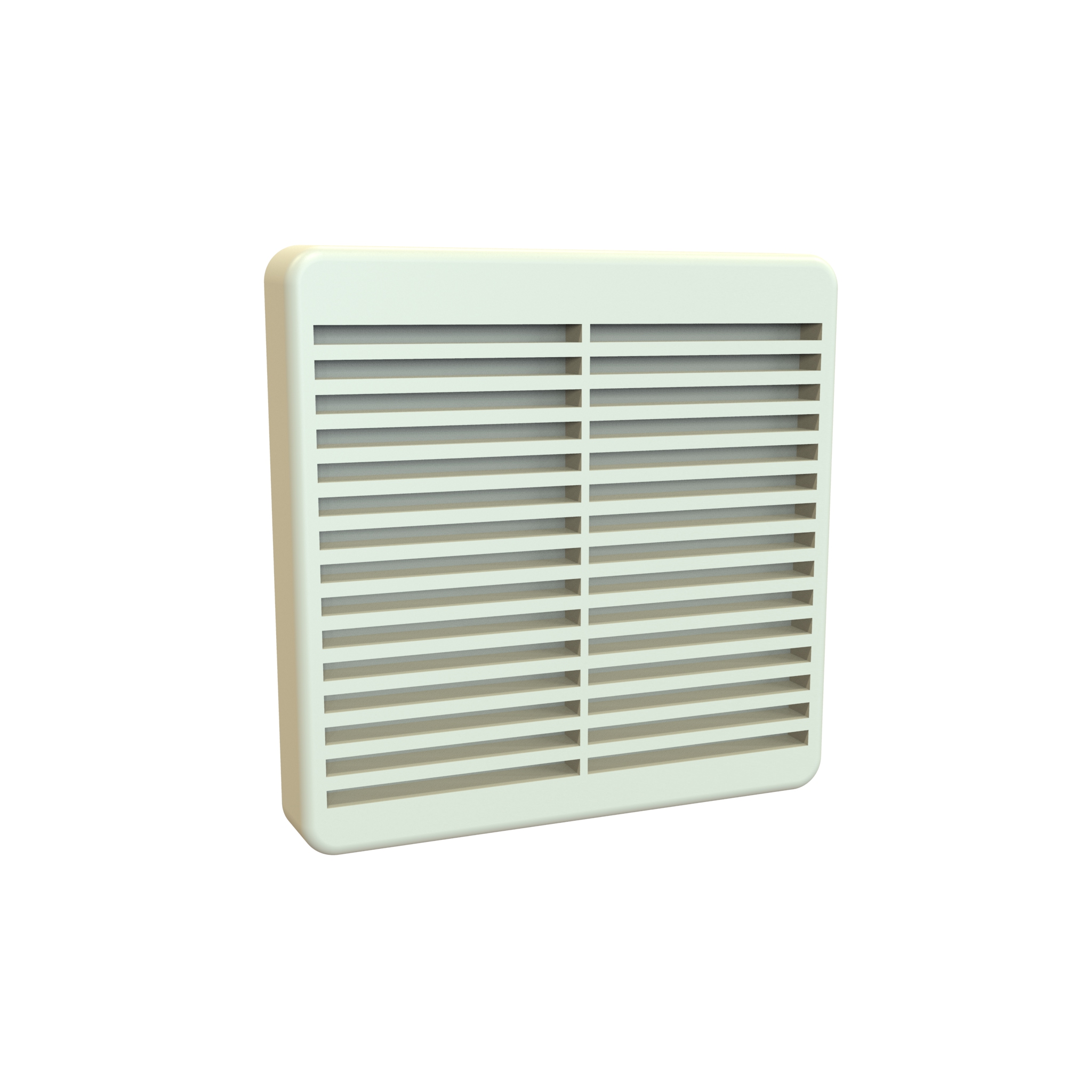

XPFA80BKXPFA80CGXPFA80GYXPFA80LG4.144.140.633.15$10.59In stockXPFA80BKBuy now

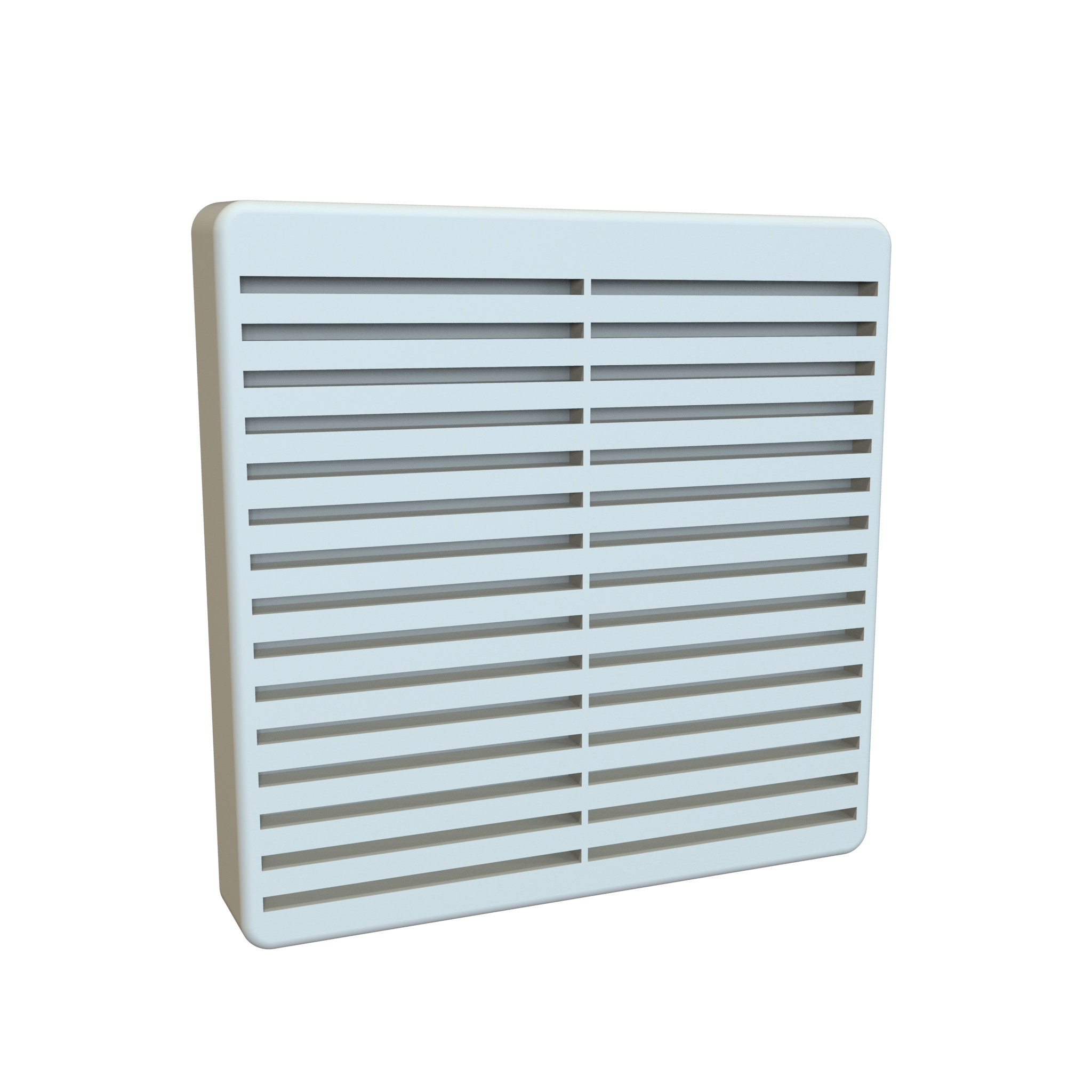

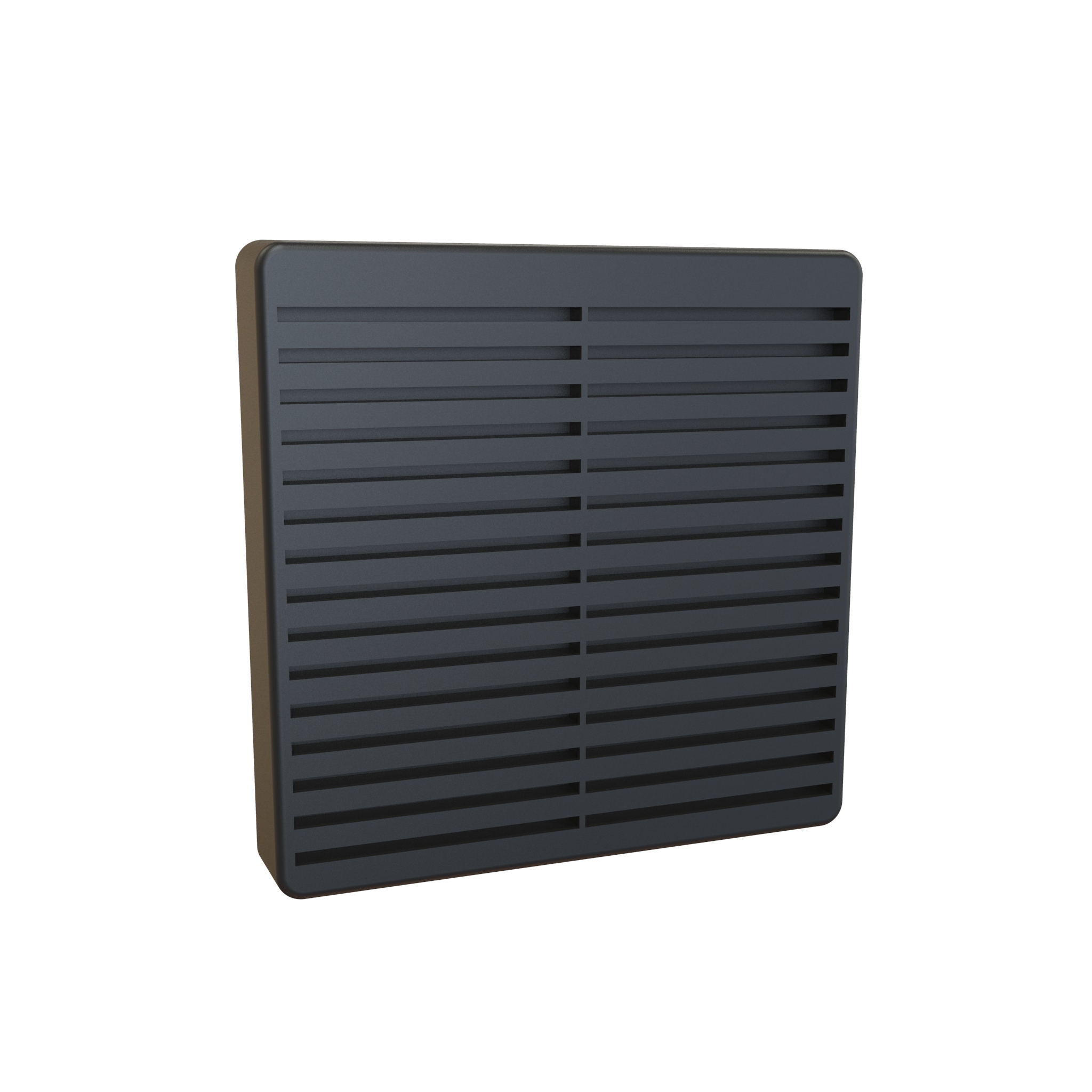

XPFA120BKXPFA120CGXPFA120GYXPFA120LG5.915.910.944.70$16.94In stockXPFA120BKBuy now
XPFA150BKXPFA150CGXPFA150GYXPFA150LG7.727.720.946.00$19.04In stockXPFA150BKBuy now
XPFA254BKXPFA254CGXPFA254GYXPFA254LG12.0012.000.9410.00$35.27In stockXPFA254BKBuy now

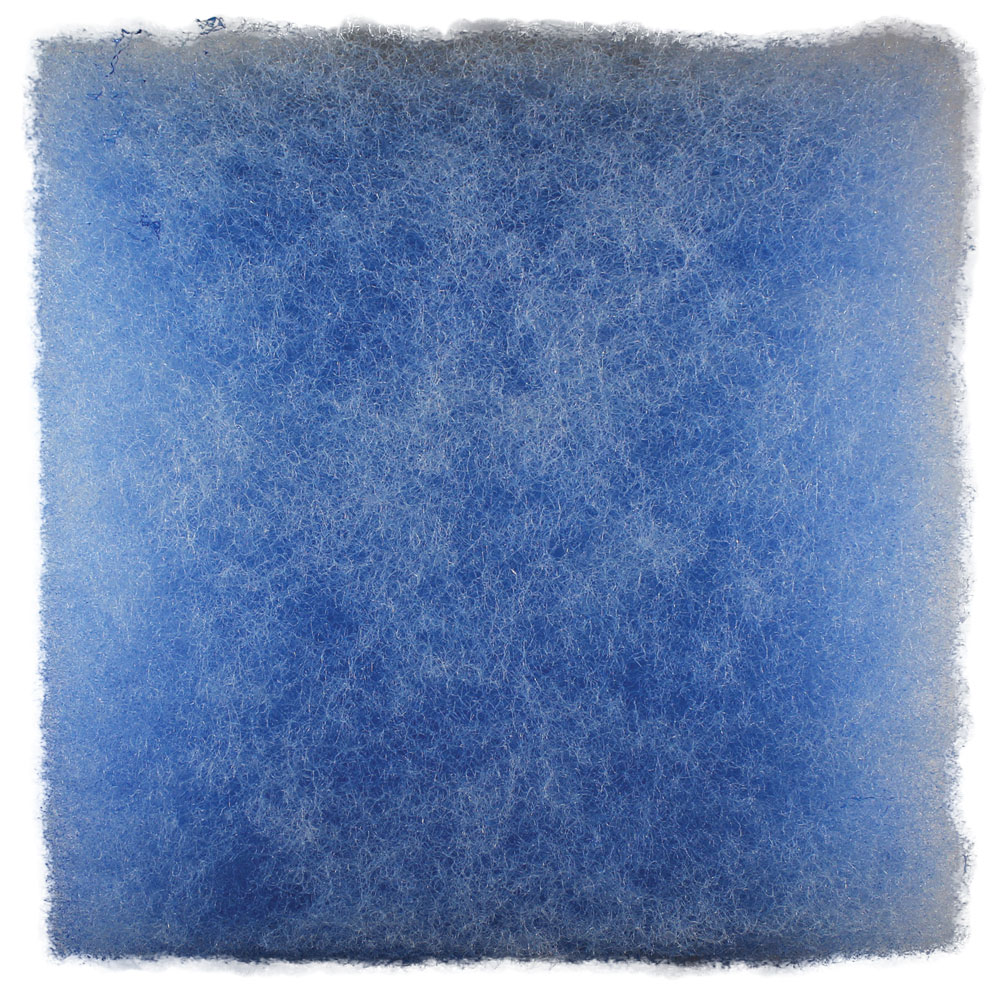

Replacement Filters (Sold in Pack of 5)

Units shown: inch . Switch units to: mm

Part No.Use with Fan SizeUse with XPFA SeriesUse with DNFF SeriesPriceOrder
PFF10003.15XPFA80DNFF080$11.31In stockBuy now
PFF20004.70XPFA120DNFF120$14.84In stockBuy now
PFF40007.72XPFA150DNFF150$18.60In stockBuy now
PFF600012.00XPFA254DNFF254$24.30In stockBuy now

Features

  • ■Create your own filter fans or exhaust grills
  • ■Mounts easily with 4 screws using template and hardware provided.
  • ■Designed to meet IP5X dust resistance.
  • ■Includes flame retardant ABS plastic grill and flame retardant synthetic filter.
  • ■Integral EVA foam gasket on the reverse side of grill seals against the mounting surface.
  • ■Hole cutout is NOT critical as the rear of the filter grill seals to the surface (see rear photo below)

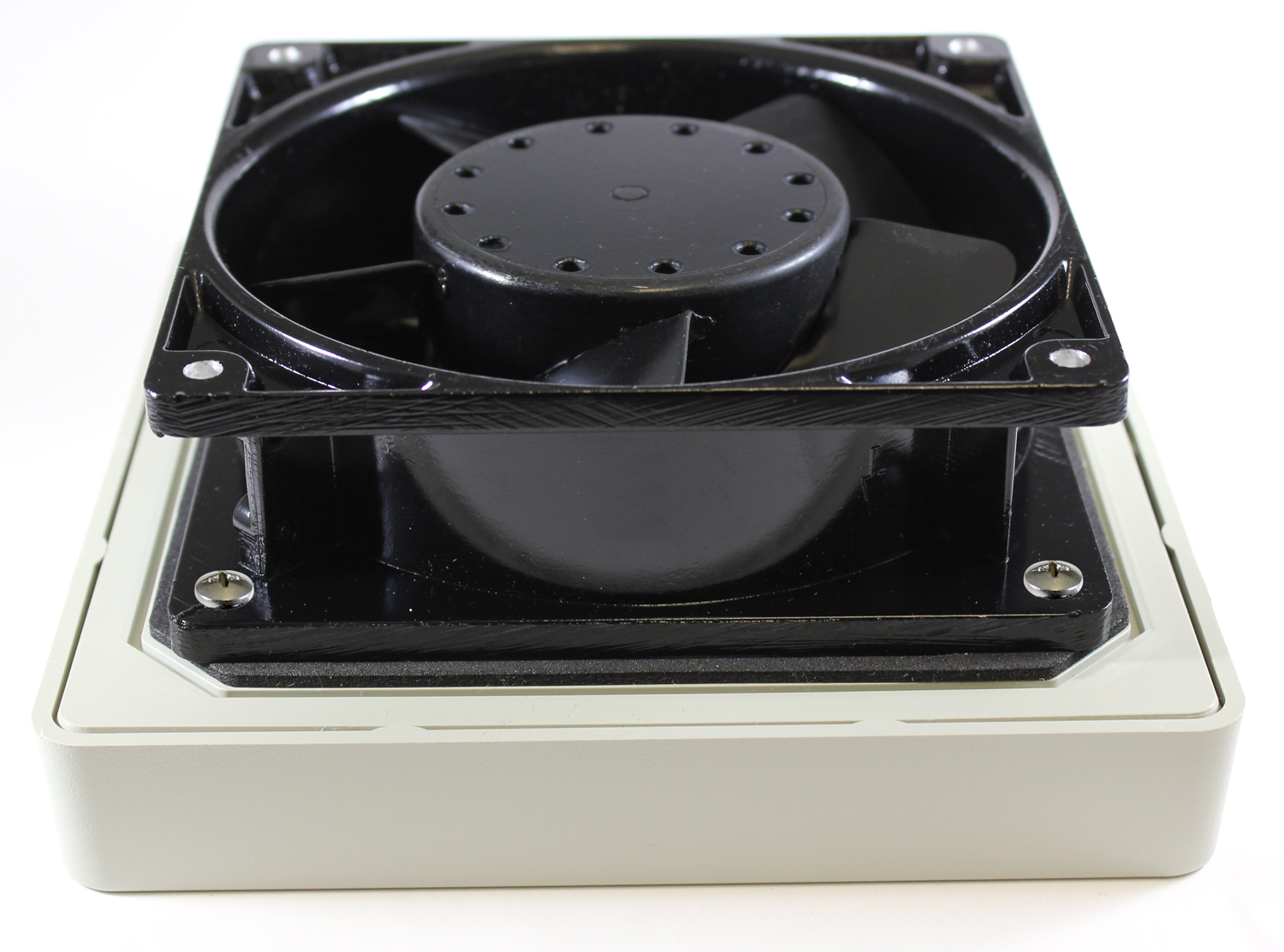

  • ■Can be used with standard 3.15" or 4.7" square fans or alone as an exhaust grill

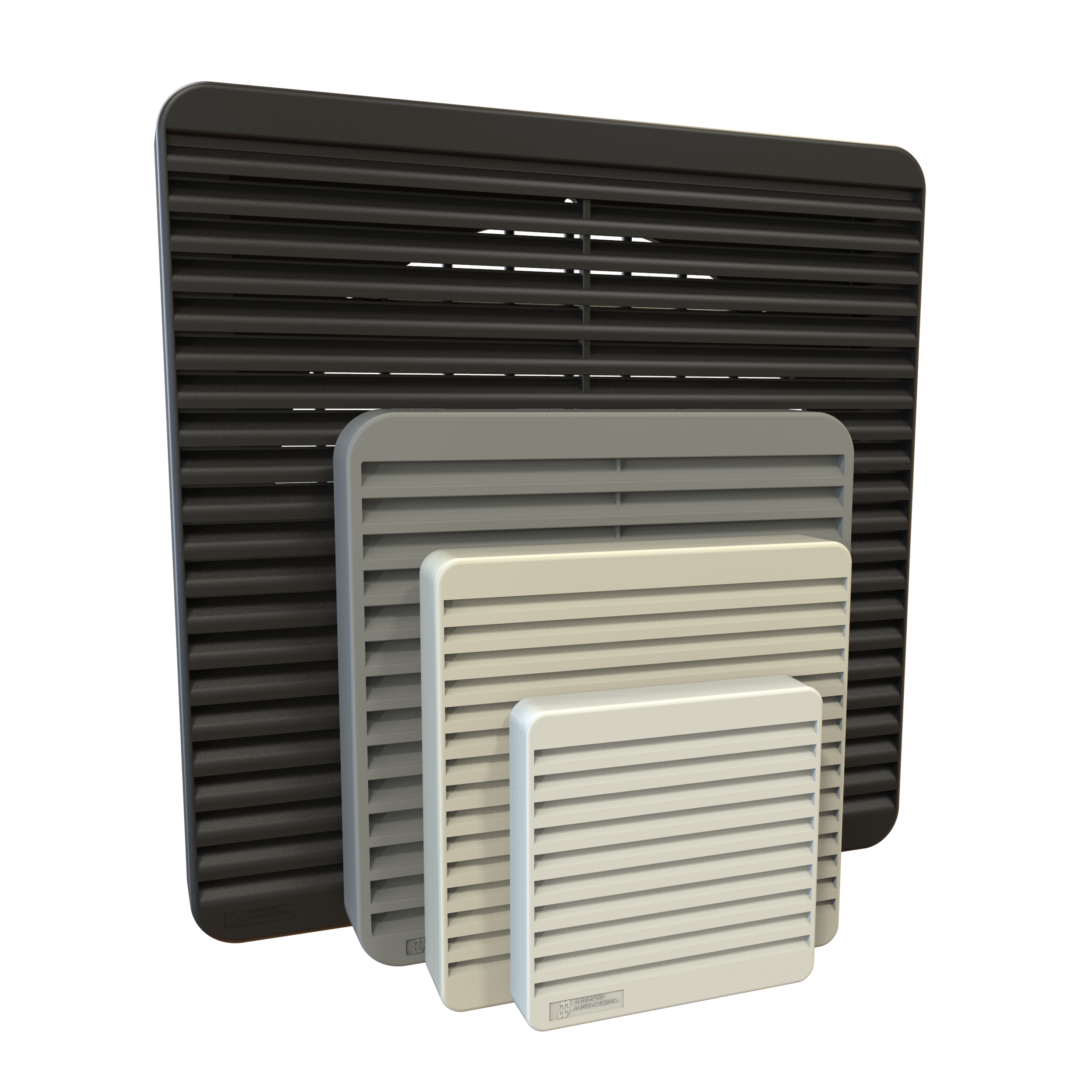

  • ■Available in a choice of four colors to match our racks & accessories. "BK" (Black) "CG" (Gray/Beige - RAL7032) "GY" (ANSI 61 Gray) "LG" (Light Gray - RAL7035)
  • ■"BK" (Black)
  • ■"CG" (Gray/Beige - RAL7032)
  • ■"GY" (ANSI 61 Gray)
  • ■"LG" (Light Gray - RAL7035)

Documents

Specification SheetXPFA80 CutoutXPFA120 CutoutXPFA150 CutoutXPFA150 InsertXPFA254 Cutout
