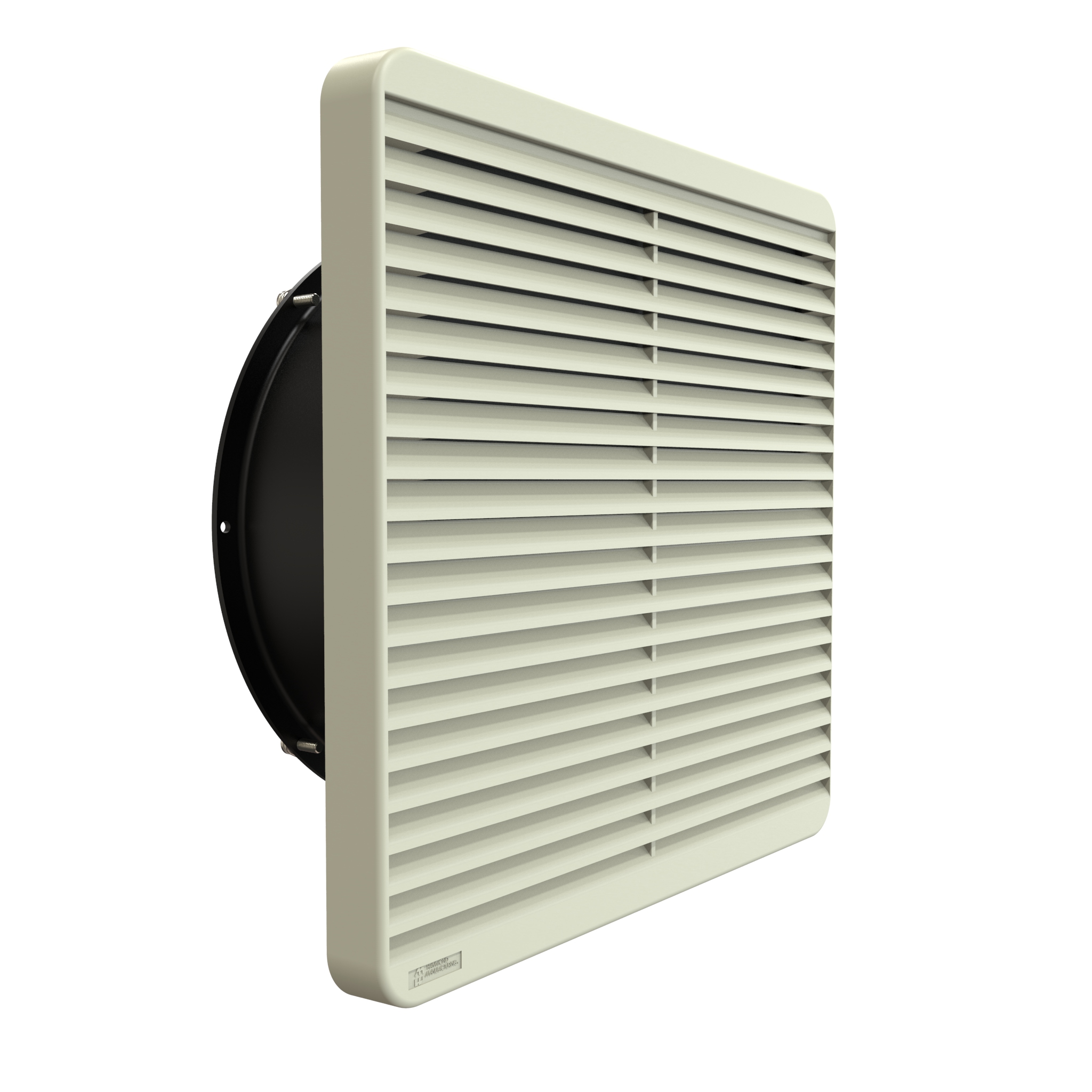

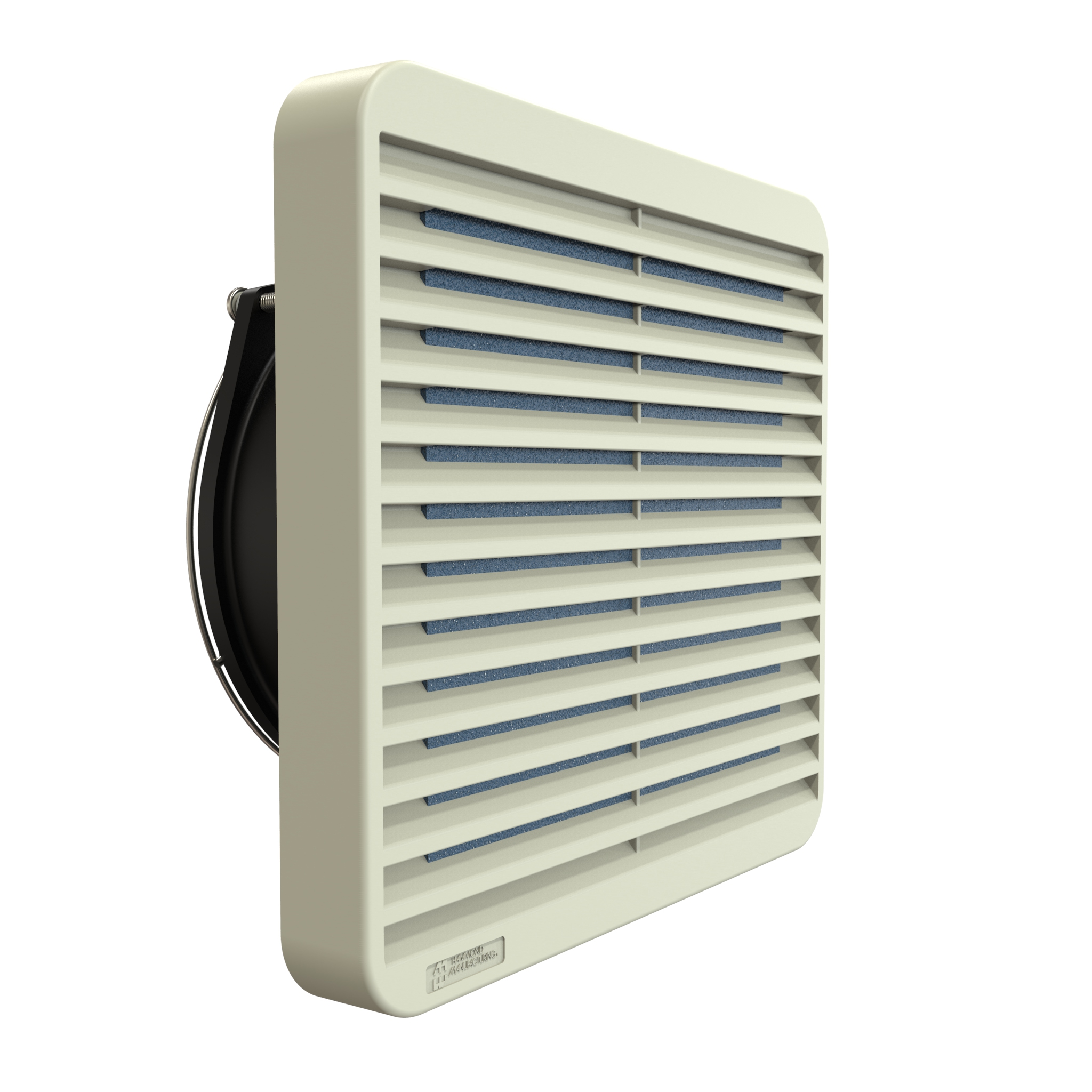

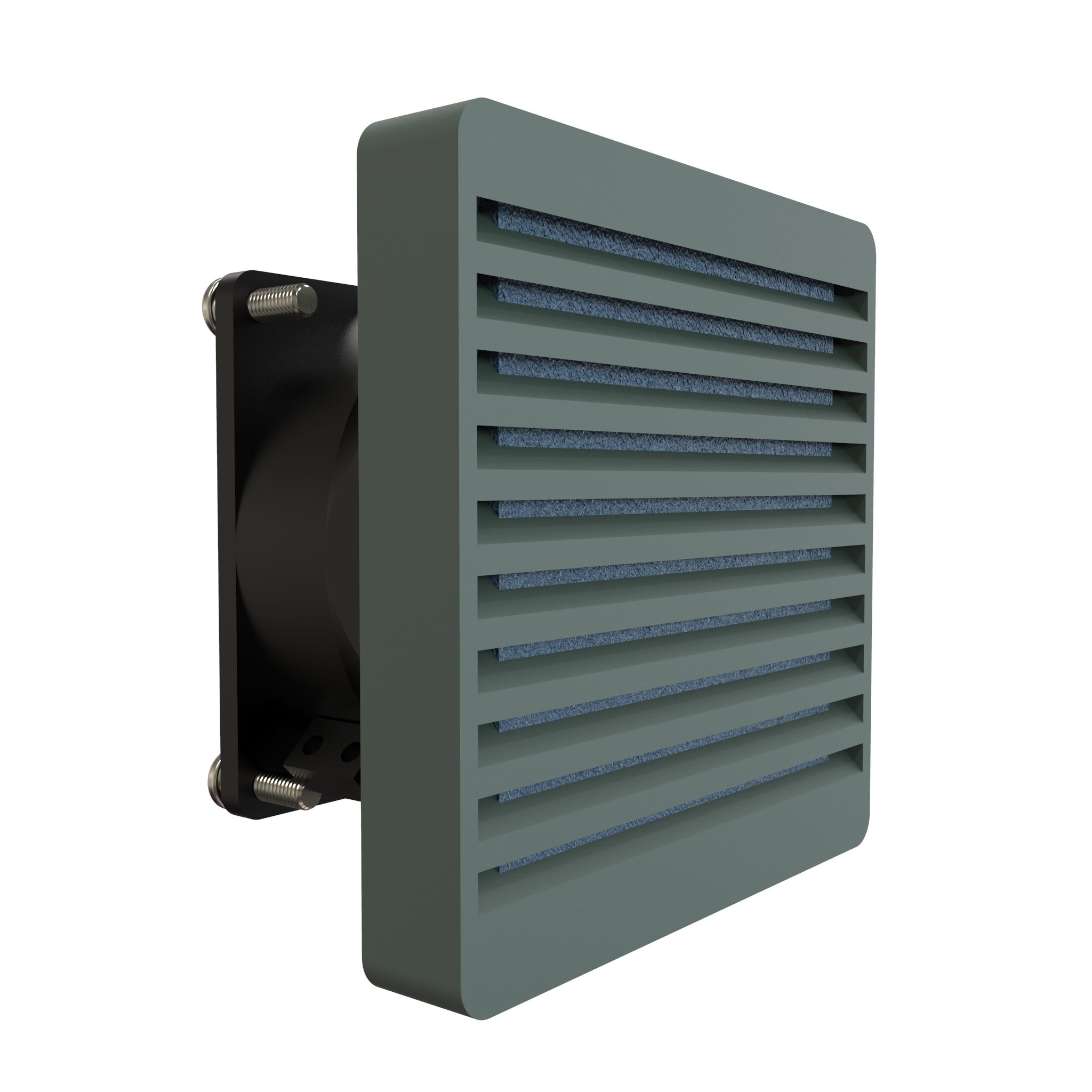

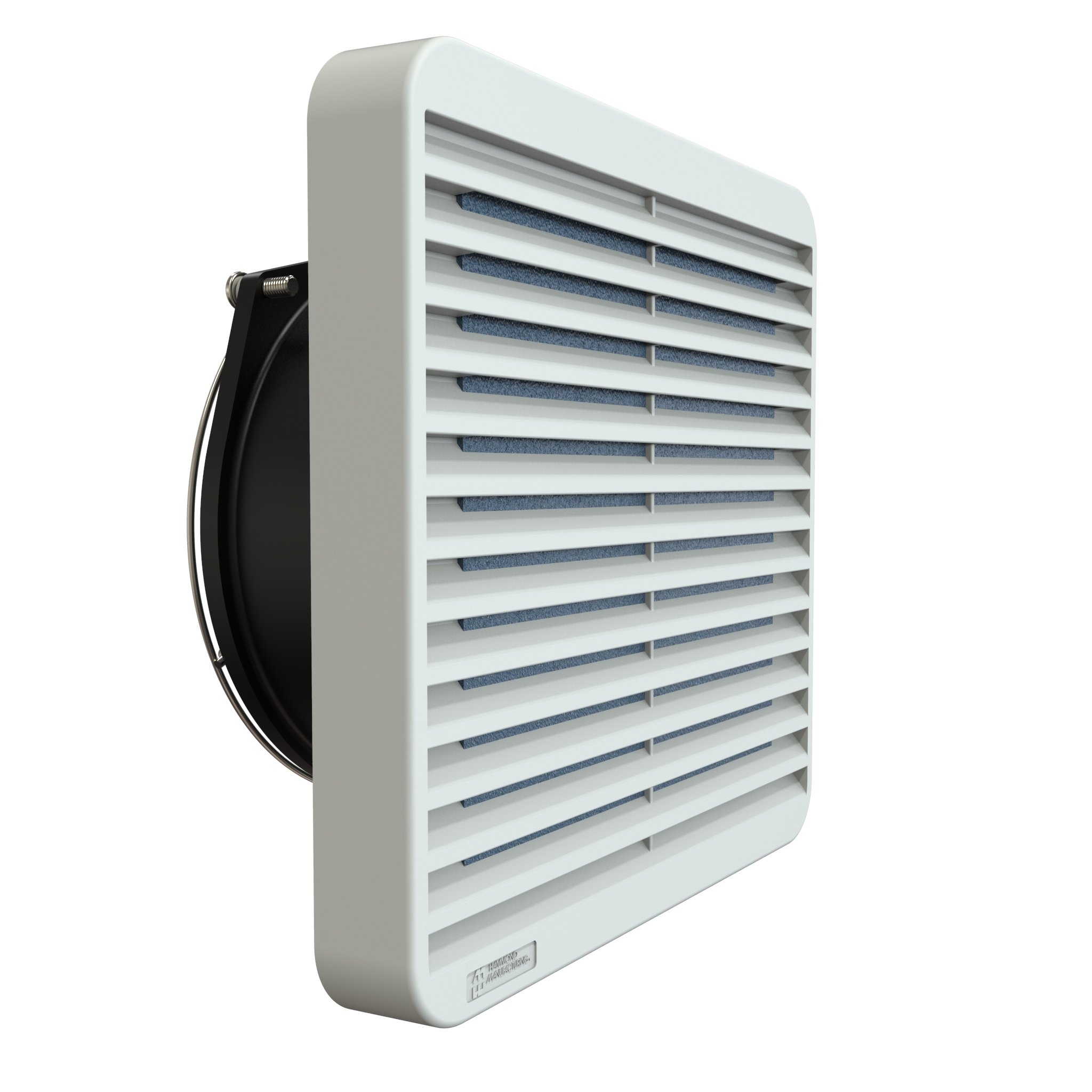

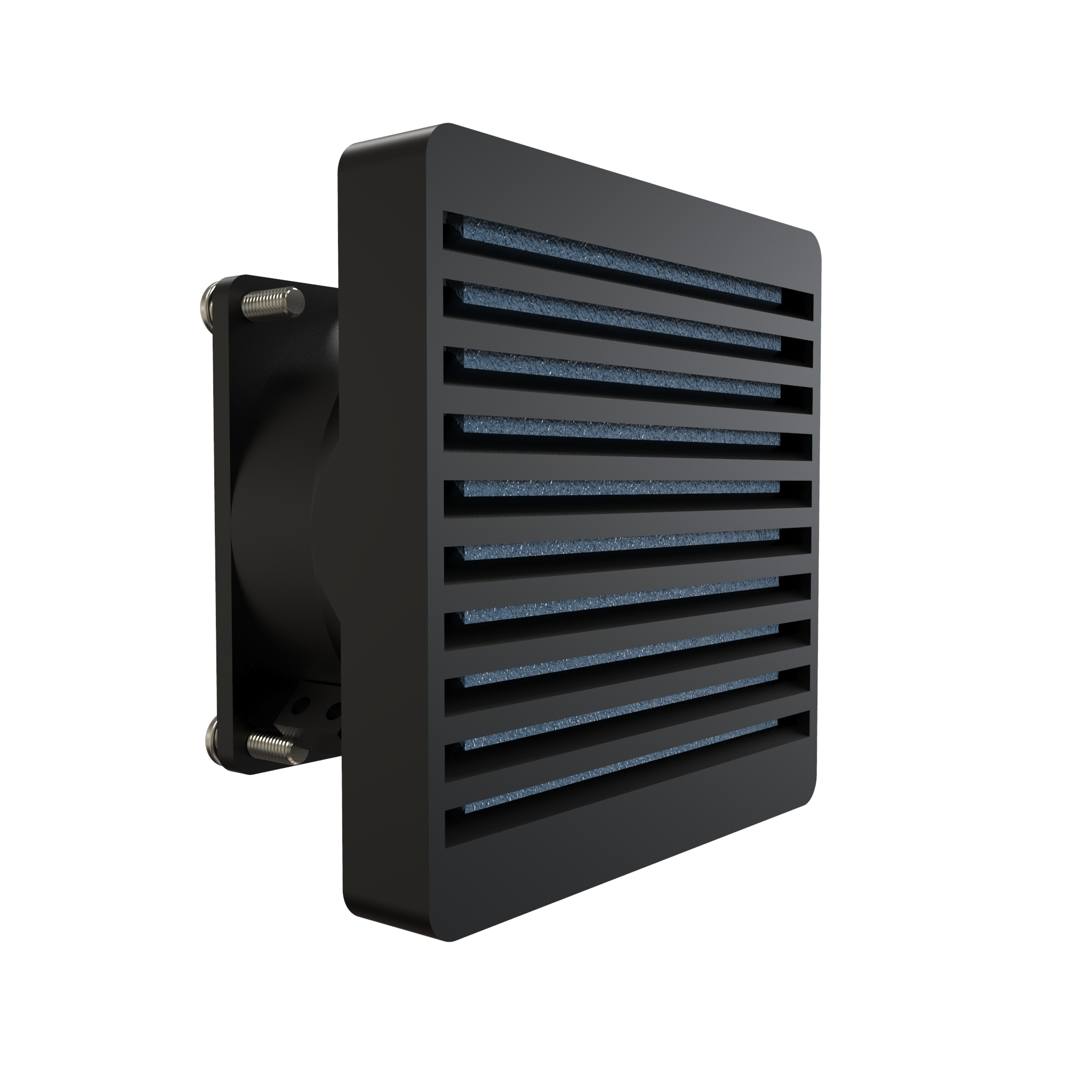

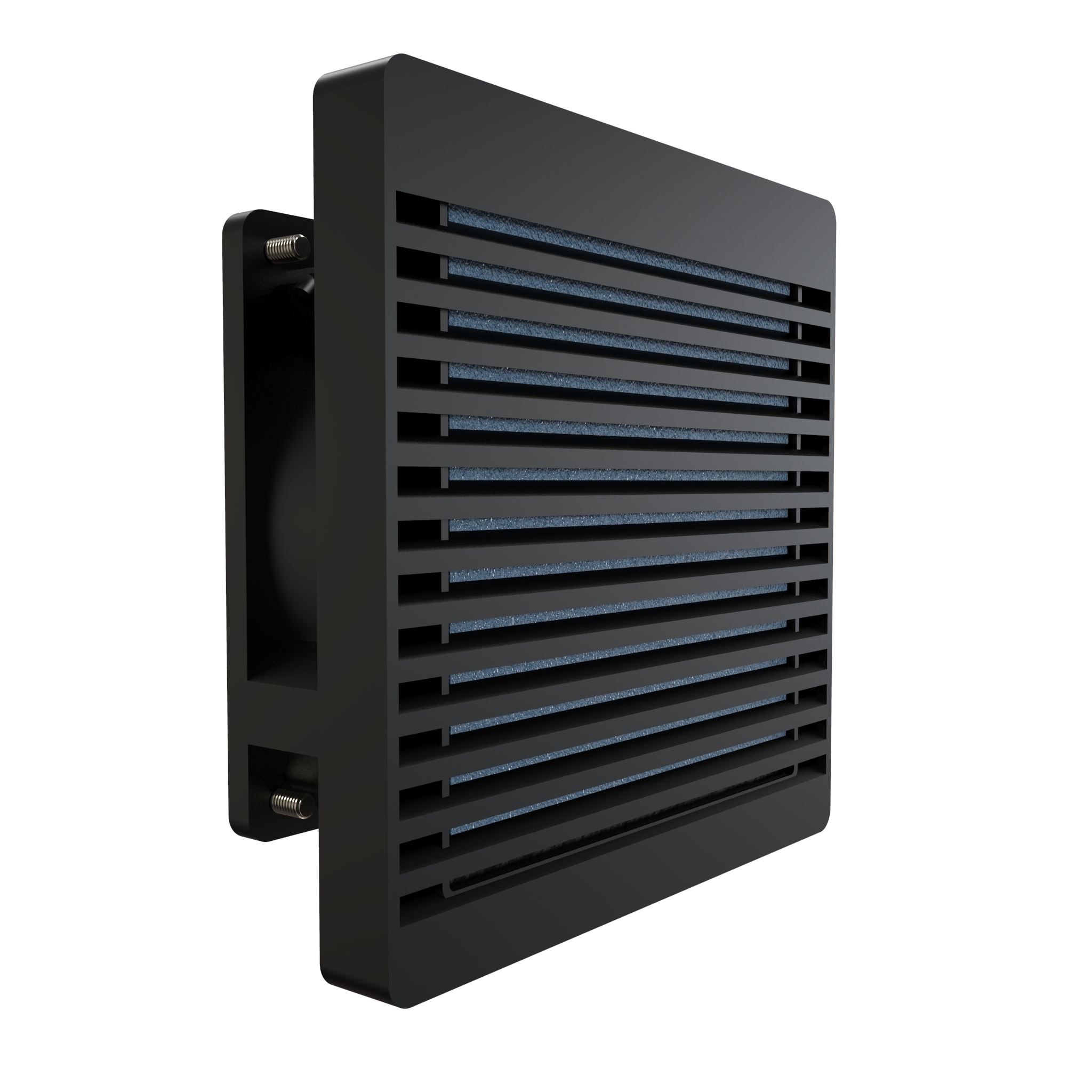

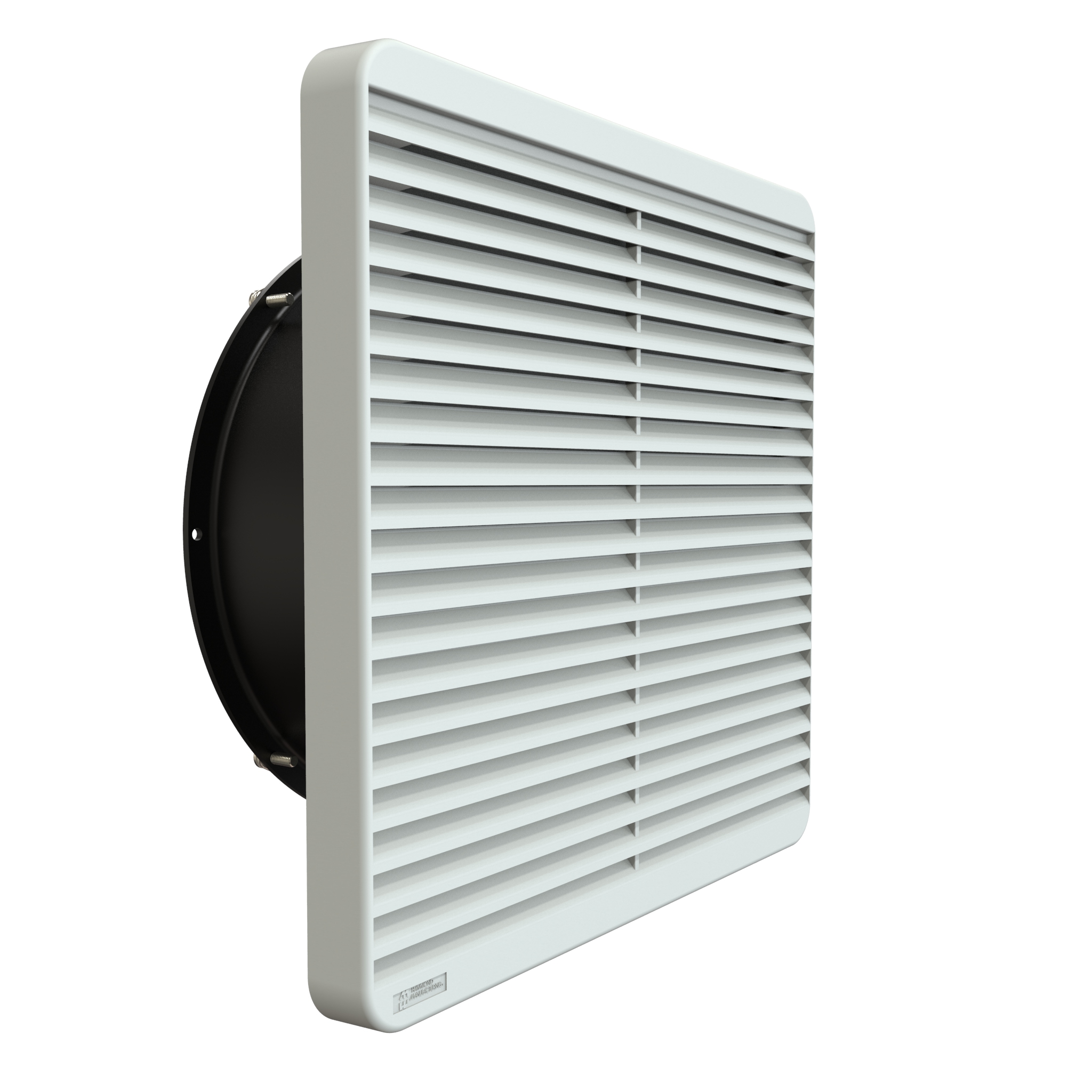

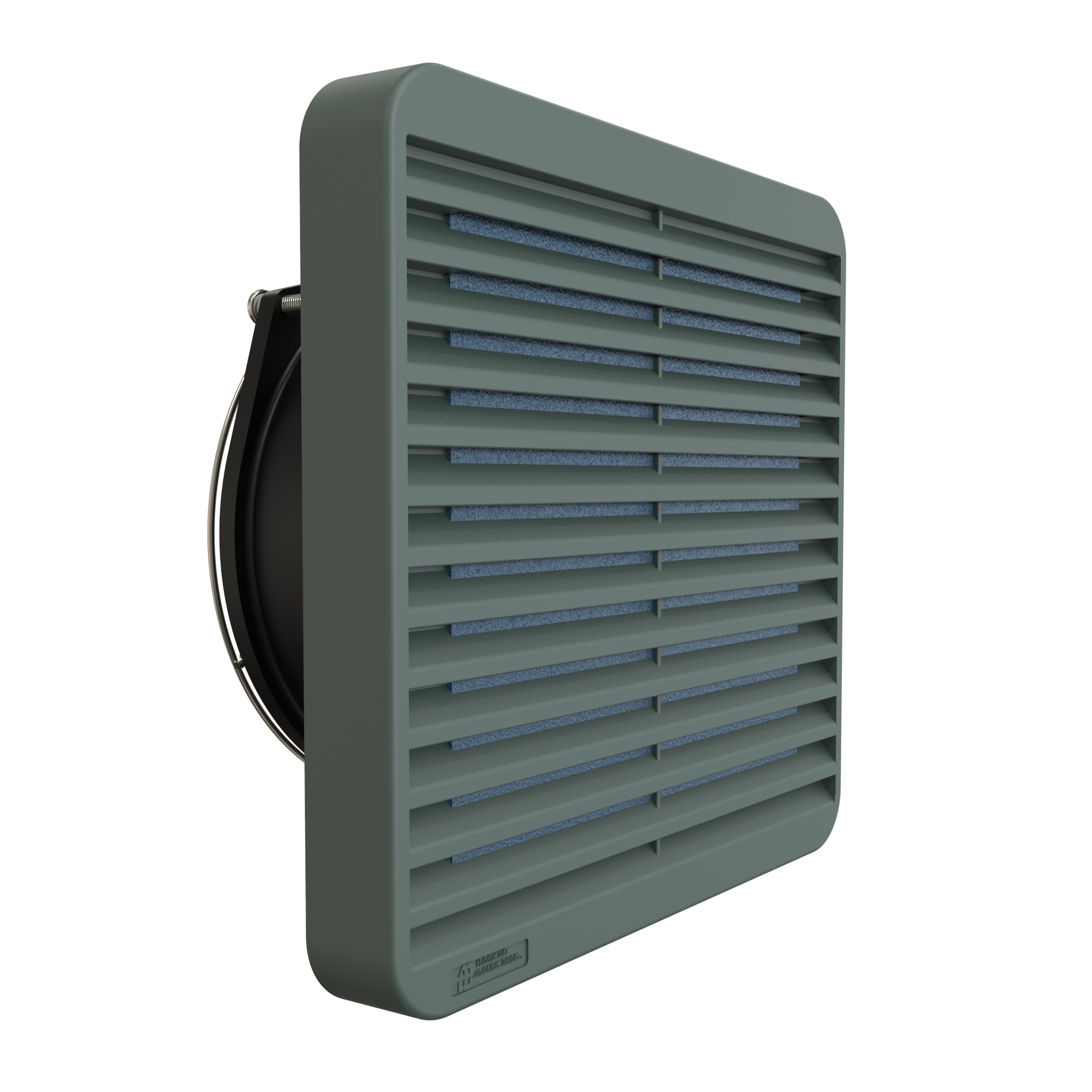

Filter Fan Kits · DNFF Series

Key Features and Benefits

The DNFF Series Filter Fan Kits provide reliable cooling while helping protect sensitive electronics from dust and airborne contaminants. By combining a high-quality AC fan with an IP5X-rated replaceable filter, the DNFF Series delivers clean airflow that helps maintain safe operating temperatures inside industrial enclosures, electrical cabinets, and rack systems.

Designed for hard-wired installations, the DNFF Series is ideal for OEM equipment, industrial automation, telecommunications, and control panels where permanent wiring is preferred. Available in multiple fan sizes, voltages, and airflow ratings, each kit includes everything needed for installation, while replacement filter media makes long-term maintenance simple. Complementary XPFA exhaust filter grilles are available for balanced enclosure ventilation.

• ■AC cooling fan with integrated filter system provides clean airflow while helping reduce dust entering industrial enclosures and rack cabinets. Available in airflow ratings from 32 CFM to 550 CFM.
• ■Hard-wired design is ideal for industrial control panels and permanently installed equipment where a standard AC plug is not desired. Can be used with or without an external thermostat.
• ■Filter media helps reduce dust and airborne contaminants, extending the life of sensitive electronics.

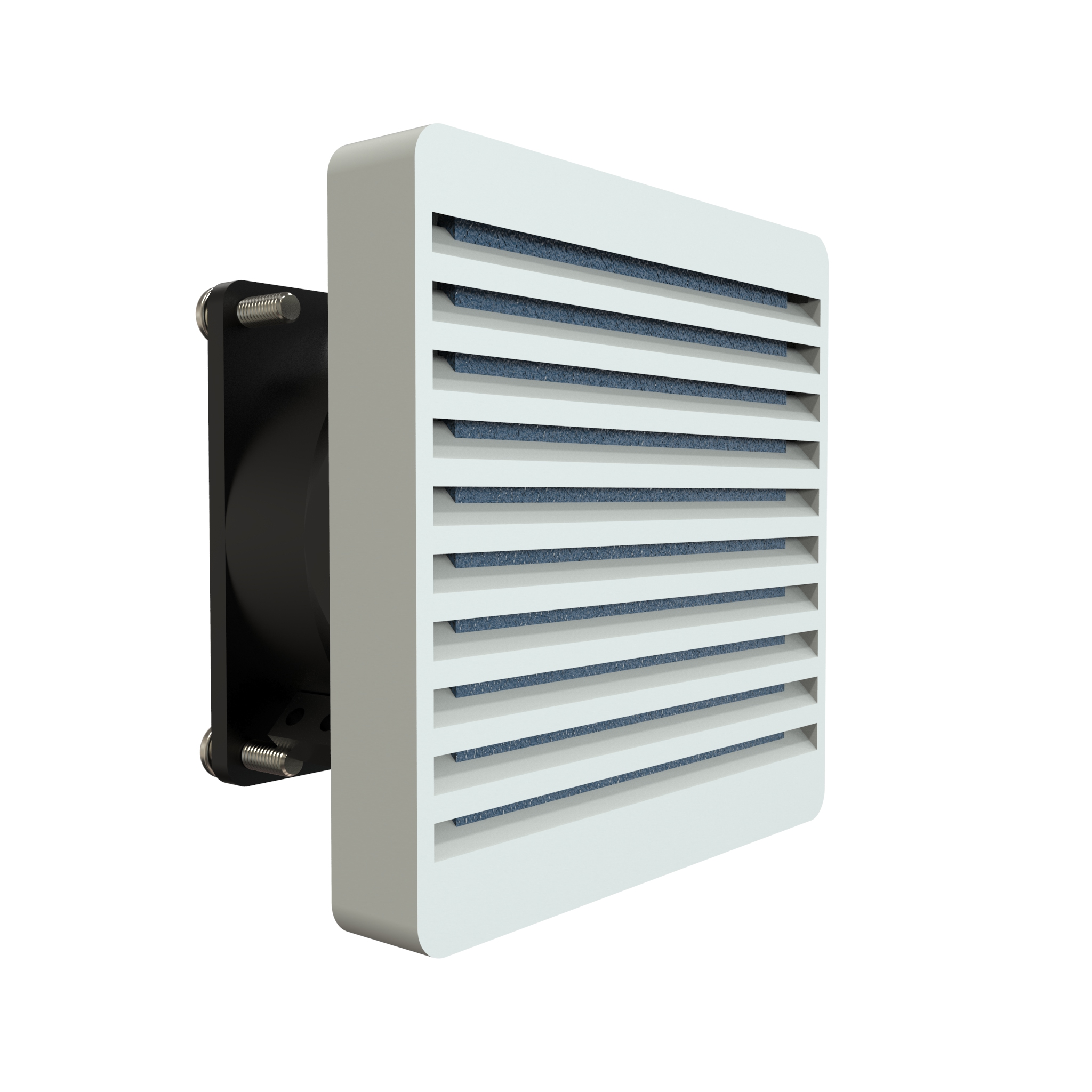

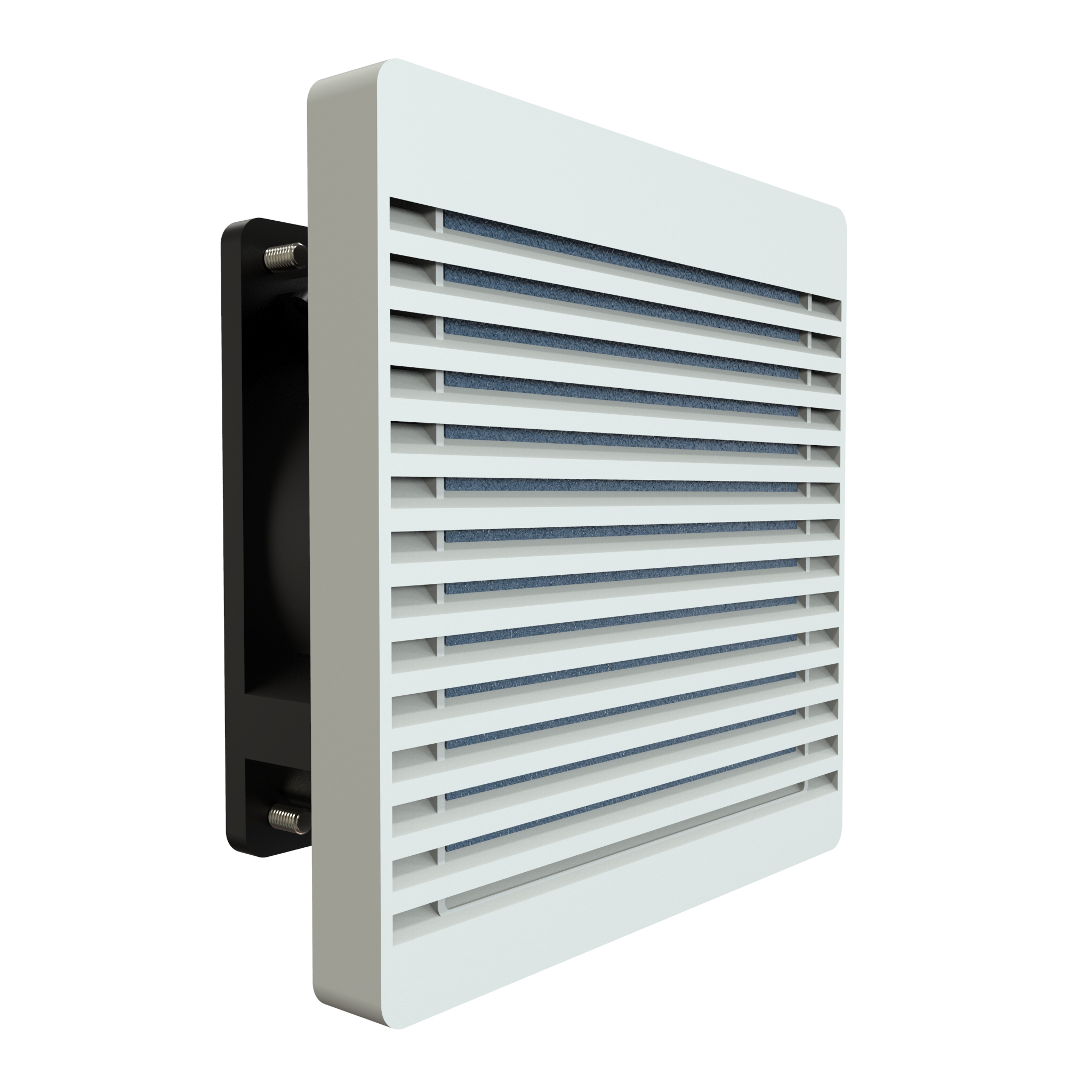

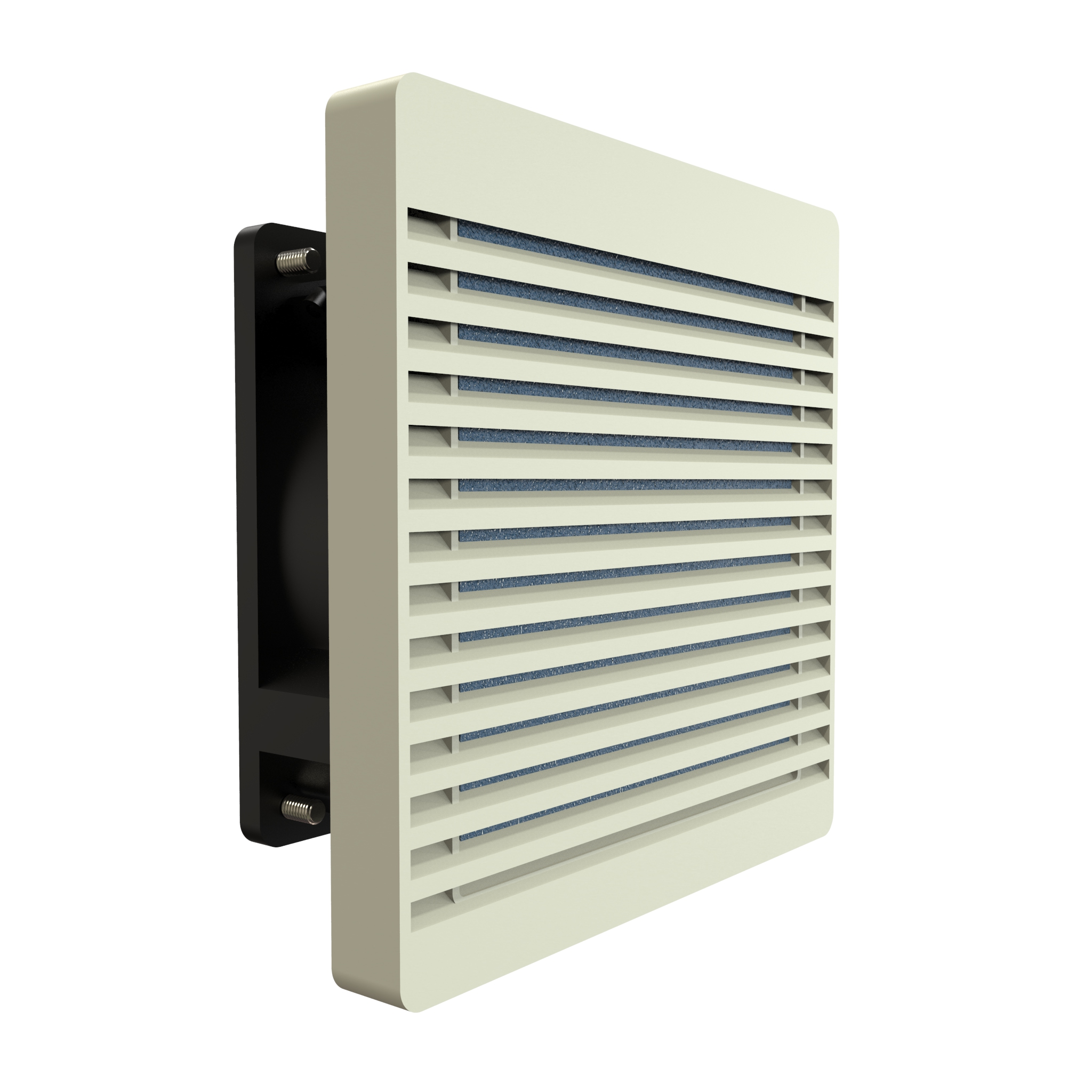

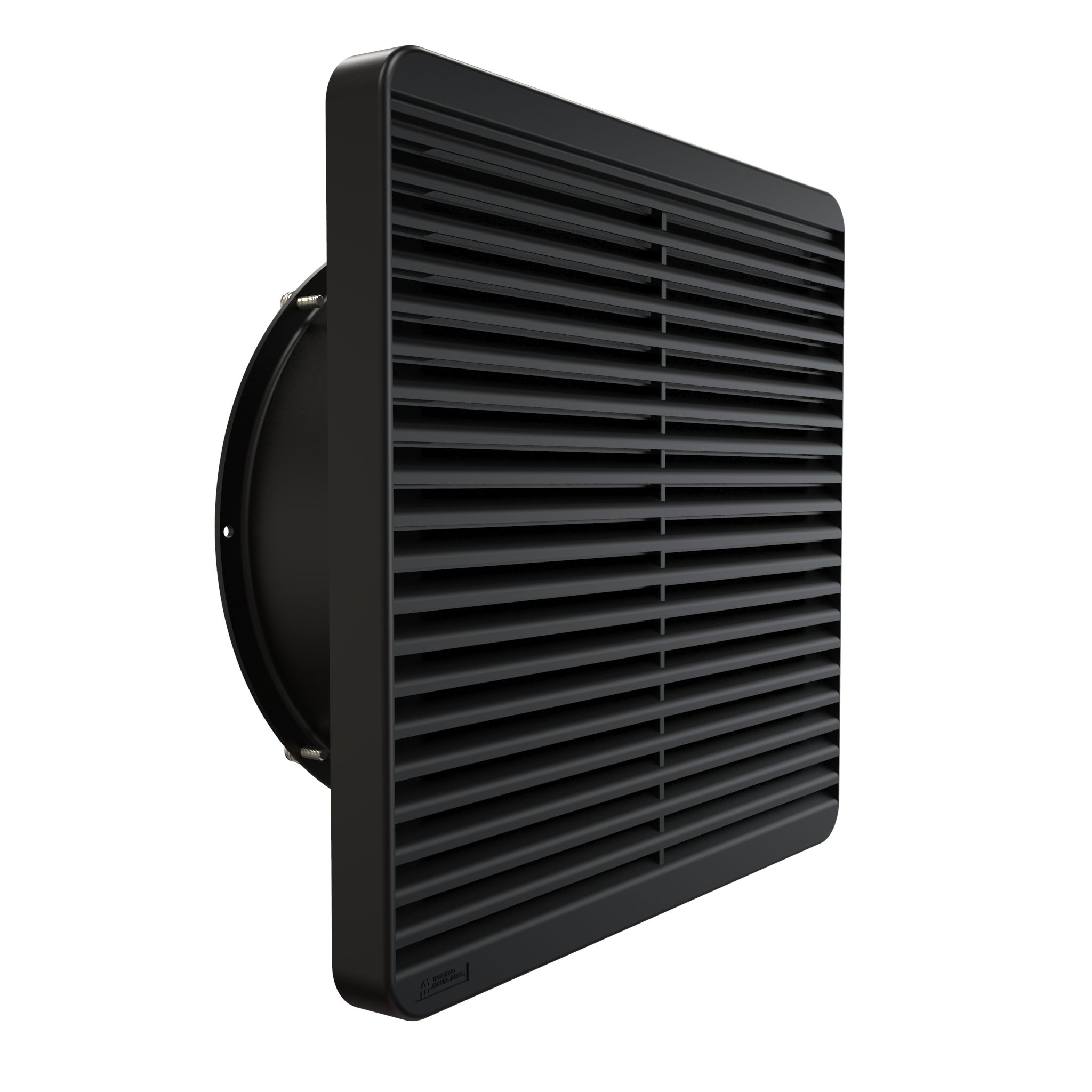

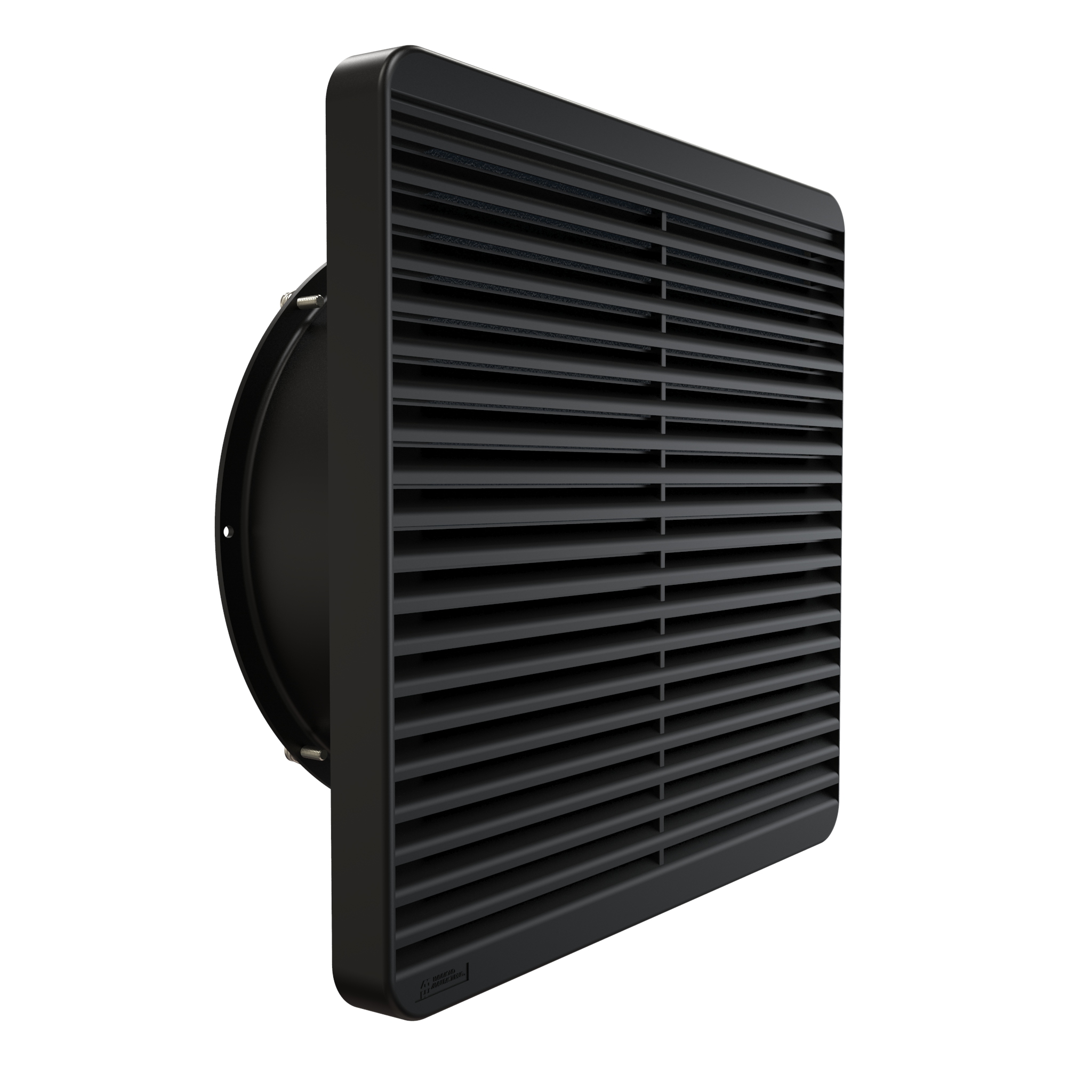

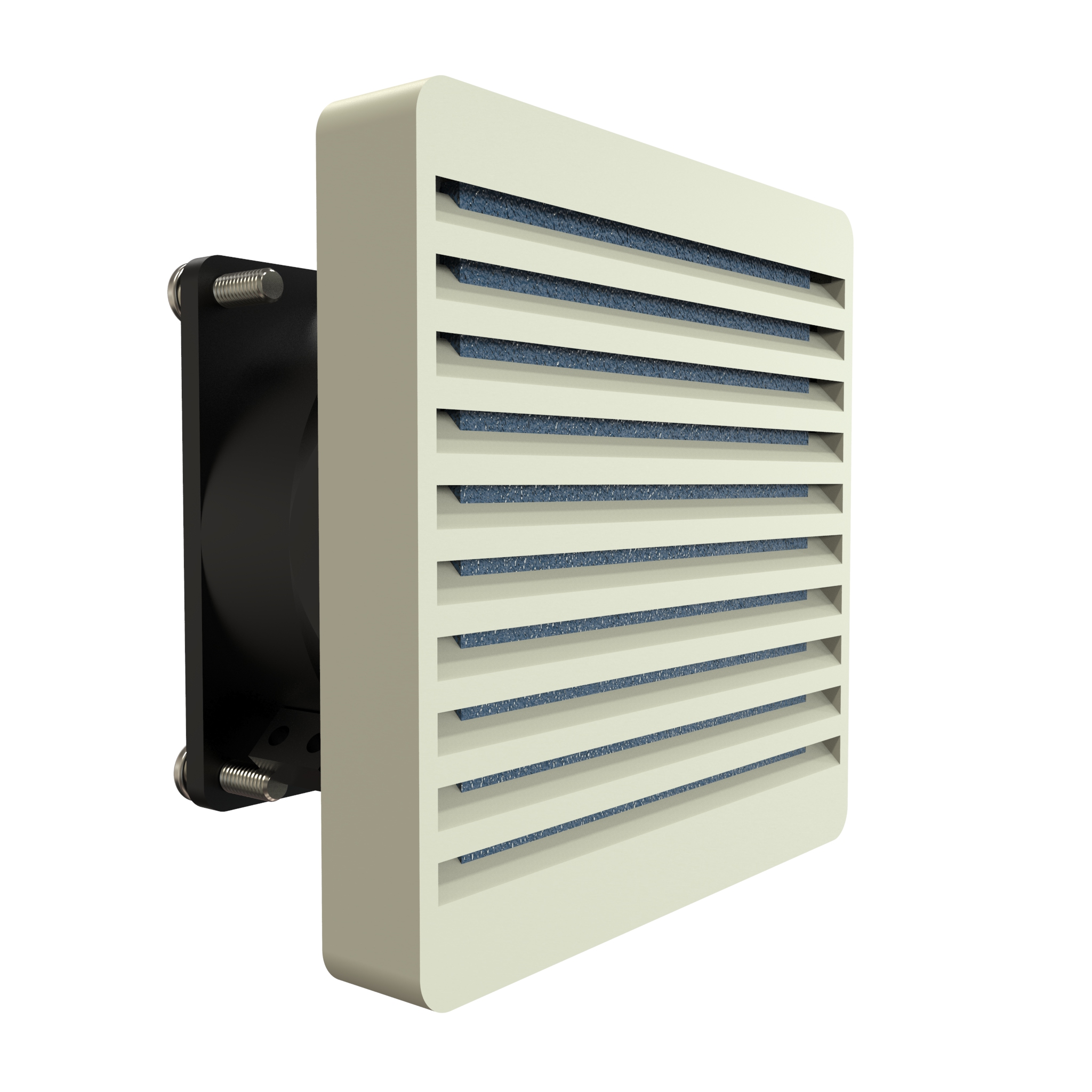

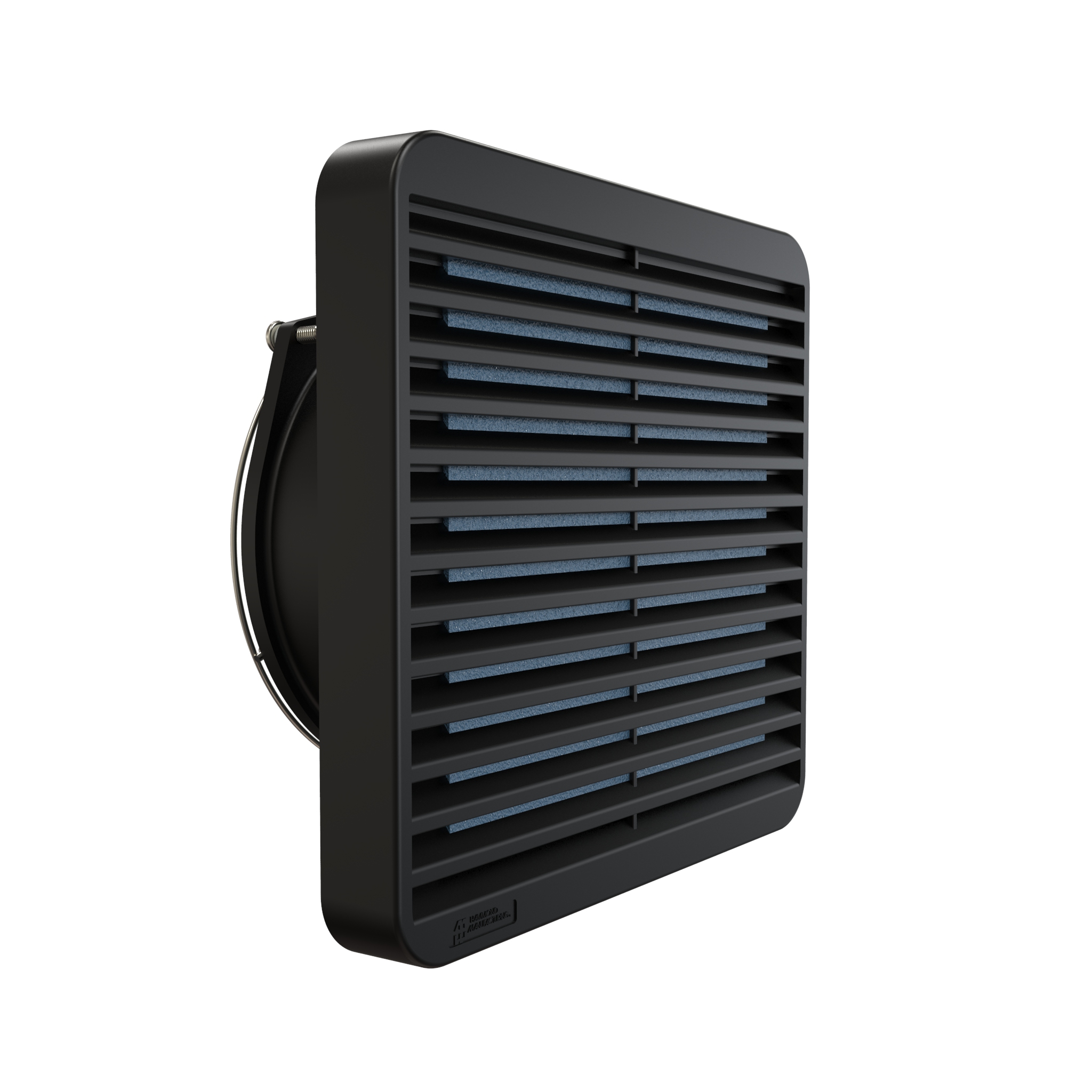

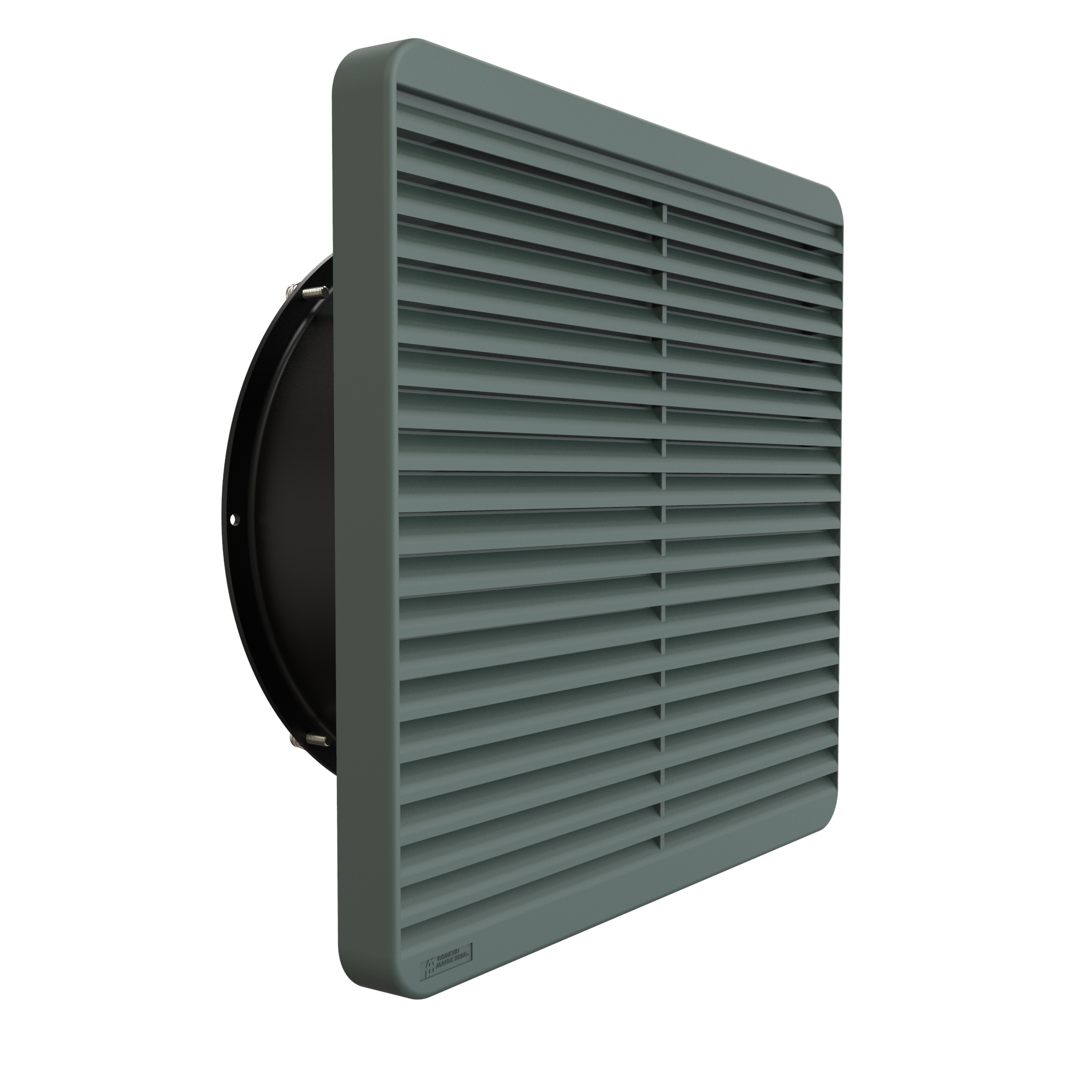

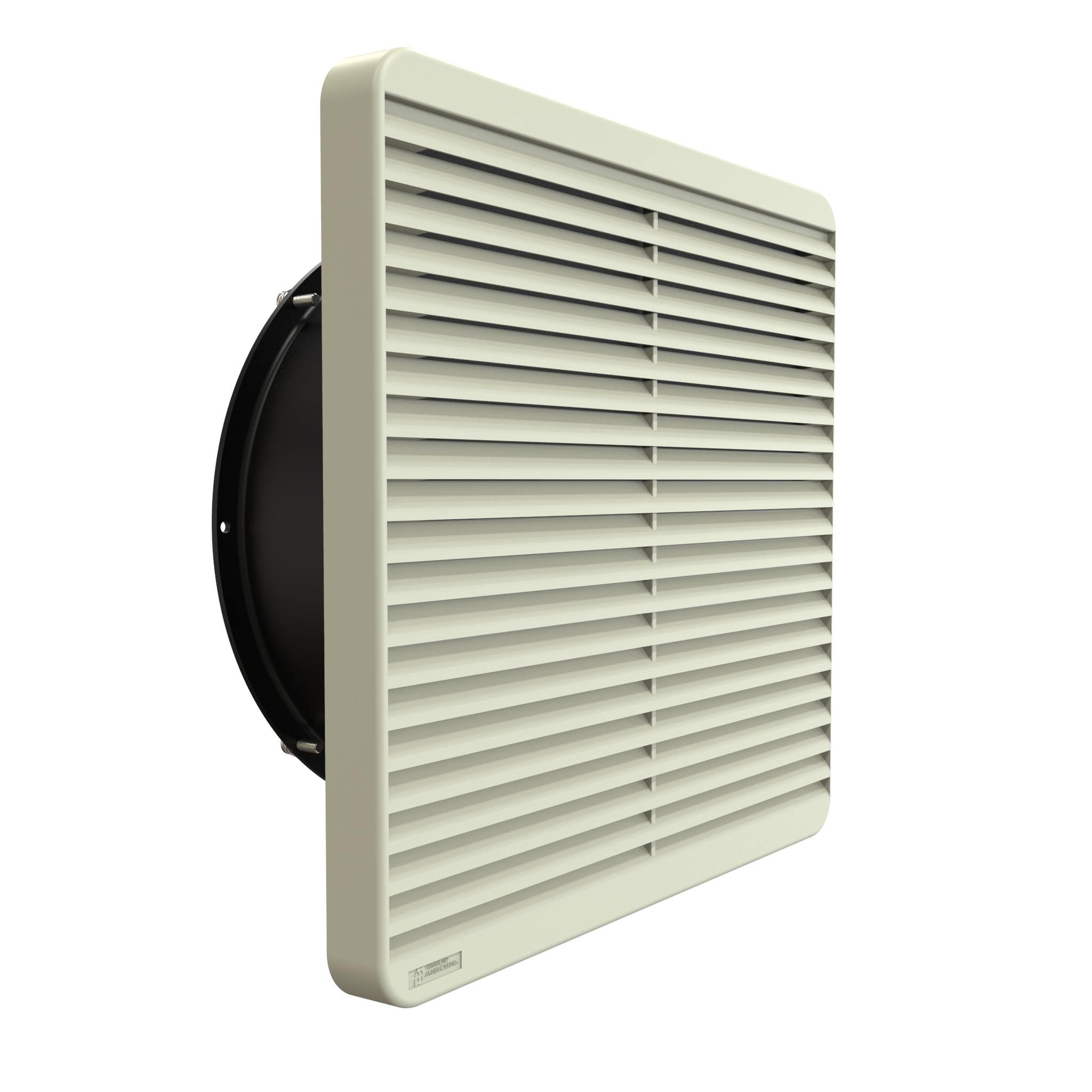

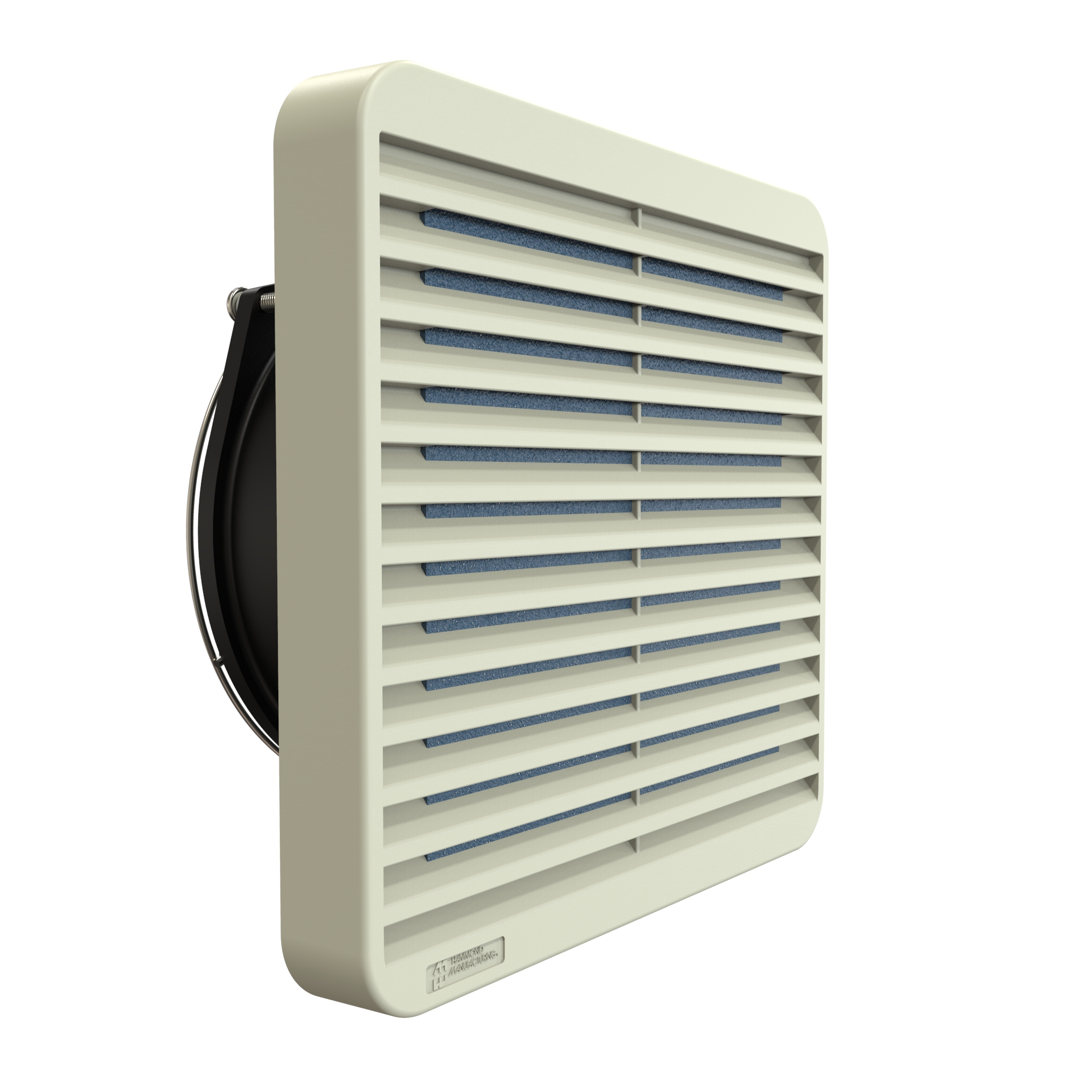

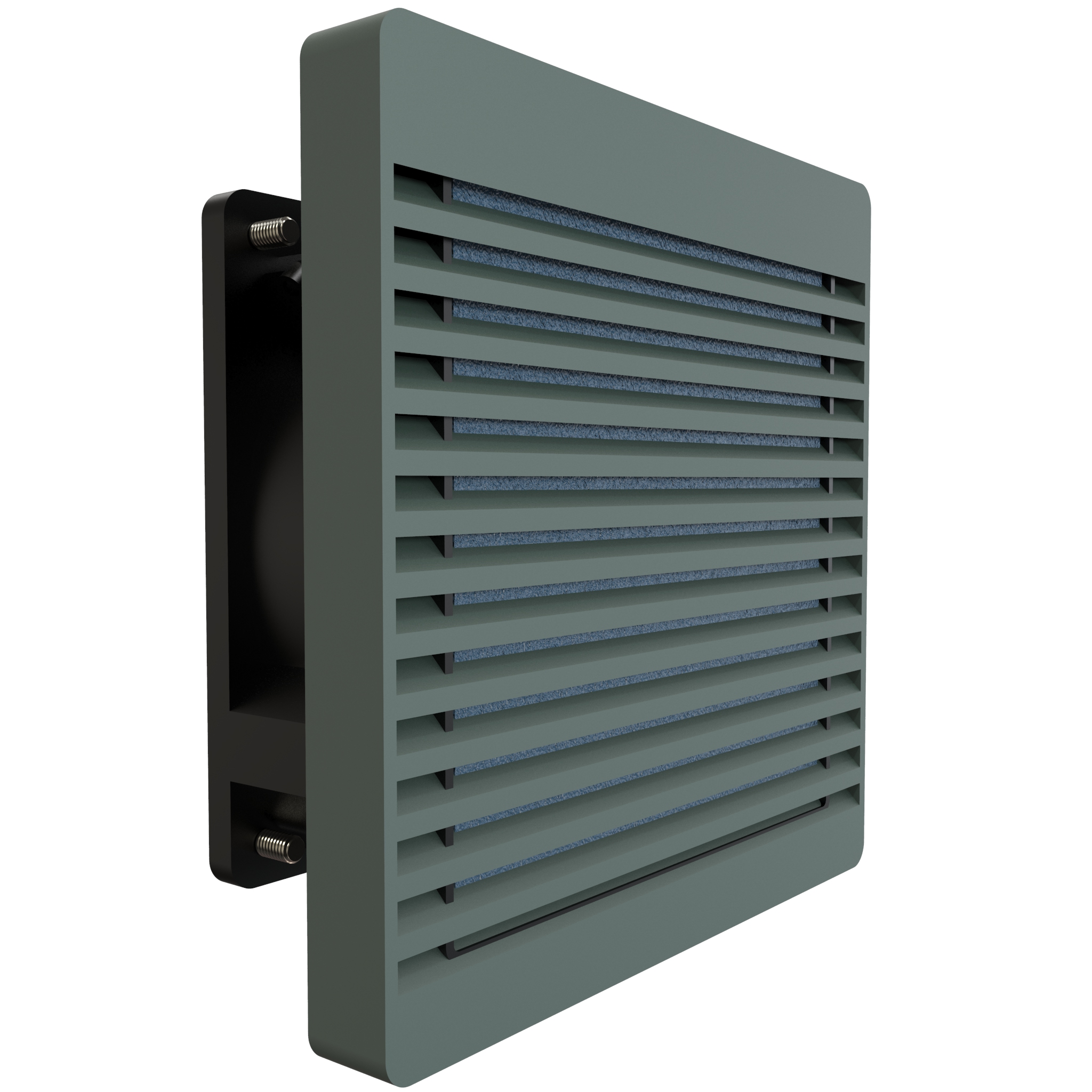

• ■Flame-retardant ABS filter grille is available in Black, ANSI 61 Gray, and RAL 7035 Light Gray to match Hammond cabinets and enclosures.

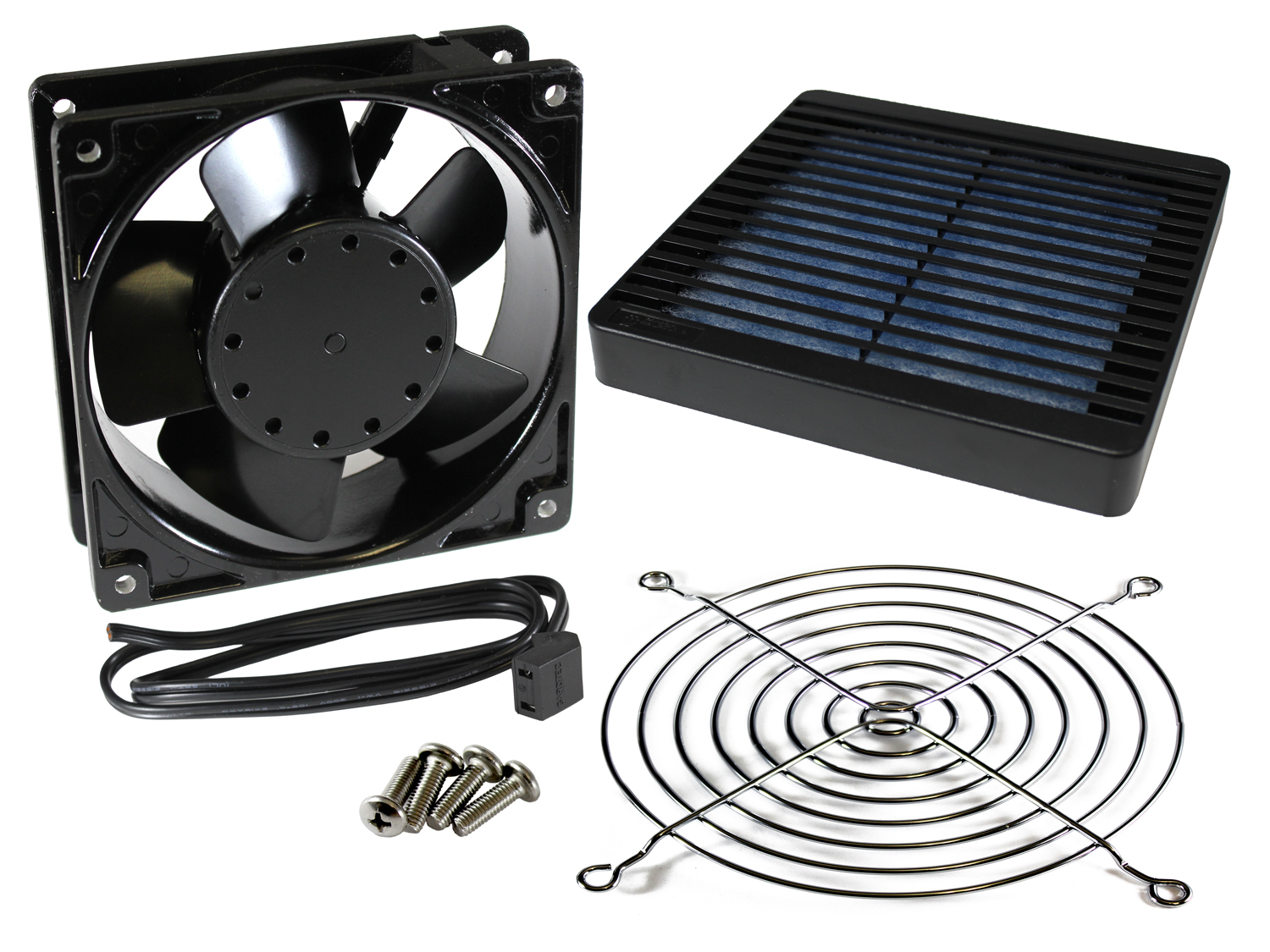

• ■Complete kit includes fan, plastic filter grille, replaceable filter, metal safety guard, wiring leads or cord (model dependent), and mounting hardware.
• ■Available in 115 VAC and 230 VAC models with fan sizes from 80 mm to 254 mm for a wide range of cooling requirements.
• ■Replacement filter media is available separately to simplify routine maintenance and extend service life.
• ■Fan components are UL Recognized to UL 507 and cUL Recognized or CSA Certified to CSA-C22.2 No. 113.
• ■RoHS and REACH compliant.

When Another Product May Be a Better Choice

• ■When you need a plug-in fan kit for rack cabinets, choose the DNFK Series High-Airflow Fan Kits.
• ■When you need automatic temperature control, choose the DTFK Series Thermostat-Controlled Fan Kits.
• ■When you only need a filtered exhaust opening without a fan, choose the XPFA Series Exhaust Filter Grilles.
• ■When replacing worn filter media, use the PFF Series Replacement Filters.
