1U Rack Mount Fan Trays · FT Series

Key Features and Benefits

The FT Series 1U Rack Mount Fan Trays provide powerful, targeted cooling for rack-mounted equipment in networking, telecommunications, industrial automation, AV, and server applications. Unlike cabinet-mounted fan kits, the FT Series installs directly into the rack, allowing airflow to be positioned exactly where it is needed. Whether installed at the bottom of the cabinet as an intake, at the top as an exhaust, or beneath heat-producing equipment for spot cooling, the FT Series helps remove heat before it impacts equipment performance.

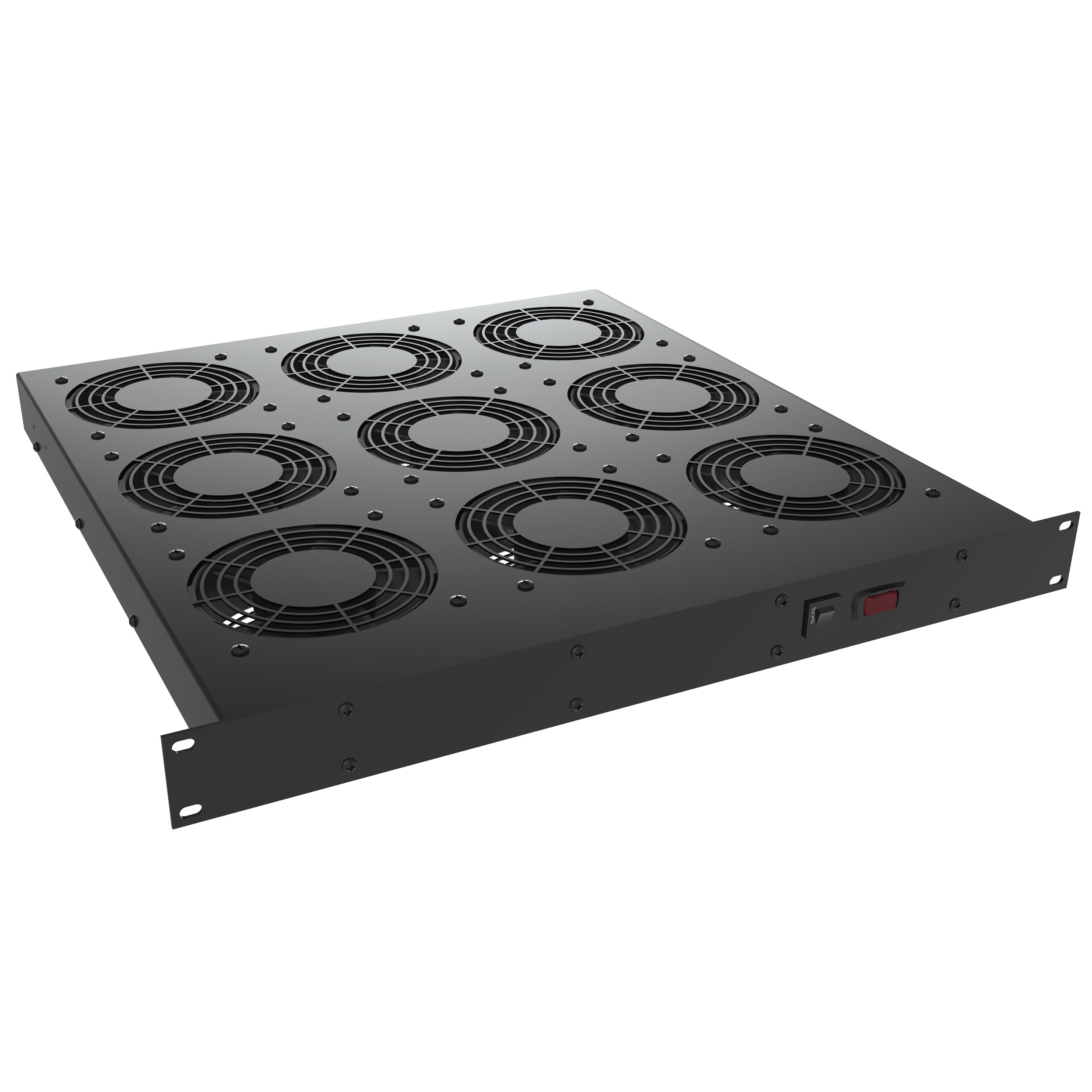

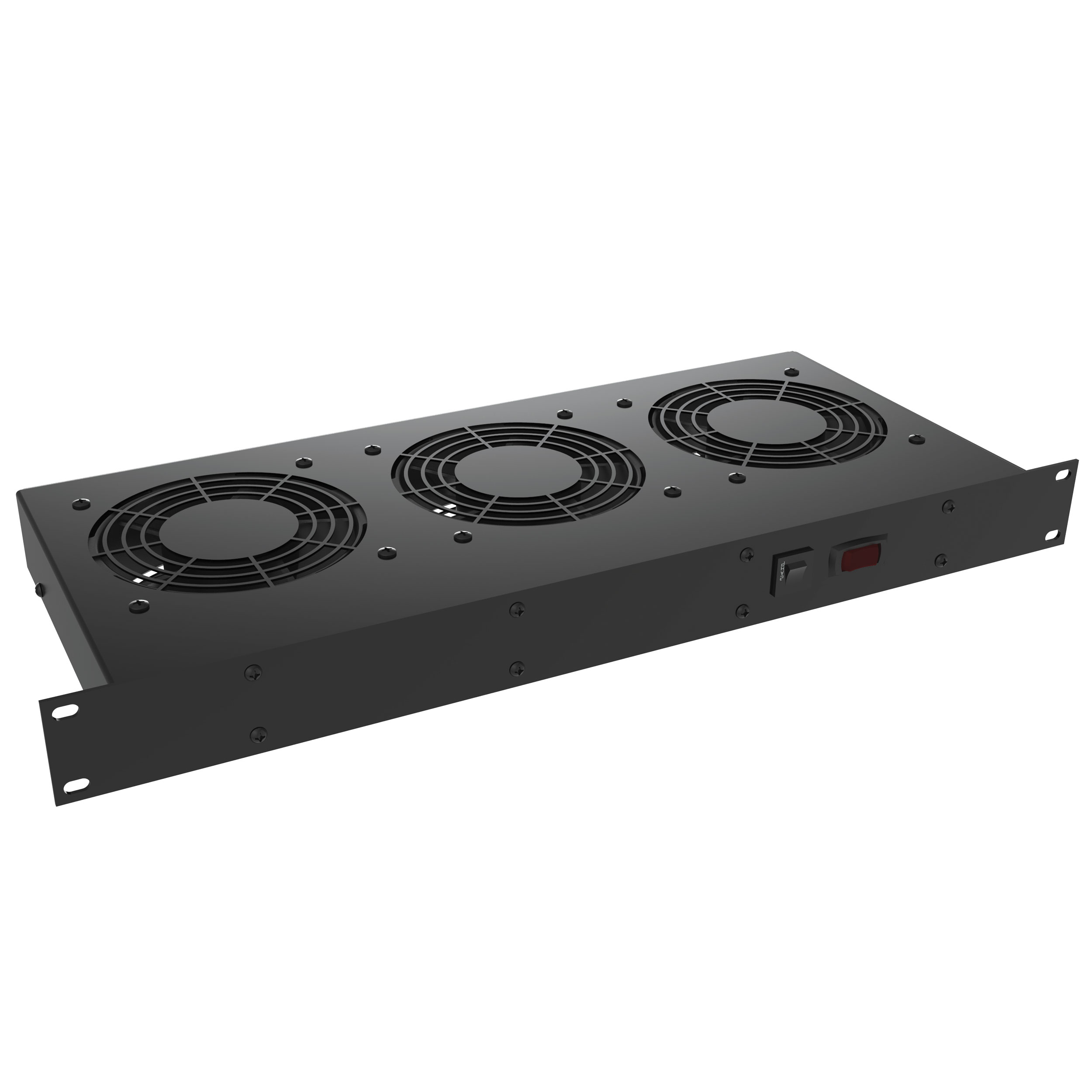

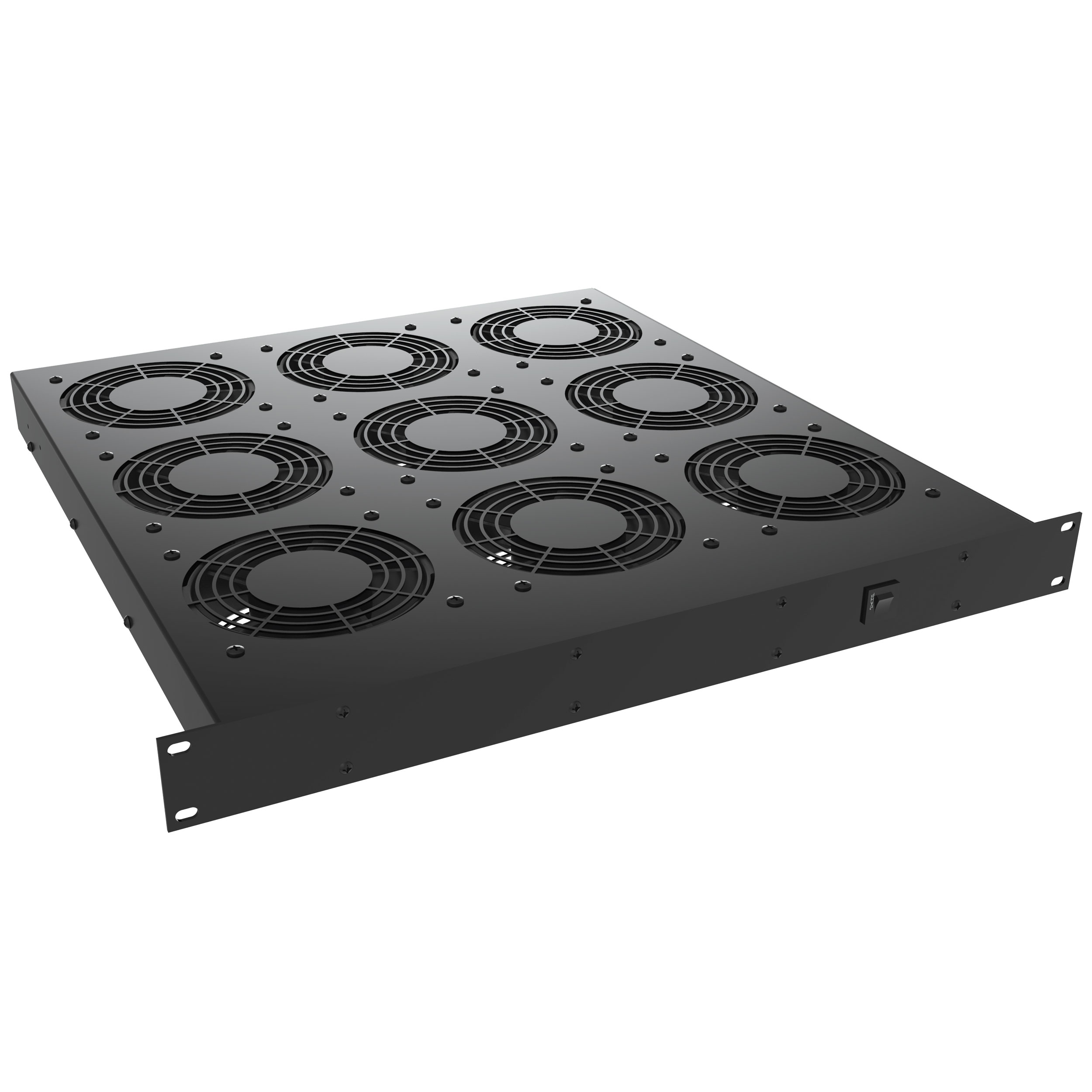

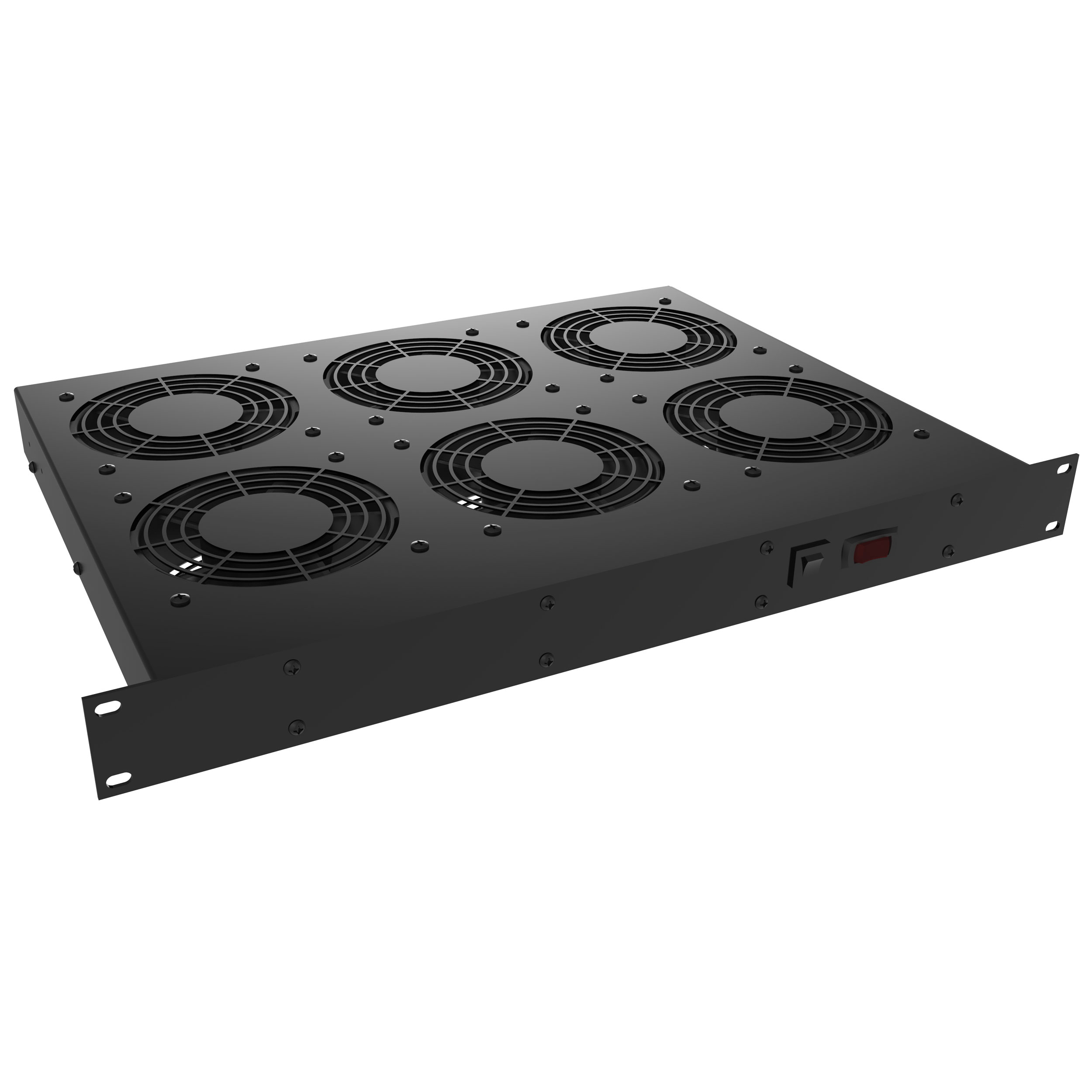

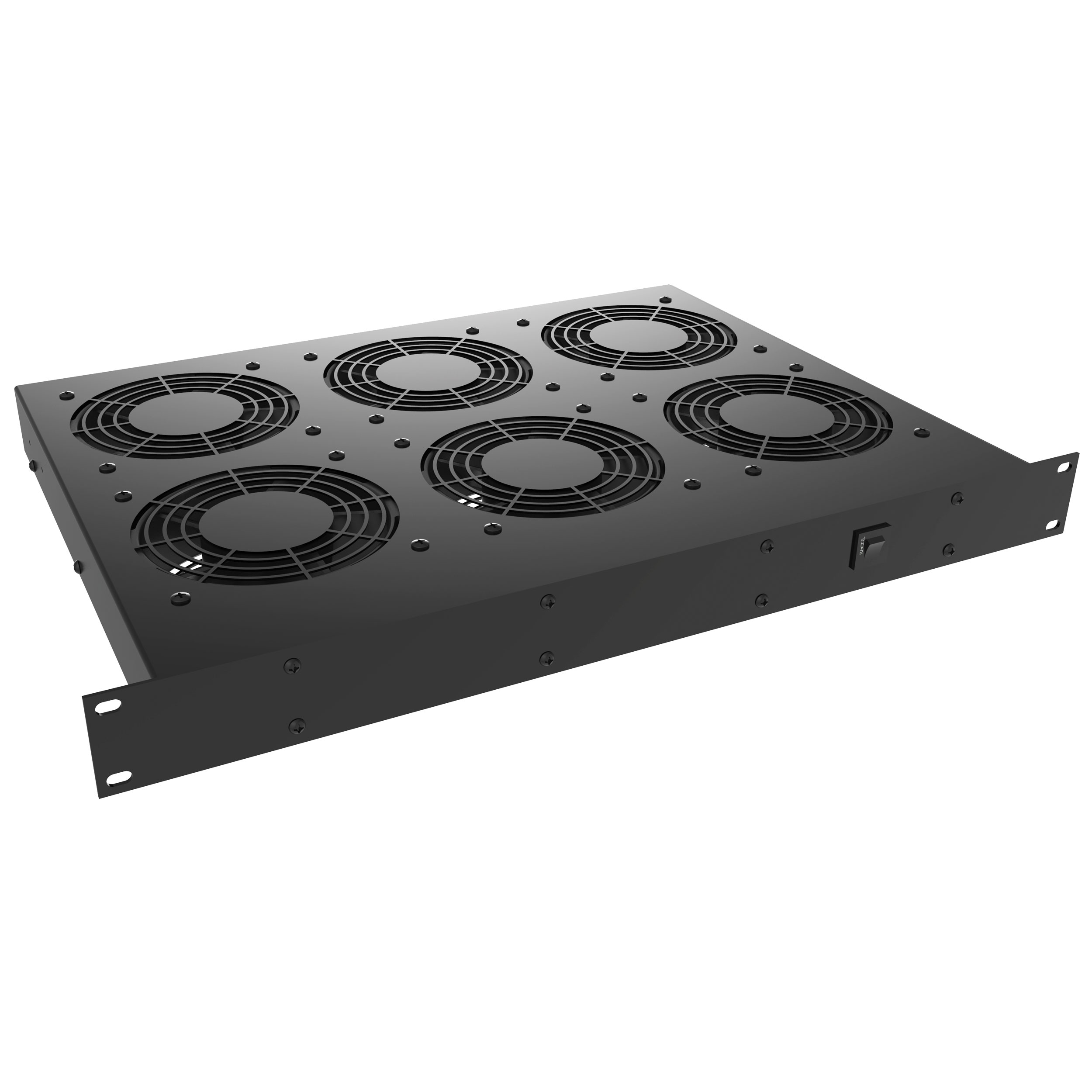

Available with three, six, or nine thermally protected ball-bearing fans delivering up to 900 CFM, the FT Series offers a simple, economical way to improve airflow in both new and existing rack installations. Multiple voltage options, optional power switches, and rear support brackets on larger models make the FT Series suitable for everything from small network closets to high-density equipment rooms.

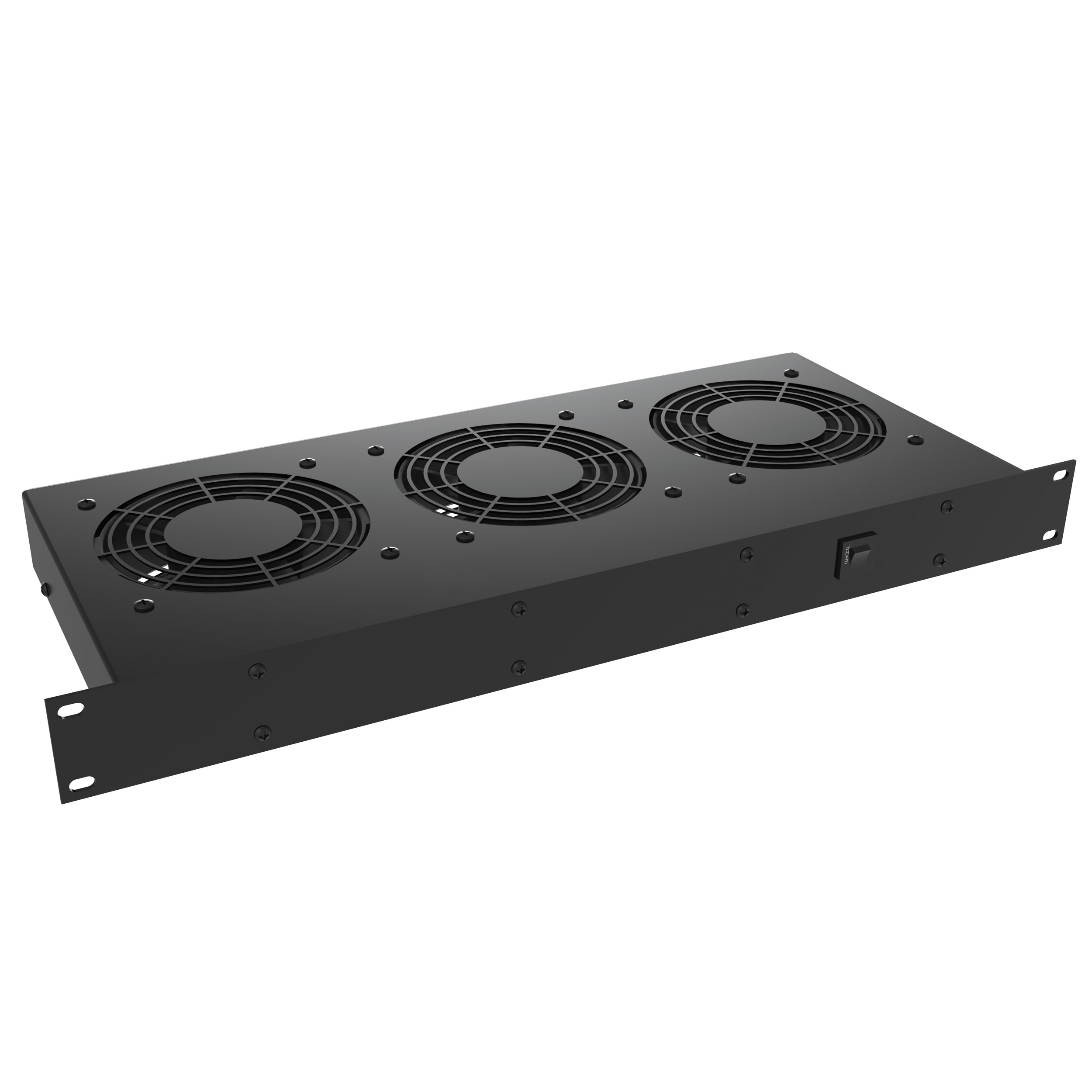

• ■Heavy-duty 1U steel fan tray provides 300, 600, or 900 CFM of airflow for cooling high-density rack equipment.
• ■Mount the fan tray at the bottom of the rack for intake, at the top for exhaust, or directly beneath heat-producing equipment for spot cooling, allowing airflow to match your installation.

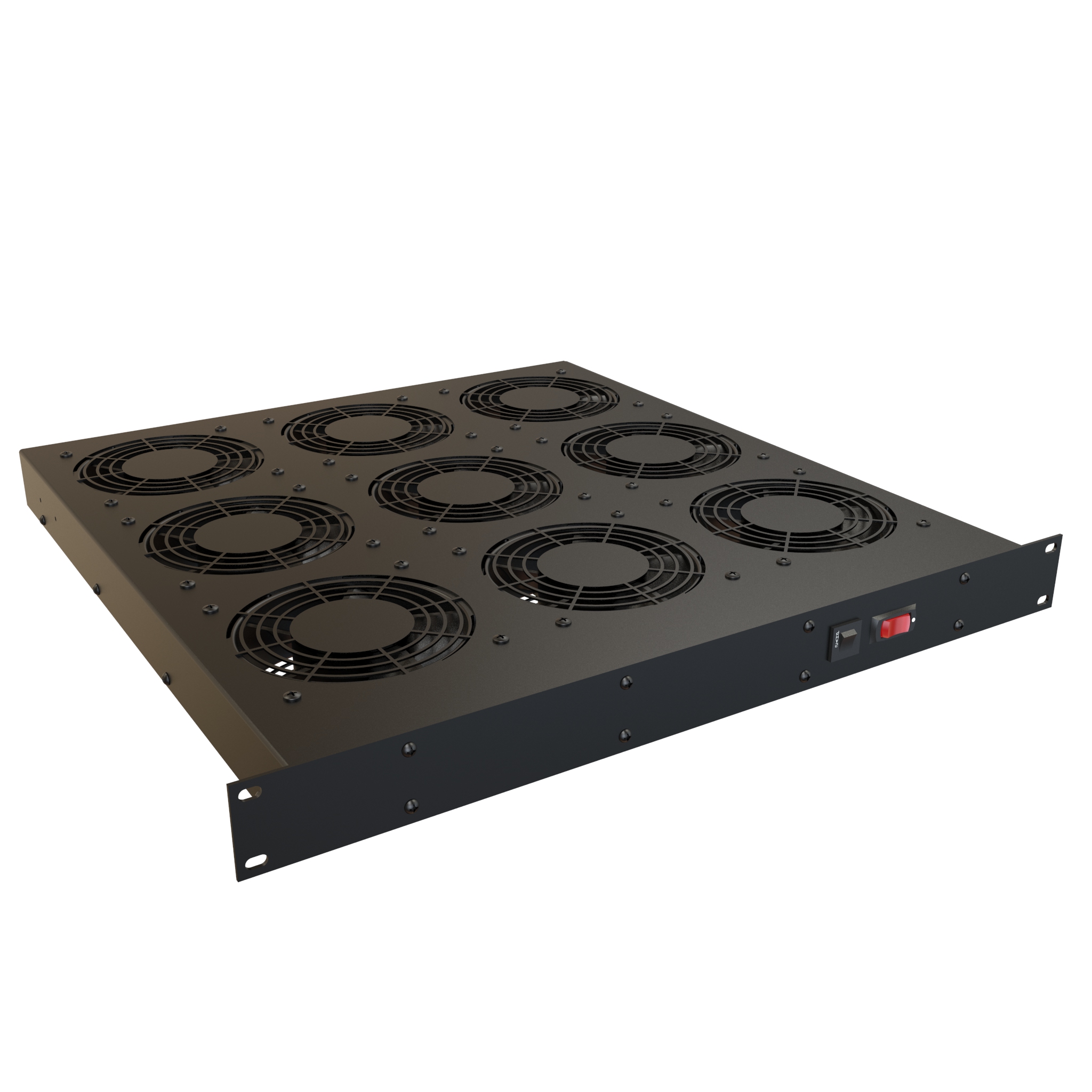

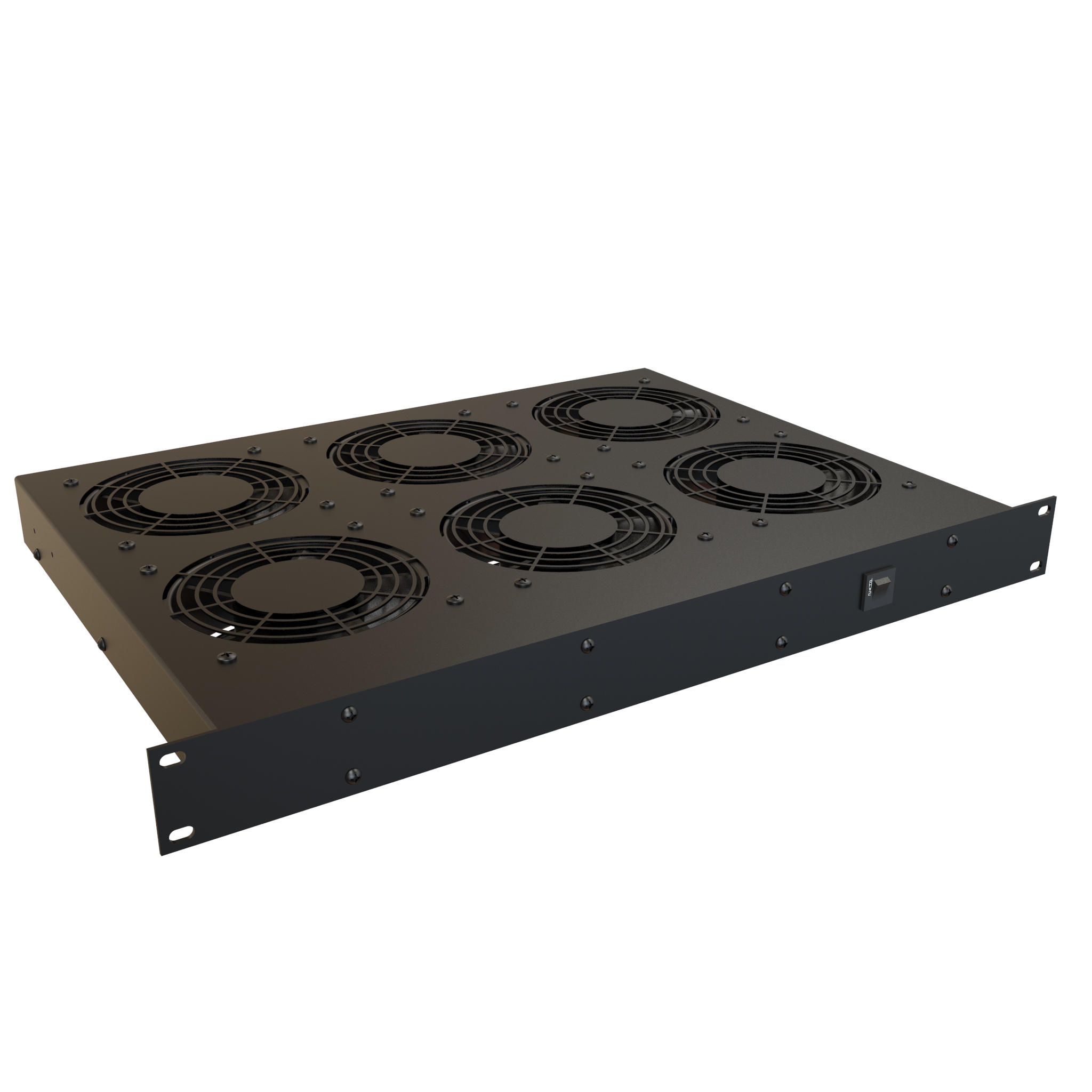

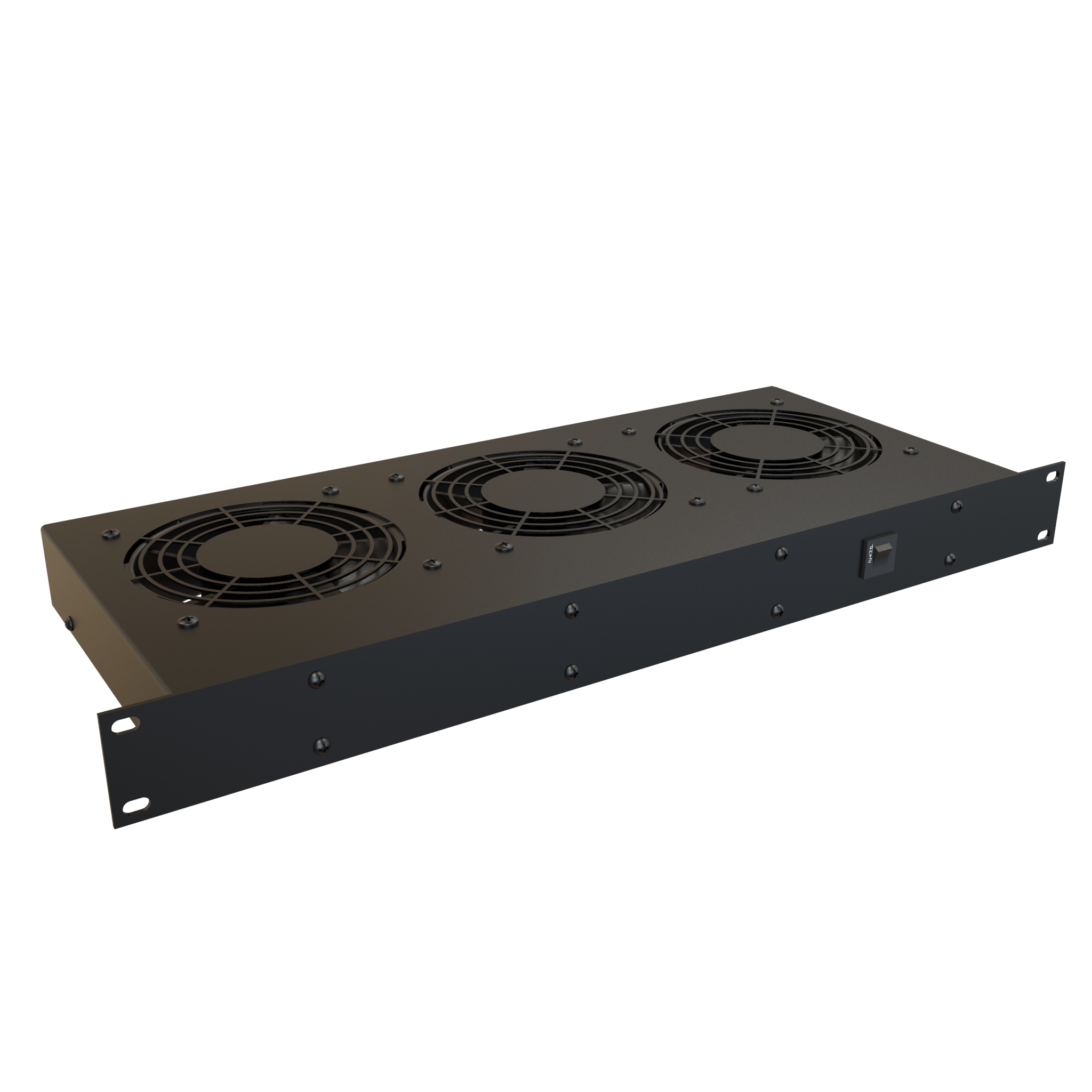

• ■Available in 115 VAC or 220 VAC models with thermally protected ball-bearing fans for dependable continuous operation. 115VAC versions include a 6' 14/3 STJW cord with moulded 3 prong plug (NEMA 5-15P) 220VAC versions include an IEC input receptacle (IEC320-C14)
• ■115VAC versions include a 6' 14/3 STJW cord with moulded 3 prong plug (NEMA 5-15P)
• ■220VAC versions include an IEC input receptacle (IEC320-C14)
• ■Choose models with or without an illuminated on/off switch to suit permanent or user-controlled installations.
• ■Compact 1U (1.75") profile preserves valuable rack space while delivering significant airflow.
• ■6 and 9 fan models include an adjustable rear support bracket for improved stability in deeper cabinets.
• ■Integrated finger guards above and below the fans improve safety while maintaining unrestricted airflow.
• ■Circuit breaker protection helps safeguard the fan tray during operation.
• ■Ships fully assembled for quick installation.
• ■TAA compliant, RoHS compliant, and manufactured in North America.
