Fan Cords · DNFC Series

Brand: Hammond Manufacturing · 7 part numbers

■For wiring of tube axial fans (above)
■Molded female standard fan plug (0.91" x 0.68")
■SPT-1 x 18/2 type wire cord, rated 300V and 105 degrees C
■DNFC48P is the fan cord required for a longer connection wire for DNFK2AC120 and AVFK2AC120 .
■See the tables below for detailed descriptions

from $5.19

7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your DNFC Series part number

Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

7 of 7 part numbers · 7 priced online

DNFC48P

48IN 1X Fan Cord 115V Plug

Description Single
Fan Connector 45 degree
115VAC Plug Yes

$8.44In stock

Buy now

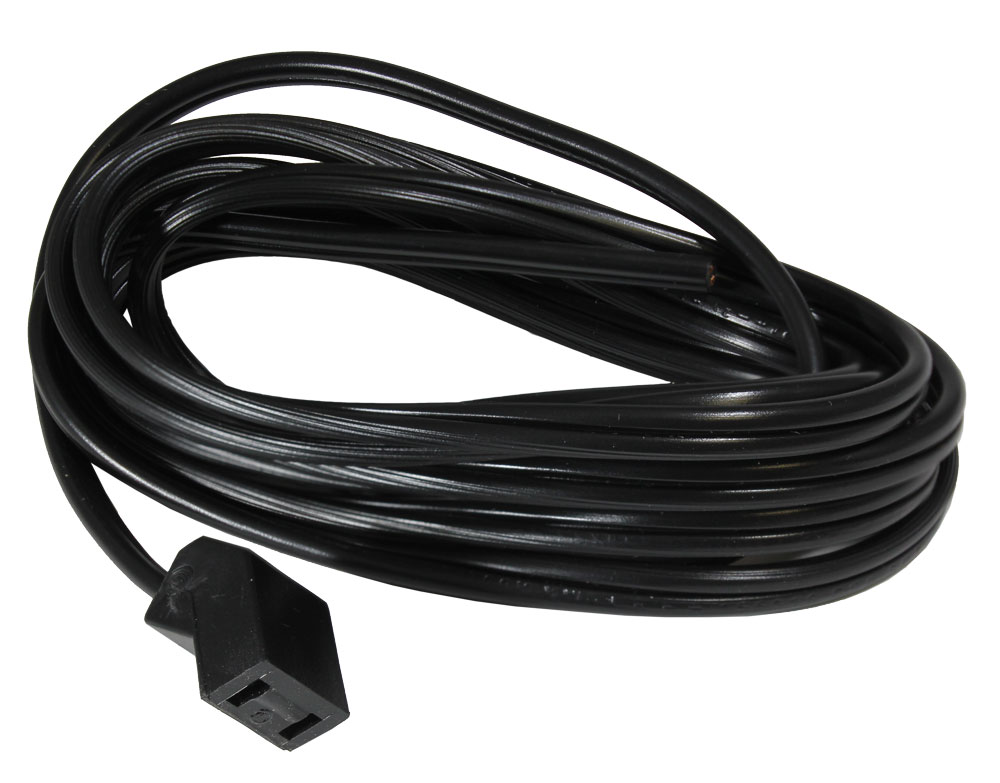

DNFC72P

72IN 1X Fan Cord No Plug

Description Single
Fan Connector 45 degree
115VAC Plug No

$6.49In stock

Buy now

DNFC72PG

72" Fan Cord With 115V Plug

Description Single
Fan Connector 45 degree
115VAC Plug Yes

$8.44In stock

Buy now

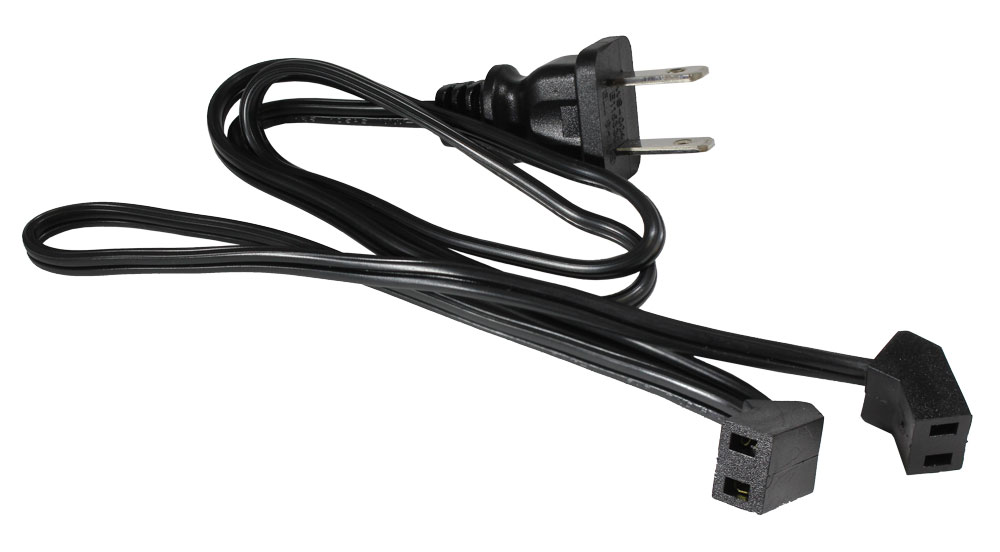

DNFCDC2P

24IN 2X Fan Cord 115V Plug

Description Daisy Chain
Fan Connector Qty 2-45 degree, 12" apart
115VAC Plug Yes

$9.74In stock

Buy now

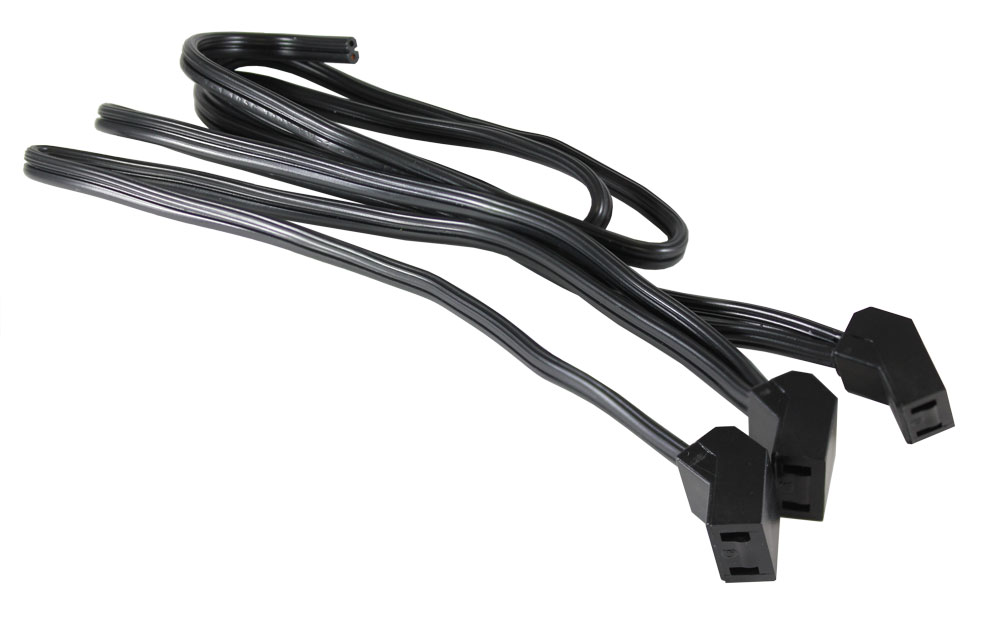

DNFCDC3P

24IN 3X Fan Cord No Plug

Description Daisy Chain
Fan Connector Qty 3-45 degree, 12" apart
115VAC Plug No

$14.28In stock

Buy now

DNFCDC3PG

Daisychain 3 Fans w/ 115V Plug

Description Daisy Chain
Fan Connector Qty 3-45 degree, 12" apart
115VAC Plug Yes

$10.38In stock

Buy now

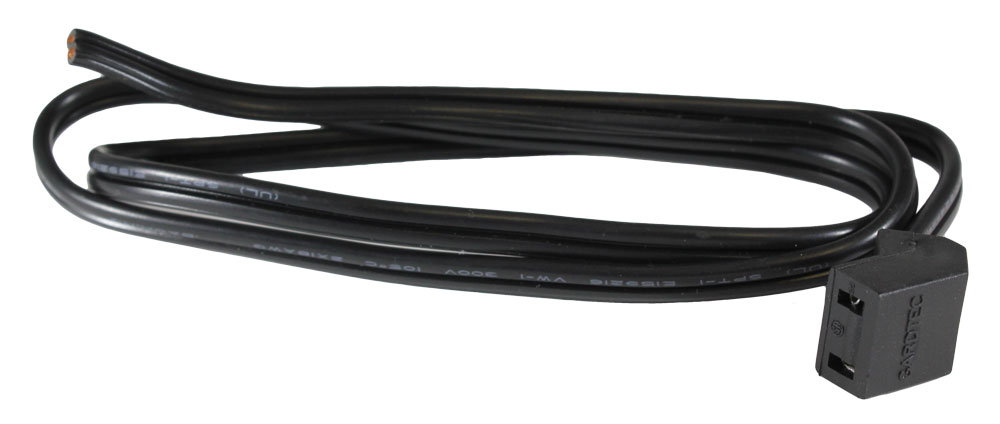

DNMFC

24IN 1X Fan Cord No Plug

Description Single
Fan Connector 45 degree
115VAC Plug No

$5.19In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part Number	Description	Lead Length	Fan Connector	115VAC Plug	Price	Order
DNMFC	Single	24.00	45 degree	No	$5.19In stock	Buy now
DNFC48P	Single	48.00	45 degree	Yes	$8.44In stock	Buy now
DNFC72P	Single	72.00	45 degree	No	$6.49In stock	Buy now
DNFC72PG	Single	72.00	45 degree	Yes	$8.44In stock	Buy now
DNFCDC2P	Daisy Chain	24.00	Qty 2-45 degree, 12" apart	Yes	$9.74In stock	Buy now
DNFCDC3P	Daisy Chain	24.00	Qty 3-45 degree, 12" apart	No	$14.28In stock	Buy now
DNFCDC3PG	Daisy Chain	24.00	Qty 3-45 degree, 12" apart	Yes	$10.38In stock	Buy now

Features

■For wiring of tube axial fans (above)
■Molded female standard fan plug (0.91" x 0.68")
■SPT-1 x 18/2 type wire cord, rated 300V and 105 degrees C
■DNFC48P is the fan cord required for a longer connection wire for DNFK2AC120 and AVFK2AC120 .
■See the tables below for detailed descriptions
