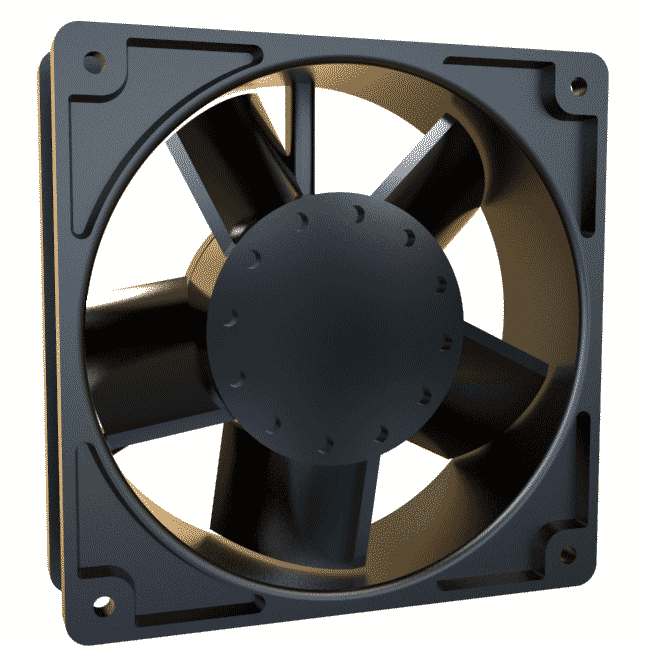

4.7IN Fan 100CFM 115V
- Ratings UR, CSA, CE
$44.13In stock
Buy now
Tube Axial Fans · DNMF Series
Brand: Hammond Manufacturing · 28 part numbers
- ■Ball-bearing fan construction, diecast aluminum body, and metal fan blades.
- ■Choice of either 115 or 230 VAC, 50/60 Hz.
- ■Impedance-protected motor.
- ■Class-B insulated.
- ■Note: FAN150AC230 , FAN10A115 , FAN10A220 that has plastic fan blades.
- ■DNMF100AC , FAN150AC and FAN10A fans have male plug terminations (requires fan cords).
from $6.49
28 of 28 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your DNMF Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online

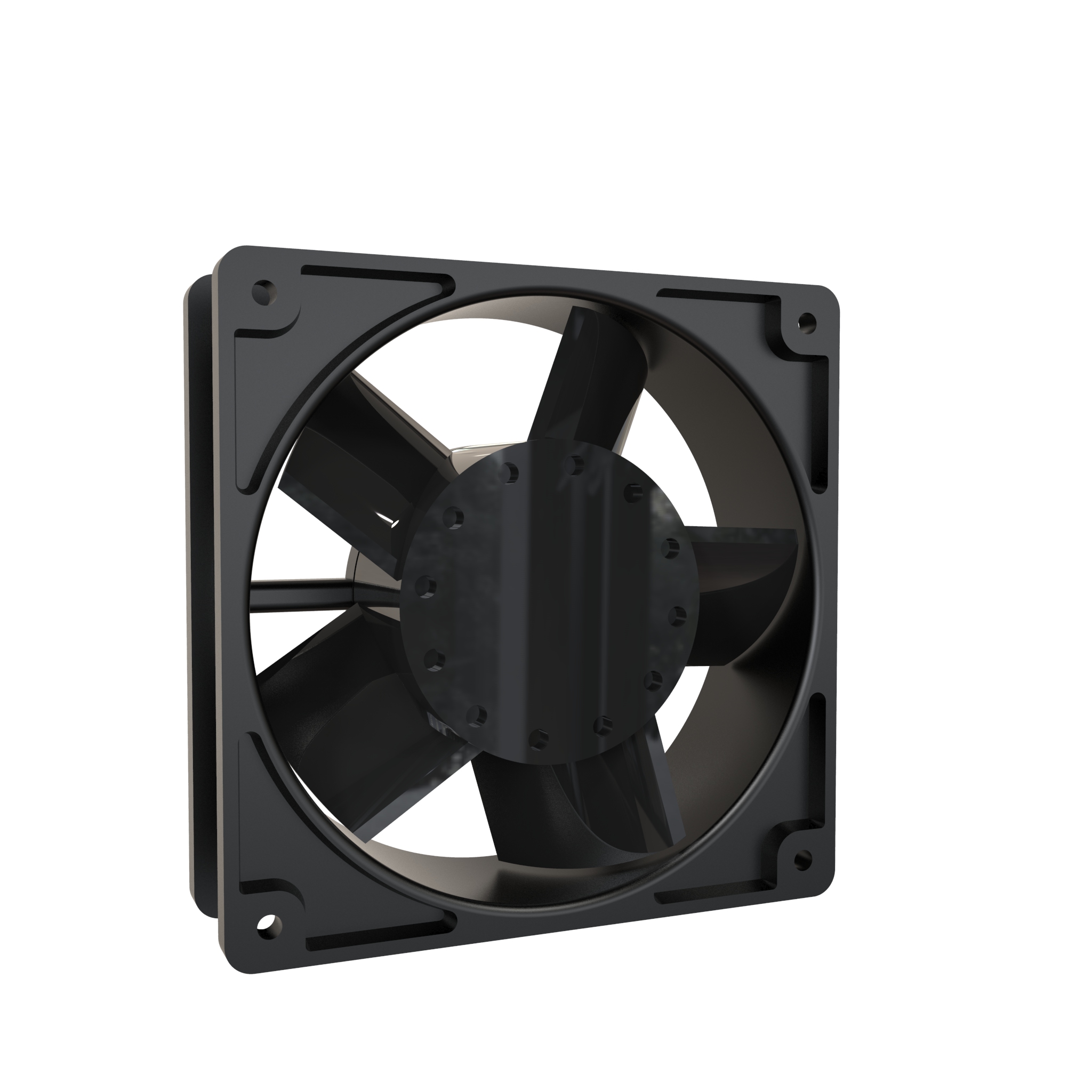

4.7IN Fan 100CFM 230V
- Ratings UR, CSA, CE
$44.13In stock
Buy now

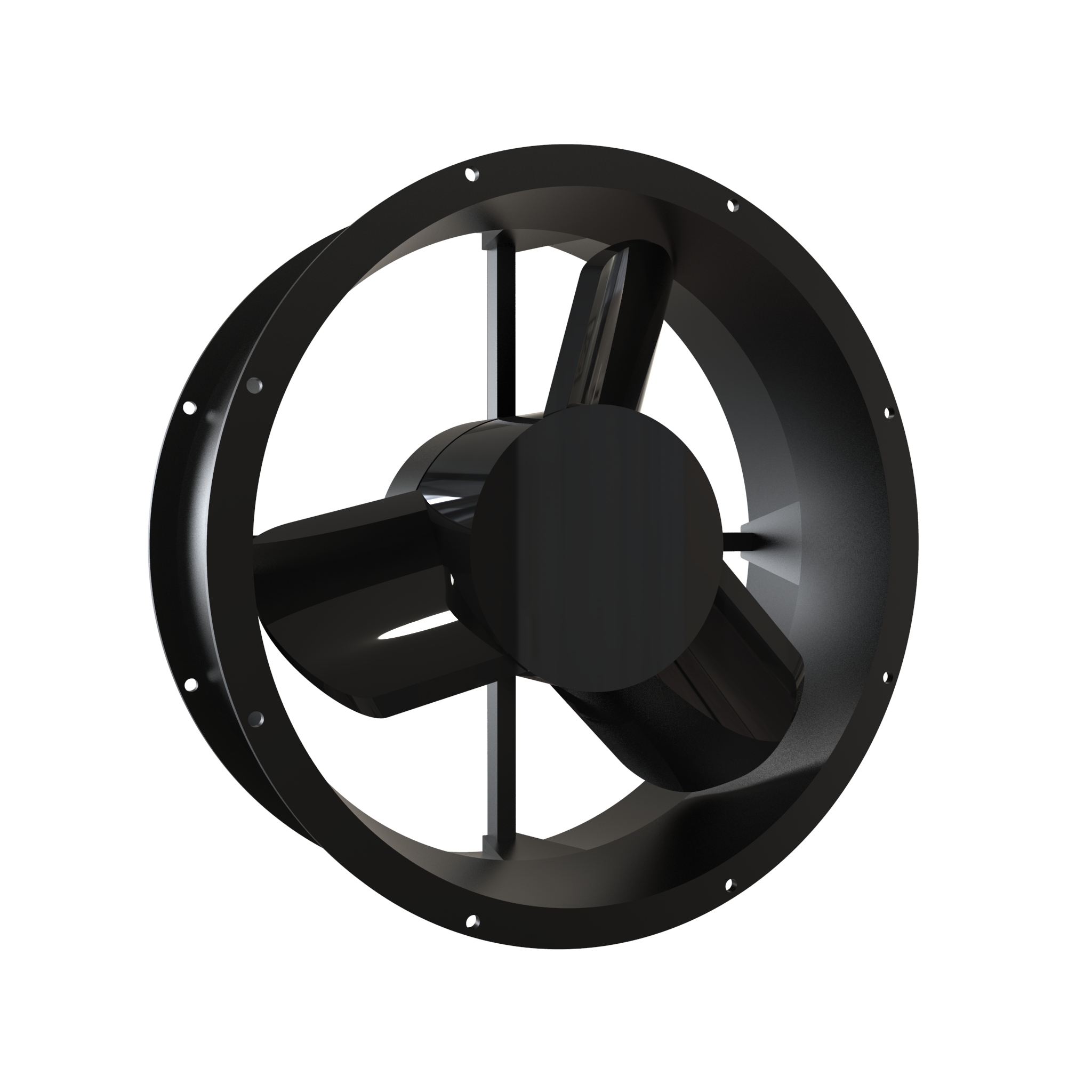

10IN Replacement Fan 115Vac
- Ratings cURus, CE
$134.34In stock
Buy now

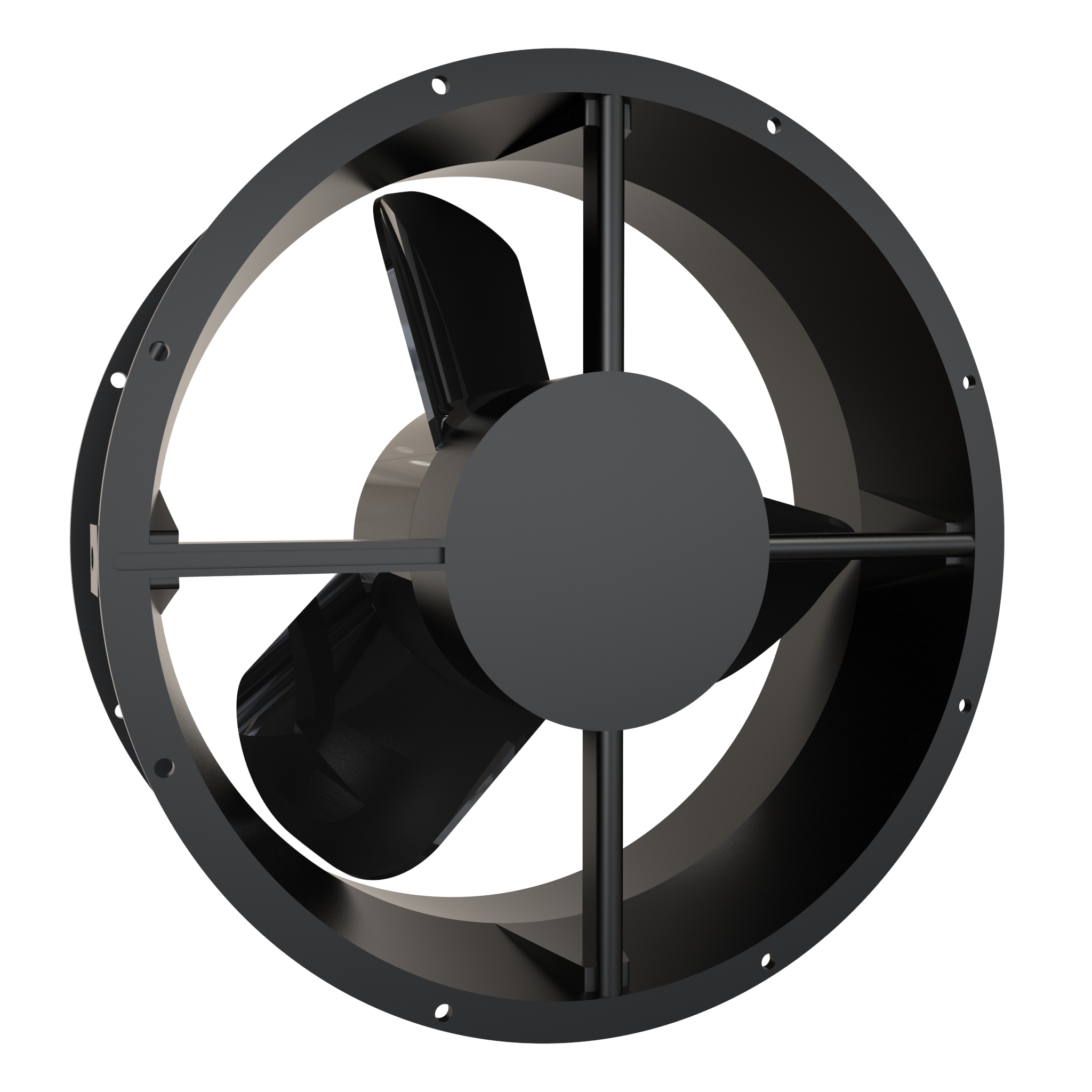

10IN Replacement Fan 220Vac
- Ratings cURus, CE
$134.34In stock
Buy now

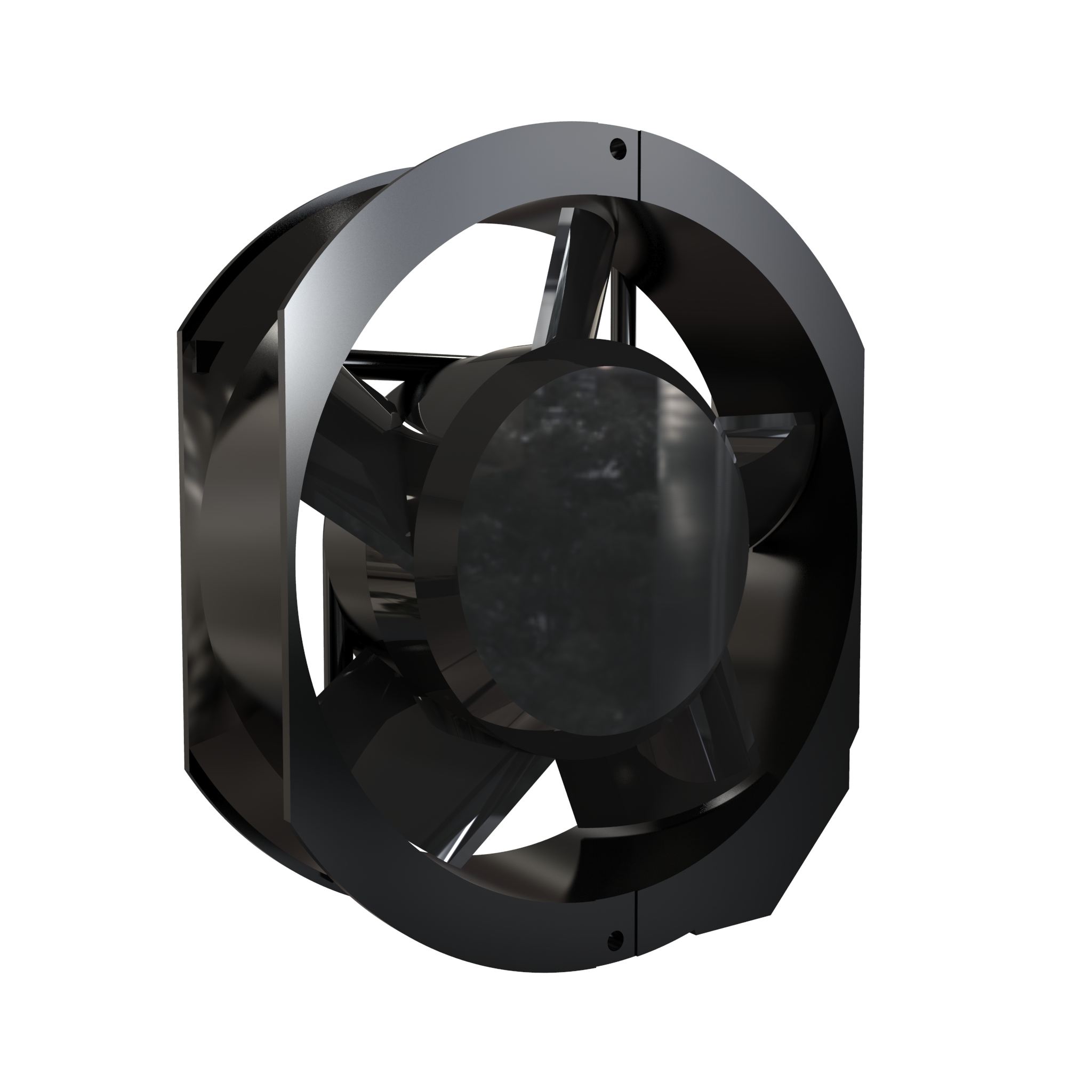

150MM 115V 210 Cfm Fan
- Ratings cURus, TUV, CE
$83.72In stock
Buy now

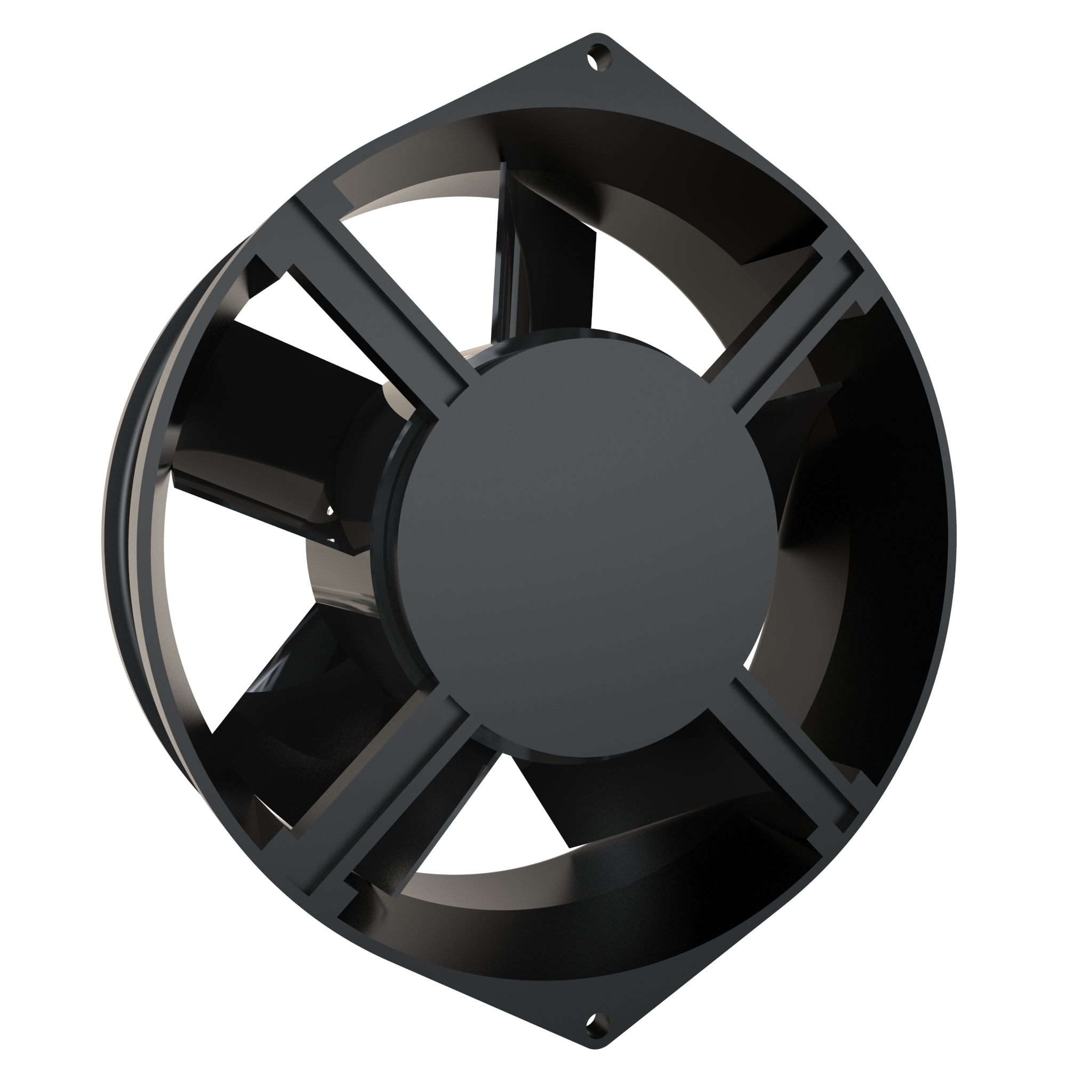

150MM 230V 210 Cfm Fan
- Ratings UR, CSA, CE
$83.72In stock
Buy now

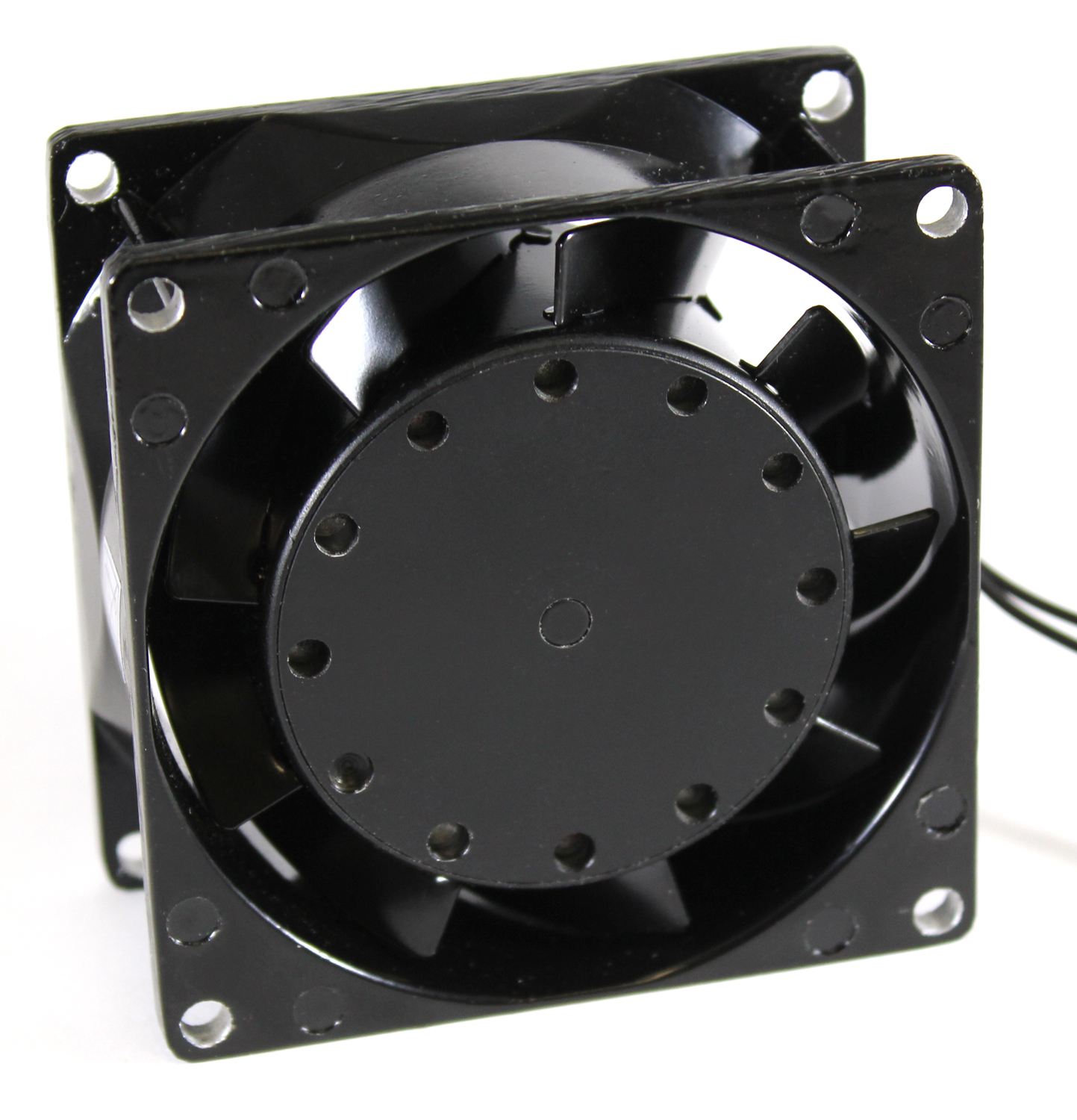

80MM 115V 32 Cfm Fan
- Ratings UR, CSA, CE
$39.52In stock
Buy now

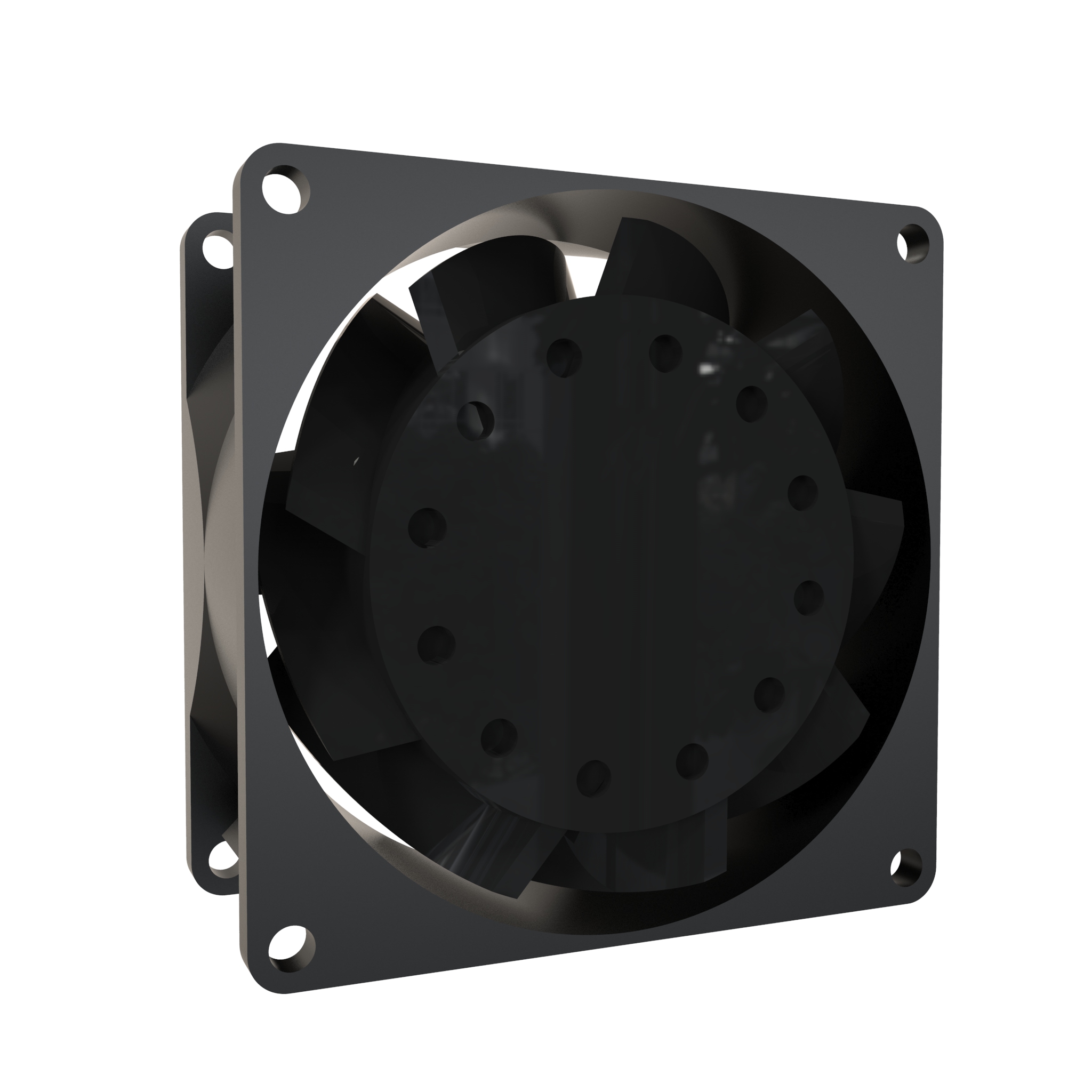

80MM 230V 32 Cfm Fan
- Ratings UR, CSA, CE
$40.24Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 115 VAC | 230 VAC | Overall Dimensions · Height | Overall Dimensions · Width | Overall Dimensions · Depth | CFM | Wattage · 50Hz | Wattage · 60Hz | Speed · (RPM) | Noise (dB) | Ratings | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FAN80AC115 | FAN80AC230 | 3.15 | 3.15 | 1.50 | 32 | 11 | 10 | 3100 | 34 | UR, CSA, CE | $39.52In stockFAN80AC115 | Buy now |

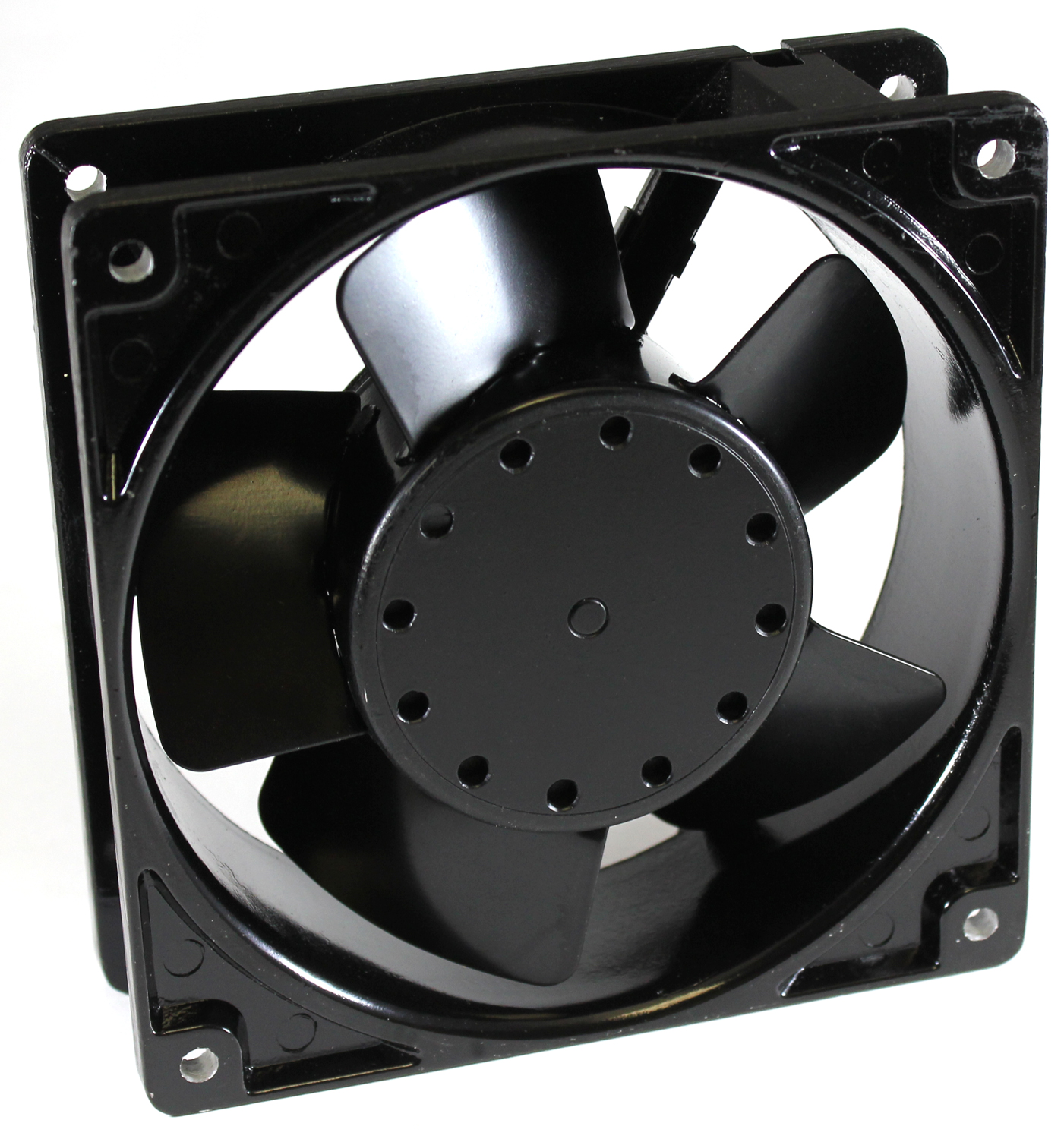

| DNMF100AC115 | DNMF100AC230 | 4.70 | 4.70 | 1.50 | 105 | 24 | 22 | 3000 | 56 | UR, CSA, CE | $44.13In stockDNMF100AC115 | Buy now |
| FAN150AC115 | - | 5.75 | 6.72 | 2.00 | 210 | 27 | 26 | 3100 | 63 | cURus, TUV, CE | $83.72In stock | Buy now |
| - | FAN150AC230 | 5.90 | 6.72 | 2.20 | 230 | 46 | 40 | 3400 | 53 | UR, CSA, CE | $83.72In stock | Buy now |
| FAN10A115 | FAN10A220 | 10.00 | 10.00 | 3.50 | 550 | 30 | 35 | 1650 | 60 | cURus, CE | $134.34In stockFAN10A115 | Buy now |
DNMF Accessories
| 115 VAC | 230 VAC | Use With Fan Guard · Part No. | Use With Filter Grill Part No. · Black | Use With Filter Grill Part No. · Gray/Beige | Use With Filter Grill Part No. · ANSI 61 Gray | Use With Filter Grill Part No. · Light Gray | Price | Order |
|---|---|---|---|---|---|---|---|---|
| FAN80AC115 | FAN80AC230 | FAN80FG | XPFA80BK | XPFA80CG | XPFA80GY | XPFA80LG | $39.52In stockFAN80AC115 | Buy now |
| DNMF100AC115 | DNMF100AC230 | DNFG | XPFA120BK | XPFA120CG | XPFA120GY | XPFA120LG | $44.13In stockDNMF100AC115 | Buy now |
| FAN150AC115 | - | FAN150FG | XPFA150BK | XPFA150CG | XPFA150GY | XPFA150LG | $83.72In stockFAN150AC115 | Buy now |
| - | FAN150AC230 | FAN150FG | XPFA150BK | XPFA150CG | XPFA150GY | XPFA150LG | $83.72In stockFAN150AC230 | Buy now |
| FAN10A115 | FAN10A220 | FAN10FG | XPFA254BK | XPFA254CG | XPFA254GY | XPFA254LG | $134.34In stockFAN10A115 | Buy now |
Features
- ■Ball-bearing fan construction, diecast aluminum body, and metal fan blades.
- ■Choice of either 115 or 230 VAC, 50/60 Hz.
- ■Impedance-protected motor.
- ■Class-B insulated.
- ■Note: FAN150AC230 , FAN10A115 , FAN10A220 that has plastic fan blades.
- ■DNMF100AC , FAN150AC and FAN10A fans have male plug terminations (requires fan cords).
- ■FAN80AC fans have 11" long lead wires.
- ■Includes mounting hardware.
Specifications
Save time and order our cabinet fan tops and/or fan kits:
- ■All fan components are recognized to UL 507
- ■All fan components with the exception of FAN10A115 , FAN10A220 and FAN150AC115 are CSA certified to C22.2 No. 113.
- ■FAN150AC115 is recognized to UL 507 and cUR recognized to C22.2 No.113, and TUV certified to EN60950-1.
- ■Finished in smooth black powder paint.
- ■Cabinet Fan Tops
- ■Fan Kits - Come with all the essential components
- ■Low-Decibel Fan Kits - Quietly cools your equipment
