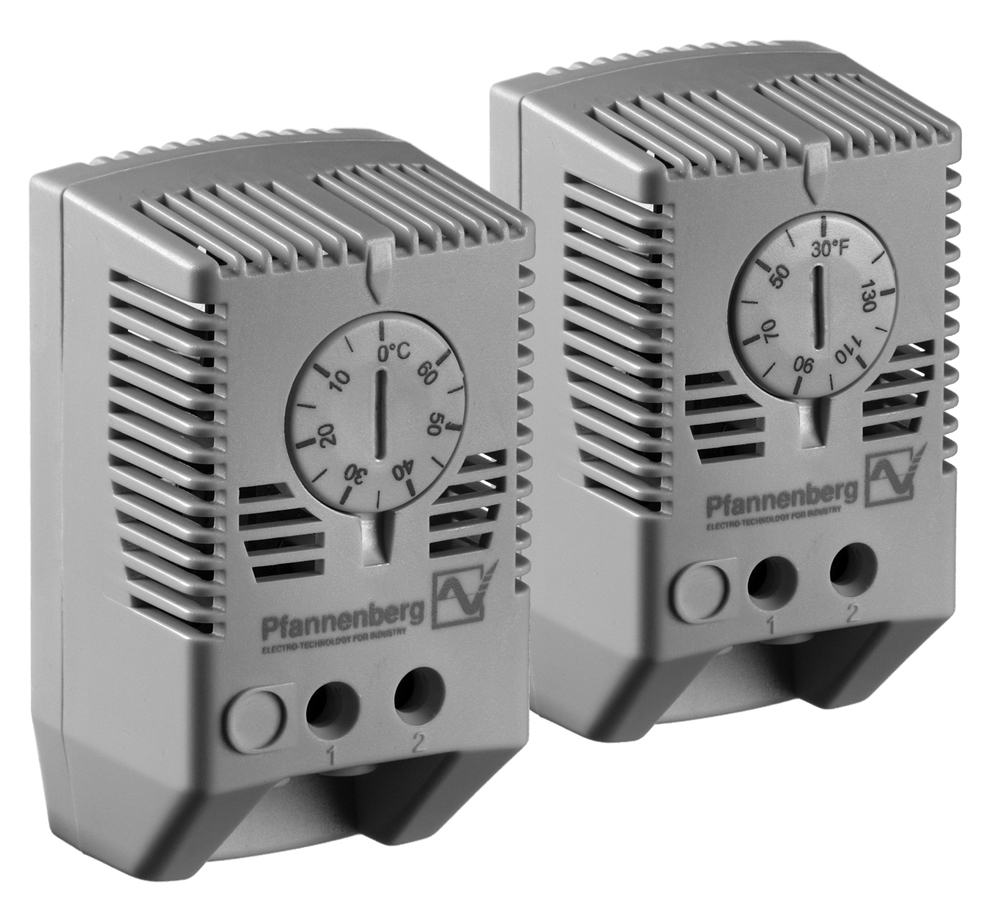

Thermostat 2.41X1.3X1.4"
- Scale F°
- Contact Type Normally Closed
$32.70In stock
Buy now
Thermostats · SKT Series
Brand: Hammond Manufacturing · 4 part numbers
- ■Designed to provide air temperature control and monitoring in cabinets.
- ■Thermostat NC (Normally Closed) for the control of heaters and heater fans.
- ■Thermostat NO (Normally Open) for the control of cooling units, or for switching signal transmitters in case of overheating.
- ■Available in Fahrenheit or Celsius.
- ■Used in conjunction with heaters.
- ■Contact opens when rising temperatures reach the set point temperature, shutting heater off.
from $32.70
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your SKT Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
4 of 4 part numbers · 4 priced online
Dimension tables (inches / mm)
| Part No. | Scale | Contact Type | Dimensions · Height x Width x Depth | Switching Capacity | Price | Order |
|---|---|---|---|---|---|---|
| SKT011409NC | F° | Normally Closed | 2.8 x 1.5 x 1.4 | 15A @ 120VAC, 10A @ 240VAC, 30W @ DC | $32.70In stock | Buy now |
| SKT011409NC-C | C° | Normally Closed | 2.8 x 1.5 x 1.4 | 15A @ 120VAC, 10A @ 240VAC, 30W @ DC | $32.70In stock | Buy now |
| SKT011419NO | F° | Normally Open | 2.8 x 1.5 x 1.4 | 15A @ 120VAC, 10A @ 240VAC, 30W @ DC | $32.70In stock | Buy now |
| SKT011419NO-C | C° | Normally Open | 2.8 x 1.5 x 1.4 | 15A @ 120VAC, 10A @ 240VAC, 30W @ DC | $32.70In stock | Buy now |
| col1 | col2 | Price | Order |
|---|---|---|---|
| Sensor Element: | Thermostatic bi-metal | Quote | Quote |
| Switching difference (hysteresis): | + or - 4°F (+or- 3°K) | Quote | Quote |
| Adjustment Range: | 30 - 140°F / 0 - 60°C | Quote | Quote |
| Noise Suppression: | N (according to VDE 0875) | Quote | Quote |
| Connection: | 2 pole terminal for AWG 14 (2.5 mm²) | Quote | Quote |

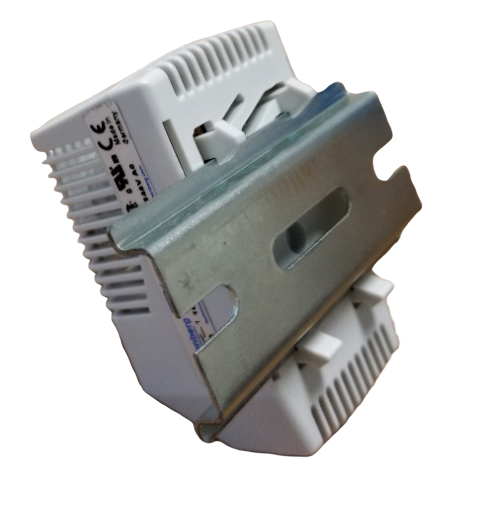

| Mounting: | Easily installed by clip mounting on 35 or 38mm DIN rail (included) | Quote | Quote |
| Housing: | Flame retardant plastic UL94VO | Quote | Quote |
| Color: | Gray (SB) | Quote | Quote |
| Protection: | IP20 | Quote | Quote |
| Approval: | UL Recognized Component, cUL Recognized Component, CE | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Features
- ■Designed to provide air temperature control and monitoring in cabinets.
- ■Thermostat NC (Normally Closed) for the control of heaters and heater fans.
- ■Thermostat NO (Normally Open) for the control of cooling units, or for switching signal transmitters in case of overheating.
- ■Available in Fahrenheit or Celsius.
NC - Normally Closed (Red)
- ■Used in conjunction with heaters.
- ■Contact opens when rising temperatures reach the set point temperature, shutting heater off.
NO - Normally open (Blue)
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
- ■Used in conjunction with fans.
- ■Contact closes when rising temperatures reach the set point temperature, turning fan on.
Documents
Additional information
Part Details
| Part No. | Scale | Contact Type | Dimensions · Height x Width x Depth | Switching Capacity |
|---|---|---|---|---|
| SKT011409NC | F° | Normally Closed | 2.8 x 1.5 x 1.4 | 15A @ 120VAC, 10A @ 240VAC, 30W @ DC |
| SKT011409NC-C | C° | Normally Closed | 2.8 x 1.5 x 1.4 | 15A @ 120VAC, 10A @ 240VAC, 30W @ DC |
| SKT011419NO | F° | Normally Open | 2.8 x 1.5 x 1.4 | 15A @ 120VAC, 10A @ 240VAC, 30W @ DC |
| SKT011419NO-C | C° | Normally Open | 2.8 x 1.5 x 1.4 | 15A @ 120VAC, 10A @ 240VAC, 30W @ DC |
Part Details
| col1 | col2 |
|---|---|
| Sensor Element: | Thermostatic bi-metal |
| Switching difference (hysteresis): | + or - 4°F (+or- 3°K) |
| Adjustment Range: | 30 - 140°F / 0 - 60°C |
| Noise Suppression: | N (according to VDE 0875) |
| Connection: | 2 pole terminal for AWG 14 (2.5 mm²) |
| Mounting: | Easily installed by clip mounting on 35 or 38mm DIN rail (included) |
| Housing: | Flame retardant plastic UL94VO |
| Color: | Gray (SB) |
| Protection: | IP20 |
| Approval: | UL Recognized Component, cUL Recognized Component, CE |
