Hammond H1TB30WH 30in Brushed Cable Entry Top Panel, White

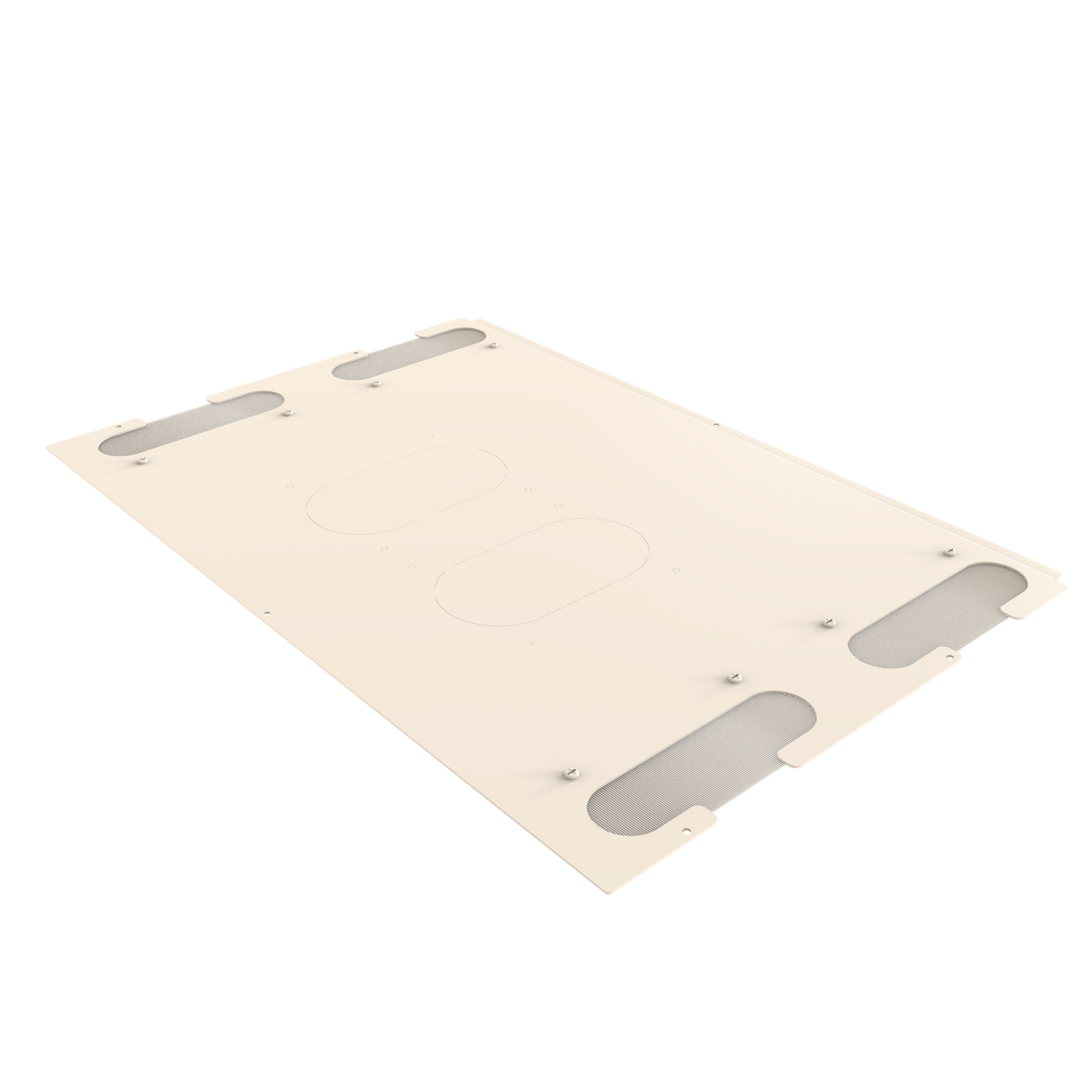

The H1TB30WH is a white brushed cable entry top panel for Hammond H1 Series server rack cabinets built on the 30 in and 31.5 in wide frames. It gives data center, enterprise IT and network teams a dedicated overhead cable pathway so copper and fiber bundles can drop into the cabinet from ladder rack or basket tray without leaving an open hole in the top of the enclosure.

The panel is made from mild steel with a white (RAL9003) textured powder coat finish to match H1 cabinet frames and doors. Cable openings consist of four 2.25 x 7.50 inch brushed side cable entries plus two 4.00 x 7.00 inch center knockout cable entries, so you can open only the pathways a given deployment needs. Eight 0.22 in (6 mm) knockouts and six additional 0.22 in (6 mm) holes are provided in the panel.

Overall panel dimensions are 19.82 in (504 mm) by 29.50 in (749 mm), with a 28.44 in (722 mm) reference dimension and a 0.25 in (6 mm) flange detail. Shipping weight is 13.5 lbs (6.12 kg). Mounting hardware is included per the part drawing, and H1 top panels are interchangeable, so H1TB30WH can be swapped with a solid or fan top panel as airflow and routing requirements change.

Every H1 cabinet assembly ships with one solid and one brushed cable entry top panel; H1TB30WH is the individual white brushed panel for replacement, spares, or for converting a cabinet that is currently fitted with a solid top. The part is listed under UL file E474597, is RoHS and REACH compliant, USMCA compliant, TAA-compliant and made in Canada.
