Hammond H1SP48U48BK 48U Solid Split Side Panel for Server Cabinet
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid side panel for 48U H1 Series cabinets with 48 in depth designation; covers one side of the cabinet
- Split two-piece design with support bar for easier handling and installation on tall 48U cabinets
- Four locking side panel latches support controlled access and tool-free removal for servicing
- Mild steel construction in RAL9005 black textured powder coat; GREENGUARD, TSCA and RoHS compliant finish
- Mounting hardware included, plus two 10-32 studs per the part drawing
- Specified for H12448U48, H13048U48 and H13148U48 cabinets (24 in, 30 in and 31.5 in widths)
- Part of the UL2416 listed H1 platform (3,000 lb rack load rating), TAA-compliant and made in North America
- Shipping weight 63 lbs (28.58 kg); white version available as H1SP48U48WH
H1SP48U48BK is a 48U solid side panel for H1 Series server rack cabinets with a 48 in depth designation, finished in RAL9005 black. H1 Series cabinets ship without side panels, so this part is ordered separately by data center, enterprise IT, network and integration teams that need to close in a cabinet for airflow separation, security and a finished appearance. Each part number covers one (1) side of the cabinet, so two are required to panel both sides.
The panel is built from mild steel and supplied as a split assembly: two (2) H1 split side panels, one (1) H1 support bar and four (4) H1 locking side panel latches, with mounting hardware included. Splitting the panel into upper and lower sections makes handling and installation on a tall 48U cabinet more manageable for one or two installers, while the support bar ties the sections together. The locking latches provide tool-free removal for service access and controlled access once locked.
According to the H1 cabinet assembly table, H1SP48U48BK is the black single side panel specified for the 48U cabinets with 49.91 in (1268 mm) overall depth: H12448U48BK, H13048U48BK and H13148U48BK, and their white counterparts H12448U48WH, H13048U48WH and H13148U48WH. Those cabinets stand 90.87 in (2308 mm) tall with 84.00 in (2134 mm) of usable mounting height and 45.00 in (1143 mm) of usable mounting depth. The matching white panel is H1SP48U48WH.
The H1 platform is a UL2416 listed rack (3,000 lb load rating), seismic rated to 1,200 lb dynamic load to IBC, CBC, NBC and ASCE standards, meets PCI DSS, and is TAA-compliant and manufactured in North America. The black or white powder coat finish is GREENGUARD, TSCA and RoHS compliant. Shipping weight of H1SP48U48BK is 63 lbs (28.58 kg).
Ideal For
- Closing in 48U H1 cabinets in data centers and enterprise IT rooms
- Airflow separation for high-density server and storage deployments
- Security and controlled access for network infrastructure cabinets
- Colocation and cloud environments requiring enclosed cabinets
- Installations where structural certification and compliance are required
Overview
| Series | H1 Series High-Performance Server Rack Cabinet |
| Rack Units | 48U |
| Part Number | H1SP48U48BK |
| Product Type | Rack cabinet side panel (solid) |
| Long Description | 48U 48D Solid Side Panel for H1 Cabinet (Black) |
| Quantity Covered | One (1) single side panel |
| Depth Designation | 48D (for cabinets with 49.91 in / 1268 mm overall depth) |
| Short Description | 48U 48D BLACK H1 SIDE PANEL |
| Matching White Part Number | H1SP48U48WH |
Dimensions
| Side Panel Width (Drawing) | 38.38 in (975 mm) |
| Support Bar Width (Drawing) | 4.23 in (107 mm) |
| Support Bar Length (Drawing) | 38.50 in (978 mm) |
| Support Bar Secondary Length (Drawing) | 36.45 in (926 mm) |
| Side Panel Height, Each Section (Drawing) | 40.46 in (1028 mm) |
| Side Panel Section Thickness/Return (Drawing) | 0.72 in (18 mm) |
Identifiers
| UPC | 623980802626 |
| ECCN | EAR99 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980802626 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398080262 |
Compatibility
| Cabinet Overall Depth | 49.91 in (1268 mm) |
| Cabinet Overall Height | 90.87 in (2308 mm) |
| Cabinet Widths Supported | 24.00 in (610 mm), 30.00 in (762 mm), 31.50 in (800 mm) |
| Cabinet Usable Mounting Depth | 45.00 in (1143 mm) |
| Cabinet Usable Mounting Height | 84.00 in (2134 mm) |
| Compatible Black Cabinets (48U, 48D) | H12448U48BK, H13048U48BK, H13148U48BK |
| Compatible White Cabinets (48U, 48D) | H12448U48WH, H13048U48WH, H13148U48WH |
Included Components
| Studs | 10-32 stud (x2) |
| H1 Support Bar | Quantity 1 |
| Mounting Hardware | Included |
| H1 Split Side Panel | Quantity 2 |
| H1 Side Panel Latch - Locking | Quantity 4 |
Packaging & Shipping
| Shipping Weight | 63 lbs (28.58 kg) |
Construction & Finish
| Color | RAL9005 Black |
| Finish | Painted black textured powder coat |
| Material | Mild Steel |
Compliance & Certifications
| Standards | cULus, PCI, Zone 4, TAA-compliant |
| UL File # | E474597 |
| Rack Listing | UL2416 listed rack (3,000 lb / 1,360 kg load rating) |
| RoHS Compliant | Yes |
| Seismic Rating | 1,200 lb dynamic load (IBC, CBC, NBC, ASCE standards) |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant powder coat |
| Security Standard | Meets PCI DSS (Payment Card Industry Data Security Standard) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does H1SP48U48BK cover both sides of the cabinet?▾
No. The part number is for one (1) single side panel. Order two if you need to panel both sides of the cabinet.
Which H1 cabinets does this side panel fit?▾
The series ordering table lists H1SP48U48BK as the black single side panel for the 48U cabinets with 49.91 in (1268 mm) overall depth: H12448U48BK/WH, H13048U48BK/WH and H13148U48BK/WH, covering 24 in, 30 in and 31.5 in cabinet widths.
What is included with the panel?▾
Per the part drawing, the assembly includes two (2) H1 split side panels, one (1) H1 support bar and four (4) H1 locking side panel latches, plus mounting hardware and two 10-32 studs.
Are side panels supplied with an H1 cabinet?▾
No. The H1 Series notes state that cabinet side panels are not included with the cabinet and are sold separately, which is why H1SP48U48BK is ordered as a separate item.
Is there a white version of this panel?▾
Yes. H1SP48U48WH is the RAL9003 white equivalent; H1SP48U48BK is finished in RAL9005 black textured powder coat.
Is the panel solid or vented?▾
It is a solid side panel. Airflow on H1 cabinets is provided by the perforated front and split rear doors (79% open area) and by the interchangeable top panels.
What compliance information applies to this panel?▾
It is part of the UL2416 listed H1 platform (3,000 lb load rating, UL file E474597), seismic rated to 1,200 lb dynamic load per IBC, CBC, NBC and ASCE, meets PCI DSS, is TAA-compliant and is RoHS and REACH compliant.
Related Products
Save 35%H1SP48U42WH — 48U 42D Solid Side Panel for H1 Cabinet (White)
Hammond Manufacturing · H1SP48U42WH
Save 35%H1SP48U48WH — 48U 48D Solid Side Panel for H1 Cabinet (White)
Hammond Manufacturing · H1SP48U48WH

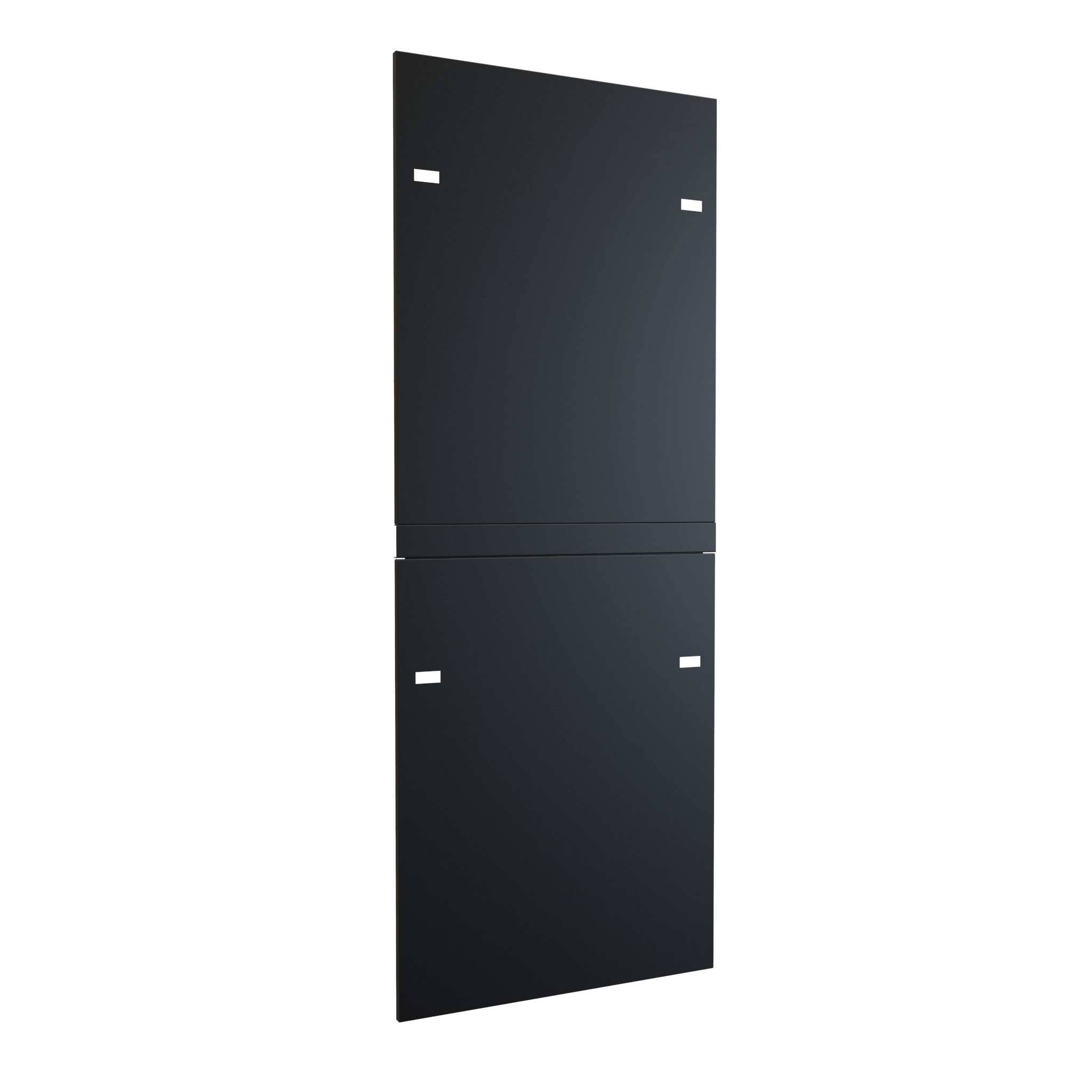

Save 35%H1SP48U42BK — 48U 42D Solid Side Panel for H1 Cabinet (Black)
