Hammond H1TC30BK 30W Black Fan and Chimney Cabinet Top Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fan top panel for H1 cabinets that fits any C2T1923** fan assembly (suggested accessory C2T1923F4TLG1)
- Also serves as the top panel for the CLCH202215BK thermal air chimney, sold separately
- Sized for 30 in and 31.5 in wide H1 Series cabinet frames
- Interchangeable with the solid and brushed cable-entry H1 top panels for airflow reconfiguration
- Mild steel construction with black textured painted finish (RAL9005 black family)
- Overall size 29.50 in x 19.82 in (749 mm x 504 mm) with a 14.00 in x 11.37 in opening
- Four 0.375 in knockouts and twelve 0.22 in (6 mm) mounting holes; mounting hardware included
- TAA-compliant and USMCA compliant, made in Canada; RoHS and REACH compliant

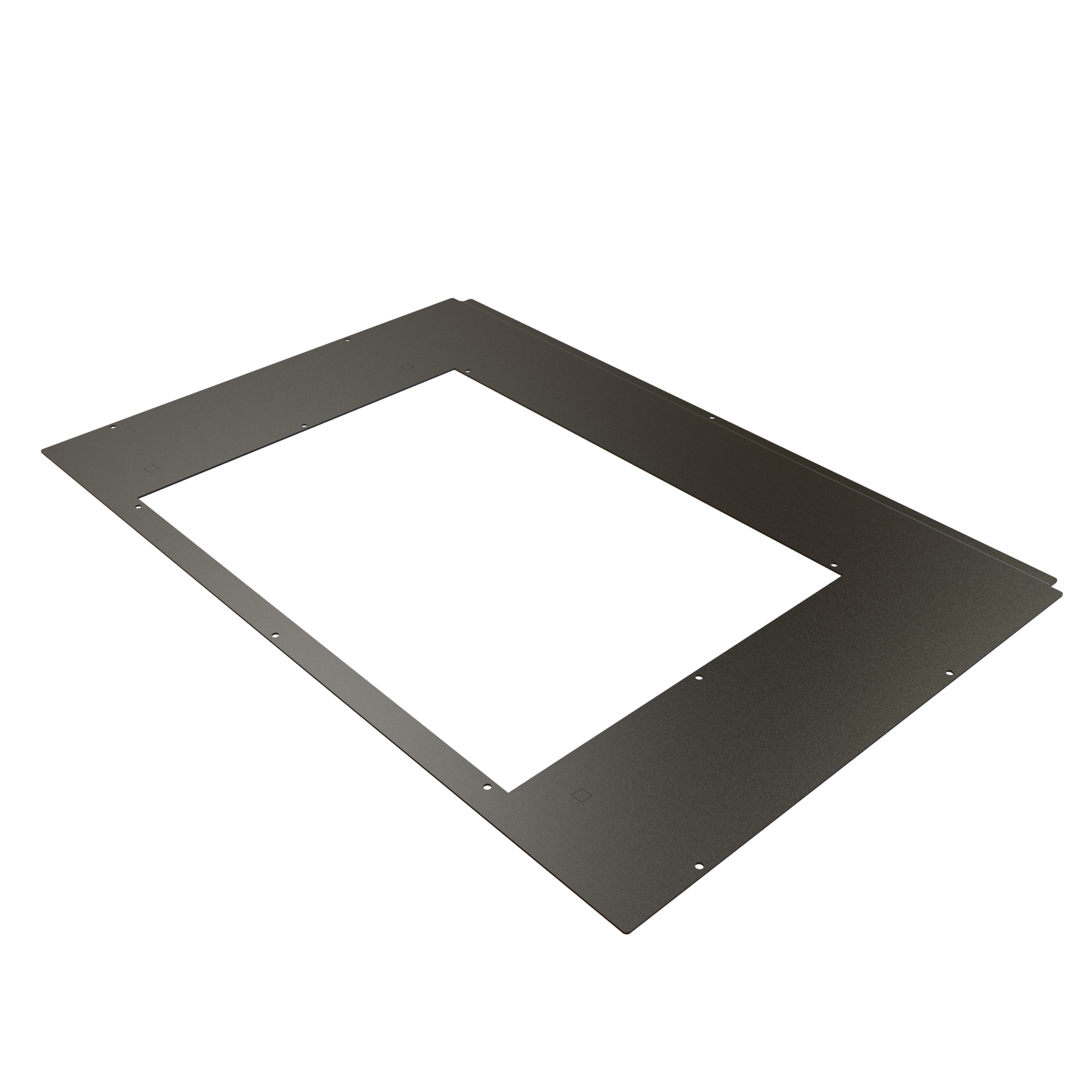

H1TC30BK is a black textured powder coat top panel for Hammond H1 Series server rack cabinets built on the 30 in and 31.5 in wide frames. It is the airflow-management version of the interchangeable H1 top panel: the same panel is listed as a fan top that fits any C2T1923** fan assembly and as the top panel used with the CLCH202215BK thermal air chimney (chimney sold separately). That makes it the panel to specify when a data center, network or enterprise IT cabinet needs powered top exhaust or ducted hot-air return rather than a solid or brushed cable-entry top.

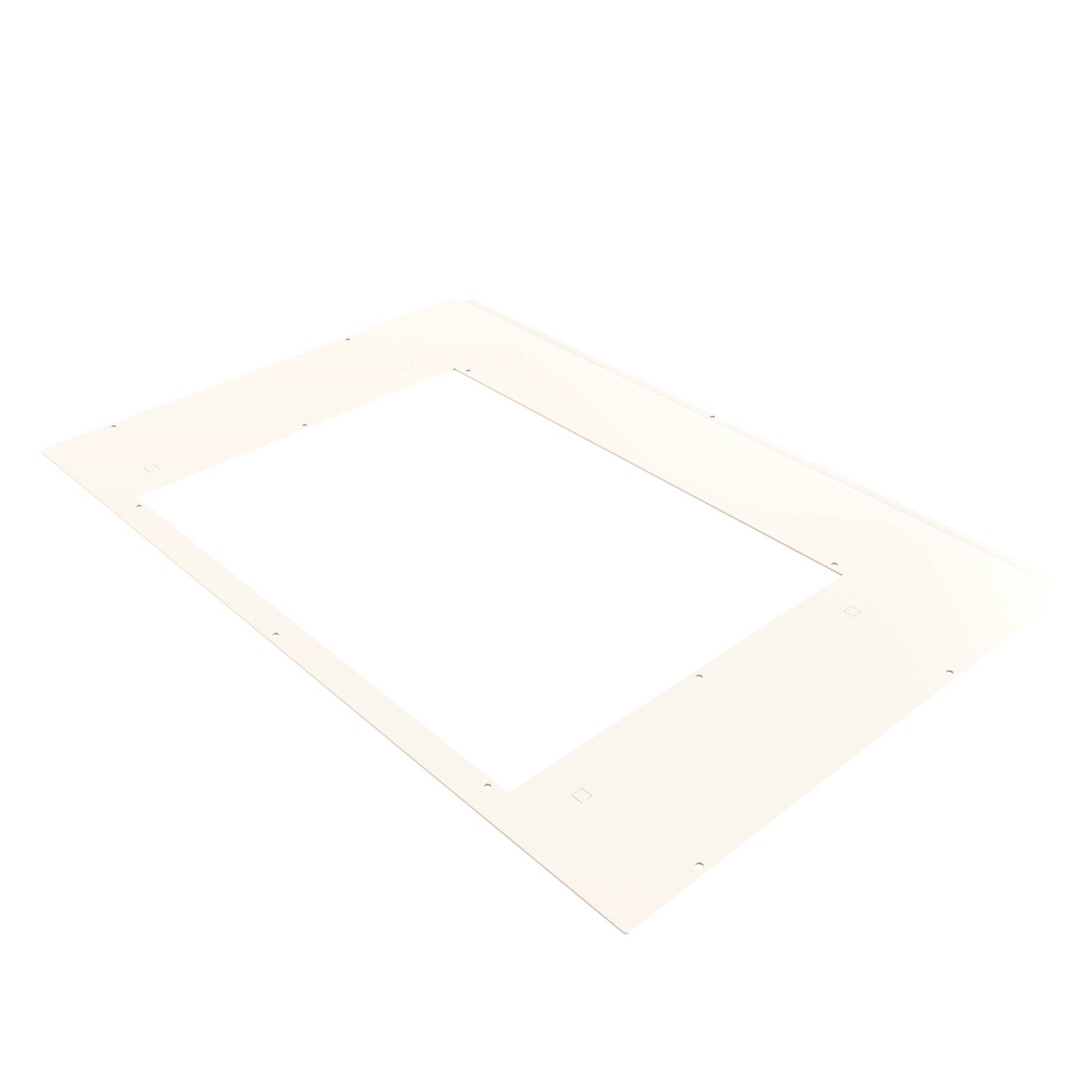

The panel is fabricated from mild steel to match the H1 cabinet platform and is finished in RAL9005 black; a white equivalent (H1TC30WH) is offered for white cabinets. Mounting hardware is included, and the panel installs in place of the solid or brushed top panels supplied with H1 cabinet assemblies, so an existing cabinet can be reconfigured for fan or chimney cooling without changing the frame.
Overall panel dimensions are 29.50 in (749 mm) by 19.82 in (504 mm), with a 28.44 in (722 mm) by 19.06 in (484 mm) footprint reference and a central opening pattern measuring 14.00 in (356 mm) by 11.37 in (289 mm). Four 0.375 in knockouts and twelve 0.22 in (6 mm) mounting holes are provided. Shipping weight is 8 lbs (3.63 kg).
H1TC30BK is manufactured in Canada, is USMCA compliant and TAA-compliant, and is RoHS and REACH compliant. The H1 platform it belongs to carries cULus, PCI and seismic zone 4 standards references under UL file number E474597.
Ideal For
- Data center and enterprise IT cabinet cooling
- Fan-assisted top exhaust on high-density server cabinets
- Ducted hot-air return using a thermal air chimney
- Airflow and thermal management retrofits on existing H1 cabinets
- Network and storage deployments with active equipment requiring cooling
Overview
| Series | H1 Series High-Performance Server Rack Cabinet |
| Part Number | H1TC30BK |
| Product Type | Rack cabinet top panel (fan top / thermal air chimney top) |
| Short Description | 30W BLK H1 AIR CHIMNEY TOP |
| Suggested Accessories | C2T1923F4TLG1 (fan assembly); CLCH202215BK (thermal air chimney) |
| Use With Cabinet Width | 30, 31.5 in |
| White Equivalent Part No. | H1TC30WH |
| Description (Series Table) | Fan Top (fits any C2T1923**); Top Panel for Thermal air chimney (sold separately) |
Dimensions
| Opening Width | 11.37 in (289 mm) |
| Overall Width | 19.82 in (504 mm) |
| Opening Length | 14.00 in (356 mm) |
| Overall Length | 29.50 in (749 mm) |
| Body Width Reference | 19.06 in (484 mm) |
| Body Length Reference | 28.44 in (722 mm) |
| Flange / Edge Dimension | 0.25 in (6 mm) |
| Material Thickness (Drawing) | 0.07 in (2 mm) |
Identifiers
| ECCN | EAR99 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980802770 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC (With Check Digit) | 623980802770 |
| UPC (Without Check Digit) | 62398080277 |
Packaging & Shipping
| Shipping Weight | 8 lbs (3.63 kg) |
Construction & Finish
| Finish | Painted black texture |
| Hardware | Mounting hardware included |
| Material | Mild Steel |
Compliance & Certifications
| Standards | cULus, PCI, Zone 4 (seismic), TAA-compliant |
| UL File # | E474597 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which H1 cabinets does H1TC30BK fit?▾
It is listed for use with H1 Series cabinets in the 30 in and 31.5 in widths. The 24 in wide equivalent is a separate part number.
Does H1TC30BK include a fan assembly or the chimney?▾
No. The panel is the top plate only. It fits any C2T1923** fan assembly (C2T1923F4TLG1 is the suggested accessory) and serves as the top panel for the CLCH202215BK thermal air chimney, which is sold separately.
Is mounting hardware supplied?▾
Yes. The drawing for H1TC30BK notes that mounting hardware is included. The panel has twelve 0.22 in (6 mm) mounting holes and four 0.375 in knockouts.
Can I retrofit this panel onto an H1 cabinet already in service?▾
H1 cabinet assemblies ship with one solid and one brushed cable-entry top panel that are interchangeable, so H1TC30BK can replace the installed top panel to convert the cabinet to fan or chimney cooling.
What are the overall dimensions and weight?▾
The panel measures 29.50 in (749 mm) by 19.82 in (504 mm) overall with a 14.00 in (356 mm) by 11.37 in (289 mm) opening, and the shipping weight is 8 lbs (3.63 kg).
Is there a white version?▾
Yes. H1TC30WH is the white version of the same 30 in / 31.5 in panel.
